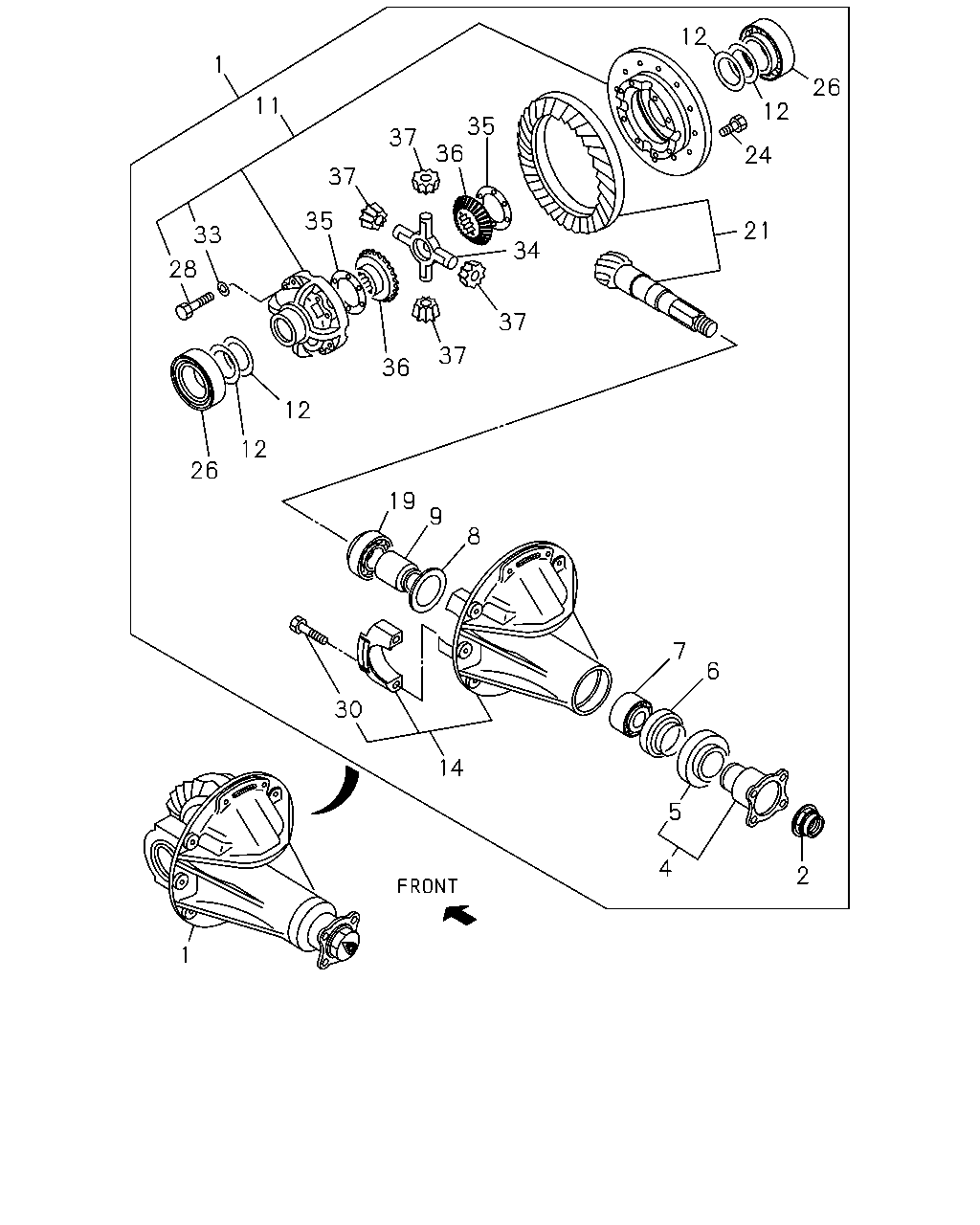

4-15 — FRONT FINAL DRIVE (#53624) — 45 parça

12 1 26 11 12 35 36 37 24 37 35 21 33 34 28 37 37 36 12 12 26 19 9 8 7 6 30 14 5 4 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 39/7(GV1) 39/7	8-97330-386-0	01	1	0804-	●
1	05.505 DRIVE ASM; FINAL,FRT 41/8	8-97377-818-0	01	1	0710-0803	●	●
1	05.505 DRIVE ASM; FINAL,FRT FINAL GEAR RATIO 41/8(RU1) 41/8	8-97377-818-0	01	1	0804-	●
1	05.505 DRIVE ASM; FINAL,FRT 41/8	8-97377-818-0	01	1	0804-		●
2	05.595 NUT; FINAL DRIVE PINION M24 FLANGE	8-94376-261-1	01	1	0710-	●	●
4	05.545 COUPLING; FINAL DRIVE PINION	8-97303-538-0	01	1	0710-	●	●
5	05.545 COVER; DUST,PINION,FINAL DRIVE	8-94317-615-0	01	1	0710-	●	●
6	05.469 SEAL; OIL,FINAL PINION NOK	8-97328-648-0	01	1	0710-	●	●
7	05.447 BEARING; PINION,OUTER 05.484 NSK	9-00093-078-0	01	1	0710-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 05.586 OD=89.5 T=2.12	9-41219-608-0	01	1	0710-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 05.586 OD=89.5 T=2.16	9-41219-610-0	01	1	0710-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 05.586 OD=89.5 T=2.20	9-41219-612-0	01	1	0710-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 05.586 OD=89.5 T=2.24	9-41219-614-0	01	1	0710-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 05.586 OD=89.5 T=2.28	9-41219-616-0	01	1	0710-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 05.586 OD=89.5 T=2.32	9-41219-618-0	01	1	0710-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 05.586 OD=89.5 T=2.36	9-41219-620-0	01	1	0710-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 05.586 OD=89.5 T=2.40	9-41219-622-0	01	1	0710-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 05.586 OD=89.5 T=2.44	9-41219-624-0	01	1	0710-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 05.586 OD=89.5 T=2.48	9-41219-626-0	01	1	0710-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 05.586 OD=89.5 T=2.52	9-41219-628-0	01	1	0710-	●	●
8	05.460 SHIM; PINION,FINAL DRIVE 05.586 OD=89.5 T=2.56	9-41219-630-0	01	1	0710-	●	●
9	05.453 COLLAR; DIST,PINION L=53.35	9-41219-634-1	01	1	0710-	●	●
11	05.453 CAGE; FINAL PINION 05.510	9-41510-610-0	01	1	0710-	●	●
12	05.537 SHIM; FINAL PINION CAGE T=0.50	9-41519-009-0	AR	1	0710-	●	●
12	05.537 SHIM; FINAL PINION CAGE T=0.25	9-41519-010-0	AR	1	0710-	●	●
12	05.537 SHIM; FINAL PINION CAGE T=0.30	9-41519-601-0	AR	1	0710-	●	●
12	05.537 SHIM; FINAL PINION CAGE T=0.35	9-41519-602-0	AR	1	0710-	●	●
14	05.505 CARRIER ASM; FINAL DRIVE,FRT AXL	8-97078-083-2	01	1	0710-	●	●
19	05.484 BEARING; PINION,INNER 05.447 JTEKT	9-00093-079-1	01	1	0710-	●	●
21	05.529 GEAR SET; FINAL DRIVE,FRT FINAL GEAR RATIO 39/7(GV1) 39/7	8-97035-433-0	01	1	0804-	●
21	05.529 GEAR SET; FINAL DRIVE,FRT 41/8	8-97076-962-0	01	1	0710-0803	●	●
21	05.529 GEAR SET; FINAL DRIVE,FRT FINAL GEAR RATIO 41/8(RU1) 41/8	8-97076-962-0	01	1	0804-	●
21	05.529 GEAR SET; FINAL DRIVE,FRT 41/8	8-97076-962-0	01	1	0804-		●
24	05.650 BOLT; FINAL DRIVE GEAR 05.531 M12X25	9-09606-505-2	12	1	0710-	●	●
26	05.536 BEARING; DIFF CAGE JTEKT	8-98003-043-0	02	1	0710-	●	●
26	05.536 BEARING; DIFF CAGE NSK	9-00032-211-0	02	1	0710-	●	●
28	05.650 BOLT; DIFF CAGE SETTING M12X58	8-97314-497-0	08	1	0710-	●	●
30	05.506 BOLT; DIFF CAGE SETTING 05.387 M14X80	8-94365-377-3	04	1	0710-	●	●
33	04.634 WASHER; LK,DIFF CAGE 00.002 ID=12.2	0-91510-612-0	08	1	0710-	●	●
34	05.520 PIN; CROSS,DIFF PINION 05.517	9-41521-611-0	01	1	0710-	●	●
35	05.543 WASHER; THRUST,SIDE GEAR T=1.00	9-41562-602-0	02	1	0710-	●	●
36	05.528 GEAR; SIDE,DIFF Z=18	8-97226-764-0	02	1	0710-1105	●	●
36	05.528 GEAR; SIDE,DIFF Z=18	8-98190-383-1	02	1	1106-	●	●
37	05.527 GEAR; PINION DIFF 05.526 Z=10	8-97226-762-0	04	1	0710-1105	●	●
37	05.527 GEAR; PINION DIFF 05.526 Z=10	8-98186-829-0	04	1	1106-	●	●
