◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85A - POWER TAKE OFF CONTROL ▶
2-85A — POWER TAKE OFF CONTROL (#5362) — 41 parça

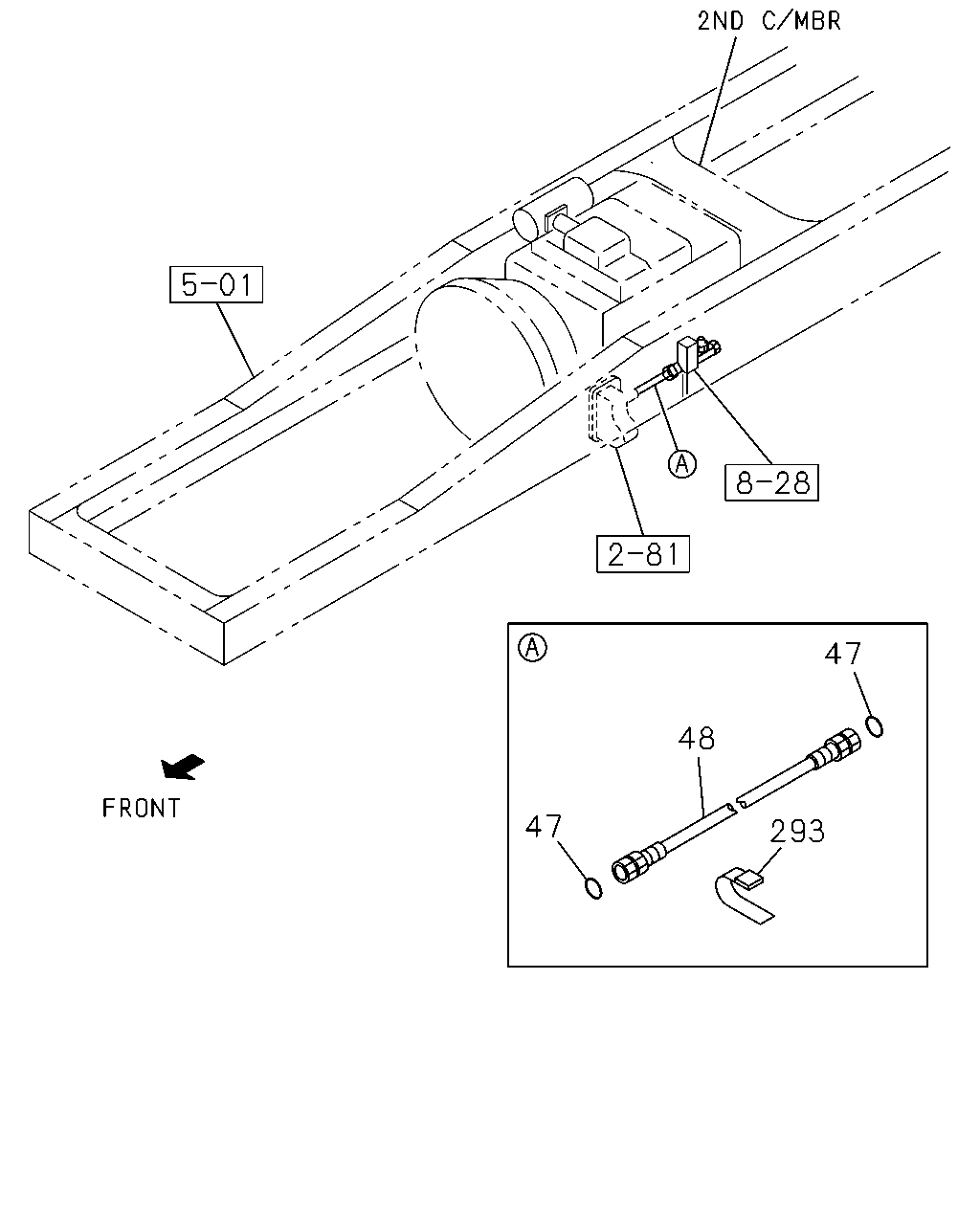

çizim 41943
47 48 47 293
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
47 GASKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18 		9-09572-510-0 02 1 9603-9702 ● ● ● ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=430 		0-07150-430-0 01 1 9603-9702 ● ● ● ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=430 		1-09363-677-0 01 1 9703-9901 ● ● ● ● ●
48 HOSE; FLEX,PTO
CXZ(CXZ***) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=430 		1-09363-677-0 01 1 9902-9904 ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=430 		1-09363-677-0 01 1 9905- ● ● ● ● ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) FIRE ENGINE PACKAGE<WS2> L=540 		1-09363-612-1 01 1 9909- ●
293 CLIP; HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=175 		1-09707-178-0 01 1 9905-9908 ●
293 CLIP; HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=175 		1-09707-178-0 01 1 9909- ● ●

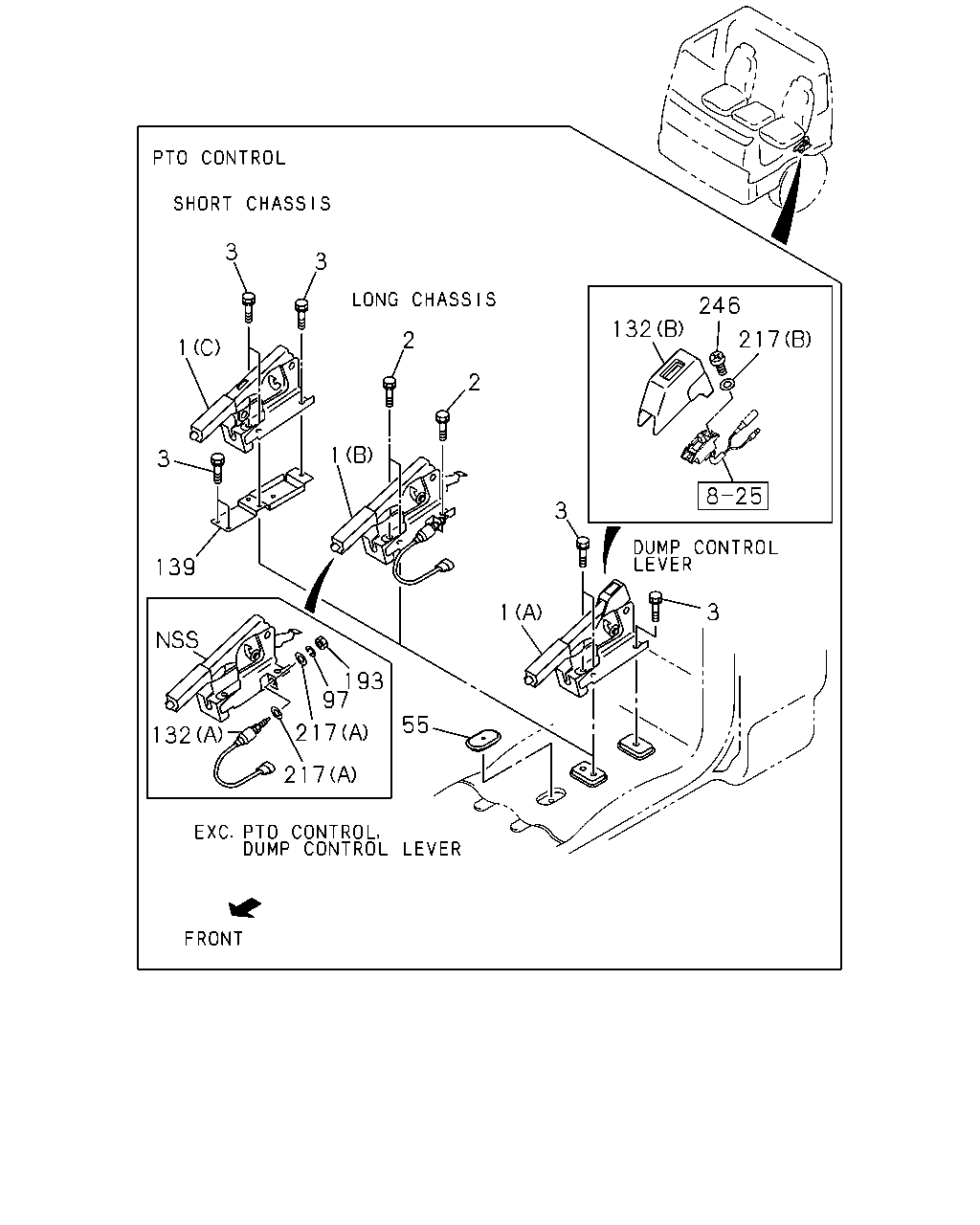

çizim 42685
3 3 246 132 217 2 1 2 1 3 3 139 3 1 193 97 55 217 132 217
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 LEVER ASM; PTO & DUMP CONT
SHORT CHASSIS(CX***C) DUMP CONTROL LEVER<RC4> (A) 		1-79996-244-0 01 1 9603-9901 ● ● ● ● ●
1 LEVER ASM; PTO & DUMP CONT
CXZ(CXZ***) DUMP CONTROL LEVER<RC4> (A) 		1-79996-244-0 01 1 9902- ●
1 LEVER ASM; PTO & DUMP CONT
SHORT CHASSIS(CX***C) PTO CONTROL(SV6) (C) 		1-79907-045-1 01 1 9603-9901 ● ●
1 LEVER ASM; PTO & DUMP CONT
SHORT CHASSIS(CX***C) PTO CONTROL(SV6) (C) 		1-79907-045-1 01 1 9902-9904 ●
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL(SV6) (C) 		1-79907-045-1 01 1 9905- ● ● ● ● ●
1 LEVER ASM; PTO & DUMP CONT
CXZ&LONG CHASSIS(CXZ6MF) PTO CONTROL(SV6) (B) 		1-79996-273-1 01 1 9603-9901 ●
1 LEVER ASM; PTO & DUMP CONT
CXZ&LONG CHASSIS(CXZ6MF) PTO CONTROL(SV6) (B) 		1-79996-273-1 01 1 9905- ●
2 BOLT; PTO CONT
CXZ&LONG CHASSIS(CXZ6MF) PTO CONTROL(SV6) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9603-9901 ●
2 BOLT; PTO CONT
CXZ&LONG CHASSIS(CXZ6MF) PTO CONTROL(SV6) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9905- ●
3 BOLT; BRKT,DUMP CONT LEVER
SHORT CHASSIS(CX***C) DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9603-9901 ● ● ● ● ●
3 BOLT; BRKT,DUMP CONT LEVER
CXZ(CXZ***) DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9902- ●
3 BOLT; BRKT,DUMP CONT LEVER
SHORT CHASSIS(CX***C) PTO CONTROL(SV6) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 9603-9901 ● ●
3 BOLT; BRKT,DUMP CONT LEVER
SHORT CHASSIS(CX***C) PTO CONTROL(SV6) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 9902-9904 ●
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL(SV6) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 9905- ● ● ● ● ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-09983-068-0 01 1 9603-9901 ● ● ● ● ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-09983-068-0 01 1 9902-9904 ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-09983-068-0 01 1 9905- ● ● ● ● ● ●
97 WASHER; LK
CXZ&LONG CHASSIS(CXZ6MF) PTO CONTROL(SV6) ID=10.2 		9-09150-610-0 01 1 9905- ●
132 COVER; PTO CONT
SHORT CHASSIS(CX***C) DUMP CONTROL LEVER<RC4> (B) 		1-79997-376-0 01 1 9603-9901 ● ● ● ● ●
132 COVER; PTO CONT
CXZ(CXZ***) DUMP CONTROL LEVER<RC4> (B) 		1-79997-376-0 01 1 9902- ●
132 COVER; PTO CONT
CXZ&LONG CHASSIS(CXZ6MF) PTO CONTROL(SV6) (A) 		1-82380-114-1 01 1 9603-9901 ●
132 COVER; PTO CONT
CXZ&LONG CHASSIS(CXZ6MF) PTO CONTROL(SV6) (A) 		1-82380-114-2 01 1 9905- ●
139 BRACKET; CONT BOX
SHORT CHASSIS(CX***C) PTO CONTROL(SV6) 		1-79907-044-0 01 1 9603-9901 ● ●
139 BRACKET; CONT BOX
SHORT CHASSIS(CX***C) PTO CONTROL(SV6) 		1-79907-044-0 01 1 9902-9904 ●
139 BRACKET; CONT BOX
PTO CONTROL(SV6) 		1-79907-044-0 01 1 9905- ● ● ● ● ●
193 NUT
CXZ&LONG CHASSIS(CXZ6MF) PTO CONTROL(SV6) M10 		9-09111-410-0 01 1 9603-9901 ●
193 NUT
CXZ&LONG CHASSIS(CXZ6MF) PTO CONTROL(SV6) M10 		9-09111-410-0 01 1 9905- ●
217 WASHER; PL
SHORT CHASSIS(CX***C) DUMP CONTROL LEVER<RC4> (B) ID=4.3 		9-09160-504-0 02 1 9603-9901 ● ● ● ● ●
217 WASHER; PL
CXZ(CXZ***) DUMP CONTROL LEVER<RC4> (B) ID=4.3 		9-09160-504-0 02 1 9902- ●
217 WASHER; PL
CXZ&LONG CHASSIS(CXZ6MF) PTO CONTROL(SV6) (A) ID=10.5 OD=18 		9-09160-510-0 02 1 9603-9901 ●
217 WASHER; PL
CXZ&LONG CHASSIS(CXZ6MF) PTO CONTROL(SV6) (A) ID=10.5 OD=18 		9-09160-510-0 02 1 9905- ●
246 SCREW; CABLE CLIP
SHORT CHASSIS(CX***C) DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71180-408-0 02 1 9603-9901 ● ● ● ● ●
246 SCREW; CABLE CLIP
CXZ(CXZ***) DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71180-408-0 02 1 9902- ●
