Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#53619) — 333 parça

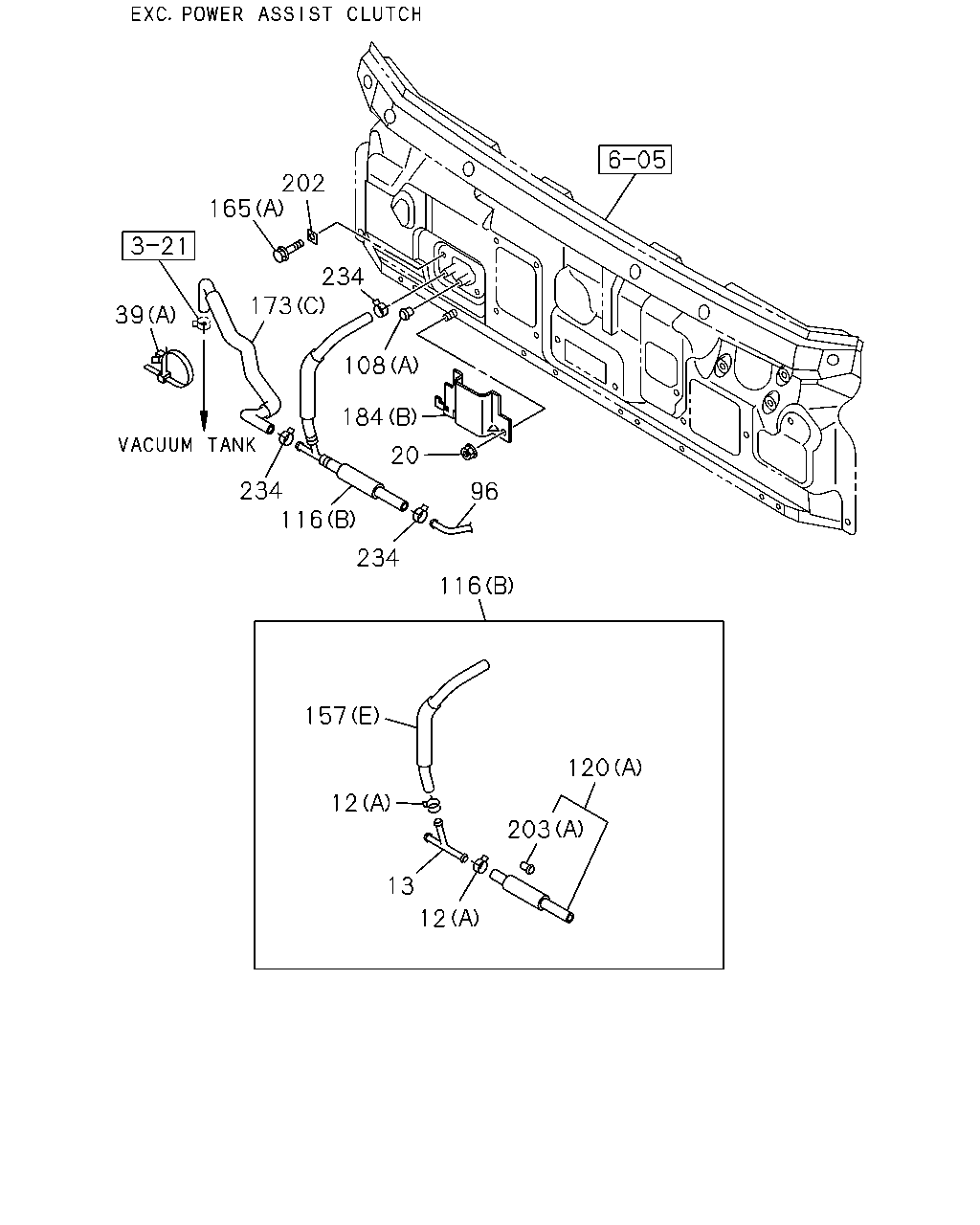

202 165 234 173 39 108 184 20 234 116 96 234 116 157 120 12 203 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0710-0803	●	●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	04	1	0804-0911	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0804-0911		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	0912-		●
12	04.681 CLIP; HOSE 02.559 (C) ID=14-20	8-97061-603-0	01	1	0710-0803	●	●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 02.559 (C) ID=14-20	8-97061-603-0	01	1	0804-	●
12	04.681 CLIP; HOSE 02.559 (C) ID=14-20	8-97061-603-0	01	1	0804-		●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0710-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0710-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0710-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0710-	●	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0710-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0801	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0710-0801	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0710-0801	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-550-0	01	1	0710-1205	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1206-	●	●
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	0710-	●	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC (E)	8-98034-276-2	01	1	0710-0911	●	●
116	04.931 HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	0912-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0710-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0710-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0710-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0710-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0710-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0710-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0710-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0710-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0710-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0710-	●	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0710-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0710-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	0710-1012	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	0710-1012	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	0710-1012	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-	●	●
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0710-1102	●	●
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311	●	●
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	0710-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	0710-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0710-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0710-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	0802-	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	0802-	●	●

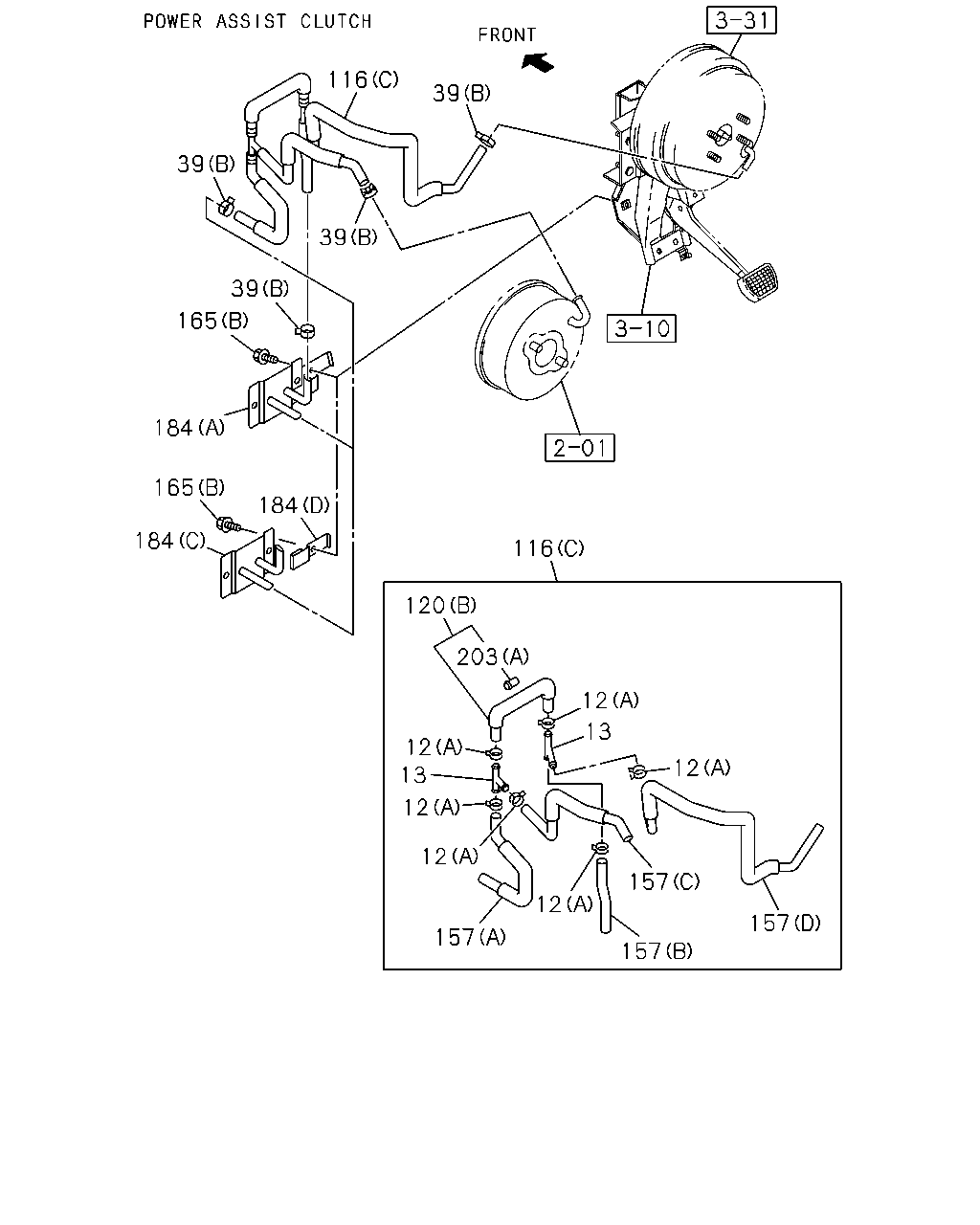

116 116 39 39 39 39 165 165 184 184 184 120 12 12 12 12 12 12 13 13 157 157 157 157 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0710-0803	●	●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	04	1	0804-0911	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0804-0911		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	0912-		●
12	04.681 CLIP; HOSE 02.559 (C) ID=14-20	8-97061-603-0	01	1	0710-0803	●	●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 02.559 (C) ID=14-20	8-97061-603-0	01	1	0804-	●
12	04.681 CLIP; HOSE 02.559 (C) ID=14-20	8-97061-603-0	01	1	0804-		●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0710-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0710-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0710-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0710-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0710-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0801	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0710-0801	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0710-0801	●	●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC (E)	8-98034-276-2	01	1	0710-0911	●	●
116	04.931 HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	0912-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0710-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0710-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0710-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0710-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0710-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0710-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0710-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0710-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0710-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0710-	●	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0710-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0710-	●	●
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0710-1102	●	●
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311	●	●
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	0710-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0710-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0710-	●	●

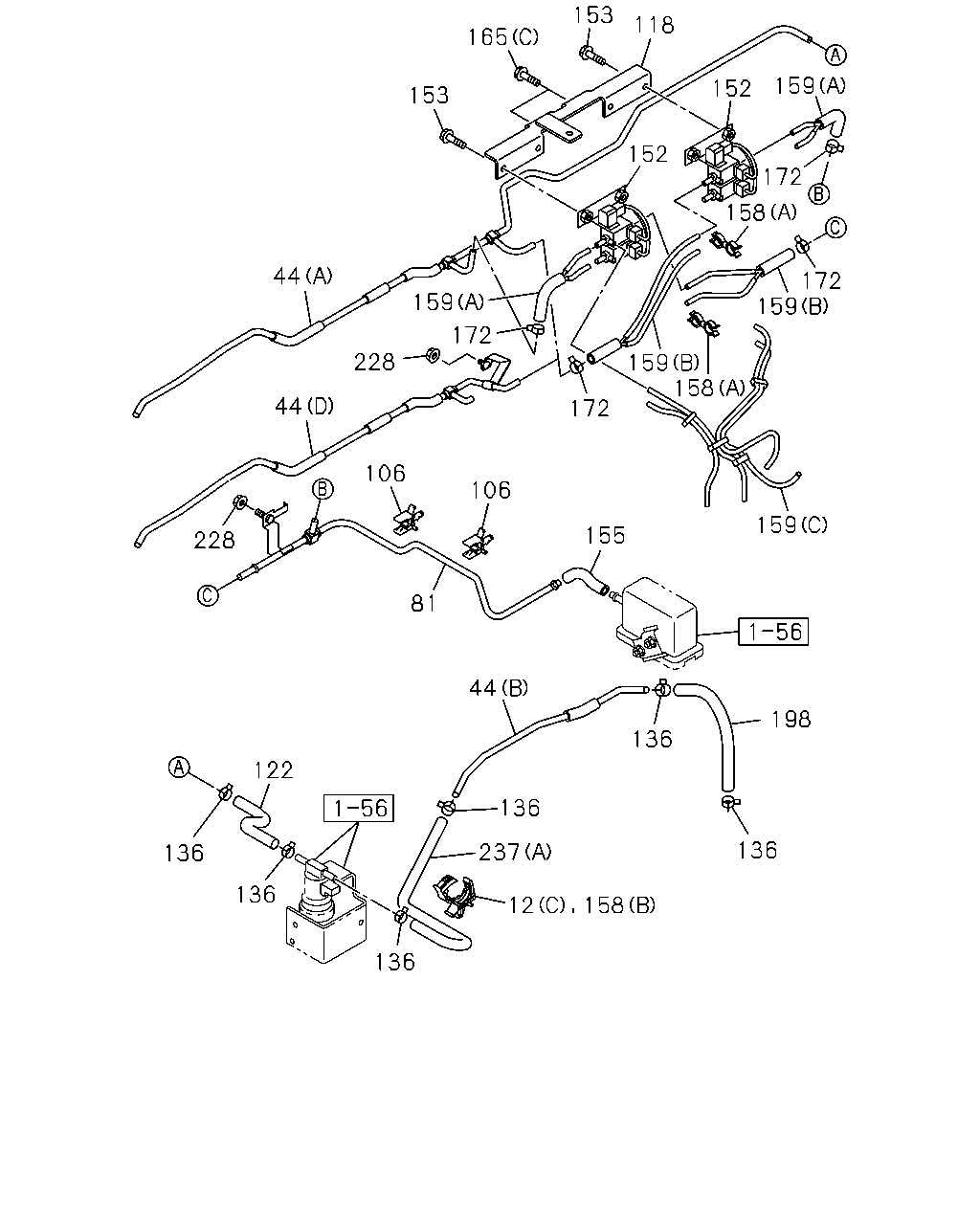

153 118 165 159 152 153 152 172 158 44 172 159 159 172 228 159 158 44 172 106 106 159 155 228 81 44 198 136 122 136 136 237 136 136 12 158 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0710-0803	●	●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	04	1	0804-0911	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0804-0911		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	0912-		●
12	04.681 CLIP; HOSE 02.559 (C) ID=14-20	8-97061-603-0	01	1	0710-0803	●	●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 02.559 (C) ID=14-20	8-97061-603-0	01	1	0804-	●
12	04.681 CLIP; HOSE 02.559 (C) ID=14-20	8-97061-603-0	01	1	0804-		●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0710-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0710-	●	●
44	04.930 PIPE; VAC,MAG VLV (C)	8-98070-194-0	01	1	0710-	●
44	04.930 PIPE; VAC,MAG VLV EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98103-009-0	01	1	0804-	●
44	04.930 PIPE; VAC,MAG VLV (A)	8-98060-408-4	01	1	0710-0803	●	●
44	04.930 PIPE; VAC,MAG VLV CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98060-408-4	01	1	0804-	●
44	04.930 PIPE; VAC,MAG VLV (A)	8-98060-408-4	01	1	0804-		●
44	04.930 PIPE; VAC,MAG VLV (B)	8-98061-275-1	01	1	0710-0803	●	●
44	04.930 PIPE; VAC,MAG VLV CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98061-275-1	01	1	0804-	●
44	04.930 PIPE; VAC,MAG VLV (B)	8-98061-275-1	01	1	0804-		●
44	04.930 PIPE; VAC,MAG VLV (C)	8-98040-634-0	01	1	0710-		●
81	04.930 PIPE; VAC,VSV	8-98060-407-3	01	1	0710-	●	●
106	04.930 CLIP; PIPE ID=10 H=40	8-94462-219-0	02	1	0710-	●	●
118	04.930 BRACKET; VSV	8-98069-541-3	01	1	0710-	●
118	04.930 BRACKET; VSV	8-98090-281-1	01	1	0710-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98034-103-2	01	1	0710-1103	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-104-0	01	1	1104-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98040-701-1	01	1	0710-1103		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-105-0	01	1	1104-		●
136	04.681 CLIP; VAC HOSE 04.930 ID=16	8-94238-568-0	06	1	0710-0911	●	●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	0912-	●	●
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO	8-94481-999-4	02	1	0710-1302	●	●
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO 09.755	8-98222-432-0	02	1	1303-1310	●	●
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO 09.755	8-98256-404-0	02	1	1311-	●	●
153	04.686 BOLT; VSV 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0710-	●	●
155	04.931 HOSE; VAC,AIR FILTER 03.630 L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0710-	●	●
158	04.681 CLIP; HOSE 02.559 (B) ID=14-20	8-97061-603-0	01	1	0710-	●
158	04.681 CLIP; HOSE 02.559 (A) ID=16.5 & 16.5	8-94468-380-0	01	1	0710-	●	●
159	04.931 HOSE ASM; VAC (B)	8-98070-137-2	02	1	0710-	●	●
159	04.931 HOSE ASM; VAC (A)	8-98070-138-1	02	1	0710-	●	●
159	04.931 HOSE ASM; VAC (C)	8-98093-010-0	01	1	0710-	●	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0710-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0710-	●	●
172	04.930 CLIP; VAC HOSE ID=16	8-94238-568-0	04	1	0710-0911	●	●
172	04.930 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	04	1	0912-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 03.630 L=260 SERVICED BY L=3000	0-08258-300-0	01	1	0710-0803	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV CATALYSIS CONTROL WITH DPD(8JM) 03.630 L=260 SERVICED BY L=3000	0-08258-300-0	01	1	0804-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 03.630 L=260 SERVICED BY L=3000	0-08258-300-0	01	1	0804-		●
228	04.930 NUT; PIPE 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-0803	●	●
228	04.930 NUT; PIPE 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-0803		●
228	04.930 NUT; PIPE 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-	●	●
228	04.930 NUT; PIPE EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-	●
228	04.930 NUT; PIPE 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (B)	8-98036-102-0	01	1	0710-0803	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98036-102-0	01	1	0804-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (B)	8-98036-102-0	01	1	0804-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (A)	8-98060-613-1	01	1	0710-0803	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98060-613-1	01	1	0804-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (A)	8-98060-613-1	01	1	0804-		●

39 116 165 39 165 184 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0710-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0801	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0710-0801	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0710-0801	●	●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC (E)	8-98034-276-2	01	1	0710-0911	●	●
116	04.931 HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	0912-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0710-	●	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0710-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0710-	●	●
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0710-1102	●	●
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311	●	●
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	0710-	●	●

12 78 236 12 12 44 12 237 238 12 78 44 12 108 235 66 116 169 66 96 66 98 78 116 39 39 66 116 66 66 75 33 66 33 66 169 169 116 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0710-0803	●	●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	04	1	0804-0911	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0804-0911		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	0912-		●
12	04.681 CLIP; HOSE 02.559 (C) ID=14-20	8-97061-603-0	01	1	0710-0803	●	●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 02.559 (C) ID=14-20	8-97061-603-0	01	1	0804-	●
12	04.681 CLIP; HOSE 02.559 (C) ID=14-20	8-97061-603-0	01	1	0804-		●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0710-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0710-	●	●
33	04.930 CLIP; VAC PIPE ID=10 H=40	8-94462-219-0	02	1	0710-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0710-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0801	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0710-0801	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0710-0801	●	●
44	04.930 PIPE; VAC,MAG VLV (C)	8-98070-194-0	01	1	0710-	●
44	04.930 PIPE; VAC,MAG VLV EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98103-009-0	01	1	0804-	●
44	04.930 PIPE; VAC,MAG VLV (A)	8-98060-408-4	01	1	0710-0803	●	●
44	04.930 PIPE; VAC,MAG VLV CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98060-408-4	01	1	0804-	●
44	04.930 PIPE; VAC,MAG VLV (A)	8-98060-408-4	01	1	0804-		●
44	04.930 PIPE; VAC,MAG VLV (B)	8-98061-275-1	01	1	0710-0803	●	●
44	04.930 PIPE; VAC,MAG VLV CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98061-275-1	01	1	0804-	●
44	04.930 PIPE; VAC,MAG VLV (B)	8-98061-275-1	01	1	0804-		●
44	04.930 PIPE; VAC,MAG VLV (C)	8-98040-634-0	01	1	0710-		●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0710-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	06	1	0710-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	06	1	0912-	●	●
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	0710-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98063-819-2	01	1	0710-1008	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1009-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98080-833-1	01	1	0710-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0710-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98040-702-2	01	1	0710-1103		●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-103-0	01	1	1104-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-550-0	01	1	0710-1205	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1206-	●	●
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0710-	●	●
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	0710-	●	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC (E)	8-98034-276-2	01	1	0710-0911	●	●
116	04.931 HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	0912-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0710-	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE (A)	8-98041-052-2	01	1	0710-	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE (B)	8-98041-053-4	01	1	0710-	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE (C)	8-98041-054-3	01	1	0710-	●	●
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	0710-	●	●
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0710-	●
236	04.930 BOLT; PIPE 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0710-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (B)	8-98036-102-0	01	1	0710-0803	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98036-102-0	01	1	0804-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (B)	8-98036-102-0	01	1	0804-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (A)	8-98060-613-1	01	1	0710-0803	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98060-613-1	01	1	0804-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (A)	8-98060-613-1	01	1	0804-		●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	0710-0803	●	●
238	04.892 ORIFICE; VACUUM HOSE CATALYSIS CONTROL WITH DPD(8JM)	8-97377-521-0	01	1	0804-	●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	0804-		●

202 165 234 173 12 12 184 163 116 20 234 173 96 157 120 116 234 234 12 203 13 39 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0710-0803	●	●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	04	1	0804-0911	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0804-0911		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	0912-		●
12	04.681 CLIP; HOSE 02.559 (C) ID=14-20	8-97061-603-0	01	1	0710-0803	●	●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 02.559 (C) ID=14-20	8-97061-603-0	01	1	0804-	●
12	04.681 CLIP; HOSE 02.559 (C) ID=14-20	8-97061-603-0	01	1	0804-		●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0710-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0710-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0710-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0710-	●	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0710-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0801	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0710-0801	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0710-0801	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-550-0	01	1	0710-1205	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1206-	●	●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC (E)	8-98034-276-2	01	1	0710-0911	●	●
116	04.931 HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	0912-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0710-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0710-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0710-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0710-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0710-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0710-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0710-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0710-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0710-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0710-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0710-	●	●
163	04.681 JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T) 03.163	8-97353-668-0	01	1	0710-	●	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0710-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0710-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	0710-1012	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	0710-1012	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	0710-1012	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-	●	●
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0710-1102	●	●
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311	●	●
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	0710-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	0710-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0710-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0710-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	0802-	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	0802-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
