3-11 — PARKING BRAKE CONTROL (#53610) — 85 parça

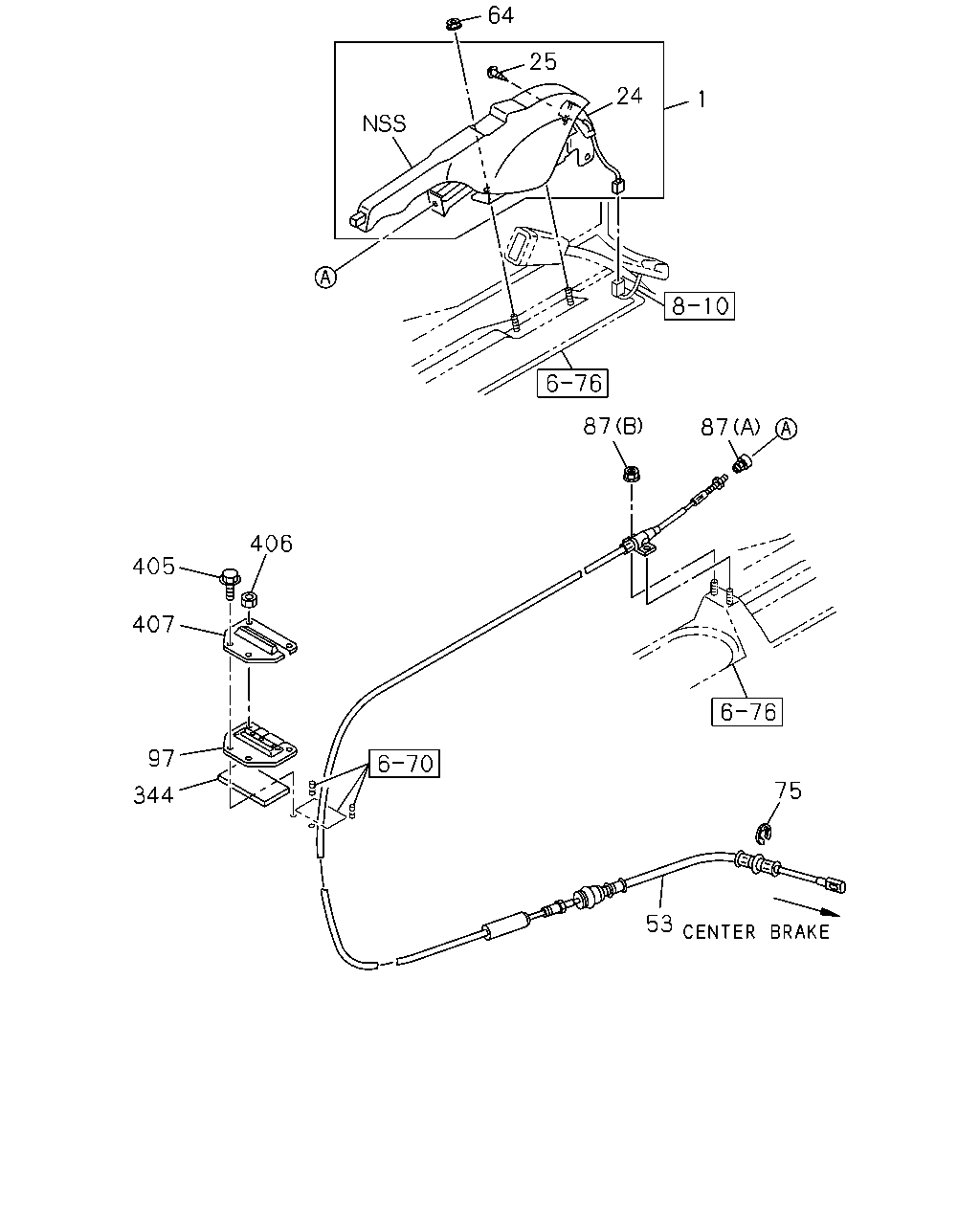

64 25 24 1 87 87 406 405 407 97 75 344 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.592 STEM ASM; PARKING BRK GRAY	8-97405-353-0	01	1	0710-1303	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97426-513-0	01	1	1304-	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0710-1303	●	●
24	04.589 SWITCH ASM; PARK BRK	8-98238-611-0	01	1	1304-	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0710-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98069-440-3	01	1	0710-	●	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0710-	●	●
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	0710-	●	●
87	04.785 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
87	04.785 NUT (A) M6	8-98034-313-1	01	1	0710-	●	●
97	04.785 GROMMET; PARKING BRK CABLE 04.010	8-97065-212-1	01	1	0710-	●	●
344	04.595 GASKET; DASH LWR MANUAL TILT CAB<RWZ> 04.047	8-97096-753-0	01	1	0710-	●
405	04.785 BOLT; GROMMET 00.785 M6X20 FLANGE	0-28450-620-0	02	1	0710-	●	●
406	04.785 NUT; GROMMET 01.540 M6 FLANGE	0-91180-206-0	02	1	0710-0711	●	●
406	04.785 NUT; GROMMET 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-	●	●
407	04.785 RETAINER; GROMMET 04.047	1-33657-674-0	01	1	0710-	●	●

91 237 241 181 235 181 8 238 198 237 198 85 225 181 235 198 241 231 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	04.592 GUIDE; PARKING BRK EURO2 SPECIFICATION(NT2) (B)	8-98110-964-0	01	1	0804-	●
8	04.592 GUIDE; PARKING BRK (A)	8-98096-374-0	01	1	0710-	●	●
85	04.785 CLIP; BRKT ID=14.5 L=20	1-09701-012-0	01	1	0710-	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (B)	8-97036-333-1	01	1	0710-	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (B)	8-97036-333-1	01	1	0710-	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (B)	8-97036-333-1	01	1	0710-	●	●
91	04.785 CLIP; PARKING BRK CABLE (A)	8-98023-622-0	01	1	0710-	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-98090-289-0	01	1	0710-0803	●	●
91	04.785 CLIP; PARKING BRK CABLE EURO4 SPECIFICATION(NT4) (C)	8-98090-289-0	01	1	0804-	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-98090-289-0	01	1	0804-		●
181	04.785 BOLT; BRKT 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0710-	●	●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0710-	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0710-	●	●
198	04.785 BRACKET; CABLE (B)	8-97303-973-0	01	1	0710-	●	●
198	04.785 BRACKET; CABLE (A)	8-97303-974-0	01	1	0710-	●	●
198	04.785 BRACKET; CABLE (C)	8-98097-898-1	01	1	0710-	●	●
220	04.785 NUT; CLIP,PARKING CONT CABLE 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●
225	04.785 NUT; CABLE CLIP EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
231	04.785 CLIP; BAND,BRK CABLE 04.681 ID=16 L=20	0-95235-536-0	01	1	0710-	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98105-435-0	01	1	0804-0909	●
235	04.785 BRACKET; CONT CABLE TO FRAME EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98106-986-1	01	1	0910-	●
235	04.785 BRACKET; CONT CABLE TO FRAME (A)	8-98074-995-0	01	1	0710-0803	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98074-995-0	01	1	0804-	●
235	04.785 BRACKET; CONT CABLE TO FRAME (A)	8-98074-995-0	01	1	0804-		●
235	04.785 BRACKET; CONT CABLE TO FRAME (B)	8-98087-322-0	01	1	0710-	●	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-		●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0710-	●	●
238	04.785 BOLT; CLIP TO BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
241	04.785 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0710-	●	●

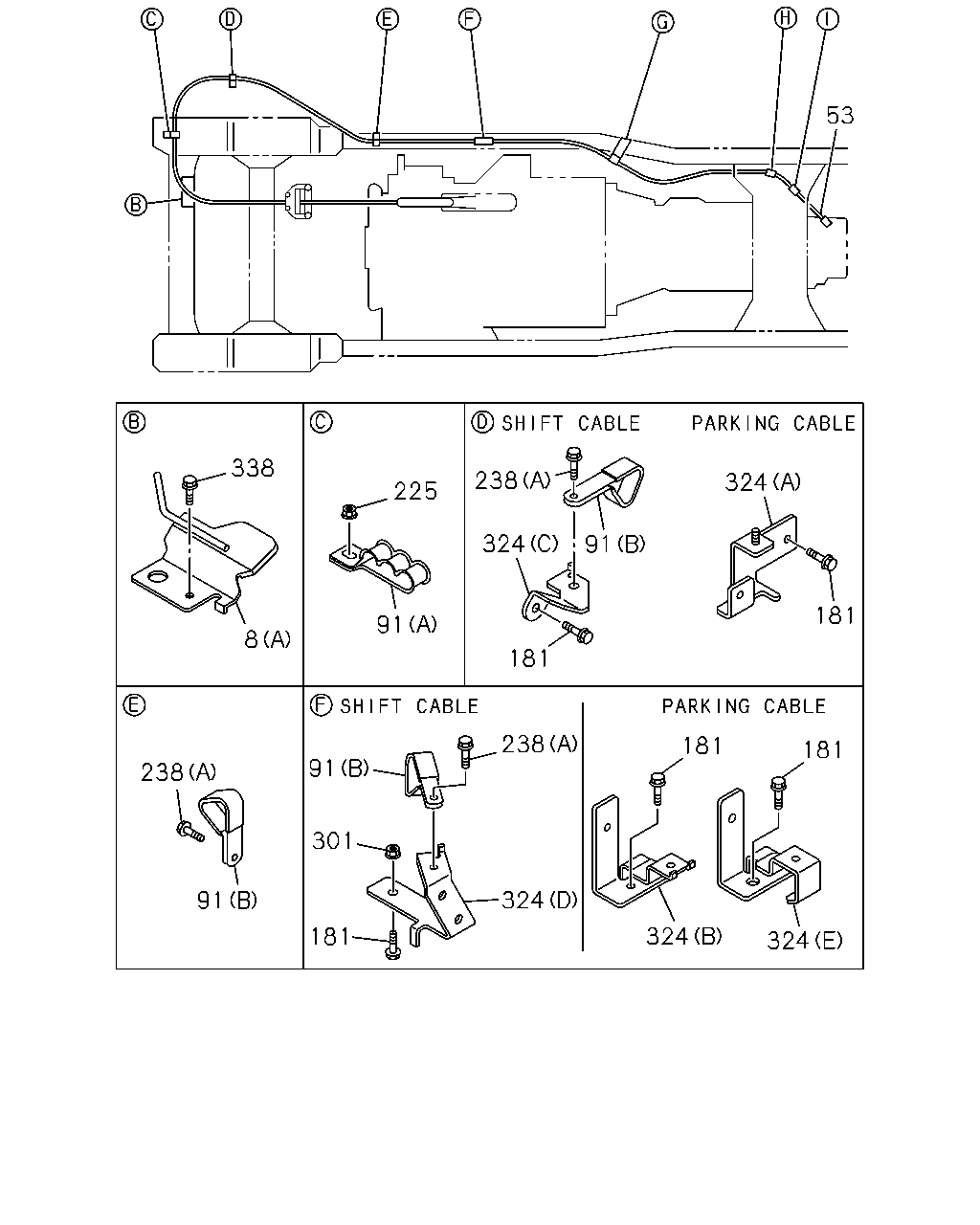

53 338 238 324 225 324 91 181 91 8 181 238 181 181 91 238 301 324 91 324 181 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	04.592 GUIDE; PARKING BRK EURO2 SPECIFICATION(NT2) (B)	8-98110-964-0	01	1	0804-	●
8	04.592 GUIDE; PARKING BRK (A)	8-98096-374-0	01	1	0710-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98069-440-3	01	1	0710-	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (B)	8-97036-333-1	01	1	0710-	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (B)	8-97036-333-1	01	1	0710-	●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (B)	8-97036-333-1	01	1	0710-	●	●
91	04.785 CLIP; PARKING BRK CABLE (A)	8-98023-622-0	01	1	0710-	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-98090-289-0	01	1	0710-0803	●	●
91	04.785 CLIP; PARKING BRK CABLE EURO4 SPECIFICATION(NT4) (C)	8-98090-289-0	01	1	0804-	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-98090-289-0	01	1	0804-		●
181	04.785 BOLT; BRKT 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0710-	●	●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0710-	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0710-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●
225	04.785 NUT; CABLE CLIP EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0710-	●	●
238	04.785 BOLT; CLIP TO BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
324	04.785 BRACKET EURO2 SPECIFICATION(NT2) (E)	8-98111-394-1	01	1	0804-	●
324	04.785 BRACKET (C)	8-98034-115-0	01	1	0710-	●	●
324	04.785 BRACKET 04.047 (D)	8-98034-185-1	01	1	0710-	●	●
324	04.785 BRACKET (B)	8-98090-410-1	01	1	0710-0803	●	●
324	04.785 BRACKET EURO4 SPECIFICATION(NT4) (B)	8-98090-410-1	01	1	0804-	●
324	04.785 BRACKET (B)	8-98090-410-1	01	1	0804-		●
324	04.785 BRACKET (A)	8-98099-516-0	01	1	0710-1508	●	●
324	04.785 BRACKET (A)	8-98216-763-1	01	1	1509-	●	●
338	04.785 SCREW; GUIDE 16.069 M8X35 FLANGE	8-98046-876-0	01	1	0710-	●	●
