2-82B — POWER TAKE OFF; TRANSMISSION REAR (#5361) — 87 parça

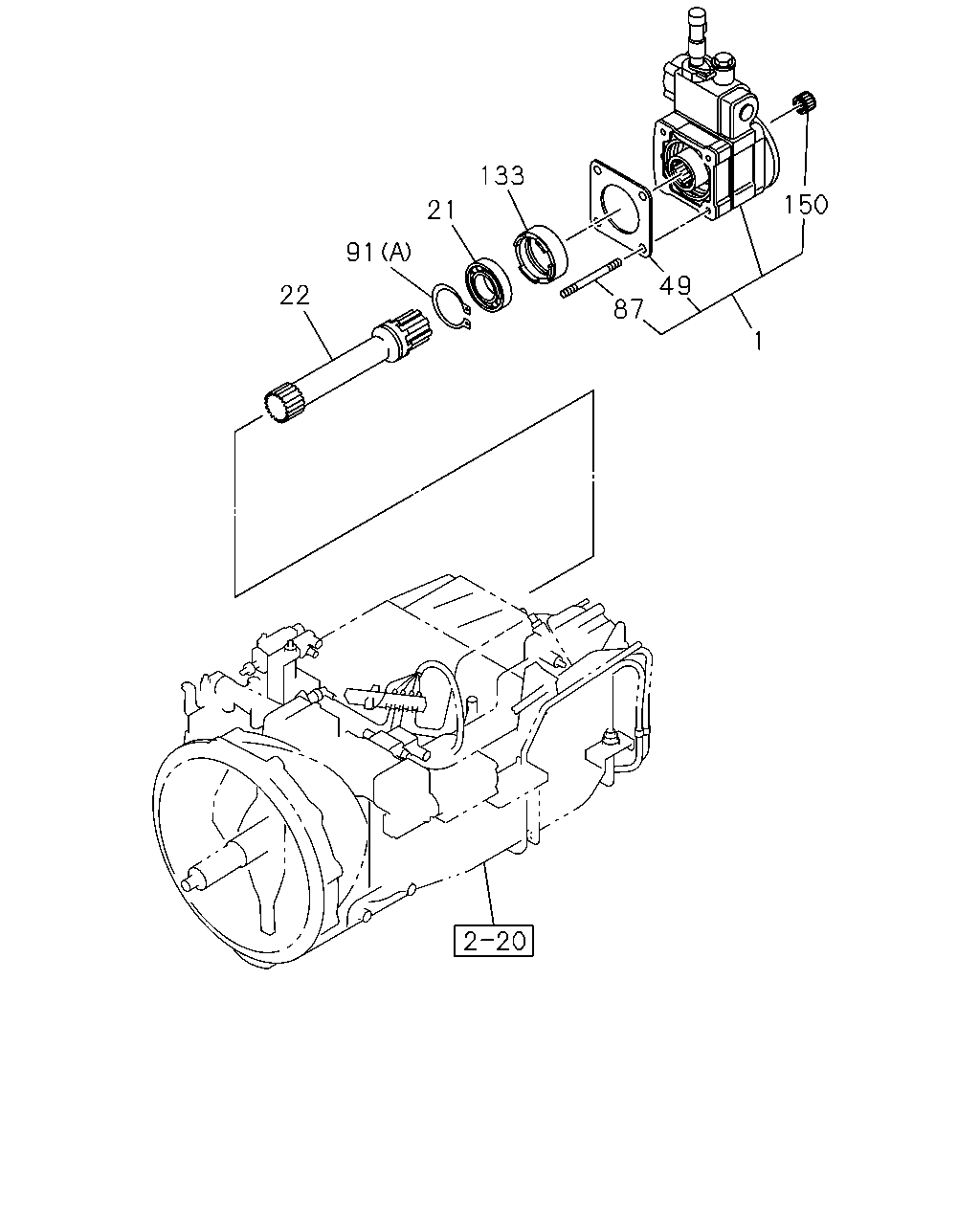

133 150 21 91 49 22 87 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	POWER TAKE OFF ASM; TRANS RR PTO ZF TRANS RR(BDM)	1-38000-377-0	01	1	0006-	●	●	●
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-38219-033-0	01	1	0006-	●	●	●
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-36289-013-0	01	1	9603-9707		●
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-38219-033-0	01	1	9708-9901		●
22	SHAFT; MAIN DRIVE,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-33381-011-0	01	1	0006-	●	●	●
22	SHAFT; MAIN DRIVE,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-33381-011-0	01	1	9603-9901		●
49	GASKET; PTO GEAR CASE TO TRANS PTO ZF TRANS RR(BDM)	1-33132-054-0	01	1	9603-9901		●
49	GASKET; PTO GEAR CASE TO TRANS PTO ZF TRANS RR(BDM)	1-33132-054-0	01	1	0006-	●	●	●
87	STUD; GEAR CASE PTO ZF TRANS RR(BDM)	1-38119-034-0	04	1	9603-9901		●
87	STUD; GEAR CASE PTO ZF TRANS RR(BDM)	1-33119-413-0	04	1	0006-	●	●	●
91	RING; SNAP PTO ZF TRANS RR(BDM) (A)	1-38219-010-0	01	1	9603-9901		●
91	RING; SNAP PTO ZF TRANS RR(BDM) (B)	1-38219-016-0	01	1	9603-9901		●
91	RING; SNAP PTO ZF TRANS RR(BDM) (C)	1-38219-017-0	01	1	9603-9901		●
91	RING; SNAP PTO ZF TRANS RR(BDM) (A)	1-38219-010-0	01	1	0006-	●	●	●
91	RING; SNAP PTO ZF TRANS RR(BDM) (B)	1-38219-016-0	01	1	0006-	●	●	●
91	RING; SNAP PTO ZF TRANS RR(BDM) (C)	1-38219-017-0	01	1	0006-	●	●	●
133	BUSHING; SHAFT PTO ZF TRANS RR(BDM)	1-38219-011-0	01	1	9603-9901		●
133	BUSHING; SHAFT PTO ZF TRANS RR(BDM)	1-38219-011-0	01	1	0006-	●	●	●
150	BEARING; OUTPUT SHAFT PTO ZF TRANS RR(BDM)	1-38249-018-0	01	1	9603-9901		●
150	BEARING; OUTPUT SHAFT PTO ZF TRANS RR(BDM)	1-38249-018-0	01	1	0006-	●	●	●

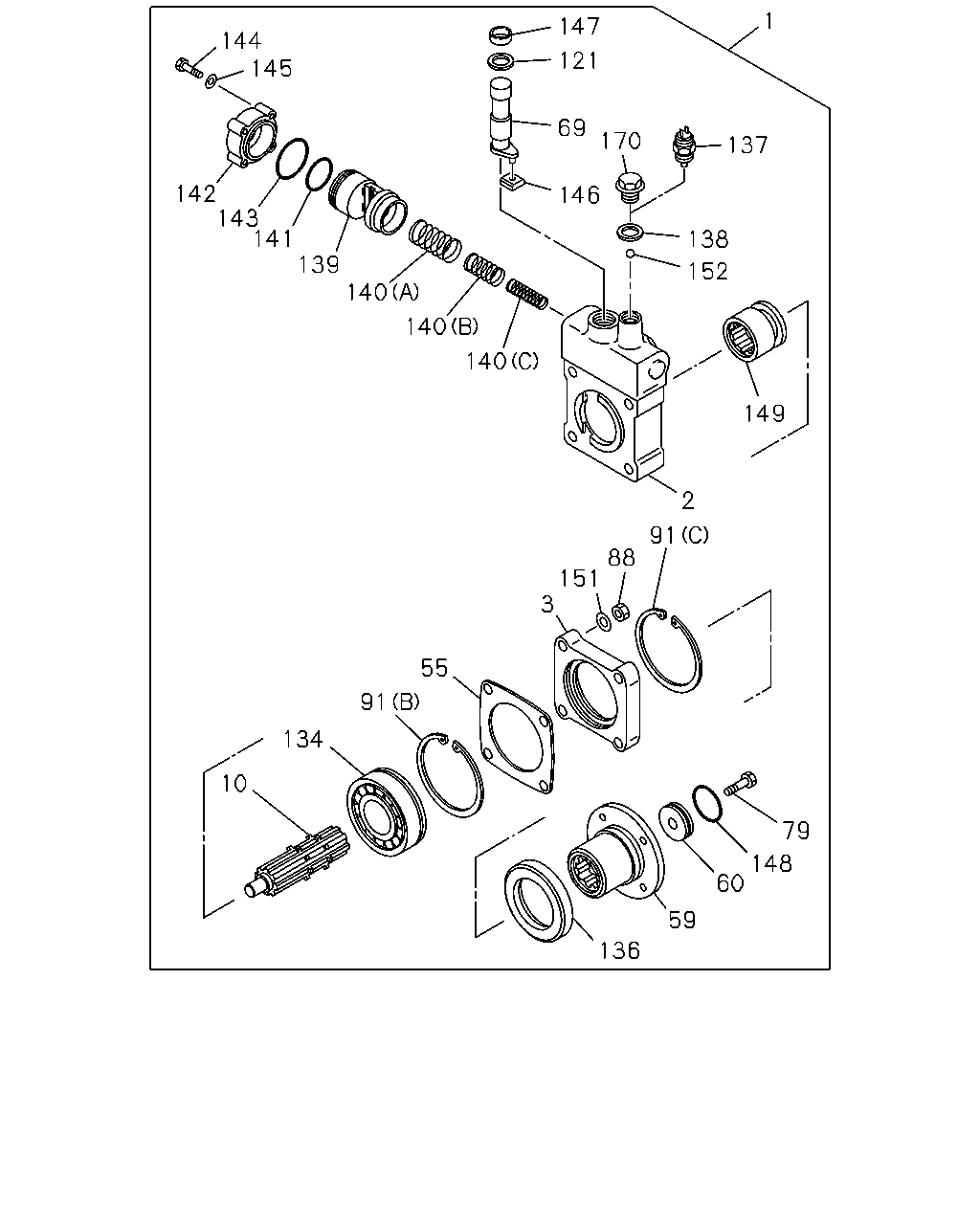

1 147 144 145 121 69 170 137 142 143 141 146 138 139 140 152 140 140 149 2 91 88 151 3 55 91 134 10 79 148 60 59 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	POWER TAKE OFF ASM; TRANS RR PTO ZF TRANS RR(BDM)	1-38000-377-0	01	1	0006-	●	●	●
2	CASE; GEAR,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-38111-076-0	01	1	9603-9901		●
2	CASE; GEAR,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-38111-076-0	01	1	0006-	●	●	●
3	COVER; GEAR CASE,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-38159-002-0	01	1	9603-9901		●
3	COVER; GEAR CASE,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-38159-002-0	01	1	0006-	●	●	●
10	SHAFT; PTO OUTPUT GEAR,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-38221-047-0	01	1	0006-	●	●	●
10	SHAFT; PTO OUTPUT GEAR,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-38221-047-0	01	1	9603-9901		●
55	GASKET; BRG COVER,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-33132-054-0	01	1	0006-	●	●	●
55	GASKET; BRG COVER,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-33132-054-0	01	1	9603-9901		●
59	YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO PTO ZF TRANS RR(BDM)	1-38519-012-0	01	1	9603-9901		●
59	YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO PTO ZF TRANS RR(BDM)	1-38519-012-0	01	1	0006-	●	●	●
60	WASHER; YOKE,OUTPUT SHAFT,RR PTO PTO ZF TRANS RR(BDM)	1-38519-013-0	01	1	0006-	●	●	●
60	WASHER; YOKE,OUTPUT SHAFT,RR PTO PTO ZF TRANS RR(BDM)	1-38519-013-0	01	1	9603-9901		●
69	LEVER; PTO CONT,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-38361-032-0	01	1	9603-9901		●
69	LEVER; PTO CONT,TRANS RR PTO PTO ZF TRANS RR(BDM)	1-38361-032-0	01	1	0006-	●	●	●
79	BOLT PTO ZF TRANS RR(BDM)	1-38519-019-0	01	1	0006-	●	●	●
79	BOLT PTO ZF TRANS RR(BDM)	1-41329-062-0	01	1	9603-9707		●
79	BOLT PTO ZF TRANS RR(BDM)	1-38519-019-0	01	1	9708-9901		●
88	NUT; COVER PTO ZF TRANS RR(BDM)	1-38119-027-0	04	1	9603-9901		●
88	NUT; COVER PTO ZF TRANS RR(BDM)	1-38119-027-0	04	1	0006-	●	●	●
91	RING; SNAP PTO ZF TRANS RR(BDM) (A)	1-38219-010-0	01	1	9603-9901		●
91	RING; SNAP PTO ZF TRANS RR(BDM) (B)	1-38219-016-0	01	1	9603-9901		●
91	RING; SNAP PTO ZF TRANS RR(BDM) (C)	1-38219-017-0	01	1	9603-9901		●
91	RING; SNAP PTO ZF TRANS RR(BDM) (A)	1-38219-010-0	01	1	0006-	●	●	●
91	RING; SNAP PTO ZF TRANS RR(BDM) (B)	1-38219-016-0	01	1	0006-	●	●	●
91	RING; SNAP PTO ZF TRANS RR(BDM) (C)	1-38219-017-0	01	1	0006-	●	●	●
121	RING; SNAP,SHIFT LEVER PTO ZF TRANS RR(BDM)	1-38369-004-0	01	1	9603-9901		●
121	RING; SNAP,SHIFT LEVER PTO ZF TRANS RR(BDM)	1-38369-004-0	01	1	0006-	●	●	●
134	BEARING; OUTPUT SHAFT PTO ZF TRANS RR(BDM)	1-38219-015-0	01	1	0006-	●	●	●
134	BEARING; OUTPUT SHAFT PTO ZF TRANS RR(BDM)	1-38219-015-0	01	1	9603-9901		●
136	SEAL; SHAFT PTO ZF TRANS RR(BDM)	1-38519-010-0	01	1	0006-	●	●	●
136	SEAL; SHAFT PTO ZF TRANS RR(BDM)	1-38519-010-0	01	1	9603-9901		●
137	SWITCH; RR PTO PTO ZF TRANS RR(BDM)	1-82440-080-1	01	1	9603-9901		●
138	GASKET; SW PTO ZF TRANS RR(BDM)	1-33119-249-0	01	1	9603-9901		●
138	GASKET; SW PTO ZF TRANS RR(BDM)	1-33119-249-0	01	1	0006-	●	●	●
139	PISTON; RR PTO PTO ZF TRANS RR(BDM)	1-38129-016-0	01	1	0006-	●	●	●
139	PISTON; RR PTO PTO ZF TRANS RR(BDM)	1-38129-016-0	01	1	9603-9901		●
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR(BDM) (A)	1-38129-013-0	01	1	9603-9901		●
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR(BDM) (B)	1-38129-014-0	01	1	9603-9901		●
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR(BDM) (C)	1-38129-015-0	01	1	9603-9901		●
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR(BDM) (A)	1-38129-013-0	01	1	0006-	●	●	●
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR(BDM) (B)	1-38129-014-0	01	1	0006-	●	●	●
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR(BDM) (C)	1-38129-015-0	01	1	0006-	●	●	●
141	GASKET; PISTON,RR PTO PTO ZF TRANS RR(BDM)	1-38129-023-0	01	1	0006-	●	●	●
141	GASKET; PISTON,RR PTO PTO ZF TRANS RR(BDM)	1-38129-023-0	01	1	9603-9901		●
142	CYLINDER; RR PTO PTO ZF TRANS RR(BDM)	1-38159-003-0	01	1	0006-	●	●	●
142	CYLINDER; RR PTO PTO ZF TRANS RR(BDM)	1-38159-003-0	01	1	9603-9901		●
143	GASKET; CYL PTO ZF TRANS RR(BDM)	1-38129-018-0	01	1	0006-	●	●	●
143	GASKET; CYL PTO ZF TRANS RR(BDM)	1-38129-018-0	01	1	9603-9901		●
144	BOLT; CYL PTO ZF TRANS RR(BDM)	1-38519-020-0	04	1	0006-	●	●	●
144	BOLT; CYL PTO ZF TRANS RR(BDM)	1-38129-024-0	04	1	9603-9707		●
144	BOLT; CYL PTO ZF TRANS RR(BDM)	1-38519-020-0	04	1	9708-9901		●
145	WASHER; LK,CYL PTO ZF TRANS RR(BDM)	1-38129-025-0	04	1	0006-	●	●	●
145	WASHER; LK,CYL PTO ZF TRANS RR(BDM)	1-38129-025-0	04	1	9603-9901		●
146	PAD; CONT LEVER PTO ZF TRANS RR(BDM)	1-38369-009-0	01	1	0006-	●	●	●
146	PAD; CONT LEVER PTO ZF TRANS RR(BDM)	1-38369-009-0	01	1	9603-9901		●
147	CUP; SEALING PTO ZF TRANS RR(BDM)	1-38369-006-0	01	1	9603-9901		●
147	CUP; SEALING PTO ZF TRANS RR(BDM)	1-38369-006-0	01	1	0006-	●	●	●
148	GASKET; YOKE PTO ZF TRANS RR(BDM)	1-38519-014-0	01	1	0006-	●	●	●
148	GASKET; YOKE PTO ZF TRANS RR(BDM)	1-38519-014-0	01	1	9603-9901		●
149	SLEEVE; SLIDING PTO ZF TRANS RR(BDM)	1-38229-008-0	01	1	0006-	●	●	●
149	SLEEVE; SLIDING PTO ZF TRANS RR(BDM)	1-38229-008-0	01	1	9603-9901		●
151	WASHER; PL,COVER PTO ZF TRANS RR(BDM)	1-38119-028-0	04	1	9603-9901		●
151	WASHER; PL,COVER PTO ZF TRANS RR(BDM)	1-38119-028-0	04	1	0006-	●	●	●
152	BALL; SW PTO ZF TRANS RR(BDM)	1-38119-032-0	01	1	9603-9901		●
152	BALL; SW PTO ZF TRANS RR(BDM)	1-38119-032-0	01	1	0006-	●	●	●
170	PLUG; SWITCH HOLE,PTO PTO ZF TRANS RR(BDM)	1-33119-253-0	01	1	0006-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
