◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51162 - NPS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-66 - MANUAL TRANSFER GEAR; OUTPUT ▶
2-66 — MANUAL TRANSFER GEAR; OUTPUT (#53604) — 26 parça

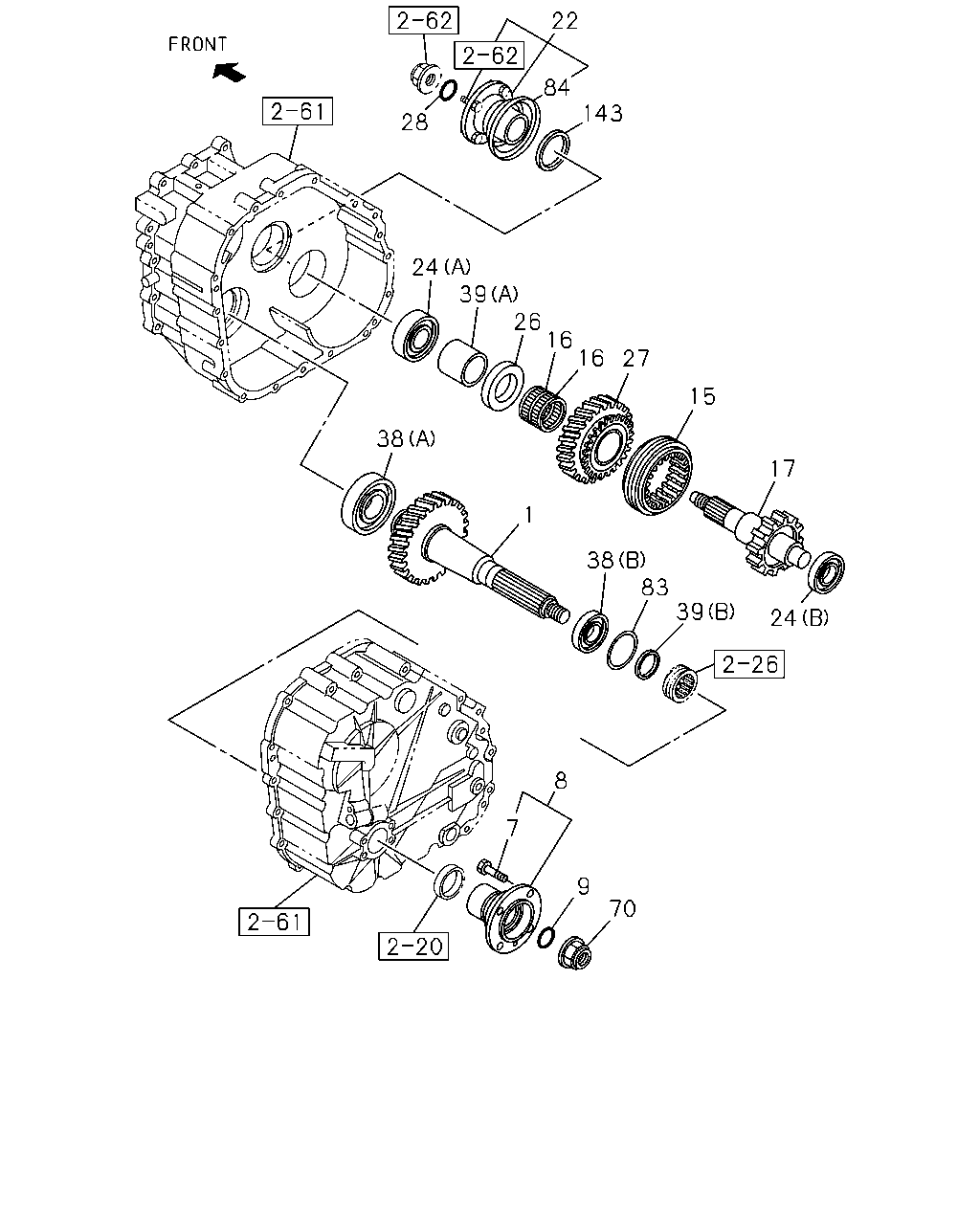

çizim 157211
22 84 143 28 24 39 26 16 16 27 15 38 17 1 38 83 39 24 8 7 9 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.555 SHAFT; GEAR,OUTPUT,RR 8-97326-911-1 01 1 0710- ● ●
7 04.525 BOLT; COUPLING DRIVER 8-98031-764-0 04 1 0710- ● ●
8 04.535 FLANGE; OUTPUT 8-98079-515-0 01 1 0710- ● ●
9 04.164 GASKET; SHAFT
04.412 ID=30.6 T=5.7 		8-98028-226-0 01 1 0710- ● ●
15 04.540 SLEEVE; NEUTRAL & FRT
04.419 		1-33262-175-1 01 1 0710- ● ●
16 04.520 BEARING; OUTPUT GEAR 8-97326-898-0 02 1 0710- ● ●
17 04.555 SHAFT; OUTPUT 8-97326-900-0 01 1 0710- ● ●
22 04.535 FLANGE; OUTPUT,FRT 8-97328-676-0 01 1 0710- ● ●
24 04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA
(B) 		8-97326-893-0 01 1 0710- ● ●
24 04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA
(A) 		8-97326-894-0 01 1 0710- ● ●
26 04.533 WASHER; THRUST 8-97326-896-0 01 1 0710- ● ●
27 04.532 GEAR; OUTPUT,FRT 8-97326-899-0 01 1 0710- ● ●
28 04.573 GASKET; SHAFT 8-97326-890-0 01 1 0710- ● ●
38 04.520 BEARING; RR DRIVE SHAFT,RR,TRANS
(B) 		8-97326-909-0 01 1 0710- ● ●
38 04.520 BEARING; RR DRIVE SHAFT,RR,TRANS
(A) 		8-97326-910-0 01 1 0710- ● ●
39 04.520 COLLAR; DIST,OUTPUT
(A) 		8-97326-895-0 01 1 0710- ● ●
39 04.520 COLLAR; DIST,OUTPUT
(B) 		8-97326-901-0 01 1 0710- ● ●
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
04.525 M27 H=25 		8-97360-410-0 01 1 0710- ● ●
83 04.520 SHIM; OUTPUT SHAFT
T=0.18 		8-97326-902-0 01 1 0710- ● ●
83 04.520 SHIM; OUTPUT SHAFT
T=0.50 		8-97326-903-0 02 1 0710- ● ●
83 04.520 SHIM; OUTPUT SHAFT
T=0.40 		8-97326-904-0 01 1 0710- ● ●
83 04.520 SHIM; OUTPUT SHAFT
T=0.35 		8-97326-905-0 01 1 0710- ● ●
83 04.520 SHIM; OUTPUT SHAFT
T=0.30 		8-97326-906-0 01 1 0710- ● ●
83 04.520 SHIM; OUTPUT SHAFT
T=0.25 		8-97326-907-0 01 1 0710- ● ●
84 04.520 COVER; DUST 8-97326-891-0 01 1 0710- ● ●
143 04.520 SEAL; OIL 8-97326-889-0 01 1 0710- ● ●
