Isuzu WW
▶
TRUCKS
▶
NPS
▶
51162 - NPS-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE
▶

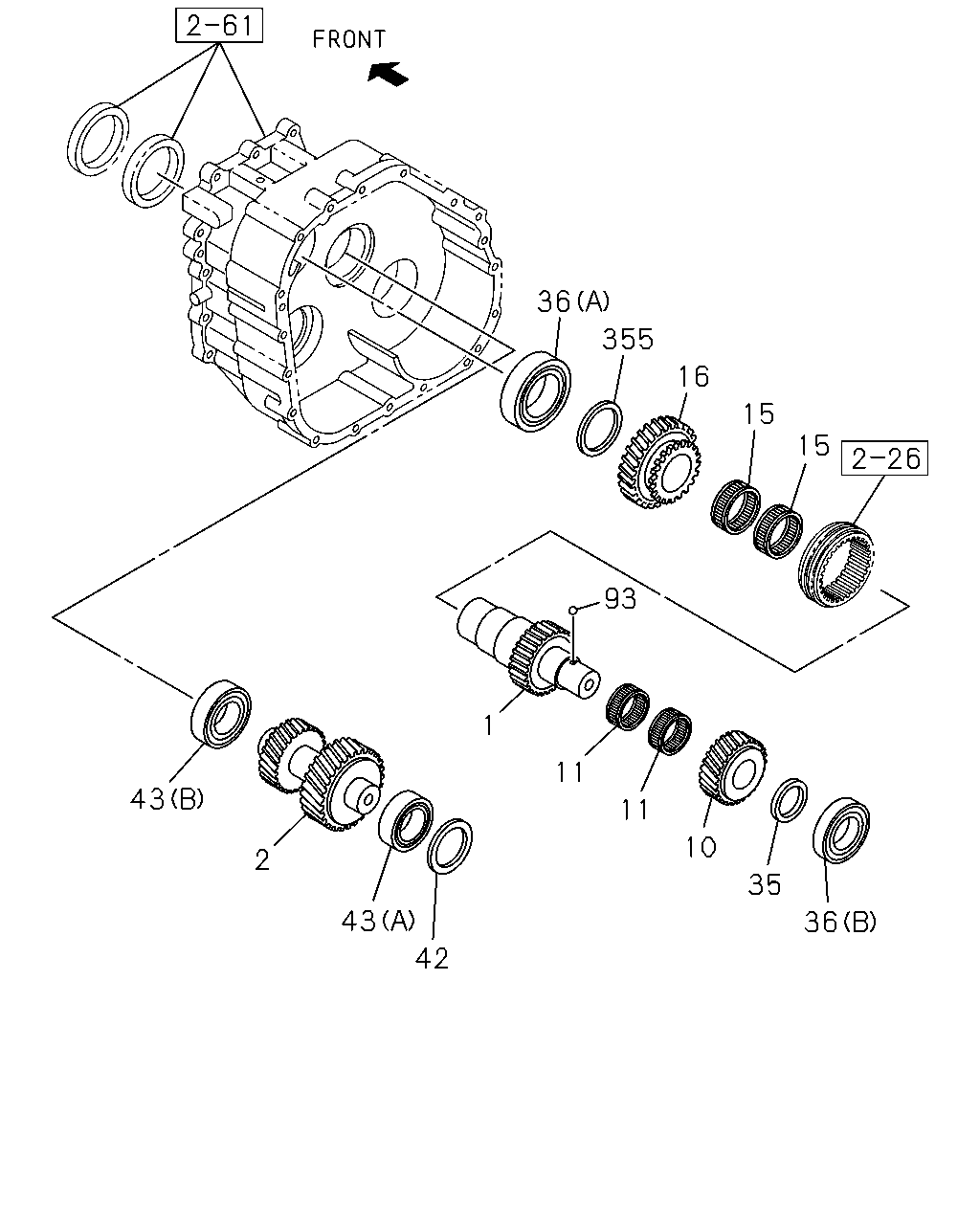

2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE
(#53603) — 19 parça
Tümü
A - NPS5SN
B - NPS5WN
36
355
16
15
15
93
1
11
43
11
10
2
35
43
36
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.162 SHAFT; GEAR,INPUT
8-97326-946-0
01
1
0710-
●
●
2
04.162 SHAFT; GEAR,IDLE
8-97326-921-0
01
1
0710-
●
●
10
04.532 GEAR; INPUT,LOW
8-98000-326-0
01
1
0710-
●
●
11
04.520 BEARING; LOW GEAR,TRANSFER
8-97351-791-0
02
1
0710-
●
●
15
04.520 BEARING; HIGH GEAR,TRANSFER
8-97326-943-0
02
1
0710-
●
●
16
04.532 GEAR; INPUT,HIGH
8-97326-944-0
01
1
0710-
●
●
35
04.533 WASHER; THRUST,LOW GEAR,TRANSFER
8-97326-937-0
01
1
0710-
●
●
36
04.520 BEARING; IDLE SHAFT,TRANSFER
(B)
8-97326-935-0
01
1
0710-
●
●
36
04.520 BEARING; IDLE SHAFT,TRANSFER
(A)
8-97326-936-0
01
1
0710-
●
●
42
04.520 SHIM; IDLE SHAFT BRG
T=0.18
8-97326-912-0
01
1
0710-
●
●
42
04.520 SHIM; IDLE SHAFT BRG
T=0.50
8-97326-913-0
02
1
0710-
●
●
42
04.520 SHIM; IDLE SHAFT BRG
T=0.40
8-97326-914-0
01
1
0710-
●
●
42
04.520 SHIM; IDLE SHAFT BRG
T=0.35
8-97326-915-0
01
1
0710-
●
●
42
04.520 SHIM; IDLE SHAFT BRG
T=0.30
8-97326-916-0
01
1
0710-
●
●
42
04.520 SHIM; IDLE SHAFT BRG
T=0.25
8-97326-917-0
01
1
0710-
●
●
43
04.520 BEARING; ROLLER,IDLE SHAFT
(A)
8-97326-919-0
01
1
0710-
●
●
43
04.520 BEARING; ROLLER,IDLE SHAFT
(B)
8-97326-920-0
01
1
0710-
●
●
93
04.520 BALL; INPUT SHAFT
8-97328-680-0
01
1
0710-
●
●
355
04.520 WASHER; THRUST,INPUT SHAFT
8-97326-942-0
01
1
0710-
●
●
