◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51162 - NPS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-61 - TRANSFER CASE AND GEAR SHIFTER ▶
2-61 — TRANSFER CASE AND GEAR SHIFTER (#53601) — 29 parça

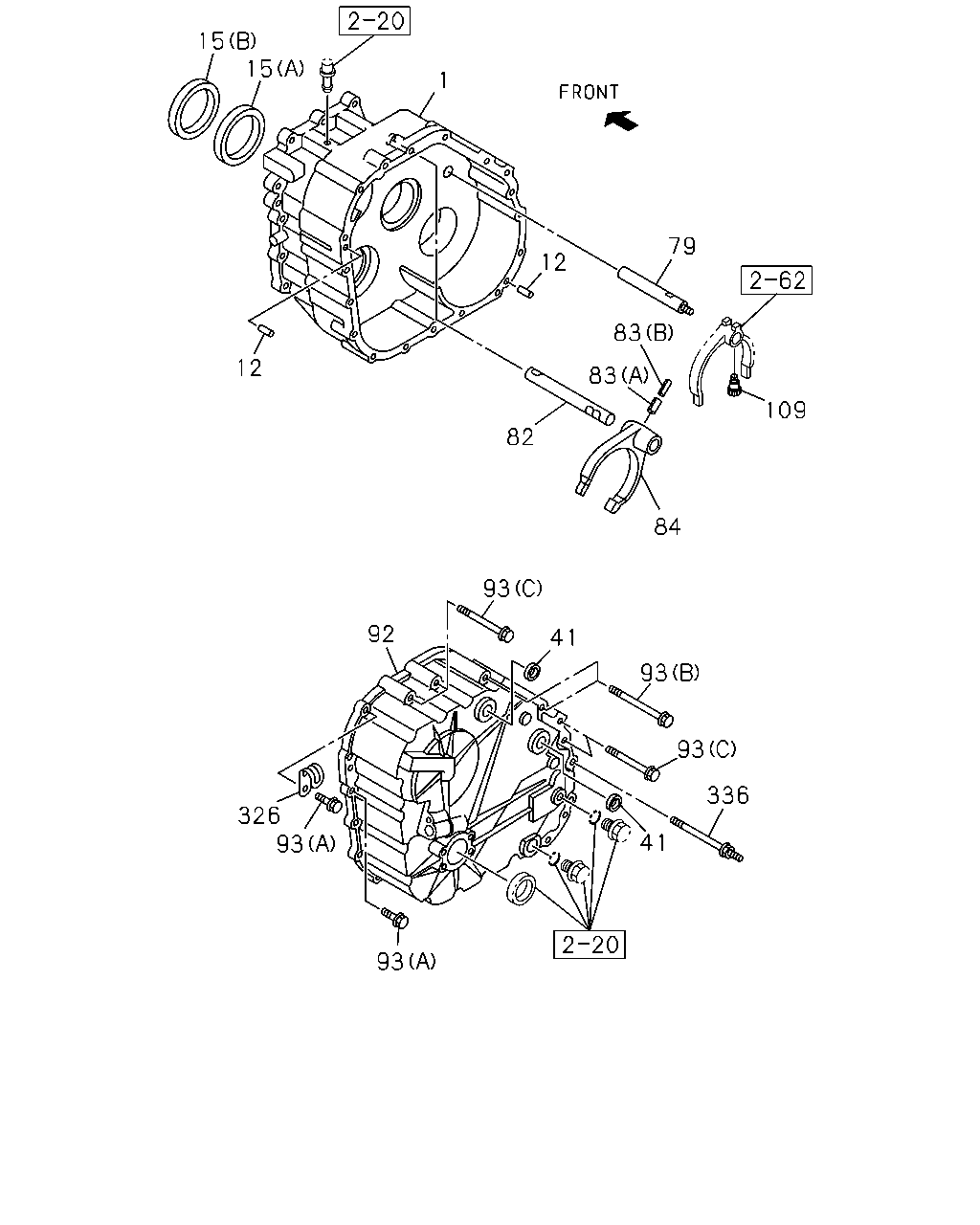

çizim 157193
15 15 1 79 12 83 12 83 109 82 84 93 92 41 93 93 336 326 93 41 93
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.510 CASE; TRANSFER 8-98072-450-1 01 1 0710- ● ●
12 04.510 PIN; STRAIGHT,TRANSFER CASE 8-97326-880-0 02 1 0710- ● ●
15 04.515 SEAL; OIL,INPUT & FRT OUTPUT
(A) 		8-97326-934-0 02 1 0710- ● ●
15 04.515 SEAL; OIL,INPUT & FRT OUTPUT
(B) 		8-97327-114-0 01 1 0710- ● ●
41 04.515 SEAL; OIL,SHIFT ROD 8-97326-887-0 02 1 0710- ● ●
79 04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE 8-97357-217-0 01 1 0710- ● ●
82 04.309 ROD; SHIFT,LOW & HIGH 8-98072-454-0 01 1 0710- ● ●
83 04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK
(B) 		8-97326-931-0 01 1 0710- ● ●
83 04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK
(A) 		8-97326-932-0 01 1 0710- ● ●
84 04.555 FORK; SHIFT,LOW & HIGH 8-98072-455-0 01 1 0710- ● ●
92 04.552 COVER; RR,TRANSFER 8-98072-447-1 01 1 0710- ● ●
93 04.552 BOLT; TRANSFER CASE TO RR COVER
(B) M10X100 FLANGE 		8-97326-881-0 02 1 0710- ● ●
93 04.552 BOLT; TRANSFER CASE TO RR COVER
(C) M10X70 FLANGE 		8-97326-882-0 04 1 0710- ● ●
93 04.552 BOLT; TRANSFER CASE TO RR COVER
(A) M10X40 FLANGE 		8-97326-883-0 11 1 0710- ● ●
109 04.319 BOLT; TAPER,TRANSFER CASE
04.302 		1-09052-034-2 01 1 0710- ● ●
326 04.128 CLIP; HARNESS
02.559 ID=8 		8-97329-633-0 01 1 0710- ● ●
336 04.510 STUD; CASE 8-98098-017-0 01 1 0710- ● ●

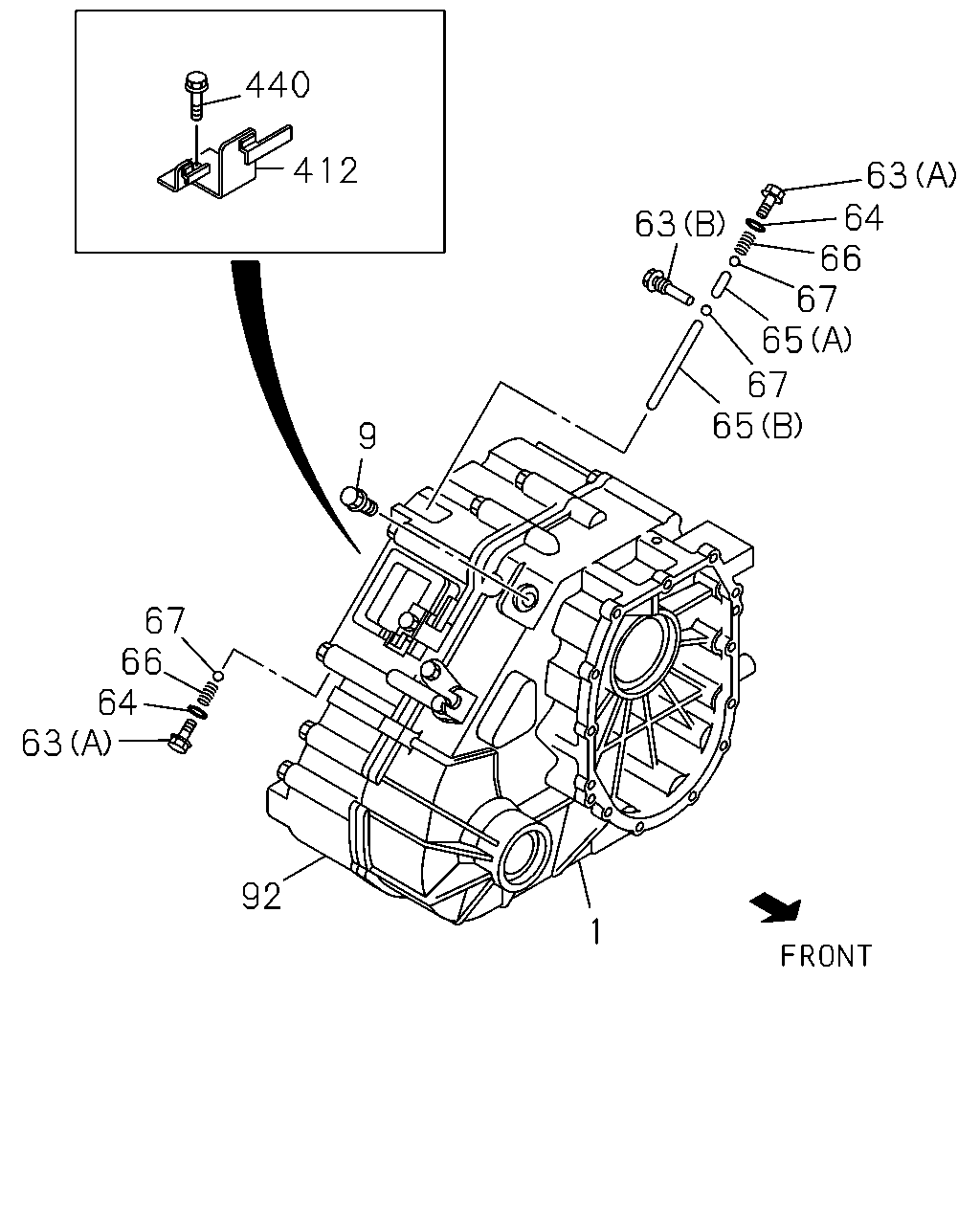

çizim 157195
440 412 63 64 66 67 65 63 67 65 9 67 66 64 63 92 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.510 CASE; TRANSFER 8-98072-450-1 01 1 0710- ● ●
9 04.500 SWITCH; TRANSFER
04.054 		8-98023-051-0 01 1 0710- ● ●
63 04.510 PLUG; DETENT SPRING
(A) 		8-97326-926-0 02 1 0710- ● ●
63 04.510 PLUG; DETENT SPRING
(B) 		8-98072-453-0 01 1 0710- ● ●
64 04.515 GASKET; DETENT SPRING PLUG
04.510 		8-97326-925-0 02 1 0710- ● ●
65 04.309 ROD; INTER LOCK,SHIFT ROD
(A) 		8-98072-451-0 01 1 0710- ● ●
65 04.309 ROD; INTER LOCK,SHIFT ROD
(B) 		8-98072-452-0 01 1 0710- ● ●
66 04.198 SPRING; DETENT,SHIFT ROD 8-97326-927-0 02 1 0710- ● ●
67 04.262 BALL; DETENT,SHIFT ROD,TRANSFER 8-97326-928-0 03 1 0710- ● ●
92 04.552 COVER; RR,TRANSFER 8-98072-447-1 01 1 0710- ● ●
412 04.555 BRACKET; SW CONN 8-97327-662-1 01 1 0710- ● ●
440 04.319 BOLT; W/WASHER 8-98072-445-0 01 1 0710- ● ●
