◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51162 - NPS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#53597) — 74 parça

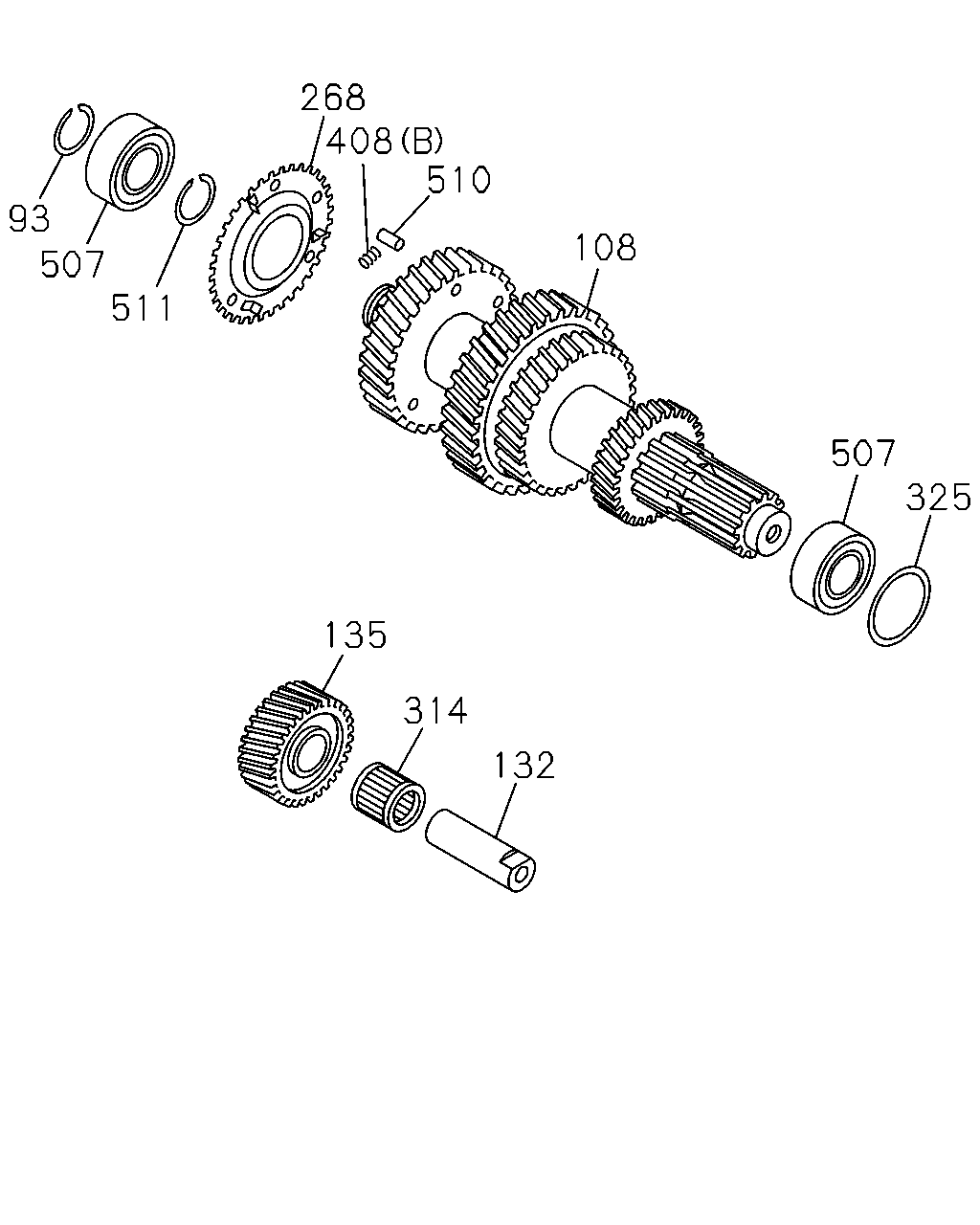

çizim 157186
268 408 510 93 108 507 511 507 325 135 314 132
BalonParca AdiParca NoAdetTipApplied Date
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 0710-
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 0710-
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 0710-
108 04.428 SHAFT; COUNTER
Z=45-49-33-20 		8-97380-630-1 01 1 0710-
132 04.433 SHAFT; REV 8-97252-655-0 01 1 0710-
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 0710-
268 04.537 PLATE; ANTI LASH,COUNTER 8-97257-300-1 01 1 0710-
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0710-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 0710-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 0710-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 0710-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 0710-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 0710-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 0710-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 0710-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 0710-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 0710-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 0710-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 0710-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 0710-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 0710-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 0710-
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 0710-
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 0710-
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 0710-
510 04.540 PIN; STRAIGHT,ANTI LASH
00.862 		9-08160-825-0 03 1 0710-
511 04.416 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 0710-

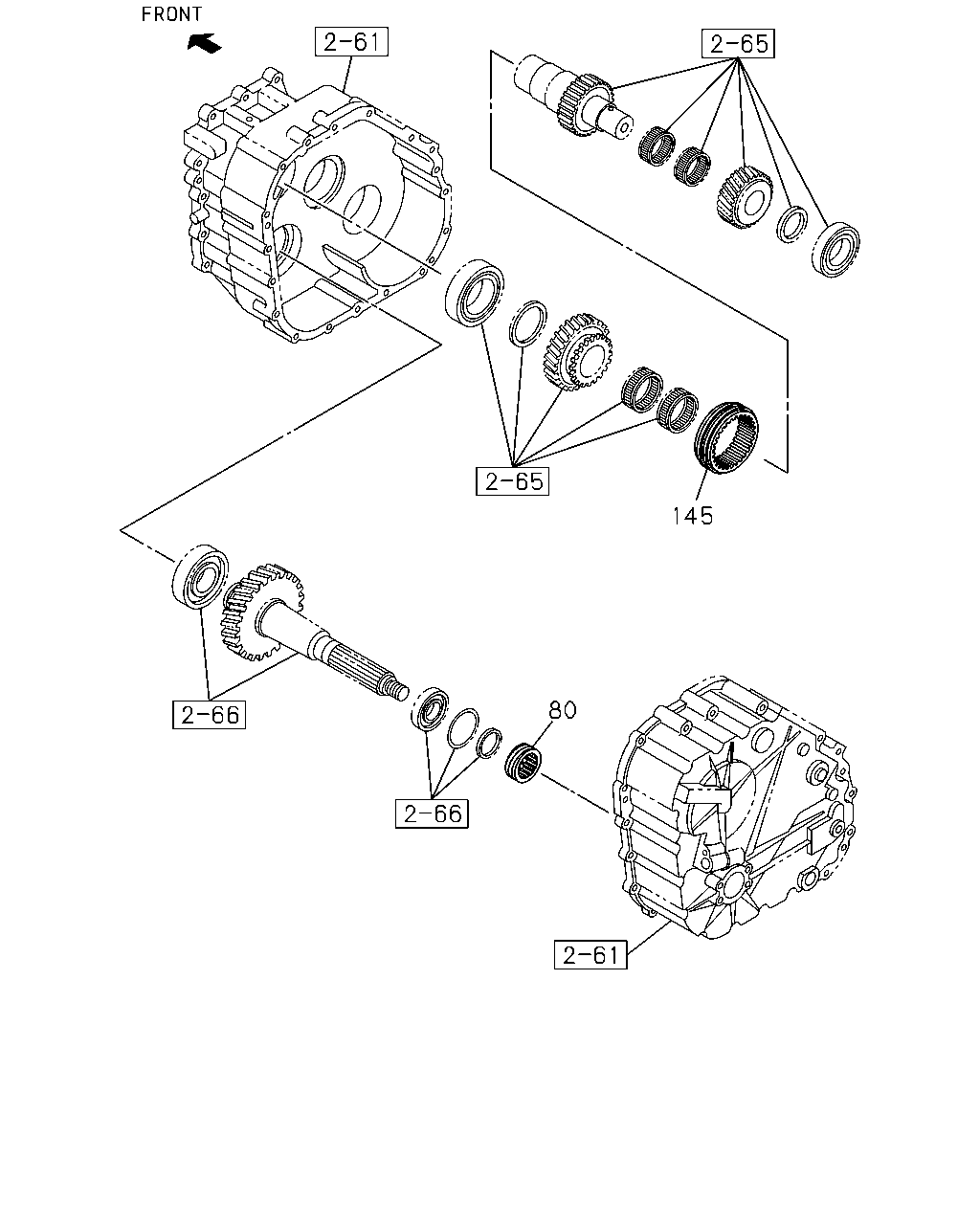

çizim 157197
145 80
BalonParca AdiParca NoAdetTipApplied Date
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97318-465-0 01 1 0710-
145 04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
04.383 Z=45 		8-97241-296-1 01 1 0710-1311
145 04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
04.383 Z=45 		8-98258-279-0 01 1 1312-

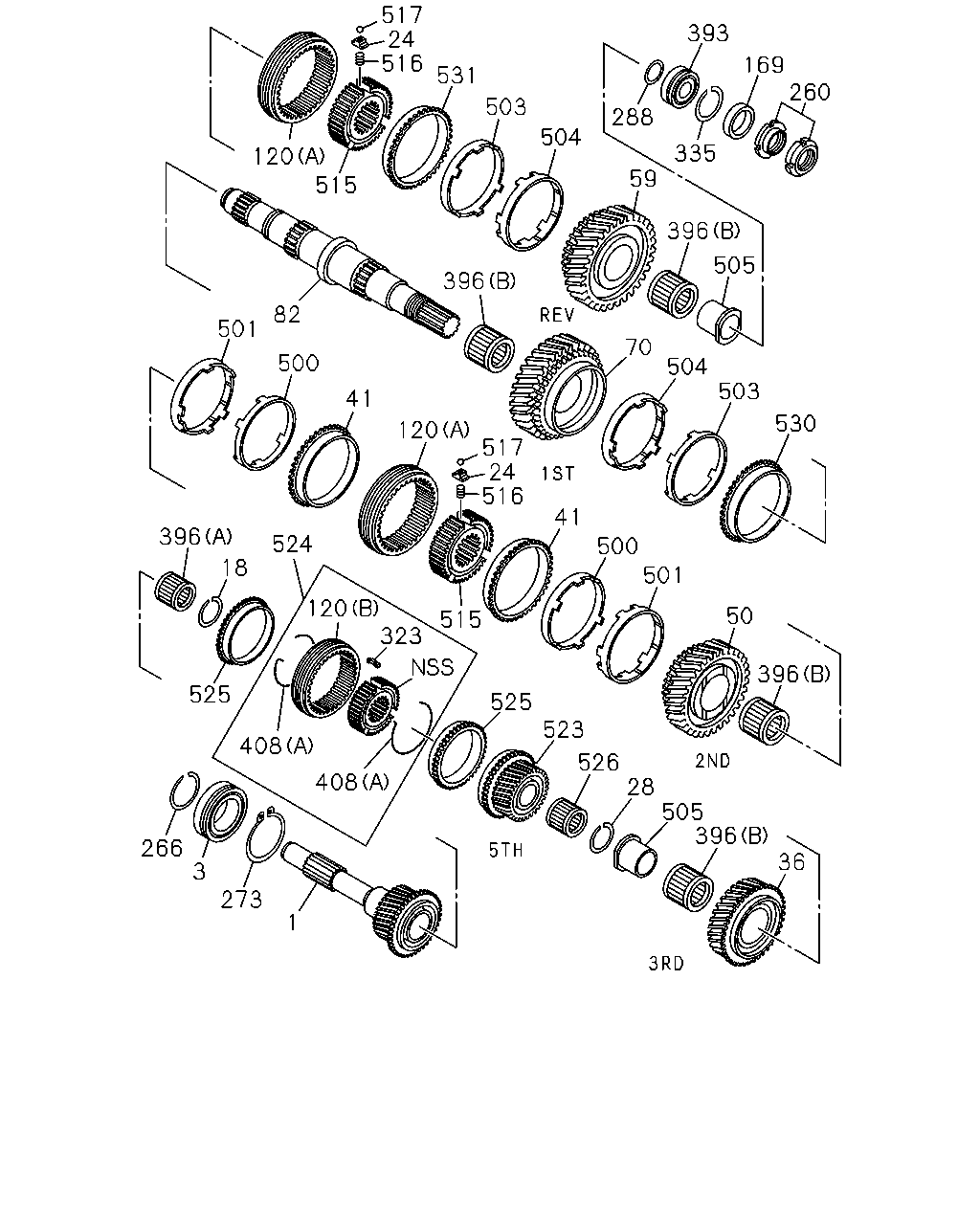

çizim 157199
517 24 516 393 169 260 531 503 288 504 335 120 59 515 396 505 396 82 501 70 500 504 503 41 530 120 517 24 516 41 396 524 500 18 501 120 323 50 515 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1
BalonParca AdiParca NoAdetTipApplied Date
1 04.351 SHAFT; TOP GEAR,TRANS
Z=28 		8-98031-848-0 01 1 0710-
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 0710-
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 0710-
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 06 1 0710-
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0710-
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0710-
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 0710-
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0710-
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97350-011-0 01 1 0710-1006
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 1007-
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 0710-
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97314-394-1 01 1 0710-
120 04.383 SLEEVE
04.535 (B) Z=45 		8-94421-871-1 01 1 0710-
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 0710-1311
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-
169 04.419 COLLAR; MAINSHAFT 8-97314-455-0 01 1 0710-
260 04.412 NUT; MAINSHAFT END 8-97314-121-1 01 1 0710-
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 0710-
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 0710-
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 0710-
323 04.384 INSERT 8-94448-202-2 03 1 0710-
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 0710-
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0710-
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 0710-
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0710-
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 0710-
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 0710-
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 0710-
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 0710-
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-309-1 02 1 0710-1006
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 1007-
504 04.383 RING; INSIDE,LOW & REV 8-97241-312-1 02 1 0710-1006
504 04.383 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 1007-
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 0710-
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 02 1 0710-
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 0710-
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 0710-
523 04.395 GEAR; OD,MAINSHAFT
Z=22 		8-97241-231-0 01 1 0710-
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 0710-
525 04.395 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 0710-
526 04.352 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 0710-
530 04.383 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 0710-
531 04.383 RING; BLOCK,REV
Z=45 		8-97241-306-1 01 1 0710-1006
531 04.383 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 1007-
