Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#53585) — 476 parça

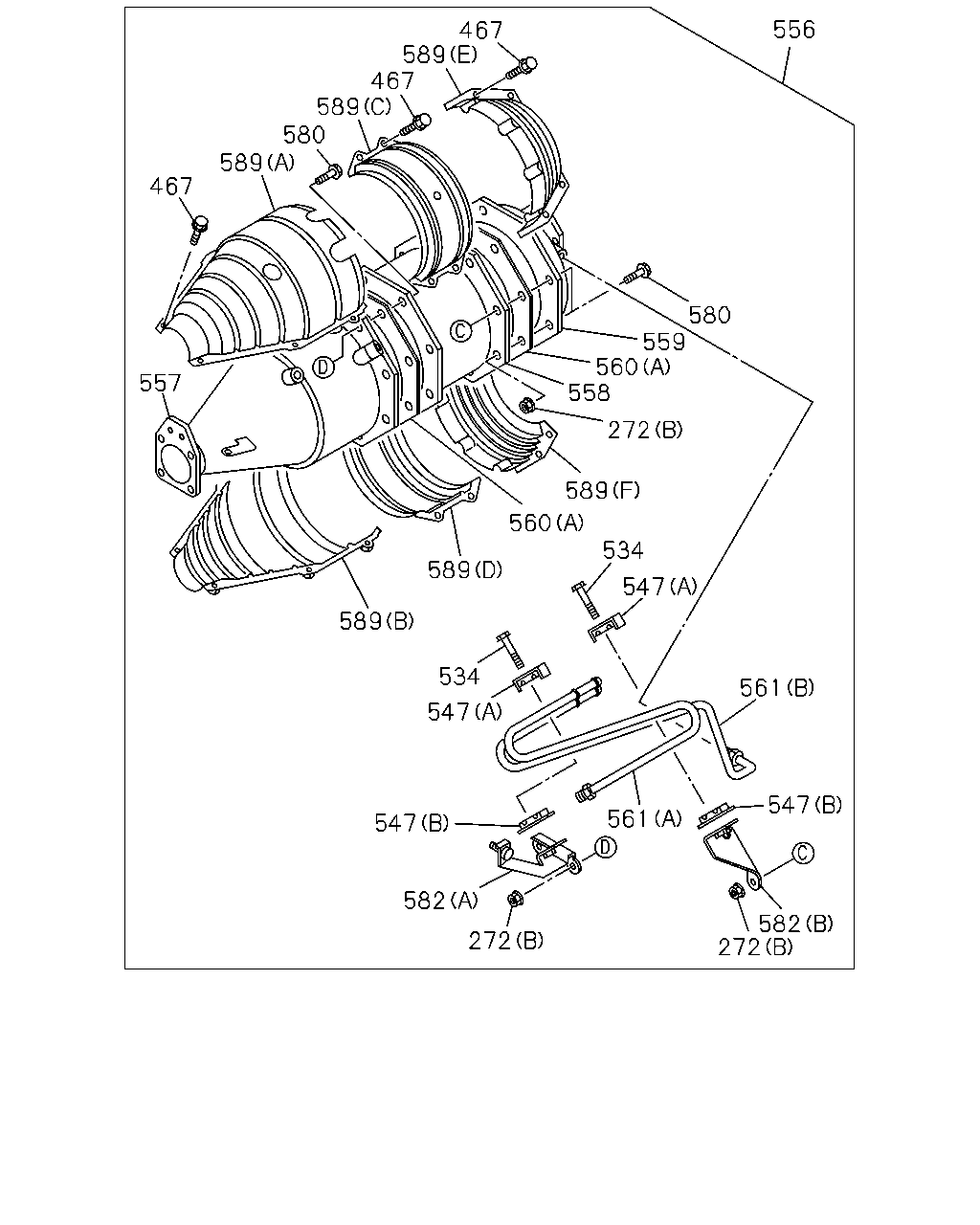

556 467 589 467 589 580 589 467 557 580 559 560 558 272 589 560 589 589 534 547 547 582 272 272 582 547 561 561 547 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-0803	●	●
272	03.685 NUT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0804-	●
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0804-		●
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0710-0803	●	●
272	03.685 NUT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0804-	●
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0804-		●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0710-0803	●	●
467	03.685 BOLT; PROTECTOR CATALYSIS CONTROL WITH DPD(8JM) M6X16	8-98019-179-0	14	1	0804-	●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0804-		●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0710-0803	●	●
534	03.704 BOLT; CLIP CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0804-	●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0804-		●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	02	1	0710-0803	●	●
547	03.682 CLIP; PIPE CATALYSIS CONTROL WITH DPD(8JM) (A) ID=7 & 7 L=22	8-97381-635-0	02	1	0804-	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	02	1	0804-		●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	02	1	0710-0803	●	●
547	03.682 CLIP; PIPE CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7 & 7 L=22	8-97381-636-0	02	1	0804-	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	02	1	0804-		●
556	03.701 DPD ASM	8-98036-810-7	01	1	0710-0803	●	●
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	0804-1011	●
556	03.701 DPD ASM	8-98036-810-7	01	1	0804-1011		●
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-4	01	1	1012-	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-		●
557	03.701 CATALYST ASM	8-98036-815-7	01	1	0710-0803	●	●
557	03.701 CATALYST ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98036-815-7	01	1	0804-	●
557	03.701 CATALYST ASM	8-98036-815-7	01	1	0804-		●
558	03.634 FILTER ASM	8-98032-908-2	01	1	0710-0803	●	●
558	03.634 FILTER ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98032-908-2	01	1	0804-	●
558	03.634 FILTER ASM	8-98032-908-2	01	1	0804-		●
559	03.602 COVER; RR	8-98084-599-0	01	1	0710-0803	●	●
559	03.602 COVER; RR CATALYSIS CONTROL WITH DPD(8JM)	8-98084-599-0	01	1	0804-1011	●
559	03.602 COVER; RR	8-98084-599-0	01	1	0804-1011		●
559	03.602 COVER; RR CATALYSIS CONTROL WITH DPD(8JM)	8-98093-507-0	01	1	1012-	●
559	03.602 COVER; RR	8-98093-507-0	01	1	1012-		●
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	0710-0803	●	●
560	03.611 GASKET; DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97331-947-0	02	1	0804-	●
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	0804-		●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	0710-0803	●	●
560	03.611 GASKET; DPD EURO4 SPECIFICATION(NT4) (B) ID=64	8-97373-108-0	01	1	0804-	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	0804-		●
561	03.609 PIPE; DPD (A) FRONT	8-98032-910-0	01	1	0710-0803	●	●
561	03.609 PIPE; DPD CATALYSIS CONTROL WITH DPD(8JM) (A) FRONT	8-98032-910-0	01	1	0804-1011	●
561	03.609 PIPE; DPD (A) FRONT	8-98032-910-0	01	1	0804-1011		●
561	03.609 PIPE; DPD CATALYSIS CONTROL WITH DPD(8JM) (A) FRONT	8-98084-600-0	01	1	1012-	●
561	03.609 PIPE; DPD (A) FRONT	8-98084-600-0	01	1	1012-		●
561	03.609 PIPE; DPD (B) REAR	8-98032-911-1	01	1	0710-0803	●	●
561	03.609 PIPE; DPD CATALYSIS CONTROL WITH DPD(8JM) (B) REAR	8-98032-911-1	01	1	0804-1011	●
561	03.609 PIPE; DPD (B) REAR	8-98032-911-1	01	1	0804-1011		●
561	03.609 PIPE; DPD CATALYSIS CONTROL WITH DPD(8JM) (B) REAR	8-98084-601-0	01	1	1012-	●
561	03.609 PIPE; DPD (B) REAR	8-98084-601-0	01	1	1012-		●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0710-0803	●	●
580	03.704 BOLT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0804-	●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0804-		●
582	03.706 BRACKET; PIPE (A)	8-98032-919-0	01	1	0710-0803	●	●
582	03.706 BRACKET; PIPE CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-919-0	01	1	0804-	●
582	03.706 BRACKET; PIPE (A)	8-98032-919-0	01	1	0804-		●
582	03.706 BRACKET; PIPE (B)	8-98032-920-0	01	1	0710-0803	●	●
582	03.706 BRACKET; PIPE CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-920-0	01	1	0804-	●
582	03.706 BRACKET; PIPE (B)	8-98032-920-0	01	1	0804-		●
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97383-660-0	01	1	0710-0803	●	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97383-660-0	01	1	0804-	●
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97383-660-0	01	1	0804-		●
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97383-663-0	01	1	0710-0803	●	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (F)	8-97383-663-0	01	1	0804-	●
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97383-663-0	01	1	0804-		●
589	03.609 PROTECTOR; HEAT,DPD (A)	8-98032-921-0	01	1	0710-0803	●	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-921-0	01	1	0804-	●
589	03.609 PROTECTOR; HEAT,DPD (A)	8-98032-921-0	01	1	0804-		●
589	03.609 PROTECTOR; HEAT,DPD (B)	8-98032-923-0	01	1	0710-0803	●	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-923-0	01	1	0804-	●
589	03.609 PROTECTOR; HEAT,DPD (B)	8-98032-923-0	01	1	0804-		●
589	03.609 PROTECTOR; HEAT,DPD (D)	8-98032-924-0	01	1	0710-0803	●	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98032-924-0	01	1	0804-	●
589	03.609 PROTECTOR; HEAT,DPD (D)	8-98032-924-0	01	1	0804-		●
589	03.609 PROTECTOR; HEAT,DPD (E)	8-98032-926-0	01	1	0710-0803	●	●
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98032-926-0	01	1	0804-	●
589	03.609 PROTECTOR; HEAT,DPD (E)	8-98032-926-0	01	1	0804-		●

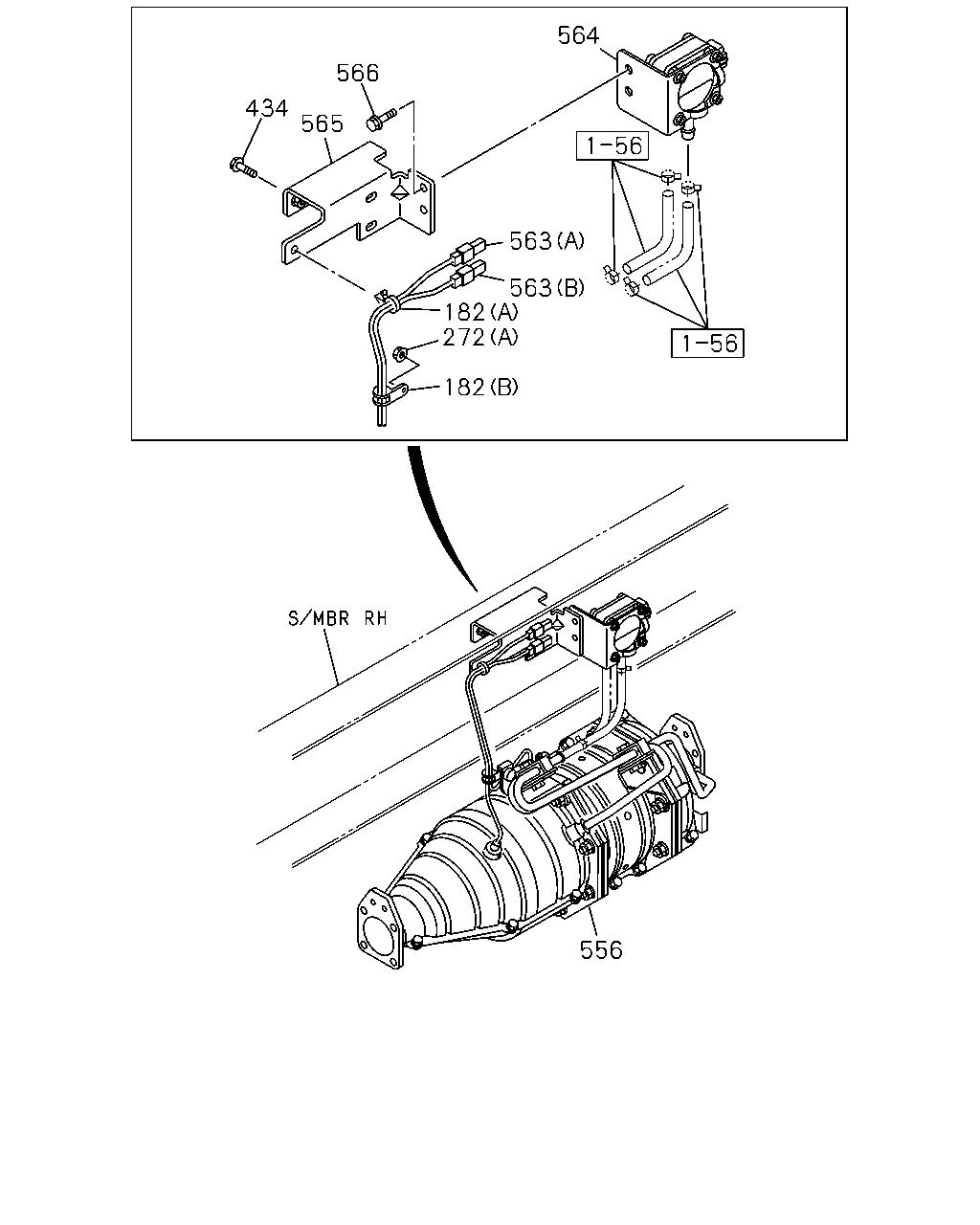

556 182 272 182 563 563 564 566 565 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	01	1	0710-0803	●	●
182	03.682 CLIP; HARNESS CATALYSIS CONTROL WITH DPD(8JM) 02.587 (A) L=112	8-94232-618-0	01	1	0804-	●
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	01	1	0804-		●
182	03.682 CLIP; HARNESS (B) ID=7	8-98002-767-0	01	1	0710-0803	●	●
182	03.682 CLIP; HARNESS CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7	8-98002-767-0	01	1	0804-	●
182	03.682 CLIP; HARNESS (B) ID=7	8-98002-767-0	01	1	0804-		●
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-0803	●	●
272	03.685 NUT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0804-	●
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0804-		●
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0710-0803	●	●
272	03.685 NUT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0804-	●
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0804-		●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-0803	●	●
434	03.613 BOLT; BRKT CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-	●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-		●
556	03.701 DPD ASM	8-98036-810-7	01	1	0710-0803	●	●
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	0804-1011	●
556	03.701 DPD ASM	8-98036-810-7	01	1	0804-1011		●
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-4	01	1	1012-	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-		●
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	0710-0803	●	●
563	01.150 SENSOR; TEMPERATURE,DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98004-329-0	01	1	0804-	●
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	0804-		●
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	0710-0803	●	●
563	01.150 SENSOR; TEMPERATURE,DPD CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98004-330-0	01	1	0804-	●
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	0804-		●
564	01.150 SENSOR; PRESSURE,DPD	8-97360-368-2	01	1	0710-0803	●	●
564	01.150 SENSOR; PRESSURE,DPD CATALYSIS CONTROL WITH DPD(8JM)	8-97360-368-2	01	1	0804-	●
564	01.150 SENSOR; PRESSURE,DPD	8-97360-368-2	01	1	0804-		●
565	03.706 BRACKET; SENSOR,PRESSURE	8-98063-129-0	01	1	0710-0803	●	●
565	03.706 BRACKET; SENSOR,PRESSURE CATALYSIS CONTROL WITH DPD(8JM)	8-98063-129-0	01	1	0804-	●
565	03.706 BRACKET; SENSOR,PRESSURE	8-98063-129-0	01	1	0804-		●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-0803	●	●
566	03.706 BOLT; SENSOR CATALYSIS CONTROL WITH DPD(8JM) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0804-	●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0804-		●

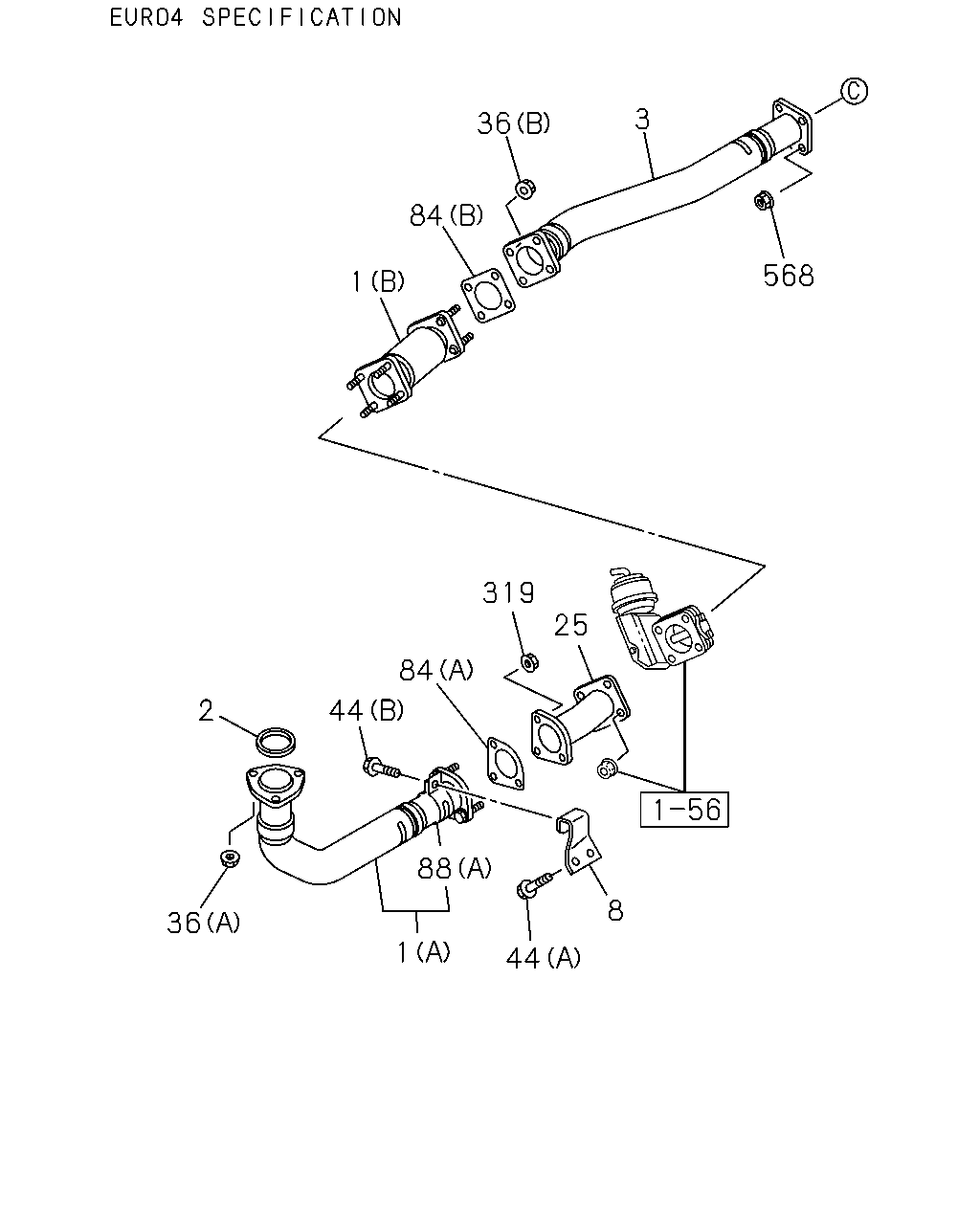

3 36 84 568 1 319 25 84 2 44 88 8 36 1 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH EURO2 SPECIFICATION(NT2) (C)	8-98082-540-0	01	1	0804-	●
1	03.609 PIPE; EXH EURO2 SPECIFICATION(NT2) (D)	8-98082-542-0	01	1	0804-	●
1	03.609 PIPE; EXH (A)	8-98049-988-0	01	1	0710-0803	●	●
1	03.609 PIPE; EXH EURO4 SPECIFICATION(NT4) (A)	8-98049-988-0	01	1	0804-	●
1	03.609 PIPE; EXH (A)	8-98049-988-0	01	1	0804-		●
1	03.609 PIPE; EXH (B)	8-98049-994-0	01	1	0710-0803	●	●
1	03.609 PIPE; EXH EURO4 SPECIFICATION(NT4) (B)	8-98049-994-0	01	1	0804-	●
1	03.609 PIPE; EXH (B)	8-98049-994-0	01	1	0804-		●
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0710-	●	●
3	03.609 PIPE; EXH,CENTER EURO2 SPECIFICATION(NT2)	8-97355-648-0	01	1	0804-	●
3	03.609 PIPE; EXH,CENTER	8-98072-180-0	01	1	0710-0803	●	●
3	03.609 PIPE; EXH,CENTER EURO4 SPECIFICATION(NT4)	8-98072-180-0	01	1	0804-	●
3	03.609 PIPE; EXH,CENTER	8-98072-180-0	01	1	0804-		●
8	03.704 BRACKET; EXH PIPE	8-98072-165-0	01	1	0710-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER EURO2 SPECIFICATION(NT2)	8-98082-541-0	01	1	0804-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98049-989-0	01	1	0710-0803	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER EURO4 SPECIFICATION(NT4)	8-98049-989-0	01	1	0804-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98049-989-0	01	1	0804-		●
36	03.613 NUT; EXH PIPE EURO2 SPECIFICATION(NT2) 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0804-	●
36	03.613 NUT; EXH PIPE 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0710-0803	●	●
36	03.613 NUT; EXH PIPE EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0804-	●
36	03.613 NUT; EXH PIPE 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0804-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0710-	●	●
44	03.613 BOLT; BRKT 09.171 (A) M10X25 FLANGE	0-28051-025-0	02	1	0710-	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0710-0803	●	●
44	03.613 BOLT; BRKT EURO4 SPECIFICATION(NT4) 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0804-	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0804-		●
44	03.613 BOLT; BRKT (B) M10X40 FLANGE	0-28651-040-0	01	1	0710-0710	●	●
44	03.613 BOLT; BRKT 00.685 (B) M10X40 FLANGE	0-28051-040-0	01	1	0710-	●	●
84	03.611 GASKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.704 (C) ID=64.7	8-94328-352-0	01	1	0804-	●
84	03.611 GASKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.704 (C) ID=64.7	8-94328-352-0	01	1	0804-	●
84	03.611 GASKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.704 (C) ID=64.7	8-94328-352-0	01	1	0804-	●
84	03.611 GASKET; EXH PIPE (B) ID=64	8-97373-108-0	01	1	0710-0803	●	●
84	03.611 GASKET; EXH PIPE EURO4 SPECIFICATION(NT4) (B) ID=64	8-97373-108-0	01	1	0804-	●
84	03.611 GASKET; EXH PIPE (B) ID=64	8-97373-108-0	01	1	0804-		●
84	03.611 GASKET; EXH PIPE (A)	8-97384-590-0	01	1	0710-0803	●	●
84	03.611 GASKET; EXH PIPE EURO4 SPECIFICATION(NT4) (A)	8-97384-590-0	01	1	0804-	●
84	03.611 GASKET; EXH PIPE (A)	8-97384-590-0	01	1	0804-		●
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2) (B)	8-97373-158-0	01	1	0804-	●
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2) (B)	8-97373-158-0	01	1	0804-	●
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2) (B)	8-97373-158-0	01	1	0804-	●
88	03.708 CLAMP; EXH PIPE (A)	8-98034-766-0	01	1	0710-0803	●	●
88	03.708 CLAMP; EXH PIPE EURO4 SPECIFICATION(NT4) (A)	8-98034-766-0	01	1	0804-	●
88	03.708 CLAMP; EXH PIPE (A)	8-98034-766-0	01	1	0804-		●
319	03.602 NUT; PROTECTOR EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-	●
319	03.602 NUT; PROTECTOR 03.162 M10 FLANGE	0-91180-110-0	03	1	0710-0803	●	●
319	03.602 NUT; PROTECTOR EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE	0-91180-110-0	03	1	0804-	●
319	03.602 NUT; PROTECTOR 03.162 M10 FLANGE	0-91180-110-0	03	1	0804-		●
568	03.704 NUT; DPD 01.062 M8 FLANGE	0-91180-108-0	04	1	0710-0803	●	●
568	03.704 NUT; DPD EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE	0-91180-108-0	04	1	0804-	●
568	03.704 NUT; DPD 01.062 M8 FLANGE	0-91180-108-0	04	1	0804-		●

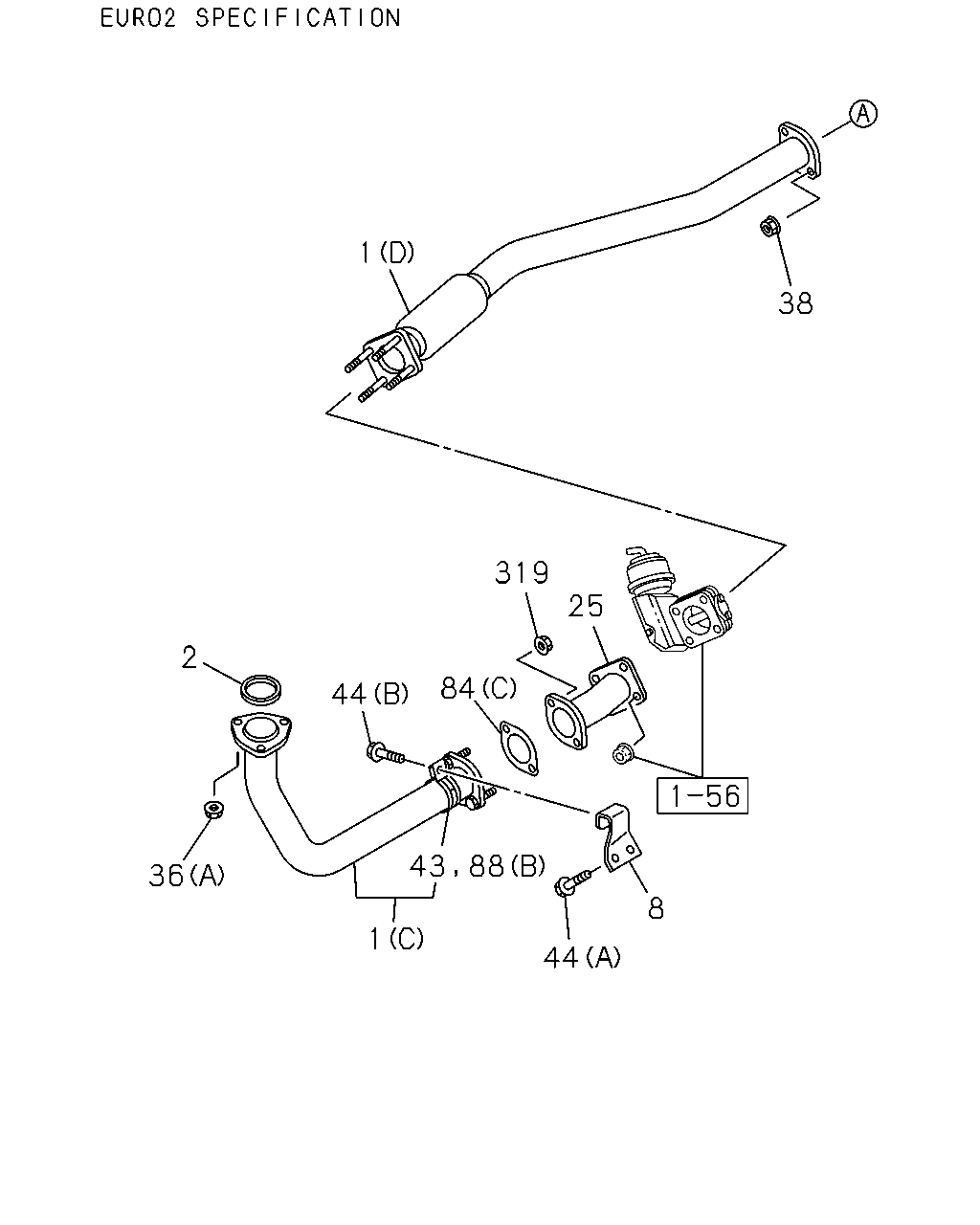

1 38 319 25 2 84 44 36 8 1 44 43 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH EURO2 SPECIFICATION(NT2) (C)	8-98082-540-0	01	1	0804-	●
1	03.609 PIPE; EXH EURO2 SPECIFICATION(NT2) (D)	8-98082-542-0	01	1	0804-	●
1	03.609 PIPE; EXH (A)	8-98049-988-0	01	1	0710-0803	●	●
1	03.609 PIPE; EXH EURO4 SPECIFICATION(NT4) (A)	8-98049-988-0	01	1	0804-	●
1	03.609 PIPE; EXH (A)	8-98049-988-0	01	1	0804-		●
1	03.609 PIPE; EXH (B)	8-98049-994-0	01	1	0710-0803	●	●
1	03.609 PIPE; EXH EURO4 SPECIFICATION(NT4) (B)	8-98049-994-0	01	1	0804-	●
1	03.609 PIPE; EXH (B)	8-98049-994-0	01	1	0804-		●
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0710-	●	●
8	03.704 BRACKET; EXH PIPE	8-98072-165-0	01	1	0710-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER EURO2 SPECIFICATION(NT2)	8-98082-541-0	01	1	0804-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98049-989-0	01	1	0710-0803	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER EURO4 SPECIFICATION(NT4)	8-98049-989-0	01	1	0804-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98049-989-0	01	1	0804-		●
36	03.613 NUT; EXH PIPE EURO2 SPECIFICATION(NT2) 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0804-	●
36	03.613 NUT; EXH PIPE 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0710-0803	●	●
36	03.613 NUT; EXH PIPE EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0804-	●
36	03.613 NUT; EXH PIPE 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0804-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0710-	●	●
38	00.002 NUT; SILENCER EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	04	1	0710-0803	●	●
38	00.002 NUT; SILENCER EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE	0-91180-110-0	04	1	0804-	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	04	1	0804-		●
43	03.611 CLAMP; EXH PIPE 03.708	8-97373-158-0	01	1	0803-0803	●	●
43	03.611 CLAMP; EXH PIPE EURO4 SPECIFICATION(NT4) 03.708	8-97373-158-0	01	1	0804-	●
43	03.611 CLAMP; EXH PIPE 03.708	8-97373-158-0	01	1	0804-		●
44	03.613 BOLT; BRKT 09.171 (A) M10X25 FLANGE	0-28051-025-0	02	1	0710-	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0710-0803	●	●
44	03.613 BOLT; BRKT EURO4 SPECIFICATION(NT4) 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0804-	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0804-		●
44	03.613 BOLT; BRKT (B) M10X40 FLANGE	0-28651-040-0	01	1	0710-0710	●	●
44	03.613 BOLT; BRKT 00.685 (B) M10X40 FLANGE	0-28051-040-0	01	1	0710-	●	●
84	03.611 GASKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.704 (C) ID=64.7	8-94328-352-0	01	1	0804-	●
84	03.611 GASKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.704 (C) ID=64.7	8-94328-352-0	01	1	0804-	●
84	03.611 GASKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.704 (C) ID=64.7	8-94328-352-0	01	1	0804-	●
84	03.611 GASKET; EXH PIPE (B) ID=64	8-97373-108-0	01	1	0710-0803	●	●
84	03.611 GASKET; EXH PIPE EURO4 SPECIFICATION(NT4) (B) ID=64	8-97373-108-0	01	1	0804-	●
84	03.611 GASKET; EXH PIPE (B) ID=64	8-97373-108-0	01	1	0804-		●
84	03.611 GASKET; EXH PIPE (A)	8-97384-590-0	01	1	0710-0803	●	●
84	03.611 GASKET; EXH PIPE EURO4 SPECIFICATION(NT4) (A)	8-97384-590-0	01	1	0804-	●
84	03.611 GASKET; EXH PIPE (A)	8-97384-590-0	01	1	0804-		●
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2) (B)	8-97373-158-0	01	1	0804-	●
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2) (B)	8-97373-158-0	01	1	0804-	●
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2) (B)	8-97373-158-0	01	1	0804-	●
88	03.708 CLAMP; EXH PIPE (A)	8-98034-766-0	01	1	0710-0803	●	●
88	03.708 CLAMP; EXH PIPE EURO4 SPECIFICATION(NT4) (A)	8-98034-766-0	01	1	0804-	●
88	03.708 CLAMP; EXH PIPE (A)	8-98034-766-0	01	1	0804-		●
319	03.602 NUT; PROTECTOR EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-	●
319	03.602 NUT; PROTECTOR 03.162 M10 FLANGE	0-91180-110-0	03	1	0710-0803	●	●
319	03.602 NUT; PROTECTOR EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE	0-91180-110-0	03	1	0804-	●
319	03.602 NUT; PROTECTOR 03.162 M10 FLANGE	0-91180-110-0	03	1	0804-		●

118 117 115 352 532 574 577 118 117 200 113 115 122 115 576 387 385 81 200 124 113 115 385 14 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

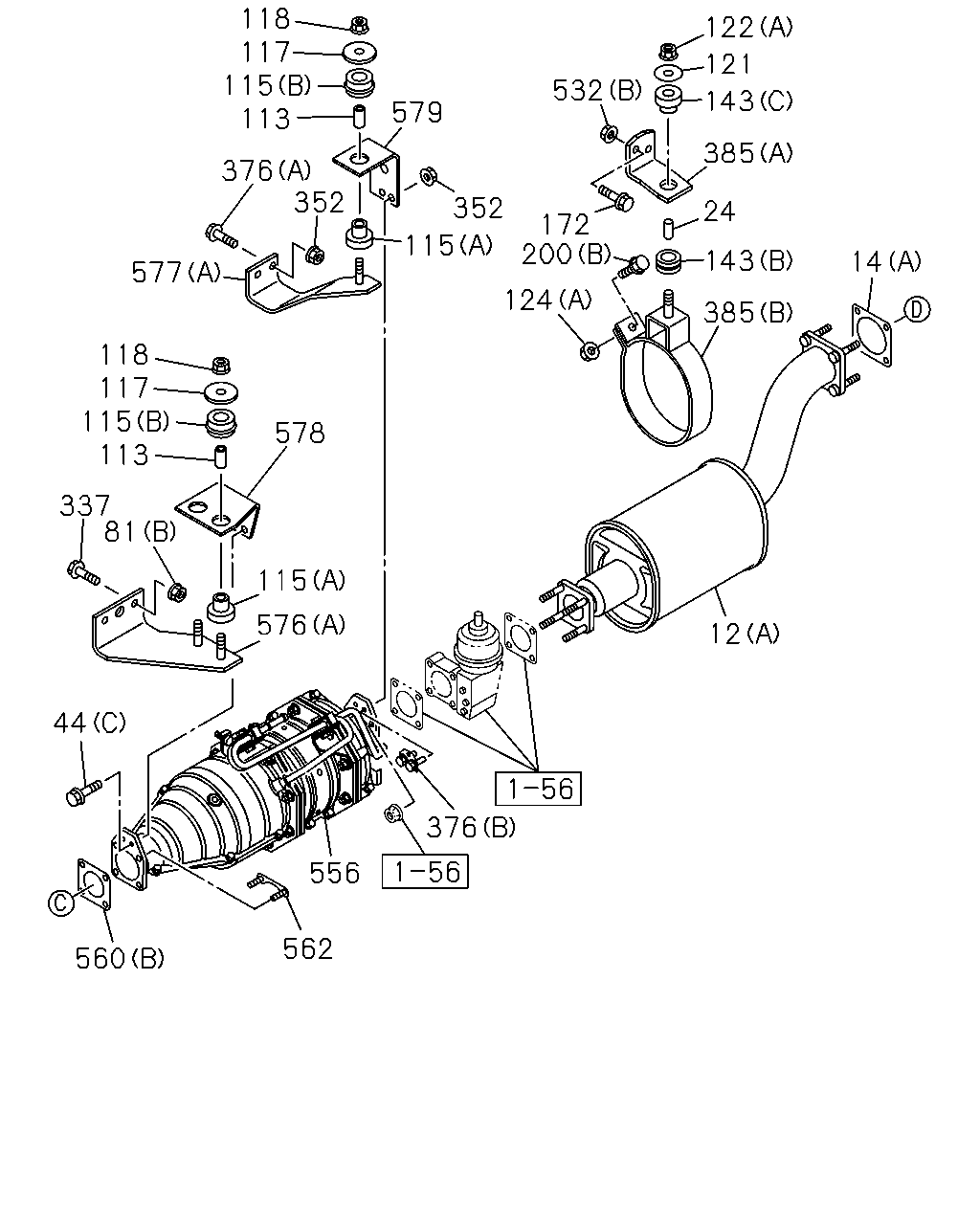

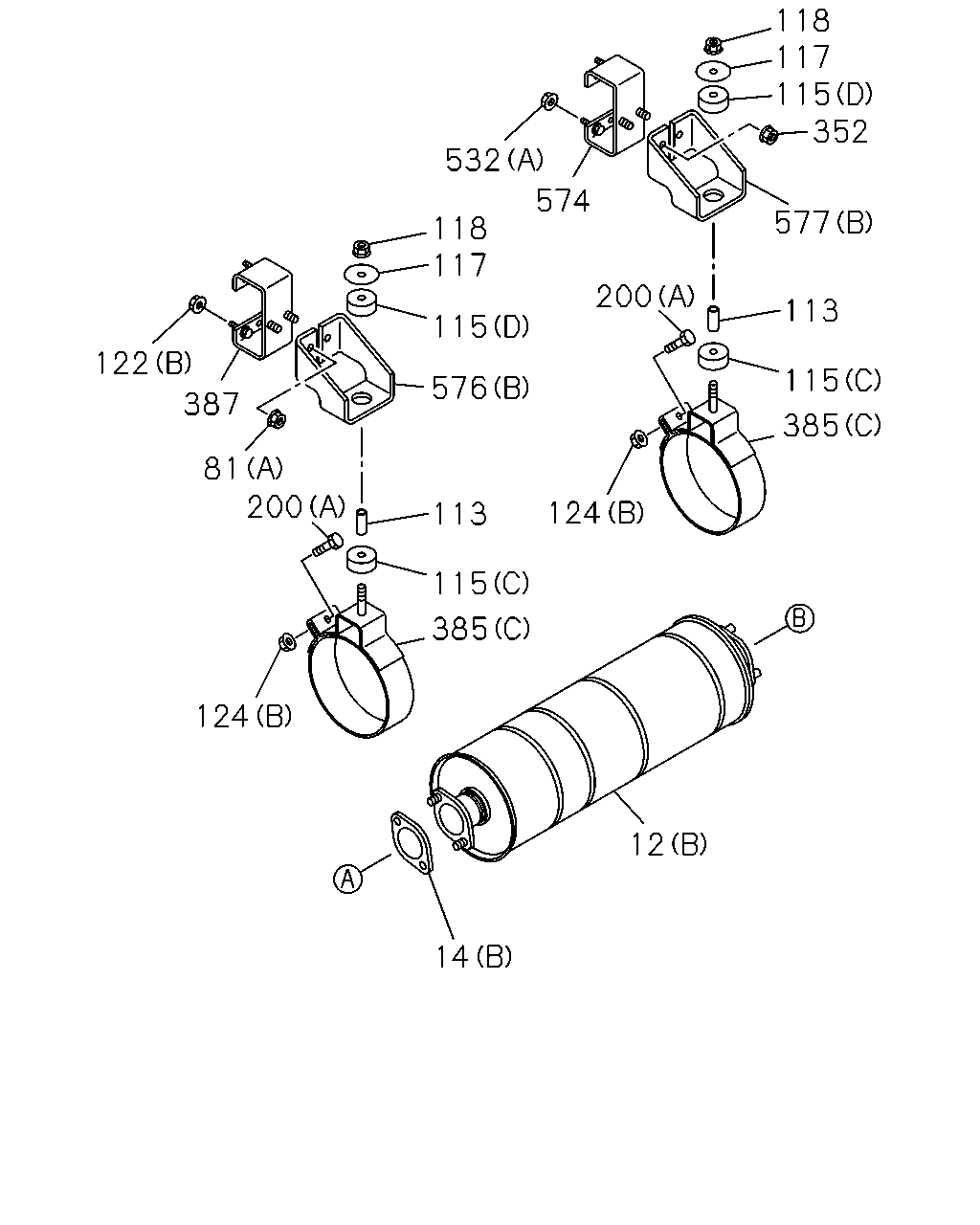

12	03.701 SILENCER ASM; EXH EURO2 SPECIFICATION(NT2) (B)	8-98090-839-0	01	1	0804-	●
12	03.701 SILENCER ASM; EXH (A)	8-98095-057-0	01	1	0710-0803	●	●
12	03.701 SILENCER ASM; EXH EURO4 SPECIFICATION(NT4) (A)	8-98095-057-0	01	1	0804-	●
12	03.701 SILENCER ASM; EXH (A)	8-98095-057-0	01	1	0804-		●
14	03.704 GASKET; SILENCER TO EXH PIPE EURO2 SPECIFICATION(NT2) (B) ID=64.7	8-94328-352-0	01	1	0804-	●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=85.8	1-22116-043-0	01	1	0710-0803	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE EURO4 SPECIFICATION(NT4) (A) ID=85.8	1-22116-043-0	01	1	0804-	●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=85.8	1-22116-043-0	01	1	0804-		●
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-0803	●	●
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●	●
113	03.704 COLLAR; DIST,MTG BRKT EURO2 SPECIFICATION(NT2) 03.706 L=37.5	9-22151-217-0	02	1	0804-	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	03	1	0710-0803	●	●
113	03.704 COLLAR; DIST,MTG BRKT EURO4 SPECIFICATION(NT4) 03.706 L=37.5	9-22151-217-0	03	1	0804-	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	03	1	0804-		●
115	03.704 RUBBER; MTG,SILENCER EURO2 SPECIFICATION(NT2) (C)	8-97379-882-0	02	1	0804-	●
115	03.704 RUBBER; MTG,SILENCER EURO2 SPECIFICATION(NT2) (D)	8-97379-927-0	02	1	0804-	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	03	1	0710-0803	●	●
115	03.704 RUBBER; MTG,SILENCER EURO4 SPECIFICATION(NT4) (A)	8-94457-277-1	03	1	0804-	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	03	1	0804-		●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	03	1	0710-0803	●	●
115	03.704 RUBBER; MTG,SILENCER EURO4 SPECIFICATION(NT4) (B)	8-94457-278-1	03	1	0804-	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	03	1	0804-		●
117	03.704 WASHER; PL,SILENCER MTG BRKT EURO2 SPECIFICATION(NT2) OD=55	9-09852-169-0	02	1	0804-	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	03	1	0710-0803	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT EURO4 SPECIFICATION(NT4) OD=55	9-09852-169-0	03	1	0804-	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	03	1	0804-		●
118	03.704 NUT; SILENCER MTG BRKT EURO2 SPECIFICATION(NT2) 07.874 M10 FLANGE	5-09440-006-0	02	1	0804-	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	03	1	0710-0803	●	●
118	03.704 NUT; SILENCER MTG BRKT EURO4 SPECIFICATION(NT4) 07.874 M10 FLANGE	5-09440-006-0	03	1	0804-	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	03	1	0804-		●
122	03.275 NUT; HANGER BRKT EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●
122	03.275 NUT; HANGER BRKT 07.874 (A) M10 FLANGE	5-09440-006-0	01	1	0710-0803	●	●
122	03.275 NUT; HANGER BRKT EURO4 SPECIFICATION(NT4) 07.874 (A) M10 FLANGE	5-09440-006-0	01	1	0804-	●
122	03.275 NUT; HANGER BRKT 07.874 (A) M10 FLANGE	5-09440-006-0	01	1	0804-		●
124	03.704 NUT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) 02.334 (B) M8	0-91110-508-0	02	1	0804-	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0710-0803	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0710-0803	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0804-	●	●
124	03.704 NUT; SUPPORT RUBBER EURO4 SPECIFICATION(NT4) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0804-	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0804-		●
200	03.704 BOLT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	0804-0909	●
200	03.704 BOLT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) (A) M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-	●
200	03.704 BOLT; SUPPORT RUBBER 00.685 (B) M10X40 FLANGE	0-28051-040-0	01	1	0710-0803	●	●
200	03.704 BOLT; SUPPORT RUBBER EURO4 SPECIFICATION(NT4) 00.685 (B) M10X40 FLANGE	0-28051-040-0	01	1	0804-	●
200	03.704 BOLT; SUPPORT RUBBER 00.685 (B) M10X40 FLANGE	0-28051-040-0	01	1	0804-		●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-0803	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-0803	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-0803	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-	●	●
352	03.613 NUT; BRKT EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-	●	●
352	03.613 NUT; BRKT EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-	●	●
385	03.704 BRACKET; SILENCER MTG EURO2 SPECIFICATION(NT2) (C)	8-97207-224-0	02	1	0804-	●
385	03.704 BRACKET; SILENCER MTG (A)	8-98073-375-1	01	1	0710-0803	●	●
385	03.704 BRACKET; SILENCER MTG EURO4 SPECIFICATION(NT4) (A)	8-98073-375-1	01	1	0804-	●
385	03.704 BRACKET; SILENCER MTG (A)	8-98073-375-1	01	1	0804-		●
385	03.704 BRACKET; SILENCER MTG (B)	8-98095-070-0	01	1	0710-0803	●	●
385	03.704 BRACKET; SILENCER MTG EURO4 SPECIFICATION(NT4) (B)	8-98095-070-0	01	1	0804-	●
385	03.704 BRACKET; SILENCER MTG (B)	8-98095-070-0	01	1	0804-		●
387	03.704 SPACER; BRKT EURO2 SPECIFICATION(NT2) 03.706	8-98044-774-0	01	1	0804-	●
532	03.704 NUT EURO2 SPECIFICATION(NT2) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-	●
532	03.704 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0710-0803	●	●
532	03.704 NUT EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0804-	●
532	03.704 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0804-		●
574	03.706 SPACER; DPD EURO2 SPECIFICATION(NT2)	8-98044-774-0	01	1	0804-	●
576	03.706 BRACKET; DPD FRT TO FRAME EURO2 SPECIFICATION(NT2) (B)	8-98074-124-1	01	1	0804-	●
576	03.706 BRACKET; DPD FRT TO FRAME (A)	8-98093-467-0	01	1	0710-0803	●	●
576	03.706 BRACKET; DPD FRT TO FRAME EURO4 SPECIFICATION(NT4) (A)	8-98093-467-0	01	1	0804-	●
576	03.706 BRACKET; DPD FRT TO FRAME (A)	8-98093-467-0	01	1	0804-		●
577	03.706 BRACKET; DPD RR TO FRAME EURO2 SPECIFICATION(NT2) (B)	8-98074-124-1	01	1	0804-	●
577	03.706 BRACKET; DPD RR TO FRAME (A)	8-98072-185-1	01	1	0710-0803	●	●
577	03.706 BRACKET; DPD RR TO FRAME EURO4 SPECIFICATION(NT4) (A)	8-98072-185-1	01	1	0804-	●
577	03.706 BRACKET; DPD RR TO FRAME (A)	8-98072-185-1	01	1	0804-		●

105 357 88 124 81 137 166 164 70 125 97 95 144 162 104 143 94 165 88 94 137 3 36 84 126 329 84 126 125 97 105 357 165 162 164 166 38 88 124 104 94 81 70 143 95 137 144 137 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

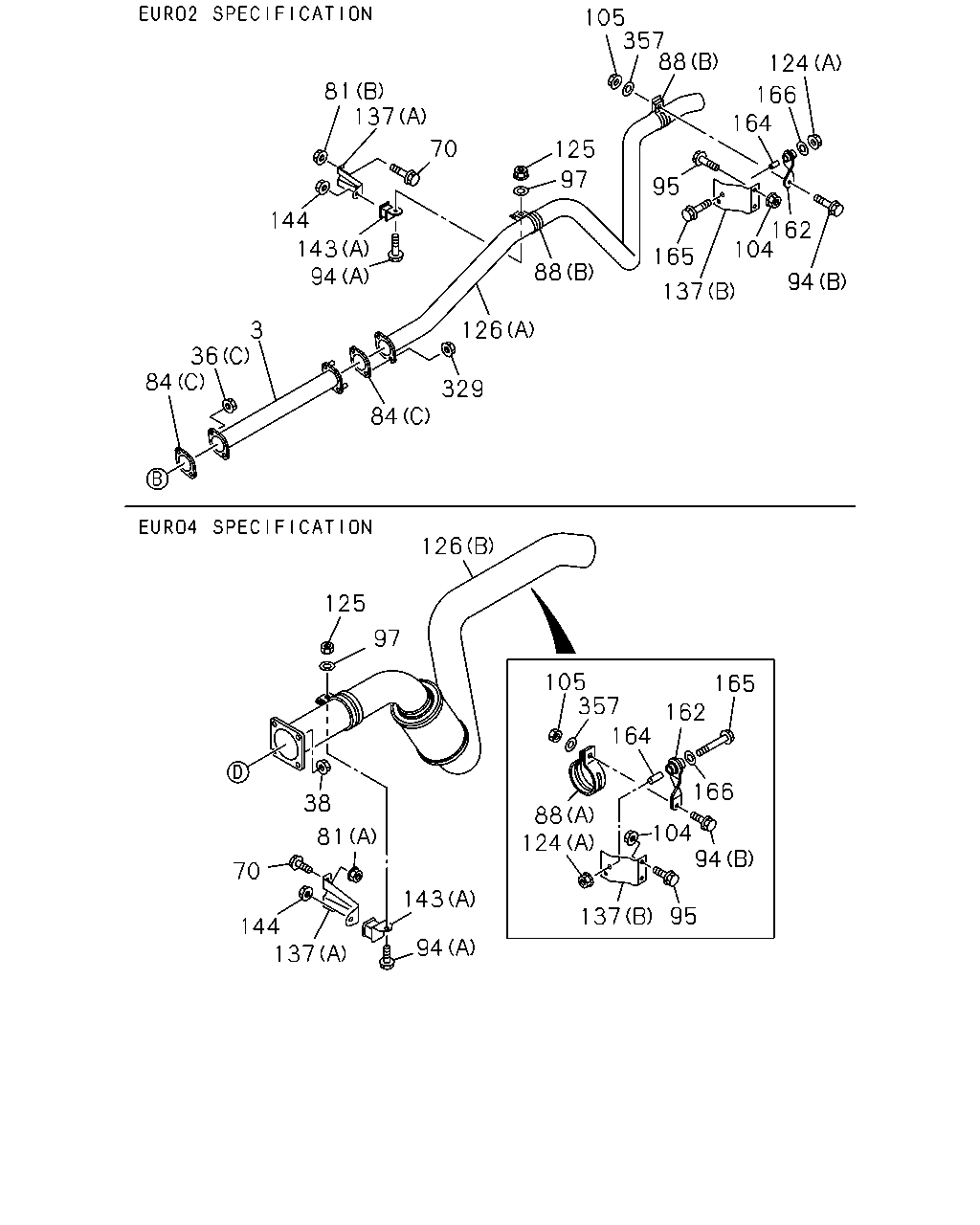

3	03.609 PIPE; EXH,CENTER EURO2 SPECIFICATION(NT2)	8-97355-648-0	01	1	0804-	●
3	03.609 PIPE; EXH,CENTER	8-98072-180-0	01	1	0710-0803	●	●
3	03.609 PIPE; EXH,CENTER EURO4 SPECIFICATION(NT4)	8-98072-180-0	01	1	0804-	●
3	03.609 PIPE; EXH,CENTER	8-98072-180-0	01	1	0804-		●
36	03.613 NUT; EXH PIPE EURO2 SPECIFICATION(NT2) 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0804-	●
36	03.613 NUT; EXH PIPE 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0710-0803	●	●
36	03.613 NUT; EXH PIPE EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0804-	●
36	03.613 NUT; EXH PIPE 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0804-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0710-	●	●
38	00.002 NUT; SILENCER EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	04	1	0710-0803	●	●
38	00.002 NUT; SILENCER EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE	0-91180-110-0	04	1	0804-	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	04	1	0804-		●
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-0803	●	●
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●	●
84	03.611 GASKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.704 (C) ID=64.7	8-94328-352-0	01	1	0804-	●
84	03.611 GASKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.704 (C) ID=64.7	8-94328-352-0	01	1	0804-	●
84	03.611 GASKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.704 (C) ID=64.7	8-94328-352-0	01	1	0804-	●
84	03.611 GASKET; EXH PIPE (B) ID=64	8-97373-108-0	01	1	0710-0803	●	●
84	03.611 GASKET; EXH PIPE EURO4 SPECIFICATION(NT4) (B) ID=64	8-97373-108-0	01	1	0804-	●
84	03.611 GASKET; EXH PIPE (B) ID=64	8-97373-108-0	01	1	0804-		●
84	03.611 GASKET; EXH PIPE (A)	8-97384-590-0	01	1	0710-0803	●	●
84	03.611 GASKET; EXH PIPE EURO4 SPECIFICATION(NT4) (A)	8-97384-590-0	01	1	0804-	●
84	03.611 GASKET; EXH PIPE (A)	8-97384-590-0	01	1	0804-		●
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2) (B)	8-97373-158-0	01	1	0804-	●
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2) (B)	8-97373-158-0	01	1	0804-	●
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2) (B)	8-97373-158-0	01	1	0804-	●
88	03.708 CLAMP; EXH PIPE (A)	8-98034-766-0	01	1	0710-0803	●	●
88	03.708 CLAMP; EXH PIPE EURO4 SPECIFICATION(NT4) (A)	8-98034-766-0	01	1	0804-	●
88	03.708 CLAMP; EXH PIPE (A)	8-98034-766-0	01	1	0804-		●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0710-	●	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0710-	●	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0710-	●	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0710-	●	●
124	03.704 NUT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) 02.334 (B) M8	0-91110-508-0	02	1	0804-	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0710-0803	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0710-0803	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0804-	●	●
124	03.704 NUT; SUPPORT RUBBER EURO4 SPECIFICATION(NT4) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0804-	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0804-		●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0710-	●	●
126	03.705 PIPE; EXH,RR EURO2 SPECIFICATION(NT2) (A)	8-98082-543-0	01	1	0804-	●
126	03.705 PIPE; EXH,RR (B)	8-98073-218-0	01	1	0710-0803	●	●
126	03.705 PIPE; EXH,RR EURO4 SPECIFICATION(NT4) (B)	8-98073-218-0	01	1	0804-	●
126	03.705 PIPE; EXH,RR (B)	8-98073-218-0	01	1	0804-		●
137	03.706 BRACKET; TAIL PIPE 03.613 (A)	8-97096-651-0	01	1	0710-	●	●
137	03.706 BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	0710-0803	●	●
137	03.706 BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	0804-	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	0710-0803	●	●
143	03.704 RUBBER; SUPPORT EURO4 SPECIFICATION(NT4) (C)	8-94457-277-1	01	1	0804-	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	0804-		●
143	03.704 RUBBER; SUPPORT (B)	8-94457-278-1	01	1	0710-0803	●	●
143	03.704 RUBBER; SUPPORT EURO4 SPECIFICATION(NT4) (B)	8-94457-278-1	01	1	0804-	●
143	03.704 RUBBER; SUPPORT (B)	8-94457-278-1	01	1	0804-		●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	0710-	●	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	0710-	●	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0710-	●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0710-0803	●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0804-	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0710-	●	●
329	03.613 NUT; EXH PIPE TO PIPE EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0710-	●	●

118 117 115 113 122 121 532 143 579 385 376 352 352 24 172 200 115 143 14 577 124 385 118 117 115 113 578 337 81 115 576 12 44 376 556 562 560

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH EURO2 SPECIFICATION(NT2) (B)	8-98090-839-0	01	1	0804-	●
12	03.701 SILENCER ASM; EXH (A)	8-98095-057-0	01	1	0710-0803	●	●
12	03.701 SILENCER ASM; EXH EURO4 SPECIFICATION(NT4) (A)	8-98095-057-0	01	1	0804-	●
12	03.701 SILENCER ASM; EXH (A)	8-98095-057-0	01	1	0804-		●
14	03.704 GASKET; SILENCER TO EXH PIPE EURO2 SPECIFICATION(NT2) (B) ID=64.7	8-94328-352-0	01	1	0804-	●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=85.8	1-22116-043-0	01	1	0710-0803	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE EURO4 SPECIFICATION(NT4) (A) ID=85.8	1-22116-043-0	01	1	0804-	●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=85.8	1-22116-043-0	01	1	0804-		●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	0710-0803	●	●
24	03.613 COLLAR; DIST,CLAMP EURO4 SPECIFICATION(NT4) 03.706 L=37.5	9-22151-217-0	01	1	0804-	●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	0804-		●
44	03.613 BOLT; BRKT 09.171 (A) M10X25 FLANGE	0-28051-025-0	02	1	0710-	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0710-0803	●	●
44	03.613 BOLT; BRKT EURO4 SPECIFICATION(NT4) 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0804-	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0804-		●
44	03.613 BOLT; BRKT (B) M10X40 FLANGE	0-28651-040-0	01	1	0710-0710	●	●
44	03.613 BOLT; BRKT 00.685 (B) M10X40 FLANGE	0-28051-040-0	01	1	0710-	●	●
81	03.704 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-0803	●	●
81	03.704 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●	●
113	03.704 COLLAR; DIST,MTG BRKT EURO2 SPECIFICATION(NT2) 03.706 L=37.5	9-22151-217-0	02	1	0804-	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	03	1	0710-0803	●	●
113	03.704 COLLAR; DIST,MTG BRKT EURO4 SPECIFICATION(NT4) 03.706 L=37.5	9-22151-217-0	03	1	0804-	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	03	1	0804-		●
115	03.704 RUBBER; MTG,SILENCER EURO2 SPECIFICATION(NT2) (C)	8-97379-882-0	02	1	0804-	●
115	03.704 RUBBER; MTG,SILENCER EURO2 SPECIFICATION(NT2) (D)	8-97379-927-0	02	1	0804-	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	03	1	0710-0803	●	●
115	03.704 RUBBER; MTG,SILENCER EURO4 SPECIFICATION(NT4) (A)	8-94457-277-1	03	1	0804-	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	03	1	0804-		●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	03	1	0710-0803	●	●
115	03.704 RUBBER; MTG,SILENCER EURO4 SPECIFICATION(NT4) (B)	8-94457-278-1	03	1	0804-	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	03	1	0804-		●
117	03.704 WASHER; PL,SILENCER MTG BRKT EURO2 SPECIFICATION(NT2) OD=55	9-09852-169-0	02	1	0804-	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	03	1	0710-0803	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT EURO4 SPECIFICATION(NT4) OD=55	9-09852-169-0	03	1	0804-	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	03	1	0804-		●
118	03.704 NUT; SILENCER MTG BRKT EURO2 SPECIFICATION(NT2) 07.874 M10 FLANGE	5-09440-006-0	02	1	0804-	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	03	1	0710-0803	●	●
118	03.704 NUT; SILENCER MTG BRKT EURO4 SPECIFICATION(NT4) 07.874 M10 FLANGE	5-09440-006-0	03	1	0804-	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	03	1	0804-		●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	0710-0803	●	●
121	03.704 WASHER; PL,BRKT EURO4 SPECIFICATION(NT4) OD=55	9-09852-169-0	01	1	0804-	●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	0804-		●
122	03.275 NUT; HANGER BRKT EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●
122	03.275 NUT; HANGER BRKT 07.874 (A) M10 FLANGE	5-09440-006-0	01	1	0710-0803	●	●
122	03.275 NUT; HANGER BRKT EURO4 SPECIFICATION(NT4) 07.874 (A) M10 FLANGE	5-09440-006-0	01	1	0804-	●
122	03.275 NUT; HANGER BRKT 07.874 (A) M10 FLANGE	5-09440-006-0	01	1	0804-		●
124	03.704 NUT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) 02.334 (B) M8	0-91110-508-0	02	1	0804-	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0710-0803	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0710-0803	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0804-	●	●
124	03.704 NUT; SUPPORT RUBBER EURO4 SPECIFICATION(NT4) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0804-	●
124	03.704 NUT; SUPPORT RUBBER 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0804-		●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	0710-0803	●	●
143	03.704 RUBBER; SUPPORT EURO4 SPECIFICATION(NT4) (C)	8-94457-277-1	01	1	0804-	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	0804-		●
143	03.704 RUBBER; SUPPORT (B)	8-94457-278-1	01	1	0710-0803	●	●
143	03.704 RUBBER; SUPPORT EURO4 SPECIFICATION(NT4) (B)	8-94457-278-1	01	1	0804-	●
143	03.704 RUBBER; SUPPORT (B)	8-94457-278-1	01	1	0804-		●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	0710-	●	●
172	03.708 BOLT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-0803	●	●
172	03.708 BOLT EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0804-	●
172	03.708 BOLT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0804-		●
200	03.704 BOLT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	0804-0909	●
200	03.704 BOLT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) (A) M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-	●
200	03.704 BOLT; SUPPORT RUBBER 00.685 (B) M10X40 FLANGE	0-28051-040-0	01	1	0710-0803	●	●
200	03.704 BOLT; SUPPORT RUBBER EURO4 SPECIFICATION(NT4) 00.685 (B) M10X40 FLANGE	0-28051-040-0	01	1	0804-	●
200	03.704 BOLT; SUPPORT RUBBER 00.685 (B) M10X40 FLANGE	0-28051-040-0	01	1	0804-		●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0710-0803	●	●
337	03.706 BOLT; RUBBER,SUPPORT EURO4 SPECIFICATION(NT4) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0804-	●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0804-		●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-0803	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-0803	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-0803	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-	●	●
352	03.613 NUT; BRKT EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-	●	●
352	03.613 NUT; BRKT EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-	●	●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0710-0803	●	●
376	03.708 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0804-	●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0804-		●
376	03.708 BOLT; BRKT 03.690 (B) W/PLATE	8-98005-985-0	01	1	0710-0803	●	●
376	03.708 BOLT; BRKT EURO4 SPECIFICATION(NT4) 03.690 (B) W/PLATE	8-98005-985-0	01	1	0804-	●
376	03.708 BOLT; BRKT 03.690 (B) W/PLATE	8-98005-985-0	01	1	0804-		●
385	03.704 BRACKET; SILENCER MTG EURO2 SPECIFICATION(NT2) (C)	8-97207-224-0	02	1	0804-	●
385	03.704 BRACKET; SILENCER MTG (A)	8-98073-375-1	01	1	0710-0803	●	●
385	03.704 BRACKET; SILENCER MTG EURO4 SPECIFICATION(NT4) (A)	8-98073-375-1	01	1	0804-	●
385	03.704 BRACKET; SILENCER MTG (A)	8-98073-375-1	01	1	0804-		●
385	03.704 BRACKET; SILENCER MTG (B)	8-98095-070-0	01	1	0710-0803	●	●
385	03.704 BRACKET; SILENCER MTG EURO4 SPECIFICATION(NT4) (B)	8-98095-070-0	01	1	0804-	●
385	03.704 BRACKET; SILENCER MTG (B)	8-98095-070-0	01	1	0804-		●
532	03.704 NUT EURO2 SPECIFICATION(NT2) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-	●
532	03.704 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0710-0803	●	●
532	03.704 NUT EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0804-	●
532	03.704 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0804-		●
556	03.701 DPD ASM	8-98036-810-7	01	1	0710-0803	●	●
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	0804-1011	●
556	03.701 DPD ASM	8-98036-810-7	01	1	0804-1011		●
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-4	01	1	1012-	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-		●
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	0710-0803	●	●
560	03.611 GASKET; DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97331-947-0	02	1	0804-	●
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	0804-		●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	0710-0803	●	●
560	03.611 GASKET; DPD EURO4 SPECIFICATION(NT4) (B) ID=64	8-97373-108-0	01	1	0804-	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	0804-		●
562	03.690 PLATE; STUD,BOLT	8-97373-966-0	02	1	0710-0803	●	●
562	03.690 PLATE; STUD,BOLT EURO4 SPECIFICATION(NT4)	8-97373-966-0	02	1	0804-	●
562	03.690 PLATE; STUD,BOLT	8-97373-966-0	02	1	0804-		●
576	03.706 BRACKET; DPD FRT TO FRAME EURO2 SPECIFICATION(NT2) (B)	8-98074-124-1	01	1	0804-	●
576	03.706 BRACKET; DPD FRT TO FRAME (A)	8-98093-467-0	01	1	0710-0803	●	●
576	03.706 BRACKET; DPD FRT TO FRAME EURO4 SPECIFICATION(NT4) (A)	8-98093-467-0	01	1	0804-	●
576	03.706 BRACKET; DPD FRT TO FRAME (A)	8-98093-467-0	01	1	0804-		●
577	03.706 BRACKET; DPD RR TO FRAME EURO2 SPECIFICATION(NT2) (B)	8-98074-124-1	01	1	0804-	●
577	03.706 BRACKET; DPD RR TO FRAME (A)	8-98072-185-1	01	1	0710-0803	●	●
577	03.706 BRACKET; DPD RR TO FRAME EURO4 SPECIFICATION(NT4) (A)	8-98072-185-1	01	1	0804-	●
577	03.706 BRACKET; DPD RR TO FRAME (A)	8-98072-185-1	01	1	0804-		●
578	03.706 BRACKET; DPD FRT	8-98093-468-0	01	1	0710-0803	●	●
578	03.706 BRACKET; DPD FRT EURO4 SPECIFICATION(NT4)	8-98093-468-0	01	1	0804-	●
578	03.706 BRACKET; DPD FRT	8-98093-468-0	01	1	0804-		●
579	03.704 BRACKET; DPD RR	8-98093-469-0	01	1	0710-0803	●	●
579	03.704 BRACKET; DPD RR EURO4 SPECIFICATION(NT4)	8-98093-469-0	01	1	0804-	●
579	03.704 BRACKET; DPD RR	8-98093-469-0	01	1	0804-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
