Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#53584) — 232 parça

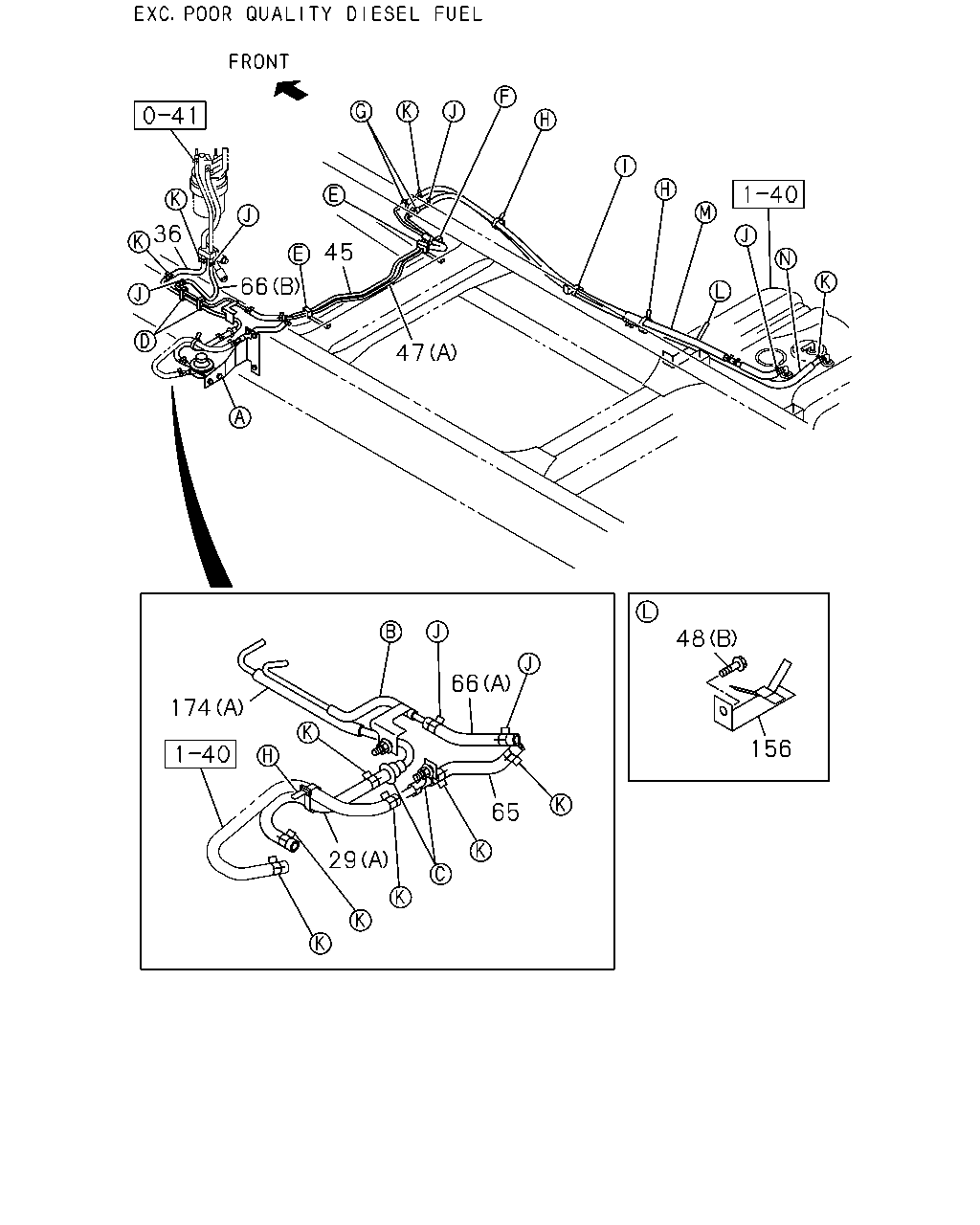

66 124 47 124 29 147 311 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) BIO DIESEL FUEL B10<8NV> (C)	8-98139-113-1	01	1	1411-	●
29	03.163 HOSE; FUEL FUEL TANK 100 LITTER<N02> BIO DIESEL FUEL B10<8NV> (B)	8-98120-951-3	01	1	1411-	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0804-0910	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0911-1410	●	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. BIO DIESEL FUEL B10<8NV> (C)	8-98099-502-0	01	1	1411-	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1411-		●
29	03.163 HOSE; FUEL FUEL TANK 100 LITTER<N02> (B)	8-98067-564-4	01	1	0804-1410	●
29	03.163 HOSE; FUEL FUEL TANK 100 LITTER<N02> EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98067-564-4	01	1	1411-	●
29	03.163 HOSE; FUEL (A)	8-98037-758-0	01	1	0710-0803	●	●
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	0804-0910	●
29	03.163 HOSE; FUEL (A)	8-98037-758-0	01	1	0804-0910		●
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	0911-	●	●
29	03.163 HOSE; FUEL (B)	8-98070-949-2	01	1	0710-0803	●	●
29	03.163 HOSE; FUEL FUEL TANK 140 LITTER<N19> (B)	8-98070-949-4	01	1	0804-	●
29	03.163 HOSE; FUEL (B)	8-98070-949-4	01	1	0804-		●
47	03.163 PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	0710-0803	●	●
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (C) L=70	8-98036-483-0	01	1	0804-	●	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	0710-	●	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98043-639-0	01	1	0710-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 100 LITTER<N02> (C)	8-98067-567-2	01	1	0804-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0710-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98065-058-0	01	1	0710-0712	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98093-616-0	01	1	0801-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98080-705-1	01	1	0710-0803	●	●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 140 LITTER<N19> (C)	8-98080-705-2	01	1	0804-	●
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98080-705-2	01	1	0804-		●
124	03.162 CLIP; HOSE 01.219 (A) ID=13	8-94238-571-0	01	1	0710-0803	●	●
124	03.162 CLIP; HOSE EURO4 SPECIFICATION(NT4) 01.219 (A) ID=13	8-94238-571-0	01	1	0804-0911	●	●
124	03.162 CLIP; HOSE EURO4 SPECIFICATION(NT4) (A) ID=13	8-98150-357-0	01	1	0912-	●	●
124	03.162 CLIP; HOSE (B) ID=12	8-97358-961-0	01	1	0710-0803	●	●
124	03.162 CLIP; HOSE EURO4 SPECIFICATION(NT4) (B) ID=12	8-97358-961-0	01	1	0804-1002	●	●
124	03.162 CLIP; HOSE EURO4 SPECIFICATION(NT4) 01.240 (B) ID=12	8-98150-358-0	01	1	1003-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	06	1	0710-0801	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0802-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	04	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0710-0801	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (C) ID=13	8-94238-571-0	01	1	0802-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	01	1	0710-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0802-0803	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0802-0803	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0906	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0906	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0906	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0906		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0910	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0910	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0910	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0910	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0910		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0912-	●	●
311	03.163 JOINT; HOSE	8-97353-668-0	01	1	0710-0803	●	●
311	03.163 JOINT; HOSE EURO4 SPECIFICATION(NT4)	8-97353-668-0	01	1	0804-	●	●

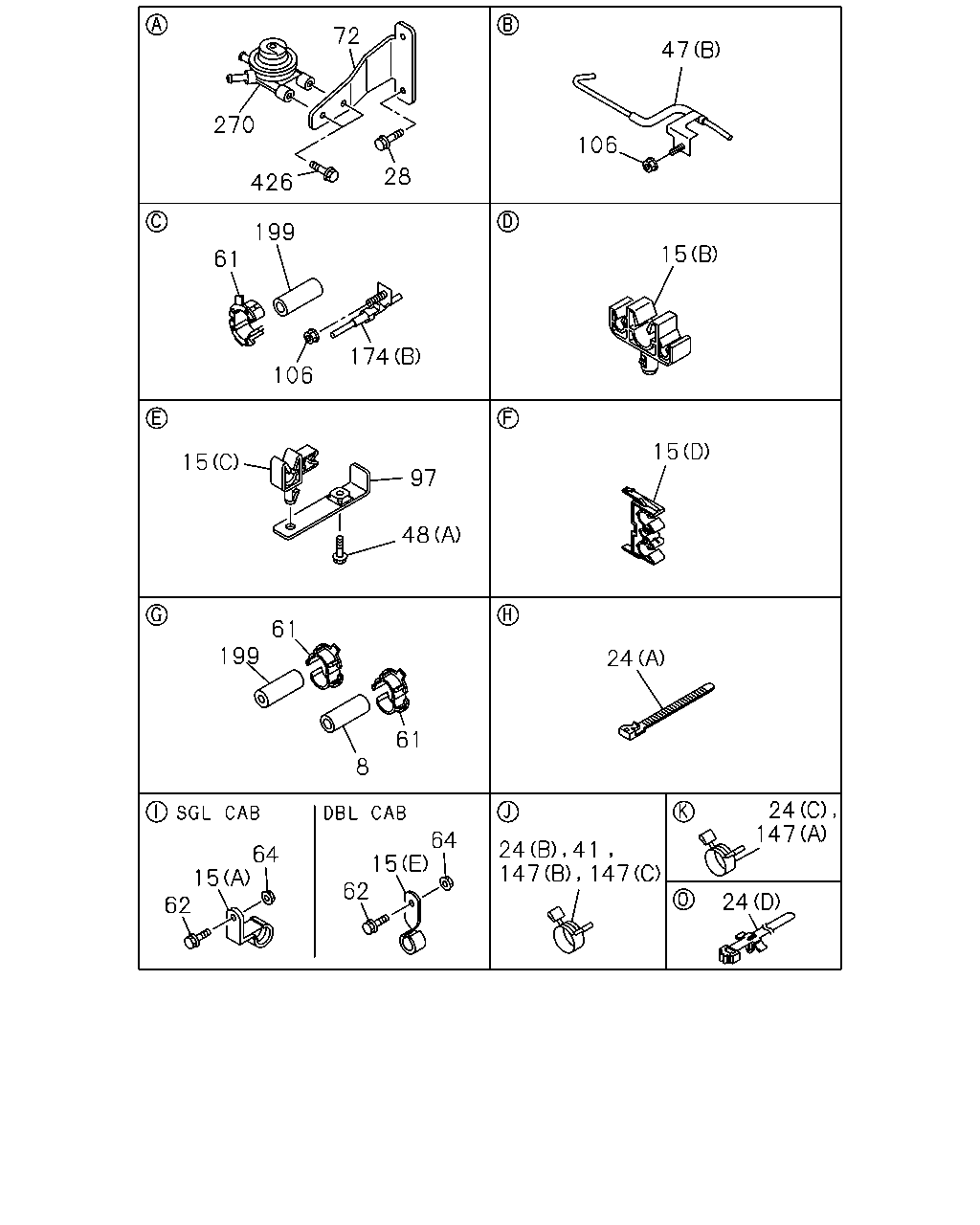

72 47 270 106 28 426 199 15 61 174 106 15 15 97 48 61 199 24 61 8 24 147 64 15 62 147 147 64 15 62 24 41 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	03.162 RUBBER; MTG OD=17 L=50	8-94157-054-1	01	1	0710-	●	●
15	03.162 CLIP; FUEL PIPE 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0710-0804	●
15	03.162 CLIP; FUEL PIPE 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0805-	●
15	03.162 CLIP; FUEL PIPE FUEL TANK 100 LITTER<N02> 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0805-	●
15	03.162 CLIP; FUEL PIPE (C) ID=12 & 6.35	8-97215-437-0	02	1	0710-	●	●
15	03.162 CLIP; FUEL PIPE 04.686 (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0710-	●	●
15	03.162 CLIP; FUEL PIPE 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0710-	●	●
15	03.162 CLIP; FUEL PIPE 02.559 (E) ID=28 L=60	1-09700-585-1	01	1	0710-		●
24	03.162 CLIP; FUEL HOSE FUEL TANK 100 LITTER<N02> 02.559 (D) L=170.3	1-09987-182-0	01	1	0804-	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	03	1	0710-0801	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0802-	●	●
24	03.162 CLIP; FUEL HOSE 04.930 (C) ID=16	8-94238-568-0	04	1	0710-0911	●	●
24	03.162 CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	04	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=12	8-94238-610-0	02	1	0710-0911	●	●
24	03.162 CLIP; FUEL HOSE 01.240 (B) ID=12	8-98150-358-0	02	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0802-	●	●
24	03.162 CLIP; FUEL HOSE 03.483 (A) L=450	1-09707-142-1	01	1	0710-		●
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-0803	●	●
28	03.330 BOLT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-0910	●
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-0910		●
28	03.330 BOLT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-	●	●
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.219 ID=12	8-94238-610-0	02	1	0710-0911	●	●
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.240 ID=12	8-98150-358-0	02	1	0912-	●	●
47	03.163 PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	0710-0803	●	●
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (C) L=70	8-98036-483-0	01	1	0804-	●	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	0710-	●	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98043-639-0	01	1	0710-	●	●
48	03.162 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●
48	03.162 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	03	1	0710-0801	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	01	1	0802-	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0802-	●	●
62	03.162 BOLT; CLIP FIX 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0710-0804	●	●
62	03.162 BOLT; CLIP FIX 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-	●	●
62	03.162 BOLT; CLIP FIX FUEL TANK 100 LITTER<N02> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-	●
64	03.162 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0804	●	●
64	03.162 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-	●	●
64	03.162 NUT; CLIP FUEL TANK 100 LITTER<N02> 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-	●
72	03.901 BRACKET; FUEL PUMP & FILTER	8-98084-815-1	01	1	0710-0803	●	●
72	03.901 BRACKET; FUEL PUMP & FILTER EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98084-815-1	01	1	0804-0910	●
72	03.901 BRACKET; FUEL PUMP & FILTER	8-98084-815-1	01	1	0804-0910		●
72	03.901 BRACKET; FUEL PUMP & FILTER EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98084-815-1	01	1	0911-	●	●
97	03.162 BRACKET; CLIP	8-98041-203-0	02	1	0710-	●	●
106	03.162 NUT; FUEL PIPE M10 FLANGE	0-91180-110-0	02	1	0710-0801	●	●
106	03.162 NUT; FUEL PIPE M10 FLANGE	0-91180-110-0	01	1	0802-	●	●
106	03.162 NUT; FUEL PIPE M10 FLANGE	0-91180-110-0	01	1	0802-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	06	1	0710-0801	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0802-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	04	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0710-0801	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (C) ID=13	8-94238-571-0	01	1	0802-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	01	1	0710-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0802-0803	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0802-0803	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0906	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0906	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0906	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0906		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0910	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0910	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0910	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0910	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0910		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0912-	●	●
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-98033-844-1	01	1	0710-	●	●
174	03.163 PIPE; FUEL,FEED,FRT (B)	8-98041-616-0	01	1	0710-	●	●
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	02	1	0710-0801	●	●
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0802-	●	●
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0802-	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0710-1408	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0805-	●	●

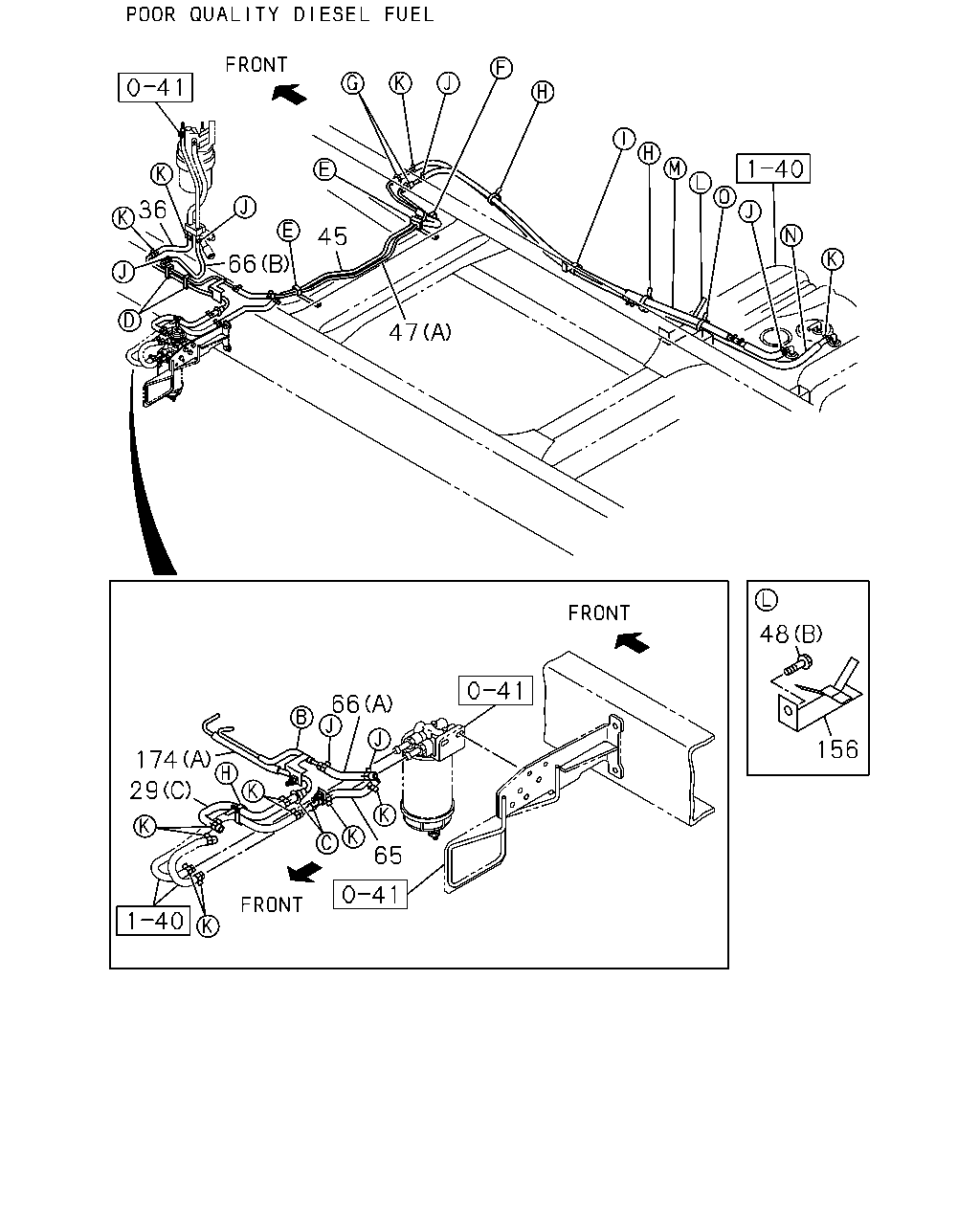

36 45 66 47 48 66 156 174 29 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) BIO DIESEL FUEL B10<8NV> (C)	8-98139-113-1	01	1	1411-	●
29	03.163 HOSE; FUEL FUEL TANK 100 LITTER<N02> BIO DIESEL FUEL B10<8NV> (B)	8-98120-951-3	01	1	1411-	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0804-0910	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0911-1410	●	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. BIO DIESEL FUEL B10<8NV> (C)	8-98099-502-0	01	1	1411-	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1411-		●
29	03.163 HOSE; FUEL FUEL TANK 100 LITTER<N02> (B)	8-98067-564-4	01	1	0804-1410	●
29	03.163 HOSE; FUEL FUEL TANK 100 LITTER<N02> EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98067-564-4	01	1	1411-	●
29	03.163 HOSE; FUEL (A)	8-98037-758-0	01	1	0710-0803	●	●
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	0804-0910	●
29	03.163 HOSE; FUEL (A)	8-98037-758-0	01	1	0804-0910		●
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	0911-	●	●
29	03.163 HOSE; FUEL (B)	8-98070-949-2	01	1	0710-0803	●	●
29	03.163 HOSE; FUEL FUEL TANK 140 LITTER<N19> (B)	8-98070-949-4	01	1	0804-	●
29	03.163 HOSE; FUEL (B)	8-98070-949-4	01	1	0804-		●
36	03.163 HOSE; FUEL,FILTER TO TANK EURO2 SPECIFICATION(NT2) BIO DIESEL FUEL B10<8NV>	8-98290-385-0	01	1	1411-	●
36	03.163 HOSE; FUEL,FILTER TO TANK EURO2 SPECIFICATION(NT2)	8-98093-615-0	01	1	0804-1008	●
36	03.163 HOSE; FUEL,FILTER TO TANK EURO2 SPECIFICATION(NT2)	8-98171-618-0	01	1	1009-1410	●
36	03.163 HOSE; FUEL,FILTER TO TANK EURO2 SPECIFICATION(NT2) EXC. BIO DIESEL FUEL B10<8NV>	8-98171-618-0	01	1	1411-	●
36	03.163 HOSE; FUEL,FILTER TO TANK	8-98034-028-1	01	1	0710-0803	●	●
36	03.163 HOSE; FUEL,FILTER TO TANK EURO4 SPECIFICATION(NT4)	8-98034-028-1	01	1	0804-	●
36	03.163 HOSE; FUEL,FILTER TO TANK	8-98034-028-1	01	1	0804-		●
45	03.163 PIPE; FUEL,DELIVERY	8-98043-681-1	01	1	0710-	●	●
47	03.163 PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	0710-0803	●	●
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (C) L=70	8-98036-483-0	01	1	0804-	●	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	0710-	●	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98043-639-0	01	1	0710-	●	●
48	03.162 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●
48	03.162 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> L=140	8-98133-837-0	01	1	1411-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0710-1410	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. BIO DIESEL FUEL B10<8NV> 03.003 L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1411-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1411-		●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 100 LITTER<N02> (C)	8-98067-567-2	01	1	0804-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0710-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98065-058-0	01	1	0710-0712	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98093-616-0	01	1	0801-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98080-705-1	01	1	0710-0803	●	●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 140 LITTER<N19> (C)	8-98080-705-2	01	1	0804-	●
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98080-705-2	01	1	0804-		●
156	03.162 BRACKET; FUEL HOSE	8-98041-250-2	01	1	0710-	●
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-98033-844-1	01	1	0710-	●	●
174	03.163 PIPE; FUEL,FEED,FRT (B)	8-98041-616-0	01	1	0710-	●	●

36 45 66 47 48 66 174 156 65 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) BIO DIESEL FUEL B10<8NV> (C)	8-98139-113-1	01	1	1411-	●
29	03.163 HOSE; FUEL FUEL TANK 100 LITTER<N02> BIO DIESEL FUEL B10<8NV> (B)	8-98120-951-3	01	1	1411-	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0804-0910	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0911-1410	●	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. BIO DIESEL FUEL B10<8NV> (C)	8-98099-502-0	01	1	1411-	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1411-		●
29	03.163 HOSE; FUEL FUEL TANK 100 LITTER<N02> (B)	8-98067-564-4	01	1	0804-1410	●
29	03.163 HOSE; FUEL FUEL TANK 100 LITTER<N02> EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98067-564-4	01	1	1411-	●
29	03.163 HOSE; FUEL (A)	8-98037-758-0	01	1	0710-0803	●	●
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	0804-0910	●
29	03.163 HOSE; FUEL (A)	8-98037-758-0	01	1	0804-0910		●
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	0911-	●	●
29	03.163 HOSE; FUEL (B)	8-98070-949-2	01	1	0710-0803	●	●
29	03.163 HOSE; FUEL FUEL TANK 140 LITTER<N19> (B)	8-98070-949-4	01	1	0804-	●
29	03.163 HOSE; FUEL (B)	8-98070-949-4	01	1	0804-		●
36	03.163 HOSE; FUEL,FILTER TO TANK EURO2 SPECIFICATION(NT2) BIO DIESEL FUEL B10<8NV>	8-98290-385-0	01	1	1411-	●
36	03.163 HOSE; FUEL,FILTER TO TANK EURO2 SPECIFICATION(NT2)	8-98093-615-0	01	1	0804-1008	●
36	03.163 HOSE; FUEL,FILTER TO TANK EURO2 SPECIFICATION(NT2)	8-98171-618-0	01	1	1009-1410	●
36	03.163 HOSE; FUEL,FILTER TO TANK EURO2 SPECIFICATION(NT2) EXC. BIO DIESEL FUEL B10<8NV>	8-98171-618-0	01	1	1411-	●
36	03.163 HOSE; FUEL,FILTER TO TANK	8-98034-028-1	01	1	0710-0803	●	●
36	03.163 HOSE; FUEL,FILTER TO TANK EURO4 SPECIFICATION(NT4)	8-98034-028-1	01	1	0804-	●
36	03.163 HOSE; FUEL,FILTER TO TANK	8-98034-028-1	01	1	0804-		●
45	03.163 PIPE; FUEL,DELIVERY	8-98043-681-1	01	1	0710-	●	●
47	03.163 PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	0710-0803	●	●
47	03.163 PIPE; FUEL,RETURN EURO4 SPECIFICATION(NT4) (C) L=70	8-98036-483-0	01	1	0804-	●	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	0710-	●	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98043-639-0	01	1	0710-	●	●
48	03.162 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●
48	03.162 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> L=140	8-98133-837-0	01	1	1411-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0710-1410	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. BIO DIESEL FUEL B10<8NV> 03.003 L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1411-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1411-		●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 100 LITTER<N02> (C)	8-98067-567-2	01	1	0804-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0710-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98065-058-0	01	1	0710-0712	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98093-616-0	01	1	0801-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98080-705-1	01	1	0710-0803	●	●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 140 LITTER<N19> (C)	8-98080-705-2	01	1	0804-	●
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98080-705-2	01	1	0804-		●
156	03.162 BRACKET; FUEL HOSE	8-98041-250-2	01	1	0710-	●
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-98033-844-1	01	1	0710-	●	●
174	03.163 PIPE; FUEL,FEED,FRT (B)	8-98041-616-0	01	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
