1-40 — FUEL TANK (#53583) — 270 parça

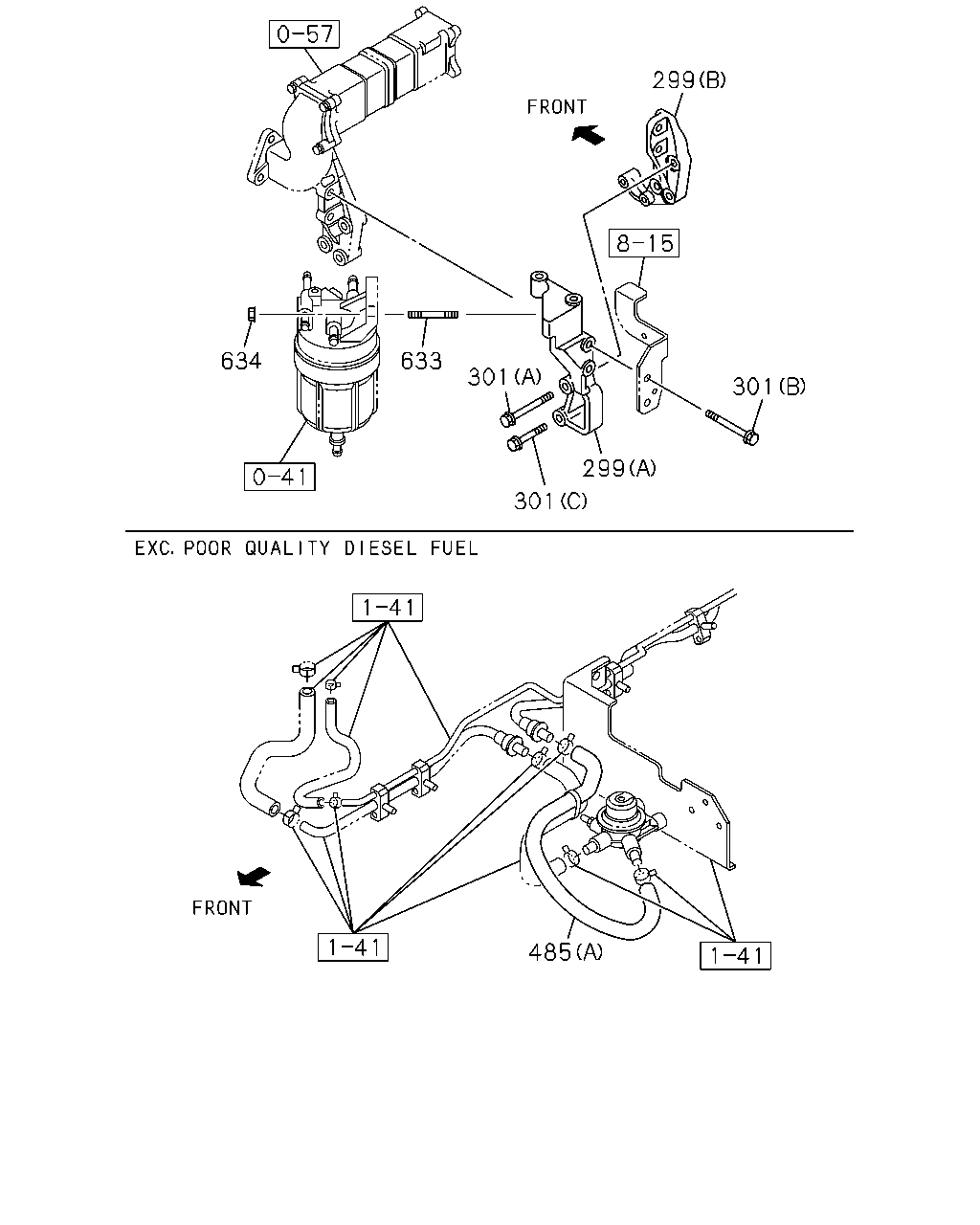

çizim 157081
634 633 301 299 301 301 485 299
BalonParca AdiParca NoAdetTipApplied Date A B
299 03.162 BRACKET; FUEL FILTER
EURO2 SPECIFICATION(NT2) (B) 		8-98074-132-1 01 1 0804- ●
299 03.162 BRACKET; FUEL FILTER
(A) 		8-98023-175-3 01 1 0710- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
09.181 (C) M12X80 		0-28151-280-0 01 1 0710- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
02.510 (A) M12X100 FLANGE 		0-28151-200-0 01 1 0710- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
00.685 (B) M12X50 FLANGE 		0-28151-250-0 02 1 0710- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
09.181 (C) M12X80 		0-28151-280-0 01 1 0710-0803 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
00.206 (A) M12X70 FLANGE 		0-28151-270-0 01 1 0802-0803 ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) BIO DIESEL FUEL B10<8NV> (C) 		8-98138-300-0 01 1 1411- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) BIO DIESEL FUEL B10<8NV> (B) 		8-98139-112-1 01 1 1411- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 0804-0906 ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 0907-0910 ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 0907-0910 ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 0911-1410 ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 0911-1410 ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 1411- ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) EXC. BIO DIESEL FUEL B10<8NV> (B) 		8-98099-503-0 01 1 1411- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 1411- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98105-710-0 01 1 0804-0910 ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98105-710-0 01 1 0911-1410 ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) EXC. BIO DIESEL FUEL B10<8NV> (C) 		8-98105-710-0 01 1 1411- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98105-710-0 01 1 1411- ●
485 03.163 HOSE; FUEL
(A) 		8-98041-728-0 01 1 0710-0803 ● ●
485 03.163 HOSE; FUEL
EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0804-0910 ●
485 03.163 HOSE; FUEL
(A) 		8-98041-728-0 01 1 0804-0910 ●
485 03.163 HOSE; FUEL
EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0911- ● ●
633 03.162 STUD; BRKT TO SEDIMENTER
03.275 M8X25 L=37 		0-41010-825-0 02 1 0710- ● ●
634 03.162 NUT; BRKT TO SEDIMENTER
01.062 M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
çizim 157158
411 411 411 411 411 1 6 14 635 3 19 640 158 159 8 7 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> (A) 756X482X376 100L 		8-98062-738-4 01 1 0804- ●
1 03.001 TANK; FUEL
(B) 820X500X400 140L 		8-98051-031-4 01 1 0710-0803 ● ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> (B) 820X500X400 140L 		8-98051-031-4 01 1 0804- ●
1 03.001 TANK; FUEL
(B) 820X500X400 140L 		8-98051-031-4 01 1 0804- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> 		8-98056-705-0 01 1 0804- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98065-304-0 01 1 0710-0803 ● ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 140 LITTER<N19> 		8-98065-304-0 01 1 0804- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98065-304-0 01 1 0804- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0710-0803 ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
EURO4 SPECIFICATION(NT4) M5X12 W/LK WASHER 		0-36220-512-0 05 1 0804- ● ●
7 03.112 GASKET; TANK UNIT,SUB TANK
03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0710-0803 ● ●
7 03.112 GASKET; TANK UNIT,SUB TANK
FUEL TANK 140 LITTER<N19> 03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0804-1503 ●
7 03.112 GASKET; TANK UNIT,SUB TANK
03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0804-1503 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0804- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 0710-0803 ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> (B) ID=30 		8-98067-041-0 01 1 0804- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 0804- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02> 01.453 M14X14 		9-09862-156-0 01 1 0804- ●
11 03.890 PLUG; DRAIN,FUEL TANK
M18 		8-98068-006-0 01 1 0710-0803 ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 140 LITTER<N19> M18 		8-98068-006-0 01 1 0804- ●
11 03.890 PLUG; DRAIN,FUEL TANK
M18 		8-98068-006-0 01 1 0804- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=480 		8-97135-581-0 01 1 0804-1003 ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1004- ●
14 03.163 HOSE; BREATHER,OUTLET
L=460 		8-98082-184-1 01 1 0710-0803 ● ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 140 LITTER<N19> L=460 		8-98082-184-1 01 1 0804- ●
14 03.163 HOSE; BREATHER,OUTLET
L=460 		8-98082-184-1 01 1 0804- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02> 		8-98051-797-0 01 1 0804- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0710-0803 ● ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 0804- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0804- ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100 LITTER<N02> 		8-97179-645-0 01 1 0804- ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-98095-223-0 01 1 0710-0803 ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 140 LITTER<N19> 		8-98095-223-0 01 1 0804- ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-98095-223-0 01 1 0804- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100 LITTER<N02> 		8-97326-488-0 01 1 0804- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 01 1 0710-0803 ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> ID=45 OD=67 		1-83149-003-0 01 1 0804- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) (D) T=4.5 & 9 		8-97371-947-0 01 1 1408- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2) (B) T=6.0 		5-09709-012-0 03 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2) (B) T=5.5 		8-97371-951-0 03 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FUEL TANK 140 LITTER<N19> (E) L=170.3 		1-09987-182-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 0710- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=6.0 		5-09709-012-0 02 1 0710-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) (B) T=6.0 		5-09709-012-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=6.0 		5-09709-012-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) (B) T=5.5 		8-97371-951-0 02 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=5.5 		8-97371-951-0 02 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
02.483 (B) T=10.5 		5-09709-014-0 03 1 0710-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=10.5 		8-97371-950-0 03 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=6.0 		5-09709-024-0 02 1 0710-0801 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) (D) T=6.0 		5-09709-024-0 02 1 0802-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) (D) T=6.0 		5-09709-024-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=6.0 		5-09709-024-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) (D) T=4.5 & 9 		8-97371-947-0 02 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=4.5 & 9 		8-97371-947-0 02 1 0805- ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0710-0803 ● ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0804- ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0804- ●
640 03.164 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 0710-0803 ● ●
640 03.164 VENTILATOR; HOSE,BREATHER
FUEL TANK 140 LITTER<N19> 		8-98092-398-0 01 1 0804- ●
640 03.164 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 0804- ●

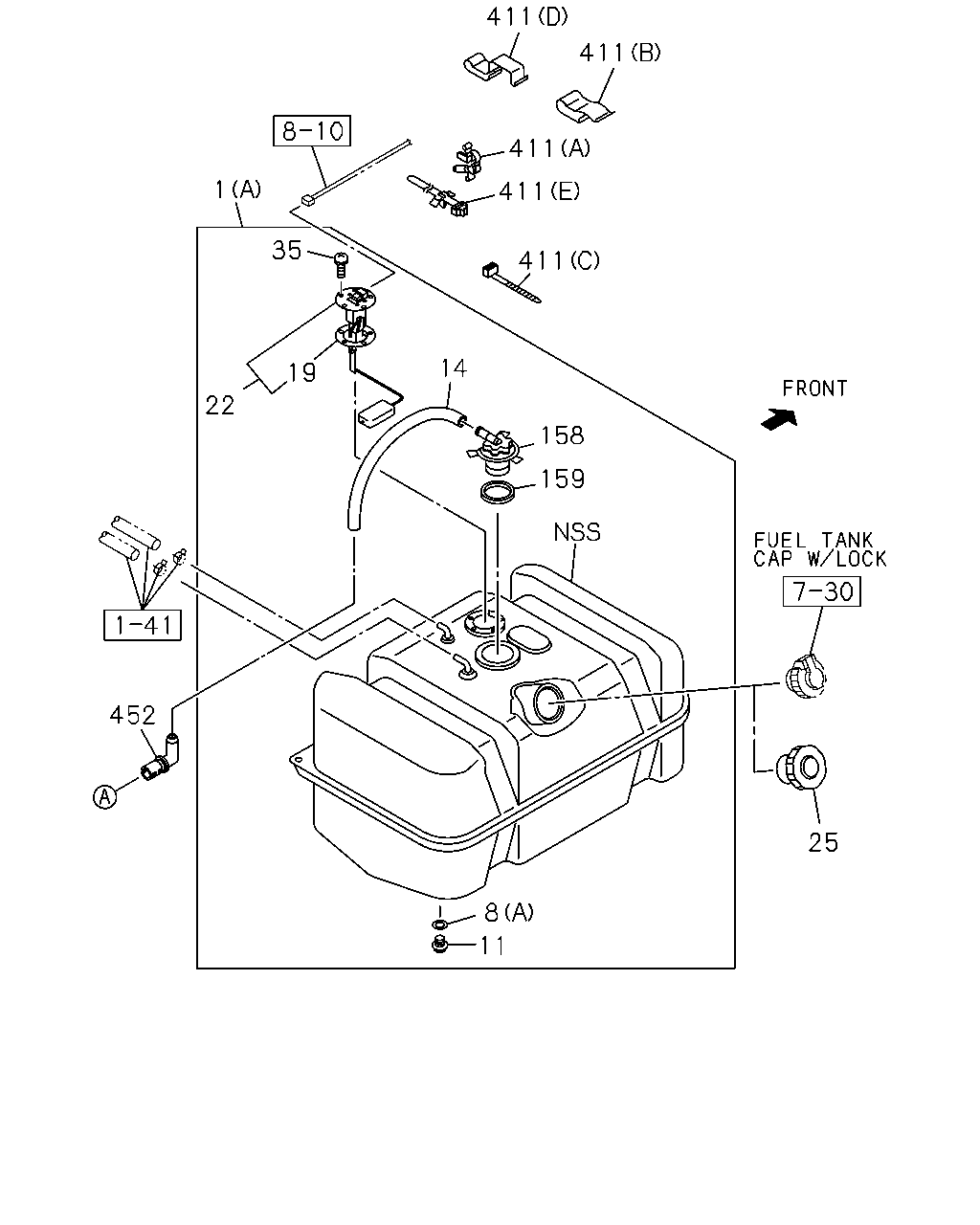

çizim 157160
411 411 411 411 411 1 35 19 22 14 158 159 25 8 11 452
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> (A) 756X482X376 100L 		8-98062-738-4 01 1 0804- ●
1 03.001 TANK; FUEL
(B) 820X500X400 140L 		8-98051-031-4 01 1 0710-0803 ● ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> (B) 820X500X400 140L 		8-98051-031-4 01 1 0804- ●
1 03.001 TANK; FUEL
(B) 820X500X400 140L 		8-98051-031-4 01 1 0804- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0804- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 0710-0803 ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> (B) ID=30 		8-98067-041-0 01 1 0804- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 0804- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02> 01.453 M14X14 		9-09862-156-0 01 1 0804- ●
11 03.890 PLUG; DRAIN,FUEL TANK
M18 		8-98068-006-0 01 1 0710-0803 ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 140 LITTER<N19> M18 		8-98068-006-0 01 1 0804- ●
11 03.890 PLUG; DRAIN,FUEL TANK
M18 		8-98068-006-0 01 1 0804- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=480 		8-97135-581-0 01 1 0804-1003 ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1004- ●
14 03.163 HOSE; BREATHER,OUTLET
L=460 		8-98082-184-1 01 1 0710-0803 ● ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 140 LITTER<N19> L=460 		8-98082-184-1 01 1 0804- ●
14 03.163 HOSE; BREATHER,OUTLET
L=460 		8-98082-184-1 01 1 0804- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02> 		8-98051-797-0 01 1 0804- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0710-0803 ● ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 0804- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0804- ●
22 03.107 UNIT; FUEL TANK
FUEL TANK 100 LITTER<N02> 		8-98056-705-0 01 1 0804- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 0804- ●
35 03.107 SCREW; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02> 03.115 M5X12 W/LK WASHER 		0-36220-512-0 05 1 0804- ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100 LITTER<N02> 		8-97179-645-0 01 1 0804- ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-98095-223-0 01 1 0710-0803 ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 140 LITTER<N19> 		8-98095-223-0 01 1 0804- ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-98095-223-0 01 1 0804- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100 LITTER<N02> 		8-97326-488-0 01 1 0804- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 01 1 0710-0803 ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> ID=45 OD=67 		1-83149-003-0 01 1 0804- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) (D) T=4.5 & 9 		8-97371-947-0 01 1 1408- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2) (B) T=6.0 		5-09709-012-0 03 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2) (B) T=5.5 		8-97371-951-0 03 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FUEL TANK 140 LITTER<N19> (E) L=170.3 		1-09987-182-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 0710- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=6.0 		5-09709-012-0 02 1 0710-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) (B) T=6.0 		5-09709-012-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=6.0 		5-09709-012-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) (B) T=5.5 		8-97371-951-0 02 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=5.5 		8-97371-951-0 02 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
02.483 (B) T=10.5 		5-09709-014-0 03 1 0710-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=10.5 		8-97371-950-0 03 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=6.0 		5-09709-024-0 02 1 0710-0801 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) (D) T=6.0 		5-09709-024-0 02 1 0802-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) (D) T=6.0 		5-09709-024-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=6.0 		5-09709-024-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) (D) T=4.5 & 9 		8-97371-947-0 02 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=4.5 & 9 		8-97371-947-0 02 1 0805- ●
452 03.028 BREATHER; FUEL TANK
FUEL TANK 100 LITTER<N02> 		8-97357-261-0 01 1 0804- ●

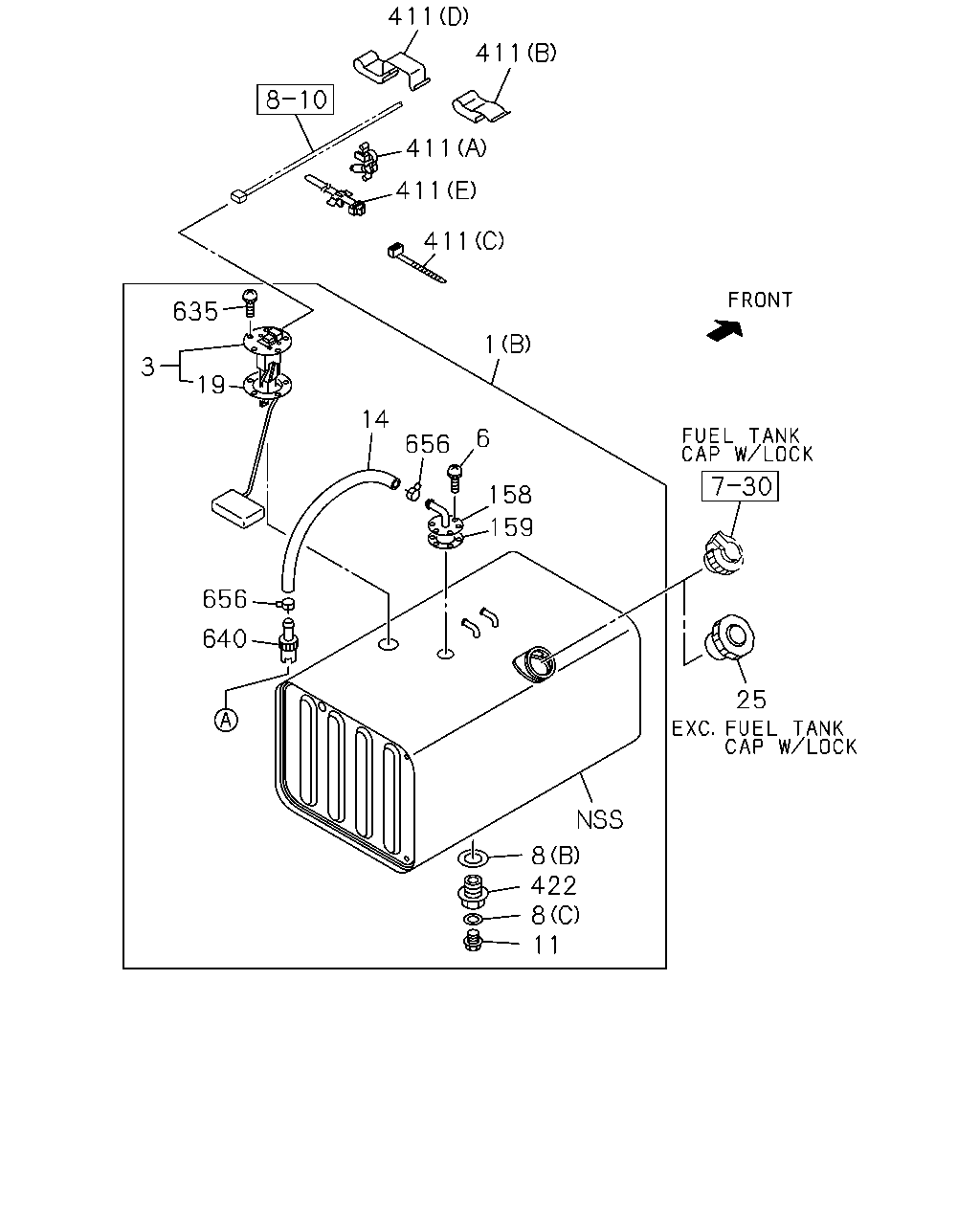

çizim 157166
411 411 411 411 411 1 25 8 422 8 11 640 656 158 159 6 656 14 635 19 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> (A) 756X482X376 100L 		8-98062-738-4 01 1 0804- ●
1 03.001 TANK; FUEL
(B) 820X500X400 140L 		8-98051-031-4 01 1 0710-0803 ● ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> (B) 820X500X400 140L 		8-98051-031-4 01 1 0804- ●
1 03.001 TANK; FUEL
(B) 820X500X400 140L 		8-98051-031-4 01 1 0804- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> 		8-98056-705-0 01 1 0804- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98065-304-0 01 1 0710-0803 ● ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 140 LITTER<N19> 		8-98065-304-0 01 1 0804- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98065-304-0 01 1 0804- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0710-0803 ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
EURO4 SPECIFICATION(NT4) M5X12 W/LK WASHER 		0-36220-512-0 05 1 0804- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0804- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 0710-0803 ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> (B) ID=30 		8-98067-041-0 01 1 0804- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 0804- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02> 01.453 M14X14 		9-09862-156-0 01 1 0804- ●
11 03.890 PLUG; DRAIN,FUEL TANK
M18 		8-98068-006-0 01 1 0710-0803 ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 140 LITTER<N19> M18 		8-98068-006-0 01 1 0804- ●
11 03.890 PLUG; DRAIN,FUEL TANK
M18 		8-98068-006-0 01 1 0804- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=480 		8-97135-581-0 01 1 0804-1003 ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1004- ●
14 03.163 HOSE; BREATHER,OUTLET
L=460 		8-98082-184-1 01 1 0710-0803 ● ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 140 LITTER<N19> L=460 		8-98082-184-1 01 1 0804- ●
14 03.163 HOSE; BREATHER,OUTLET
L=460 		8-98082-184-1 01 1 0804- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02> 		8-98051-797-0 01 1 0804- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0710-0803 ● ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 0804- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0804- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 0804- ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100 LITTER<N02> 		8-97179-645-0 01 1 0804- ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-98095-223-0 01 1 0710-0803 ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 140 LITTER<N19> 		8-98095-223-0 01 1 0804- ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-98095-223-0 01 1 0804- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100 LITTER<N02> 		8-97326-488-0 01 1 0804- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 01 1 0710-0803 ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> ID=45 OD=67 		1-83149-003-0 01 1 0804- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) (D) T=4.5 & 9 		8-97371-947-0 01 1 1408- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2) (B) T=6.0 		5-09709-012-0 03 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2) (B) T=5.5 		8-97371-951-0 03 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FUEL TANK 140 LITTER<N19> (E) L=170.3 		1-09987-182-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 0710- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=6.0 		5-09709-012-0 02 1 0710-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) (B) T=6.0 		5-09709-012-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=6.0 		5-09709-012-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) (B) T=5.5 		8-97371-951-0 02 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=5.5 		8-97371-951-0 02 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
02.483 (B) T=10.5 		5-09709-014-0 03 1 0710-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=10.5 		8-97371-950-0 03 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=6.0 		5-09709-024-0 02 1 0710-0801 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) (D) T=6.0 		5-09709-024-0 02 1 0802-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) (D) T=6.0 		5-09709-024-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=6.0 		5-09709-024-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) (D) T=4.5 & 9 		8-97371-947-0 02 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=4.5 & 9 		8-97371-947-0 02 1 0805- ●
422 03.023 PLUG; FUEL TANK
FUEL TANK 140 LITTER<N19> 03.890 M30 		8-98067-038-0 01 1 1504- ●
422 03.023 PLUG; FUEL TANK
03.890 M30 		8-98067-038-0 01 1 1504- ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0710-0803 ● ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0804- ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0804- ●
640 03.164 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 0710-0803 ● ●
640 03.164 VENTILATOR; HOSE,BREATHER
FUEL TANK 140 LITTER<N19> 		8-98092-398-0 01 1 0804- ●
640 03.164 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 0804- ●
656 03.023 CLAMP; FUEL TANK
FUEL TANK 140 LITTER<N19> 		8-98304-416-0 02 1 1504- ●
656 03.023 CLAMP; FUEL TANK 8-98304-416-0 02 1 1504- ●

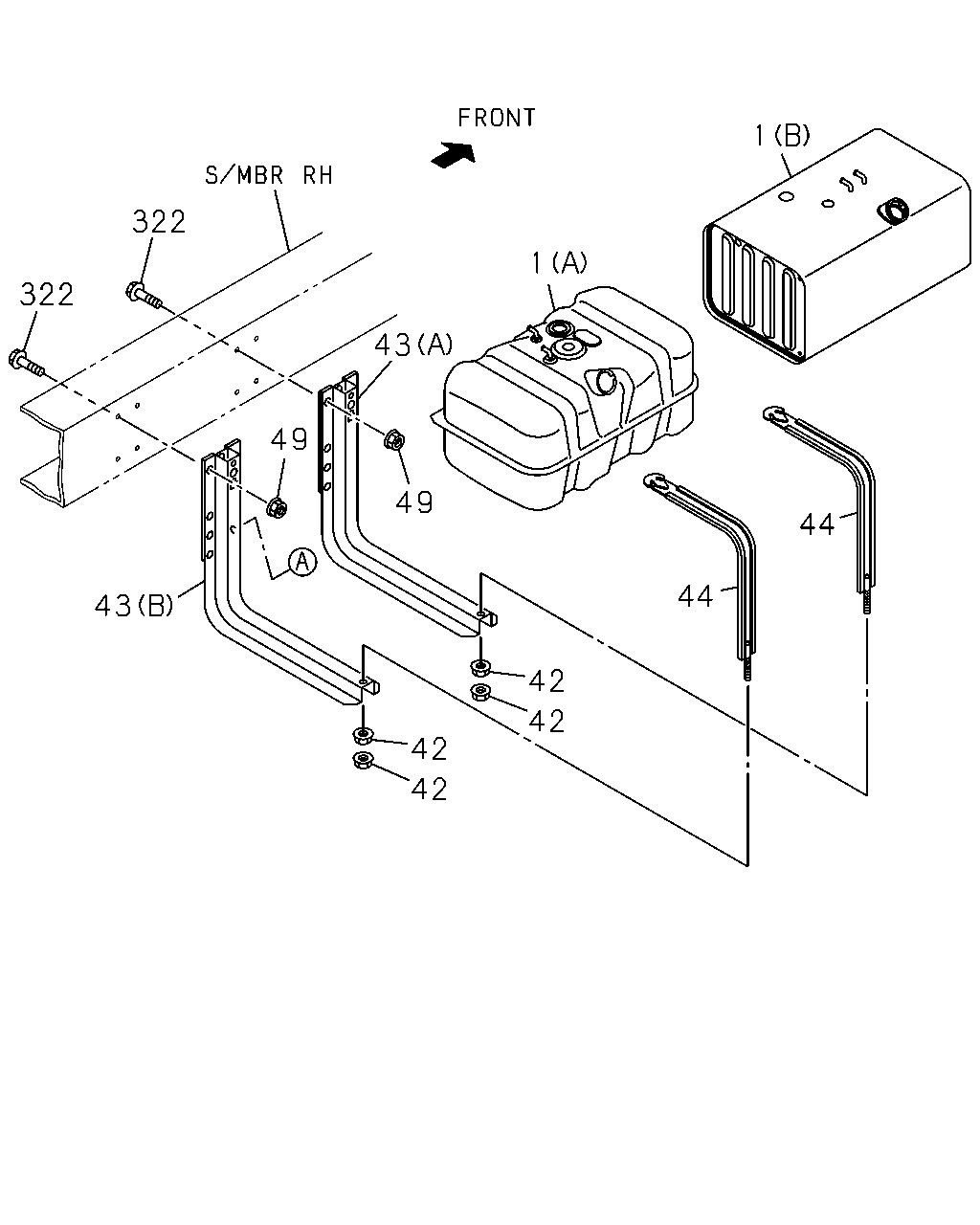

çizim 157410
322 322 43 49 43 1 1 49 42 42 42 42 44 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> (A) 756X482X376 100L 		8-98062-738-4 01 1 0804- ●
1 03.001 TANK; FUEL
(B) 820X500X400 140L 		8-98051-031-4 01 1 0710-0803 ● ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> (B) 820X500X400 140L 		8-98051-031-4 01 1 0804- ●
1 03.001 TANK; FUEL
(B) 820X500X400 140L 		8-98051-031-4 01 1 0804- ●
42 03.023 NUT; SUPPORT BELT
FUEL TANK 100 LITTER<N02> M8 FLANGE 		9-09130-408-0 02 1 0804- ●
42 03.023 NUT; SUPPORT BELT
00.833 M10 		0-91110-510-0 04 1 0710-0803 ● ●
42 03.023 NUT; SUPPORT BELT
FUEL TANK 140 LITTER<N19> 00.833 M10 		0-91110-510-0 04 1 0804- ●
42 03.023 NUT; SUPPORT BELT
00.833 M10 		0-91110-510-0 04 1 0804- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> (A) 		8-97384-060-5 01 1 0804- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> (B) 		8-97384-062-6 01 1 0804- ●
43 03.015 BRACKET; FUEL TANK
(A) 		8-98049-768-1 01 1 0710-0803 ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 140 LITTER<N19> (A) 		8-98049-768-1 01 1 0804- ●
43 03.015 BRACKET; FUEL TANK
(A) 		8-98049-768-1 01 1 0804- ●
43 03.015 BRACKET; FUEL TANK
(B) 		8-98083-790-0 01 1 0710-0803 ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 140 LITTER<N19> (B) 		8-98083-790-0 01 1 0804-1312 ●
43 03.015 BRACKET; FUEL TANK
(B) 		8-98083-790-0 01 1 0804-1312 ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 140 LITTER<N19> (B) 		8-98127-229-0 01 1 1401- ●
43 03.015 BRACKET; FUEL TANK
(B) 		8-98127-229-0 01 1 1401- ●
44 03.023 BAND; FUEL TANK
FUEL TANK 100 LITTER<N02> L=795 		8-97384-080-2 02 1 0804- ●
44 03.023 BAND; FUEL TANK
L=925 		8-98049-769-1 02 1 0710-0803 ● ●
44 03.023 BAND; FUEL TANK
FUEL TANK 140 LITTER<N19> L=925 		8-98049-769-1 02 1 0804- ●
44 03.023 BAND; FUEL TANK
L=925 		8-98049-769-1 02 1 0804- ●
49 03.023 NUT; BRKT
EURO4 SPECIFICATION(NT4) 04.085 M10 FLANGE 		0-91180-210-0 08 1 0710- ● ●
322 03.895 BOLT; BRKT FIX
FUEL TANK 100 LITTER<N02> 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 0804- ●
322 03.895 BOLT; BRKT FIX
03.613 M10X40 FLANGE 		0-28661-040-0 07 1 0710-0803 ● ●
322 03.895 BOLT; BRKT FIX
FUEL TANK 140 LITTER<N19> 03.613 M10X40 FLANGE 		0-28661-040-0 07 1 0804- ●
322 03.895 BOLT; BRKT FIX
03.613 M10X40 FLANGE 		0-28661-040-0 07 1 0804- ●

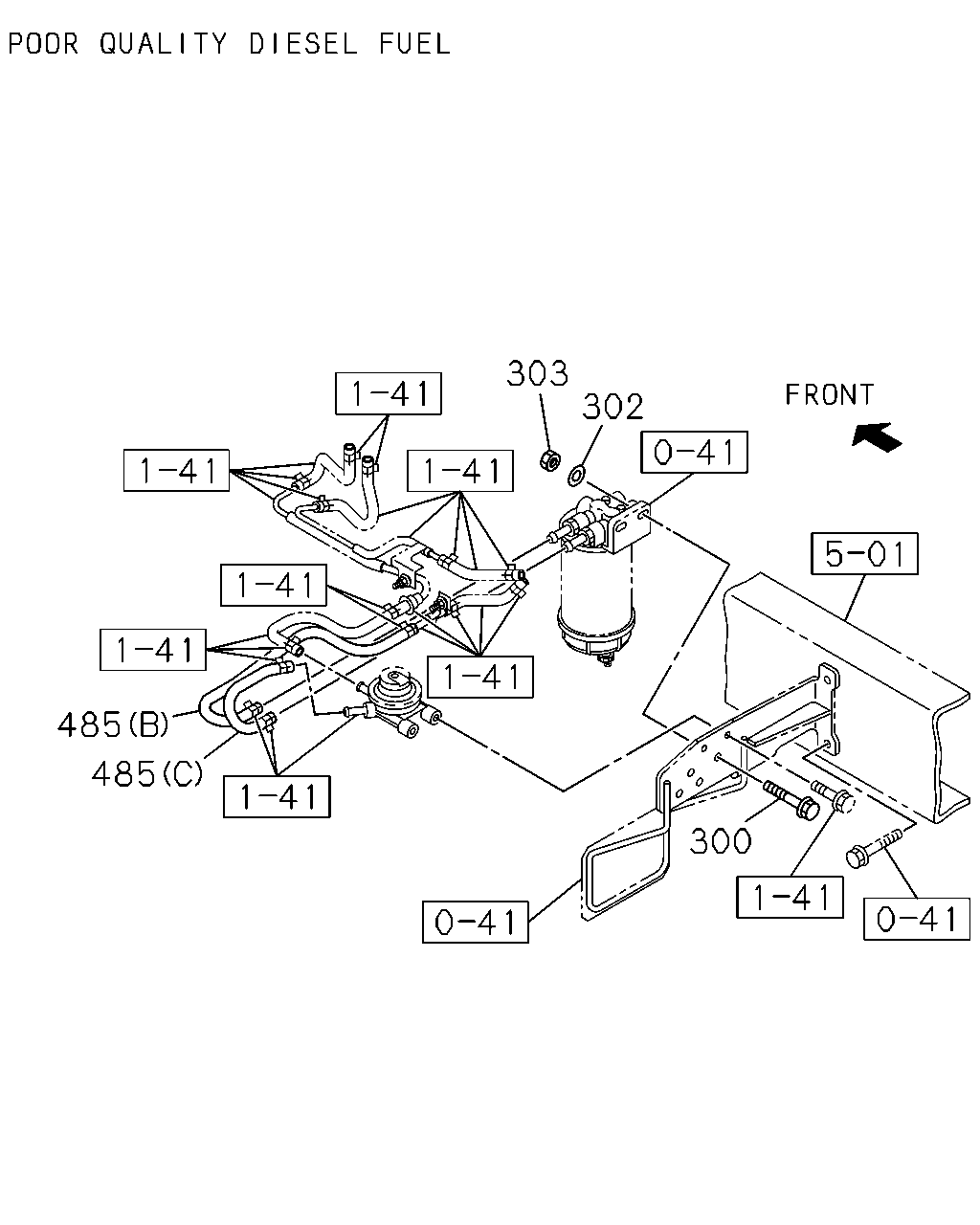

çizim 479987
303 302 300 485 485
BalonParca AdiParca NoAdetTipApplied Date A B
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 M10X40 FLANGE 		0-28651-040-0 02 1 0904-0910 ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ●
302 03.162 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 0904-0910 ●
302 03.162 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 0911- ● ●
303 03.162 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 0904-0910 ●
303 03.162 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 0911- ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) BIO DIESEL FUEL B10<8NV> (C) 		8-98138-300-0 01 1 1411- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) BIO DIESEL FUEL B10<8NV> (B) 		8-98139-112-1 01 1 1411- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 0804-0906 ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 0907-0910 ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 0907-0910 ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 0911-1410 ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 0911-1410 ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 1411- ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) EXC. BIO DIESEL FUEL B10<8NV> (B) 		8-98099-503-0 01 1 1411- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98099-503-0 01 1 1411- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98105-710-0 01 1 0804-0910 ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98105-710-0 01 1 0911-1410 ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) EXC. BIO DIESEL FUEL B10<8NV> (C) 		8-98105-710-0 01 1 1411- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98105-710-0 01 1 1411- ●
485 03.163 HOSE; FUEL
(A) 		8-98041-728-0 01 1 0710-0803 ● ●
485 03.163 HOSE; FUEL
EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0804-0910 ●
485 03.163 HOSE; FUEL
(A) 		8-98041-728-0 01 1 0804-0910 ●
485 03.163 HOSE; FUEL
EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0911- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
