◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51162 - NPS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#53581) — 678 parça

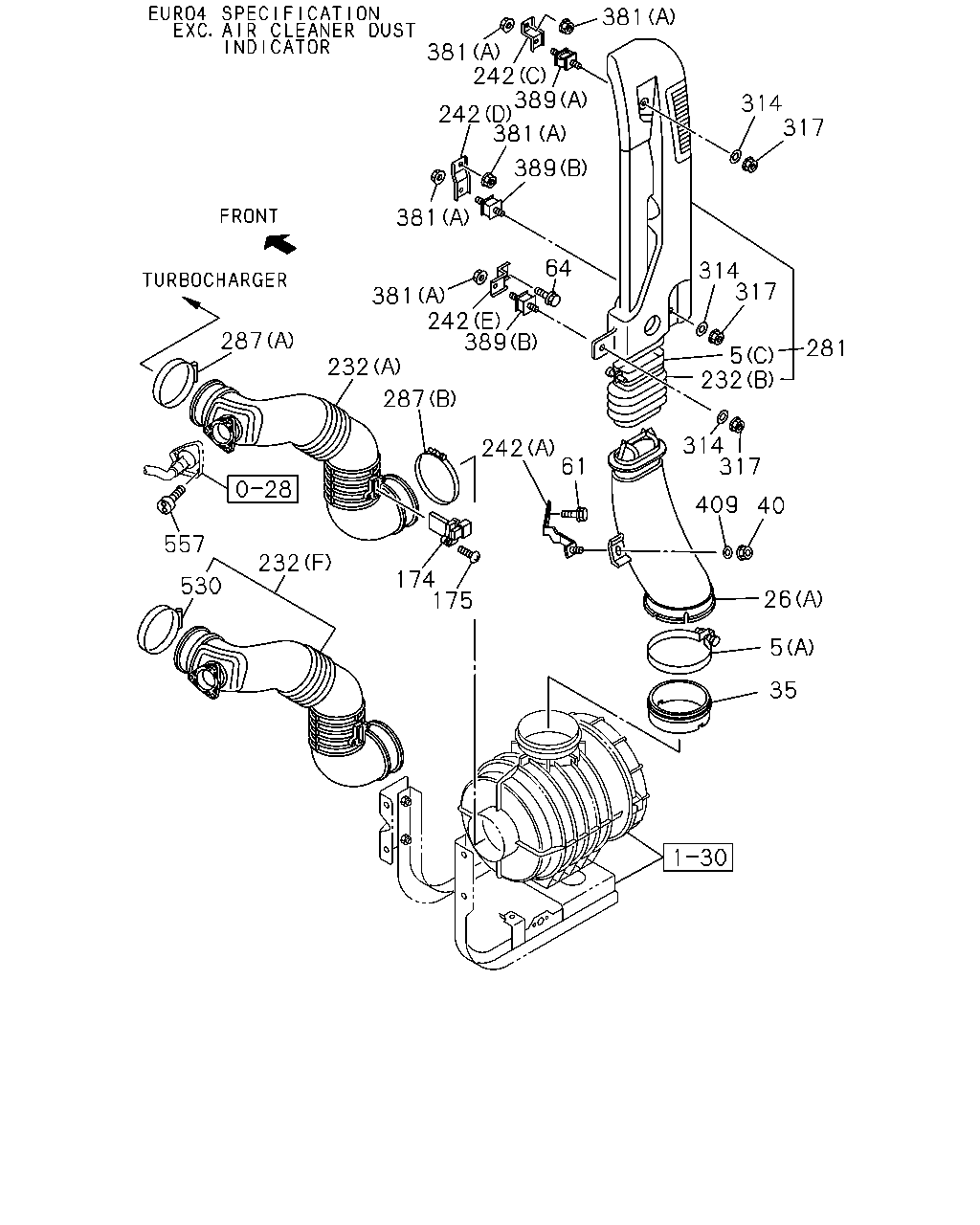

çizim 157083
381 242 389 381 314 317 314 317 281 5 232 314 317 242 381 389 381 64 242 389 381 232 287 287 557 530 232 174 175 242 61 409 40 26 5 35
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (D) ID=77-99 		1-09707-141-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (B) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (D) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (B) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0710-0710 ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0710-0802 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0801-0812 ● ●
5 03.407 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0902- ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 0710- ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(D) ID=70-90 		8-98122-372-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 02 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(B) ID=77-99 		1-09707-141-0 01 1 0901-1406 ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0710- ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0710- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0710- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0710- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0710- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0710-0803 ● ●
174 03.682 SENSOR; AIR FLOW CONT
EURO4 SPECIFICATION(NT4) 		8-97601-967-0 01 1 0804- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0804- ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0710 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0803 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0803 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0804-0804 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0804-0804 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0804-0804 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0804-0804 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0805- ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0805- ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (E) 		8-98000-233-3 01 1 1003-1402 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (E) 		8-98272-694-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-173-0 01 1 1407- ●
232 03.417 HOSE; CONN
(A) 		8-98059-989-2 01 1 0710-0803 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) (A) 		8-98059-989-2 01 1 0804-1002 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (A) 		8-98059-989-2 01 1 1003-1402 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (A) 		8-98272-698-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-176-0 01 1 1407- ●
232 03.417 HOSE; CONN
EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-98095-507-1 01 1 0804- ●
232 03.417 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (D) 		8-98070-857-1 01 1 0804- ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0710-0710 ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0801-0812 ● ●
232 03.417 HOSE; CONN
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0901-0901 ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0902-1309 ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ●
232 03.417 HOSE; CONN
(C) 		8-98094-582-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0710-1510 ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1511- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98080-412-0 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98049-012-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-246-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-243-1 01 1 0710- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-1 01 1 0710-0803 ●
281 03.417 DUCT; AIR,VERTICAL INT
EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT
EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 0710- ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) EXC. MANUAL TILT CAB<RWZ> 03.407 (C) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) 03.407 (C) ID=58-79 		1-09707-136-0 01 1 1002- ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) EXC. MANUAL TILT CAB<RWZ> 03.407 (A) ID=77-99 		1-09707-141-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) 03.407 (A) ID=77-99 		1-09707-141-0 01 1 1002-1406 ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=77-95 		1-09707-198-0 01 1 0710-0803 ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) 03.407 (A) ID=77-95 		1-09707-198-0 01 1 0804-0810 ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) 03.407 (A) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) MANUAL TILT CAB<RWZ> 03.407 (A) ID=75-95 		8-98133-357-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
03.407 (B) ID=112 		9-09915-074-1 01 1 0710- ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) 03.407 (C) ID=68-85 		1-09707-202-0 01 1 0804-0810 ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) 03.407 (C) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) MANUAL TILT CAB<RWZ> 03.407 (C) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0710- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0710- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0710- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0710- ● ●
530 03.407 CLAMP; AIR DUCT
EURO4 SPECIFICATION(NT4) ID=77-99 		1-09707-141-0 01 1 1407- ●
530 03.407 CLAMP; AIR DUCT
ID=77-99 		1-09707-141-0 01 1 1407- ●
557 03.403 BOLT; HOSE CLIP
09.242 M6X16 FLANGE 		0-28050-616-0 03 1 0710-0710 ● ●
557 03.403 BOLT; HOSE CLIP
00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0710-0803 ● ●
557 03.403 BOLT; HOSE CLIP
EURO4 SPECIFICATION(NT4) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0804-0810 ●
557 03.403 BOLT; HOSE CLIP
00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0804-0810 ●
557 03.403 BOLT; HOSE CLIP
EURO4 SPECIFICATION(NT4) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0811- ●

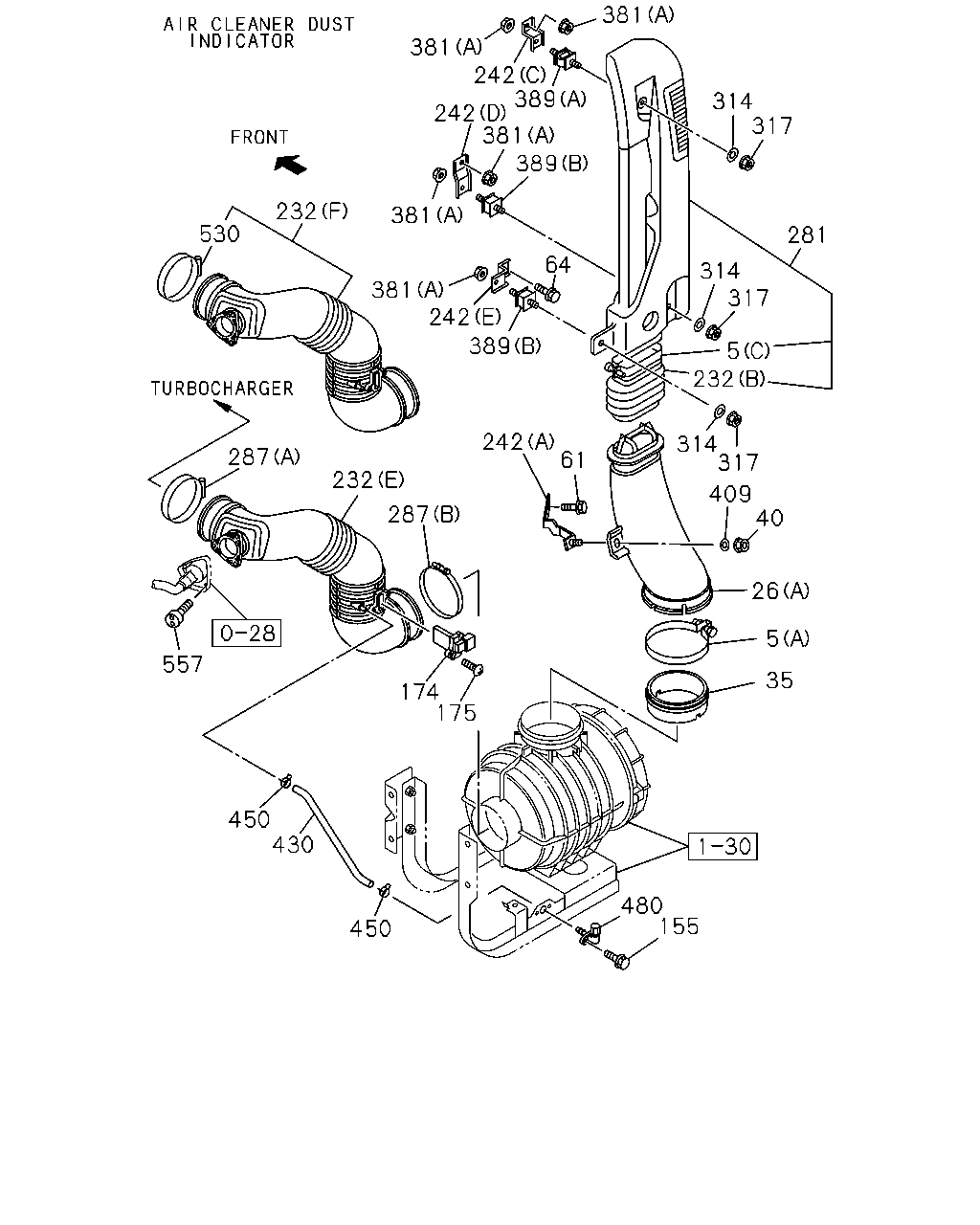

çizim 157089
381 242 389 242 381 389 381 314 317 281 314 317 5 232 64 389 242 381 232 381 530 287 232 287 557 174 175 450 430 450 480 155 35 5 26 40 409 317 314 242 61
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (D) ID=77-99 		1-09707-141-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (B) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (D) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (B) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0710-0710 ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0710-0802 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0801-0812 ● ●
5 03.407 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0902- ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 0710- ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(D) ID=70-90 		8-98122-372-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 02 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(B) ID=77-99 		1-09707-141-0 01 1 0901-1406 ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0710- ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0710- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0710- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0710- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0710- ●
155 03.417 BOLT; BRKT
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1003- ●
155 03.417 BOLT; BRKT
AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1003- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0710-0803 ● ●
174 03.682 SENSOR; AIR FLOW CONT
EURO4 SPECIFICATION(NT4) 		8-97601-967-0 01 1 0804- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0804- ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0710 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0803 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0803 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0804-0804 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0804-0804 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0804-0804 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0804-0804 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0805- ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0805- ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (E) 		8-98000-233-3 01 1 1003-1402 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (E) 		8-98272-694-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-173-0 01 1 1407- ●
232 03.417 HOSE; CONN
(A) 		8-98059-989-2 01 1 0710-0803 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) (A) 		8-98059-989-2 01 1 0804-1002 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (A) 		8-98059-989-2 01 1 1003-1402 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (A) 		8-98272-698-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-176-0 01 1 1407- ●
232 03.417 HOSE; CONN
EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-98095-507-1 01 1 0804- ●
232 03.417 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (D) 		8-98070-857-1 01 1 0804- ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0710-0710 ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0801-0812 ● ●
232 03.417 HOSE; CONN
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0901-0901 ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0902-1309 ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ●
232 03.417 HOSE; CONN
(C) 		8-98094-582-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0710-1510 ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1511- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98080-412-0 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98049-012-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-246-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-243-1 01 1 0710- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-1 01 1 0710-0803 ●
281 03.417 DUCT; AIR,VERTICAL INT
EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT
EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 0710- ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) EXC. MANUAL TILT CAB<RWZ> 03.407 (C) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) 03.407 (C) ID=58-79 		1-09707-136-0 01 1 1002- ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) EXC. MANUAL TILT CAB<RWZ> 03.407 (A) ID=77-99 		1-09707-141-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) 03.407 (A) ID=77-99 		1-09707-141-0 01 1 1002-1406 ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=77-95 		1-09707-198-0 01 1 0710-0803 ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) 03.407 (A) ID=77-95 		1-09707-198-0 01 1 0804-0810 ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) 03.407 (A) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) MANUAL TILT CAB<RWZ> 03.407 (A) ID=75-95 		8-98133-357-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
03.407 (B) ID=112 		9-09915-074-1 01 1 0710- ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) 03.407 (C) ID=68-85 		1-09707-202-0 01 1 0804-0810 ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) 03.407 (C) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) MANUAL TILT CAB<RWZ> 03.407 (C) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0710- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0710- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0710- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0710- ● ●
430 03.417 HOSE; INDICATOR
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000 		0-04770-300-0 01 1 1003- ●
430 03.417 HOSE; INDICATOR
AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000 		0-04770-300-0 01 1 1003- ●
450 03.417 CLAMP; HOSE
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12 		8-98150-358-0 02 1 1003- ●
450 03.417 CLAMP; HOSE
AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12 		8-98150-358-0 02 1 1003- ●
480 03.417 ADAPTER
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> 		8-98013-425-0 01 1 1003- ●
480 03.417 ADAPTER
AIR CLEANER DUST INDICATOR<YD1> 		8-98013-425-0 01 1 1003- ●
530 03.407 CLAMP; AIR DUCT
EURO4 SPECIFICATION(NT4) ID=77-99 		1-09707-141-0 01 1 1407- ●
530 03.407 CLAMP; AIR DUCT
ID=77-99 		1-09707-141-0 01 1 1407- ●
557 03.403 BOLT; HOSE CLIP
09.242 M6X16 FLANGE 		0-28050-616-0 03 1 0710-0710 ● ●
557 03.403 BOLT; HOSE CLIP
00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0710-0803 ● ●
557 03.403 BOLT; HOSE CLIP
EURO4 SPECIFICATION(NT4) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0804-0810 ●
557 03.403 BOLT; HOSE CLIP
00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0804-0810 ●
557 03.403 BOLT; HOSE CLIP
EURO4 SPECIFICATION(NT4) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0811- ●

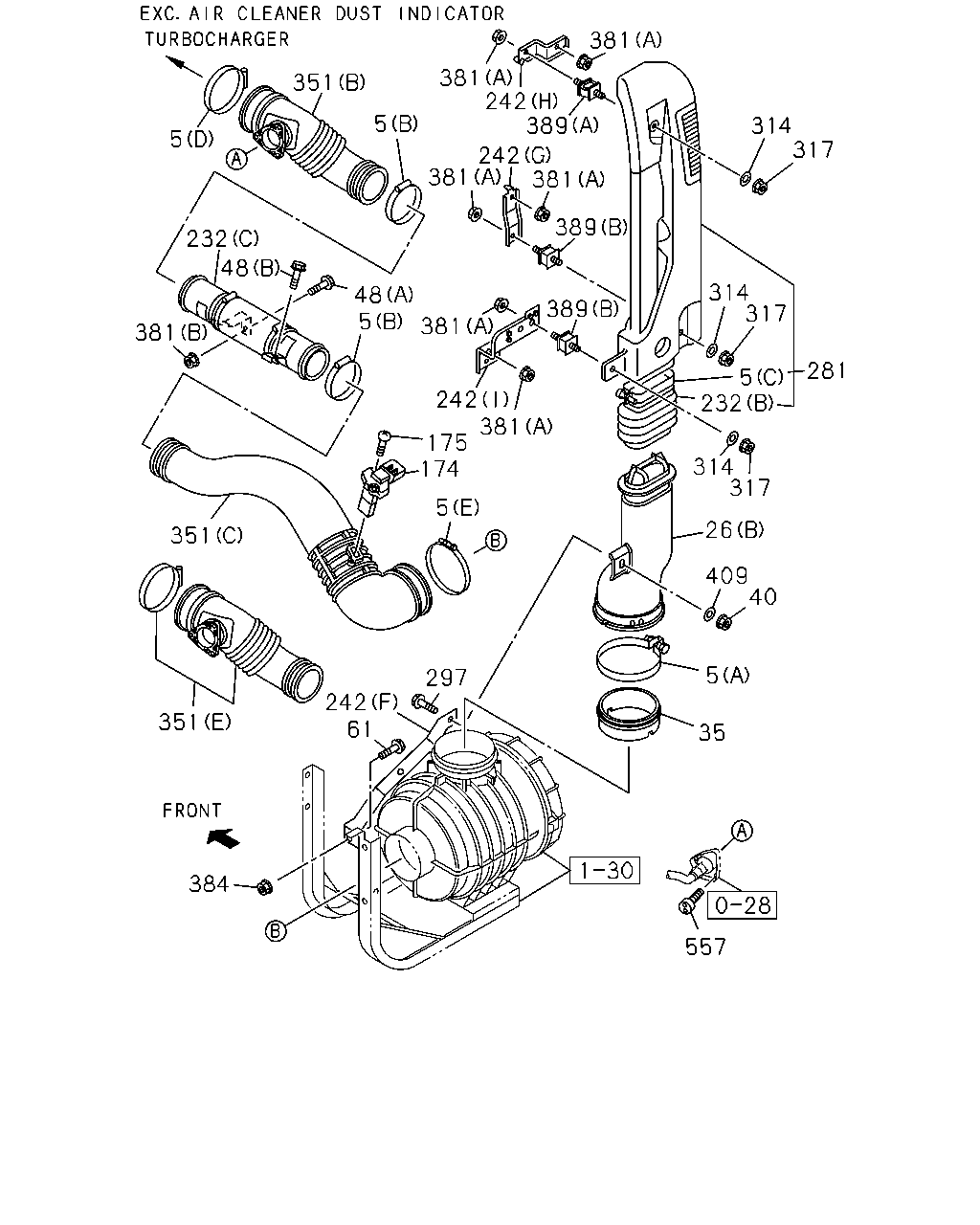

çizim 157090
351 351 351 314 314 314 381 381 381 381 381 232 48 48 5 242 242 389 389 389 232 281 317 317 317 409 40 5 35 557 297 242 61 384 5 174 175 242 5 26 5 381 381 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (D) ID=77-99 		1-09707-141-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (B) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (D) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (B) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0710-0710 ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0710-0802 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0801-0812 ● ●
5 03.407 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0902- ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 0710- ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(D) ID=70-90 		8-98122-372-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 02 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(B) ID=77-99 		1-09707-141-0 01 1 0901-1406 ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0710- ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0710- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0710- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710- ● ●
48 03.417 BOLT; AIR DUCT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0710- ●
48 03.417 BOLT; AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0710- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0710-0803 ● ●
174 03.682 SENSOR; AIR FLOW CONT
EURO4 SPECIFICATION(NT4) 		8-97601-967-0 01 1 0804- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0804- ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0710 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0803 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0803 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0804-0804 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0804-0804 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0804-0804 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0804-0804 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0805- ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0805- ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (E) 		8-98000-233-3 01 1 1003-1402 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (E) 		8-98272-694-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-173-0 01 1 1407- ●
232 03.417 HOSE; CONN
(A) 		8-98059-989-2 01 1 0710-0803 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) (A) 		8-98059-989-2 01 1 0804-1002 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (A) 		8-98059-989-2 01 1 1003-1402 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (A) 		8-98272-698-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-176-0 01 1 1407- ●
232 03.417 HOSE; CONN
EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-98095-507-1 01 1 0804- ●
232 03.417 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (D) 		8-98070-857-1 01 1 0804- ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0710-0710 ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0801-0812 ● ●
232 03.417 HOSE; CONN
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0901-0901 ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0902-1309 ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ●
232 03.417 HOSE; CONN
(C) 		8-98094-582-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0710-1510 ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1511- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98080-412-0 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98049-012-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-246-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-243-1 01 1 0710- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-1 01 1 0710-0803 ●
281 03.417 DUCT; AIR,VERTICAL INT
EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT
EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 0710- ●
297 03.417 BOLT; DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0710- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0710- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
351 03.407 DUCT; AIR
AIR CLEANER DUST INDICATOR<YD1> 03.417 (D) 		8-98021-485-1 01 1 1003- ●
351 03.407 DUCT; AIR
03.417 (A) 		8-98059-995-2 01 1 0710- ● ●
351 03.407 DUCT; AIR
(B) 		8-98021-487-2 01 1 0710-1402 ●
351 03.407 DUCT; AIR
(B) 		8-98272-699-0 01 1 1403-1406 ●
351 03.407 DUCT; AIR
(E) 		8-98281-177-0 01 1 1407- ●
351 03.407 DUCT; AIR
(C) 		8-98070-862-1 01 1 0710-1002 ●
351 03.407 DUCT; AIR
EXC. AIR CLEANER DUST INDICATOR<YD1> (C) 		8-98070-862-1 01 1 1003- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0710- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0710- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0710- ● ●
557 03.403 BOLT; HOSE CLIP
09.242 M6X16 FLANGE 		0-28050-616-0 03 1 0710-0710 ● ●
557 03.403 BOLT; HOSE CLIP
00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0710-0803 ● ●
557 03.403 BOLT; HOSE CLIP
EURO4 SPECIFICATION(NT4) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0804-0810 ●
557 03.403 BOLT; HOSE CLIP
00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0804-0810 ●
557 03.403 BOLT; HOSE CLIP
EURO4 SPECIFICATION(NT4) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0811- ●

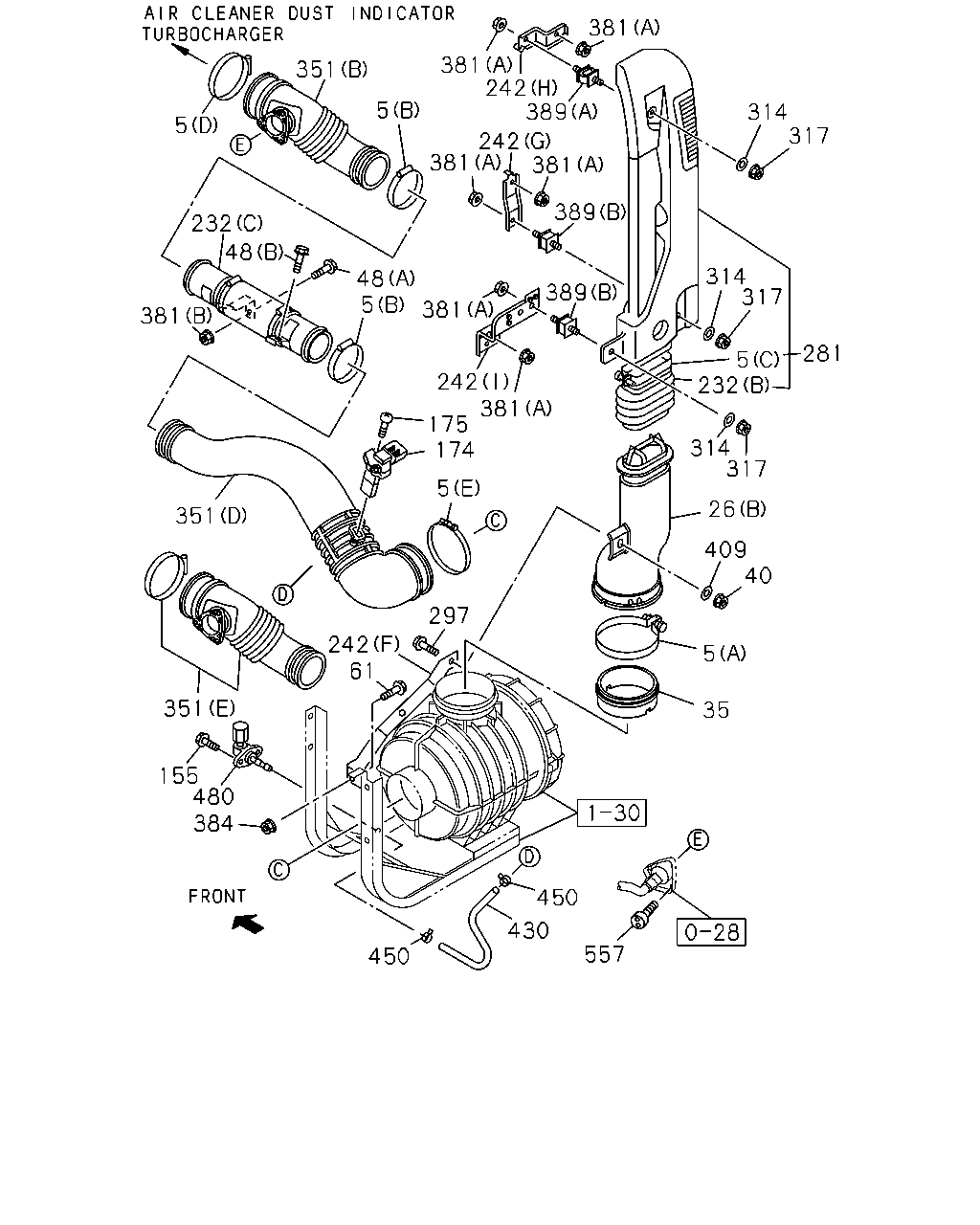

çizim 157097
5 381 381 381 381 381 381 242 242 389 389 389 351 351 381 232 351 314 314 281 232 317 314 317 26 40 409 5 35 450 430 557 450 242 61 297 5 174 175 242 5 48 48 480 384 155 5 317 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (D) ID=77-99 		1-09707-141-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (B) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (D) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (B) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0710-0710 ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0710-0802 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0801-0812 ● ●
5 03.407 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0902- ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 0710- ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(D) ID=70-90 		8-98122-372-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 02 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(B) ID=77-99 		1-09707-141-0 01 1 0901-1406 ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0710- ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0710- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0710- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710- ● ●
48 03.417 BOLT; AIR DUCT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0710- ●
48 03.417 BOLT; AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0710- ●
155 03.417 BOLT; BRKT
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1003- ●
155 03.417 BOLT; BRKT
AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1003- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0710-0803 ● ●
174 03.682 SENSOR; AIR FLOW CONT
EURO4 SPECIFICATION(NT4) 		8-97601-967-0 01 1 0804- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0804- ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0710 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0803 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0803 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0804-0804 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0804-0804 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0804-0804 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0804-0804 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0805- ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0805- ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (E) 		8-98000-233-3 01 1 1003-1402 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (E) 		8-98272-694-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-173-0 01 1 1407- ●
232 03.417 HOSE; CONN
(A) 		8-98059-989-2 01 1 0710-0803 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) (A) 		8-98059-989-2 01 1 0804-1002 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (A) 		8-98059-989-2 01 1 1003-1402 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (A) 		8-98272-698-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-176-0 01 1 1407- ●
232 03.417 HOSE; CONN
EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-98095-507-1 01 1 0804- ●
232 03.417 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (D) 		8-98070-857-1 01 1 0804- ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0710-0710 ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0801-0812 ● ●
232 03.417 HOSE; CONN
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0901-0901 ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0902-1309 ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ●
232 03.417 HOSE; CONN
(C) 		8-98094-582-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0710-1510 ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1511- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98080-412-0 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98049-012-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-246-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-243-1 01 1 0710- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-1 01 1 0710-0803 ●
281 03.417 DUCT; AIR,VERTICAL INT
EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT
EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 0710- ●
297 03.417 BOLT; DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0710- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0710- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
351 03.407 DUCT; AIR
AIR CLEANER DUST INDICATOR<YD1> 03.417 (D) 		8-98021-485-1 01 1 1003- ●
351 03.407 DUCT; AIR
03.417 (A) 		8-98059-995-2 01 1 0710- ● ●
351 03.407 DUCT; AIR
(B) 		8-98021-487-2 01 1 0710-1402 ●
351 03.407 DUCT; AIR
(B) 		8-98272-699-0 01 1 1403-1406 ●
351 03.407 DUCT; AIR
(E) 		8-98281-177-0 01 1 1407- ●
351 03.407 DUCT; AIR
(C) 		8-98070-862-1 01 1 0710-1002 ●
351 03.407 DUCT; AIR
EXC. AIR CLEANER DUST INDICATOR<YD1> (C) 		8-98070-862-1 01 1 1003- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0710- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0710- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0710- ● ●
430 03.417 HOSE; INDICATOR
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000 		0-04770-300-0 01 1 1003- ●
430 03.417 HOSE; INDICATOR
AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000 		0-04770-300-0 01 1 1003- ●
450 03.417 CLAMP; HOSE
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12 		8-98150-358-0 02 1 1003- ●
450 03.417 CLAMP; HOSE
AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12 		8-98150-358-0 02 1 1003- ●
480 03.417 ADAPTER
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> 		8-98013-425-0 01 1 1003- ●
480 03.417 ADAPTER
AIR CLEANER DUST INDICATOR<YD1> 		8-98013-425-0 01 1 1003- ●
557 03.403 BOLT; HOSE CLIP
09.242 M6X16 FLANGE 		0-28050-616-0 03 1 0710-0710 ● ●
557 03.403 BOLT; HOSE CLIP
00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0710-0803 ● ●
557 03.403 BOLT; HOSE CLIP
EURO4 SPECIFICATION(NT4) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0804-0810 ●
557 03.403 BOLT; HOSE CLIP
00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0804-0810 ●
557 03.403 BOLT; HOSE CLIP
EURO4 SPECIFICATION(NT4) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0811- ●

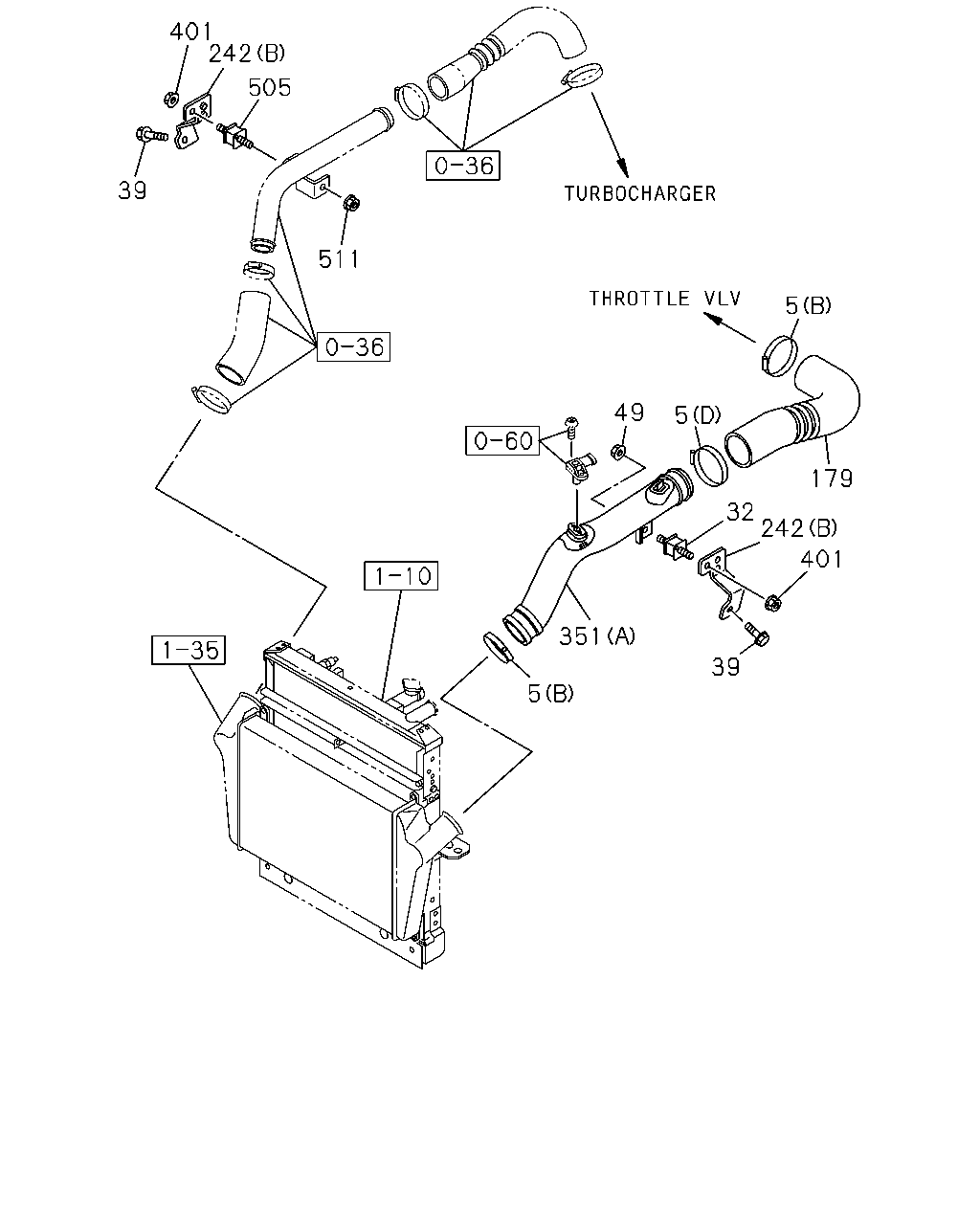

çizim 157156
401 242 505 39 511 5 49 5 179 32 242 401 351 39 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (D) ID=77-99 		1-09707-141-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (B) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (D) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (B) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0710-0710 ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0710-0802 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0801-0812 ● ●
5 03.407 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0902- ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 0710- ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(D) ID=70-90 		8-98122-372-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 02 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(B) ID=77-99 		1-09707-141-0 01 1 0901-1406 ●
32 03.417 RUBBER; AIR DUCT MTG 8-98036-826-0 01 1 0710-1106 ● ●
32 03.417 RUBBER; AIR DUCT MTG 8-97081-886-0 01 1 1107- ● ●
39 03.417 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
49 03.417 NUT; AIR DUCT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
179 03.417 HOSE; AIR INT 8-98019-957-1 01 1 0710-0712 ● ●
179 03.417 HOSE; AIR INT 8-98106-255-0 01 1 0801-0802 ● ●
179 03.417 HOSE; AIR INT 8-98114-719-0 01 1 0803- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0710-1510 ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1511- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98080-412-0 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98049-012-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-246-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-243-1 01 1 0710- ●
351 03.407 DUCT; AIR
AIR CLEANER DUST INDICATOR<YD1> 03.417 (D) 		8-98021-485-1 01 1 1003- ●
351 03.407 DUCT; AIR
03.417 (A) 		8-98059-995-2 01 1 0710- ● ●
351 03.407 DUCT; AIR
(B) 		8-98021-487-2 01 1 0710-1402 ●
351 03.407 DUCT; AIR
(B) 		8-98272-699-0 01 1 1403-1406 ●
351 03.407 DUCT; AIR
(E) 		8-98281-177-0 01 1 1407- ●
351 03.407 DUCT; AIR
(C) 		8-98070-862-1 01 1 0710-1002 ●
351 03.407 DUCT; AIR
EXC. AIR CLEANER DUST INDICATOR<YD1> (C) 		8-98070-862-1 01 1 1003- ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
505 03.406 RUBBER; MTG
03.417 		8-98036-826-0 01 1 0710-1106 ● ●
505 03.406 RUBBER; MTG
03.417 		8-97081-886-0 01 1 1107- ● ●
511 03.417 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●

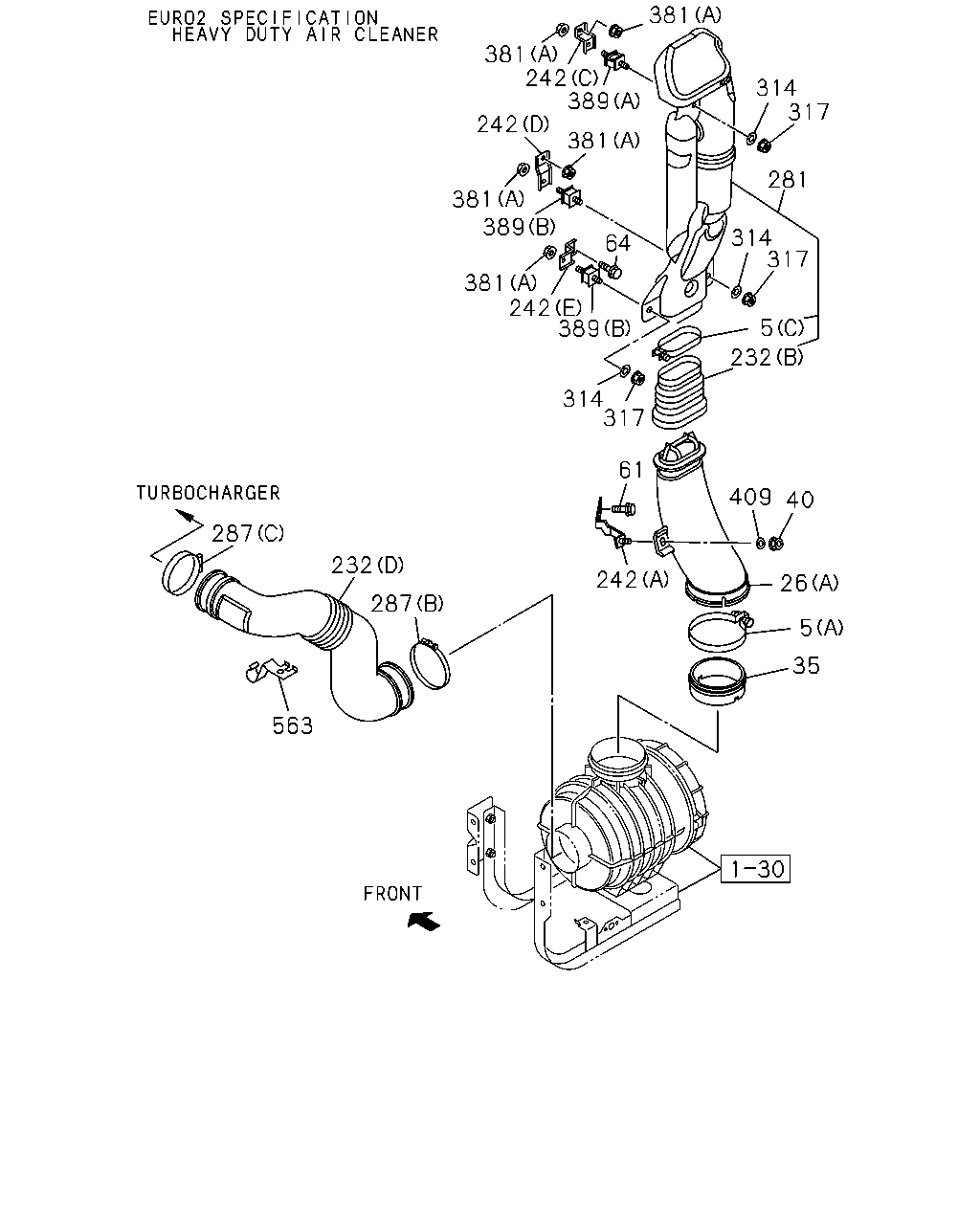

çizim 157157
381 381 242 389 314 317 242 381 281 381 389 314 317 64 381 242 389 5 232 314 317 61 409 40 287 232 242 26 287 5 35 563
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (D) ID=77-99 		1-09707-141-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (B) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (D) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (B) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0710-0710 ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0710-0802 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0801-0812 ● ●
5 03.407 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0902- ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 0710- ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(D) ID=70-90 		8-98122-372-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 02 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(B) ID=77-99 		1-09707-141-0 01 1 0901-1406 ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0710- ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0710- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0710- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0710- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0710- ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (E) 		8-98000-233-3 01 1 1003-1402 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (E) 		8-98272-694-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-173-0 01 1 1407- ●
232 03.417 HOSE; CONN
(A) 		8-98059-989-2 01 1 0710-0803 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) (A) 		8-98059-989-2 01 1 0804-1002 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (A) 		8-98059-989-2 01 1 1003-1402 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (A) 		8-98272-698-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-176-0 01 1 1407- ●
232 03.417 HOSE; CONN
EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-98095-507-1 01 1 0804- ●
232 03.417 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (D) 		8-98070-857-1 01 1 0804- ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0710-0710 ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0801-0812 ● ●
232 03.417 HOSE; CONN
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0901-0901 ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0902-1309 ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ●
232 03.417 HOSE; CONN
(C) 		8-98094-582-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0710-1510 ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1511- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98080-412-0 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98049-012-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-246-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-243-1 01 1 0710- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-1 01 1 0710-0803 ●
281 03.417 DUCT; AIR,VERTICAL INT
EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT
EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 0710- ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) EXC. MANUAL TILT CAB<RWZ> 03.407 (C) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) 03.407 (C) ID=58-79 		1-09707-136-0 01 1 1002- ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) EXC. MANUAL TILT CAB<RWZ> 03.407 (A) ID=77-99 		1-09707-141-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) 03.407 (A) ID=77-99 		1-09707-141-0 01 1 1002-1406 ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=77-95 		1-09707-198-0 01 1 0710-0803 ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) 03.407 (A) ID=77-95 		1-09707-198-0 01 1 0804-0810 ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) 03.407 (A) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) MANUAL TILT CAB<RWZ> 03.407 (A) ID=75-95 		8-98133-357-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
03.407 (B) ID=112 		9-09915-074-1 01 1 0710- ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) 03.407 (C) ID=68-85 		1-09707-202-0 01 1 0804-0810 ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) 03.407 (C) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) MANUAL TILT CAB<RWZ> 03.407 (C) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0710- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0710- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0710- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0710- ● ●
563 03.417 BRACKET; CLIP
EURO2 SPECIFICATION(NT2) 		8-98090-587-0 01 1 0804- ●
çizim 157159
381 381 242 389 314 317 242 381 281 381 389 314 317 64 381 242 389 5 232 314 317 409 61 40 287 242 26 232 5 287 35 563
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (D) ID=77-99 		1-09707-141-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-99 		1-09707-141-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (B) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (D) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (B) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0710-0710 ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0710-0802 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0801-0812 ● ●
5 03.407 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (C) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0902- ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 0710- ●
5 03.407 CLIP; AIR DUCT
(D) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(D) ID=70-90 		8-98122-372-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
(B) ID=68-85 		1-09707-202-0 02 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 02 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(B) ID=77-99 		1-09707-141-0 01 1 0901-1406 ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0710- ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0710- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0710- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0710- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0710- ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (E) 		8-98000-233-3 01 1 1003-1402 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (E) 		8-98272-694-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-173-0 01 1 1407- ●
232 03.417 HOSE; CONN
(A) 		8-98059-989-2 01 1 0710-0803 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) (A) 		8-98059-989-2 01 1 0804-1002 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (A) 		8-98059-989-2 01 1 1003-1402 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (A) 		8-98272-698-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
EURO4 SPECIFICATION(NT4) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98281-176-0 01 1 1407- ●
232 03.417 HOSE; CONN
EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-98095-507-1 01 1 0804- ●
232 03.417 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (D) 		8-98070-857-1 01 1 0804- ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0710-0710 ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0801-0812 ● ●
232 03.417 HOSE; CONN
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0901-0901 ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0902-1309 ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ●
232 03.417 HOSE; CONN
(C) 		8-98094-582-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0710-1510 ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1511- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98080-412-0 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98049-012-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-246-2 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-243-1 01 1 0710- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-1 01 1 0710-0803 ●
281 03.417 DUCT; AIR,VERTICAL INT
EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT
EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 0804- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 0710- ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) EXC. MANUAL TILT CAB<RWZ> 03.407 (C) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) 03.407 (C) ID=58-79 		1-09707-136-0 01 1 1002- ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) EXC. MANUAL TILT CAB<RWZ> 03.407 (A) ID=77-99 		1-09707-141-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) 03.407 (A) ID=77-99 		1-09707-141-0 01 1 1002-1406 ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=77-95 		1-09707-198-0 01 1 0710-0803 ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) 03.407 (A) ID=77-95 		1-09707-198-0 01 1 0804-0810 ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) 03.407 (A) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
287 03.417 CLIP; AIR DUCT
EURO4 SPECIFICATION(NT4) MANUAL TILT CAB<RWZ> 03.407 (A) ID=75-95 		8-98133-357-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
03.407 (B) ID=112 		9-09915-074-1 01 1 0710- ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) 03.407 (C) ID=68-85 		1-09707-202-0 01 1 0804-0810 ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) 03.407 (C) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
287 03.417 CLIP; AIR DUCT
EURO2 SPECIFICATION(NT2) MANUAL TILT CAB<RWZ> 03.407 (C) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0710- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0710- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0710- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0710- ● ●
563 03.417 BRACKET; CLIP
EURO2 SPECIFICATION(NT2) 		8-98090-587-0 01 1 0804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
