Isuzu WW
▶
TRUCKS
▶
NPS
▶
51162 - NPS-RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

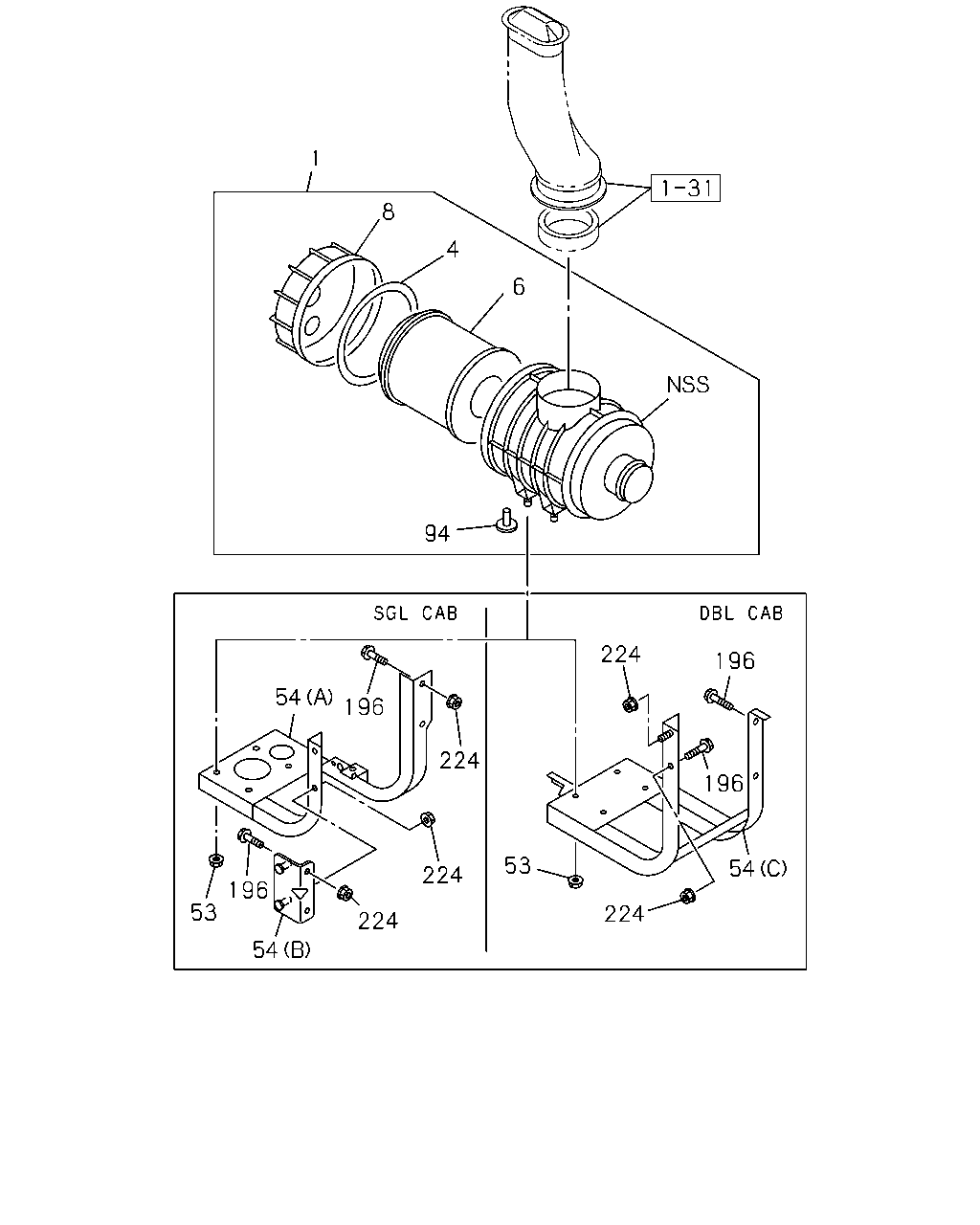

1-30 - AIR CLEANER
▶
1-30 — AIR CLEANER
(#53580) — 16 parça
Tümü
A - NPS5SN
B - NPS5WN
1
8
4
6
94
224
196
54
196
224
196
53
54
224
196
53
224
224
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.402 CLEANER ASM; AIR
8-98050-415-2
01
1
0710-
●
●
4
03.403 GASKET; COVER TO BODY
8-97352-113-0
01
1
0710-
●
●
6
03.410 FILTER; ACL
8-97062-294-0
01
1
0710-
●
●
6
03.410 FILTER; ACL
BEST VALUE PARTS
5-87610-020-0
01
1
0710-
●
●
8
03.410 COVER ASM; ACL
8-98050-434-1
01
1
0710-
●
●
53
03.403 NUT; ACL
01.062 M8 FLANGE
0-91180-108-0
04
1
0710-
●
●
54
03.405 BRACKET; ACL
(B)
8-98032-125-1
01
1
0710-
●
54
03.405 BRACKET; ACL
(A)
8-98047-140-3
01
1
0710-
●
54
03.405 BRACKET; ACL
(C)
8-98023-879-3
01
1
0710-
●
94
03.415 VALVE; VACUATOR
8-97352-112-0
01
1
0710-0907
●
●
94
03.415 VALVE; VACUATOR
8-97093-694-0
01
1
0908-
●
●
196
03.417 BOLT; BRKT,ACL
00.029 M10X30 FLANGE
0-28651-030-0
02
1
0710-
●
196
03.417 BOLT; BRKT,ACL
02.277 M10X35 FLANGE
0-28651-035-0
02
1
0710-
●
●
224
03.407 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
06
1
0710-0802
●
224
03.407 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
05
1
0803-
●
224
03.407 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
03
1
0710-
●
