2-53B — TRANSMISSION OIL COOLER SYSTEM (#5358) — 125 parça

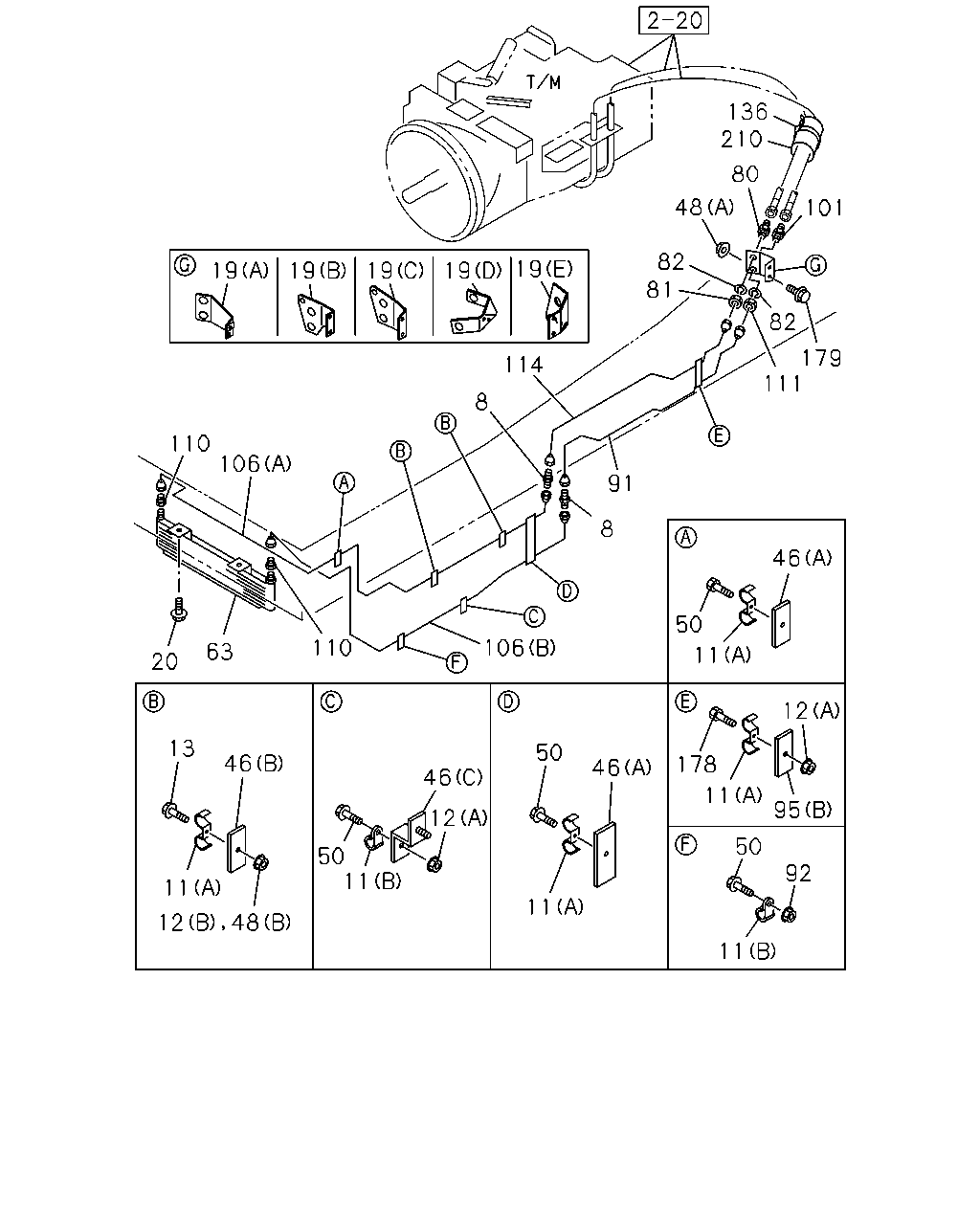

çizim 6939
136 210 80 48 101 82 81 19 19 19 19 19 82 179 111 114 8 110 106 91 8 46 50 110 106 63 11 20 12 13 50 46 178 46 46 11 95 12 50 50 11 92 11 11 11 12 48
BalonParca AdiParca NoAdetTipApplied Date A B C
8 UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09233-015-1 02 1 9603-9901 ●
8 UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09233-015-1 02 1 9902- ● ● ●
11 CLIP; PIPE
L TYPE ENG<90L> (B) ID=16 L=20 		9-09525-536-0 01 1 9603-9702 ●
11 CLIP; PIPE
L TYPE ENG<90L> (B) ID=16 L=20 		9-09525-535-0 01 1 9703-9901 ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 03 1 9603-9901 ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 03 1 9902- ● ● ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (B) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 02 1 9902- ● ●
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M8 		9-09110-508-0 01 1 9603-9606 ●
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M8 FLANGE 		0-91150-108-0 01 1 9607-9901 ●
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M8 FLANGE 		0-91150-108-0 01 1 9902-9904 ● ●
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ●
12 NUT; BRKT
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (B) M8 		9-09110-508-0 02 1 9603-9606 ●
12 NUT; BRKT
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (B) M8 FLANGE 		0-91150-108-0 02 1 9607-9901 ●
12 NUT; BRKT
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (B) M8 FLANGE 		0-91150-108-0 02 1 9905- ● ●
13 BOLT; BRKT
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 02 1 9905- ● ●
13 BOLT; BRKT
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ●
13 BOLT; BRKT
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 02 1 9607-9901 ●
19 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (A) 		1-47477-355-0 01 1 9603-9701 ●
19 BRACKET; FLEX HOSE
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> (A) 		1-47477-355-0 01 1 9702-9901 ●
19 BRACKET; FLEX HOSE
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> (A) 		1-47477-355-0 01 1 9902-9903 ● ● ●
19 BRACKET; FLEX HOSE
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> (B) 		1-47478-235-0 01 1 9904-9904 ● ● ●
19 BRACKET; FLEX HOSE
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> (C) 		1-47478-566-0 01 1 9905- ● ● ●
19 BRACKET; FLEX HOSE
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (D) 		1-47477-886-1 01 1 9702-9901 ●
19 BRACKET; FLEX HOSE
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (D) 		1-47477-886-1 01 1 9905-9905 ● ●
19 BRACKET; FLEX HOSE
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (E) 		1-47478-604-0 01 1 9905-9907 ●
19 BRACKET; FLEX HOSE
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (E) 		1-47478-648-0 01 1 9908- ● ●
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE 		0-28081-020-0 02 1 9603-9606 ●
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28681-025-0 02 1 9607-9901 ●
20 BOLT; COOLER TO BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 9902-9904 ● ●
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28681-025-0 02 1 9905-0006 ● ● ●
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE 		0-28081-020-0 02 1 0007- ● ● ●
46 BRACKET; OIL PIPE
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> (A) L=50 		1-47475-299-2 02 1 9603-0002 ●
46 BRACKET; OIL PIPE
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (B) 		1-47475-881-0 01 1 9603-9901 ●
46 BRACKET; OIL PIPE
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (C) 		1-47477-235-0 01 1 9603-9901 ●
46 BRACKET; OIL PIPE
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (B) 		1-47475-881-0 01 1 9905- ● ●
46 BRACKET; OIL PIPE
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (C) 		1-47477-235-0 01 1 9905- ● ●
46 BRACKET; OIL PIPE
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> (A) L=50 		1-47475-299-2 02 1 0003- ● ● ●
48 NUT; BRKT
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (B) M8 FLANGE 		0-91150-108-0 01 1 0003- ● ●
48 NUT; BRKT
(A) M8 		9-09110-508-0 02 1 9603-9606 ●
48 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 9607-9901 ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M8 FLANGE 		0-91150-108-0 02 1 9902-0002 ● ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M8 FLANGE 		0-91150-108-0 02 1 0003- ● ● ●
48 NUT; BRKT
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (B) M8 		9-09110-508-0 01 1 9603-9606 ●
48 NUT; BRKT
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (B) M8 FLANGE 		0-91150-108-0 01 1 9607-9901 ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (B) M8 FLANGE 		0-91150-108-0 01 1 9905-0002 ● ● ●
50 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9603-9606 ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9607-9901 ●
50 BOLT; CLIP
L TYPE ENG<90L> M8X16 FLANGE 		0-28080-816-0 03 1 9603-9606 ●
50 BOLT; CLIP
L TYPE ENG<90L> M8X20 FLANGE 		0-28680-820-0 03 1 9607-9901 ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 9902-9904 ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 02 1 9905-0002 ● ● ●
50 BOLT; CLIP
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 02 1 0003- ● ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 01 1 9902-9904 ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 01 1 9905- ● ●
63 COOLER; OIL 1-21700-290-0 01 1 9603-9901 ●
63 COOLER; OIL 1-21700-290-0 01 1 9902-9904 ● ●
63 COOLER; OIL
TRANSMISSION OIL COOLER<C2C> 		1-21700-290-0 01 1 9905- ● ● ●
80 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT 		1-09664-237-0 01 1 9603-9708 ●
80 UNION; FLEX HOSE
M22 & M30 STRAIGHT 		1-09664-237-0 01 1 9709-9901 ●
80 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT 		1-09664-237-0 01 1 9902- ● ● ●
81 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09111-422-0 01 1 9603-9901 ●
81 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09111-422-0 01 1 9902- ● ● ●
82 WASHER; LK,UNION
TRANSMISSION OIL COOLER<C2C> ID=22.5 		9-09150-522-0 02 1 9603-9901 ●
82 WASHER; LK,UNION
TRANSMISSION OIL COOLER<C2C> ID=22.5 		9-09150-522-0 02 1 9902- ● ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> 		1-47429-789-0 01 1 9603-9901 ●
91 PIPE; OIL,FLEX HOSE TO UNION
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> 		1-47429-789-0 01 1 9902-9903 ● ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> L=911 		1-49163-072-0 01 1 9904- ● ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
V TYPE ENG<91L> 		1-47429-068-0 01 1 9603-9603 ●
91 PIPE; OIL,FLEX HOSE TO UNION
V TYPE ENG<91L> 		1-47429-808-0 01 1 9604-9609 ●
91 PIPE; OIL,FLEX HOSE TO UNION
V TYPE ENG<91L> 		1-49161-157-0 01 1 9610-9611 ●
91 PIPE; OIL,FLEX HOSE TO UNION
V TYPE ENG<91L> 		1-49161-330-0 01 1 9612-9901 ●
91 PIPE; OIL,FLEX HOSE TO UNION
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> 		1-49161-330-0 01 1 9905-9905 ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> 		1-49164-395-0 01 1 9906-9907 ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> 		1-49164-672-0 01 1 9908- ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 		9-09110-508-0 01 1 9603-9606 ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9607-9901 ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9905-9908 ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9909- ● ● ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> (B) 		1-47475-881-0 02 1 9603-9901 ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> (B) 		1-47475-881-0 01 1 9909- ● ● ●
95 BRACKET; CLIP
(B) 		1-47475-881-0 02 1 9902-9908 ●
101 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT 		1-09664-237-0 01 1 9603-9708 ●
101 UNION; FLEX HOSE
M22 & M30 STRAIGHT 		1-09664-237-0 01 1 9709-9901 ●
101 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT 		1-09664-237-0 01 1 9902- ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
L TYPE ENG<90L> (B) 		1-47429-326-0 01 1 9603-9901 ●
106 PIPE ASM; OIL,COOLER TO UNION
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> (B) 		1-49163-125-0 01 1 9902-9903 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> (A) L=1703 		1-49164-312-0 01 1 9904- ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> (A) 		1-47429-502-0 01 1 9603-9901 ●
106 PIPE ASM; OIL,COOLER TO UNION
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> (A) 		1-47429-502-0 01 1 9902-9903 ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> (B) L=2317 		1-49164-311-0 01 1 9904- ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (B) 		1-47429-503-0 01 1 9603-9901 ●
106 PIPE ASM; OIL,COOLER TO UNION
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (A) 		1-47429-504-0 01 1 9603-9901 ●
106 PIPE ASM; OIL,COOLER TO UNION
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (B) 		1-47429-503-0 01 1 9905-9905 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (B) 		1-49164-613-0 01 1 9906- ● ●
106 PIPE ASM; OIL,COOLER TO UNION
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (A) 		1-47429-504-0 01 1 9905- ● ●
110 UNION; OIL PIPE
TRANSMISSION OIL COOLER<C2C> 		1-09654-365-0 02 1 9603-9805 ●
110 UNION; OIL PIPE
TRANSMISSION OIL COOLER<C2C> 		1-09654-398-0 02 1 9806-9901 ●
110 UNION; OIL PIPE
TRANSMISSION OIL COOLER<C2C> 		1-09654-398-0 02 1 9902- ● ● ●
111 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09111-422-0 01 1 9603-9901 ●
111 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09111-422-0 01 1 9902- ● ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> L=1013 		1-47429-790-0 01 1 9603-9901 ●
114 PIPE; OIL,UNION TO FLEX HOSE
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> L=1013 		1-47429-790-0 01 1 9902-9903 ● ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> L=1071 		1-49163-073-0 01 1 9904- ● ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
V TYPE ENG<91L> L=1142 		1-47429-071-0 01 1 9603-9603 ●
114 PIPE; OIL,UNION TO FLEX HOSE
V TYPE ENG<91L> L=1140 		1-47429-809-0 01 1 9604-9609 ●
114 PIPE; OIL,UNION TO FLEX HOSE
V TYPE ENG<91L> L=1089 		1-49161-158-0 01 1 9610-9901 ●
114 PIPE; OIL,UNION TO FLEX HOSE
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> L=1089 		1-49161-158-0 01 1 9905-9905 ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> L=1332 		1-49164-396-0 01 1 9905-9907 ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> L=1324 		1-49164-673-0 01 1 9908- ● ●
136 CLIP; FLEX HOSE
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> L=250 		1-09707-126-0 01 1 9702-9705 ●
136 CLIP; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=250 		1-09707-126-0 01 1 9706-9901 ●
136 CLIP; FLEX HOSE
L=250 		1-09707-126-0 01 1 9902-9904 ● ●
136 CLIP; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=250 		1-09707-126-0 01 1 9905- ● ● ●
178 BOLT; BRKT,CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ●
178 BOLT; BRKT,CLIP
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28680-825-0 01 1 9607-9901 ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9902-9904 ● ●
178 BOLT; BRKT,CLIP
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28680-825-0 01 1 9905- ● ● ●
179 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ●
179 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 02 1 9607-9901 ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9902-9904 ● ●
179 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 02 1 9905- ● ● ●
210 BAND; FLEX HOSE
V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> L=175 		1-09707-178-0 01 1 9702-9705 ●
210 BAND; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=175 		1-09707-178-0 01 1 9706-9901 ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 9902-9904 ● ●
210 BAND; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=175 		1-09707-178-0 01 1 9905- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
