0-60 — ENGINE ELECTRICAL CONTROL PARTS (#53571) — 68 parça

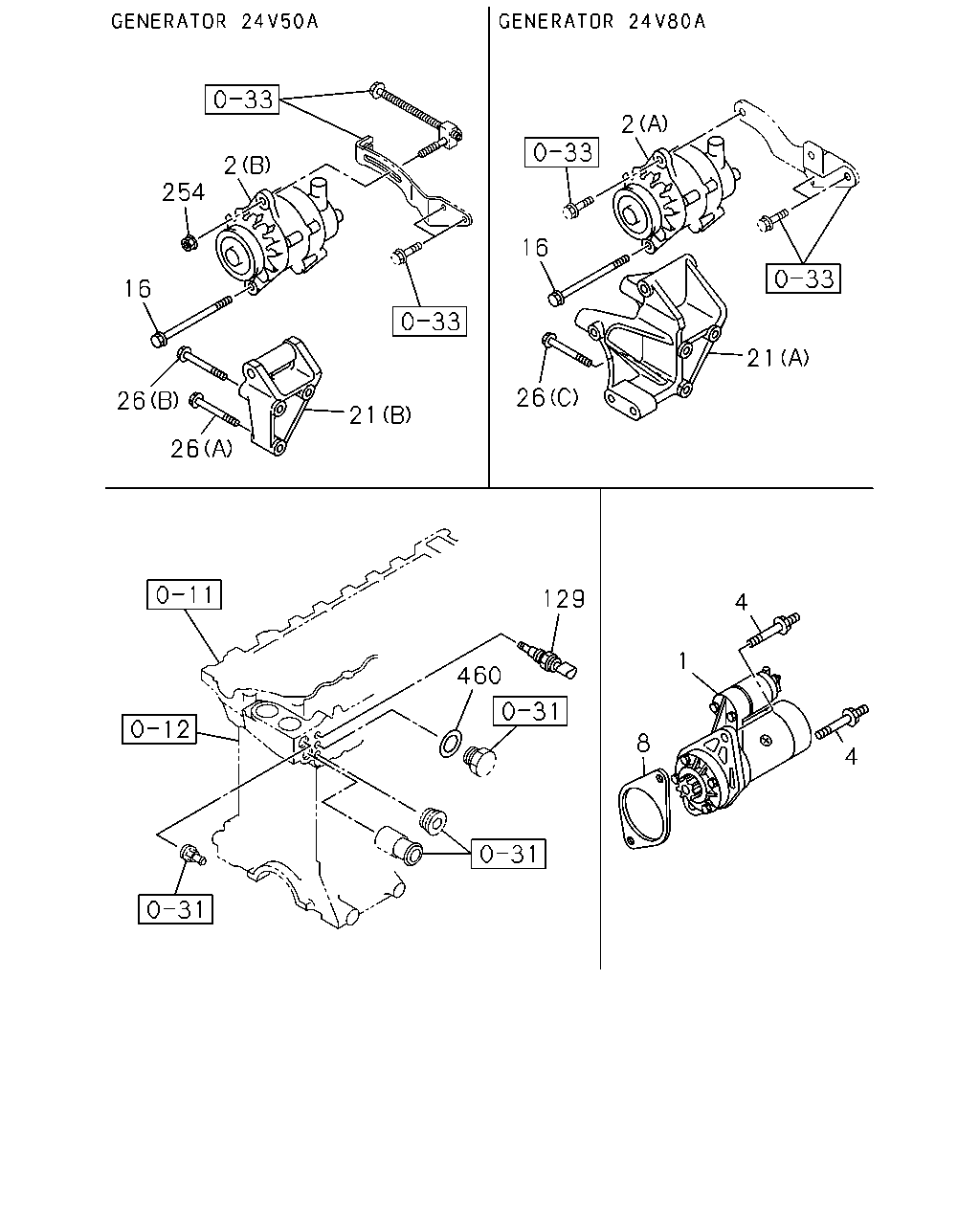

çizim 157135
2 2 254 16 16 21 26 26 21 26 129 4 1 460 8 4
BalonParca AdiParca NoAdetTipApplied Date
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0710-1006
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208-
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (B) 24V 50A 		8-98075-026-0 01 1 0710-
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (A) 24V 80A 		8-98029-892-2 01 1 0710-
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0710-
8 02.042 SPACER; STARTER 8-97350-947-0 01 1 0710-
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0710-
21 02.277 BRACKET; GEN
GENERATOR 24V50A(6QN) (B) 		8-97075-884-2 01 1 0710-
21 02.277 BRACKET; GEN
GENERATOR 24V80A(7YN) (A) 		8-98036-551-0 01 1 0710-
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) 02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 0710-
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) (B) M10X70 FLANGE 		0-28151-070-0 02 1 0710-
26 02.277 BOLT; GEN BRKT
GENERATOR 24V80A(7YN) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 03 1 0710-
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 0710-1503
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504-
254 02.277 NUT; GEN BRKT
EXC. GENERATOR 24V80A(7YN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0710-
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 0710-

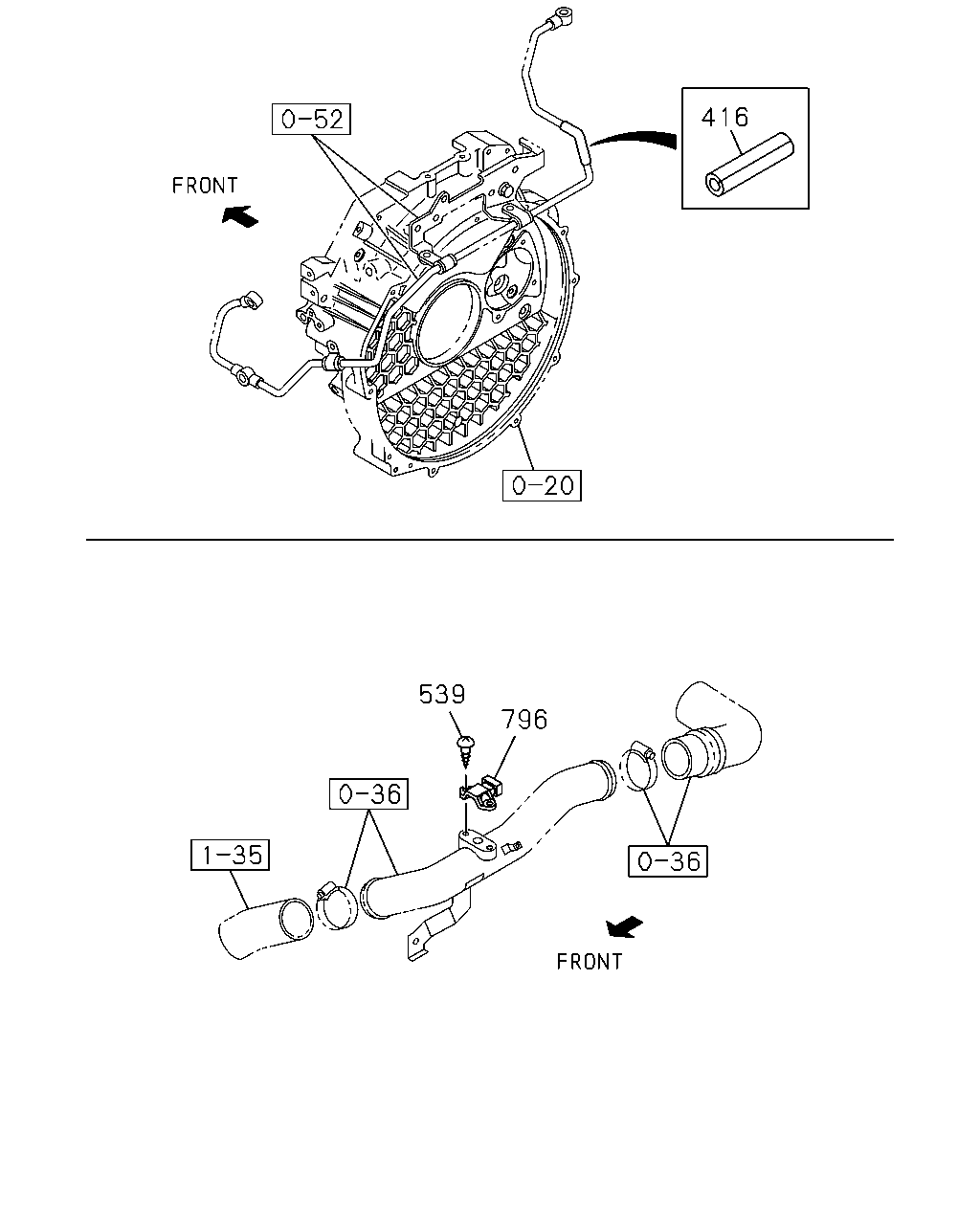

çizim 157136
416 539 796
BalonParca AdiParca NoAdetTipApplied Date
416 02.530 SLEEVE; RUBBER
04.342 ID=17 OD=21 L=40 		1-09337-012-0 01 1 0710-0710
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0710-
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0710-

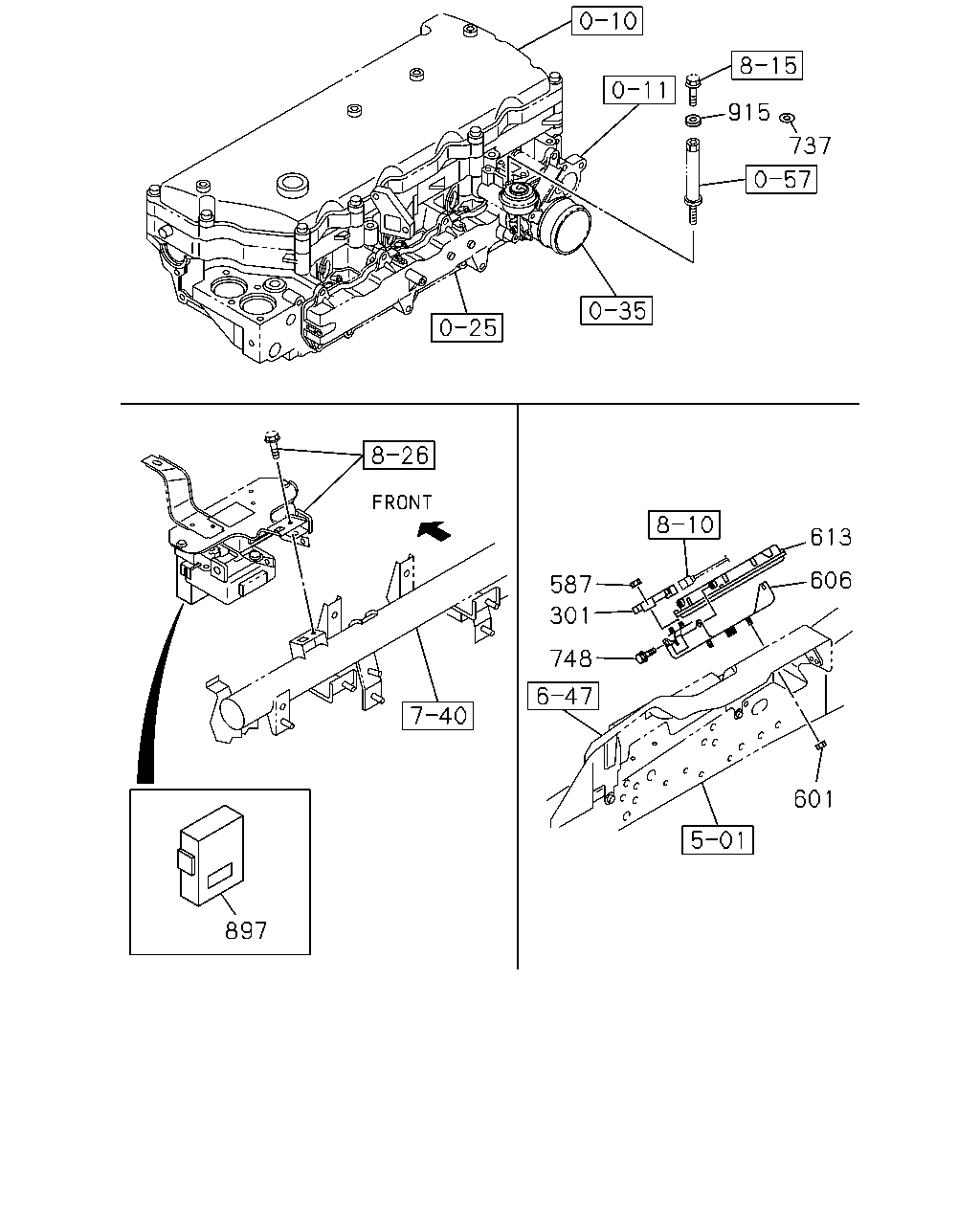

çizim 157137
915 737 613 606 587 301 748 601 897
BalonParca AdiParca NoAdetTipApplied Date
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 0710-0803
301 02.510 RESISTOR; DROPPING
EURO4 SPECIFICATION(NT4) 		8-97357-613-0 01 1 0804-
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0710-0803
587 03.671 NUT; RESISTOR & RELAY
EURO4 SPECIFICATION(NT4) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0804-
601 03.670 NUT; UNIT
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 0710-
606 03.680 BRACKET; CONT UNIT 8-98004-751-1 01 1 0710-1402
606 03.680 BRACKET; CONT UNIT 8-98114-583-2 01 1 1403-
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION(NT2) GLOW SYSTEM DELETE<7RK> EXC. IMMOBILIZER SYSTEM(7KC) 		8-98299-047-0 01 1 1502-
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) EURO2 SPECIFICATION(NT2) GLOW SYSTEM DELETE<7RK> EXC. AUSTRALIA EQUIPMENT(B13),IMMOBILIZER SYSTEM(7KC) 02.510 		8-98299-048-0 01 1 1502-
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) EURO2 SPECIFICATION(NT2) EXC. AUSTRALIA EQUIPMENT(B13),IMMOBILIZER SYSTEM(7KC) 		8-98115-459-0 01 1 0804-0804
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) EURO2 SPECIFICATION(NT2) EXC. AUSTRALIA EQUIPMENT(B13),IMMOBILIZER SYSTEM(7KC) 		8-98120-025-0 01 1 0804-0905
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) EURO2 SPECIFICATION(NT2) EXC. AUSTRALIA EQUIPMENT(B13),IMMOBILIZER SYSTEM(7KC) 		8-98115-459-3 01 1 0906-1209
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) EURO2 SPECIFICATION(NT2) EXC. AUSTRALIA EQUIPMENT(B13),IMMOBILIZER SYSTEM(7KC) 		8-98229-603-0 01 1 1210-1501
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) EURO2 SPECIFICATION(NT2) EXC. AUSTRALIA EQUIPMENT(B13),IMMOBILIZER SYSTEM(7KC),GLOW SYSTEM DELETE<7RK> 		8-98229-603-0 01 1 1502-
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) 		8-98081-068-7 01 1 0710-0803
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) EURO4 SPECIFICATION(NT4) 		8-98081-068-7 01 1 0804-
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM(7KC) 		8-98081-077-1 01 1 0804-0804
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM(7KC) 		8-98120-024-0 01 1 0804-0905
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM(7KC) 		8-98081-077-6 01 1 0906-1209
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM(7KC) 		8-98229-604-0 01 1 1210-1501
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM(7KC) EXC. GLOW SYSTEM DELETE<7RK> 		8-98229-604-0 01 1 1502-
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION(NT2) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98081-076-1 01 1 0804-0804
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION(NT2) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98120-023-0 01 1 0804-0905
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION(NT2) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98081-076-6 01 1 0906-1209
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION(NT2) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98229-602-0 01 1 1210-1501
613 03.670 CONTROL UNIT; ENG
NPS SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO2 SPECIFICATION(NT2) EXC. IMMOBILIZER SYSTEM(7KC),GLOW SYSTEM DELETE<7RK> 		8-98229-602-0 01 1 1502-
613 03.670 CONTROL UNIT; ENG
NPS DBL CAB(NP**W*) 		8-98071-291-7 01 1 0710-
737 03.901 WASHER; PL
EURO2 SPECIFICATION(NT2) 00.413 ID=6.4 		0-91610-606-0 01 1 0907-
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0710-
897 02.510 DRM 8-98082-814-7 01 1 0710-
915 02.500 SPACER; HARNESS
EURO2 SPECIFICATION(NT2) 00.662 ID=8.4 OD=19 		5-11779-001-0 01 1 0804-1301
915 02.500 SPACER; HARNESS
EURO2 SPECIFICATION(NT2) 03.275 ID=9 OD=18 T=5 		9-14149-173-0 01 1 1302-
çizim 157139
10 46
BalonParca AdiParca NoAdetTipApplied Date
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0710-
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0710-1501
46 02.510 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A 		8-97173-947-0 01 1 1502-

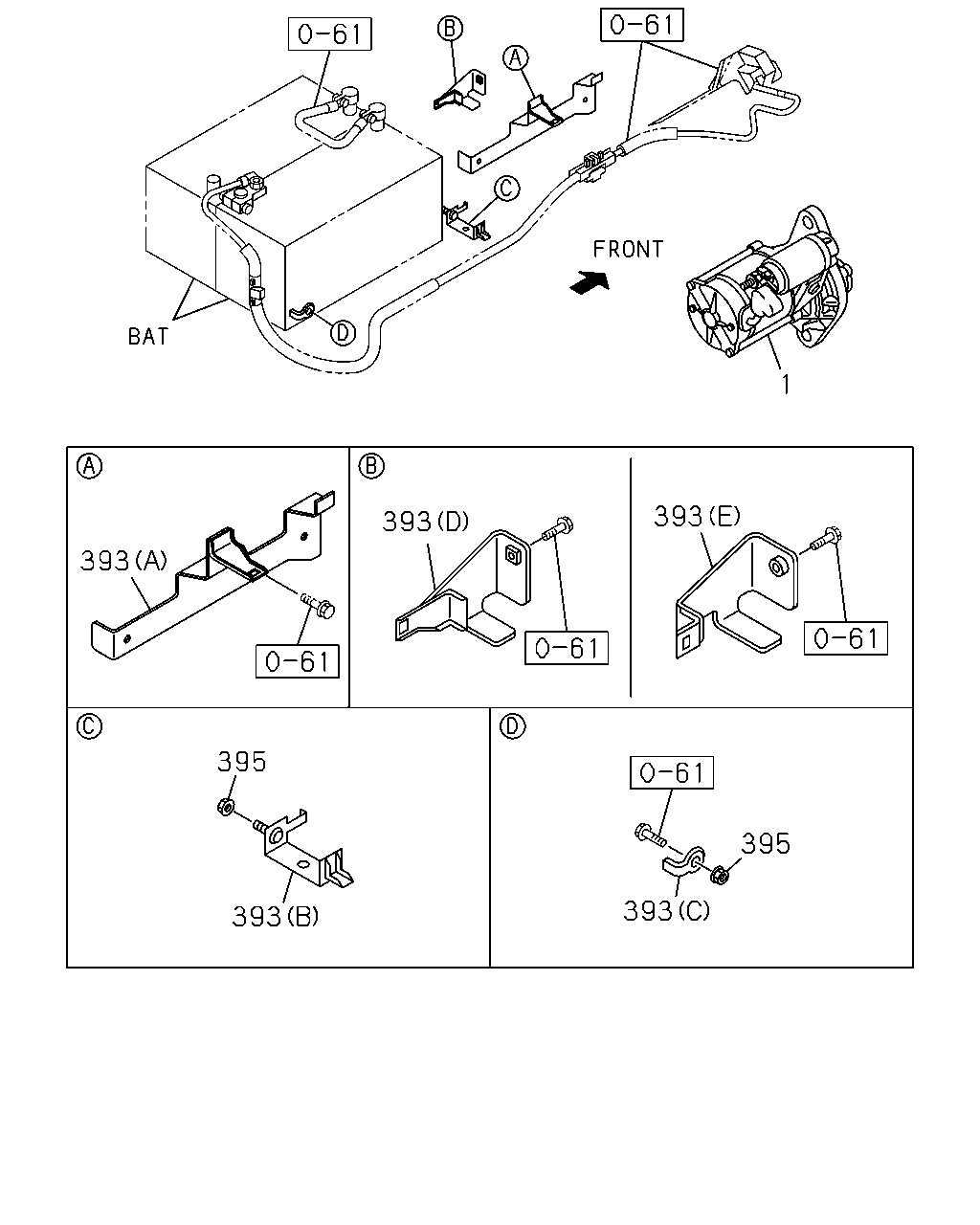

çizim 157140
1 393 393 393 395 395 393 393
BalonParca AdiParca NoAdetTipApplied Date
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0710-1006
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208-
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98041-946-1 01 1 0710-
393 02.343 BRACKET; HARNESS TO BODY
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> 02.483 (B) 		8-98018-251-1 02 1 0710-
393 02.343 BRACKET; HARNESS TO BODY
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 02.483 (B) 		8-98018-251-1 02 1 0710-
393 02.343 BRACKET; HARNESS TO BODY
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> (C) 		8-98018-894-1 01 1 0710-
393 02.343 BRACKET; HARNESS TO BODY
NPS SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> 02.483 (B) 		8-98018-251-1 01 1 0710-
393 02.343 BRACKET; HARNESS TO BODY
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (D) 		8-98018-903-0 01 1 0710-1103
393 02.343 BRACKET; HARNESS TO BODY
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (E) 		8-98123-872-0 01 1 1104-
395 02.343 NUT; BRKT FIX
NPS SGL CAB(NP**S*) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-
395 02.343 NUT; BRKT FIX
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-
395 02.343 NUT; BRKT FIX
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-
