2-53A — TRANSMISSION OIL COOLER SYSTEM (#5357) — 100 parça

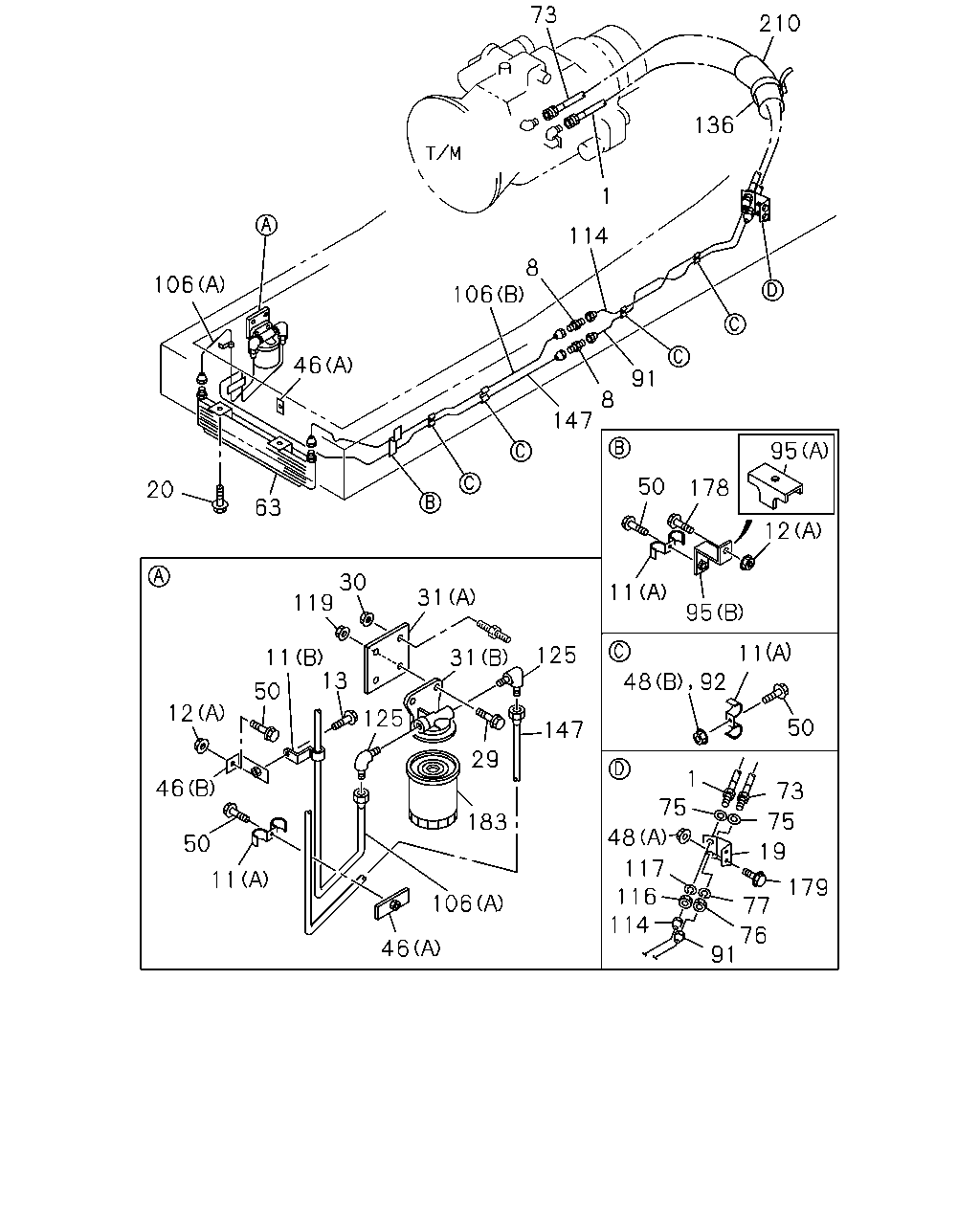

çizim 6940
73 210 136 1 114 8 106 106 46 91 8 147 95 50 178 20 63 12 30 119 11 31 95 11 125 11 13 31 50 125 12 50 147 29 1 46 73 75 75 183 48 50 19 117 116 114 11 179 106 77 76 91 46 48 92
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; ATF
TRANSMISSION OIL COOLER<C2C> L=450 		1-09364-625-0 01 1 9905-9908 ●
1 HOSE; ATF
TRANSMISSION OIL COOLER<C2C> L=450 		1-09364-625-0 01 1 9909- ● ●
8 UNION
TRANSMISSION OIL COOLER<C2C> M16 L=42 		9-09233-010-1 02 1 9905-9908 ●
8 UNION
TRANSMISSION OIL COOLER<C2C> M16 L=42 		9-09233-010-1 02 1 9909- ● ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 9905-9908 ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 9909- ● ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (B) ID=11 L=20 		9-09525-035-0 01 1 9905-9908 ●
11 CLIP; PIPE
CXZ(CXZ***) TRANSMISSION OIL COOLER<C2C> (B) ID=11 L=20 		9-09525-035-0 01 1 9909- ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (B) ID=11 L=20 		9-09525-035-0 01 1 9909- ●
11 CLIP; PIPE
CXZ(CXZ***) TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 04 1 9905-0002 ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 04 1 9905-0002 ●
11 CLIP; PIPE
CXZ(CXZ***) TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 03 1 0003- ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 03 1 0003- ●
11 CLIP; PIPE
CXZ(CXZ***) TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 01 1 0003- ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 01 1 0003- ●
11 CLIP; PIPE
CXZ(CXZ***) TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9902-9904 ●
11 CLIP; PIPE
CXZ(CXZ***) TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9905- ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9905- ●
12 NUT; BRKT
CXZ(CXZ***) TRANSMISSION OIL COOLER<C2C> (A) M8 FLANGE 		0-91150-108-0 01 1 9905- ●
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M8 FLANGE 		0-91150-108-0 01 1 9905- ●
13 BOLT; BRKT
CXZ(CXZ***) TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 01 1 9905- ●
13 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 01 1 9905- ●
19 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> 		1-47478-344-0 01 1 9905-9907 ●
19 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> 		1-47478-344-0 01 1 9908-9908 ●
19 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> 		1-47478-344-0 01 1 9909- ●
19 BRACKET; FLEX HOSE
SHORT CHASSIS(CX***C) TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> 		1-47477-168-1 01 1 9908-9908 ●
19 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> 		1-47477-168-1 01 1 9909- ●
19 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> FIRE TRUCK<RA9> 		1-47477-168-1 01 1 9909- ●
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28681-025-0 02 1 9905-0006 ● ●
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE 		0-28081-020-0 02 1 0007- ● ●
29 BOLT; FILTER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X30 FLANGE 		0-28681-030-0 02 1 9905- ● ●
30 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M10 FLANGE 		0-91150-210-0 02 1 9905- ● ●
31 BRACKET; OIL FILTER
TRANSMISSION OIL COOLER<C2C> (B) 		1-33119-222-0 01 1 9905- ● ●
31 BRACKET; OIL FILTER
TRANSMISSION OIL COOLER<C2C> (A) 		1-47478-329-0 01 1 9905- ● ●
46 BRACKET; OIL PIPE
CXZ(CXZ***) TRANSMISSION OIL COOLER<C2C> (A) L=50 		1-47475-299-2 04 1 0003- ●
46 BRACKET; OIL PIPE
TRANSMISSION OIL COOLER<C2C> (A) L=50 		1-47475-299-2 04 1 0003- ●
46 BRACKET; OIL PIPE
CXZ(CXZ***) TRANSMISSION OIL COOLER<C2C> (B) 		1-47475-519-0 01 1 9905- ●
46 BRACKET; OIL PIPE
TRANSMISSION OIL COOLER<C2C> (B) 		1-47475-519-0 01 1 9905- ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M8 FLANGE 		0-91150-108-0 02 1 9902-0002 ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M8 FLANGE 		0-91150-108-0 02 1 0003- ● ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (B) M8 FLANGE 		0-91150-108-0 01 1 9905-0002 ● ●
48 NUT; BRKT
CXZ(CXZ***) TRANSMISSION OIL COOLER<C2C> (B) M8 FLANGE 		0-91150-108-0 04 1 0003- ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (B) M8 FLANGE 		0-91150-108-0 04 1 0003- ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> M8X45 FLANGE 		0-28080-845-0 01 1 9908-9908 ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> M8X45 FLANGE 		0-28080-845-0 01 1 9909- ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> FIRE TRUCK<RA9> M8X45 FLANGE 		0-28080-845-0 01 1 9909- ●
50 BOLT; CLIP
CXZ(CXZ***) TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 01 1 9905- ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 01 1 9905- ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 02 1 9905-0002 ● ●
50 BOLT; CLIP
CXZ(CXZ***) TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 04 1 0003- ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 04 1 0003- ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 01 1 9905- ●
63 COOLER; OIL
TRANSMISSION OIL COOLER<C2C> 		1-21700-290-0 01 1 9905- ● ●
73 HOSE; FLEX,TRANS
TRANSMISSION OIL COOLER<C2C> L=450 		1-09364-625-0 01 1 9905-9908 ●
73 HOSE; FLEX,TRANS
TRANSMISSION OIL COOLER<C2C> L=450 		1-09364-625-0 01 1 9909- ● ●
75 GASKET; FLEX HOSE,TRANS
TRANSMISSION OIL COOLER<C2C> ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9905-9908 ●
75 GASKET; FLEX HOSE,TRANS
TRANSMISSION OIL COOLER<C2C> ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9909- ● ●
76 NUT; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M16 		9-99111-416-0 01 1 9905-9908 ●
76 NUT; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M16 		9-99111-416-0 01 1 9909- ● ●
77 WASHER; LK
TRANSMISSION OIL COOLER<C2C> ID=16.2 		9-09150-516-0 01 1 9905-9908 ●
77 WASHER; LK
TRANSMISSION OIL COOLER<C2C> ID=16.2 		9-09150-516-0 01 1 9909- ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION OIL COOLER<C2C> L=901 SERVICED BY L=900 		1-47428-873-0 01 1 9905-9907 ●
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> L=901 SERVICED BY L=900 		1-47428-873-0 01 1 9908-9908 ●
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> L=901 SERVICED BY L=900 		1-47428-873-0 01 1 9909- ●
91 PIPE; OIL,FLEX HOSE TO UNION
SHORT CHASSIS(CX***C) TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> 		1-49164-822-0 01 1 9908-9908 ●
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> 		1-49164-822-0 01 1 9909- ●
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION OIL COOLER<C2C> FIRE TRUCK<RA9> 		1-49164-822-0 01 1 9909- ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9905-9908 ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9909- ● ●
95 BRACKET; CLIP
SHORT CHASSIS(CX***C) TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> (A) 		1-47475-427-1 01 1 9908-9908 ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> (A) 		1-47475-427-1 01 1 9909- ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> FIRE TRUCK<RA9> (A) 		1-47475-427-1 01 1 9909- ●
95 BRACKET; CLIP
CXZ(CXZ***) TRANSMISSION OIL COOLER<C2C> (B) 		1-47475-881-0 01 1 9905-9908 ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> (B) 		1-47475-881-0 01 1 9905-9908 ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> (B) 		1-47475-881-0 01 1 9909- ● ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (B) UNION-COOLER L=677 		1-49163-119-0 01 1 9905-9908 ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (B) UNION-COOLER L=677 		1-49163-119-0 01 1 9909- ● ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (A) COOLER-UNION 		1-49164-314-0 01 1 9905-9908 ●
106 PIPE ASM; OIL,COOLER TO UNION
CXZ(CXZ***) TRANSMISSION OIL COOLER<C2C> (A) COOLER-UNION 		1-49164-314-0 01 1 9909- ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (A) COOLER-UNION 		1-49164-314-0 01 1 9909- ●
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=739 SERVICED BY L=800 		1-47428-872-0 01 1 9905-9907 ●
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> L=739 SERVICED BY L=800 		1-47428-872-0 01 1 9908-9908 ●
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> L=739 SERVICED BY L=800 		1-47428-872-0 01 1 9909- ●
114 PIPE; OIL,UNION TO FLEX HOSE
SHORT CHASSIS(CX***C) TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> L=855 		1-49164-823-0 01 1 9908-9908 ●
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> L=855 		1-49164-823-0 01 1 9909- ●
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION OIL COOLER<C2C> FIRE TRUCK<RA9> L=855 		1-49164-823-0 01 1 9909- ●
116 NUT; BRKT,FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M16 		9-99111-416-0 01 1 9905-9908 ●
116 NUT; BRKT,FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M16 		9-99111-416-0 01 1 9909- ● ●
117 WASHER; LK,FLEX HOSE
TRANSMISSION OIL COOLER<C2C> ID=16.2 		9-09150-516-0 01 1 9905-9908 ●
117 WASHER; LK,FLEX HOSE
TRANSMISSION OIL COOLER<C2C> ID=16.2 		9-09150-516-0 01 1 9909- ● ●
119 NUT; FILTER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10 FLANGE 		0-91150-210-0 02 1 9905- ● ●
125 CONNECTOR; OIL FILTER
TRANSMISSION OIL COOLER<C2C> M16 & PT1/4 ELBOW 		1-09650-434-0 02 1 9905- ● ●
136 CLIP; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=250 		1-09707-126-0 01 1 9905- ● ●
147 PIPE; OIL,UNION TO FILTER
TRANSMISSION OIL COOLER<C2C> 		1-49164-313-0 01 1 9905-9908 ●
147 PIPE; OIL,UNION TO FILTER
CXZ(CXZ***) TRANSMISSION OIL COOLER<C2C> 		1-49164-313-0 01 1 9909- ●
147 PIPE; OIL,UNION TO FILTER
TRANSMISSION OIL COOLER<C2C> 		1-49164-313-0 01 1 9909- ●
178 BOLT; BRKT,CLIP
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28680-825-0 01 1 9905- ● ●
179 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 02 1 9905- ● ●
183 CARTRIDGE; OIL FILTER
TRANSMISSION OIL COOLER<C2C> 		8-94459-700-1 01 1 9905- ● ●
210 BAND; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=175 		1-09707-178-0 01 1 9905- ● ●
