6-60 — ROOF PANEL (#53569) — 22 parça

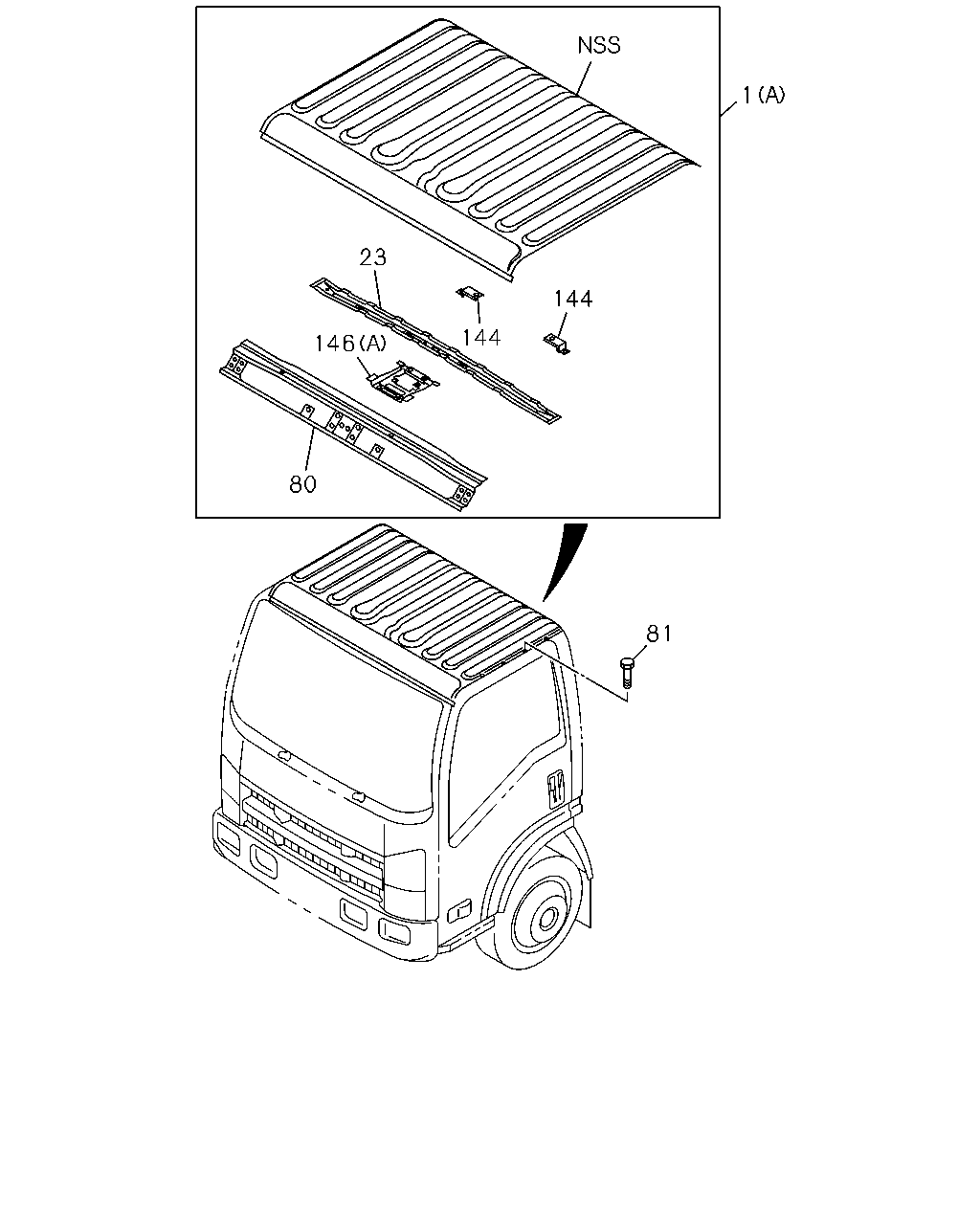

çizim 154250
1 23 144 144 146 80 81
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.585 PANEL; ROOF
(A) 		8-97584-162-6 01 1 0712- ● ●
1 16.585 PANEL; ROOF
(B) 		8-97587-638-6 01 1 0712- ●
23 16.570 REINFORCEMENT; ROOF PANEL,FRT 8-97584-197-0 01 1 0712- ● ●
23 16.570 REINFORCEMENT; ROOF PANEL,FRT 8-98009-723-1 01 1 0712- ●
80 16.585 PANEL; HEADER,ROOF 8-97584-189-4 01 1 0712- ● ● ●
81 16.585 BOLT; ROOF
16.450 M8X15.5 HEX SOCKET 		8-98028-744-0 08 1 0712-0910 ● ● ●
81 16.585 BOLT; ROOF
M8X15.5 HEX SOCKET 		8-98141-874-0 08 1 0911- ● ● ●
144 16.585 BRACKET; ROOF 8-98013-931-1 02 1 0712- ● ●
146 16.570 REINFORCEMENT; ROOM LAMP
(A) 		8-98009-289-4 01 1 0712- ● ● ●
146 16.570 REINFORCEMENT; ROOM LAMP
(B) 		8-98075-827-0 01 1 0712- ●

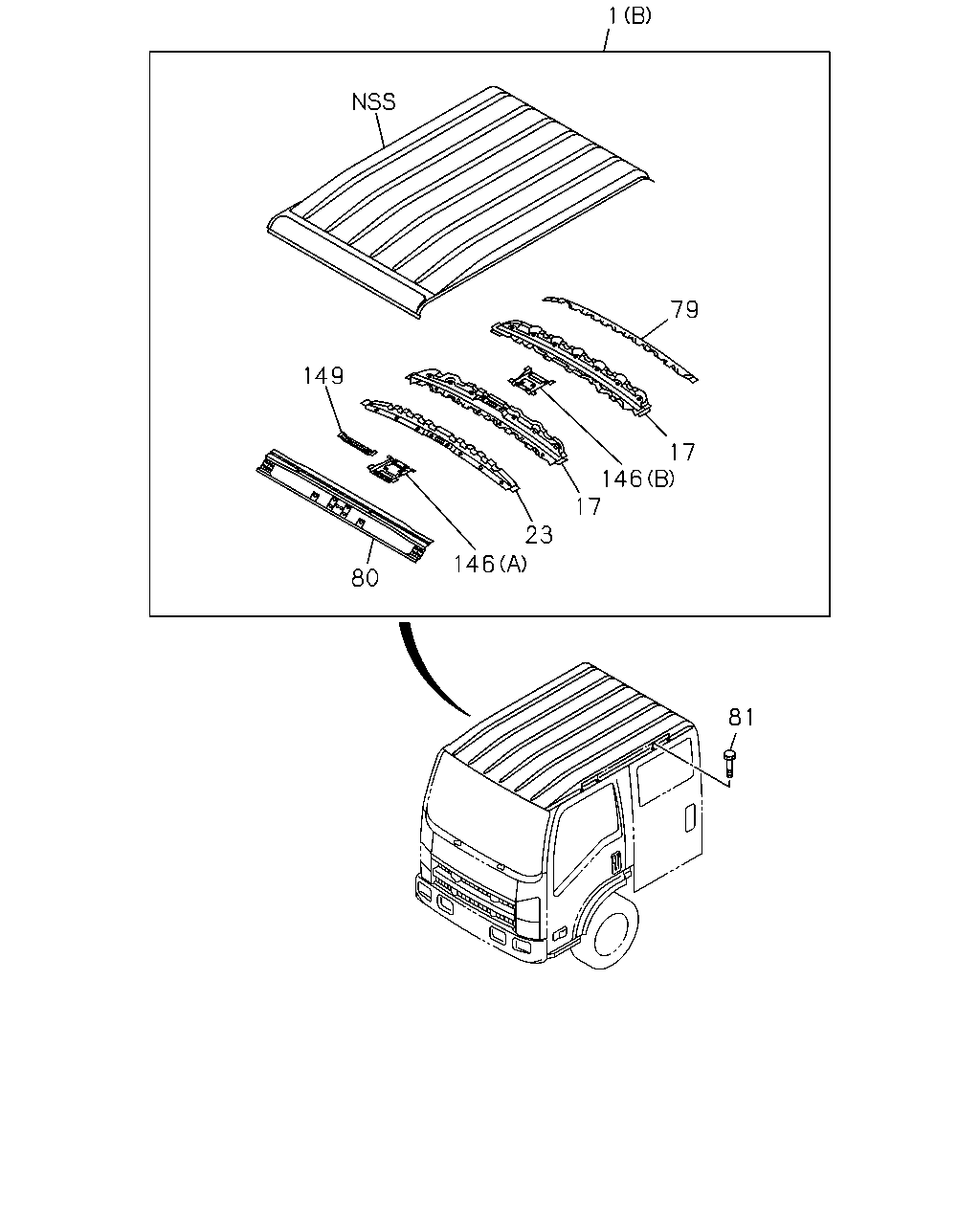

çizim 154485
1 79 149 17 146 17 23 146 80 81
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.585 PANEL; ROOF
(A) 		8-97584-162-6 01 1 0712- ● ●
1 16.585 PANEL; ROOF
(B) 		8-97587-638-6 01 1 0712- ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER 8-97587-639-2 02 1 0712- ●
23 16.570 REINFORCEMENT; ROOF PANEL,FRT 8-97584-197-0 01 1 0712- ● ●
23 16.570 REINFORCEMENT; ROOF PANEL,FRT 8-98009-723-1 01 1 0712- ●
79 16.570 REINFORCEMENT; ROOF PANEL,RR 8-98054-646-1 01 1 0712- ●
80 16.585 PANEL; HEADER,ROOF 8-97584-189-4 01 1 0712- ● ● ●
81 16.585 BOLT; ROOF
16.450 M8X15.5 HEX SOCKET 		8-98028-744-0 08 1 0712-0910 ● ● ●
81 16.585 BOLT; ROOF
M8X15.5 HEX SOCKET 		8-98141-874-0 08 1 0911- ● ● ●
146 16.570 REINFORCEMENT; ROOM LAMP
(A) 		8-98009-289-4 01 1 0712- ● ● ●
146 16.570 REINFORCEMENT; ROOM LAMP
(B) 		8-98075-827-0 01 1 0712- ●
149 16.585 SUPPORT; REINFORCEMENT 8-98009-110-0 01 1 0712- ●
