◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39A - POWER ASSISTOR ▶
2-39A — POWER ASSISTOR (#5355) — 292 parça

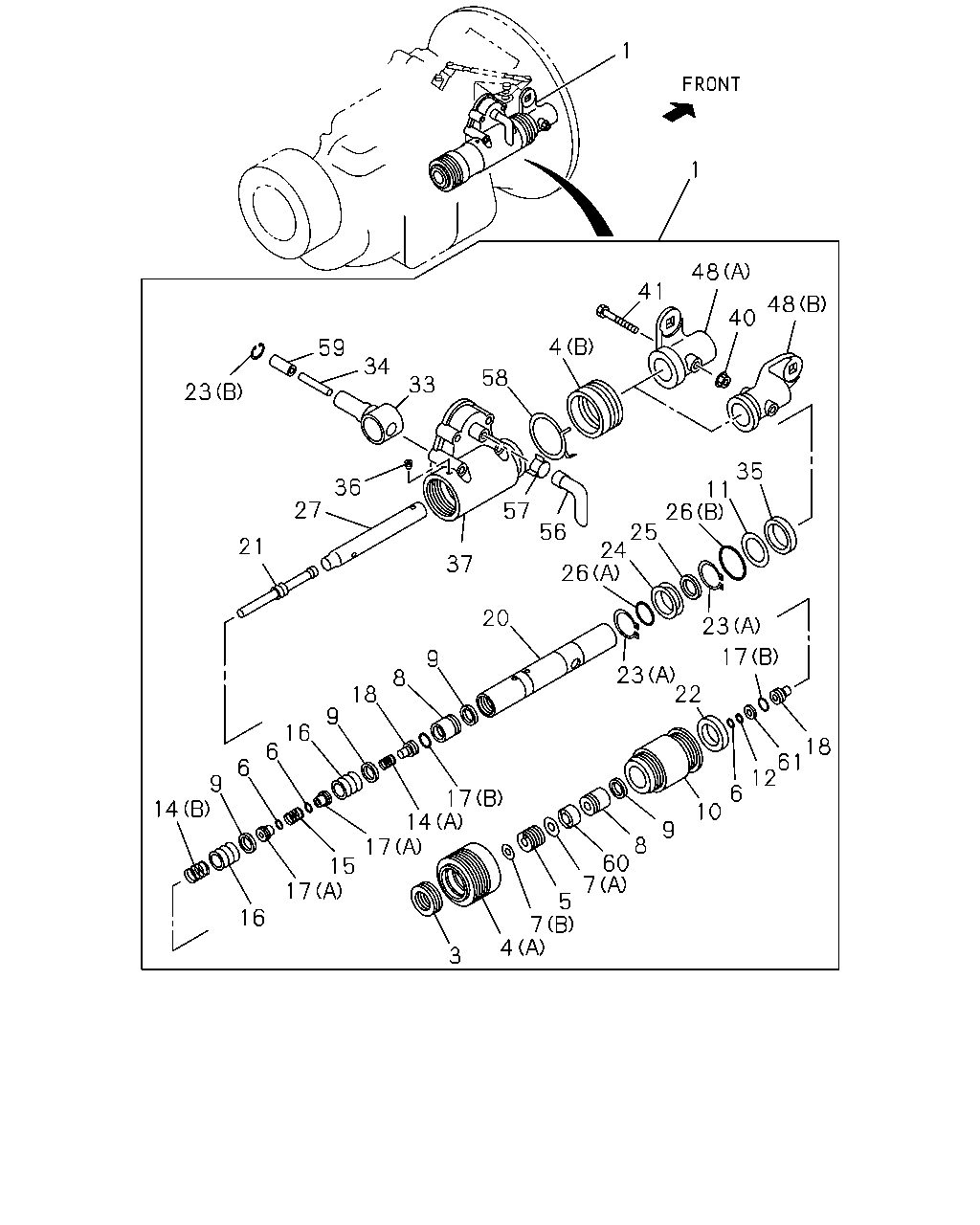

çizim 6090
1 1 48 41 48 40 4 59 34 58 33 23 35 11 26 25 24 26 36 27 57 56 21 37 20 23 17 9 23 22 8 18 9 16 6 18 61 12 6 9 14 6 10 17 14 17 9 8 60 7 15 17 5 7 4 16 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 ASSISTOR ASM; POWER,SHIFT
6WA1 TC-S(56L) 		1-33730-103-1 01 1 9603-9805 ●
1 ASSISTOR ASM; POWER,SHIFT
6WA1 TC-S(56L) 		1-33730-209-1 01 1 9806-9807 ●
1 ASSISTOR ASM; POWER,SHIFT
6WA1 TC-S(56L) 		1-33730-225-0 01 1 9808-9901 ●
1 ASSISTOR ASM; POWER,SHIFT
CXZ(CXZ***) 		1-33730-225-0 01 1 9902-9908 ●
1 ASSISTOR ASM; POWER,SHIFT 1-33730-225-0 01 1 9909-0003 ● ●
1 ASSISTOR ASM; POWER,SHIFT
CXZ(CXZ***) 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) 		1-33730-260-0 01 1 0004-0004 ●
1 ASSISTOR ASM; POWER,SHIFT
6WG1 TC-R(75L) 		1-33730-260-0 01 1 0004-0004 ●
1 ASSISTOR ASM; POWER,SHIFT
CXZ(CXZ***) 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) 		1-33730-269-0 01 1 0005- ●
1 ASSISTOR ASM; POWER,SHIFT
6WG1 TC-R(75L) 		1-33730-269-0 01 1 0005- ●
1 ASSISTOR ASM; POWER,SHIFT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) 		1-33730-223-0 01 1 9905-0004 ●
1 ASSISTOR ASM; POWER,SHIFT
8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) 		1-33730-223-0 01 1 9905-0004 ● ● ● ●
1 ASSISTOR ASM; POWER,SHIFT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) 		1-33730-275-1 01 1 0005- ●
1 ASSISTOR ASM; POWER,SHIFT
8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) 		1-33730-275-1 01 1 0005- ● ● ● ●
1 ASSISTOR ASM; POWER,SHIFT
8PE1S(59L),10PE1S(60L) 		1-33730-104-0 01 1 9603-9805 ● ● ● ● ●
1 ASSISTOR ASM; POWER,SHIFT
8PE1S(59L),10PE1S(60L) 		1-33730-210-1 01 1 9806-9807 ● ● ● ● ●
1 ASSISTOR ASM; POWER,SHIFT
8PE1S(59L),10PE1S(60L) 		1-33730-223-0 01 1 9808-9901 ● ● ● ● ●
1 ASSISTOR ASM; POWER,SHIFT 1-33730-226-0 01 1 9905-0003 ●
1 ASSISTOR ASM; POWER,SHIFT 1-33730-261-0 01 1 0004-0004 ●
1 ASSISTOR ASM; POWER,SHIFT 1-33730-270-1 01 1 0005- ●
3 NUT; LK,ROD 1-33739-025-0 01 1 9603-9901 ● ● ● ● ●
3 NUT; LK,ROD
CXZ(CXZ***) 		1-33739-025-0 01 1 9902-9904 ●
3 NUT; LK,ROD 1-33739-025-0 01 1 9905-9908 ● ● ● ● ● ●
3 NUT; LK,ROD 1-33739-025-0 01 1 9909- ● ● ● ● ● ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 9603-9901 ● ● ● ● ●
4 BOOT; POWER SHIFTER
CXZ(CXZ***) (A) 		1-33739-038-0 01 1 9902-9904 ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 9905-9908 ● ● ● ● ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 9909- ● ● ● ● ● ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 9603-9901 ● ● ● ● ●
4 BOOT; POWER SHIFTER
CXZ(CXZ***) (B) 		1-33739-571-0 01 1 9902-9904 ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 9905-9908 ● ● ● ● ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 9909- ● ● ● ● ● ● ●
5 CONNECTOR; CYL 1-33739-596-0 01 1 9603-9901 ● ● ● ● ●
5 CONNECTOR; CYL
CXZ(CXZ***) 		1-33739-596-0 01 1 9902-9904 ●
5 CONNECTOR; CYL 1-33739-596-0 01 1 9905-9908 ● ● ● ● ● ●
5 CONNECTOR; CYL 1-33739-596-0 01 1 9909- ● ● ● ● ● ● ●
6 GASKET 1-33739-013-0 03 1 9603-9901 ● ● ● ● ●
6 GASKET
CXZ(CXZ***) 		1-33739-013-0 03 1 9902-9904 ●
6 GASKET 1-33739-013-0 03 1 9905-9908 ● ● ● ● ● ●
6 GASKET 1-33739-013-0 03 1 9909- ● ● ● ● ● ● ●
7 FILTER; AIR
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) 		1-33739-036-0 01 1 0005- ●
7 FILTER; AIR
8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) 		1-33739-036-0 01 1 0005- ● ● ● ●
7 FILTER; AIR
(A) 		1-33739-033-0 01 1 9603-9901 ● ● ● ● ●
7 FILTER; AIR
CXZ(CXZ***) (A) 		1-33739-033-0 01 1 9902-9904 ●
7 FILTER; AIR
(A) 		1-33739-033-0 01 1 9905-9908 ● ● ● ● ● ●
7 FILTER; AIR
(A) 		1-33739-033-0 01 1 9909- ● ● ● ● ● ● ●
7 FILTER; AIR
6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) (B) 		1-33738-036-0 01 1 0004- ● ● ●
8 TUBE 1-33739-560-0 02 1 9603-9901 ● ● ● ● ●
8 TUBE
CXZ(CXZ***) 		1-33739-560-0 02 1 9902-9904 ●
8 TUBE 1-33739-560-0 02 1 9905-9908 ● ● ● ● ● ●
8 TUBE 1-33739-560-0 02 1 9909- ● ● ● ● ● ● ●
9 RING; SQUARE 1-33739-086-0 04 1 9603-9901 ● ● ● ● ●
9 RING; SQUARE
CXZ(CXZ***) 		1-33739-086-0 04 1 9902-9904 ●
9 RING; SQUARE 1-33739-086-0 04 1 9905-9908 ● ● ● ● ● ●
9 RING; SQUARE 1-33739-086-0 04 1 9909- ● ● ● ● ● ● ●
10 CYLINDER; POWER SHIFTER 1-33739-352-0 01 1 9603-9901 ● ● ● ● ●
10 CYLINDER; POWER SHIFTER
CXZ(CXZ***) 		1-33739-352-0 01 1 9902-9904 ●
10 CYLINDER; POWER SHIFTER
CXZ(CXZ***) 		1-33739-352-0 01 1 9905-9908 ●
10 CYLINDER; POWER SHIFTER 1-33739-352-0 01 1 9905-9908 ● ● ● ●
10 CYLINDER; POWER SHIFTER 1-33739-352-0 01 1 9909- ● ● ● ● ● ●
10 CYLINDER; POWER SHIFTER 1-33739-605-0 01 1 9905- ●
11 PLATE; CYL 1-33739-108-0 01 1 9603-9901 ● ● ● ● ●
11 PLATE; CYL
CXZ(CXZ***) 		1-33739-108-0 01 1 9902-9904 ●
11 PLATE; CYL
CXZ(CXZ***) 		1-33739-108-0 01 1 9905-9908 ●
11 PLATE; CYL 1-33739-108-0 01 1 9905-9908 ● ● ● ●
11 PLATE; CYL 1-33739-108-0 01 1 9909- ● ● ● ● ● ●
11 PLATE; CYL 1-33739-600-0 01 1 9905- ●
12 RING; RET 1-33739-016-0 01 1 9603-9901 ● ● ● ● ●
12 RING; RET
CXZ(CXZ***) 		1-33739-016-0 01 1 9902-9904 ●
12 RING; RET 1-33739-016-0 01 1 9905-9908 ● ● ● ● ● ●
12 RING; RET 1-33739-016-0 01 1 9909- ● ● ● ● ● ● ●
14 SPRING; VALVE LIFTER
(A) 		1-33739-347-0 01 1 9603-9901 ● ● ● ● ●
14 SPRING; VALVE LIFTER
CXZ(CXZ***) (A) 		1-33739-347-0 01 1 9902-9904 ●
14 SPRING; VALVE LIFTER
(A) 		1-33739-347-0 01 1 9905-9908 ● ● ● ● ● ●
14 SPRING; VALVE LIFTER
(A) 		1-33739-347-0 01 1 9909- ● ● ● ● ● ● ●
14 SPRING; VALVE LIFTER
(B) 		1-33739-354-0 01 1 9603-9901 ● ● ● ● ●
14 SPRING; VALVE LIFTER
CXZ(CXZ***) (B) 		1-33739-354-0 01 1 9902-9904 ●
14 SPRING; VALVE LIFTER
(B) 		1-33739-354-0 01 1 9905-9908 ● ● ● ● ● ●
14 SPRING; VALVE LIFTER
(B) 		1-33739-354-0 01 1 9909- ● ● ● ● ● ● ●
15 SPRING; VALVE SEAL 1-33739-014-0 01 1 9603-9901 ● ● ● ● ●
15 SPRING; VALVE SEAL
CXZ(CXZ***) 		1-33739-014-0 01 1 9902-9904 ●
15 SPRING; VALVE SEAL 1-33739-014-0 01 1 9905-9908 ● ● ● ● ● ●
15 SPRING; VALVE SEAL 1-33739-014-0 01 1 9909- ● ● ● ● ● ● ●
16 SEAT; VALVE 1-33739-067-0 02 1 9603-9901 ● ● ● ● ●
16 SEAT; VALVE
CXZ(CXZ***) 		1-33739-067-0 02 1 9902-9904 ●
16 SEAT; VALVE 1-33739-067-0 02 1 9905-9908 ● ● ● ● ● ●
16 SEAT; VALVE 1-33739-067-0 02 1 9909- ● ● ● ● ● ● ●
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 9603-9901 ● ● ● ● ●
17 SEAL ASM; VALVE
CXZ(CXZ***) (A) 		1-33739-012-0 02 1 9902-9904 ●
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 9905-9908 ● ● ● ● ● ●
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 9909- ● ● ● ● ● ● ●
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 9603-9901 ● ● ● ● ●
17 SEAL ASM; VALVE
CXZ(CXZ***) (B) 		9-83335-055-0 02 1 9902-9904 ●
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 9905-9908 ● ● ● ● ● ●
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 9909- ● ● ● ● ● ● ●
18 LIFTER; VALVE 1-33739-586-0 02 1 9603-9901 ● ● ● ● ●
18 LIFTER; VALVE
CXZ(CXZ***) 		1-33739-586-0 02 1 9902-9904 ●
18 LIFTER; VALVE 1-33739-586-0 02 1 9905-9908 ● ● ● ● ● ●
18 LIFTER; VALVE 1-33739-586-0 02 1 9909- ● ● ● ● ● ● ●
20 ROD ASM; W/CAP 1-33739-599-0 01 1 9603-9901 ● ● ● ● ●
20 ROD ASM; W/CAP
CXZ(CXZ***) 		1-33739-599-0 01 1 9902-9904 ●
20 ROD ASM; W/CAP 1-33739-599-0 01 1 9905-9908 ● ● ● ● ● ●
20 ROD ASM; W/CAP 1-33739-599-0 01 1 9909- ● ● ● ● ● ● ●
21 PIPE; AIR,POWER SHIFTER 1-33739-598-0 01 1 9603-9901 ● ● ● ● ●
21 PIPE; AIR,POWER SHIFTER
CXZ(CXZ***) 		1-33739-598-0 01 1 9902-9904 ●
21 PIPE; AIR,POWER SHIFTER 1-33739-598-0 01 1 9905-9908 ● ● ● ● ● ●
21 PIPE; AIR,POWER SHIFTER 1-33739-598-0 01 1 9909- ● ● ● ● ● ● ●
22 SEAL; OIL 1-33739-353-0 01 1 9603-9901 ● ● ● ● ●
22 SEAL; OIL
CXZ(CXZ***) 		1-33739-353-0 01 1 9902-9904 ●
22 SEAL; OIL 1-33739-353-0 01 1 9905-9908 ● ● ● ● ● ●
22 SEAL; OIL 1-33739-353-0 01 1 9909- ● ● ● ● ● ● ●
23 RING; RET
(A) 		1-33739-022-0 02 1 9603-9901 ● ● ● ● ●
23 RING; RET
CXZ(CXZ***) (A) 		1-33739-022-0 02 1 9902-9904 ●
23 RING; RET
(A) 		1-33739-022-0 02 1 9905-9908 ● ● ● ● ● ●
23 RING; RET
(A) 		1-33739-022-0 02 1 9909- ● ● ● ● ● ● ●
23 RING; RET
(B) 		1-33739-564-0 01 1 9603-9807 ● ● ● ● ●
23 RING; RET
(B) 		1-33739-944-0 01 1 9808-9901 ● ● ● ● ●
23 RING; RET
CXZ(CXZ***) (B) 		1-33739-944-0 01 1 9902-9904 ●
23 RING; RET
(B) 		1-33739-944-0 01 1 9905-9908 ● ● ● ● ● ●
23 RING; RET
(B) 		1-33739-944-0 01 1 9909-0004 ● ● ● ● ● ● ●
23 RING; RET
(B) 		1-33739-564-0 01 1 0005- ● ● ● ● ● ● ●
24 PISTON 1-33739-499-0 01 1 9603-9901 ● ● ● ● ●
24 PISTON
CXZ(CXZ***) 		1-33739-499-0 01 1 9902-9904 ●
24 PISTON
CXZ(CXZ***) 		1-33739-499-0 01 1 9905-9908 ●
24 PISTON 1-33739-499-0 01 1 9905-9908 ● ● ● ●
24 PISTON 1-33739-499-0 01 1 9909- ● ● ● ● ● ●
24 PISTON 1-33739-601-0 01 1 9905- ●
25 RING; "X",PISTON 1-33739-350-0 01 1 9603-9901 ● ● ● ● ●
25 RING; "X",PISTON
CXZ(CXZ***) 		1-33739-350-0 01 1 9902-9904 ●
25 RING; "X",PISTON
CXZ(CXZ***) 		1-33739-350-0 01 1 9905-9908 ●
25 RING; "X",PISTON 1-33739-350-0 01 1 9905-9908 ● ● ● ●
25 RING; "X",PISTON 1-33739-350-0 01 1 9909- ● ● ● ● ● ●
25 RING; "X",PISTON 1-33739-613-0 01 1 9905- ●
26 GASKET
(B) 		1-33739-122-0 01 1 9603-9901 ● ● ● ● ●
26 GASKET
CXZ(CXZ***) (B) 		1-33739-122-0 01 1 9902-9904 ●
26 GASKET
CXZ(CXZ***) (B) 		1-33739-122-0 01 1 9905-9908 ●
26 GASKET
(B) 		1-33739-122-0 01 1 9905-9908 ● ● ● ●
26 GASKET
(B) 		1-33739-122-0 01 1 9909- ● ● ● ● ● ●
26 GASKET
(A) 		1-33739-124-0 01 1 9603-9901 ● ● ● ● ●
26 GASKET
CXZ(CXZ***) (A) 		1-33739-124-0 01 1 9902-9904 ●
26 GASKET
(A) 		1-33739-124-0 01 1 9905-9908 ● ● ● ● ● ●
26 GASKET
(A) 		1-33739-124-0 01 1 9909- ● ● ● ● ● ● ●
26 GASKET
(B) 		1-33739-604-0 01 1 9905- ●
27 ROD; POWER SHIFTER 1-33739-597-0 01 1 9603-9901 ● ● ● ● ●
27 ROD; POWER SHIFTER
CXZ(CXZ***) 		1-33739-597-0 01 1 9902-9904 ●
27 ROD; POWER SHIFTER 1-33739-597-0 01 1 9905-9908 ● ● ● ● ● ●
27 ROD; POWER SHIFTER 1-33739-597-0 01 1 9909- ● ● ● ● ● ● ●
33 STRIKER; POWER SHIFTER 1-33739-609-0 01 1 9603-9807 ● ● ● ● ●
33 STRIKER; POWER SHIFTER 1-33739-943-0 01 1 9808-9901 ● ● ● ● ●
33 STRIKER; POWER SHIFTER
CXZ(CXZ***) 		1-33739-943-0 01 1 9902-9904 ●
33 STRIKER; POWER SHIFTER 1-33739-943-0 01 1 9905-9908 ● ● ● ● ● ●
33 STRIKER; POWER SHIFTER 1-33739-943-0 01 1 9909-0004 ● ● ● ● ● ● ●
33 STRIKER; POWER SHIFTER 1-33739-609-0 01 1 0005- ● ● ● ● ● ● ●
34 PIN; STRAIGHT,POWER SHIFTER 1-33739-575-0 01 1 9603-9901 ● ● ● ● ●
34 PIN; STRAIGHT,POWER SHIFTER
CXZ(CXZ***) 		1-33739-575-0 01 1 9902-9904 ●
34 PIN; STRAIGHT,POWER SHIFTER 1-33739-575-0 01 1 9905-9908 ● ● ● ● ● ●
34 PIN; STRAIGHT,POWER SHIFTER 1-33739-575-0 01 1 9909- ● ● ● ● ● ● ●
35 GASKET; CUP 1-33739-073-0 01 1 9603-9901 ● ● ● ● ●
35 GASKET; CUP
CXZ(CXZ***) 		1-33739-073-0 01 1 9902-9904 ●
35 GASKET; CUP 1-33739-073-0 01 1 9905-9908 ● ● ● ● ● ●
35 GASKET; CUP 1-33739-073-0 01 1 9909- ● ● ● ● ● ● ●
36 SCREW; SET 1-33739-040-0 01 1 9603-9901 ● ● ● ● ●
36 SCREW; SET
CXZ(CXZ***) 		1-33739-040-0 01 1 9902-9904 ●
36 SCREW; SET 1-33739-040-0 01 1 9905-9908 ● ● ● ● ● ●
36 SCREW; SET 1-33739-040-0 01 1 9909- ● ● ● ● ● ● ●
37 HOUSING; POWER SHIFTER 1-33739-606-0 01 1 9603-9901 ● ● ● ● ●
37 HOUSING; POWER SHIFTER
CXZ(CXZ***) 		1-33739-606-0 01 1 9902-9904 ●
37 HOUSING; POWER SHIFTER
CXZ(CXZ***) 		1-33739-606-0 01 1 9905-9908 ●
37 HOUSING; POWER SHIFTER 1-33739-606-0 01 1 9905-9908 ● ● ● ●
37 HOUSING; POWER SHIFTER 1-33739-606-0 01 1 9909- ● ● ● ● ● ●
37 HOUSING; POWER SHIFTER 1-33739-603-0 01 1 9905- ●
40 NUT; LEVER 1-33739-363-0 01 1 9603-9805 ● ● ● ● ●
40 NUT; LEVER 1-33739-940-0 01 1 9806-9901 ● ● ● ● ●
40 NUT; LEVER
CXZ(CXZ***) 		1-33739-940-0 01 1 9902-9904 ●
40 NUT; LEVER 1-33739-940-0 01 1 9905-9908 ● ● ● ● ● ●
40 NUT; LEVER 1-33739-940-0 01 1 9909- ● ● ● ● ● ● ●
41 BOLT; SET,LEVER
6WA1 TC-S(56L) 		1-33739-339-0 01 1 9603-9805 ●
41 BOLT; SET,LEVER 1-33739-939-0 01 1 9806-9901 ● ● ● ● ●
41 BOLT; SET,LEVER
CXZ(CXZ***) 		1-33739-939-0 01 1 9902-9904 ●
41 BOLT; SET,LEVER 1-33739-939-0 01 1 9905-9908 ● ● ● ● ● ●
41 BOLT; SET,LEVER 1-33739-939-0 01 1 9909- ● ● ● ● ● ● ●
41 BOLT; SET,LEVER
8PE1S(59L),10PE1S(60L) 		1-33739-043-0 01 1 9603-9805 ● ● ● ● ●
48 LEVER; CONT,CABLE
6WA1 TC-S(56L) (A) 		1-33739-591-1 01 1 9603-9901 ●
48 LEVER; CONT,CABLE
CXZ(CXZ***) (A) 		1-33739-591-1 01 1 9902-9904 ●
48 LEVER; CONT,CABLE
6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) (A) 		1-33739-591-1 01 1 9905-9908 ● ●
48 LEVER; CONT,CABLE
6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) (A) 		1-33739-591-1 01 1 9909- ● ● ●
48 LEVER; CONT,CABLE
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) 		1-33739-592-0 01 1 9905- ●
48 LEVER; CONT,CABLE
8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) 		1-33739-592-0 01 1 9905- ● ● ● ●
48 LEVER; CONT,CABLE
8PE1S(59L),10PE1S(60L) (B) 		1-33739-592-0 01 1 9603-9901 ● ● ● ● ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 9603-9901 ● ● ● ● ●
56 HOSE; POWER SHIFTER
CXZ(CXZ***) 		1-33739-570-0 01 1 9902-9904 ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 9905-9908 ● ● ● ● ● ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 9909- ● ● ● ● ● ● ●
57 CLAMP; HOSE 1-33739-569-0 01 1 9603-9901 ● ● ● ● ●
57 CLAMP; HOSE
CXZ(CXZ***) 		1-33739-569-0 01 1 9902-9904 ●
57 CLAMP; HOSE 1-33739-569-0 01 1 9905-9908 ● ● ● ● ● ●
57 CLAMP; HOSE 1-33739-569-0 01 1 9909- ● ● ● ● ● ● ●
58 CLAMP; BOOT 1-33739-562-0 01 1 9603-9901 ● ● ● ● ●
58 CLAMP; BOOT
CXZ(CXZ***) 		1-33739-562-0 01 1 9902-9904 ●
58 CLAMP; BOOT 1-33739-562-0 01 1 9905-9908 ● ● ● ● ● ●
58 CLAMP; BOOT 1-33739-562-0 01 1 9909- ● ● ● ● ● ● ●
59 SHIM; POWER SHIFTER 1-33739-563-0 01 1 9603-9807 ● ● ● ● ●
59 SHIM; POWER SHIFTER 1-33739-563-0 01 1 0005- ● ● ● ● ● ● ●
60 COLLAR; CYL 1-33739-595-0 01 1 9603-9901 ● ● ● ● ●
60 COLLAR; CYL
CXZ(CXZ***) 		1-33739-595-0 01 1 9902-9904 ●
60 COLLAR; CYL 1-33739-595-0 01 1 9905-9908 ● ● ● ● ● ●
60 COLLAR; CYL 1-33739-595-0 01 1 9909- ● ● ● ● ● ● ●
61 PLATE; VLV LIFTER 1-33739-581-0 01 1 9603-9901 ● ● ● ● ●
61 PLATE; VLV LIFTER
CXZ(CXZ***) 		1-33739-581-0 01 1 9902-9904 ●
61 PLATE; VLV LIFTER 1-33739-581-0 01 1 9905-9908 ● ● ● ● ● ●
61 PLATE; VLV LIFTER 1-33739-581-0 01 1 9909- ● ● ● ● ● ● ●

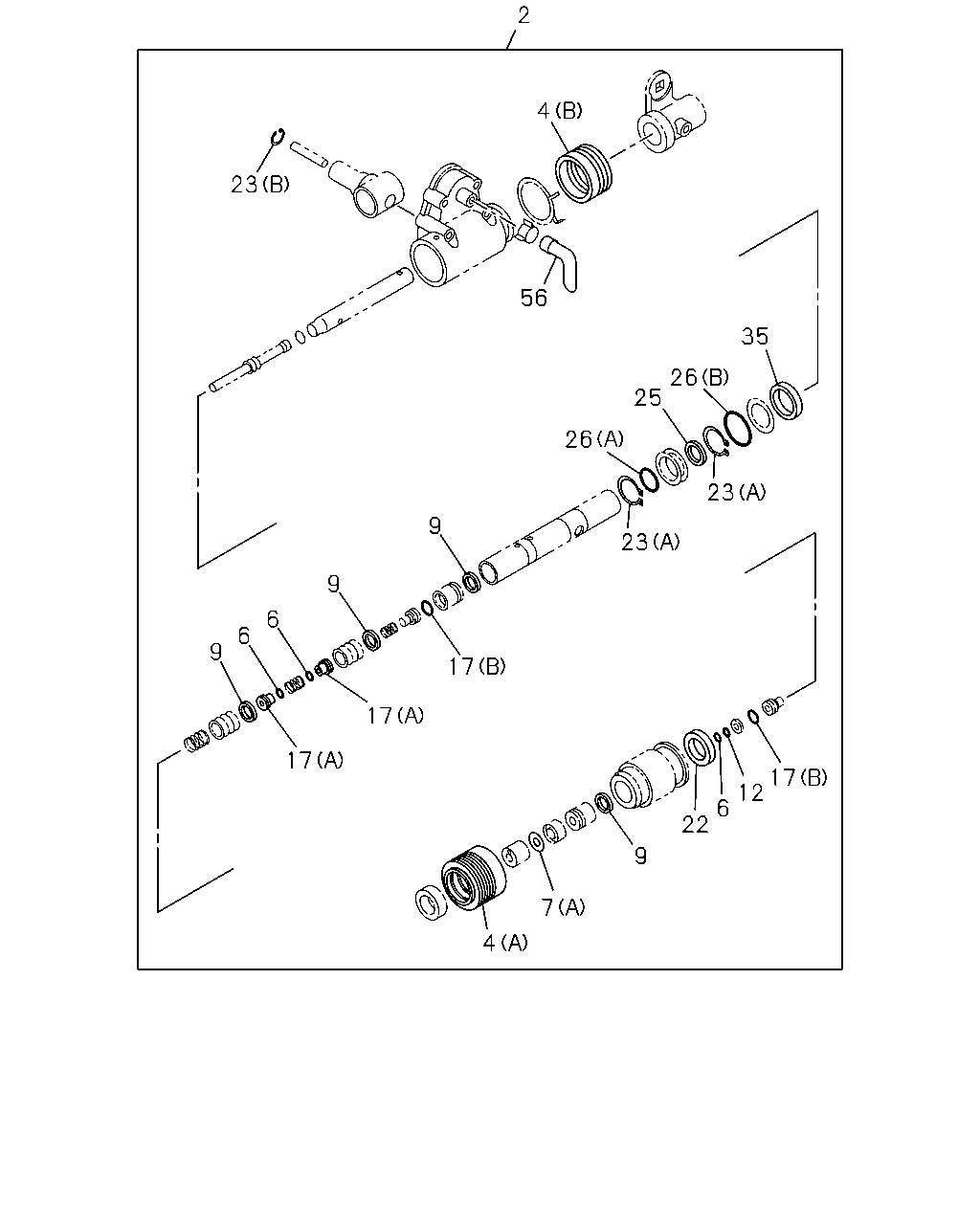

çizim 40004
2 4 23 56 35 26 25 26 23 9 23 9 6 6 9 17 17 17 17 12 6 22 9 7 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 REPAIR KIT; POWER SHIFTER 1-33739-608-0 01 1 9603-9807 ● ● ● ● ●
2 REPAIR KIT; POWER SHIFTER 1-33739-945-0 01 1 9808-9901 ● ● ● ● ●
2 REPAIR KIT; POWER SHIFTER
CXZ(CXZ***) 		1-33739-945-0 01 1 9902-9904 ●
2 REPAIR KIT; POWER SHIFTER
CXZ(CXZ***) 		1-33739-945-0 01 1 9905-9908 ●
2 REPAIR KIT; POWER SHIFTER 1-33739-945-0 01 1 9905-9908 ● ● ● ●
2 REPAIR KIT; POWER SHIFTER 1-33739-945-0 01 1 9909-0004 ● ● ● ● ● ●
2 REPAIR KIT; POWER SHIFTER 1-33739-608-0 01 1 0005- ● ● ● ● ● ●
2 REPAIR KIT; POWER SHIFTER 1-33739-946-0 01 1 9905-0004 ●
2 REPAIR KIT; POWER SHIFTER 1-33739-607-0 01 1 0005- ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 9603-9901 ● ● ● ● ●
4 BOOT; POWER SHIFTER
CXZ(CXZ***) (A) 		1-33739-038-0 01 1 9902-9904 ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 9905-9908 ● ● ● ● ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 9909- ● ● ● ● ● ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 9603-9901 ● ● ● ● ●
4 BOOT; POWER SHIFTER
CXZ(CXZ***) (B) 		1-33739-571-0 01 1 9902-9904 ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 9905-9908 ● ● ● ● ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 9909- ● ● ● ● ● ● ●
6 GASKET 1-33739-013-0 03 1 9603-9901 ● ● ● ● ●
6 GASKET
CXZ(CXZ***) 		1-33739-013-0 03 1 9902-9904 ●
6 GASKET 1-33739-013-0 03 1 9905-9908 ● ● ● ● ● ●
6 GASKET 1-33739-013-0 03 1 9909- ● ● ● ● ● ● ●
7 FILTER; AIR
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) 		1-33739-036-0 01 1 0005- ●
7 FILTER; AIR
8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) 		1-33739-036-0 01 1 0005- ● ● ● ●
7 FILTER; AIR
(A) 		1-33739-033-0 01 1 9603-9901 ● ● ● ● ●
7 FILTER; AIR
CXZ(CXZ***) (A) 		1-33739-033-0 01 1 9902-9904 ●
7 FILTER; AIR
(A) 		1-33739-033-0 01 1 9905-9908 ● ● ● ● ● ●
7 FILTER; AIR
(A) 		1-33739-033-0 01 1 9909- ● ● ● ● ● ● ●
7 FILTER; AIR
6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) (B) 		1-33738-036-0 01 1 0004- ● ● ●
9 RING; SQUARE 1-33739-086-0 04 1 9603-9901 ● ● ● ● ●
9 RING; SQUARE
CXZ(CXZ***) 		1-33739-086-0 04 1 9902-9904 ●
9 RING; SQUARE 1-33739-086-0 04 1 9905-9908 ● ● ● ● ● ●
9 RING; SQUARE 1-33739-086-0 04 1 9909- ● ● ● ● ● ● ●
12 RING; RET 1-33739-016-0 01 1 9603-9901 ● ● ● ● ●
12 RING; RET
CXZ(CXZ***) 		1-33739-016-0 01 1 9902-9904 ●
12 RING; RET 1-33739-016-0 01 1 9905-9908 ● ● ● ● ● ●
12 RING; RET 1-33739-016-0 01 1 9909- ● ● ● ● ● ● ●
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 9603-9901 ● ● ● ● ●
17 SEAL ASM; VALVE
CXZ(CXZ***) (A) 		1-33739-012-0 02 1 9902-9904 ●
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 9905-9908 ● ● ● ● ● ●
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 9909- ● ● ● ● ● ● ●
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 9603-9901 ● ● ● ● ●
17 SEAL ASM; VALVE
CXZ(CXZ***) (B) 		9-83335-055-0 02 1 9902-9904 ●
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 9905-9908 ● ● ● ● ● ●
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 9909- ● ● ● ● ● ● ●
22 SEAL; OIL 1-33739-353-0 01 1 9603-9901 ● ● ● ● ●
22 SEAL; OIL
CXZ(CXZ***) 		1-33739-353-0 01 1 9902-9904 ●
22 SEAL; OIL 1-33739-353-0 01 1 9905-9908 ● ● ● ● ● ●
22 SEAL; OIL 1-33739-353-0 01 1 9909- ● ● ● ● ● ● ●
23 RING; RET
(A) 		1-33739-022-0 02 1 9603-9901 ● ● ● ● ●
23 RING; RET
CXZ(CXZ***) (A) 		1-33739-022-0 02 1 9902-9904 ●
23 RING; RET
(A) 		1-33739-022-0 02 1 9905-9908 ● ● ● ● ● ●
23 RING; RET
(A) 		1-33739-022-0 02 1 9909- ● ● ● ● ● ● ●
23 RING; RET
(B) 		1-33739-564-0 01 1 9603-9807 ● ● ● ● ●
23 RING; RET
(B) 		1-33739-944-0 01 1 9808-9901 ● ● ● ● ●
23 RING; RET
CXZ(CXZ***) (B) 		1-33739-944-0 01 1 9902-9904 ●
23 RING; RET
(B) 		1-33739-944-0 01 1 9905-9908 ● ● ● ● ● ●
23 RING; RET
(B) 		1-33739-944-0 01 1 9909-0004 ● ● ● ● ● ● ●
23 RING; RET
(B) 		1-33739-564-0 01 1 0005- ● ● ● ● ● ● ●
25 RING; "X",PISTON 1-33739-350-0 01 1 9603-9901 ● ● ● ● ●
25 RING; "X",PISTON
CXZ(CXZ***) 		1-33739-350-0 01 1 9902-9904 ●
25 RING; "X",PISTON
CXZ(CXZ***) 		1-33739-350-0 01 1 9905-9908 ●
25 RING; "X",PISTON 1-33739-350-0 01 1 9905-9908 ● ● ● ●
25 RING; "X",PISTON 1-33739-350-0 01 1 9909- ● ● ● ● ● ●
25 RING; "X",PISTON 1-33739-613-0 01 1 9905- ●
26 GASKET
(B) 		1-33739-122-0 01 1 9603-9901 ● ● ● ● ●
26 GASKET
CXZ(CXZ***) (B) 		1-33739-122-0 01 1 9902-9904 ●
26 GASKET
CXZ(CXZ***) (B) 		1-33739-122-0 01 1 9905-9908 ●
26 GASKET
(B) 		1-33739-122-0 01 1 9905-9908 ● ● ● ●
26 GASKET
(B) 		1-33739-122-0 01 1 9909- ● ● ● ● ● ●
26 GASKET
(A) 		1-33739-124-0 01 1 9603-9901 ● ● ● ● ●
26 GASKET
CXZ(CXZ***) (A) 		1-33739-124-0 01 1 9902-9904 ●
26 GASKET
(A) 		1-33739-124-0 01 1 9905-9908 ● ● ● ● ● ●
26 GASKET
(A) 		1-33739-124-0 01 1 9909- ● ● ● ● ● ● ●
26 GASKET
(B) 		1-33739-604-0 01 1 9905- ●
35 GASKET; CUP 1-33739-073-0 01 1 9603-9901 ● ● ● ● ●
35 GASKET; CUP
CXZ(CXZ***) 		1-33739-073-0 01 1 9902-9904 ●
35 GASKET; CUP 1-33739-073-0 01 1 9905-9908 ● ● ● ● ● ●
35 GASKET; CUP 1-33739-073-0 01 1 9909- ● ● ● ● ● ● ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 9603-9901 ● ● ● ● ●
56 HOSE; POWER SHIFTER
CXZ(CXZ***) 		1-33739-570-0 01 1 9902-9904 ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 9905-9908 ● ● ● ● ● ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 9909- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
