5-01 — FRAME AND OTHER PARTS (#53548) — 152 parça
çizim 154438
376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 40 60 176 176 296 118 62 67
BalonParca AdiParca NoAdetTipApplied Date A B C
40 08.155 BOLT; BRKT TO FRAME
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 04.338 M8X20 FLANGE 		0-28050-820-0 02 1 0803- ● ● ●
60 05.601 BOLT; MBR
07.039 M10X30 		0-20851-030-0 04 1 0803- ● ● ●
62 05.601 NUT; MBR
04.085 M10 FLANGE 		0-91180-210-0 04 1 0803- ● ● ●
67 07.011 NUT; C/MBR
04.085 M10 FLANGE 		0-91180-210-0 04 1 0712-0802 ● ● ●
67 07.011 NUT; C/MBR
EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE 		0-91180-210-0 04 1 0803- ●
67 07.011 NUT; C/MBR
04.085 M10 FLANGE 		0-91180-210-0 04 1 0803- ● ●
118 07.529 NUT; STOPPER
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 LOCK NUT 		0-91370-008-0 02 1 0712- ●
176 04.085 BOLT; C/MBR,ENG MTG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M14X45 FLANGE 		0-29261-445-0 08 1 0712-0802 ●
176 04.085 BOLT; C/MBR,ENG MTG
(A) M14X45 FLANGE 		0-29261-445-0 08 1 0712-0802 ● ●
176 04.085 BOLT; C/MBR,ENG MTG
EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.890 (B) M10X30 FLANGE 		0-28051-030-0 08 1 0803- ●
176 04.085 BOLT; C/MBR,ENG MTG
03.890 (B) M10X30 FLANGE 		0-28051-030-0 08 1 0803- ● ●
296 07.039 BOLT; 3RD C/MBR
M10X30 		0-20851-030-0 04 1 0712-0802 ● ● ●
376 07.039 RIVET; FRAME
(A) D8X20 TAPER END 		9-06750-820-0 AR 1 0712- ● ● ●
376 07.039 RIVET; FRAME
07.011 (B) D8X22 TAPER END 		9-06750-822-0 AR 1 0712- ● ● ●
376 07.039 RIVET; FRAME
07.395 (C) D8X26 TAPER END 		9-06750-826-0 AR 1 0712- ● ● ●
376 07.039 RIVET; FRAME
(D) D10X22 TAPER END 		9-06751-022-0 AR 1 0712- ● ● ●
376 07.039 RIVET; FRAME
(E) D10X24 TAPER END 		9-06751-024-0 AR 1 0712- ● ● ●
376 07.039 RIVET; FRAME
(F) D10X26 TAPER END 		9-06751-026-0 AR 1 0712- ● ● ●
376 07.039 RIVET; FRAME
(G) D10X28 TAPER END 		9-06751-028-0 AR 1 0712- ● ● ●
376 07.039 RIVET; FRAME
(H) D10X30 TAPER END 		9-06751-030-0 AR 1 0712- ● ● ●
376 07.039 RIVET; FRAME
(I) D10X32 TAPER END 		9-06751-032-0 AR 1 0712- ● ● ●
376 07.039 RIVET; FRAME
(J) D10X34 TAPER END 		9-06751-034-0 AR 1 0712- ● ● ●
376 07.039 RIVET; FRAME
(K) D10X36 TAPER END 		9-06751-036-0 AR 1 0712- ● ● ●
376 07.039 RIVET; FRAME
(L) D11X26 TAPER END 		9-06751-126-0 AR 1 0712- ● ● ●
376 07.039 RIVET; FRAME
07.105 (M) D12X30 TAPER END 		9-06751-230-0 AR 1 0712- ● ● ●
376 07.039 RIVET; FRAME
07.006 (N) D12X32 TAPER END 		9-06751-232-0 AR 1 0712- ● ● ●
376 07.039 RIVET; FRAME
07.535 (O) D12X34 TAPER END 		9-06751-234-0 AR 1 0712- ● ● ●
376 07.039 RIVET; FRAME
07.428 (P) D12X36 TAPER END 		9-06751-236-0 AR 1 0712- ● ● ●
446 07.112 STIFFENER; SPRING STOPPER
WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98060-184-1 01 1 0803- ●
çizim 154440
130 24 51 165 39
BalonParca AdiParca NoAdetTipApplied Date A B C
24 07.105 BRACKET; FRT SPR,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98029-126-0 01 1 0712- ●
24 07.105 BRACKET; FRT SPR,FRT 8-98029-126-0 01 1 0712- ● ●
24 07.105 BRACKET; FRT SPR,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98029-127-0 01 1 0712- ●
24 07.105 BRACKET; FRT SPR,FRT 8-98029-127-0 01 1 0712- ● ●
39 07.112 BRACKET; FRT SPR,RR
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-94258-091-0 02 1 0712- ●
39 07.112 BRACKET; FRT SPR,RR 8-94258-091-0 02 1 0712- ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98038-962-3 02 1 0712- ●
51 07.011 BRACKET; ENG SUPPORT,OUTER 8-98038-962-3 02 1 0712- ● ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W) 		8-98041-239-0 01 1 0712- ● ● ●
165 01.270 BRACKET; RAD STAY 8-98000-886-0 01 1 0712- ● ● ●
446 07.112 STIFFENER; SPRING STOPPER
WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98060-184-1 01 1 0803- ●
çizim 154442
140 140 140 217 217 356 356 43 43
BalonParca AdiParca NoAdetTipApplied Date A B C
43 09.003 BRACKET; CAB MTG,RR
WHEEL BASE 3300MM(33W) 		8-98035-852-1 01 1 0712- ●
43 09.003 BRACKET; CAB MTG,RR
WHEEL BASE 3300MM(33W) 		8-98035-851-1 01 1 0712- ●
140 07.112 BRACKET; S/ABS,RR
SINGLE RR TIRE(6TD) (A) 		8-98006-174-0 02 1 0712- ●
140 07.112 BRACKET; S/ABS,RR
EXC. SINGLE RR TIRE(6TD) (B) 		8-98006-176-0 01 1 0712- ●
140 07.112 BRACKET; S/ABS,RR
(B) 		8-98006-176-0 01 1 0712- ● ●
140 07.112 BRACKET; S/ABS,RR
EXC. SINGLE RR TIRE(6TD) (C) 		8-98006-180-0 01 1 0712- ●
140 07.112 BRACKET; S/ABS,RR
(C) 		8-98006-180-0 01 1 0712- ● ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
SINGLE RR TIRE(6TD) (A) 		8-97163-899-1 02 1 0712- ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
EXC. SINGLE RR TIRE(6TD) (B) 		8-97202-417-0 02 1 0712- ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
(B) 		8-97202-417-0 02 1 0712- ● ●
356 07.011 BRACKET; ENG SUPPORT,INNER
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98062-610-1 01 1 0712- ● ●
356 07.011 BRACKET; ENG SUPPORT,INNER
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98062-611-1 01 1 0712- ● ●
446 07.112 STIFFENER; SPRING STOPPER
WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98060-184-1 01 1 0803- ●
çizim 154443
533 533 173 173 105 105 215 215 103 103 147 147 101 101
BalonParca AdiParca NoAdetTipApplied Date A B C
101 07.112 BRACKET; RR SPR,FRT
SINGLE RR TIRE(6TD) (B) 		8-98034-042-0 02 1 0712- ●
101 07.112 BRACKET; RR SPR,FRT
EXC. SINGLE RR TIRE(6TD) (A) 		8-97034-156-1 02 1 0712- ●
101 07.112 BRACKET; RR SPR,FRT
(A) 		8-97034-156-1 02 1 0712- ● ●
103 07.420 STOPPER; SUB SPR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-97223-748-0 02 1 0712- ●
103 07.420 STOPPER; SUB SPR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-97223-750-0 02 1 0712- ●
105 07.112 BRACKET; RR SPR,RR
SINGLE RR TIRE(6TD) (A) 		8-98031-058-0 01 1 0712- ●
105 07.112 BRACKET; RR SPR,RR
SINGLE RR TIRE(6TD) (A) 		8-98031-059-0 01 1 0712- ●
105 07.112 BRACKET; RR SPR,RR
EXC. SINGLE RR TIRE(6TD) (B) 		8-98032-488-0 01 1 0712- ●
105 07.112 BRACKET; RR SPR,RR
(B) 		8-98032-488-0 01 1 0712- ● ●
105 07.112 BRACKET; RR SPR,RR
EXC. SINGLE RR TIRE(6TD) (B) 		8-98032-489-0 01 1 0712- ●
105 07.112 BRACKET; RR SPR,RR
(B) 		8-98032-489-0 01 1 0712- ● ●
147 07.535 RUBBER; SUB SPRING
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-97254-387-0 04 1 0712- ●
173 07.112 STIFFENER; RR SPRING
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98012-947-3 02 1 0712- ●
173 07.112 STIFFENER; RR SPRING
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98012-948-2 02 1 0712- ●
215 07.524 BUSHING; BRKT,RR SPRING
EXC. SINGLE RR TIRE(6TD) 		8-97184-699-1 04 1 0712- ●
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 0712- ● ●
446 07.112 STIFFENER; SPRING STOPPER
WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98060-184-1 01 1 0803- ●
533 07.010 STIFFENER; REINFORCEMENT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98006-680-1 02 1 0712- ● ●
533 07.010 STIFFENER; REINFORCEMENT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98006-680-1 02 1 0712- ●
533 07.010 STIFFENER; REINFORCEMENT 8-98006-680-1 02 1 0712- ●

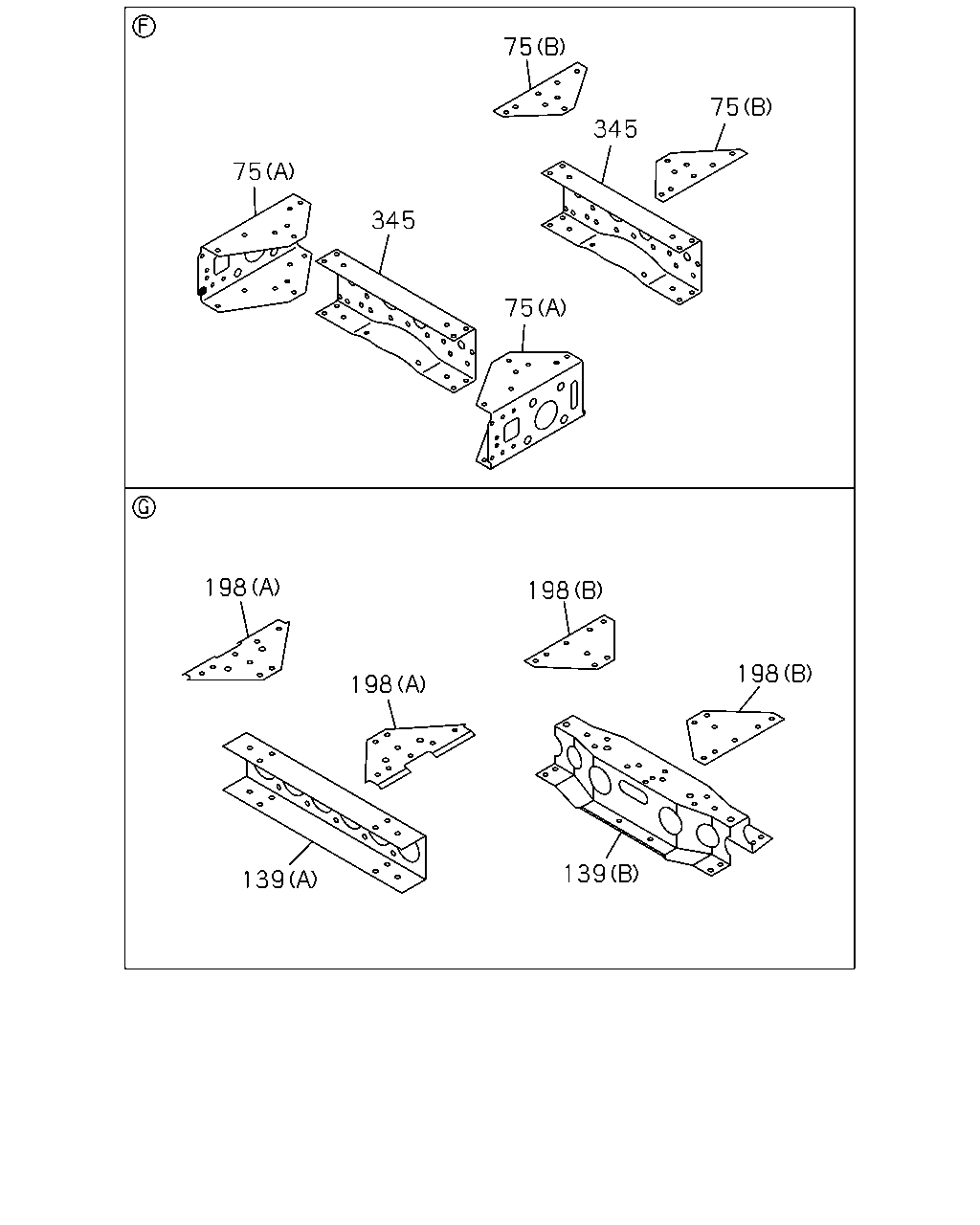

çizim 154445
75 75 345 75 345 75 198 198 198 198 139 139
BalonParca AdiParca NoAdetTipApplied Date A B C
75 07.039 GUSSET; 5TH C/MBR
SINGLE RR TIRE(6TD) (A) 		8-98011-312-1 01 1 0712- ●
75 07.039 GUSSET; 5TH C/MBR
SINGLE RR TIRE(6TD) (A) 		8-98006-124-1 01 1 0712- ●
75 07.039 GUSSET; 5TH C/MBR
EXC. SINGLE RR TIRE(6TD) (B) 		8-98011-863-0 04 1 0712- ●
75 07.039 GUSSET; 5TH C/MBR
(B) 		8-98011-863-0 04 1 0712- ● ●
139 07.012 MEMBER; CROSS,6TH
SINGLE RR TIRE(6TD) (B) 		8-98006-168-1 01 1 0712- ●
139 07.012 MEMBER; CROSS,6TH
EXC. SINGLE RR TIRE(6TD) (A) 		8-97384-745-0 01 1 0712- ●
139 07.012 MEMBER; CROSS,6TH
(A) 		8-97384-745-0 01 1 0712- ● ●
198 07.039 GUSSET; 6TH C/MBR
SINGLE RR TIRE(6TD) (B) 		8-98011-865-0 02 1 0712- ●
198 07.039 GUSSET; 6TH C/MBR
EXC. SINGLE RR TIRE(6TD) (A) RH-LOWER & LH-UPPER 		8-94258-068-1 02 1 0712- ●
198 07.039 GUSSET; 6TH C/MBR
(A) RH-LOWER & LH-UPPER 		8-94258-068-1 02 1 0712- ● ●
198 07.039 GUSSET; 6TH C/MBR
EXC. SINGLE RR TIRE(6TD) (A) RH-UPPER & LH-LOWER 		8-94258-069-1 02 1 0712- ●
198 07.039 GUSSET; 6TH C/MBR
(A) RH-UPPER & LH-LOWER 		8-94258-069-1 02 1 0712- ● ●
345 07.012 MEMBER; CROSS,5TH 8-98011-861-2 01 1 0712- ● ● ●
446 07.112 STIFFENER; SPRING STOPPER
WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98060-184-1 01 1 0803- ●

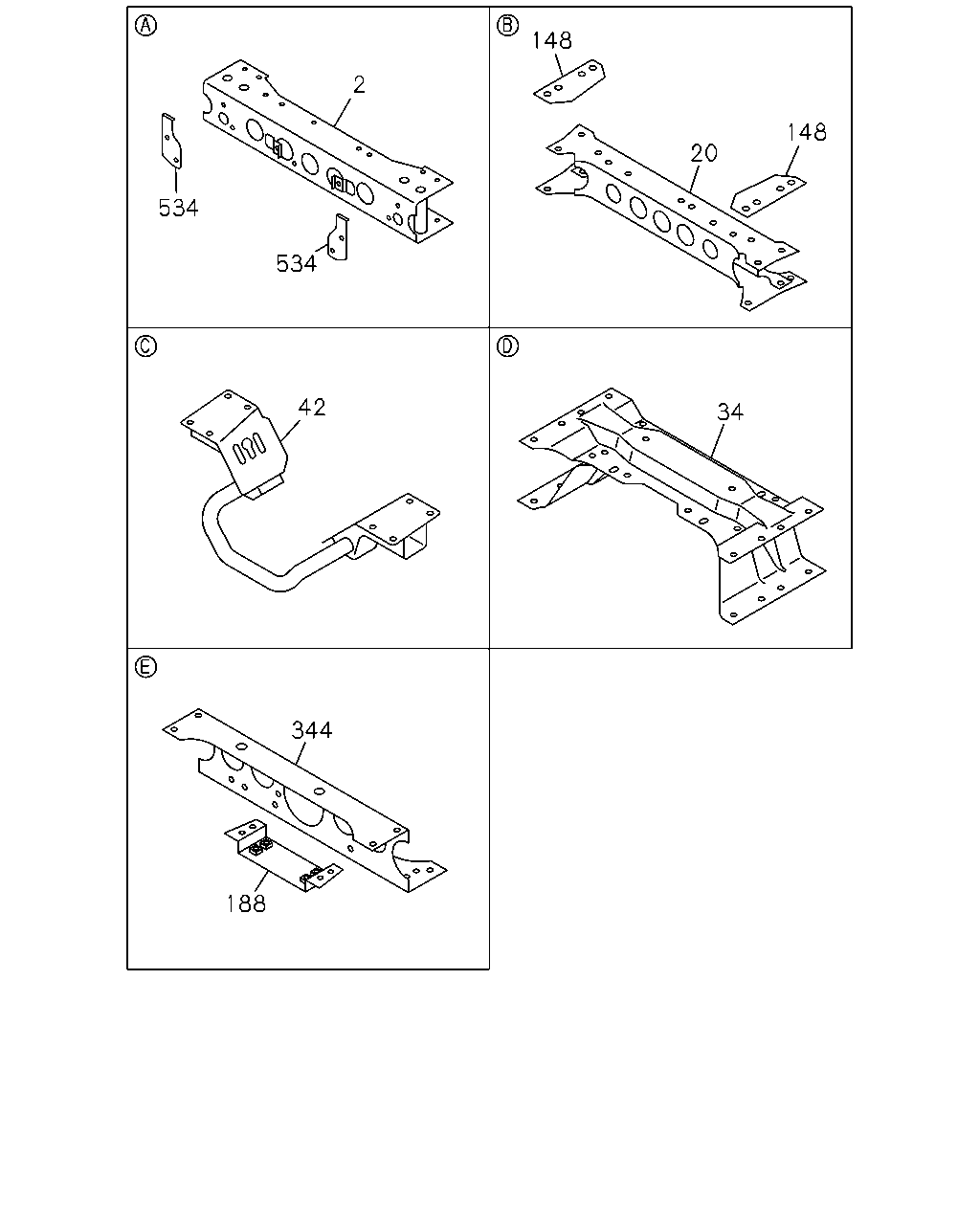

çizim 154448
148 2 148 20 534 534 42 34 344 188
BalonParca AdiParca NoAdetTipApplied Date A B C
2 07.010 MEMBER; CROSS,1ST 8-97384-741-5 01 1 0712- ● ● ●
20 07.012 MEMBER; CROSS,2ND
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98038-419-2 01 1 0712- ● ●
20 07.012 MEMBER; CROSS,2ND
FRT INDEPENDENT SUSPENSION(FF0) 		8-98038-419-2 01 1 0712- ●
20 07.012 MEMBER; CROSS,2ND 8-98038-419-2 01 1 0712- ●
20 07.012 MEMBER; CROSS,2ND
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98088-281-1 01 1 0712- ● ●
34 07.012 MEMBER; CROSS,3RD
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97384-743-1 01 1 0712- ● ●
34 07.012 MEMBER; CROSS,3RD
FRT INDEPENDENT SUSPENSION(FF0) 		8-97384-743-1 01 1 0712- ●
34 07.012 MEMBER; CROSS,3RD 8-97384-743-1 01 1 0712- ●
34 07.012 MEMBER; CROSS,3RD
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98081-959-0 01 1 0712- ● ●
42 07.011 MEMBER; CROSS,ENG MTG
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98006-224-1 01 1 0712- ●
42 07.011 MEMBER; CROSS,ENG MTG 8-98006-224-1 01 1 0712- ● ●
148 07.105 SPACER; C/MBR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 		8-98081-958-0 04 1 0712- ● ●
188 07.039 BRACKET; SUPPORT,CTR BRG
WHEEL BASE 3300MM(33W) 		8-97083-157-1 01 1 0712- ● ● ●
344 07.012 MEMBER; CROSS,4TH
WHEEL BASE 3300MM(33W) 		8-98005-959-1 01 1 0712- ● ● ●
446 07.112 STIFFENER; SPRING STOPPER
WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98060-184-1 01 1 0803- ●
534 07.869 BRACKET; BACK BAR 8-98061-414-0 01 1 0712- ● ● ●
534 07.869 BRACKET; BACK BAR 8-98061-413-0 01 1 0712- ● ● ●

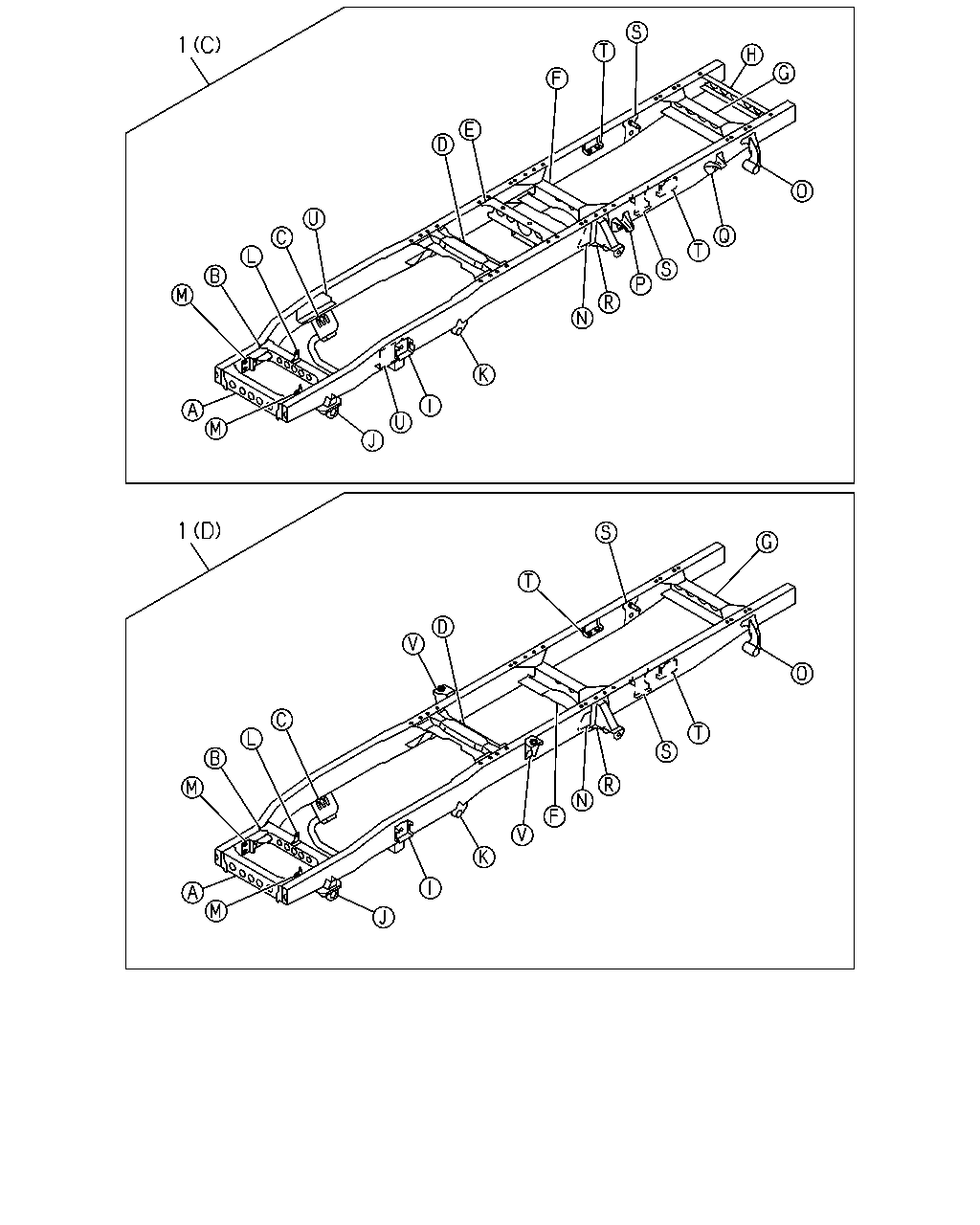

çizim 154454
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98023-303-3 01 1 0802- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98023-310-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98023-310-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98023-311-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98023-311-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98023-287-3 01 1 0712-0906 ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98023-287-4 01 1 0907-0907 ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98023-287-4 01 1 0907- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98023-288-2 01 1 0712-0906 ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98023-288-3 01 1 0907-0907 ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98023-288-3 01 1 0908- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98023-302-3 01 1 0712-0801 ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),FRONT STABILIZER SHAFT<F59> (B) 		8-98023-302-3 01 1 0802- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98023-272-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98023-272-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98023-273-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98023-273-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98023-312-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98023-313-4 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98072-763-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98072-764-4 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98072-766-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98072-767-3 01 1 0712- ●
446 07.112 STIFFENER; SPRING STOPPER
WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98060-184-1 01 1 0803- ●
çizim 154456
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98023-303-3 01 1 0802- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98023-310-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98023-310-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98023-311-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98023-311-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98023-287-3 01 1 0712-0906 ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98023-287-4 01 1 0907-0907 ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98023-287-4 01 1 0907- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98023-288-2 01 1 0712-0906 ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98023-288-3 01 1 0907-0907 ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98023-288-3 01 1 0908- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98023-302-3 01 1 0712-0801 ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),FRONT STABILIZER SHAFT<F59> (B) 		8-98023-302-3 01 1 0802- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98023-272-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98023-272-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98023-273-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98023-273-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98023-312-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98023-313-4 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98072-763-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98072-764-4 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98072-766-3 01 1 0712- ●
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98072-767-3 01 1 0712- ●
446 07.112 STIFFENER; SPRING STOPPER
WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98060-184-1 01 1 0803- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
