4-80 — ROAD WHEEL (#53547) — 58 parça

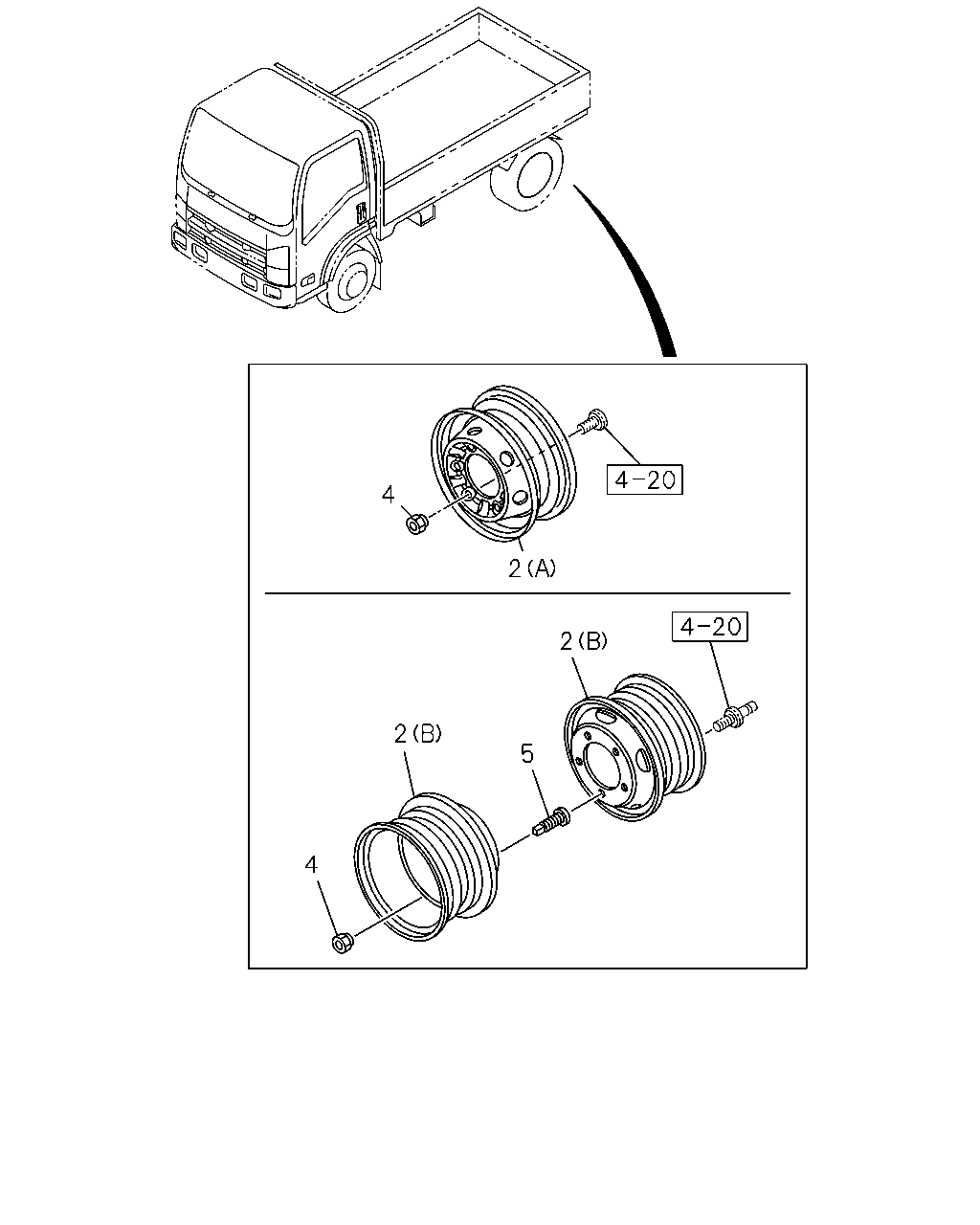

4 2 2 2 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	05.803 WHEEL; DISC FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) (A) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	01	1	0712-	●
2	05.803 WHEEL; DISC FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) (A) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	04	1	0712-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) SPARE 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	01	1	0712-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	04	1	0712-	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) (B) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	01	1	0712-	●	●	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) (B) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	06	1	0712-	●	●	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0712-	●	●	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0712-	●	●	●
4	05.813 NUT; WHEEL,RR AXLE SINGLE RR TIRE(6TD) M14 LH THREAD	8-98007-906-0	06	1	0712-	●
4	05.813 NUT; WHEEL,RR AXLE SINGLE RR TIRE(6TD) M14 RH THREAD	8-98007-905-0	06	1	0712-	●
4	05.813 NUT; WHEEL,RR AXLE EXC. SINGLE RR TIRE(6TD) M27 LH THREAD	8-98007-825-0	05	1	0712-	●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	0712-		●	●
4	05.813 NUT; WHEEL,RR AXLE EXC. SINGLE RR TIRE(6TD) M27 RH THREAD	8-98007-824-0	05	1	0712-	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	0712-		●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE EXC. SINGLE RR TIRE(6TD) OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0712-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0712-		●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE EXC. SINGLE RR TIRE(6TD) OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0712-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0712-		●	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS)	8-98221-106-0	04	1	1207-	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV)	8-98221-106-0	06	1	1207-	●	●	●
8	05.875 VALVE; TIRE	8-98221-106-0	01	1	1207-	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV)	8-98221-106-0	01	1	1207-		●	●

2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	05.803 WHEEL; DISC FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) (A) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	01	1	0712-	●
2	05.803 WHEEL; DISC FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) (A) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	04	1	0712-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) SPARE 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	01	1	0712-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	04	1	0712-	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) (B) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	01	1	0712-	●	●	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) (B) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	06	1	0712-	●	●	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0712-	●	●	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0712-	●	●	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS)	8-98221-106-0	04	1	1207-	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV)	8-98221-106-0	06	1	1207-	●	●	●
8	05.875 VALVE; TIRE	8-98221-106-0	01	1	1207-	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV)	8-98221-106-0	01	1	1207-		●	●

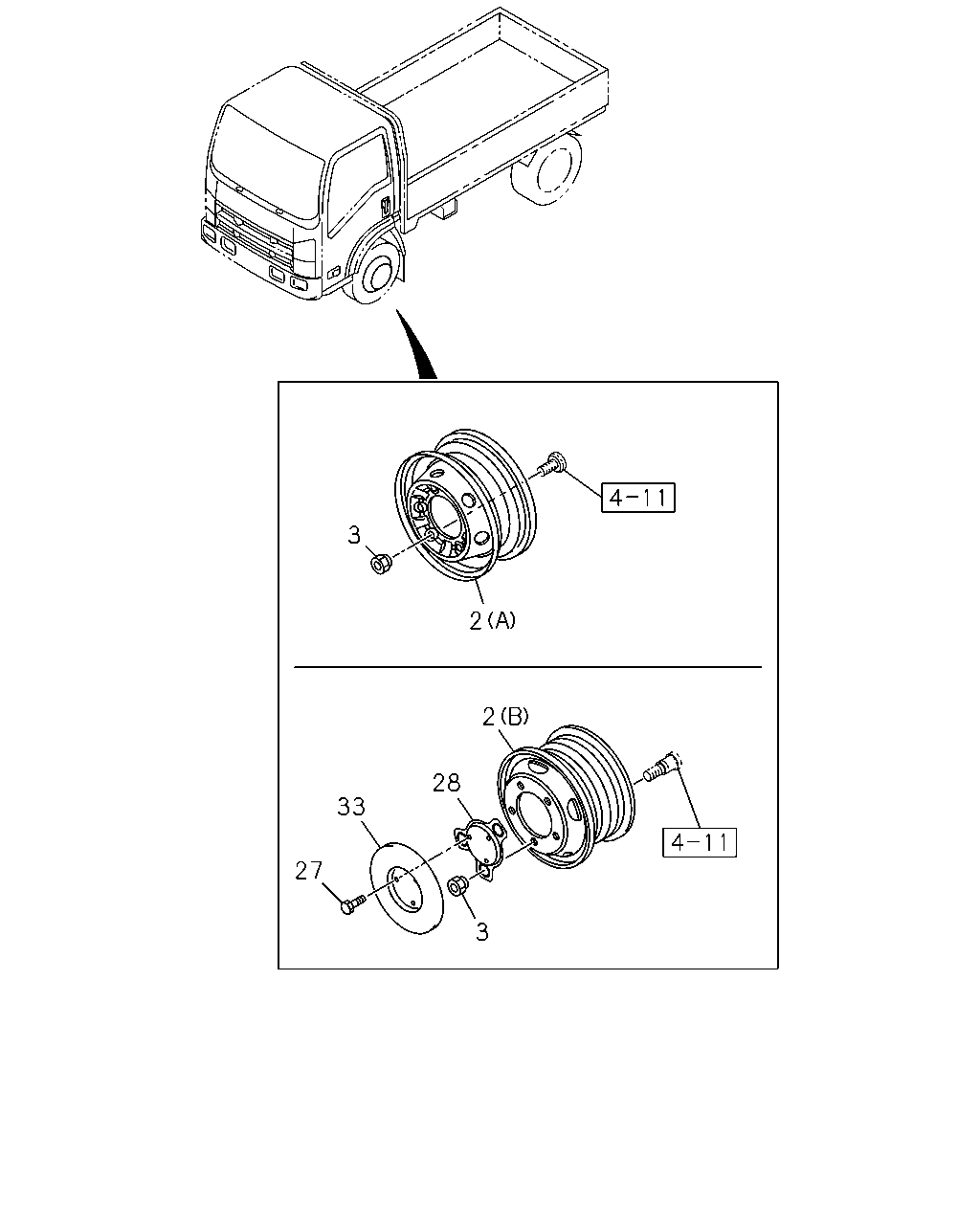

3 2 2 28 33 27 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	05.803 WHEEL; DISC FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) (A) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	01	1	0712-	●
2	05.803 WHEEL; DISC FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) (A) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	04	1	0712-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) SPARE 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	01	1	0712-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	04	1	0712-	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) (B) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	01	1	0712-	●	●	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) (B) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	06	1	0712-	●	●	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0712-	●	●	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0712-	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE SINGLE RR TIRE(6TD) M14 LH THREAD	8-98007-906-0	06	1	0712-	●
3	05.813 NUT; WHEEL,FRT AXLE SINGLE RR TIRE(6TD) M14 RH THREAD	8-98007-905-0	06	1	0712-	●
3	05.813 NUT; WHEEL,FRT AXLE EXC. SINGLE RR TIRE(6TD) M18 LH THREAD	8-98007-908-0	05	1	0712-	●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	0712-		●	●
3	05.813 NUT; WHEEL,FRT AXLE EXC. SINGLE RR TIRE(6TD) M18 RH THREAD	8-98007-907-0	05	1	0712-	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	0712-		●	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS)	8-98221-106-0	04	1	1207-	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV)	8-98221-106-0	06	1	1207-	●	●	●
8	05.875 VALVE; TIRE	8-98221-106-0	01	1	1207-	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV)	8-98221-106-0	01	1	1207-		●	●
27	05.871 BOLT; COVER EXC. SINGLE RR TIRE(6TD) 02.343 M10X20 FLANGE	0-28651-020-0	06	1	0712-	●
27	05.871 BOLT; COVER 02.343 M10X20 FLANGE	0-28651-020-0	06	1	0712-		●	●
28	05.864 BRACKET; COVER EXC. SINGLE RR TIRE(6TD)	8-97169-249-0	02	1	0712-	●
28	05.864 BRACKET; COVER	8-97169-249-0	02	1	0712-		●	●
33	05.858 COVER; WHEEL EXC. SINGLE RR TIRE(6TD)	8-97167-658-0	02	1	0712-	●
33	05.858 COVER; WHEEL	8-97167-658-0	02	1	0712-		●	●
