Sayfa 2-37B - Isuzu EPC

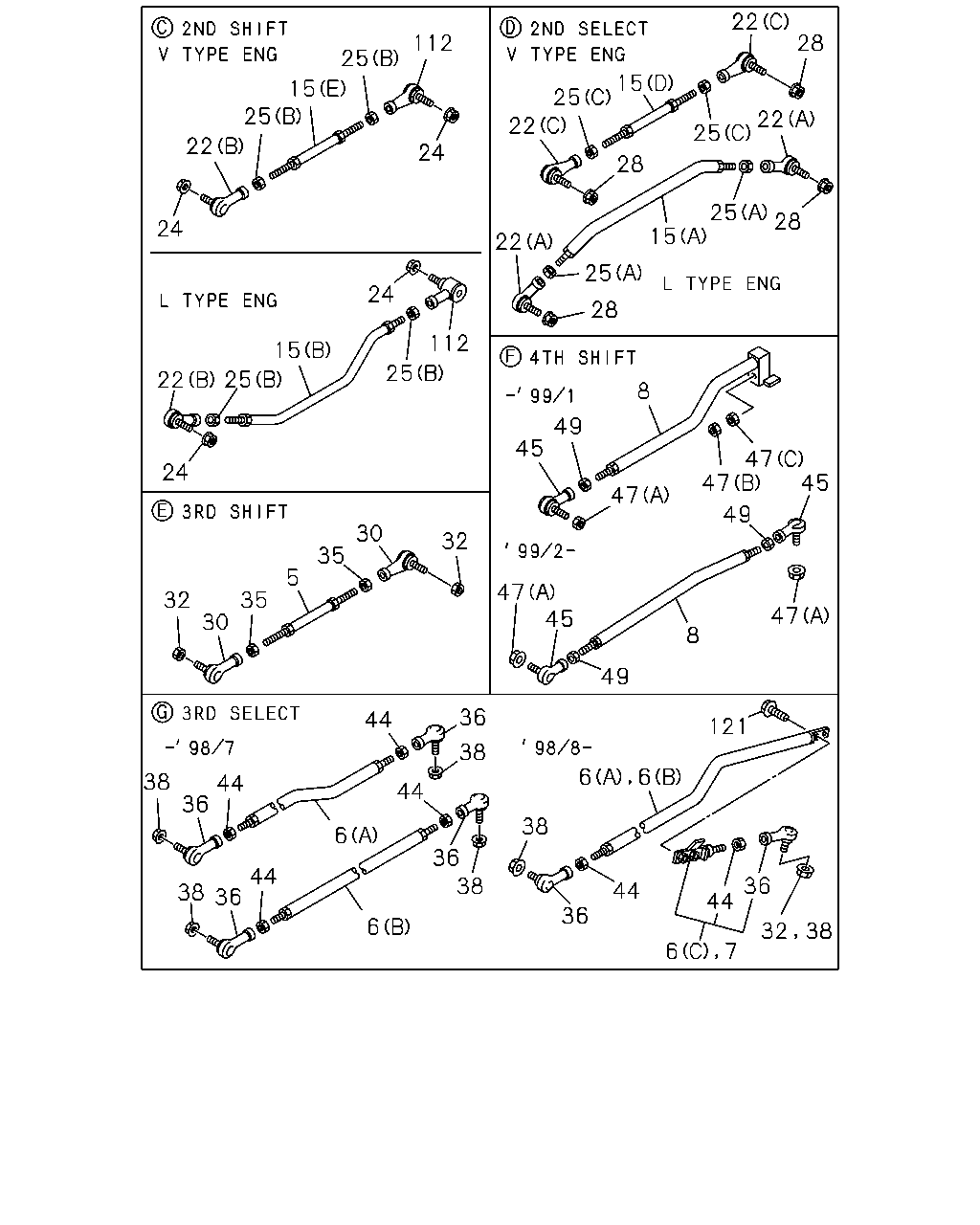

2-37B — MANUAL TRANSMISSION CONT; MISSION SIDE (#5354) — 213 parça

22 28 112 25 15 25 15 25 22 25 22 22 24 28 25 28 24 15 22 25 24 28 112 15 25 8 49 45 47 47 45 24 47 49 30 32 35 5 47 45 32 35 47 30 8 49 36 44 121 38 6 6 38 44 36 44 38 6 36 44 36 36 44 38 44 38 36 6 22 25 32 38 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	ROD; LINK,3RD SHIFT 6WA1 TC-S(56L) L=1110	1-33652-623-0	01	1	9603-9901	●
5	ROD; LINK,3RD SHIFT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=1110	1-33652-623-0	01	1	9902-	●	●
5	ROD; LINK,3RD SHIFT L TYPE ENG<90L> MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> L=1170	1-33652-547-0	01	1	9907-	●	●	●
5	ROD; LINK,3RD SHIFT 10PE1S(60L) L=855	1-33652-321-0	01	1	9603-9901	●
5	ROD; LINK,3RD SHIFT CAB UP +110MM<TGG> L=1120	1-33652-603-0	01	1	9902-9904	●	●
5	ROD; LINK,3RD SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> L=1120	1-33652-603-0	01	1	9905-	●	●	●
5	ROD; LINK,3RD SHIFT 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) L=855	1-33652-321-0	01	1	9905-	●	●
5	ROD; LINK,3RD SHIFT L TYPE ENG<90L> MIXER TRUCK<RA2> CAB UP +110MM<TGG> L=1190	1-33652-922-0	01	1	9907-	●	●	●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> (A) 3RD SELECT L=1423	1-33652-827-0	01	1	9902-9904	●	●
6	ROD; LINK,3RD SELECT L TYPE ENG<90L> CAB UP +110MM<TGG> (A) 3RD SELECT L=1423	1-33652-827-0	01	1	9905-	●	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L) (B) L=1266	1-33652-741-0	01	1	9603-9807	●
6	ROD; LINK,3RD SELECT 10PE1S(60L) (B) 3RD SELECT L=1189	1-33652-861-0	01	1	9808-9901	●
6	ROD; LINK,3RD SELECT 6WA1 TC-S(56L) (A) 3RD SELECT L=1454	1-33652-745-0	01	1	9603-9807	●
6	ROD; LINK,3RD SELECT 6WA1 TC-S(56L) (A) 3RD SELECT L=1412	1-33652-860-0	01	1	9808-9901	●
6	ROD; LINK,3RD SELECT EXC. CAB UP +110MM<TGG> (A) 3RD SELECT L=1412	1-33652-860-0	01	1	9902-9904	●	●
6	ROD; LINK,3RD SELECT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) 3RD SELECT L=1412	1-33652-860-0	01	1	9905-	●	●	●
6	ROD; LINK,3RD SELECT L TYPE ENG<90L> (C) L=125	1-33671-333-0	01	1	0001-	●	●	●
6	ROD; LINK,3RD SELECT 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) 3RD SELECT L=1189	1-33652-861-0	01	1	9905-	●	●
6	ROD; LINK,3RD SELECT 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (C) L=125	1-33671-454-0	01	1	0001-	●	●
7	ROD ASM; CONT,SELECT 3RD SELECT L=125	1-33671-333-0	01	1	9808-9901	●
7	ROD ASM; CONT,SELECT 3RD SELECT L=125	1-33671-333-0	01	1	9902-9904	●	●
7	ROD ASM; CONT,SELECT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) 3RD SELECT L=125	1-33671-333-0	01	1	9905-9909	●	●
7	ROD ASM; CONT,SELECT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1TC-R(93L) 3RD SELECT L=125	1-33671-333-0	01	1	9910-9912	●	●	●
7	ROD ASM; CONT,SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) 3RD SELECT L=125	1-33671-454-0	01	1	9905-9912	●	●
8	ROD; LINK,4TH SHIFT 10PE1S(60L) 4TH SHIFT L=492	1-33652-702-1	01	1	9603-9901	●
8	ROD; LINK,4TH SHIFT V TYPE ENG<91L> 4TH SHIFT L=523	1-33652-858-0	01	1	9905-	●	●
8	ROD; LINK,4TH SHIFT 6WA1 TC-S(56L) 4TH SHIFT L=477	1-33652-718-0	01	1	9603-9901	●
8	ROD; LINK,4TH SHIFT 4TH SHIFT L=485	1-33652-859-0	01	1	9902-9904	●
8	ROD; LINK,4TH SHIFT L TYPE ENG<90L> 4TH SHIFT L=485	1-33652-859-0	01	1	9905-	●	●	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (A) 2ND SELECT L=438	1-33652-682-0	01	1	9603-9706	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (A) 2ND SELECT L=438	1-33652-682-0	01	1	9707-9711	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (A) 2ND SELECT L=428	1-33652-781-0	01	1	9712-9901	●
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (A) 2ND SELECT L=428	1-33652-781-1	01	1	9902-9904	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) 2ND SELECT L=428	1-33652-781-1	01	1	9905-	●	●	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) 2ND SHIFT L=497	1-33652-716-0	01	1	9603-9706	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) 2ND SHIFT L=497	1-33652-716-0	01	1	9707-9711	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) 2ND SHIFT L=490	1-33652-780-0	01	1	9712-9901	●
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (B) 2ND SHIFT L=490	1-33652-780-0	01	1	9902-9904	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 2ND SHIFT L=490	1-33652-780-0	01	1	9905-	●	●	●
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (D) 2ND SELECT L=440	1-33652-672-0	01	1	9603-9901	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (D) 2ND SELECT L=474	1-33652-803-0	01	1	9902-9904	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> (D) 2ND SELECT L=474	1-33652-803-0	01	1	9905-	●	●	●
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (E) 2ND SHIFT L=490	1-33652-700-0	01	1	9603-9901	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (E) 2ND SHIFT L=423	1-33652-804-1	01	1	9902-9904	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> (E) 2ND SHIFT L=423	1-33652-804-1	01	1	9905-	●	●	●
15	ROD; LINK 1ST SHIFT V TYPE ENG<91L> (D) 2ND SELECT L=440	1-33652-672-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT V TYPE ENG<91L> (E) 2ND SHIFT L=490	1-33652-700-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT (C) 1ST SELECT L=556	1-33652-744-0	01	1	9603-9901	●
15	ROD; LINK 1ST SHIFT (C) 1ST SELECT L=556	1-33652-744-0	01	1	9902-9904	●	●
15	ROD; LINK 1ST SHIFT (C) 1ST SELECT L=556	1-33652-744-0	01	1	9905-	●	●	●
22	JOINT; BALL,SCREW,LINK ROD 6WA1 TC-S(56L) (A) 2ND SELECT	1-09760-109-0	02	1	9603-9706	●
22	JOINT; BALL,SCREW,LINK ROD 6WA1 TC-S(56L) (A) 2ND SELECT	1-09760-109-0	02	1	9707-9901	●
22	JOINT; BALL,SCREW,LINK ROD (A) 2ND SELECT	1-09760-109-0	02	1	9902-9904	●	●
22	JOINT; BALL,SCREW,LINK ROD L TYPE ENG<90L> (A) 2ND SELECT	1-09760-109-0	02	1	9905-	●	●	●
22	JOINT; BALL,SCREW,LINK ROD 10PE1S(60L) (C) 2ND SELECT	1-09760-108-0	02	1	9603-9901	●
22	JOINT; BALL,SCREW,LINK ROD V TYPE ENG<91L> (C) 2ND SELECT	1-09760-108-0	02	1	9905-	●	●
22	JOINT; BALL,SCREW,LINK ROD (B) 2ND SHIFT L=64.5	1-09760-111-0	01	1	9603-9710	●
22	JOINT; BALL,SCREW,LINK ROD (B) 2ND SHIFT	1-09760-125-0	01	1	9711-9901	●
22	JOINT; BALL,SCREW,LINK ROD (B) 2ND SHIFT	1-09760-125-0	01	1	9902-9904	●	●
22	JOINT; BALL,SCREW,LINK ROD (B) 2ND SHIFT	1-09760-125-0	01	1	9905-	●	●	●
24	NUT; 2ND LINK ROD,SHIFT 2ND SHIFT M10 FLANGE	1-09440-050-0	02	1	9603-9708	●
24	NUT; 2ND LINK ROD,SHIFT 2ND SHIFT M10 FLANGE	1-09440-050-0	01	1	9709-9710	●
24	NUT; 2ND LINK ROD,SHIFT 2ND SHIFT M10 FLANGE	1-09440-056-0	01	1	9709-9710	●
24	NUT; 2ND LINK ROD,SHIFT 2ND SHIFT M10 FLANGE	1-09440-056-0	02	1	9711-9802	●
24	NUT; 2ND LINK ROD,SHIFT 2ND SHIFT M10 FLANGE	1-09440-061-0	02	1	9803-9901	●
24	NUT; 2ND LINK ROD,SHIFT 2ND SHIFT M10 FLANGE	1-09440-061-0	02	1	9902-9904	●	●
24	NUT; 2ND LINK ROD,SHIFT 2ND SHIFT M10 FLANGE	1-09440-061-0	02	1	9905-	●	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) (A) 2ND SELECT M10	9-09111-410-0	02	1	9603-9706	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) (A) 2ND SELECT M10	9-09111-410-0	02	1	9707-9901	●
25	NUT; LK,RIGHT SCREW,LINK ROD (A) 2ND SELECT M10	9-09111-410-0	02	1	9902-9904	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD L TYPE ENG<90L> (A) 2ND SELECT M10	9-09111-410-0	02	1	9905-	●	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) (C) 2ND SELECT M8	9-09111-408-0	02	1	9603-9901	●
25	NUT; LK,RIGHT SCREW,LINK ROD V TYPE ENG<91L> (C) 2ND SELECT M8	9-09111-408-0	02	1	9905-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (B) 2ND SHIFT M12	9-99111-412-0	02	1	9603-9901	●
25	NUT; LK,RIGHT SCREW,LINK ROD (B) 2ND SHIFT M12	9-99111-412-0	02	1	9902-9904	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (B) 2ND SHIFT M12	9-99111-412-0	02	1	9905-	●	●	●
28	NUT; 2ND LINK ROD 2ND SELECT M8 FLANGE	1-09440-049-0	02	1	9603-9804	●
28	NUT; 2ND LINK ROD 2ND SELECT M8 FLANGE	1-09440-062-1	02	1	9805-9901	●
28	NUT; 2ND LINK ROD 2ND SELECT M8 FLANGE	1-09440-062-1	02	1	9902-9904	●	●
28	NUT; 2ND LINK ROD 2ND SELECT M8 FLANGE	1-09440-062-1	02	1	9905-	●	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD 3RD SHIFT	1-09760-110-0	02	1	9603-9710	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD 3RD SHIFT	1-09760-124-0	02	1	9711-9901	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD 3RD SHIFT	1-09760-124-0	02	1	9902-9904	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD 3RD SHIFT	1-09760-124-0	02	1	9905-9909	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD 3RD SHIFT	1-09760-124-0	02	1	9910-	●	●	●
32	NUT; 3RD LINK ROD 3RD SHIFT M10 FLANGE	1-09440-050-0	02	1	9603-9710	●
32	NUT; 3RD LINK ROD 3RD SHIFT M10 FLANGE	1-09440-056-0	02	1	9711-9802	●
32	NUT; 3RD LINK ROD 3RD SHIFT M10 FLANGE	1-09440-061-0	02	1	9803-9901	●
32	NUT; 3RD LINK ROD 3RD SHIFT M10 FLANGE	1-09440-061-0	02	1	9902-9904	●	●
32	NUT; 3RD LINK ROD 3RD SHIFT M10 FLANGE	1-09440-061-0	02	1	9905-	●	●	●
32	NUT; 3RD LINK ROD 3RD SHIFT M8 FLANGE	1-09440-062-1	01	1	9808-9901	●
32	NUT; 3RD LINK ROD 3RD SELECT M8 FLANGE	1-09440-062-1	01	1	9902-9909	●	●
32	NUT; 3RD LINK ROD 3RD SELECT M8 FLANGE	1-09440-062-1	01	1	9910-9912	●	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD 3RD SHIFT M10	9-09111-410-0	02	1	9603-9901	●
35	NUT; LK,RIGHT SCREW,LINK ROD 3RD SHIFT M10	9-09111-410-0	02	1	9902-9904	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD 3RD SHIFT M10	9-09111-410-0	02	1	9905-9909	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD 3RD SHIFT M10	9-09111-410-0	02	1	9910-	●	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) 3RD SELECT	1-09760-109-0	02	1	9603-9807	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 3RD SELECT	1-09760-109-0	02	1	9905-9906	●	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 3RD SELECT	1-09760-109-0	02	1	9907-	●	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L) 3RD SELECT	1-09760-108-0	02	1	9603-9807	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L) 3RD SELECT	1-09760-108-0	01	1	9808-9901	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L) 3RD SELECT	1-09760-108-0	02	1	9808-9901	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 3RD SELECT	1-09760-109-0	02	1	9808-9901	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) 3RD SELECT	1-09760-109-0	02	1	9808-9901	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 3RD SELECT	1-09760-109-0	02	1	9902-9904	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) 3RD SELECT	1-09760-109-0	02	1	9905-9909	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1TC-R(93L) 3RD SELECT	1-09760-109-0	02	1	9910-9912	●	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 3RD SELECT	1-09760-109-0	01	1	0001-	●	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 3RD SELECT	1-09760-109-0	01	1	0001-	●	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) 3RD SELECT	1-09760-108-0	01	1	9905-	●	●
38	NUT; 3RD LINK ROD 3RD SELECT M8 FLANGE	1-09440-049-0	02	1	9603-9804	●
38	NUT; 3RD LINK ROD 3RD SELECT M8 FLANGE	1-09440-062-0	02	1	9805-9807	●
38	NUT; 3RD LINK ROD 3RD SELECT M8 FLANGE	1-09440-062-1	02	1	9902-9904	●	●
38	NUT; 3RD LINK ROD 3RD SELECT M8 FLANGE	1-09440-062-1	02	1	9905-9912	●	●
38	NUT; 3RD LINK ROD 3RD SELECT M8 FLANGE	1-09440-062-1	02	1	0001-	●	●	●
38	NUT; 3RD LINK ROD 3RD SELECT M8 FLANGE	1-09440-062-1	01	1	9808-9901	●
38	NUT; 3RD LINK ROD 3RD SELECT M8 FLANGE	1-09440-062-1	01	1	9907-9912	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) 3RD SELECT M10	9-09111-410-0	02	1	9603-9807	●
44	NUT; LK,RIGHT SCREW,LINK ROD 3RD SELECT M10	9-09111-410-0	02	1	9905-9906	●	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 3RD SELECT M10	9-09111-410-0	02	1	9907-	●	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) 3RD SELECT M8	9-09111-408-0	02	1	9603-9807	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) 3RD SELECT M8	9-09111-408-0	01	1	9808-9901	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) 3RD SELECT M8	9-09111-408-0	02	1	9808-9901	●
44	NUT; LK,RIGHT SCREW,LINK ROD 3RD SELECT M10	9-09111-410-0	01	1	9808-9901	●
44	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) 3RD SELECT M10	9-09111-410-0	01	1	9808-9901	●
44	NUT; LK,RIGHT SCREW,LINK ROD 3RD SELECT M10	9-09111-410-0	01	1	9902-9904	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) 3RD SELECT M10	9-09111-410-0	01	1	9905-9909	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1TC-R(93L) 3RD SELECT M10	9-09111-410-0	01	1	9910-9912	●	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 3RD SELECT M10	9-09111-410-0	01	1	0001-	●	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 3RD SELECT M10	9-09111-410-0	01	1	0001-	●	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) 3RD SELECT M8	9-09111-408-0	01	1	9905-	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 4TH SHIFT	1-09760-125-0	02	1	9902-9904	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 4TH SHIFT	1-09760-125-0	02	1	9905-	●	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 4TH SHIFT	1-09760-117-0	01	1	9603-9710	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 4TH SHIFT	1-09760-125-0	01	1	9711-9901	●
47	NUT; 4TH LINK ROD (A) 4TH SHIFT M10 FLANGE	1-09440-061-0	02	1	9902-9904	●	●
47	NUT; 4TH LINK ROD (A) 4TH SHIFT M10 FLANGE	1-09440-061-0	02	1	9905-	●	●	●
47	NUT; 4TH LINK ROD (A) 4TH SHIFT M10 FLANGE	1-09440-050-0	01	1	9603-9710	●
47	NUT; 4TH LINK ROD (A) 4TH SHIFT M10 FLANGE	1-09440-056-0	01	1	9711-9802	●
47	NUT; 4TH LINK ROD (A) 4TH SHIFT M10 FLANGE	1-09440-061-0	01	1	9803-9901	●
47	NUT; 4TH LINK ROD (B) 4TH SHIFT M14	9-99110-414-0	01	1	9603-9901	●
47	NUT; 4TH LINK ROD (C) 4TH SHIFT M14	9-99111-414-0	01	1	9603-9901	●
49	NUT; LK,RIGHT SCREW,LINK ROD 4TH SHIFT M12	9-99111-412-0	02	1	9902-9904	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD 4TH SHIFT M12	9-99111-412-0	02	1	9905-	●	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD 4TH SHIFT M12	9-99111-412-0	01	1	9603-9901	●
112	JOINT; RUBBER 1ST & 2ND SHIFT	1-33670-413-1	02	1	9603-9706	●
112	JOINT; RUBBER 1ST & 2ND SHIFT	1-33670-413-1	01	1	9707-9901	●
112	JOINT; RUBBER 1ST & 2ND SHIFT	1-33670-413-1	01	1	9707-9901	●
112	JOINT; RUBBER 1ST & 2ND SHIFT	1-33670-413-1	01	1	9902-9904	●	●
112	JOINT; RUBBER 1ST & 2ND SHIFT	1-33670-413-1	01	1	9902-9904	●	●
112	JOINT; RUBBER 1ST & 2ND SHIFT	1-33670-413-1	01	1	9905-	●	●	●
112	JOINT; RUBBER 1ST & 2ND SHIFT	1-33670-413-1	01	1	9905-	●	●	●
121	BOLT; LINK ROD	1-09044-103-0	02	1	9808-9901	●
121	BOLT; LINK ROD	1-09044-103-0	02	1	9902-	●	●	●

16 10 21 14 15 1 14 21 16 8 12 12 112 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	9603-9901	●
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	9902-9904	●	●
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	9905-	●	●	●
8	ROD; LINK,4TH SHIFT 10PE1S(60L) 4TH SHIFT L=492	1-33652-702-1	01	1	9603-9901	●
8	ROD; LINK,4TH SHIFT V TYPE ENG<91L> 4TH SHIFT L=523	1-33652-858-0	01	1	9905-	●	●
8	ROD; LINK,4TH SHIFT 6WA1 TC-S(56L) 4TH SHIFT L=477	1-33652-718-0	01	1	9603-9901	●
8	ROD; LINK,4TH SHIFT 4TH SHIFT L=485	1-33652-859-0	01	1	9902-9904	●
8	ROD; LINK,4TH SHIFT L TYPE ENG<90L> 4TH SHIFT L=485	1-33652-859-0	01	1	9905-	●	●	●
10	JOINT ASM; BALL,SELECT ROD 1ST SHIFT	1-09760-117-0	01	1	9603-9710	●
10	JOINT ASM; BALL,SELECT ROD 1ST SHIFT	1-09760-125-0	01	1	9711-9901	●
10	JOINT ASM; BALL,SELECT ROD 1ST SHIFT	1-09760-125-0	01	1	9902-9904	●	●
10	JOINT ASM; BALL,SELECT ROD 1ST SHIFT	1-09760-125-0	01	1	9905-	●	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9603-9708	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	02	1	9709-9802	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9803-9901	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9902-9904	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9905-	●	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD 1ST SHIFT M12	9-99111-412-0	02	1	9603-9901	●
14	NUT; LK,RIGHT SCREW,LINK ROD 1ST SHIFT M12	9-99111-412-0	02	1	9902-9904	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD 1ST SHIFT M12	9-99111-412-0	02	1	9905-	●	●	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (A) 2ND SELECT L=438	1-33652-682-0	01	1	9603-9706	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (A) 2ND SELECT L=438	1-33652-682-0	01	1	9707-9711	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (A) 2ND SELECT L=428	1-33652-781-0	01	1	9712-9901	●
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (A) 2ND SELECT L=428	1-33652-781-1	01	1	9902-9904	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) 2ND SELECT L=428	1-33652-781-1	01	1	9905-	●	●	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) 2ND SHIFT L=497	1-33652-716-0	01	1	9603-9706	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) 2ND SHIFT L=497	1-33652-716-0	01	1	9707-9711	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) 2ND SHIFT L=490	1-33652-780-0	01	1	9712-9901	●
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (B) 2ND SHIFT L=490	1-33652-780-0	01	1	9902-9904	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 2ND SHIFT L=490	1-33652-780-0	01	1	9905-	●	●	●
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (D) 2ND SELECT L=440	1-33652-672-0	01	1	9603-9901	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (D) 2ND SELECT L=474	1-33652-803-0	01	1	9902-9904	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> (D) 2ND SELECT L=474	1-33652-803-0	01	1	9905-	●	●	●
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (E) 2ND SHIFT L=490	1-33652-700-0	01	1	9603-9901	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (E) 2ND SHIFT L=423	1-33652-804-1	01	1	9902-9904	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> (E) 2ND SHIFT L=423	1-33652-804-1	01	1	9905-	●	●	●
15	ROD; LINK 1ST SHIFT V TYPE ENG<91L> (D) 2ND SELECT L=440	1-33652-672-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT V TYPE ENG<91L> (E) 2ND SHIFT L=490	1-33652-700-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT (C) 1ST SELECT L=556	1-33652-744-0	01	1	9603-9901	●
15	ROD; LINK 1ST SHIFT (C) 1ST SELECT L=556	1-33652-744-0	01	1	9902-9904	●	●
15	ROD; LINK 1ST SHIFT (C) 1ST SELECT L=556	1-33652-744-0	01	1	9905-	●	●	●
16	JOINT ASM; BALL,CONT ROD 1ST SELECT	1-09760-108-0	02	1	9603-9901	●
16	JOINT ASM; BALL,CONT ROD 1ST SELECT	1-09760-108-0	02	1	9902-9904	●	●
16	JOINT ASM; BALL,CONT ROD 1ST SELECT	1-09760-108-0	02	1	9905-	●	●	●
18	NUT; 1ST LINK ROD 1ST SELECT M8 FLANGE	1-09440-049-0	02	1	9603-9804	●
18	NUT; 1ST LINK ROD 1ST SELECT M8 FLANGE	1-09440-062-1	02	1	9805-9901	●
18	NUT; 1ST LINK ROD 1ST SELECT M8 FLANGE	1-09440-062-1	02	1	9902-9904	●	●
18	NUT; 1ST LINK ROD 1ST SELECT M8 FLANGE	1-09440-062-1	02	1	9905-	●	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD 1ST SELECT M8	9-09111-408-0	02	1	9603-9901	●
21	NUT; LK,RIGHT SCREW,LINK ROD 1ST SELECT M8	9-09111-408-0	02	1	9902-9904	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD 1ST SELECT M8	9-09111-408-0	02	1	9905-	●	●	●
112	JOINT; RUBBER 1ST & 2ND SHIFT	1-33670-413-1	02	1	9603-9706	●
112	JOINT; RUBBER 1ST & 2ND SHIFT	1-33670-413-1	01	1	9707-9901	●
112	JOINT; RUBBER 1ST & 2ND SHIFT	1-33670-413-1	01	1	9707-9901	●
112	JOINT; RUBBER 1ST & 2ND SHIFT	1-33670-413-1	01	1	9902-9904	●	●
112	JOINT; RUBBER 1ST & 2ND SHIFT	1-33670-413-1	01	1	9902-9904	●	●
112	JOINT; RUBBER 1ST & 2ND SHIFT	1-33670-413-1	01	1	9905-	●	●	●
112	JOINT; RUBBER 1ST & 2ND SHIFT	1-33670-413-1	01	1	9905-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
