◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51148 - NLR/NMR(EU)-LHD EU4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶

4-20 — REAR AXLE CASE AND SHAFT (#53531) — 120 parça

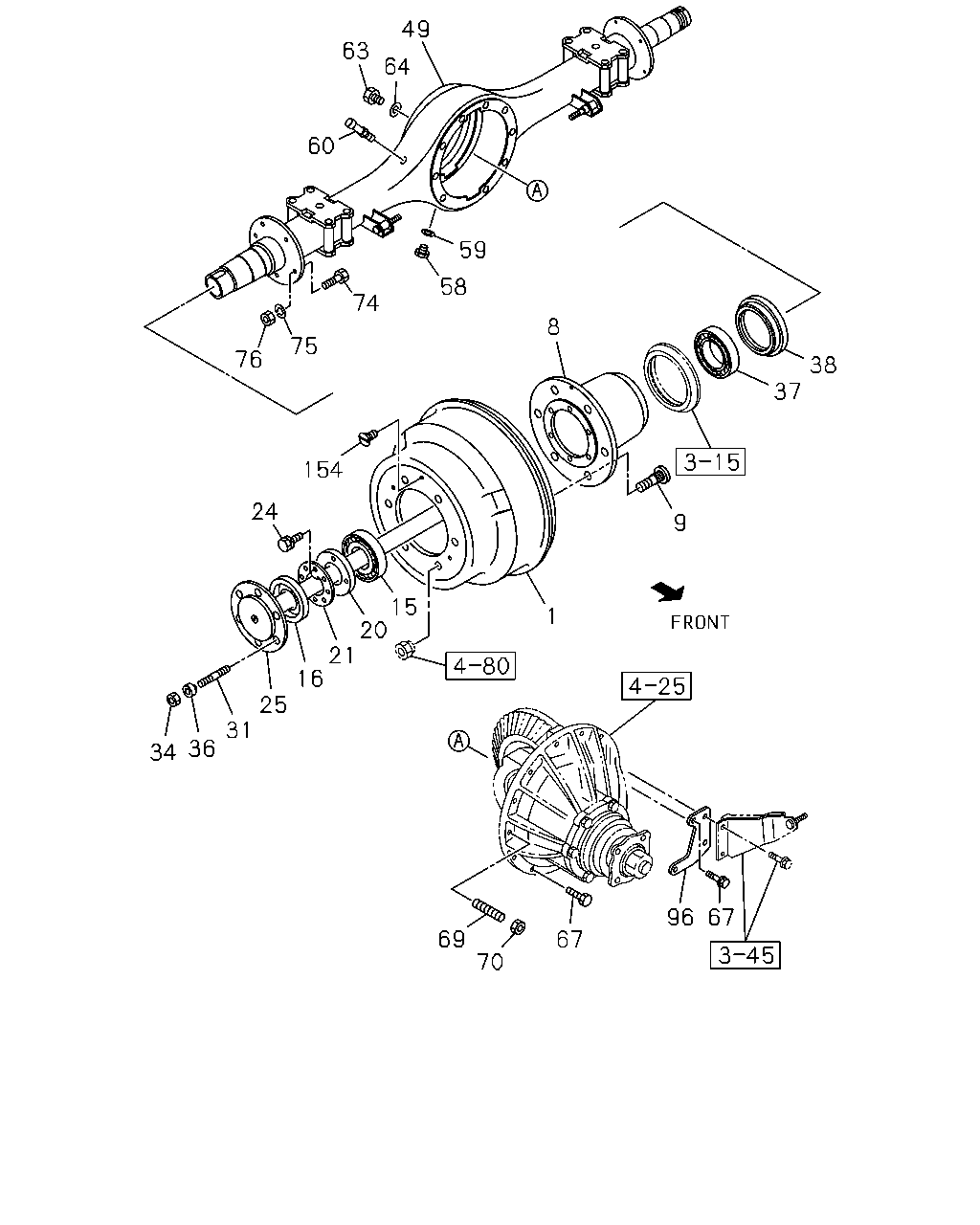

49 63 64 60 59 58 74 8 75 76 38 37 154 24 9 15 20 21 16 1 25 31 36 34 96 67 69 67 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	05.809 DRUM; BRK,RR EXC. 4 WHEEL DISC BRAKE<JF9>	8-97366-736-0	02	1	0712-1308	●
1	05.809 DRUM; BRK,RR EXC. 4 WHEEL DISC BRAKE<JF9>	8-98248-899-0	02	1	1309-	●
8	05.809 HUB; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>	8-97240-323-1	02	1	0712-	●
8	05.809 HUB; RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>	8-94335-927-4	02	1	0712-	●
8	05.809 HUB; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98022-462-0	02	1	0712-	●
8	05.809 HUB; RR AXLE	8-98022-462-0	02	1	0712-		●	●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> M18X46 LH THREAD	8-98028-533-1	05	1	0712-	●
9	05.812 PIN; WHEEL,RR AXLE M18X46 LH THREAD	8-98028-533-1	05	1	0712-		●	●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> M18X46 RH THREAD	8-98028-532-1	05	1	0712-	●
9	05.812 PIN; WHEEL,RR AXLE M18X46 RH THREAD	8-98028-532-1	05	1	0712-		●	●
9	05.812 PIN; WHEEL,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> M14X50 LH THREAD	9-42332-605-5	06	1	0712-	●
9	05.812 PIN; WHEEL,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> M14X50 RH THREAD	9-42331-605-5	06	1	0712-	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	0712-	●	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0712-1207	●	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0712-1106	●	●	●
20	05.830 NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0712-1303	●	●	●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●	●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	0712-	●	●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	0712-	●	●	●
25	05.420 SHAFT; AXLE,RR 4 WHEEL DISC BRAKE<JF9>	8-97032-496-0	02	1	0712-	●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	0712-		●	●
25	05.420 SHAFT; AXLE,RR EXC. 4 WHEEL DISC BRAKE<JF9>	8-94366-192-0	02	1	0712-	●
31	05.422 STUD; AXLE SHAFT TO HUB 4 WHEEL DISC BRAKE<JF9> M10X30 L=49	8-97359-803-0	16	1	0712-	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	0712-		●	●
31	05.422 STUD; AXLE SHAFT TO HUB EXC. 4 WHEEL DISC BRAKE<JF9> M10X30 L=49	8-97359-803-0	12	1	0712-	●
34	05.387 NUT; AXLE SHAFT 4 WHEEL DISC BRAKE<JF9> 04.085 M10 FLANGE	0-91180-210-0	16	1	0712-	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	0712-		●	●
34	05.387 NUT; AXLE SHAFT EXC. 4 WHEEL DISC BRAKE<JF9> 04.085 M10 FLANGE	0-91180-210-0	12	1	0712-	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT 4 WHEEL DISC BRAKE<JF9> ID=10.5	8-97360-004-0	16	1	0712-	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	0712-		●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT EXC. 4 WHEEL DISC BRAKE<JF9> ID=10.5	8-97360-004-0	12	1	0712-	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	0712-	●	●	●
38	05.822 SEAL; OIL,RR HUB,INNER 4 WHEEL DISC BRAKE<JF9> NOK	8-98037-080-0	02	1	0712-	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-98037-080-0	02	1	0712-		●	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> TKK	8-94336-314-1	02	1	0712-	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> NOK	8-94367-959-0	02	1	0712-	●
49	05.387 CASE; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>	8-98022-458-5	01	1	0712-	●
49	05.387 CASE; RR AXLE	8-98022-458-5	01	1	0712-		●
49	05.387 CASE; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98022-458-5	01	1	0712-			●
49	05.387 CASE; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>	8-97240-329-3	01	1	0712-	●
49	05.387 CASE; RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>	8-98061-921-0	01	1	0712-	●
49	05.387 CASE; RR AXLE 4 WHEEL DISC BRAKE<JF9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98022-457-5	01	1	0712-	●		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0712-	●	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	0712-	●	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0712-	●	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0712-	●	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0712-	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	0712-0909	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	0910-	●	●	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0712-	●	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	0712-	●	●	●
74	05.002 BOLT; RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9>	8-98007-877-0	12	1	0712-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9> 02.277 ID=10.2	0-91510-810-0	12	1	0712-	●
76	05.002 NUT; RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9> 00.833 M10	0-91110-510-0	12	1	0712-	●
96	04.730 BRACKET; LSPV,AXLE CASE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>	8-98030-956-0	01	1	0712-	●
96	04.730 BRACKET; LSPV,AXLE CASE 4 WHEEL DISC BRAKE<JF9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98030-957-0	01	1	0712-	●		●
154	04.665 SCREW; SLOTTED EXC. 4 WHEEL DISC BRAKE<JF9> 05.812 M6X16 CK-HEAD	0-36410-616-0	02	1	0712-1402	●

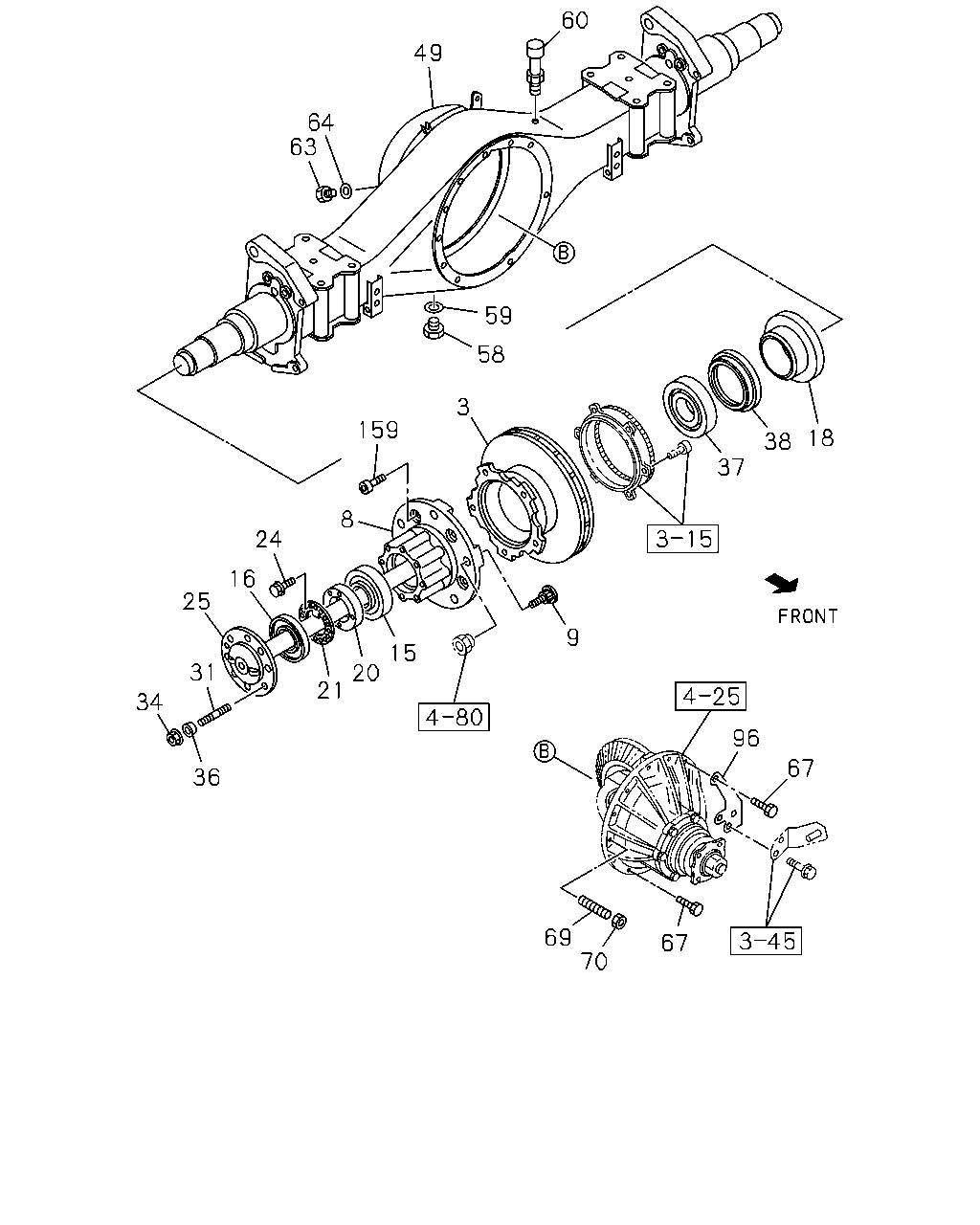

60 49 64 63 59 58 3 159 18 38 37 8 24 16 25 9 15 31 20 21 34 96 67 36 69 70 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	05.809 ROTOR; DISC BRK,RR 4 WHEEL DISC BRAKE<JF9>	8-98024-006-0	02	1	0712-1310	●
3	05.809 ROTOR; DISC BRK,RR	8-98024-006-0	02	1	0712-1310		●	●
3	05.809 ROTOR; DISC BRK,RR 4 WHEEL DISC BRAKE<JF9>	8-98248-897-0	02	1	1311-	●
3	05.809 ROTOR; DISC BRK,RR	8-98248-897-0	02	1	1311-		●	●
8	05.809 HUB; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>	8-97240-323-1	02	1	0712-	●
8	05.809 HUB; RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>	8-94335-927-4	02	1	0712-	●
8	05.809 HUB; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98022-462-0	02	1	0712-	●
8	05.809 HUB; RR AXLE	8-98022-462-0	02	1	0712-		●	●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> M18X46 LH THREAD	8-98028-533-1	05	1	0712-	●
9	05.812 PIN; WHEEL,RR AXLE M18X46 LH THREAD	8-98028-533-1	05	1	0712-		●	●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> M18X46 RH THREAD	8-98028-532-1	05	1	0712-	●
9	05.812 PIN; WHEEL,RR AXLE M18X46 RH THREAD	8-98028-532-1	05	1	0712-		●	●
9	05.812 PIN; WHEEL,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> M14X50 LH THREAD	9-42332-605-5	06	1	0712-	●
9	05.812 PIN; WHEEL,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> M14X50 RH THREAD	9-42331-605-5	06	1	0712-	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	0712-	●	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0712-1207	●	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0712-1106	●	●	●
18	05.822 RETAINER; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98032-676-0	02	1	0712-1308	●
18	05.822 RETAINER; RR AXLE	8-98032-676-0	02	1	0712-1308		●	●
18	05.822 RETAINER; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98232-252-0	02	1	1309-	●
18	05.822 RETAINER; RR AXLE	8-98232-252-0	02	1	1309-		●	●
20	05.830 NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0712-1303	●	●	●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●	●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	0712-	●	●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	0712-	●	●	●
25	05.420 SHAFT; AXLE,RR 4 WHEEL DISC BRAKE<JF9>	8-97032-496-0	02	1	0712-	●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	0712-		●	●
25	05.420 SHAFT; AXLE,RR EXC. 4 WHEEL DISC BRAKE<JF9>	8-94366-192-0	02	1	0712-	●
31	05.422 STUD; AXLE SHAFT TO HUB 4 WHEEL DISC BRAKE<JF9> M10X30 L=49	8-97359-803-0	16	1	0712-	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	0712-		●	●
31	05.422 STUD; AXLE SHAFT TO HUB EXC. 4 WHEEL DISC BRAKE<JF9> M10X30 L=49	8-97359-803-0	12	1	0712-	●
34	05.387 NUT; AXLE SHAFT 4 WHEEL DISC BRAKE<JF9> 04.085 M10 FLANGE	0-91180-210-0	16	1	0712-	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	0712-		●	●
34	05.387 NUT; AXLE SHAFT EXC. 4 WHEEL DISC BRAKE<JF9> 04.085 M10 FLANGE	0-91180-210-0	12	1	0712-	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT 4 WHEEL DISC BRAKE<JF9> ID=10.5	8-97360-004-0	16	1	0712-	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	0712-		●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT EXC. 4 WHEEL DISC BRAKE<JF9> ID=10.5	8-97360-004-0	12	1	0712-	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	0712-	●	●	●
38	05.822 SEAL; OIL,RR HUB,INNER 4 WHEEL DISC BRAKE<JF9> NOK	8-98037-080-0	02	1	0712-	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-98037-080-0	02	1	0712-		●	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> TKK	8-94336-314-1	02	1	0712-	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> NOK	8-94367-959-0	02	1	0712-	●
49	05.387 CASE; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>	8-98022-458-5	01	1	0712-	●
49	05.387 CASE; RR AXLE	8-98022-458-5	01	1	0712-		●
49	05.387 CASE; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98022-458-5	01	1	0712-			●
49	05.387 CASE; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>	8-97240-329-3	01	1	0712-	●
49	05.387 CASE; RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>	8-98061-921-0	01	1	0712-	●
49	05.387 CASE; RR AXLE 4 WHEEL DISC BRAKE<JF9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98022-457-5	01	1	0712-	●		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0712-	●	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	0712-	●	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0712-	●	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0712-	●	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0712-	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	0712-0909	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	0910-	●	●	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0712-	●	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	0712-	●	●	●
96	04.730 BRACKET; LSPV,AXLE CASE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>	8-98030-956-0	01	1	0712-	●
96	04.730 BRACKET; LSPV,AXLE CASE 4 WHEEL DISC BRAKE<JF9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98030-957-0	01	1	0712-	●		●
159	05.822 BOLT; ROTOR TO HUB 4 WHEEL DISC BRAKE<JF9> 05.812	8-98021-780-0	10	1	0712-	●
159	05.822 BOLT; ROTOR TO HUB 05.812	8-98021-780-0	10	1	0712-		●	●
