2-37A — MANUAL TRANSMISSION CONT; MISSION SIDE (#5353) — 298 parça

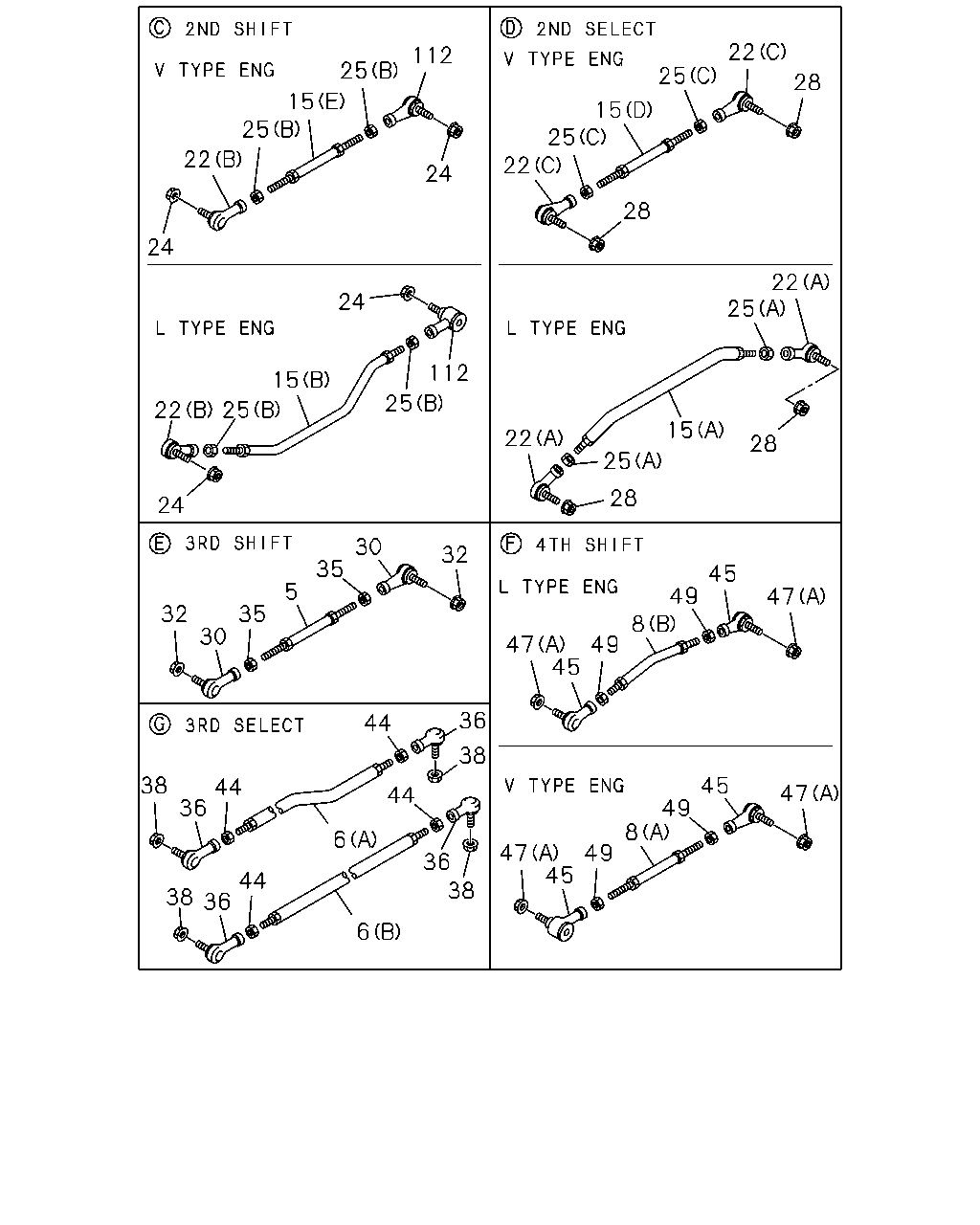

çizim 6187
22 112 25 25 28 15 25 15 25 22 22 24 28 24 22 25 24 112 15 25 15 22 28 25 28 24 30 32 35 45 5 49 8 47 32 35 30 47 45 49 36 44 38 38 45 44 36 47 44 49 8 6 47 45 49 36 44 36 38 38 6 25 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 ROD; LINK,3RD SHIFT
6WA1 TC-S(56L) L=1110 		1-33652-623-0 01 1 9603-9901 ●
5 ROD; LINK,3RD SHIFT
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=1110 		1-33652-623-0 01 1 9902- ●
5 ROD; LINK,3RD SHIFT
CXZ(CXZ***) MIXER TRUCK<RA2> L=1170 		1-33652-547-0 01 1 9902-9904 ●
5 ROD; LINK,3RD SHIFT
6WA1 TC-C(55L),6WG1 TC-R(75L) MIXER TRUCK<RA2> L=1170 		1-33652-547-0 01 1 9905-9906 ● ●
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> L=1170 		1-33652-547-0 01 1 9907- ● ● ●
5 ROD; LINK,3RD SHIFT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) L=855 		1-33652-321-0 01 1 9603-9901 ●
5 ROD; LINK,3RD SHIFT
8PE1S(59L),10PE1S(60L) L=855 		1-33652-321-0 01 1 9603-9901 ● ● ● ●
5 ROD; LINK,3RD SHIFT
CXZ(CXZ***) CAB UP +110MM<TGG> L=1120 		1-33652-603-0 01 1 9902-9904 ●
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> L=1120 		1-33652-603-0 01 1 9905- ● ● ●
5 ROD; LINK,3RD SHIFT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) L=855 		1-33652-321-0 01 1 9905- ●
5 ROD; LINK,3RD SHIFT
8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) L=855 		1-33652-321-0 01 1 9905- ● ● ● ●
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> MIXER TRUCK<RA2> CAB UP +110MM<TGG> L=1190 		1-33652-922-0 01 1 9907- ● ● ●
6 ROD; LINK,3RD SELECT
6WA1 TC-S(56L) (A) L=1585 		1-33652-660-0 01 1 9603-9901 ●
6 ROD; LINK,3RD SELECT
CXZ(CXZ***) EXC. MIXER TRUCK<RA2>,CLUTCH 15.5" TWIN PLATESTRAP DRIVE(TBV),CAB UP +110MM<TGG> (A) L=1585 		1-33652-660-0 01 1 9902-9904 ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>,CLUTCH 15.5" TWIN PLATESTRAP DRIVE(TBV),CAB UP +110MM<TGG> (A) L=1585 		1-33652-660-0 01 1 9905- ● ●
6 ROD; LINK,3RD SELECT
CXZ(CXZ***) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (A) L=1624 		1-33652-637-0 01 1 9902-9904 ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (A) L=1624 		1-33652-637-0 01 1 9905- ● ●
6 ROD; LINK,3RD SELECT
CXZ(CXZ***) MIXER TRUCK<RA2> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=1654 		1-33652-770-0 01 1 9902-9904 ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> MIXER TRUCK<RA2> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=1654 		1-33652-770-0 01 1 9905-9906 ● ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> MIXER TRUCK<RA2> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ,CAB UP +110MM<TGG> (A) L=1654 		1-33652-770-0 01 1 9907- ● ●
6 ROD; LINK,3RD SELECT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> SHIFT CONTROL ASSISTER<WX8> (A) L=1308 		1-33652-708-0 01 1 9603-9807 ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> SHIFT CONTROL ASSISTER<WX8> (A) L=1308 		1-33652-708-0 01 1 9603-9807 ●
6 ROD; LINK,3RD SELECT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> SHIFT CONTROL ASSISTER<WX8> (A) L=1384 		1-33652-819-0 01 1 9808-9901 ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> SHIFT CONTROL ASSISTER<WX8> (A) L=1384 		1-33652-819-0 01 1 9808-9901 ●
6 ROD; LINK,3RD SELECT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. SHIFT CONTROL ASSISTER<WX8> (A) L=1389 		1-33652-758-0 01 1 9603-9901 ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. SHIFT CONTROL ASSISTER<WX8> (A) L=1389 		1-33652-758-0 01 1 9603-9901 ●
6 ROD; LINK,3RD SELECT
CXZ(CXZ***) CAB UP +110MM<TGG> (A) L=1635 		1-33652-769-0 01 1 9902-9904 ●
6 ROD; LINK,3RD SELECT
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> (A) L=1635 		1-33652-769-0 01 1 9905-9909 ● ● ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> (A) L=1635 		1-33652-769-0 01 1 9910- ● ●
6 ROD; LINK,3RD SELECT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> (B) L=1409 		1-33652-444-0 01 1 9603-9901 ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> (B) L=1409 		1-33652-444-0 01 1 9603-9901 ●
6 ROD; LINK,3RD SELECT
CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> EXC. SHIFT CONTROL ASSISTER<WX8> (B) L=1409 		1-33652-444-0 01 1 9603-9901 ●
6 ROD; LINK,3RD SELECT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) SHIFT CONTROL ASSISTER<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) L=1400 		1-33652-735-0 01 1 9603-9807 ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L) SHIFT CONTROL ASSISTER<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) L=1400 		1-33652-735-0 01 1 9603-9807 ●
6 ROD; LINK,3RD SELECT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) SHIFT CONTROL ASSISTER<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) L=1403 		1-33652-824-1 01 1 9808-9901 ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L) SHIFT CONTROL ASSISTER<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) L=1403 		1-33652-824-1 01 1 9808-9901 ●
6 ROD; LINK,3RD SELECT
CXZ(CXZ***) CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2>,CLUTCH 15.5" TWIN PLATESTRAP DRIVE(TBV) (B) L=1656 		1-33671-483-0 01 1 9902-9904 ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2>,CLUTCH 15.5" TWIN PLATESTRAP DRIVE(TBV) (B) L=1656 		1-33671-483-0 01 1 9905- ● ●
6 ROD; LINK,3RD SELECT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. SHIFT CONTROL ASSISTER<WX8> (A) L=1389 		1-33652-758-0 01 1 9905- ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. SHIFT CONTROL ASSISTER<WX8> (A) L=1389 		1-33652-758-0 01 1 9905- ●
6 ROD; LINK,3RD SELECT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) FRAME ENG MTG SEPARATE TYPE<SGM> SHIFT CONTROL ASSISTER<WX8> (A) L=1384 		1-33652-819-0 01 1 9905- ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) FRAME ENG MTG SEPARATE TYPE<SGM> SHIFT CONTROL ASSISTER<WX8> (A) L=1384 		1-33652-819-0 01 1 9905- ●
6 ROD; LINK,3RD SELECT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> (B) L=1409 		1-33652-444-0 01 1 9905- ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> (B) L=1409 		1-33652-444-0 01 1 9905- ●
6 ROD; LINK,3RD SELECT
CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> (B) L=1409 		1-33652-444-0 01 1 9905- ● ● ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) SHIFT CONTROL ASSISTER<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=1403 		1-33652-824-1 01 1 9905- ● ● ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> MIXER TRUCK<RA2> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CAB UP +110MM<TGG> (A) L=1696 		1-33652-923-0 01 1 9907- ● ●
6 ROD; LINK,3RD SELECT
EXC. FIRE TRUCK<RA9>,FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> (B) L=1255 		1-33652-330-0 01 1 9603-9901 ● ● ●
6 ROD; LINK,3RD SELECT
SHIFT CONTROL ASSISTER<WX8> EXC. FIRE TRUCK<RA9>,FRAME ENG MTG SEPARATE TYPE<SGM> (B) L=1245 		1-33652-673-0 01 1 9603-9807 ● ● ●
6 ROD; LINK,3RD SELECT
SHIFT CONTROL ASSISTER<WX8> EXC. FIRE TRUCK<RA9>,FRAME ENG MTG SEPARATE TYPE<SGM> (A) L=1246 		1-33652-822-0 01 1 9808-9901 ● ● ●
6 ROD; LINK,3RD SELECT
CXZ(CXZ***) CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2>,CLUTCH 15.5" TWIN PLATESTRAP DRIVE(TBV) (B) L=1594 		1-33652-881-0 01 1 9902-9904 ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2>,CLUTCH 15.5" TWIN PLATESTRAP DRIVE(TBV) (B) L=1594 		1-33652-881-0 01 1 9905- ● ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> (B) L=1255 		1-33652-330-0 01 1 9905- ● ● ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) SHIFT CONTROL ASSISTER<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) L=1246 		1-33652-822-0 01 1 9905- ● ● ●
6 ROD; LINK,3RD SELECT
CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> SHIFT CONTROL ASSISTER<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) L=1395 		1-33652-594-0 01 1 9905- ● ● ●
6 ROD; LINK,3RD SELECT
CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> SHIFT CONTROL ASSISTER<WX8> (B) L=1395 		1-33652-594-0 01 1 9603-9901 ●
6 ROD; LINK,3RD SELECT
FIRE TRUCK<RA9> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU) (A) L=1697 		1-33671-609-0 01 1 9909- ●
8 ROD; LINK,4TH SHIFT
6WA1 TC-S(56L) (A) L=330 		1-33652-653-1 01 1 9603-9901 ●
8 ROD; LINK,4TH SHIFT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) SHIFT CONTROL ASSISTER<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) L=330 		1-33652-653-1 01 1 9603-9901 ●
8 ROD; LINK,4TH SHIFT
8PE1S(59L),10PE1S(60L) SHIFT CONTROL ASSISTER<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) L=330 		1-33652-653-1 01 1 9603-9901 ●
8 ROD; LINK,4TH SHIFT
CXZ(CXZ***) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=330 		1-33652-653-1 01 1 9902-9904 ●
8 ROD; LINK,4TH SHIFT
6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=330 		1-33652-653-1 01 1 9905- ● ●
8 ROD; LINK,4TH SHIFT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=330 		1-33652-653-1 01 1 9905- ●
8 ROD; LINK,4TH SHIFT
8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=330 		1-33652-653-1 01 1 9905- ●
8 ROD; LINK,4TH SHIFT
CXZ(CXZ***) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=370 		1-33652-654-1 01 1 9902-9904 ●
8 ROD; LINK,4TH SHIFT
6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=370 		1-33652-654-1 01 1 9905- ● ●
8 ROD; LINK,4TH SHIFT
CXZ(CXZ***) 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ,SHIFT CONTROL ASSISTER<WX8> (B) L=494 		1-33652-664-1 01 1 9905- ●
8 ROD; LINK,4TH SHIFT
8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ,SHIFT CONTROL ASSISTER<WX8> (B) L=494 		1-33652-664-1 01 1 9905- ●
8 ROD; LINK,4TH SHIFT
CXZ(CXZ***) 8PE1S(59L) SHIFT CONTROL ASSISTER<WX8> FRAME ENG MTG SEPARATE TYPE<SGM> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) L=324 		1-33652-643-1 01 1 9905- ●
8 ROD; LINK,4TH SHIFT
8PE1S(59L) SHIFT CONTROL ASSISTER<WX8> FRAME ENG MTG SEPARATE TYPE<SGM> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) L=324 		1-33652-643-1 01 1 9905- ●
8 ROD; LINK,4TH SHIFT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> SHIFT CONTROL ASSISTER<WX8> (B) L=324 		1-33652-643-1 01 1 9603-9901 ●
8 ROD; LINK,4TH SHIFT
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> SHIFT CONTROL ASSISTER<WX8> (B) L=324 		1-33652-643-1 01 1 9603-9901 ●
8 ROD; LINK,4TH SHIFT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. SHIFT CONTROL ASSISTER<WX8> (B) L=494 		1-33652-664-1 01 1 9603-9901 ●
8 ROD; LINK,4TH SHIFT
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. SHIFT CONTROL ASSISTER<WX8> (B) L=494 		1-33652-664-1 01 1 9603-9901 ●
8 ROD; LINK,4TH SHIFT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> (A) L=490 		1-33652-749-0 01 1 9603-9901 ●
8 ROD; LINK,4TH SHIFT
8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> (A) L=490 		1-33652-749-0 01 1 9603-9901 ●
8 ROD; LINK,4TH SHIFT
CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> EXC. SHIFT CONTROL ASSISTER<WX8> (A) L=490 		1-33652-749-0 01 1 9603-9901 ●
8 ROD; LINK,4TH SHIFT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),SHIFT CONTROL ASSISTER<WX8> (A) L=490 		1-33652-749-0 01 1 9905- ●
8 ROD; LINK,4TH SHIFT
8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),SHIFT CONTROL ASSISTER<WX8> (A) L=490 		1-33652-749-0 01 1 9905- ●
8 ROD; LINK,4TH SHIFT
10PE1S(60L) FIRE TRUCK<RA9> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),SHIFT CONTROL ASSISTER<WX8> (A) L=490 		1-33652-749-0 01 1 9905- ●
8 ROD; LINK,4TH SHIFT
EXC. FIRE TRUCK<RA9>,FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> (A) L=337 		1-33652-767-0 01 1 9603-9901 ● ● ●
8 ROD; LINK,4TH SHIFT
EXC. FIRE TRUCK<RA9>,FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> (A) L=337 		1-33652-767-0 01 1 9905- ● ● ●
8 ROD; LINK,4TH SHIFT
SHIFT CONTROL ASSISTER<WX8> EXC. FIRE TRUCK<RA9>,FRAME ENG MTG SEPARATE TYPE<SGM> (A) L=165 		1-09765-249-1 01 1 9603-9901 ● ● ●
8 ROD; LINK,4TH SHIFT
SHIFT CONTROL ASSISTER<WX8> EXC. FIRE TRUCK<RA9>,FRAME ENG MTG SEPARATE TYPE<SGM> (A) L=165 		1-09765-249-1 01 1 9905- ● ● ●
8 ROD; LINK,4TH SHIFT
CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> SHIFT CONTROL ASSISTER<WX8> (A) L=320 		1-33652-648-1 01 1 9603-9901 ●
8 ROD; LINK,4TH SHIFT
CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> SHIFT CONTROL ASSISTER<WX8> (A) L=320 		1-33652-648-1 01 1 9905- ●
8 ROD; LINK,4TH SHIFT
FIRE TRUCK<RA9> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU) SHIFT CONTROL ASSISTER<WX8> (B) L=430 		1-33671-610-0 01 1 9909- ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (A) 2ND SELECT L=438 		1-33652-682-0 01 1 9603-9706 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (A) 2ND SELECT L=438 		1-33652-682-0 01 1 9707-9711 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (A) 2ND SELECT L=428 		1-33652-781-0 01 1 9712-9901 ●
15 ROD; LINK 1ST SHIFT
CXZ(CXZ***) EXC. CAB UP +110MM<TGG> (A) 2ND SELECT L=428 		1-33652-781-1 01 1 9902-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) 2ND SELECT L=428 		1-33652-781-1 01 1 9905- ● ● ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) 2ND SHIFT L=497 		1-33652-716-0 01 1 9603-9706 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) 2ND SHIFT L=497 		1-33652-716-0 01 1 9707-9711 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9712-9901 ●
15 ROD; LINK 1ST SHIFT
CXZ(CXZ***) EXC. CAB UP +110MM<TGG> (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9902-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9905- ● ● ●
15 ROD; LINK 1ST SHIFT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) (D) 2ND SELECT L=440 		1-33652-672-0 01 1 9603-9901 ●
15 ROD; LINK 1ST SHIFT
8PE1S(59L),10PE1S(60L) (D) 2ND SELECT L=440 		1-33652-672-0 01 1 9603-9901 ● ● ● ●
15 ROD; LINK 1ST SHIFT
CXZ(CXZ***) CAB UP +110MM<TGG> (D) 2ND SELECT L=474 		1-33652-803-0 01 1 9902-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> (D) 2ND SELECT L=474 		1-33652-803-0 01 1 9905- ● ● ●
15 ROD; LINK 1ST SHIFT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) (E) 2ND SHIFT L=490 		1-33652-700-0 01 1 9603-9901 ●
15 ROD; LINK 1ST SHIFT
8PE1S(59L),10PE1S(60L) (E) 2ND SHIFT L=490 		1-33652-700-0 01 1 9603-9901 ● ● ● ●
15 ROD; LINK 1ST SHIFT
CXZ(CXZ***) CAB UP +110MM<TGG> (E) 2ND SHIFT L=423 		1-33652-804-1 01 1 9902-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> (E) 2ND SHIFT L=423 		1-33652-804-1 01 1 9905- ● ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (D) 2ND SELECT L=440 		1-33652-672-0 01 1 9905- ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (E) 2ND SHIFT L=490 		1-33652-700-0 01 1 9905- ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
(C) 1ST SELECT L=556 		1-33652-744-0 01 1 9603-9901 ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
CXZ(CXZ***) (C) 1ST SELECT L=556 		1-33652-744-0 01 1 9902-9904 ●
15 ROD; LINK 1ST SHIFT
(C) 1ST SELECT L=556 		1-33652-744-0 01 1 9905- ● ● ● ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
6WA1 TC-S(56L) (A) 2ND SELECT 		1-09760-109-0 02 1 9603-9706 ●
22 JOINT; BALL,SCREW,LINK ROD
6WA1 TC-S(56L) (A) 2ND SELECT 		1-09760-109-0 02 1 9707-9901 ●
22 JOINT; BALL,SCREW,LINK ROD
CXZ(CXZ***) (A) 2ND SELECT 		1-09760-109-0 02 1 9902-9904 ●
22 JOINT; BALL,SCREW,LINK ROD
L TYPE ENG<90L> (A) 2ND SELECT 		1-09760-109-0 02 1 9905- ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) (C) 2ND SELECT 		1-09760-108-0 02 1 9603-9901 ●
22 JOINT; BALL,SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) (C) 2ND SELECT 		1-09760-108-0 02 1 9603-9901 ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
V TYPE ENG<91L> (C) 2ND SELECT 		1-09760-108-0 02 1 9905- ● ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
(B) 2ND SHIFT L=64.5 		1-09760-111-0 01 1 9603-9710 ● ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
(B) 2ND SHIFT 		1-09760-125-0 01 1 9711-9901 ● ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
CXZ(CXZ***) (B) 2ND SHIFT 		1-09760-125-0 01 1 9902-9904 ●
22 JOINT; BALL,SCREW,LINK ROD
(B) 2ND SHIFT 		1-09760-125-0 01 1 9905- ● ● ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
2ND SHIFT M10 FLANGE 		1-09440-050-0 02 1 9603-9708 ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
2ND SHIFT M10 FLANGE 		1-09440-050-0 01 1 9709-9710 ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
2ND SHIFT M10 FLANGE 		1-09440-056-0 01 1 9709-9710 ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
2ND SHIFT M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
2ND SHIFT M10 FLANGE 		1-09440-061-0 02 1 9803-9901 ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
CXZ(CXZ***) 2ND SHIFT M10 FLANGE 		1-09440-061-0 02 1 9902-9904 ●
24 NUT; 2ND LINK ROD,SHIFT
2ND SHIFT M10 FLANGE 		1-09440-061-0 02 1 9905- ● ● ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) (A) 2ND SELECT M10 		9-09111-410-0 02 1 9603-9706 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) (A) 2ND SELECT M10 		9-09111-410-0 02 1 9707-9901 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CXZ(CXZ***) (A) 2ND SELECT M10 		9-09111-410-0 02 1 9902-9904 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (A) 2ND SELECT M10 		9-09111-410-0 02 1 9905- ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) (C) 2ND SELECT M8 		9-09111-408-0 02 1 9603-9901 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) (C) 2ND SELECT M8 		9-09111-408-0 02 1 9603-9901 ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (C) 2ND SELECT M8 		9-09111-408-0 02 1 9905- ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) 2ND SHIFT M12 		9-99111-412-0 02 1 9603-9901 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CXZ(CXZ***) (B) 2ND SHIFT M12 		9-99111-412-0 02 1 9902-9904 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) 2ND SHIFT M12 		9-99111-412-0 02 1 9905- ● ● ● ● ● ● ●
28 NUT; 2ND LINK ROD
2ND SELECT M8 FLANGE 		1-09440-049-0 02 1 9603-9804 ● ● ● ● ●
28 NUT; 2ND LINK ROD
2ND SELECT M8 FLANGE 		1-09440-062-1 02 1 9805-9901 ● ● ● ● ●
28 NUT; 2ND LINK ROD
CXZ(CXZ***) 2ND SELECT M8 FLANGE 		1-09440-062-1 02 1 9902-9904 ●
28 NUT; 2ND LINK ROD
2ND SELECT M8 FLANGE 		1-09440-062-1 02 1 9905- ● ● ● ● ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
3RD SHIFT 		1-09760-110-0 02 1 9603-9710 ● ● ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
3RD SHIFT 		1-09760-124-0 02 1 9711-9901 ● ● ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
CXZ(CXZ***) 3RD SHIFT 		1-09760-124-0 02 1 9902-9904 ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
3RD SHIFT 		1-09760-124-0 02 1 9905-9909 ● ● ● ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
3RD SHIFT 		1-09760-124-0 02 1 9910- ● ● ● ● ● ● ●
32 NUT; 3RD LINK ROD
3RD SHIFT M10 FLANGE 		1-09440-050-0 02 1 9603-9710 ● ● ● ● ●
32 NUT; 3RD LINK ROD
3RD SHIFT M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ● ● ● ● ●
32 NUT; 3RD LINK ROD
3RD SHIFT M10 FLANGE 		1-09440-061-0 02 1 9803-9901 ● ● ● ● ●
32 NUT; 3RD LINK ROD
CXZ(CXZ***) 3RD SHIFT M10 FLANGE 		1-09440-061-0 02 1 9902-9904 ●
32 NUT; 3RD LINK ROD
3RD SHIFT M10 FLANGE 		1-09440-061-0 02 1 9905- ● ● ● ● ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
3RD SHIFT M10 		9-09111-410-0 02 1 9603-9901 ● ● ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
CXZ(CXZ***) 3RD SHIFT M10 		9-09111-410-0 02 1 9902-9904 ●
35 NUT; LK,RIGHT SCREW,LINK ROD
3RD SHIFT M10 		9-09111-410-0 02 1 9905-9909 ● ● ● ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
3RD SHIFT M10 		9-09111-410-0 02 1 9910- ● ● ● ● ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) 3RD SELECT 		1-09760-109-0 02 1 9603-9807 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> 3RD SELECT 		1-09760-109-0 02 1 9603-9807 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> 3RD SELECT 		1-09760-109-0 02 1 9603-9807 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) 3RD SELECT 		1-09760-109-0 02 1 9808-9901 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> 3RD SELECT 		1-09760-109-0 02 1 9808-9901 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> 3RD SELECT 		1-09760-109-0 02 1 9808-9901 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
CXZ(CXZ***) 3RD SELECT 		1-09760-109-0 02 1 9902-9904 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
3RD SELECT 		1-09760-109-0 02 1 9905-9906 ● ● ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 3RD SELECT 		1-09760-109-0 02 1 9905-9906 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
3RD SELECT 		1-09760-109-0 02 1 9907- ● ● ● ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 3RD SELECT 		1-09760-109-0 02 1 9907- ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
CXZ(CXZ***) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 3RD SELECT 		1-09760-108-0 02 1 9603-9807 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 3RD SELECT 		1-09760-108-0 02 1 9603-9807 ● ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
CXZ(CXZ***) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 3RD SELECT 		1-09760-108-0 02 1 9808-9901 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 3RD SELECT 		1-09760-108-0 02 1 9808-9901 ● ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
10PE1S(60L) FIRE TRUCK<RA9> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 3RD SELECT 		1-09760-108-0 02 1 9905- ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
CXZ(CXZ***) 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1 TC-R(93L) 3RD SELECT 		1-09760-109-0 01 1 0001- ● ●
38 NUT; 3RD LINK ROD
3RD SELECT M8 FLANGE 		1-09440-049-0 02 1 9603-9804 ● ● ● ● ●
38 NUT; 3RD LINK ROD
3RD SELECT M8 FLANGE 		1-09440-062-0 02 1 9805-9807 ● ● ● ● ●
38 NUT; 3RD LINK ROD
3RD SELECT M8 FLANGE 		1-09440-062-1 02 1 9808-9901 ● ● ● ● ●
38 NUT; 3RD LINK ROD
CXZ(CXZ***) 3RD SELECT M8 FLANGE 		1-09440-062-1 02 1 9902-9904 ●
38 NUT; 3RD LINK ROD
3RD SELECT M8 FLANGE 		1-09440-062-1 02 1 9905-9912 ● ● ● ● ● ●
38 NUT; 3RD LINK ROD
3RD SELECT M8 FLANGE 		1-09440-062-1 02 1 0001- ● ● ● ● ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) 3RD SELECT M10 		9-09111-410-0 02 1 9603-9807 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> 3RD SELECT M10 		9-09111-410-0 02 1 9603-9807 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> 3RD SELECT M10 		9-09111-410-0 02 1 9603-9807 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) 3RD SELECT M10 		9-09111-410-0 02 1 9808-9901 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> 3RD SELECT M10 		9-09111-410-0 02 1 9808-9901 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> 3RD SELECT M10 		9-09111-410-0 02 1 9808-9901 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
CXZ(CXZ***) 3RD SELECT M10 		9-09111-410-0 02 1 9902-9904 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
3RD SELECT M10 		9-09111-410-0 02 1 9905-9906 ● ● ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 3RD SELECT M10 		9-09111-410-0 02 1 9905-9906 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
3RD SELECT M10 		9-09111-410-0 02 1 9907- ● ● ● ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 3RD SELECT M10 		9-09111-410-0 02 1 9907- ●
44 NUT; LK,RIGHT SCREW,LINK ROD
CXZ(CXZ***) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 3RD SELECT M8 		9-09111-408-0 02 1 9603-9807 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 3RD SELECT M8 		9-09111-408-0 02 1 9603-9807 ● ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
CXZ(CXZ***) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 3RD SELECT M8 		9-09111-408-0 02 1 9808-9901 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 3RD SELECT M8 		9-09111-408-0 02 1 9808-9901 ● ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
10PE1S(60L) FIRE TRUCK<RA9> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 3RD SELECT M8 		9-09111-408-0 02 1 9905- ●
44 NUT; LK,RIGHT SCREW,LINK ROD
CXZ(CXZ***) 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1 TC-R(93L) 3RD SELECT M10 		9-09111-410-0 01 1 0001- ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
4TH SHIFT 		1-09760-117-0 02 1 9603-9710 ● ● ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
4TH SHIFT 		1-09760-125-0 02 1 9711-9901 ● ● ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
CXZ(CXZ***) 4TH SHIFT 		1-09760-125-0 02 1 9902-9904 ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
4TH SHIFT 		1-09760-125-0 02 1 9905- ● ● ● ● ● ● ●
47 NUT; 4TH LINK ROD
(A) 4TH SHIFT M10 FLANGE 		1-09440-050-0 02 1 9603-9710 ● ● ● ● ●
47 NUT; 4TH LINK ROD
(A) 4TH SHIFT M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ● ● ● ● ●
47 NUT; 4TH LINK ROD
(A) 4TH SHIFT M10 FLANGE 		1-09440-061-0 02 1 9803-9901 ● ● ● ● ●
47 NUT; 4TH LINK ROD
CXZ(CXZ***) (A) 4TH SHIFT M10 FLANGE 		1-09440-061-0 02 1 9902-9904 ●
47 NUT; 4TH LINK ROD
(A) 4TH SHIFT M10 FLANGE 		1-09440-061-0 02 1 9905- ● ● ● ● ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
4TH SHIFT M12 		9-99111-412-0 02 1 9603-9901 ● ● ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
CXZ(CXZ***) 4TH SHIFT M12 		9-99111-412-0 02 1 9902-9904 ●
49 NUT; LK,RIGHT SCREW,LINK ROD
4TH SHIFT M12 		9-99111-412-0 02 1 9905- ● ● ● ● ● ● ●
112 JOINT; RUBBER
1ST & 2ND SHIFT 		1-33670-413-1 02 1 9603-9706 ● ● ● ● ●
112 JOINT; RUBBER
1ST & 2ND SHIFT 		1-33670-413-1 01 1 9707-9901 ● ● ● ● ●
112 JOINT; RUBBER
1ST & 2ND SHIFT 		1-33670-413-1 01 1 9707-9901 ● ● ● ● ●
112 JOINT; RUBBER
1ST & 2ND SHIFT 		1-33670-413-1 01 1 9902-9904 ●
112 JOINT; RUBBER
1ST & 2ND SHIFT 		1-33670-413-1 01 1 9902-9904 ●
112 JOINT; RUBBER
1ST & 2ND SHIFT 		1-33670-413-1 01 1 9905- ● ● ● ● ● ● ●
112 JOINT; RUBBER
1ST & 2ND SHIFT 		1-33670-413-1 01 1 9905- ● ● ● ● ● ● ●
çizim 38915
57 39 58 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
39 GASKET; FLEX HOSE
CXM(CXM***) ID=11 OD=18 		9-09572-510-0 02 1 9603-9706 ●
39 GASKET; FLEX HOSE
CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> ID=11 OD=18 		9-09572-510-0 02 1 9603-9706 ●
39 GASKET; FLEX HOSE
SHIFT CONTROL ASSISTER<WX8> ID=11 OD=18 		9-09572-510-0 02 1 9603-9706 ● ● ● ●
39 GASKET; FLEX HOSE
SHIFT CONTROL ASSISTER<WX8> ID=11 OD=18 		9-09572-510-0 02 1 9707-9901 ● ● ● ● ●
39 GASKET; FLEX HOSE
CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> ID=11 OD=18 		9-09572-510-0 02 1 9902-9904 ●
39 GASKET; FLEX HOSE
SHIFT CONTROL ASSISTER<WX8> ID=11 OD=18 		9-09572-510-0 02 1 9905-9908 ● ● ● ● ● ●
39 GASKET; FLEX HOSE
SHIFT CONTROL ASSISTER<WX8> ID=11 OD=18 		9-09572-510-0 02 1 9909- ● ● ● ● ● ● ●
57 NIPPLE; POWER ASSISTOR
CXM(CXM***) M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9603-9901 ●
57 NIPPLE; POWER ASSISTOR
CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9603-9901 ●
57 NIPPLE; POWER ASSISTOR
SHIFT CONTROL ASSISTER<WX8> M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9603-9901 ● ● ● ●
57 NIPPLE; POWER ASSISTOR
CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9902-9904 ●
57 NIPPLE; POWER ASSISTOR
SHIFT CONTROL ASSISTER<WX8> M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9905- ● ● ● ● ● ●
57 NIPPLE; POWER ASSISTOR
SHIFT CONTROL ASSISTER<WX8> M20 & PT1/4 		9-09902-386-0 01 1 9910- ●
58 HOSE; FLEX,POWER ASSISTOR
SHIFT CONTROL ASSISTER<WX8> L=360 		0-07150-360-0 01 1 9603-9901 ● ●
58 HOSE; FLEX,POWER ASSISTOR
CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> L=360 		0-07150-360-0 01 1 9902-9904 ●
58 HOSE; FLEX,POWER ASSISTOR
SHIFT CONTROL ASSISTER<WX8> L=360 		0-07150-360-0 01 1 9905- ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
SHIFT CONTROL ASSISTER<WX8> L=230 		0-07150-230-0 01 1 9603-9901 ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
8PE1S(59L),10PE1S(60L),10PE1N(61L) SHIFT CONTROL ASSISTER<WX8> L=230 		0-07150-230-0 01 1 9905- ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> SHIFT CONTROL ASSISTER<WX8> L=270 		0-07150-270-0 01 1 9707-9901 ●
58 HOSE; FLEX,POWER ASSISTOR
CXZ&LONG CHASSIS(CXZ6MF) 10PE1S(60L) SHIFT CONTROL ASSISTER<WX8> FIRE TRUCK<RA9> L=270 		0-07150-270-0 01 1 9905- ●
58 HOSE; FLEX,POWER ASSISTOR
CXZ&LONG CHASSIS(CXZ6MF) SHIFT CONTROL ASSISTER<WX8> FIRE TRUCK<RA9> L=270 		0-07150-270-0 01 1 9905- ●
58 HOSE; FLEX,POWER ASSISTOR
SHIFT CONTROL ASSISTER<WX8> FIRE TRUCK<RA9> L=420 		0-07150-420-0 01 1 9909- ●

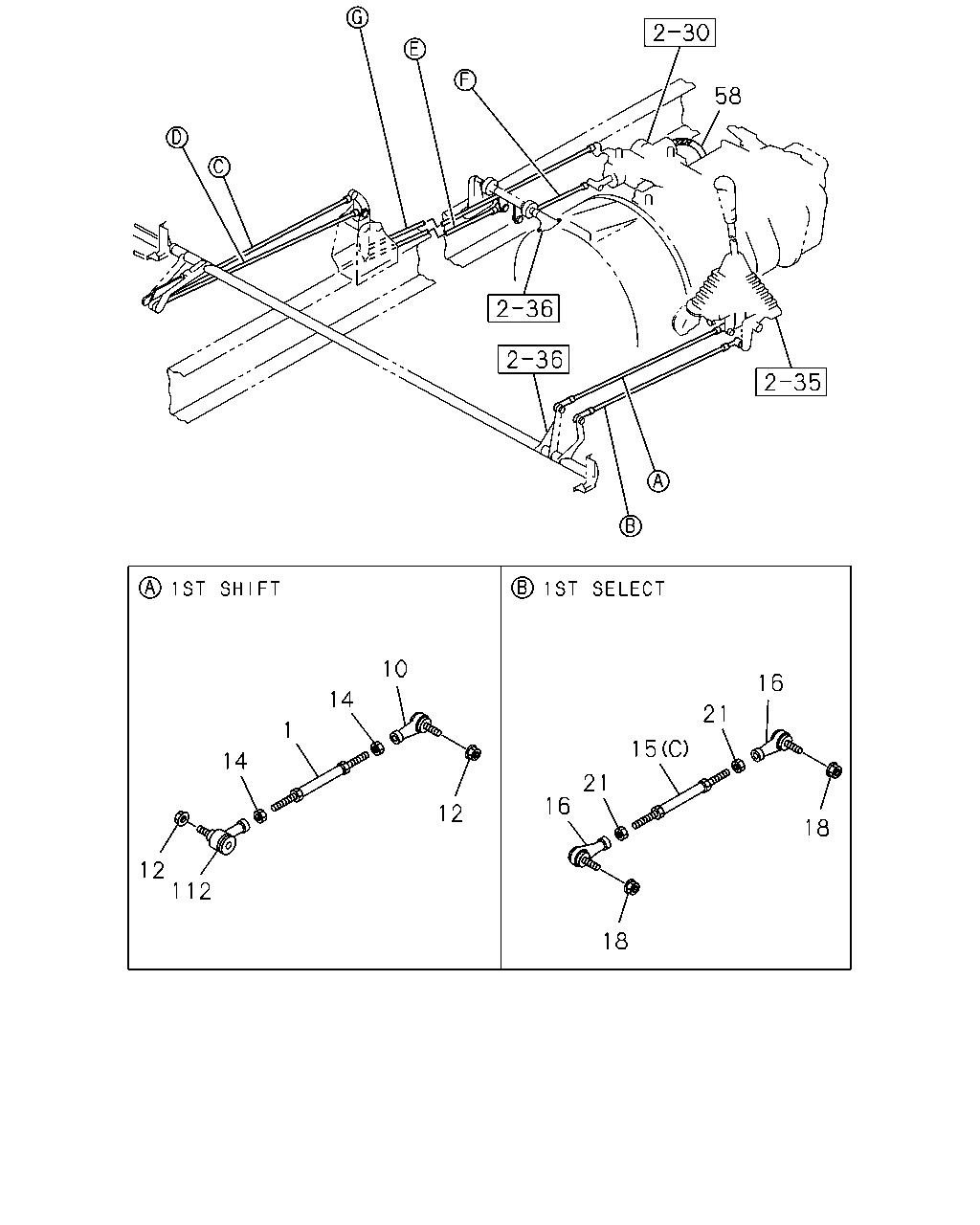

çizim 39820
58 10 16 14 21 1 15 14 21 16 12 18 12 112 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 9603-9901 ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 9905- ● ● ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
1ST SHIFT 		1-09760-117-0 01 1 9603-9710 ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
1ST SHIFT 		1-09760-125-0 01 1 9711-9901 ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
1ST SHIFT 		1-09760-125-0 01 1 9905- ● ● ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9603-9708 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9709-9802 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9803-9901 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
CXZ(CXZ***) M10 FLANGE 		1-09440-061-0 02 1 9902-9904 ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9905- ● ● ● ● ● ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
1ST SHIFT M12 		9-99111-412-0 02 1 9603-9901 ● ● ● ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
1ST SHIFT M12 		9-99111-412-0 02 1 9905- ● ● ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (A) 2ND SELECT L=438 		1-33652-682-0 01 1 9603-9706 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (A) 2ND SELECT L=438 		1-33652-682-0 01 1 9707-9711 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (A) 2ND SELECT L=428 		1-33652-781-0 01 1 9712-9901 ●
15 ROD; LINK 1ST SHIFT
CXZ(CXZ***) EXC. CAB UP +110MM<TGG> (A) 2ND SELECT L=428 		1-33652-781-1 01 1 9902-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) 2ND SELECT L=428 		1-33652-781-1 01 1 9905- ● ● ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) 2ND SHIFT L=497 		1-33652-716-0 01 1 9603-9706 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) 2ND SHIFT L=497 		1-33652-716-0 01 1 9707-9711 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9712-9901 ●
15 ROD; LINK 1ST SHIFT
CXZ(CXZ***) EXC. CAB UP +110MM<TGG> (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9902-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9905- ● ● ●
15 ROD; LINK 1ST SHIFT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) (D) 2ND SELECT L=440 		1-33652-672-0 01 1 9603-9901 ●
15 ROD; LINK 1ST SHIFT
8PE1S(59L),10PE1S(60L) (D) 2ND SELECT L=440 		1-33652-672-0 01 1 9603-9901 ● ● ● ●
15 ROD; LINK 1ST SHIFT
CXZ(CXZ***) CAB UP +110MM<TGG> (D) 2ND SELECT L=474 		1-33652-803-0 01 1 9902-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> (D) 2ND SELECT L=474 		1-33652-803-0 01 1 9905- ● ● ●
15 ROD; LINK 1ST SHIFT
CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) (E) 2ND SHIFT L=490 		1-33652-700-0 01 1 9603-9901 ●
15 ROD; LINK 1ST SHIFT
8PE1S(59L),10PE1S(60L) (E) 2ND SHIFT L=490 		1-33652-700-0 01 1 9603-9901 ● ● ● ●
15 ROD; LINK 1ST SHIFT
CXZ(CXZ***) CAB UP +110MM<TGG> (E) 2ND SHIFT L=423 		1-33652-804-1 01 1 9902-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> (E) 2ND SHIFT L=423 		1-33652-804-1 01 1 9905- ● ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (D) 2ND SELECT L=440 		1-33652-672-0 01 1 9905- ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (E) 2ND SHIFT L=490 		1-33652-700-0 01 1 9905- ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
(C) 1ST SELECT L=556 		1-33652-744-0 01 1 9603-9901 ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
CXZ(CXZ***) (C) 1ST SELECT L=556 		1-33652-744-0 01 1 9902-9904 ●
15 ROD; LINK 1ST SHIFT
(C) 1ST SELECT L=556 		1-33652-744-0 01 1 9905- ● ● ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
1ST SELECT 		1-09760-108-0 02 1 9603-9901 ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
CXZ(CXZ***) 1ST SELECT 		1-09760-108-0 02 1 9902-9904 ●
16 JOINT ASM; BALL,CONT ROD
1ST SELECT 		1-09760-108-0 02 1 9905- ● ● ● ● ● ● ●
18 NUT; 1ST LINK ROD
1ST SELECT M8 FLANGE 		1-09440-049-0 02 1 9603-9804 ● ● ● ● ●
18 NUT; 1ST LINK ROD
1ST SELECT M8 FLANGE 		1-09440-062-1 02 1 9805-9901 ● ● ● ● ●
18 NUT; 1ST LINK ROD
CXZ(CXZ***) 1ST SELECT M8 FLANGE 		1-09440-062-1 02 1 9902-9904 ●
18 NUT; 1ST LINK ROD
1ST SELECT M8 FLANGE 		1-09440-062-1 02 1 9905- ● ● ● ● ● ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
1ST SELECT M8 		9-09111-408-0 02 1 9603-9901 ● ● ● ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
CXZ(CXZ***) 1ST SELECT M8 		9-09111-408-0 02 1 9902-9904 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
1ST SELECT M8 		9-09111-408-0 02 1 9905- ● ● ● ● ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
SHIFT CONTROL ASSISTER<WX8> L=360 		0-07150-360-0 01 1 9603-9901 ● ●
58 HOSE; FLEX,POWER ASSISTOR
CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> L=360 		0-07150-360-0 01 1 9902-9904 ●
58 HOSE; FLEX,POWER ASSISTOR
SHIFT CONTROL ASSISTER<WX8> L=360 		0-07150-360-0 01 1 9905- ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
SHIFT CONTROL ASSISTER<WX8> L=230 		0-07150-230-0 01 1 9603-9901 ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
8PE1S(59L),10PE1S(60L),10PE1N(61L) SHIFT CONTROL ASSISTER<WX8> L=230 		0-07150-230-0 01 1 9905- ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> SHIFT CONTROL ASSISTER<WX8> L=270 		0-07150-270-0 01 1 9707-9901 ●
58 HOSE; FLEX,POWER ASSISTOR
CXZ&LONG CHASSIS(CXZ6MF) 10PE1S(60L) SHIFT CONTROL ASSISTER<WX8> FIRE TRUCK<RA9> L=270 		0-07150-270-0 01 1 9905- ●
58 HOSE; FLEX,POWER ASSISTOR
CXZ&LONG CHASSIS(CXZ6MF) SHIFT CONTROL ASSISTER<WX8> FIRE TRUCK<RA9> L=270 		0-07150-270-0 01 1 9905- ●
58 HOSE; FLEX,POWER ASSISTOR
SHIFT CONTROL ASSISTER<WX8> FIRE TRUCK<RA9> L=420 		0-07150-420-0 01 1 9909- ●
112 JOINT; RUBBER
1ST & 2ND SHIFT 		1-33670-413-1 02 1 9603-9706 ● ● ● ● ●
112 JOINT; RUBBER
1ST & 2ND SHIFT 		1-33670-413-1 01 1 9707-9901 ● ● ● ● ●
112 JOINT; RUBBER
1ST & 2ND SHIFT 		1-33670-413-1 01 1 9707-9901 ● ● ● ● ●
112 JOINT; RUBBER
1ST & 2ND SHIFT 		1-33670-413-1 01 1 9902-9904 ●
112 JOINT; RUBBER
1ST & 2ND SHIFT 		1-33670-413-1 01 1 9902-9904 ●
112 JOINT; RUBBER
1ST & 2ND SHIFT 		1-33670-413-1 01 1 9905- ● ● ● ● ● ● ●
112 JOINT; RUBBER
1ST & 2ND SHIFT 		1-33670-413-1 01 1 9905- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
