Sayfa 2-36B - Isuzu EPC

2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#5352) — 291 parça

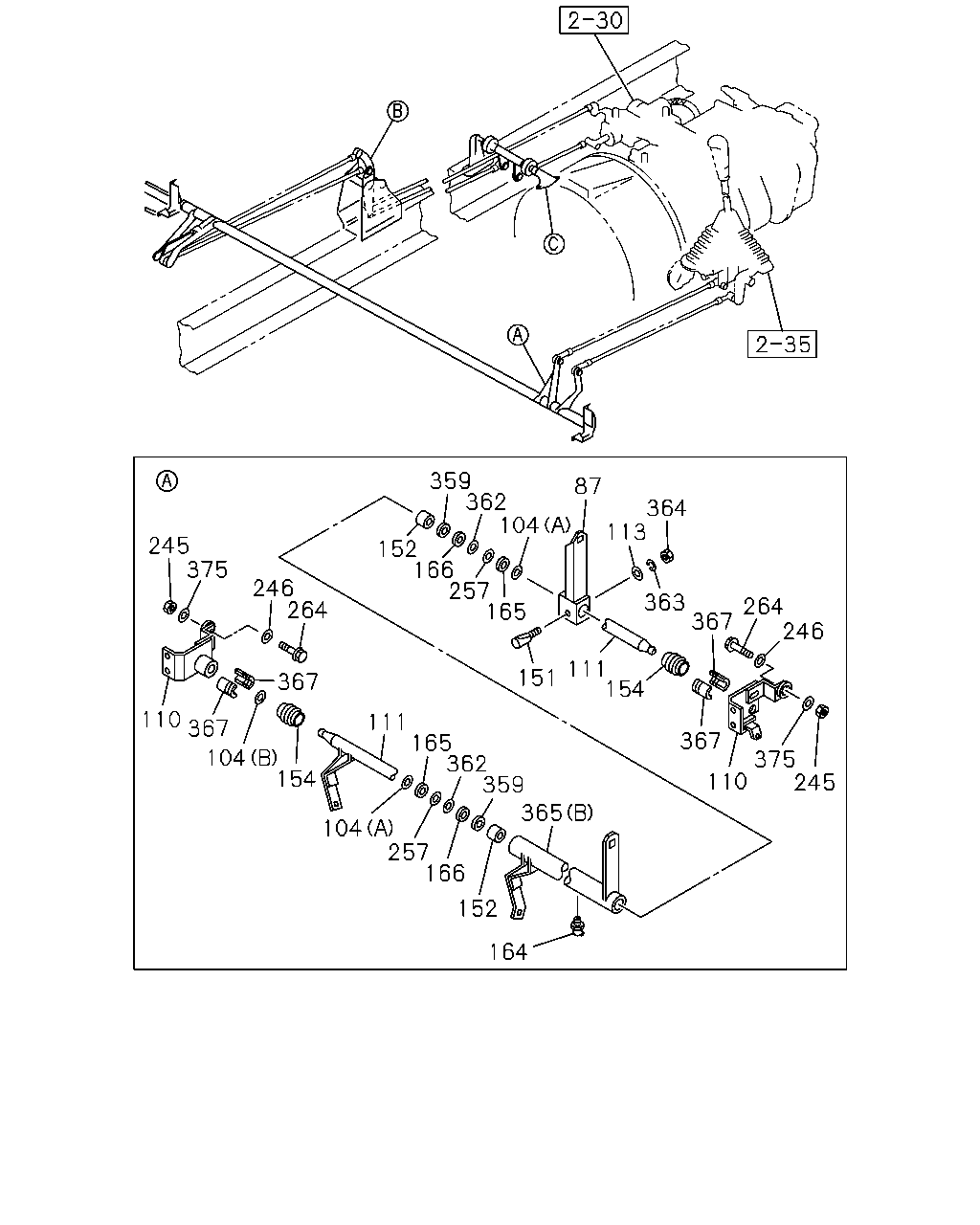

359 362 104 87 364 113 245 375 152 166 257 165 246 264 363 367 264 246 111 154 151 367 367 110 367 111 165 362 359 365 104 154 375 110 245 104 257 166 152 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
87	LEVER; RELAY,SELECT	1-33651-666-0	01	1	9603-9901	●
87	LEVER; RELAY,SELECT	1-33651-666-0	01	1	9902-9904	●	●
87	LEVER; RELAY,SELECT	1-33651-666-0	01	1	9905-	●	●	●
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	9603-9901	●
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	9902-9904	●	●
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	9905-	●	●	●
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	9603-9901	●
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	9902-9904	●	●
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	9905-	●	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	9603-9901	●
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	9902-9904	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	9905-	●	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	9603-9901	●
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	9902-9904	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	9905-	●	●	●
111	SHAFT; RELAY LEVER,1ST	1-33659-200-0	01	1	9603-9901	●
111	SHAFT; RELAY LEVER,1ST	1-33659-200-0	01	1	9902-9904	●	●
111	SHAFT; RELAY LEVER,1ST	1-33659-200-0	01	1	9905-	●	●	●
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	9603-9901	●
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	9902-9904	●	●
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	9905-	●	●	●
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	9603-9901	●
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	9902-9904	●	●
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	9905-	●	●	●
152	BEARING; NEEDLE,RELAY LEVER	1-09811-328-0	02	1	9603-9901	●
152	BEARING; NEEDLE,RELAY LEVER	1-09811-328-0	02	1	9902-9904	●	●
152	BEARING; NEEDLE,RELAY LEVER	1-09811-328-0	02	1	9905-	●	●	●
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	9603-9901	●
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	9902-9904	●	●
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	9905-	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9603-9901	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9902-9904	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9905-	●	●	●
165	WASHER; RELAY LEVER	1-09503-148-0	AR	1	9603-9901	●
165	WASHER; RELAY LEVER	1-09503-148-0	AR	1	9902-9904	●	●
165	WASHER; RELAY LEVER	1-09503-148-0	AR	1	9905-	●	●	●
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	9603-9901	●
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	9902-9904	●	●
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	9905-	●	●	●
245	NUT; BRKT,RELAY LEVER M10	1-09984-142-0	02	1	9603-9901	●
245	NUT; BRKT,RELAY LEVER M10	1-09984-142-0	02	1	9902-9904	●	●
245	NUT; BRKT,RELAY LEVER M10	1-09984-142-0	02	1	9905-	●	●	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	9603-9901	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	9902-9904	●	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	9905-	●	●	●
257	PIECE; DIST,RELAY LEVER	1-09503-198-0	AR	1	9603-9901	●
257	PIECE; DIST,RELAY LEVER	1-09503-198-0	AR	1	9902-9904	●	●
257	PIECE; DIST,RELAY LEVER	1-09503-198-0	AR	1	9905-	●	●	●
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28681-030-0	02	1	9603-9901	●
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28681-030-0	02	1	9902-9904	●	●
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28681-030-0	02	1	9905-	●	●	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	02	1	9603-9901	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	02	1	9902-9904	●	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	02	1	9905-	●	●	●
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	9603-9901	●
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	9902-9904	●	●
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	9905-	●	●	●
362	SHIM	1-09503-172-0	AR	1	9603-9901	●
362	SHIM	1-09503-172-0	AR	1	9902-9904	●	●
362	SHIM	1-09503-172-0	AR	1	9905-	●	●	●
363	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	01	1	9603-9901	●
363	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	01	1	9902-9904	●	●
363	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	01	1	9905-	●	●	●
364	NUT; KEY BOLT M10	9-09111-410-0	01	1	9603-9901	●
364	NUT; KEY BOLT M10	9-09111-410-0	01	1	9902-9904	●	●
364	NUT; KEY BOLT M10	9-09111-410-0	01	1	9905-	●	●	●
365	LEVER; RELAY,SELECT 6WA1 TC-S(56L) (A)	1-33651-628-1	01	1	9603-9901	●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9902-9904	●	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9905-	●	●	●
365	LEVER; RELAY,SELECT 10PE1S(60L) (A)	1-33651-627-1	01	1	9603-9901	●
365	LEVER; RELAY,SELECT V TYPE ENG<91L> (A)	1-33651-627-1	01	1	9905-	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	9603-9901	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	9902-9904	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	9905-	●	●	●
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	9603-9901	●
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	9902-9904	●	●
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	9905-	●	●	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9603-9901	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9902-9904	●	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9905-	●	●	●

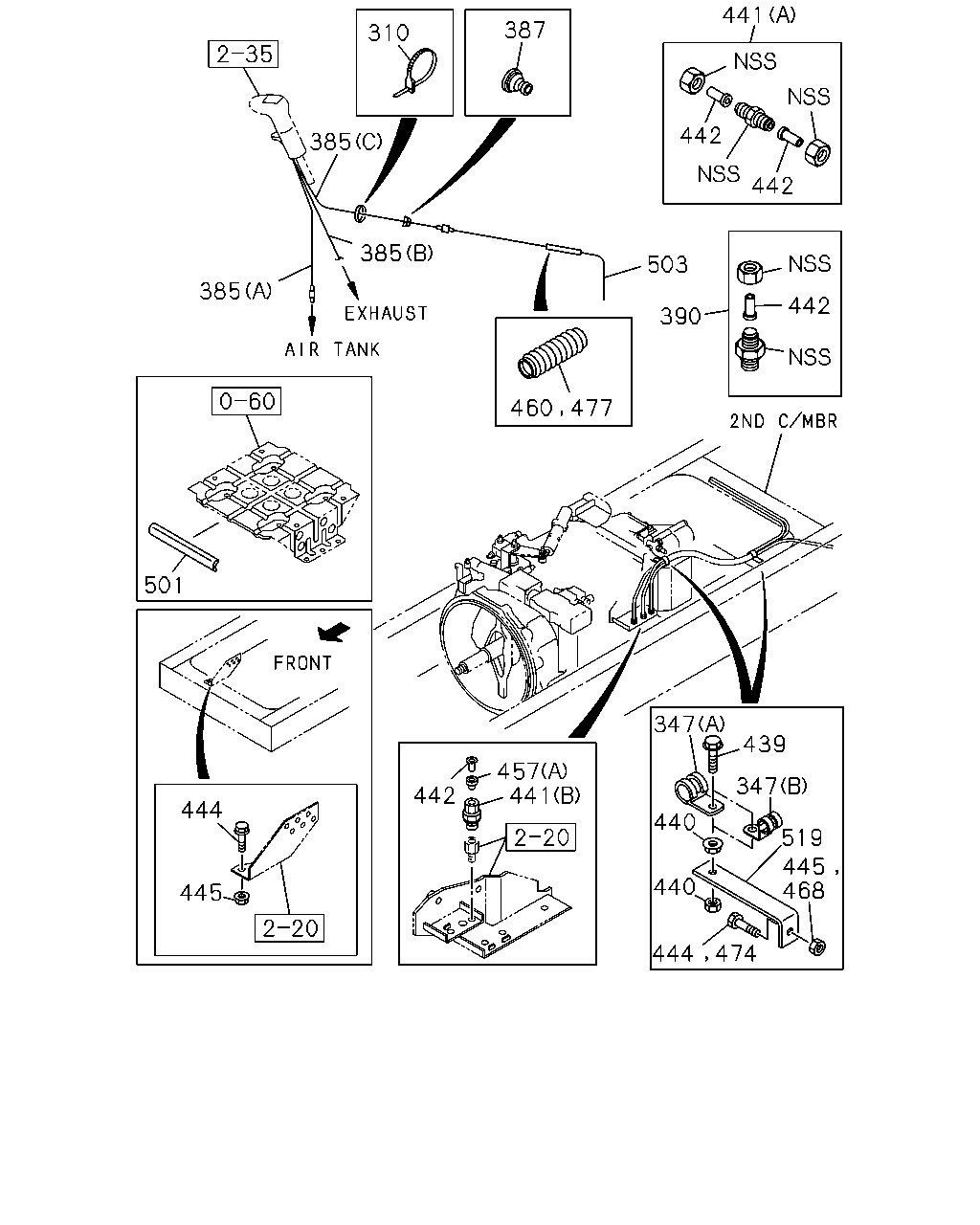

441 387 310 385 442 442 385 503 385 442 390 501 347 439 457 441 347 442 444 440 519 445 445 468 440 474 444 460 477

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
310	CLIP; TUBE 10PE1S(60L) L=250	1-09707-126-0	05	1	9603-9901	●
310	CLIP; TUBE 10PE1S(60L) L=140	5-09707-031-0	13	1	9603-9901	●
310	CLIP; TUBE 10PE1S(60L) L=250	1-09707-126-0	05	1	9905-9910	●
310	CLIP; TUBE 10PE1S(60L) L=140	5-09707-031-1	13	1	9905-9910	●
310	CLIP; TUBE 6WA1 TC-S(56L) L=250	1-09707-126-0	07	1	9603-9901	●
310	CLIP; TUBE L=250	1-09707-126-0	07	1	9902-9904	●
310	CLIP; TUBE 6WA1 TC-S(56L) L=250	1-09707-126-0	07	1	9905-9909	●
310	CLIP; TUBE 6WA1 TC-S(56L),6WG1 TC-C(72L) L=250	1-09707-126-0	07	1	9910-9910	●		●
310	CLIP; TUBE L=250	1-09707-126-0	17	1	9911-	●		●
310	CLIP; TUBE 6WA1 TC-S(56L) L=140	5-09707-031-0	11	1	9603-9901	●
310	CLIP; TUBE L=140	5-09707-031-1	11	1	9902-9904	●	●
310	CLIP; TUBE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) L=140	5-09707-031-1	11	1	9905-9909	●	●
310	CLIP; TUBE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1TC-R(93L) L=140	5-09707-031-1	11	1	9910-9910	●	●	●
310	CLIP; TUBE L=140	5-09707-031-1	04	1	9911-	●		●
347	CLIP; AIR PIPE (A) ID=24 L=27	1-09700-809-0	02	1	9905-9905	●
347	CLIP; AIR PIPE (A) ID=24 L=27	1-09700-809-0	01	1	9906-	●
347	CLIP; AIR PIPE PTO ZF TRANS RR(BDM) (A) ID=28 L=40	1-09701-261-0	01	1	9906-	●
347	CLIP; AIR PIPE EXC. PTO ZF TRANS RR(BDM) (A) ID=24 L=27	1-09700-809-0	02	1	9906-	●
347	CLIP; AIR PIPE (A) ID=24 L=27	1-09700-809-0	02	1	9906-		●
347	CLIP; AIR PIPE PTO ZF TRANS RR(BDM) (B) ID=14.5 H=23 L=30	1-09700-859-0	01	1	9906-	●	●
347	CLIP; AIR PIPE (A) ID=18 L=28	1-09701-067-0	01	1	9910-			●
385	TUBE; NYLON (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	9603-9909	●
385	TUBE; NYLON (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	9910-	●		●
385	TUBE; NYLON (A) WHITE L=1420 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9603-9901	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (A) WHITE L=1420 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9902-9909	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (A) WHITE L=1420 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9910-	●		●
385	TUBE; NYLON (C) YELLOW L=1160 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9603-9901	●
385	TUBE; NYLON CAB UP +110MM<TGG> (C) WHITE L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9902-9912	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (C) WHITE L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0001-	●		●
385	TUBE; NYLON (A) YELLOW L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9902-9904	●
385	TUBE; NYLON EXC. AIR BAG(TFQ) (A) YELLOW L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9905-9909	●
385	TUBE; NYLON EXC. AIR BAG(TFQ) (A) YELLOW L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9910-	●		●
385	TUBE; NYLON AIR BAG(TFQ) (A) YELLOW L=1440 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9905-9909	●
385	TUBE; NYLON AIR BAG(TFQ) (A) YELLOW L=1440 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9910-	●		●
387	GROMMET; CONT TUBE,FULLER	1-09332-102-0	01	1	9603-9909	●
387	GROMMET; CONT TUBE,FULLER	1-09332-102-0	01	1	9910-	●		●
390	CONNECTOR; STRAIGHT,TRANS SIDE DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	9603-9904	●
390	CONNECTOR; STRAIGHT,TRANS SIDE EXC. AIR BAG(TFQ) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	9905-9909	●
390	CONNECTOR; STRAIGHT,TRANS SIDE EXC. AIR BAG(TFQ) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	9910-	●		●
390	CONNECTOR; STRAIGHT,TRANS SIDE AIR BAG(TFQ)	1-09661-174-0	01	1	9905-9909	●
390	CONNECTOR; STRAIGHT,TRANS SIDE AIR BAG(TFQ)	1-09661-174-0	01	1	9910-	●		●
439	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	02	1	9905-9905	●
439	BOLT; CLIP,AIR PIPE PTO ZF TRANS RR(BDM) M8X25 FLANGE	0-28680-825-0	03	1	9906-	●	●
439	BOLT; CLIP,AIR PIPE EXC. PTO ZF TRANS RR(BDM) M8X25 FLANGE	0-28680-825-0	02	1	9906-	●	●
440	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9905-9905	●
440	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9906-	●
441	CONNECTOR; NYLON TUBE (A) DIN4 STRAIGHT	1-09660-512-0	02	1	9603-9909	●
441	CONNECTOR; NYLON TUBE (A) DIN4 STRAIGHT	1-09660-512-0	02	1	9910-	●		●
441	CONNECTOR; NYLON TUBE SHORT CHASSIS(CX***C) (B)	1-09660-466-0	01	1	9902-9903	●
441	CONNECTOR; NYLON TUBE (B)	1-09660-466-0	01	1	9904-9909	●
441	CONNECTOR; NYLON TUBE (B)	1-09660-466-0	01	1	9910-	●		●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	04	1	9603-9909	●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	9910-	●		●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9603-9901	●
442	INSERT; NYLON TUBE CAB UP +110MM<TGG> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9902-9904	●	●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9905-9909	●
442	INSERT; NYLON TUBE EXC. AIR BAG(TFQ) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9905-9909	●
442	INSERT; NYLON TUBE EXC. AIR BAG(TFQ) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9910-9910	●		●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9910-9910	●
442	INSERT; NYLON TUBE EXC. AIR BAG(TFQ) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9910-	●		●
444	BOLT; BRKT,NIPPLE M8X30 FLANGE	0-28680-830-0	01	1	9905-0001	●
445	NUT; BRKT,NIPPLE M8 FLANGE	0-91150-108-0	01	1	9905-0001	●
457	GASKET (B)	1-09623-594-0	04	1	9603-9901	●
457	GASKET (B)	1-09623-594-0	04	1	9902-9904	●	●
457	GASKET (B)	1-09623-594-0	04	1	9905-	●	●	●
457	GASKET SHORT CHASSIS(CX***C) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9902-9903	●
457	GASKET (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9904-9909	●
457	GASKET (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9910-	●		●
460	TUBE; CORRUGATE L=620 SERVICED BY L=800	1-83129-031-1	01	1	9603-9901	●
460	TUBE; CORRUGATE L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9902-9909	●
460	TUBE; CORRUGATE L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9910-	●		●
460	TUBE; CORRUGATE L=1300 SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9603-9901	●
460	TUBE; CORRUGATE L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9902-9909	●
460	TUBE; CORRUGATE L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9910-	●		●
460	TUBE; CORRUGATE L=340 SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9603-9603	●
460	TUBE; CORRUGATE L=250 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9604-9909	●
460	TUBE; CORRUGATE L=250 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9910-	●		●
468	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0002-	●
474	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0002-	●
477	TUBE; CORRUGATE SERVICED BY L=6000 ID=7	1-87410-087-0	01	1	9603-9909	●
477	TUBE; CORRUGATE SERVICED BY L=6000 ID=7	1-87410-087-0	01	1	9910-9910	●		●
477	TUBE; CORRUGATE SERVICED BY L=6000 ID=7	1-87410-087-0	01	1	9911-	●
477	TUBE; CORRUGATE SERVICED BY L=6000 ID=7	1-87410-087-0	01	1	9911-			●
477	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9902-9909	●
477	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9910-	●		●
477	TUBE; CORRUGATE SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	9911-	●
501	SEAL; HARNESS PROTECTOR 100X30	1-72498-014-1	04	1	9603-9903	●
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	9904-9909	●
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	9910-	●		●
503	TUBE; NYLON SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	9603-9909	●
503	TUBE; NYLON SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	9910-9910	●		●
503	TUBE; NYLON SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	9911-			●
503	TUBE; NYLON SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9902-9909	●
503	TUBE; NYLON SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9910-	●		●
519	BRACKET; FRAME L=125	1-47475-897-0	01	1	0002-	●

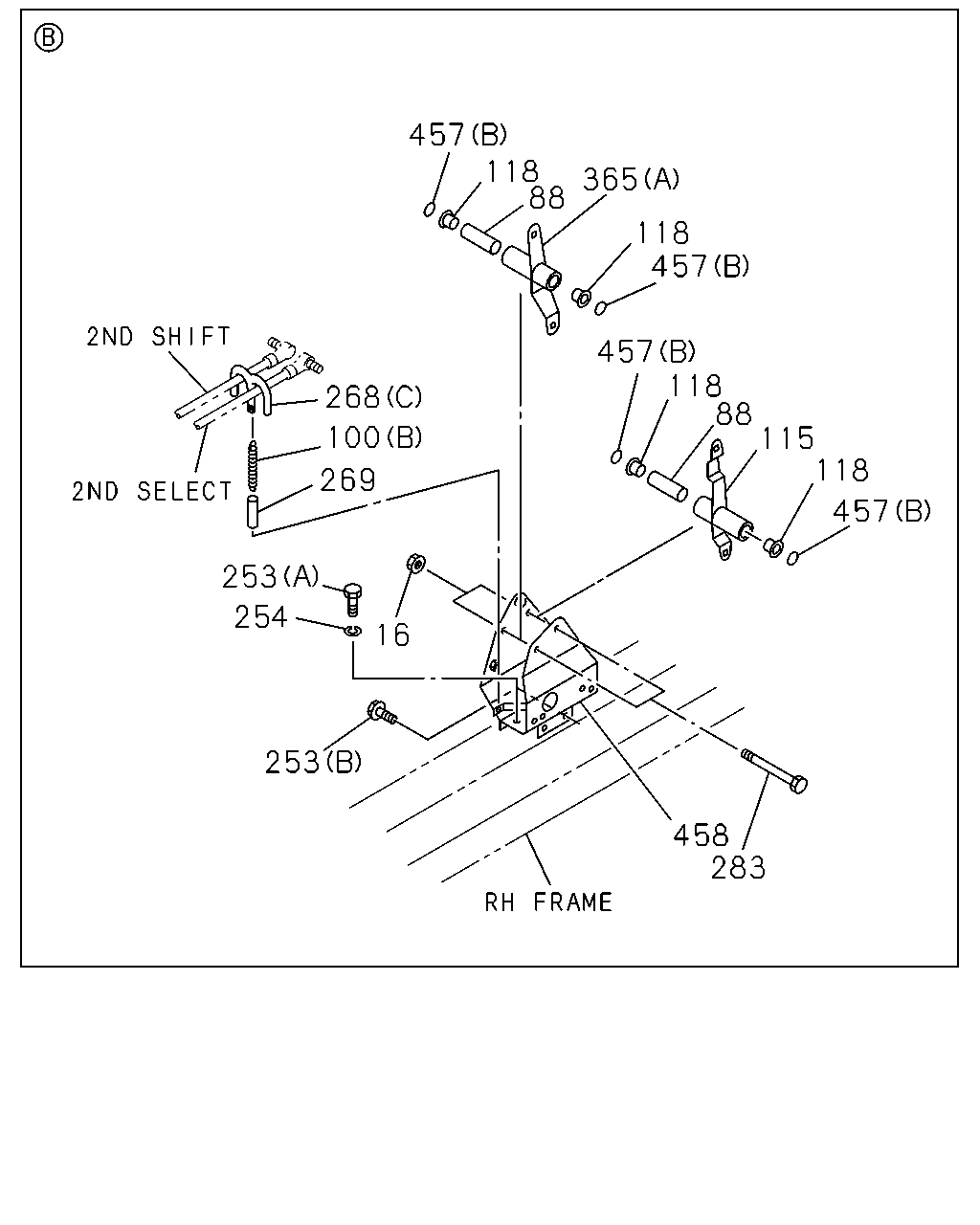

457 118 88 365 118 457 457 118 88 115 118 268 100 269 457 253 254 16 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9603-9901	●
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9902-9904	●	●
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9905-	●	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9603-9901	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9902-9904	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9905-	●	●	●
100	SPRING 6WA1 TC-S(56L) (B)	1-09583-218-0	01	1	9603-9901	●
100	SPRING (B)	1-09583-351-0	01	1	9902-9904	●	●
100	SPRING L TYPE ENG<90L> (B)	1-09583-351-0	01	1	9905-	●	●	●
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-319-0	01	1	9603-9901	●
100	SPRING (A)	1-09583-319-0	01	1	9902-9904	●	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9905-	●	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9603-9901	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9902-9904	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9905-	●	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9603-9901	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9902-9904	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9905-	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9603-9901	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9902-9904	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9905-	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9603-9606	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9607-9901	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9902-9904	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9905-	●	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9603-9901	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9902-9904	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9905-	●	●	●
268	BRACKET; LINK ROD 6WA1 TC-S(56L) (C)	1-33657-216-0	01	1	9603-9901	●
268	BRACKET; LINK ROD (C)	1-33657-216-0	01	1	9902-9904	●	●
268	BRACKET; LINK ROD L TYPE ENG<90L> (C)	1-33657-216-0	01	1	9905-	●	●	●
269	COVER; SPR 6WA1 TC-S(56L)	1-15669-002-0	01	1	9603-9901	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9603-9901	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9902-9904	●	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9905-	●	●	●
365	LEVER; RELAY,SELECT 6WA1 TC-S(56L) (A)	1-33651-628-1	01	1	9603-9901	●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9902-9904	●	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9905-	●	●	●
365	LEVER; RELAY,SELECT 10PE1S(60L) (A)	1-33651-627-1	01	1	9603-9901	●
365	LEVER; RELAY,SELECT V TYPE ENG<91L> (A)	1-33651-627-1	01	1	9905-	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	9603-9901	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	9902-9904	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	9905-	●	●	●
457	GASKET (B)	1-09623-594-0	04	1	9603-9901	●
457	GASKET (B)	1-09623-594-0	04	1	9902-9904	●	●
457	GASKET (B)	1-09623-594-0	04	1	9905-	●	●	●
457	GASKET SHORT CHASSIS(CX***C) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9902-9903	●
457	GASKET (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9904-9909	●
457	GASKET (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9910-	●		●
458	BRACKET; 2ND RELAY LEVER 6WA1 TC-S(56L)	1-33657-573-2	01	1	9603-9901	●
458	BRACKET; 2ND RELAY LEVER CAB UP +110MM<TGG>	1-33657-664-1	01	1	9902-9904	●	●
458	BRACKET; 2ND RELAY LEVER L TYPE ENG<90L> CAB UP +110MM<TGG>	1-33657-664-1	01	1	9905-	●	●	●
458	BRACKET; 2ND RELAY LEVER 10PE1S(60L)	1-33657-572-2	01	1	9603-9901	●
458	BRACKET; 2ND RELAY LEVER EXC. CAB UP +110MM<TGG>	1-33657-583-1	01	1	9902-9904	●	●
458	BRACKET; 2ND RELAY LEVER L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-33657-583-1	01	1	9905-	●	●	●
458	BRACKET; 2ND RELAY LEVER V TYPE ENG<91L>	1-33657-572-2	01	1	9905-	●	●

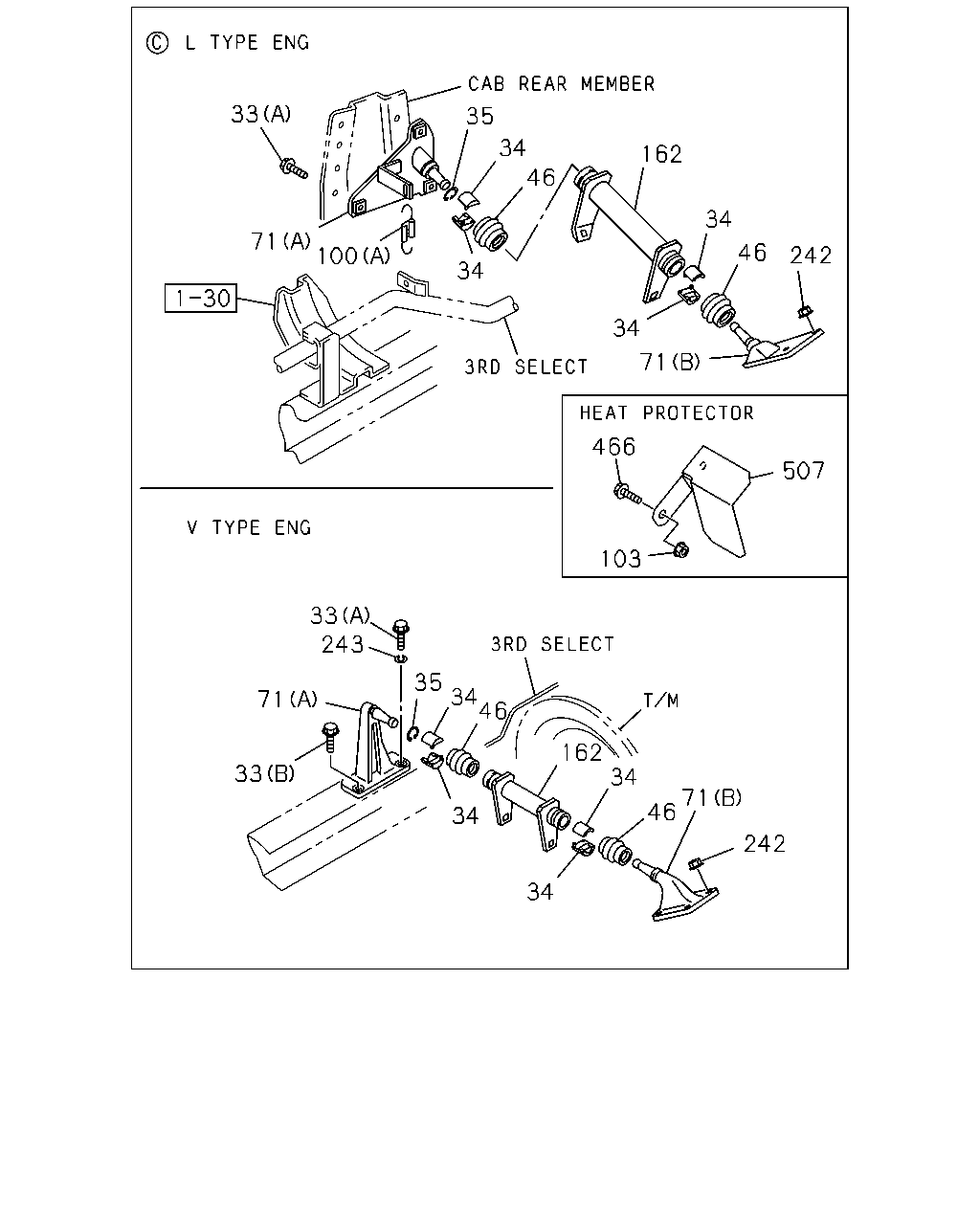

33 35 34 162 46 34 71 100 46 242 34 34 71 466 507 103 33 243 35 34 46 71 162 34 33 71 46 34 242 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-S(56L) (A) M10X30 W/LK WASHER	0-50041-030-0	03	1	9603-9606	●
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-S(56L) (A) M10X30 FLANGE	0-28681-030-0	03	1	9607-9901	●
33	BOLT; BRKT,3RD RELAY LEVER 10PE1S(60L) (A) M14X45	0-20801-445-0	01	1	9603-9901	●
33	BOLT; BRKT,3RD RELAY LEVER (A) M10X30 FLANGE	0-28681-030-0	03	1	9902-9904	●	●
33	BOLT; BRKT,3RD RELAY LEVER L TYPE ENG<90L> (A) M10X30 FLANGE	0-28681-030-0	03	1	9905-	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PE1S(60L) (B) M10X40 W/LK WASHER	0-50041-040-0	01	1	9603-9901	●
33	BOLT; BRKT,3RD RELAY LEVER 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) M14X45	0-20801-445-0	01	1	9905-	●	●
33	BOLT; BRKT,3RD RELAY LEVER 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) M10X40 W/LK WASHER	0-50041-040-0	01	1	9905-	●	●
34	SEAT; BALL,RELAY LEVER 6WA1 TC-S(56L)	1-33659-165-0	04	1	9603-9901	●
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	9902-9904	●	●
34	SEAT; BALL,RELAY LEVER L TYPE ENG<90L>	1-33659-165-0	04	1	9905-	●	●	●
34	SEAT; BALL,RELAY LEVER 8PE1S(59L),10PE1S(60L)	1-33659-118-0	04	1	9603-9901	●
34	SEAT; BALL,RELAY LEVER V TYPE ENG<91L>	1-33659-118-0	04	1	9905-	●	●
35	RING; SNAP,RELAY LEVER 6WA1 TC-S(56L) OD=34.4	9-09180-132-0	01	1	9603-9901	●
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	9902-9904	●	●
35	RING; SNAP,RELAY LEVER L TYPE ENG<90L> OD=34.4	9-09180-132-0	01	1	9905-	●	●	●
35	RING; SNAP,RELAY LEVER 8PE1S(59L),10PE1S(60L) OD=23.5	9-09180-122-0	01	1	9603-9901	●
35	RING; SNAP,RELAY LEVER V TYPE ENG<91L> OD=23.5	9-09180-122-0	01	1	9905-	●	●
46	SEAL; DUST,RELAY LEVER 6WA1 TC-S(56L)	1-33659-166-0	02	1	9603-9901	●
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	9902-9904	●	●
46	SEAL; DUST,RELAY LEVER L TYPE ENG<90L>	1-33659-166-0	02	1	9905-	●	●	●
46	SEAL; DUST,RELAY LEVER 8PE1S(59L),10PE1S(60L)	1-33659-172-0	02	1	9603-9901	●
46	SEAL; DUST,RELAY LEVER V TYPE ENG<91L>	1-33659-172-0	02	1	9905-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) (B)	1-33657-481-0	01	1	9603-9901	●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	9902-9904	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> (B)	1-33657-481-0	01	1	9905-	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) (A)	1-33657-512-0	01	1	9603-9901	●
71	BRACKET; 3RD RELAY LEVER,FRAME EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (A)	1-33657-512-0	01	1	9902-9904	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A)	1-33657-512-0	01	1	9905-	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (B)	1-33657-478-0	01	1	9905-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (A)	1-33657-569-0	01	1	9905-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> (A)	1-33657-657-1	01	1	9902-9904	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> CAB UP +110MM<TGG> (A)	1-33657-657-1	01	1	9905-	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PE1S(59L),10PE1S(60L) (B)	1-33657-478-0	01	1	9603-9901	●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PE1S(59L),10PE1S(60L) (A)	1-33657-569-0	01	1	9603-9901	●
100	SPRING 6WA1 TC-S(56L) (B)	1-09583-218-0	01	1	9603-9901	●
100	SPRING (B)	1-09583-351-0	01	1	9902-9904	●	●
100	SPRING L TYPE ENG<90L> (B)	1-09583-351-0	01	1	9905-	●	●	●
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-319-0	01	1	9603-9901	●
100	SPRING (A)	1-09583-319-0	01	1	9902-9904	●	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9905-	●	●	●
103	NUT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●
103	NUT L TYPE ENG<90L> CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●
162	LEVER; RELAY L TYPE ENG<90L>	1-33651-625-0	01	1	9905-	●	●	●
162	LEVER; RELAY 10PE1S(60L)	1-33651-678-1	01	1	9603-9901	●
162	LEVER; RELAY 6WA1 TC-S(56L)	1-33651-679-0	01	1	9603-9901	●
162	LEVER; RELAY	1-33651-679-0	01	1	9902-9904	●
162	LEVER; RELAY L TYPE ENG<90L>	1-33651-679-0	01	1	9905-	●	●	●
162	LEVER; RELAY 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-33651-678-1	01	1	9905-	●	●
242	NUT; FLANGE 3RD RELAY LEVER 6WA1 TC-S(56L) M12 FLANGE	0-91150-212-0	03	1	9603-9901	●
242	NUT; FLANGE 3RD RELAY LEVER 10PE1S(60L) M8 FLANGE	5-09440-005-0	04	1	9603-9901	●
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	9902-9904	●	●
242	NUT; FLANGE 3RD RELAY LEVER L TYPE ENG<90L> M12 FLANGE	0-91150-212-0	03	1	9905-	●	●	●
242	NUT; FLANGE 3RD RELAY LEVER V TYPE ENG<91L> M8 FLANGE	5-09440-005-0	04	1	9905-	●	●
243	WASHER; LK,BRKT 10PE1S(60L) ID=14.2	9-09150-614-0	01	1	9603-9901	●
243	WASHER; LK,BRKT 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) ID=14.2	9-09150-614-0	01	1	9905-	●	●
466	BOLT; FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	9902-9904	●	●
466	BOLT; FIX L TYPE ENG<90L> CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●	●
507	PROTECTOR; HEAT CAB UP +110MM<TGG>	1-14181-315-0	01	1	9902-9904	●	●
507	PROTECTOR; HEAT L TYPE ENG<90L> CAB UP +110MM<TGG>	1-14181-315-0	01	1	9905-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
