0-13 — OIL PAN AND LEVEL GAUGE (#53511) — 25 parça

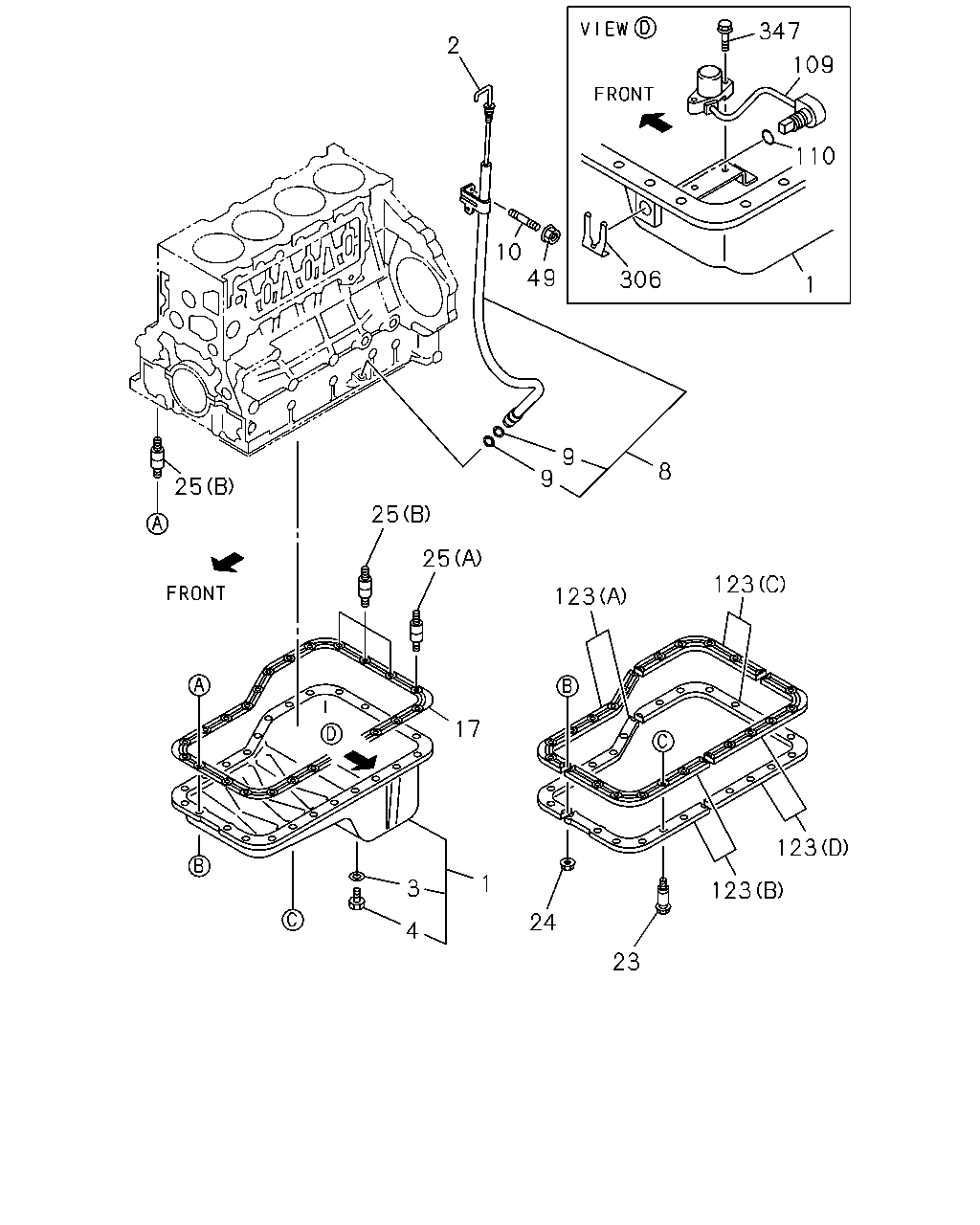

çizim 56982
2 10 49 306 1 110 109 347 8 9 9 123 123 25 25 25 17 1 3 4 24 23 123 123
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL 8-97360-423-0 01 1 0507-
2 GAUGE; OIL LEVEL 8-97019-885-1 01 1 0507-
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0507-
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 0507-
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97374-290-0 01 1 0507-
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0507-
10 BOLT; GUIDE TUBE
M8X20 L=32 		9-04110-820-0 01 1 0507-0604
10 BOLT; GUIDE TUBE
M8X20 L=32 		0-41010-820-0 01 1 0605-
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 0507-
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0507-
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 13 1 0507-0602
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 13 1 0603-
25 STUD; OIL PAN
(A) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0507-
25 STUD; OIL PAN
(B) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0507-
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91150-108-0 01 1 0507-0602
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 01 1 0603-
109 SWITCH; OIL LEVEL 8-97328-993-1 01 1 0507-
110 GASKET; SW,OIL LEVEL 8-98048-191-0 01 1 0607-
123 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 0507-
123 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 0507-
123 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 0507-
123 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 0507-
306 CLIP; CONNECTOR 8-97229-219-0 01 1 0507-
347 BOLT; OIL LEVEL SW
M6X25 FLANGE 		0-28680-625-0 02 1 0507-0512
347 BOLT; OIL LEVEL SW
M6X25 FLANGE 		0-28650-625-0 02 1 0601-
