Sayfa 2-36A - Isuzu EPC

2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#5351) — 264 parça

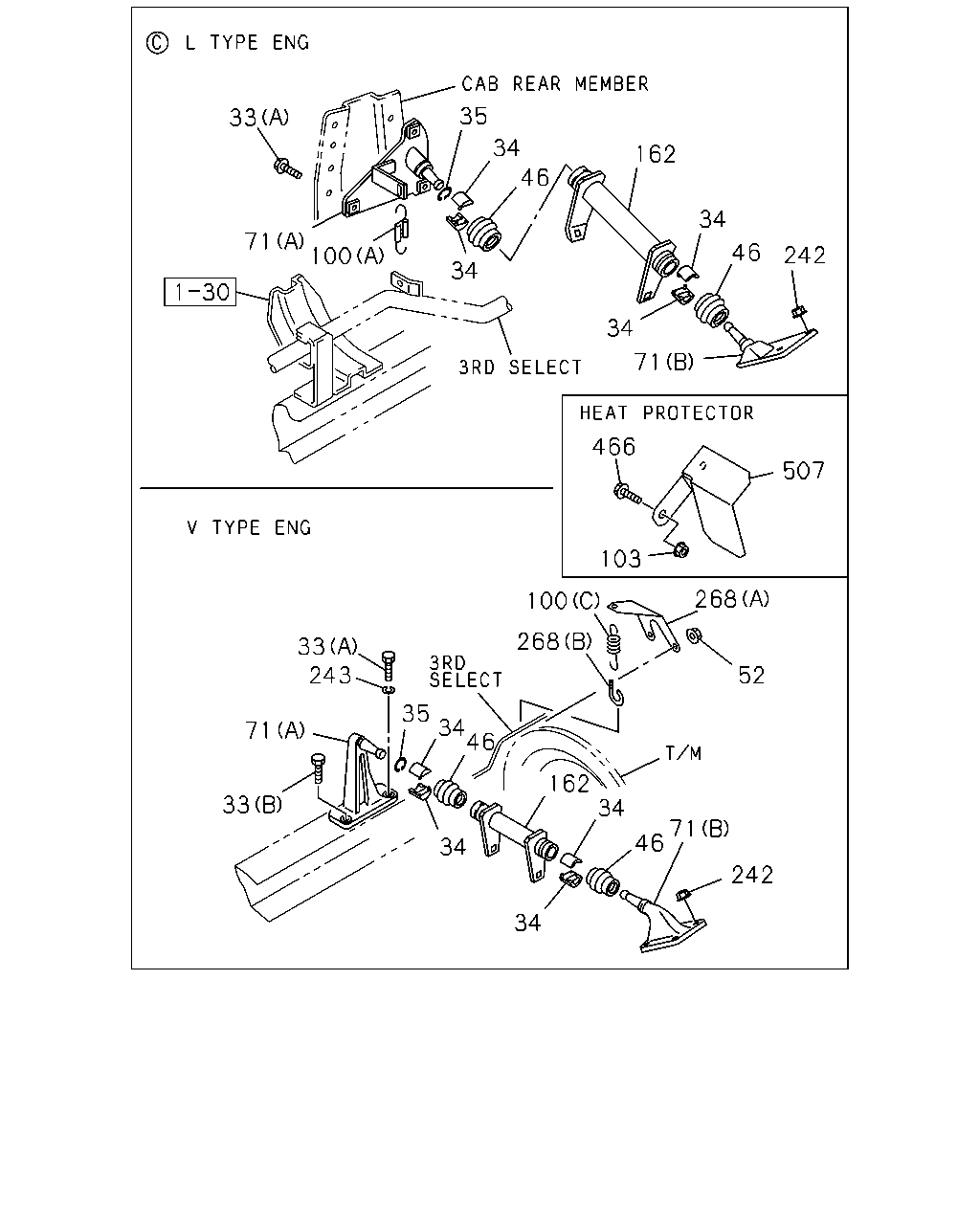

35 33 34 162 46 34 71 100 46 242 34 34 71 466 507 103 268 100 268 33 243 52 35 34 46 71 162 34 33 71 46 34 242 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-S(56L) (A) M10X30 W/LK WASHER	0-50041-030-0	03	1	9603-9606	●
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-S(56L) (A) M10X30 FLANGE	0-28681-030-0	03	1	9607-9901	●
33	BOLT; BRKT,3RD RELAY LEVER CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) (A) M14X45	0-20801-445-0	01	1	9603-9901	●
33	BOLT; BRKT,3RD RELAY LEVER 8PE1S(59L),10PE1S(60L) (A) M14X45	0-20801-445-0	01	1	9603-9901		●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER CXZ(CXZ***) (A) M10X30 FLANGE	0-28681-030-0	03	1	9902-9904	●
33	BOLT; BRKT,3RD RELAY LEVER L TYPE ENG<90L> (A) M10X30 FLANGE	0-28681-030-0	03	1	9905-	●					●	●
33	BOLT; BRKT,3RD RELAY LEVER CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) (B) M10X40 W/LK WASHER	0-50041-040-0	01	1	9603-9901	●
33	BOLT; BRKT,3RD RELAY LEVER 8PE1S(59L),10PE1S(60L) (B) M10X40 W/LK WASHER	0-50041-040-0	01	1	9603-9901		●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (A) M14X45	0-20801-445-0	01	1	9905-	●
33	BOLT; BRKT,3RD RELAY LEVER 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (A) M14X45	0-20801-445-0	01	1	9905-		●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) M10X40 W/LK WASHER	0-50041-040-0	01	1	9905-	●
33	BOLT; BRKT,3RD RELAY LEVER 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) M10X40 W/LK WASHER	0-50041-040-0	01	1	9905-		●	●	●	●
34	SEAT; BALL,RELAY LEVER 6WA1 TC-S(56L)	1-33659-165-0	04	1	9603-9901	●
34	SEAT; BALL,RELAY LEVER CXZ(CXZ***)	1-33659-165-0	04	1	9902-9904	●
34	SEAT; BALL,RELAY LEVER L TYPE ENG<90L>	1-33659-165-0	04	1	9905-	●					●	●
34	SEAT; BALL,RELAY LEVER CXZ(CXZ***) 8PE1S(59L),10PE1S(60L)	1-33659-118-0	04	1	9603-9901	●
34	SEAT; BALL,RELAY LEVER 8PE1S(59L),10PE1S(60L)	1-33659-118-0	04	1	9603-9901		●	●	●	●
34	SEAT; BALL,RELAY LEVER V TYPE ENG<91L>	1-33659-118-0	04	1	9905-	●	●	●	●	●
35	RING; SNAP,RELAY LEVER 6WA1 TC-S(56L) OD=34.4	9-09180-132-0	01	1	9603-9901	●
35	RING; SNAP,RELAY LEVER CXZ(CXZ***) OD=34.4	9-09180-132-0	01	1	9902-9904	●
35	RING; SNAP,RELAY LEVER L TYPE ENG<90L> OD=34.4	9-09180-132-0	01	1	9905-	●					●	●
35	RING; SNAP,RELAY LEVER CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) OD=23.5	9-09180-122-0	01	1	9603-9901	●
35	RING; SNAP,RELAY LEVER 8PE1S(59L),10PE1S(60L) OD=23.5	9-09180-122-0	01	1	9603-9901		●	●	●	●
35	RING; SNAP,RELAY LEVER V TYPE ENG<91L> OD=23.5	9-09180-122-0	01	1	9905-	●	●	●	●	●
46	SEAL; DUST,RELAY LEVER 6WA1 TC-S(56L)	1-33659-166-0	02	1	9603-9901	●
46	SEAL; DUST,RELAY LEVER CXZ(CXZ***)	1-33659-166-0	02	1	9902-9904	●
46	SEAL; DUST,RELAY LEVER L TYPE ENG<90L>	1-33659-166-0	02	1	9905-	●					●	●
46	SEAL; DUST,RELAY LEVER CXZ(CXZ***) 8PE1S(59L),10PE1S(60L)	1-33659-172-0	02	1	9603-9901	●
46	SEAL; DUST,RELAY LEVER 8PE1S(59L),10PE1S(60L)	1-33659-172-0	02	1	9603-9901		●	●	●	●
46	SEAL; DUST,RELAY LEVER V TYPE ENG<91L>	1-33659-172-0	02	1	9905-	●	●	●	●	●
52	NUT; BRKT CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> M10 FLANGE	0-91150-110-0	02	1	9603-9608	●
52	NUT; BRKT 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> M10 FLANGE	0-91150-110-0	02	1	9603-9608		●	●	●	●
52	NUT; BRKT CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> M10 FLANGE	0-91150-210-0	02	1	9609-9901	●
52	NUT; BRKT 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> M10 FLANGE	0-91150-210-0	02	1	9609-9901		●	●	●	●
52	NUT; BRKT CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> M10 FLANGE	0-91150-210-0	02	1	9905-	●
52	NUT; BRKT 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> M10 FLANGE	0-91150-210-0	02	1	9905-		●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) (B)	1-33657-481-0	01	1	9603-9901	●
71	BRACKET; 3RD RELAY LEVER,FRAME CXZ(CXZ***) (B)	1-33657-481-0	01	1	9902-9904	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> (B)	1-33657-481-0	01	1	9905-	●					●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) (A)	1-33657-512-0	01	1	9603-9901	●
71	BRACKET; 3RD RELAY LEVER,FRAME EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (A)	1-33657-512-0	01	1	9902-9904	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (A)	1-33657-512-0	01	1	9905-	●					●	●
71	BRACKET; 3RD RELAY LEVER,FRAME CXZ(CXZ***) 6WA1 TC-C(55L) MIXER TRUCK<RA2> (A)	1-33657-675-0	01	1	9902-9904	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-C(55L) MIXER TRUCK<RA2> (A)	1-33657-675-0	01	1	9905-9906	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> (A)	1-33657-675-0	01	1	9907-	●					●	●
71	BRACKET; 3RD RELAY LEVER,FRAME CXZ(CXZ***) 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-478-0	01	1	9905-	●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-478-0	01	1	9905-		●
71	BRACKET; 3RD RELAY LEVER,FRAME CXZ(CXZ***) 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-569-0	01	1	9905-	●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PE1S(59L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-569-0	01	1	9905-		●
71	BRACKET; 3RD RELAY LEVER,FRAME CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-478-0	01	1	9603-9901	●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-478-0	01	1	9603-9901		●
71	BRACKET; 3RD RELAY LEVER,FRAME CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-569-0	01	1	9603-9901	●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-569-0	01	1	9603-9901		●
71	BRACKET; 3RD RELAY LEVER,FRAME CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-188-0	01	1	9603-9901	●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-188-0	01	1	9603-9901		●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-568-0	01	1	9603-9901	●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-568-0	01	1	9603-9901		●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME CXZ(CXZ***) CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> (A)	1-33657-657-1	01	1	9902-9904	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> (A)	1-33657-657-1	01	1	9905-	●					●	●
71	BRACKET; 3RD RELAY LEVER,FRAME CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-188-0	01	1	9905-	●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-188-0	01	1	9905-		●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-568-0	01	1	9905-	●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-568-0	01	1	9905-		●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME SHORT CHASSIS(CX***C) CAB UP +110MM<TGG> (A)	1-33657-758-0	01	1	9907-	●					●
100	SPRING 6WA1 TC-S(56L) (B)	1-09583-218-0	01	1	9603-9901	●
100	SPRING CXZ(CXZ***) (B)	1-09583-351-0	01	1	9902-9904	●
100	SPRING L TYPE ENG<90L> (B)	1-09583-351-0	01	1	9905-	●					●	●
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-319-0	01	1	9603-9901	●
100	SPRING CXZ(CXZ***) (A)	1-09583-319-0	01	1	9902-9904	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9905-	●					●	●
100	SPRING CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (C)	1-09583-294-0	01	1	9603-9901	●
100	SPRING 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (C)	1-09583-294-0	01	1	9603-9901		●
100	SPRING CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (C)	1-09583-294-0	01	1	9905-	●
100	SPRING 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (C)	1-09583-294-0	01	1	9905-		●	●	●	●
103	NUT CXZ(CXZ***) CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9902-9904	●
103	NUT L TYPE ENG<90L> CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9905-	●					●	●
162	LEVER; RELAY CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-33651-806-0	01	1	0104-	●
162	LEVER; RELAY 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-33651-806-0	01	1	0104-		●	●	●	●
162	LEVER; RELAY 6WA1 TC-S(56L)	1-33651-625-0	01	1	9603-9901	●
162	LEVER; RELAY CXZ(CXZ***)	1-33651-625-0	01	1	9902-9904	●
162	LEVER; RELAY L TYPE ENG<90L>	1-33651-625-0	01	1	9905-	●					●	●
162	LEVER; RELAY CXZ(CXZ***) 8PE1S(59L),10PE1S(60L)	1-33651-622-1	01	1	9603-9901	●
162	LEVER; RELAY 8PE1S(59L),10PE1S(60L)	1-33651-622-1	01	1	9603-9901		●	●	●	●
162	LEVER; RELAY CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L)	1-33651-622-1	01	1	9905-0103	●
162	LEVER; RELAY 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L)	1-33651-622-1	01	1	9905-0103		●	●	●	●
162	LEVER; RELAY CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) FRAME ENG MTG SEPARATE TYPE<SGM>	1-33651-622-1	01	1	0104-	●
162	LEVER; RELAY 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) FRAME ENG MTG SEPARATE TYPE<SGM>	1-33651-622-1	01	1	0104-		●	●	●	●
242	NUT; FLANGE 3RD RELAY LEVER 6WA1 TC-S(56L) M12 FLANGE	0-91150-212-0	03	1	9603-9901	●
242	NUT; FLANGE 3RD RELAY LEVER CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) M8 FLANGE	5-09440-005-0	04	1	9603-9901	●
242	NUT; FLANGE 3RD RELAY LEVER 8PE1S(59L),10PE1S(60L) M8 FLANGE	5-09440-005-0	04	1	9603-9901		●	●	●	●
242	NUT; FLANGE 3RD RELAY LEVER CXZ(CXZ***) M12 FLANGE	0-91150-212-0	03	1	9902-9904	●
242	NUT; FLANGE 3RD RELAY LEVER L TYPE ENG<90L> M12 FLANGE	0-91150-212-0	03	1	9905-	●					●	●
242	NUT; FLANGE 3RD RELAY LEVER V TYPE ENG<91L> M8 FLANGE	5-09440-005-0	04	1	9905-	●	●	●	●	●
243	WASHER; LK,BRKT CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) ID=14.2	9-09150-614-0	01	1	9603-9901	●
243	WASHER; LK,BRKT 8PE1S(59L),10PE1S(60L) ID=14.2	9-09150-614-0	01	1	9603-9901		●	●	●	●
243	WASHER; LK,BRKT CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) ID=14.2	9-09150-614-0	01	1	9905-	●
243	WASHER; LK,BRKT 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) ID=14.2	9-09150-614-0	01	1	9905-		●	●	●	●
268	BRACKET; LINK ROD 6WA1 TC-S(56L) (C)	1-33657-216-0	01	1	9603-9901	●
268	BRACKET; LINK ROD CXZ(CXZ***) (C)	1-33657-216-0	01	1	9902-9904	●
268	BRACKET; LINK ROD L TYPE ENG<90L> (C)	1-33657-216-0	01	1	9905-	●					●	●
268	BRACKET; LINK ROD CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-439-1	01	1	9603-9807	●
268	BRACKET; LINK ROD 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-439-1	01	1	9603-9807		●	●	●	●
268	BRACKET; LINK ROD CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-700-0	01	1	9808-9901	●
268	BRACKET; LINK ROD 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-700-0	01	1	9808-9901		●	●	●	●
268	BRACKET; LINK ROD CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-494-0	01	1	9603-9901	●
268	BRACKET; LINK ROD 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-494-0	01	1	9603-9901		●
268	BRACKET; LINK ROD CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-494-0	01	1	9905-	●
268	BRACKET; LINK ROD 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-494-0	01	1	9905-		●	●	●	●
268	BRACKET; LINK ROD CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-700-0	01	1	9905-	●
268	BRACKET; LINK ROD 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-700-0	01	1	9905-		●	●	●	●
466	BOLT; FIX CXZ(CXZ***) CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	9902-9904	●
466	BOLT; FIX L TYPE ENG<90L> CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	9905-	●					●	●
507	PROTECTOR; HEAT CXZ(CXZ***) CAB UP +110MM<TGG>	1-14181-315-0	01	1	9902-9904	●
507	PROTECTOR; HEAT L TYPE ENG<90L> CAB UP +110MM<TGG>	1-14181-315-0	01	1	9905-	●					●	●

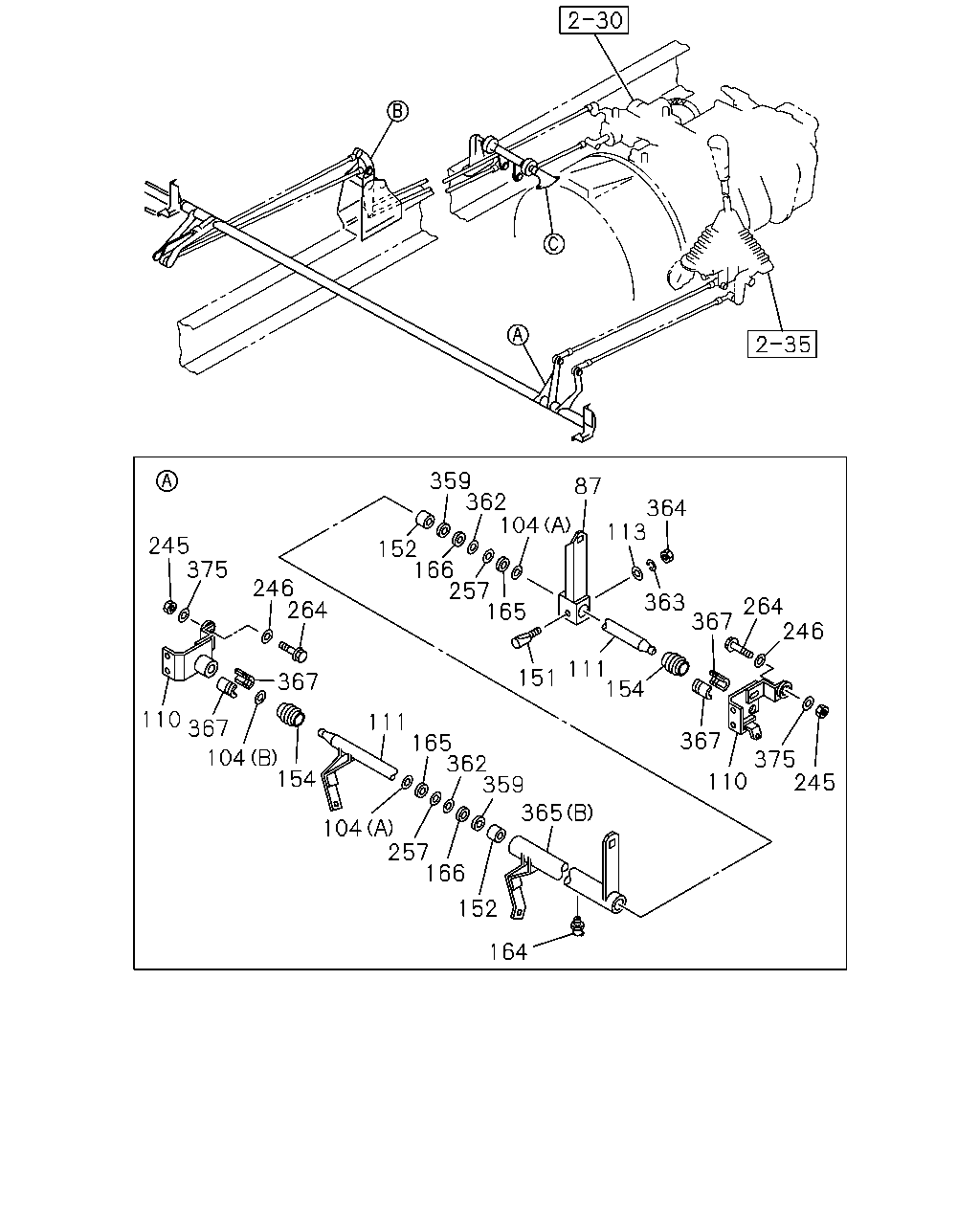

359 362 104 87 364 113 245 375 152 166 257 165 246 264 363 367 264 246 111 154 151 367 367 110 367 111 165 362 359 365 104 154 375 110 245 104 257 166 152 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
87	LEVER; RELAY,SELECT	1-33651-666-0	01	1	9603-9901	●	●	●	●	●
87	LEVER; RELAY,SELECT CXZ(CXZ***)	1-33651-666-0	01	1	9902-9904	●
87	LEVER; RELAY,SELECT	1-33651-666-0	01	1	9905-	●	●	●	●	●	●	●
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	9603-9901	●	●	●	●	●
104	RING; SNAP CXZ(CXZ***) (A) ID=32.2	9-09180-035-0	02	1	9902-9904	●
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	9905-	●	●	●	●	●	●	●
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	9603-9901	●	●	●	●	●
104	RING; SNAP CXZ(CXZ***) (B) OD=23.5	9-09180-122-0	01	1	9902-9904	●
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	9905-	●	●	●	●	●	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	9603-9901	●	●	●	●	●
110	BRACKET; RELAY LEVER,1ST CXZ(CXZ***)	1-33657-617-0	01	1	9902-9904	●
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	9905-	●	●	●	●	●	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	9603-9901	●	●	●	●	●
110	BRACKET; RELAY LEVER,1ST CXZ(CXZ***)	1-33657-618-0	01	1	9902-9904	●
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	9905-	●	●	●	●	●	●	●
111	SHAFT; RELAY LEVER,1ST	1-33659-200-0	01	1	9603-9901	●	●	●	●	●
111	SHAFT; RELAY LEVER,1ST CXZ(CXZ***)	1-33659-200-0	01	1	9902-9904	●
111	SHAFT; RELAY LEVER,1ST	1-33659-200-0	01	1	9905-	●	●	●	●	●	●	●
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	9603-9901	●	●	●	●	●
113	WASHER; RELAY LEVER CXZ(CXZ***) ID=10.5 OD=26	9-09160-710-0	01	1	9902-9904	●
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	9905-	●	●	●	●	●	●	●
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	9603-9901	●	●	●	●	●
151	BOLT; KEY,RELAY LEVER CXZ(CXZ***)	1-33659-063-0	01	1	9902-9904	●
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	9905-	●	●	●	●	●	●	●
152	BEARING; NEEDLE,RELAY LEVER	1-09811-328-0	02	1	9603-9901	●	●	●	●	●
152	BEARING; NEEDLE,RELAY LEVER CXZ(CXZ***)	1-09811-328-0	02	1	9902-9904	●
152	BEARING; NEEDLE,RELAY LEVER	1-09811-328-0	02	1	9905-	●	●	●	●	●	●	●
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	9603-9901	●	●	●	●	●
154	COVER; DUST,RELAY LEVER CXZ(CXZ***)	1-33659-068-0	02	1	9902-9904	●
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	9905-	●	●	●	●	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9603-9901	●	●	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD CXZ(CXZ***) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9902-9904	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9905-	●	●	●	●	●	●	●
165	WASHER; RELAY LEVER	1-09503-148-0	AR	1	9603-9901	●	●	●	●	●
165	WASHER; RELAY LEVER CXZ(CXZ***)	1-09503-148-0	AR	1	9902-9904	●
165	WASHER; RELAY LEVER	1-09503-148-0	AR	1	9905-	●	●	●	●	●	●	●
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	9603-9901	●	●	●	●	●
166	WASHER; NYLON,RELAY LEVER CXZ(CXZ***)	1-09509-040-0	02	1	9902-9904	●
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	9905-	●	●	●	●	●	●	●
245	NUT; BRKT,RELAY LEVER M10	1-09984-142-0	02	1	9603-9901	●	●	●	●	●
245	NUT; BRKT,RELAY LEVER CXZ(CXZ***) M10	1-09984-142-0	02	1	9902-9904	●
245	NUT; BRKT,RELAY LEVER M10	1-09984-142-0	02	1	9905-	●	●	●	●	●	●	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	9603-9901	●	●	●	●	●
246	WASHER; LK,BRKT,RELAY LEVER CXZ(CXZ***) ID=10	1-09985-185-0	02	1	9902-9904	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	9905-	●	●	●	●	●	●	●
257	PIECE; DIST,RELAY LEVER	1-09503-198-0	AR	1	9603-9901	●	●	●	●	●
257	PIECE; DIST,RELAY LEVER CXZ(CXZ***)	1-09503-198-0	AR	1	9902-9904	●
257	PIECE; DIST,RELAY LEVER	1-09503-198-0	AR	1	9905-	●	●	●	●	●	●	●
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28681-030-0	02	1	9603-9901	●	●	●	●	●
264	BOLT; BRKT,RELAY LEVER CXZ(CXZ***) M10X30 FLANGE	0-28681-030-0	02	1	9902-9904	●
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28681-030-0	02	1	9905-	●	●	●	●	●	●	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	02	1	9603-9901	●	●	●	●	●
264	BOLT; BRKT,RELAY LEVER CXZ(CXZ***) M10X100	1-09980-547-0	02	1	9902-9904	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	02	1	9905-	●	●	●	●	●	●	●
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	9603-9901	●	●	●	●	●
359	SEAL; RUBBER,RELAY LEVER CXZ(CXZ***)	1-09625-005-1	02	1	9902-9904	●
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	9905-	●	●	●	●	●	●	●
362	SHIM	1-09503-172-0	AR	1	9603-9901	●	●	●	●	●
362	SHIM CXZ(CXZ***)	1-09503-172-0	AR	1	9902-9904	●
362	SHIM	1-09503-172-0	AR	1	9905-	●	●	●	●	●	●	●
363	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	01	1	9603-9901	●	●	●	●	●
363	WASHER; LK,KEY BOLT CXZ(CXZ***) ID=10.2	9-09150-510-0	01	1	9902-9904	●
363	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	01	1	9905-	●	●	●	●	●	●	●
364	NUT; KEY BOLT M10	9-09111-410-0	01	1	9603-9901	●	●	●	●	●
364	NUT; KEY BOLT CXZ(CXZ***) M10	9-09111-410-0	01	1	9902-9904	●
364	NUT; KEY BOLT M10	9-09111-410-0	01	1	9905-	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT 6WA1 TC-S(56L) (A)	1-33651-628-1	01	1	9603-9901	●
365	LEVER; RELAY,SELECT CXZ(CXZ***) (A)	1-33651-628-1	01	1	9902-9904	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9905-	●					●	●
365	LEVER; RELAY,SELECT CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) (A)	1-33651-627-1	01	1	9603-9901	●
365	LEVER; RELAY,SELECT 8PE1S(59L),10PE1S(60L) (A)	1-33651-627-1	01	1	9603-9901		●	●	●	●
365	LEVER; RELAY,SELECT V TYPE ENG<91L> (A)	1-33651-627-1	01	1	9905-	●	●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	9603-9901	●	●	●	●	●
365	LEVER; RELAY,SELECT CXZ(CXZ***) (B)	1-33651-665-0	01	1	9902-9904	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	9905-	●	●	●	●	●	●	●
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	9603-9901	●	●	●	●	●
367	SEAT; BALL,CONT SHAFT CXZ(CXZ***)	1-33659-053-0	04	1	9902-9904	●
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	9905-	●	●	●	●	●	●	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9603-9901	●	●	●	●	●
375	WASHER; PL,BRKT,RELAY LEVER CXZ(CXZ***) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9902-9904	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9905-	●	●	●	●	●	●	●

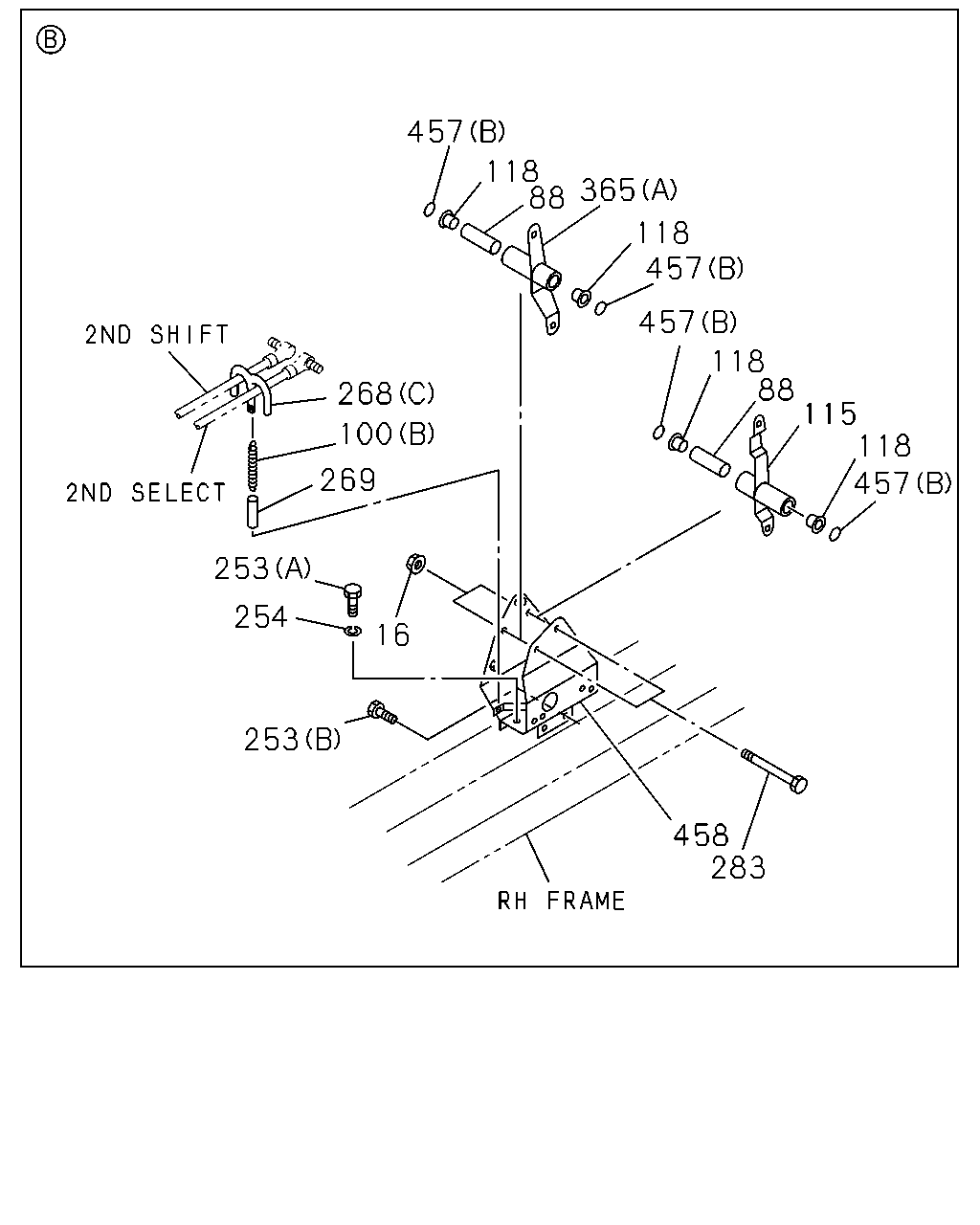

457 118 88 365 118 457 457 118 88 115 118 457 268 100 269 253 254 16 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9603-9901	●	●	●	●	●
16	NUT; RELAY LEVER CXZ(CXZ***) M10 FLANGE	0-91150-110-0	02	1	9902-9904	●
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9905-	●	●	●	●	●	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9603-9901	●	●	●	●	●
88	COLLAR; RELAY LEVER CXZ(CXZ***)	1-33659-191-1	02	1	9902-9904	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9905-	●	●	●	●	●	●	●
100	SPRING 6WA1 TC-S(56L) (B)	1-09583-218-0	01	1	9603-9901	●
100	SPRING CXZ(CXZ***) (B)	1-09583-351-0	01	1	9902-9904	●
100	SPRING L TYPE ENG<90L> (B)	1-09583-351-0	01	1	9905-	●					●	●
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-319-0	01	1	9603-9901	●
100	SPRING CXZ(CXZ***) (A)	1-09583-319-0	01	1	9902-9904	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9905-	●					●	●
100	SPRING CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (C)	1-09583-294-0	01	1	9603-9901	●
100	SPRING 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (C)	1-09583-294-0	01	1	9603-9901		●
100	SPRING CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (C)	1-09583-294-0	01	1	9905-	●
100	SPRING 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (C)	1-09583-294-0	01	1	9905-		●	●	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9603-9901	●	●	●	●	●
115	LEVER; RELAY,2ND SHIFT CXZ(CXZ***)	1-33651-626-0	01	1	9902-9904	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9905-	●	●	●	●	●	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9603-9901	●	●	●	●	●
118	BUSHING; RELAY LEVER CXZ(CXZ***)	1-09330-119-0	04	1	9902-9904	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9905-	●	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9603-9901	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER CXZ(CXZ***) (A) M14X45	0-20801-445-0	02	1	9902-9904	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9905-	●	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9603-9606	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9607-9901	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER CXZ(CXZ***) (B) M10X35 FLANGE	0-28681-035-0	02	1	9902-9904	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9905-	●	●	●	●	●	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9603-9901	●	●	●	●	●
254	WASHER; LK,RELAY LEVER CXZ(CXZ***) ID=14.2	9-09150-614-0	02	1	9902-9904	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9905-	●	●	●	●	●	●	●
268	BRACKET; LINK ROD 6WA1 TC-S(56L) (C)	1-33657-216-0	01	1	9603-9901	●
268	BRACKET; LINK ROD CXZ(CXZ***) (C)	1-33657-216-0	01	1	9902-9904	●
268	BRACKET; LINK ROD L TYPE ENG<90L> (C)	1-33657-216-0	01	1	9905-	●					●	●
268	BRACKET; LINK ROD CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-439-1	01	1	9603-9807	●
268	BRACKET; LINK ROD 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-439-1	01	1	9603-9807		●	●	●	●
268	BRACKET; LINK ROD CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-700-0	01	1	9808-9901	●
268	BRACKET; LINK ROD 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-700-0	01	1	9808-9901		●	●	●	●
268	BRACKET; LINK ROD CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-494-0	01	1	9603-9901	●
268	BRACKET; LINK ROD 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-494-0	01	1	9603-9901		●
268	BRACKET; LINK ROD CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-494-0	01	1	9905-	●
268	BRACKET; LINK ROD 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-494-0	01	1	9905-		●	●	●	●
268	BRACKET; LINK ROD CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-700-0	01	1	9905-	●
268	BRACKET; LINK ROD 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-700-0	01	1	9905-		●	●	●	●
269	COVER; SPR 6WA1 TC-S(56L)	1-15669-002-0	01	1	9603-9901	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9603-9901	●	●	●	●	●
283	BOLT; RELAY LEVER CXZ(CXZ***) M10X110	9-09801-316-1	02	1	9902-9904	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9905-	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT 6WA1 TC-S(56L) (A)	1-33651-628-1	01	1	9603-9901	●
365	LEVER; RELAY,SELECT CXZ(CXZ***) (A)	1-33651-628-1	01	1	9902-9904	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9905-	●					●	●
365	LEVER; RELAY,SELECT CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) (A)	1-33651-627-1	01	1	9603-9901	●
365	LEVER; RELAY,SELECT 8PE1S(59L),10PE1S(60L) (A)	1-33651-627-1	01	1	9603-9901		●	●	●	●
365	LEVER; RELAY,SELECT V TYPE ENG<91L> (A)	1-33651-627-1	01	1	9905-	●	●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	9603-9901	●	●	●	●	●
365	LEVER; RELAY,SELECT CXZ(CXZ***) (B)	1-33651-665-0	01	1	9902-9904	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	9905-	●	●	●	●	●	●	●
457	GASKET (B)	1-09623-594-0	04	1	9603-9901	●	●	●	●	●
457	GASKET CXZ(CXZ***) (B)	1-09623-594-0	04	1	9902-9904	●
457	GASKET (B)	1-09623-594-0	04	1	9905-	●	●	●	●	●	●	●
458	BRACKET; 2ND RELAY LEVER 6WA1 TC-S(56L)	1-33657-573-2	01	1	9603-9901	●
458	BRACKET; 2ND RELAY LEVER CXZ(CXZ***) CAB UP +110MM<TGG>	1-33657-664-1	01	1	9902-9904	●
458	BRACKET; 2ND RELAY LEVER L TYPE ENG<90L> CAB UP +110MM<TGG>	1-33657-664-1	01	1	9905-	●					●	●
458	BRACKET; 2ND RELAY LEVER CXZ(CXZ***) 8PE1S(59L),10PE1S(60L)	1-33657-572-2	01	1	9603-9901	●
458	BRACKET; 2ND RELAY LEVER 8PE1S(59L),10PE1S(60L)	1-33657-572-2	01	1	9603-9901		●	●	●	●
458	BRACKET; 2ND RELAY LEVER CXZ(CXZ***) EXC. CAB UP +110MM<TGG>	1-33657-583-1	01	1	9902-9904	●
458	BRACKET; 2ND RELAY LEVER L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-33657-583-1	01	1	9905-	●					●	●
458	BRACKET; 2ND RELAY LEVER V TYPE ENG<91L>	1-33657-572-2	01	1	9905-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
