Sayfa 3-55 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51148 - NLR/NMR(EU)-LHD EU4 ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶

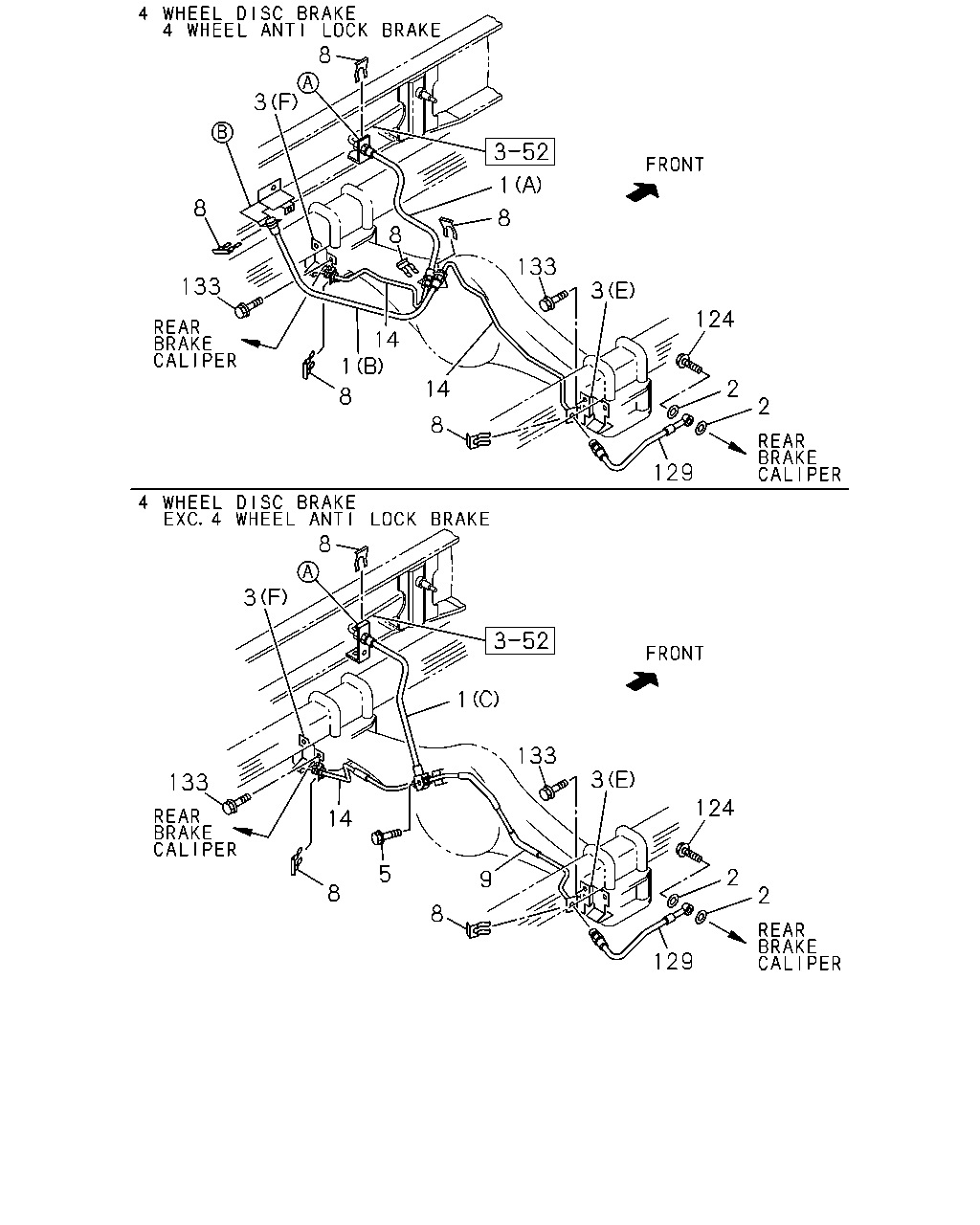

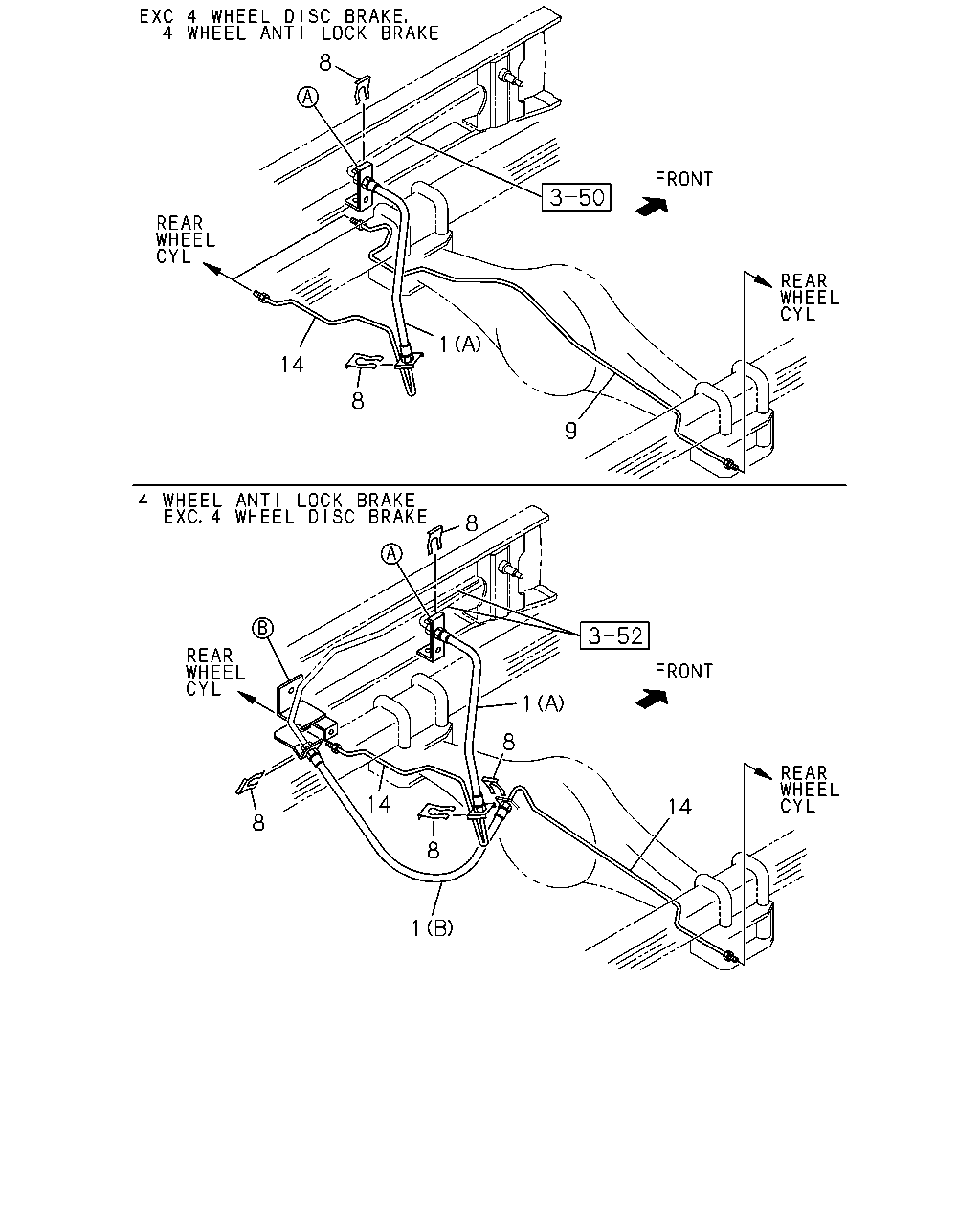

3-55 — BRAKE PIPING; OIL,REAR (#53503) — 123 parça

3 3 3 3 3 3 25 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

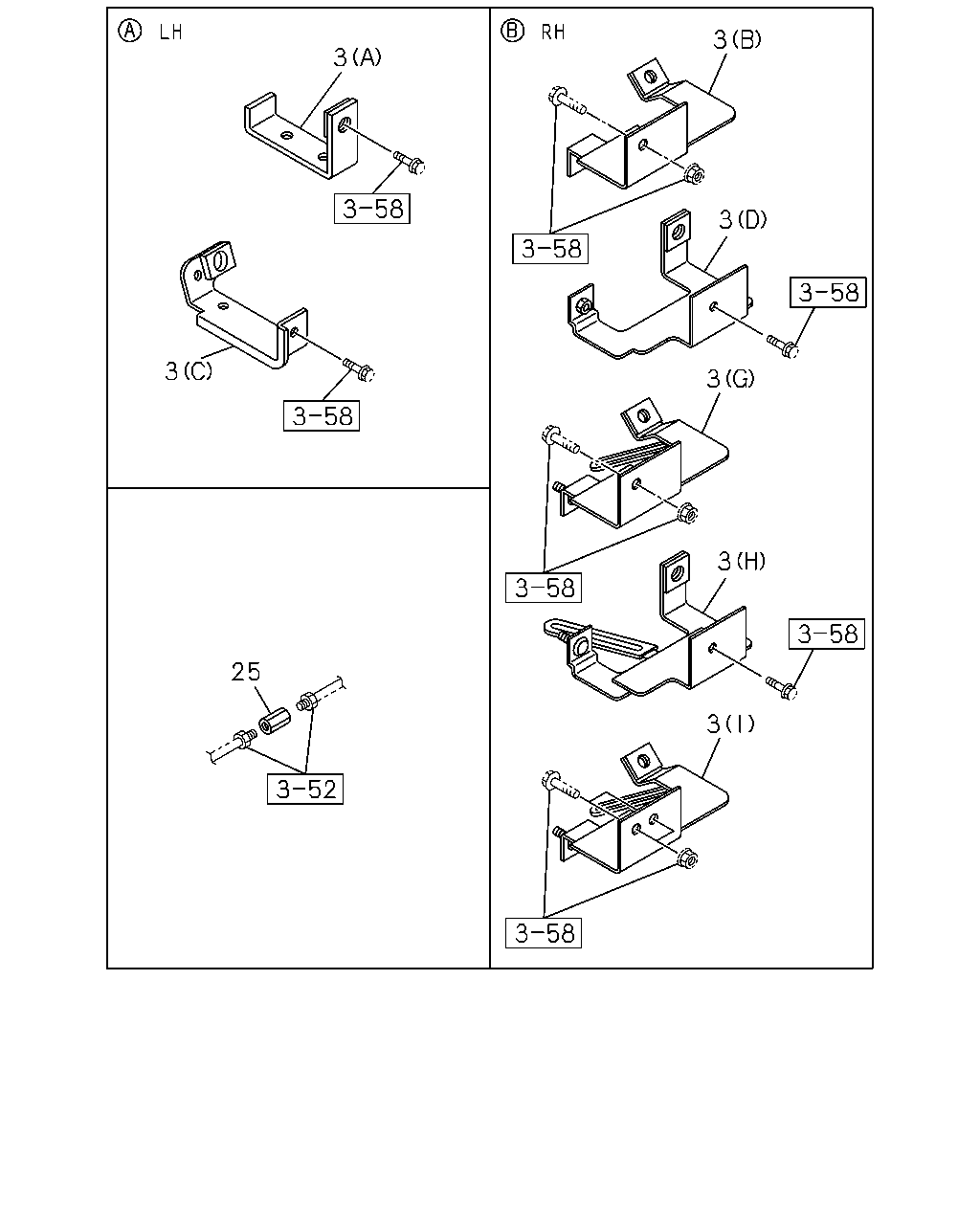

3	04.681 BRACKET; FLEX HOSE,RR BRK SINGLE RR TIRE(6TD) (C)	8-97251-436-0	01	1	0712-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK EXC. SINGLE RR TIRE(6TD) (A)	8-97205-198-0	01	1	0712-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (A)	8-97205-198-0	01	1	0712-		●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) (D)	8-97300-282-0	01	1	0712-0903	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) (H)	8-98117-513-0	01	1	0904-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (B)	8-97046-936-0	01	1	0712-0903	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (B)	8-97046-936-0	01	1	0712-0903		●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97046-936-0	01	1	0712-0903			●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (G)	8-98117-511-0	01	1	0904-0911	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (G)	8-98117-511-0	01	1	0904-0911		●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (G)	8-98117-511-0	01	1	0904-0911			●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (I)	8-98153-296-0	01	1	0912-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (I)	8-98153-296-0	01	1	0912-		●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-98153-296-0	01	1	0912-			●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL DISC BRAKE<JF9> (F)	8-98037-626-3	01	1	0712-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (F)	8-98037-626-3	01	1	0712-		●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL DISC BRAKE<JF9> (E)	8-98037-625-3	01	1	0712-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (E)	8-98037-625-3	01	1	0712-		●	●
25	04.686 CONNECTOR FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT	0-92107-005-0	02	1	0712-	●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	0712-	●	●	●
25	04.686 CONNECTOR WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT	0-92107-005-0	01	1	0712-	●		●
25	04.686 CONNECTOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT	0-92107-005-0	01	1	0712-	●		●
25	04.686 CONNECTOR BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT	0-92107-005-0	01	1	0712-	●		●
25	04.686 CONNECTOR WHEEL BASE 3300MM(33W) M10 STRAIGHT	0-92107-005-0	01	1	0712-		●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	0712-		●

8 3 1 8 8 8 133 133 3 124 14 1 2 14 8 2 8 129 8 3 1 133 3 133 124 14 5 2 9 8 2 8 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) (B) L=345	8-97230-284-1	01	1	0712-	●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (B) L=430	8-97077-458-0	01	1	0712-	●
1	04.680 HOSE; FLEX,RR BRK (B) L=430	8-97077-458-0	01	1	0712-		●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=430	8-97077-458-0	01	1	0712-			●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> (A) L=370	8-97035-574-0	01	1	0712-	●
1	04.680 HOSE; FLEX,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (A) L=370	8-97035-574-0	01	1	0712-	●
1	04.680 HOSE; FLEX,RR BRK (A) L=370	8-97035-574-0	01	1	0712-		●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=370	8-97035-574-0	01	1	0712-			●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL DISC BRAKE<JF9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98037-756-0	01	1	0712-	●
1	04.680 HOSE; FLEX,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98037-756-0	01	1	0712-			●
2	04.686 GASKET; FLEX HOSE,RR BRK 4 WHEEL DISC BRAKE<JF9> 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0712-	●
2	04.686 GASKET; FLEX HOSE,RR BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0712-		●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK SINGLE RR TIRE(6TD) (C)	8-97251-436-0	01	1	0712-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK EXC. SINGLE RR TIRE(6TD) (A)	8-97205-198-0	01	1	0712-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (A)	8-97205-198-0	01	1	0712-		●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) (D)	8-97300-282-0	01	1	0712-0903	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) (H)	8-98117-513-0	01	1	0904-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (B)	8-97046-936-0	01	1	0712-0903	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (B)	8-97046-936-0	01	1	0712-0903		●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97046-936-0	01	1	0712-0903			●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (G)	8-98117-511-0	01	1	0904-0911	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (G)	8-98117-511-0	01	1	0904-0911		●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (G)	8-98117-511-0	01	1	0904-0911			●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (I)	8-98153-296-0	01	1	0912-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (I)	8-98153-296-0	01	1	0912-		●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-98153-296-0	01	1	0912-			●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL DISC BRAKE<JF9> (F)	8-98037-626-3	01	1	0712-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (F)	8-98037-626-3	01	1	0712-		●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL DISC BRAKE<JF9> (E)	8-98037-625-3	01	1	0712-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (E)	8-98037-625-3	01	1	0712-		●	●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK 4 WHEEL DISC BRAKE<JF9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0712-	●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0712-			●
8	04.686 CLIP; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>	8-97360-054-0	02	1	0712-	●
8	04.686 CLIP; RR BRK 4 WHEEL DISC BRAKE<JF9>	8-97360-054-0	02	1	0712-	●
8	04.686 CLIP; RR BRK	8-97360-054-0	02	1	0712-		●	●
8	04.686 CLIP; RR BRK 4 WHEEL DISC BRAKE<JF9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	01	1	0712-	●
8	04.686 CLIP; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	01	1	0712-			●
8	04.686 CLIP; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	04	1	0712-	●		●
8	04.686 CLIP; RR BRK	8-97360-054-0	04	1	0712-		●
9	04.685 PIPE; BRK,RR AXLE BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T)	8-98021-861-0	01	1	0712-0803	●
9	04.685 PIPE; BRK,RR AXLE FRT INDEPENDENT SUSPENSION(FF0) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T)	8-98021-861-0	01	1	0804-	●
9	04.685 PIPE; BRK,RR AXLE 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SINGLERR TIRE(6TD)	8-98021-875-0	01	1	0712-	●
9	04.685 PIPE; BRK,RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98021-875-0	01	1	0712-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T)	8-98021-860-0	01	1	0712-0803	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL FRT INDEPENDENT SUSPENSION(FF0) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T)	8-98021-860-0	01	1	0804-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH>	8-98021-862-0	01	1	0712-0803	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH>	8-98021-862-0	01	1	0804-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH>	8-98021-877-0	01	1	0712-0803	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH>	8-98021-877-0	01	1	0804-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RRTIRE(6TD)	8-98021-876-0	01	1	0712-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR WIDE TREAD(V4T)	8-98021-876-0	01	1	0712-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH>	8-98021-876-0	01	1	0712-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RRTIRE(6TD)	8-98021-880-0	01	1	0712-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR WIDE TREAD(V4T)	8-98021-880-0	01	1	0712-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH>	8-98021-880-0	01	1	0712-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SINGLERR TIRE(6TD)	8-98021-874-0	01	1	0712-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98021-874-0	01	1	0712-			●
124	04.685 BOLT; EYE,FLEX HOSE,RR BRK 4 WHEEL DISC BRAKE<JF9> 04.681 M10X22	8-98014-005-0	02	1	0712-	●
124	04.685 BOLT; EYE,FLEX HOSE,RR BRK 04.681 M10X22	8-98014-005-0	02	1	0712-		●	●
129	04.680 HOSE; FLEX,RR DISC 4 WHEEL DISC BRAKE<JF9>	8-98037-757-2	02	1	0712-	●
129	04.680 HOSE; FLEX,RR DISC	8-98037-757-2	02	1	0712-		●	●
133	04.685 BOLT; CLIP 4 WHEEL DISC BRAKE<JF9> 03.407 M8X10 FLANGE	0-28050-810-0	04	1	0712-	●
133	04.685 BOLT; CLIP 03.407 M8X10 FLANGE	0-28050-810-0	04	1	0712-		●	●

8 1 14 8 9 8 1 8 14 14 8 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) (B) L=345	8-97230-284-1	01	1	0712-	●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (B) L=430	8-97077-458-0	01	1	0712-	●
1	04.680 HOSE; FLEX,RR BRK (B) L=430	8-97077-458-0	01	1	0712-		●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=430	8-97077-458-0	01	1	0712-			●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> (A) L=370	8-97035-574-0	01	1	0712-	●
1	04.680 HOSE; FLEX,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (A) L=370	8-97035-574-0	01	1	0712-	●
1	04.680 HOSE; FLEX,RR BRK (A) L=370	8-97035-574-0	01	1	0712-		●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=370	8-97035-574-0	01	1	0712-			●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL DISC BRAKE<JF9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98037-756-0	01	1	0712-	●
1	04.680 HOSE; FLEX,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98037-756-0	01	1	0712-			●
8	04.686 CLIP; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>	8-97360-054-0	02	1	0712-	●
8	04.686 CLIP; RR BRK 4 WHEEL DISC BRAKE<JF9>	8-97360-054-0	02	1	0712-	●
8	04.686 CLIP; RR BRK	8-97360-054-0	02	1	0712-		●	●
8	04.686 CLIP; RR BRK 4 WHEEL DISC BRAKE<JF9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	01	1	0712-	●
8	04.686 CLIP; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	01	1	0712-			●
8	04.686 CLIP; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	04	1	0712-	●		●
8	04.686 CLIP; RR BRK	8-97360-054-0	04	1	0712-		●
9	04.685 PIPE; BRK,RR AXLE BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T)	8-98021-861-0	01	1	0712-0803	●
9	04.685 PIPE; BRK,RR AXLE FRT INDEPENDENT SUSPENSION(FF0) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T)	8-98021-861-0	01	1	0804-	●
9	04.685 PIPE; BRK,RR AXLE 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SINGLERR TIRE(6TD)	8-98021-875-0	01	1	0712-	●
9	04.685 PIPE; BRK,RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98021-875-0	01	1	0712-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T)	8-98021-860-0	01	1	0712-0803	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL FRT INDEPENDENT SUSPENSION(FF0) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T)	8-98021-860-0	01	1	0804-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH>	8-98021-862-0	01	1	0712-0803	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH>	8-98021-862-0	01	1	0804-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH>	8-98021-877-0	01	1	0712-0803	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH>	8-98021-877-0	01	1	0804-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RRTIRE(6TD)	8-98021-876-0	01	1	0712-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR WIDE TREAD(V4T)	8-98021-876-0	01	1	0712-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH>	8-98021-876-0	01	1	0712-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH>,SINGLE RRTIRE(6TD)	8-98021-880-0	01	1	0712-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR WIDE TREAD(V4T)	8-98021-880-0	01	1	0712-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH>	8-98021-880-0	01	1	0712-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SINGLERR TIRE(6TD)	8-98021-874-0	01	1	0712-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98021-874-0	01	1	0712-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
