◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35B - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35B — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#5350) — 94 parça

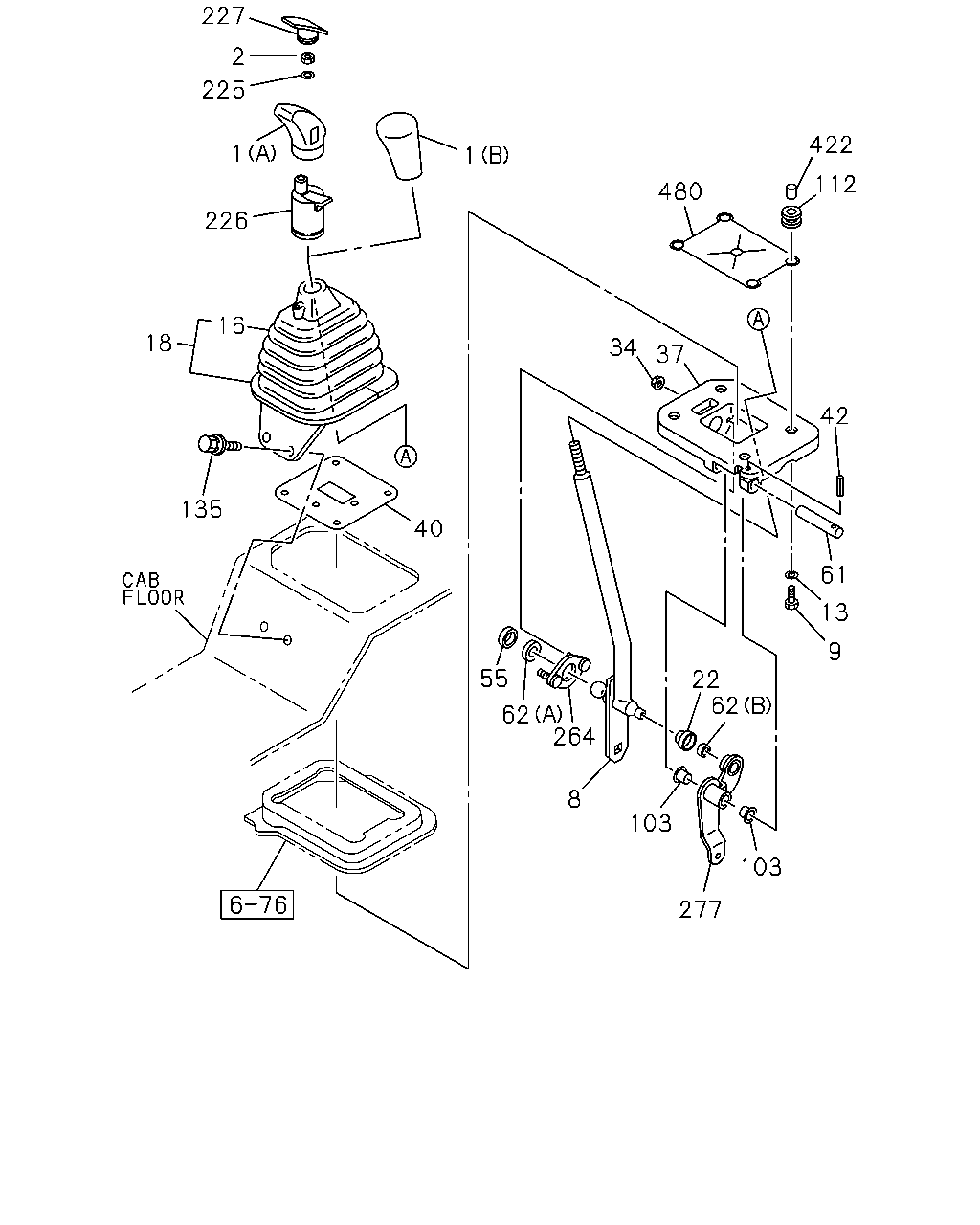

çizim 39787
227 2 225 422 1 1 112 480 226 16 18 34 37 42 135 40 61 13 9 55 22 62 62 264 8 103 103 277
BalonParca AdiParca NoAdetTipApplied Date A B C
1 KNOB; CHANGE LEVER
(B) 		1-33611-090-0 01 1 9902- ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-038-0 01 1 9603-9909 ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-038-0 01 1 9910- ● ●
2 NUT; KNOB
M10 FLANGE 		0-91150-110-0 01 1 9603-9608 ●
2 NUT; KNOB
M10 FLANGE 		0-91150-210-0 01 1 9609-9901 ●
2 NUT; KNOB
M10 FLANGE 		0-91150-210-0 01 1 9902- ● ● ●
8 LEVER; CHANGE 1-33613-345-0 01 1 9603-9901 ●
8 LEVER; CHANGE 1-33613-345-0 01 1 9902- ● ● ●
9 BOLT; CHANGE LEVER
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9603-9807 ●
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 9808-9901 ●
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 9902-9904 ● ●
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 9905- ● ● ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 9603-9901 ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 9902-9904 ● ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 9905- ● ● ●
16 BOOT; CHANGE LEVER 1-79996-368-0 01 1 9902-9904 ●
16 BOOT; CHANGE LEVER 1-79996-368-0 01 1 9905- ●
16 BOOT; CHANGE LEVER 1-79996-369-0 01 1 9703-9909 ●
16 BOOT; CHANGE LEVER 1-79996-369-0 01 1 9910- ● ●
18 BOOT; CHANGE LEVER 1-79996-365-2 01 1 9902-9903 ●
18 BOOT; CHANGE LEVER 1-79996-436-2 01 1 9904-9904 ●
18 BOOT; CHANGE LEVER 1-79996-436-2 01 1 9905- ●
18 BOOT; CHANGE LEVER 1-79996-300-2 01 1 9603-9702 ●
18 BOOT; CHANGE LEVER 1-79996-366-2 01 1 9703-9903 ●
18 BOOT; CHANGE LEVER 1-79996-401-0 01 1 9904-9909 ●
18 BOOT; CHANGE LEVER 1-79996-401-0 01 1 9910- ● ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 9610-9901 ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 9902-9904 ● ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 9905-9909 ● ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 9910- ● ● ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 9603-9901 ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 9902-9904 ● ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 9905-9909 ● ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 9910- ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 9603-9901 ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 9902-9904 ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 9905-9909 ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 9910- ● ● ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 9904-9904 ● ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 9905-9909 ● ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 9910- ● ● ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 9603-9901 ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 9902-9904 ● ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 9905-9909 ● ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 9910- ● ● ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 9603-9901 ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 9902-9904 ● ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 9905-9909 ● ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 9910- ● ● ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 9603-9901 ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 9902-9904 ● ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 9905-9909 ● ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 9910- ● ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9603-9901 ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9902-9904 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9905-9909 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9910- ● ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9603-9901 ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9902-9904 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9905-9909 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9910- ● ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9603-9901 ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9902-9904 ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9905-9909 ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9910- ● ● ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 9603-9901 ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 9902-9904 ● ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 9905-9909 ● ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 9910- ● ● ●
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9603-9901 ●
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9902-9904 ● ●
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9905- ● ● ●
225 WASHER; PL,KNOB
ID=10.5 OD=22 		9-09160-610-0 01 1 9603-9901 ●
225 WASHER; PL,KNOB
ID=10.5 OD=22 		9-09160-610-0 01 1 9902- ● ● ●
226 VALVE; SELECTOR 1-33710-006-0 01 1 9603-9909 ●
226 VALVE; SELECTOR 1-33710-006-0 01 1 9910-0004 ● ●
226 VALVE; SELECTOR 1-33710-008-0 01 1 0005- ● ●
227 COVER; KNOB 1-33619-219-0 01 1 9603-9901 ●
227 COVER; KNOB 1-33619-219-0 01 1 9902- ● ● ●
264 PLATE; COVER 1-33619-469-0 01 1 9603-9901 ●
264 PLATE; COVER 1-33619-469-0 01 1 9902-9904 ● ●
264 PLATE; COVER 1-33619-469-0 01 1 9905-9909 ● ●
264 PLATE; COVER 1-33619-469-0 01 1 9910- ● ● ●
277 LEVER; RELAY 1-33651-636-0 01 1 9603-9901 ●
277 LEVER; RELAY 1-33651-636-0 01 1 9902-9904 ● ●
277 LEVER; RELAY 1-33651-636-0 01 1 9905-9909 ● ●
277 LEVER; RELAY 1-33651-636-0 01 1 9910- ● ● ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 9603-9901 ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 9902-9904 ● ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 9905-9909 ● ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 9910- ● ● ●
480 RUBBER; COVER 1-33619-554-0 01 1 9902-9904 ● ●
480 RUBBER; COVER 1-33619-554-0 01 1 9905-9909 ● ●
480 RUBBER; COVER 1-33619-554-0 01 1 9910- ● ● ●
