4-40 — STEERING UNIT (#535) — 114 parça

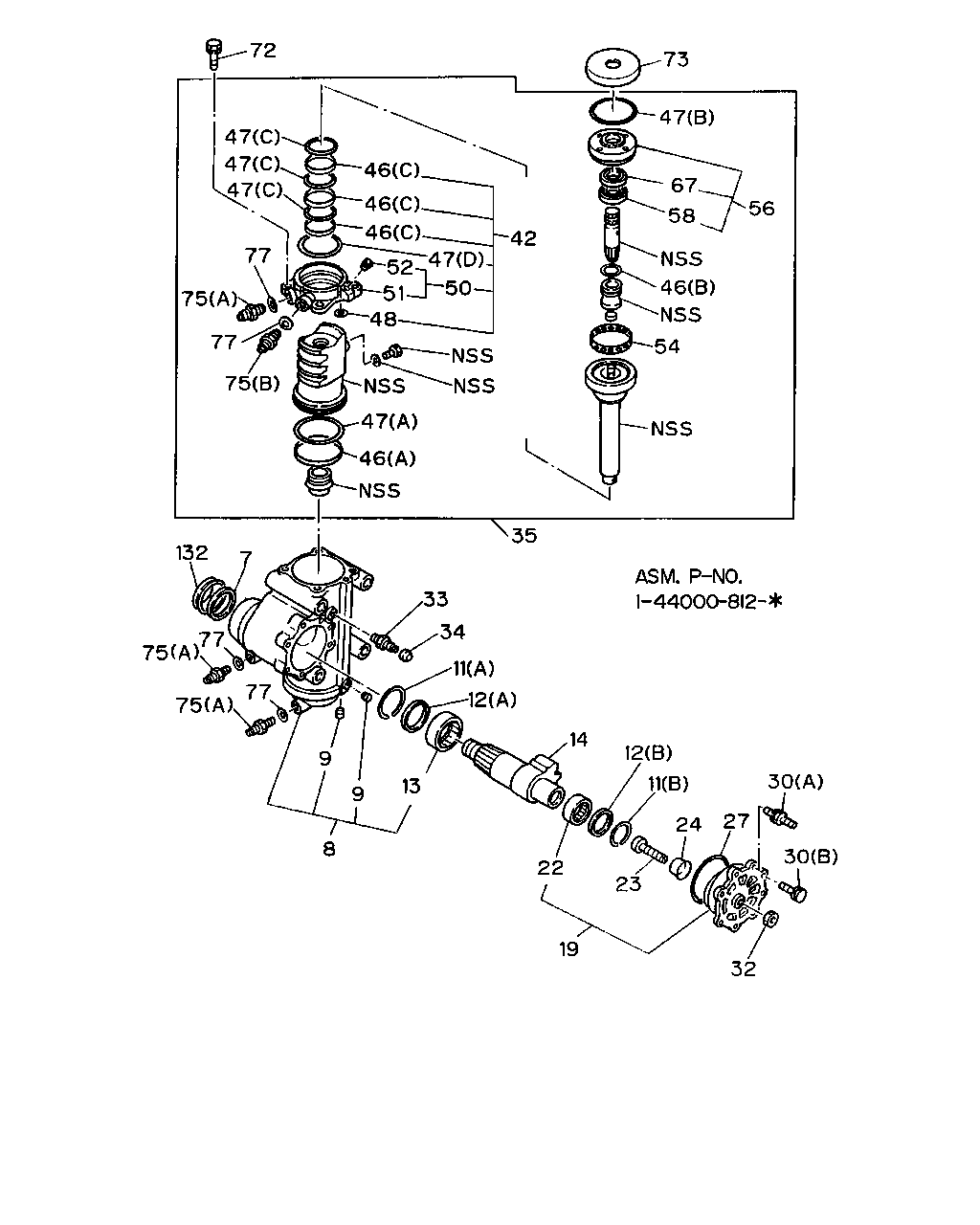

çizim 27233
72 47 47 47 46 46 46 77 52 47 42 50 48 75 77 75 47 46 132 77 75 75 77 7 33 34 11 12 9 9 13 8 22 19 14 12 11 24 27 30 30 32 23 35 54 46 58 56 67 47 43 51
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-746-6 		1-09625-374-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-746-6 		1-44240-048-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44240-092-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
PT3/8 ASM PART: A = 1-44000-746-6 		9-09204-517-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-812-2 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-812-2 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-812-2 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-812-2 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44249-038-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44321-022-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-746-6 		1-44321-030-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-746-6 		1-44260-010-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44260-019-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44519-105-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-746-6 		9-44277-014-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44269-016-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: B = 1-44000-812-2 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: B = 1-44000-812-2 		1-44279-012-0 05 1 -
30 BOLT; COVER STRG UNIT
M10X20 W/LK WASHER ASM PART: A = 1-44000-746-6 		9-01911-020-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 1-44000-746-6 		9-09110-410-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: B = 1-44000-812-2 		9-83331-704-0 01 1 -
34 PROTECTOR; STRG UNIT
ASM PART: B = 1-44000-812-2 		9-83335-044-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44150-050-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44560-073-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 1-44000-746-6 		1-09803-003-0 02 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-812-2 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-812-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-812-2 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-812-2 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-812-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-812-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-812-2 		1-44519-116-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44519-097-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44560-072-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44250-006-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44259-029-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44259-036-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44259-017-0 04 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: B = 1-44000-812-2 		1-44259-034-1 03 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: B = 1-44000-812-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: B = 1-44000-812-2 		9-89970-787-0 04 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-746-6 		1-44139-033-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44519-227-0 01 1 -

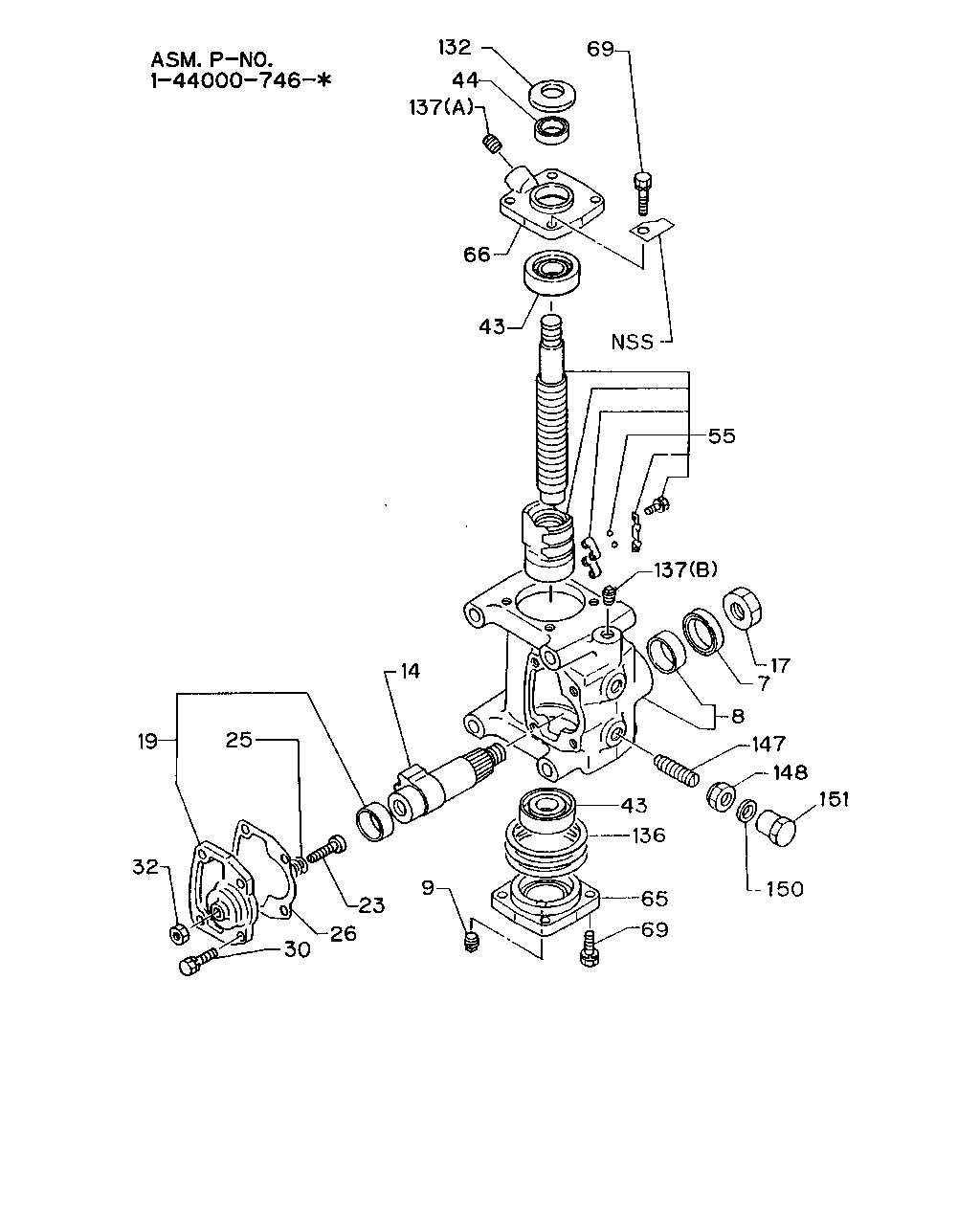

çizim 92737
69 132 44 137 66 43 55 137 17 7 8 147 148 151 150 69 136 65 43 9 23 26 30 32 19 25 14
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-746-6 		1-09625-374-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-746-6 		1-44240-048-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44240-092-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
PT3/8 ASM PART: A = 1-44000-746-6 		9-09204-517-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44321-022-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-746-6 		1-44321-030-1 01 1 -
17 NUT; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-746-6 		9-09840-266-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-746-6 		1-44260-010-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44260-019-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-746-6 		9-44277-014-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.515-1.535 ASM PART: A = 1-44000-746-6 		9-44279-008-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.545-1.565 ASM PART: A = 1-44000-746-6 		9-44279-009-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.575-1.595 ASM PART: A = 1-44000-746-6 		9-44279-010-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.605-1.625 ASM PART: A = 1-44000-746-6 		9-44279-011-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.635-1.655 ASM PART: A = 1-44000-746-6 		9-44279-012-0 AR 1 -
26 GASKET; COVER,STRG UNIT
ASM PART: A = 1-44000-746-6 		1-44262-008-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: B = 1-44000-812-2 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: B = 1-44000-812-2 		1-44279-012-0 05 1 -
30 BOLT; COVER STRG UNIT
M10X20 W/LK WASHER ASM PART: A = 1-44000-746-6 		9-01911-020-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 1-44000-746-6 		9-09110-410-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 1-44000-746-6 		1-09803-003-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-746-6 		1-09625-373-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: A = 1-44000-746-6 		1-44130-373-0 01 1 -
65 COVER; FRT,STRG UNIT
ASM PART: A = 1-44000-746-6 		1-44251-065-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: A = 1-44000-746-6 		1-44251-068-0 01 1 -
69 BOLT; COVER FIX STRG UNIT
M10X25 ASM PART: A = 1-44000-746-6 		9-01911-025-0 08 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-746-6 		1-44139-033-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44519-227-0 01 1 -
136 SHIM; FRT COVER
T=0.050 ASM PART: A = 1-44000-746-6 		1-44253-022-0 AR 1 -
136 SHIM; FRT COVER
T=0.070 ASM PART: A = 1-44000-746-6 		1-44253-023-0 AR 1 -
136 SHIM; FRT COVER
T=0.080 ASM PART: A = 1-44000-746-6 		1-44253-024-0 AR 1 -
136 SHIM; FRT COVER
T=0.10 ASM PART: A = 1-44000-746-6 		1-44253-025-0 AR 1 -
136 SHIM; FRT COVER
T=0.20 ASM PART: A = 1-44000-746-6 		1-44253-026-0 AR 1 -
136 SHIM; FRT COVER
T=0.50 ASM PART: A = 1-44000-746-6 		1-44253-027-0 AR 1 -
137 PLUG; BREATHER STRG UNIT
(B), PT3/8 ASM PART: A = 1-44000-746-6 		9-09204-517-0 01 1 -
137 PLUG; BREATHER STRG UNIT
(A), PT1/4 ASM PART: A = 1-44000-746-6 		9-99204-513-0 01 1 -
147 SCREW; STOPPER,SECTOR SHAFT
ASM PART: A = 1-44000-746-6 		1-09120-013-0 02 1 -
148 NUT; LOCK,STOPPER SCREW
M14 ASM PART: A = 1-44000-746-6 		9-99111-414-0 02 1 -
150 GASKET; CAP NUT
ASM PART: A = 1-44000-746-6 		1-09630-071-0 04 1 -
151 NUT; CAP,STOPPER SCREW
ASM PART: A = 1-44000-746-6 		1-09468-008-0 02 1 -

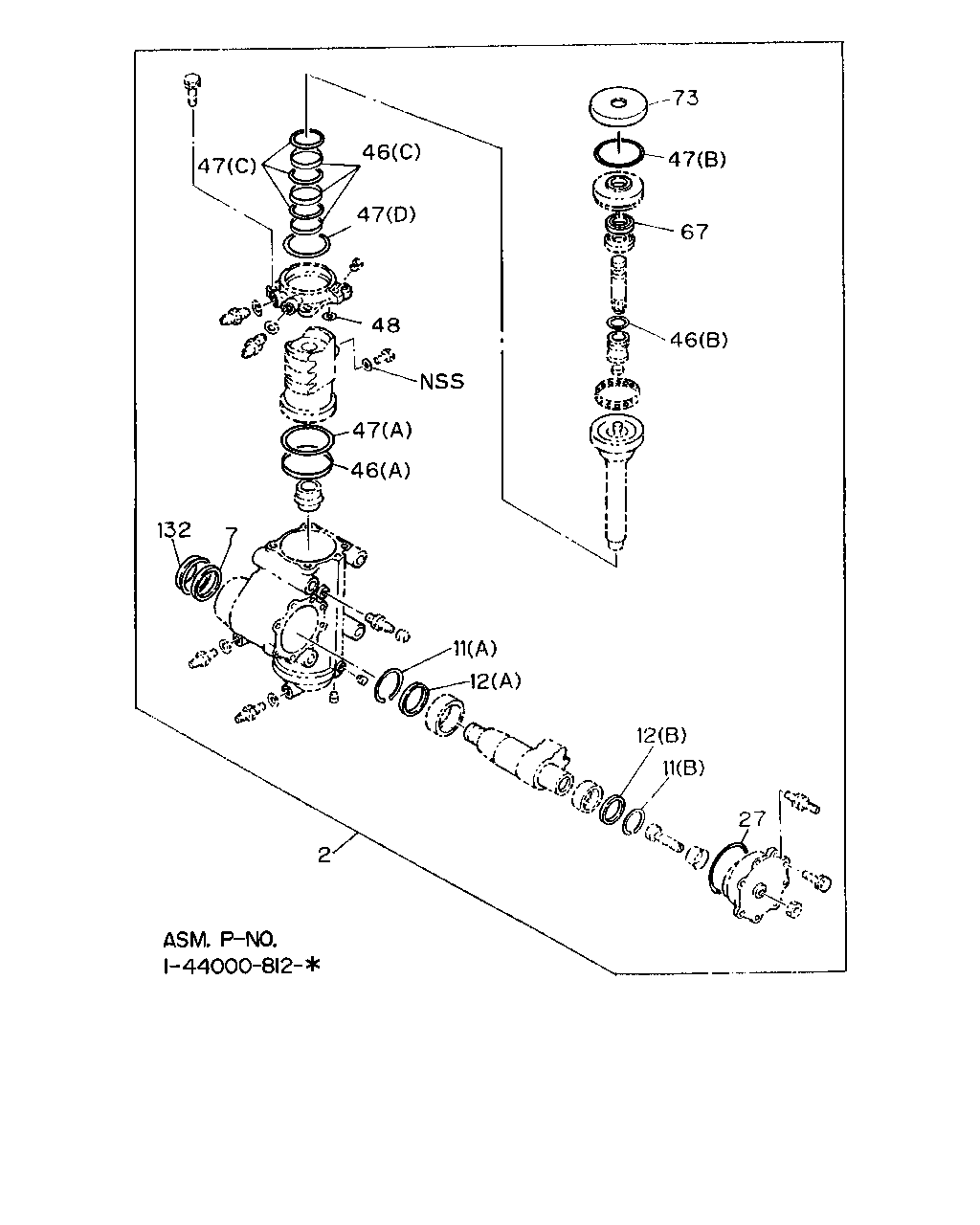

çizim 95799
47 46 47 48 47 46 132 7 11 12 12 11 27 2 46 67 47 73
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: B = 1-44000-812-2 		1-85574-030-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-746-6 		1-09625-374-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44249-041-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-812-2 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-812-2 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-812-2 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-812-2 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44269-016-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-812-2 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-812-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-812-2 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-812-2 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-812-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-812-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-812-2 		1-44519-116-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44519-097-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44259-036-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-746-6 		1-44139-033-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-812-2 		1-44519-227-0 01 1 -
