Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#53478) — 153 parça

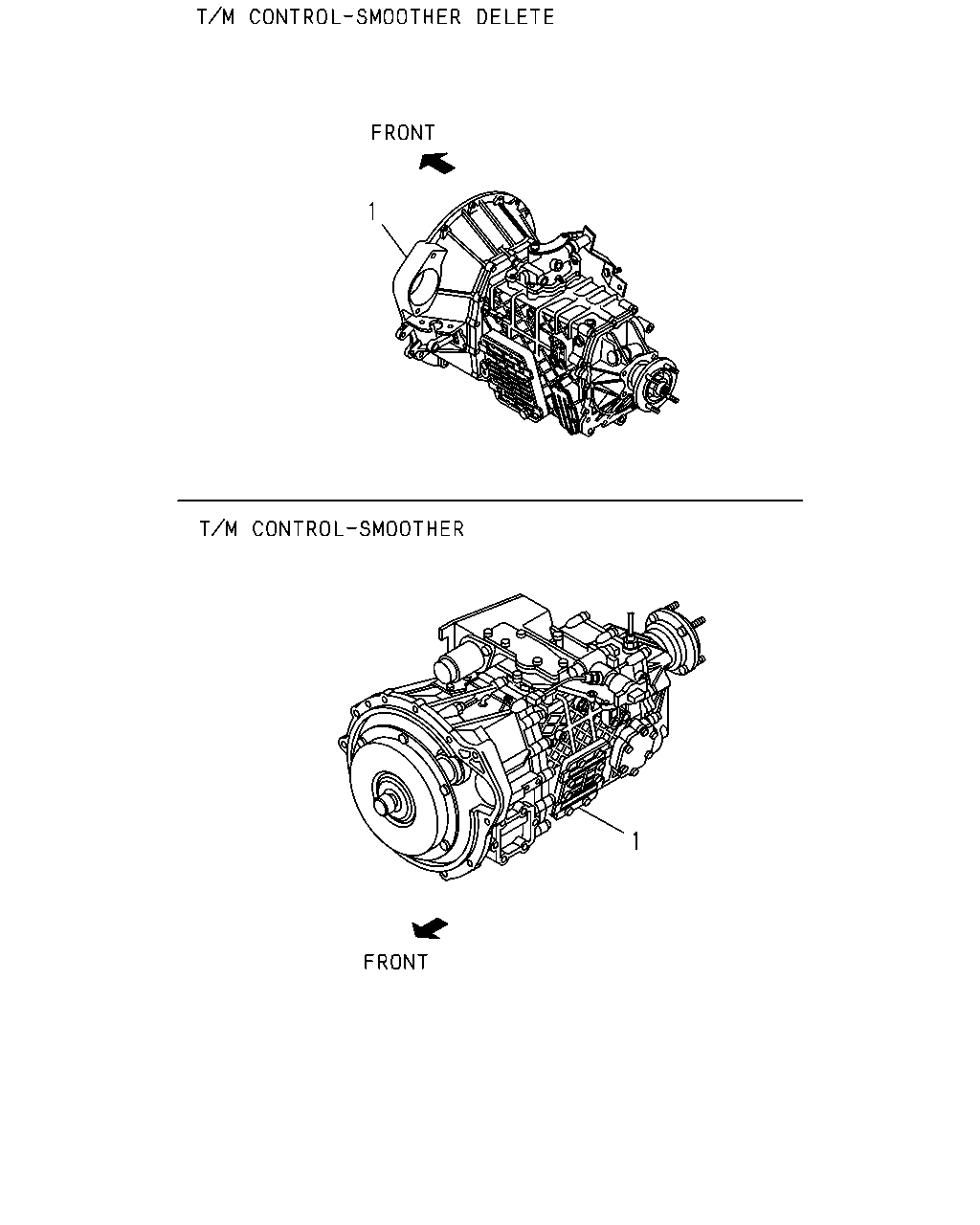

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.003 TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-627-0	01	1	0712-0803
1	04.003 TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-98113-072-0	01	1	0804-1308
1	04.003 TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUALCONTROL(6WC),POWER TAKE OFF CONTROL ELECT RIC(7GR)	8-98113-072-0	01	1	1309-
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98067-627-0	01	1	0712-0803
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98113-072-0	01	1	0804-
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98067-627-0	01	1	0712-0803
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98113-072-0	01	1	0804-1308
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98113-072-0	01	1	1309-
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-623-0	01	1	0712-
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98067-627-0	01	1	0712-0803
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98113-072-0	01	1	0804-
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98067-623-0	01	1	0712-1308
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-623-0	01	1	1309-
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98067-627-0	01	1	0712-0803
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98113-072-0	01	1	0804-1308
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98113-072-0	01	1	1309-
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-623-0	01	1	0712-1308
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUALCONTROL(6WC),POWER TAKE OFF CONTROL ELECT RIC(7GR)	8-98067-623-0	01	1	1309-
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98067-627-0	01	1	0712-0803
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98113-072-0	01	1	0804-1308
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>,PTO MANUAL CONTROL(6WC),POW ER TAKE OFF CONTROL ELECTRIC(7GR)	8-98113-072-0	01	1	1309-

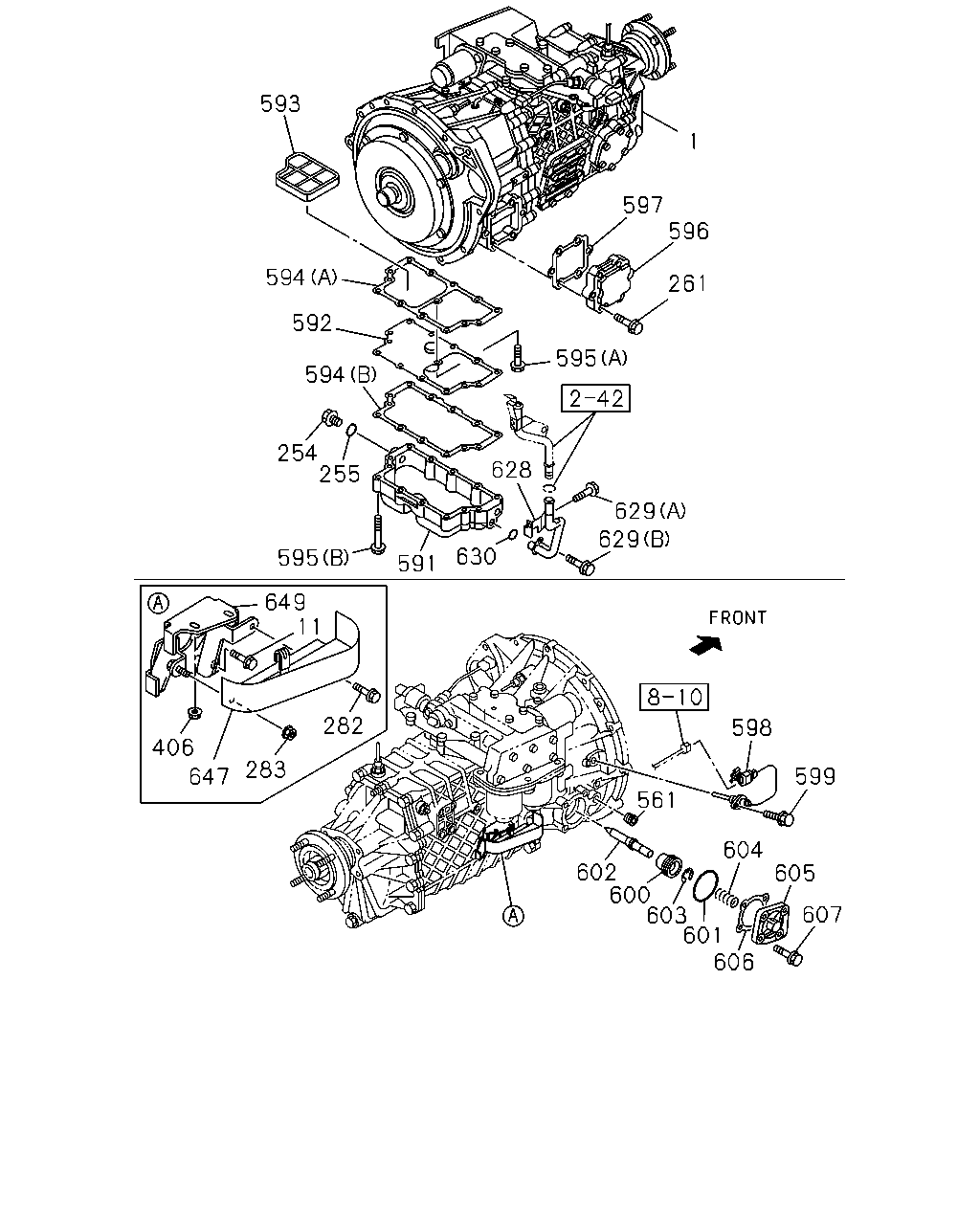

593 1 597 596 594 261 592 595 594 254 255 628 629 629 630 595 591 649 11 282 598 406 561 283 599 647 604 602 600 603 601 606 605 607

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.003 TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-627-0	01	1	0712-0803
1	04.003 TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-98113-072-0	01	1	0804-1308
1	04.003 TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUALCONTROL(6WC),POWER TAKE OFF CONTROL ELECT RIC(7GR)	8-98113-072-0	01	1	1309-
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98067-627-0	01	1	0712-0803
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98113-072-0	01	1	0804-
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98067-627-0	01	1	0712-0803
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98113-072-0	01	1	0804-1308
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98113-072-0	01	1	1309-
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-623-0	01	1	0712-
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98067-627-0	01	1	0712-0803
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98113-072-0	01	1	0804-
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98067-623-0	01	1	0712-1308
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-623-0	01	1	1309-
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98067-627-0	01	1	0712-0803
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98113-072-0	01	1	0804-1308
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98113-072-0	01	1	1309-
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-623-0	01	1	0712-1308
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUALCONTROL(6WC),POWER TAKE OFF CONTROL ELECT RIC(7GR)	8-98067-623-0	01	1	1309-
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98067-627-0	01	1	0712-0803
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98113-072-0	01	1	0804-1308
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>,PTO MANUAL CONTROL(6WC),POW ER TAKE OFF CONTROL ELECTRIC(7GR)	8-98113-072-0	01	1	1309-
11	04.085 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE	0-28761-020-0	02	1	0712-
254	04.104 PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98020-377-0	01	1	0712-0801
254	04.104 PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER(8GF) 04.105	8-97365-374-0	01	1	0802-1308
254	04.104 PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.105	8-97365-374-0	01	1	1309-
255	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17	8-97115-712-0	01	1	0712-1308
255	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=17	8-97115-712-0	01	1	1309-
261	04.109 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M6X35 FLANGE	0-28650-635-0	06	1	0712-1308
261	04.109 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M6X35 FLANGE	0-28650-635-0	06	1	1309-
282	00.785 BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0712-
283	04.083 NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-
406	04.510 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	02	1	0712-
561	04.104 PLUG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97320-204-0	01	1	0712-1308
561	04.104 PLUG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97320-204-0	01	1	1309-
591	04.195 PAN; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-429-2	01	1	0712-1308
591	04.195 PAN; OIL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97256-429-2	01	1	1309-
592	04.338 COVER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-771-1	01	1	0712-1308
592	04.338 COVER; STRAINER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ALSO INCLUDED IN GASKET SET(M/T).	8-97289-771-1	01	1	1309-
593	04.338 FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-438-1	01	1	0712-1308
593	04.338 FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97256-438-1	01	1	1309-
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97256-430-1	01	1	0712-1308
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97256-430-1	01	1	1309-
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97289-772-0	01	1	0712-1308
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97289-772-0	01	1	1309-
595	04.510 BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0712-1308
595	04.510 BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1309-
595	04.510 BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X35 FLANGE	0-28650-635-0	13	1	0712-1308
595	04.510 BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M6X35 FLANGE	0-28650-635-0	13	1	1309-
596	04.317 COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-773-0	01	1	0712-1308
596	04.317 COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97289-773-0	01	1	1309-
597	04.109 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-774-0	01	1	0712-1308
597	04.109 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97289-774-0	01	1	1309-
598	04.329 SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-495-1	01	1	0712-1308
598	04.329 SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97316-495-1	01	1	1309-
599	04.329 BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0712-1308
599	04.329 BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1309-
600	04.105 PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-652-1	01	1	0712-1308
600	04.105 PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-652-1	01	1	1309-
601	04.317 SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-755-0	01	1	0712-1308
601	04.317 SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-755-0	01	1	1309-
602	04.166 PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-653-0	01	1	0712-1308
602	04.166 PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-653-0	01	1	1309-
603	04.317 RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) 03.838 ID=8	9-09185-008-0	01	1	0712-1308
603	04.317 RING; SNAP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.838 ID=8	9-09185-008-0	01	1	1309-
604	04.384 SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-752-0	01	1	0712-1308
604	04.384 SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-752-0	01	1	1309-
605	04.356 COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-756-0	01	1	0712-1308
605	04.356 COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-756-0	01	1	1309-
606	04.005 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-757-0	01	1	0712-1308
606	04.005 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-757-0	01	1	1309-
607	04.109 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 03.403 M8X30 FLANGE	0-28650-830-0	04	1	0712-1308
607	04.109 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE	0-28650-830-0	04	1	1309-
628	04.439 TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98017-101-1	01	1	0712-1308
628	04.439 TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98017-101-1	01	1	1309-
629	04.317 BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (A) M10X16 FLANGE	0-28151-016-0	01	1	0712-1308
629	04.317 BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 (A) M10X16 FLANGE	0-28151-016-0	01	1	1309-
629	04.317 BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0712-1308
629	04.317 BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1309-
630	04.105 GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15.8	8-97305-656-0	01	1	0712-1308
630	04.105 GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15.8	8-97305-656-0	01	1	1309-
647	00.782 PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	0712-
649	04.105 BRACKET; SOLENOID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-237-0	01	1	0712-

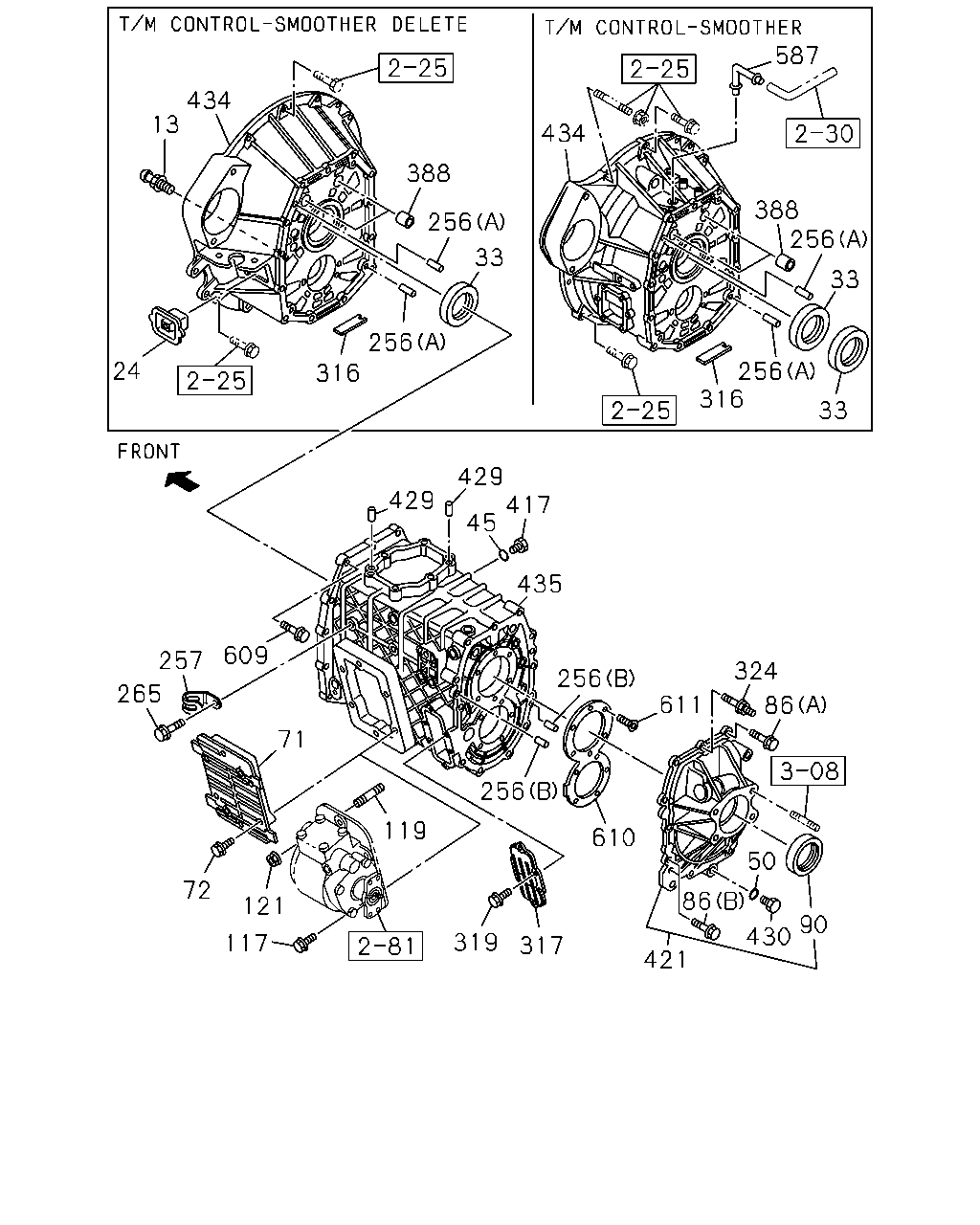

587 434 13 434 388 388 256 256 33 33 256 24 256 316 316 33 429 417 45 429 435 609 257 324 256 265 611 256 86 71 119 610 50 86 72 121 90 430 319 117 317 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	04.302 SUPPORT; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-384-1	01	1	0712-
24	00.797 COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-201-0	01	1	0712-
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97253-550-0	01	1	0712-
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	0712-1308
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-187-0	02	1	1309-
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0712-
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0712-
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0712-
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0712-
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	0712-
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0712-
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0712-
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1108-1308
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1309-
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	0712-1107
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	1108-
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.342 M10X25 L=40	0-44011-025-0	02	1	1108-1308
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 03.342 M10X25 L=40	0-44011-025-0	02	1	1309-
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.403 M10X30 L=45	0-44011-030-0	02	1	1108-1308
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 03.403 M10X30 L=45	0-44011-030-0	02	1	1309-
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	03	1	0712-1107
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.342 M10X25 L=40	0-44011-025-0	03	1	1108-
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.085 M10 FLANGE	0-91180-210-0	04	1	1007-1308
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.085 M10 FLANGE	0-91180-210-0	04	1	1309-
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	03	1	0712-1006
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.085 M10 FLANGE	0-91180-210-0	03	1	1007-
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0712-
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0712-
257	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0712-1308
257	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1309-
265	00.785 BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0712-1308
265	00.785 BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1309-
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0712-
317	04.109 COVER; CASE	8-97252-626-0	01	1	0712-
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0712-
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0712-
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0712-
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0712-
421	04.317 COVER; RR,TRANS	8-98020-029-0	01	1	0712-
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0712-
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0712-
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97237-099-5	01	1	0712-
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98032-146-0	01	1	0712-0906
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98100-978-0	01	1	0907-
435	04.103 CASE; TRANS	8-97379-375-0	01	1	0712-
587	04.020 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	0712-1308
587	04.020 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.510	8-97358-318-0	01	1	1309-
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0712-
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	0712-
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	0712-
