◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51148 - NLR/NMR(EU)-LHD EU4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#53471) — 43 parça
çizim 154351
296 209 297 296 292 299 299 293 294 295 300 298 298 302 306 291 301 303
BalonParca AdiParca NoAdetTipApplied Date
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98044-525-0 01 1 0712-0904
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98116-930-2 01 1 0905-
291 00.863 COUPLING; FLUID
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98087-659-1 01 1 0712-1308
291 00.863 COUPLING; FLUID
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98087-659-1 01 1 1309-
292 00.862 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-329-0 01 1 0712-1308
292 00.862 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-329-0 01 1 1309-
293 00.799 BAND; BRAKE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-651-0 01 1 0712-1308
293 00.799 BAND; BRAKE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-651-0 01 1 1309-
294 00.846 PIN; ANCHOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-703-0 01 1 0712-1308
294 00.846 PIN; ANCHOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-703-0 01 1 1309-
295 00.864 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0712-1308
295 00.864 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1309-
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97255-688-0 01 1 0712-1308
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97255-688-0 01 1 1309-
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97255-689-0 01 1 0712-1308
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97255-689-0 01 1 1309-
297 00.862 WASHER; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97300-070-0 01 1 0712-1308
297 00.862 WASHER; THRUST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97300-070-0 01 1 1309-
298 04.020 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98040-037-0 01 1 0712-0803
298 04.020 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98107-924-1 01 1 0804-1308
298 04.020 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98107-924-1 01 1 1309-
299 04.105 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-330-0 02 1 0712-1308
299 04.105 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-330-0 02 1 1309-
300 04.226 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 09.173 M8X45 FLANGE 		0-28050-845-0 11 1 0712-1308
300 04.226 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 09.173 M8X45 FLANGE 		0-28050-845-0 11 1 1309-
301 04.166 SEAL; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-811-0 01 1 0712-1308
301 04.166 SEAL; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97289-811-0 01 1 1309-
302 04.226 RING; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-188-0 01 1 0712-1308
302 04.226 RING; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-188-0 01 1 1309-
303 02.480 HARNESS ASM; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-265-2 01 1 0712-1308
303 02.480 HARNESS ASM; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98000-265-2 01 1 1309-
306 00.785 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=100 		8-94279-939-0 03 1 0712-1308
306 00.785 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.559 L=100 		8-94279-939-0 03 1 1309-

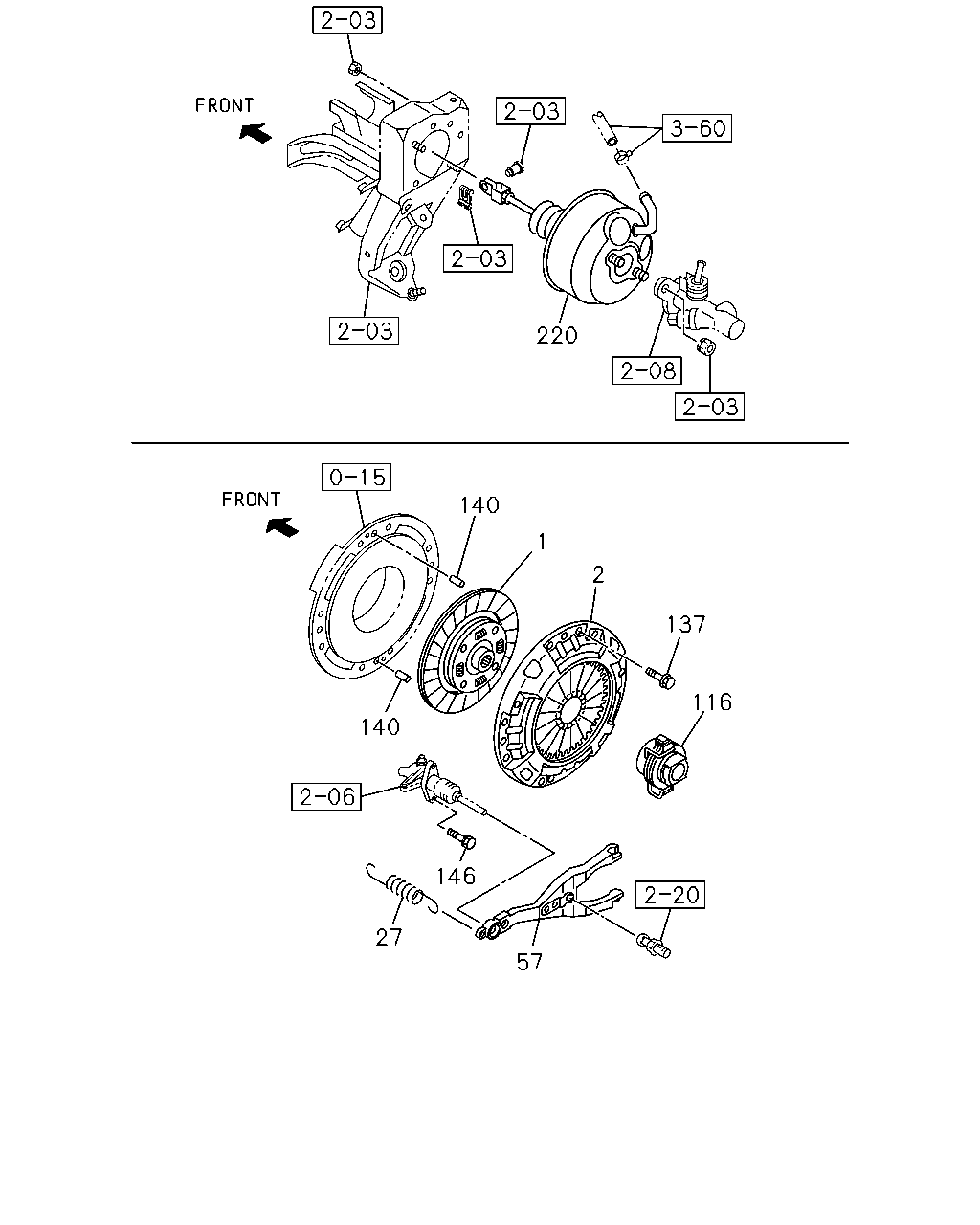

çizim 154354
2 220 140 1 2 137 116 140 146 27 57
BalonParca AdiParca NoAdetTipApplied Date
1 00.886 DISC; CLUTCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-004-2 01 1 0712-1401
1 00.886 DISC; CLUTCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98255-139-0 01 1 1402-
2 00.859 PLATE ASM; PRESSURE,CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98040-093-0 01 1 0712-
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-313-0 01 1 0712-
57 00.795 FORK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-303-0 01 1 0712-
116 00.799 BLOCK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-313-0 01 1 0712-
137 00.862 BOLT; CLU COVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0712-
140 00.862 PIN; STRAIGHT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=25 		8-94410-361-0 02 1 0712-
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0712-
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98043-208-0 01 1 0712-
