2-26B — MANUAL TRANSMISSION GEAR (#5346) — 553 parça

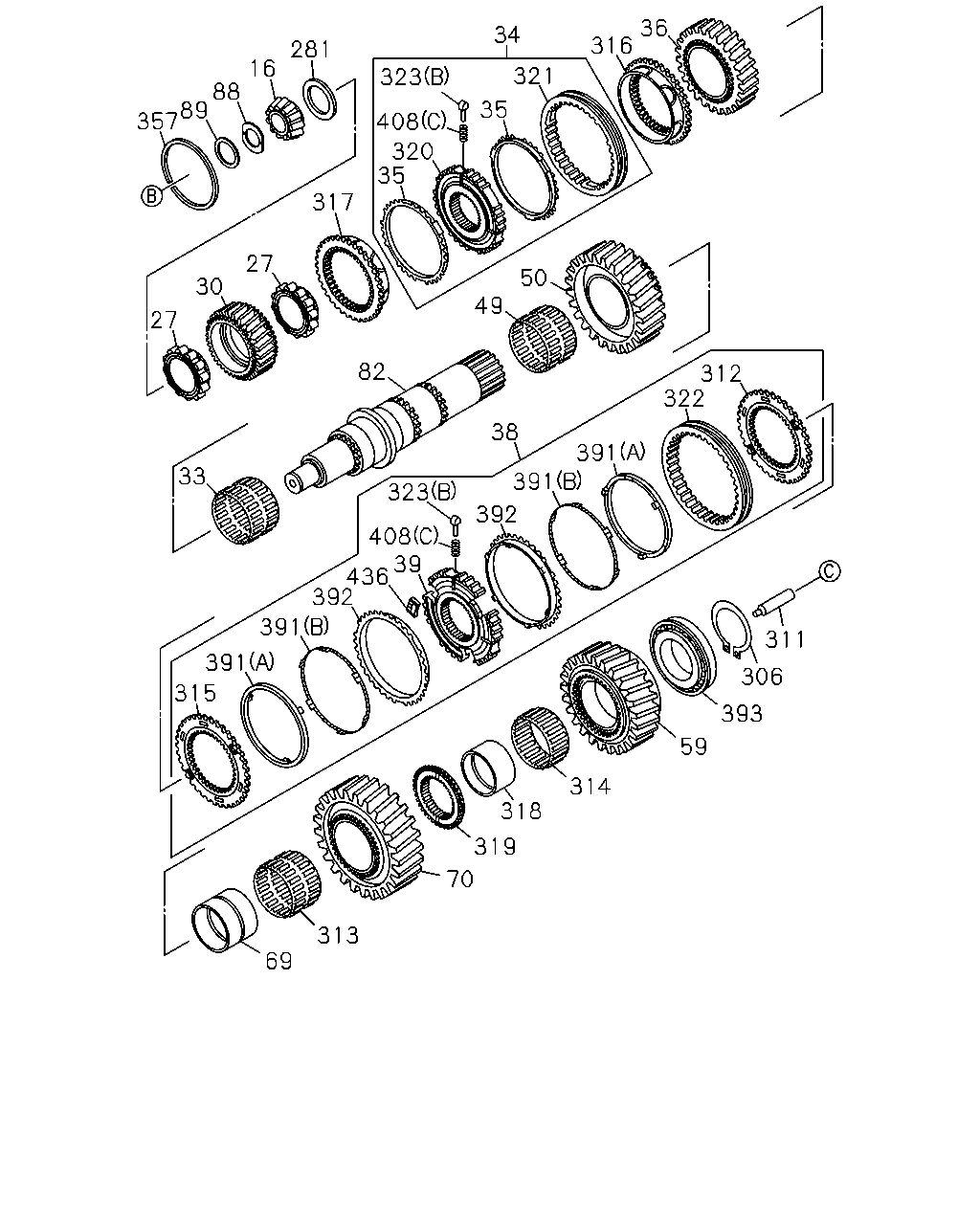

çizim 5772
36 316 34 281 16 321 323 88 89 357 35 408 320 35 317 27 50 30 49 27 82 312 322 38 391 33 391 323 392 408 39 436 392 391 311 306 391 315 393 59 314 318 319 70 313 69
BalonParca AdiParca NoAdetTipApplied Date A B C
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 9603-9909 ●
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 9910- ● ● ●
27 BEARING; 4TH GEAR 1-33259-046-0 02 1 9603- ●
27 BEARING; 4TH GEAR 1-33259-042-0 02 1 9910- ●
30 GEAR; 4TH,MAINSHAFT 1-33252-451-0 01 1 9603-9901 ●
30 GEAR; 4TH,MAINSHAFT 1-33252-466-0 01 1 9902- ●
30 GEAR; 4TH,MAINSHAFT 1-33251-400-0 01 1 9910- ●
33 BEARING; NEEDLE,3RD GEAR 1-33239-223-0 01 1 9603- ●
33 BEARING; NEEDLE,3RD GEAR 1-33239-187-0 01 1 9910- ●
34 SYNCHRONIZER; 4TH & 3RD 1-33260-151-0 01 1 9603-9909 ●
34 SYNCHRONIZER; 4TH & 3RD 1-33260-151-0 01 1 9910- ● ● ●
35 RING; BLOCK,4TH & 3RD 1-33265-438-0 02 1 9603-9707 ●
35 RING; BLOCK,4TH & 3RD
EXC. PTO ZF TRANS RR(BDM) 		1-33265-438-0 02 1 9708-9807 ●
35 RING; BLOCK,4TH & 3RD
PTO ZF TRANS RR(BDM) 		1-33219-241-0 02 1 9708-9807 ●
35 RING; BLOCK,4TH & 3RD 1-33219-241-0 02 1 9808-9909 ●
35 RING; BLOCK,4TH & 3RD 1-33219-241-0 02 1 9910- ● ● ●
36 GEAR; 3RD,MAINSHAFT 1-33252-450-0 01 1 9603-9901 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-465-0 01 1 9902- ●
36 GEAR; 3RD,MAINSHAFT 1-33251-399-0 01 1 9910- ●
38 SYNCHRONIZER; LOW & 2ND 1-33260-152-0 01 1 9603-9909 ●
38 SYNCHRONIZER; LOW & 2ND 1-33260-152-0 01 1 9910- ● ● ●
39 HUB; CLU,LOW & 2ND 1-33261-224-0 01 1 9603-9909 ●
39 HUB; CLU,LOW & 2ND 1-33261-224-0 01 1 9910- ● ● ●
49 BEARING; NEEDLE,2ND GEAR 1-33239-223-0 01 1 9603- ●
49 BEARING; NEEDLE,2ND GEAR 1-33239-187-0 01 1 9910- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-371-0 01 1 9603-9901 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-395-0 01 1 9902- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-397-0 01 1 9910- ●
59 GEAR; REV MAINSHAFT 1-33257-076-0 01 1 9603-9901 ●
59 GEAR; REV MAINSHAFT 1-33257-082-0 01 1 9902- ●
59 GEAR; REV MAINSHAFT 1-33257-083-0 01 1 9910- ●
69 COLLAR; 1ST GEAR MAIN 1-33259-067-0 01 1 9603- ●
69 COLLAR; 1ST GEAR MAIN 1-33259-038-0 01 1 9910- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-372-0 01 1 9603-9901 ●
70 GEAR; 1ST,MAINSHAFT 1-33251-396-0 01 1 9902- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-398-0 01 1 9910- ●
82 SHAFT; MAIN,TRANS 1-33231-239-0 01 1 9603- ●
82 SHAFT; MAIN,TRANS 1-33231-282-0 01 1 9910- ●
88 RING; THRUST,THRUST WASHER
T=4.90 		1-33239-213-0 AR 1 9603-9707 ●
88 RING; THRUST,THRUST WASHER
PTO ZF TRANS RR(BDM) T=4.90 		1-33239-213-0 AR 1 9708-9901 ●
88 RING; THRUST,THRUST WASHER
T=4.90 		1-33239-213-0 AR 1 9902-9909 ●
88 RING; THRUST,THRUST WASHER
T=4.90 		1-33239-213-0 AR 1 9910- ● ● ●
88 RING; THRUST,THRUST WASHER
T=4.70 		1-33239-214-0 AR 1 9603-9707 ●
88 RING; THRUST,THRUST WASHER
PTO ZF TRANS RR(BDM) T=4.70 		1-33239-214-0 AR 1 9708-9901 ●
88 RING; THRUST,THRUST WASHER
T=4.70 		1-33239-214-0 AR 1 9902-9909 ●
88 RING; THRUST,THRUST WASHER
T=4.70 		1-33239-214-0 AR 1 9910- ● ● ●
88 RING; THRUST,THRUST WASHER
T=4.60 		1-33239-215-0 AR 1 9603-9707 ●
88 RING; THRUST,THRUST WASHER
PTO ZF TRANS RR(BDM) T=4.60 		1-33239-215-0 AR 1 9708-9901 ●
88 RING; THRUST,THRUST WASHER
T=4.60 		1-33239-215-0 AR 1 9902-9909 ●
88 RING; THRUST,THRUST WASHER
T=4.60 		1-33239-215-0 AR 1 9910- ● ● ●
88 RING; THRUST,THRUST WASHER
PTO ZF TRANS RR(BDM) T=5.00 		1-33239-305-0 AR 1 9708-9901 ●
88 RING; THRUST,THRUST WASHER
T=5.00 		1-33239-305-0 AR 1 9902-9909 ●
88 RING; THRUST,THRUST WASHER
T=5.00 		1-33239-305-0 AR 1 9910- ● ● ●
88 RING; THRUST,THRUST WASHER
PTO ZF TRANS RR(BDM) T=4.80 		1-33239-306-0 AR 1 9708-9901 ●
88 RING; THRUST,THRUST WASHER
T=4.80 		1-33239-306-0 AR 1 9902-9909 ●
88 RING; THRUST,THRUST WASHER
T=4.80 		1-33239-306-0 AR 1 9910- ● ● ●
88 RING; THRUST,THRUST WASHER
EXC. PTO ZF TRANS RR(BDM) T=4.90 		1-33239-213-0 AR 1 9708-9901 ●
88 RING; THRUST,THRUST WASHER
EXC. PTO ZF TRANS RR(BDM) T=4.70 		1-33239-214-0 AR 1 9708-9901 ●
88 RING; THRUST,THRUST WASHER
EXC. PTO ZF TRANS RR(BDM) T=4.60 		1-33239-215-0 AR 1 9708-9901 ●
88 RING; THRUST,THRUST WASHER
EXC. PTO ZF TRANS RR(BDM) T=5.00 		1-33239-305-0 AR 1 9708-9901 ●
88 RING; THRUST,THRUST WASHER
EXC. PTO ZF TRANS RR(BDM) T=4.80 		1-33239-306-0 AR 1 9708-9901 ●
89 RING; RET,THRUST RING 1-33239-216-0 01 1 9603-9909 ●
89 RING; RET,THRUST RING 1-33239-216-0 01 1 9910- ● ● ●
281 WASHER; THRUST,MAINSHAFT
T=8.30 		1-33239-210-0 AR 1 9603-9707 ●
281 WASHER; THRUST,MAINSHAFT
PTO ZF TRANS RR(BDM) T=8.30 		1-33239-210-0 AR 1 9708-9901 ●
281 WASHER; THRUST,MAINSHAFT
T=8.30 		1-33239-210-0 AR 1 9902-9909 ●
281 WASHER; THRUST,MAINSHAFT
T=8.30 		1-33239-210-0 AR 1 9910- ● ● ●
281 WASHER; THRUST,MAINSHAFT
T=7.90 		1-33239-211-0 AR 1 9603-9707 ●
281 WASHER; THRUST,MAINSHAFT
PTO ZF TRANS RR(BDM) T=7.90 		1-33239-211-0 AR 1 9708-9901 ●
281 WASHER; THRUST,MAINSHAFT
T=7.90 		1-33239-211-0 AR 1 9902-9909 ●
281 WASHER; THRUST,MAINSHAFT
T=7.90 		1-33239-211-0 AR 1 9910- ● ● ●
281 WASHER; THRUST,MAINSHAFT
EXC. PTO ZF TRANS RR(BDM) T=8.30 		1-33239-210-0 AR 1 9708-9901 ●
281 WASHER; THRUST,MAINSHAFT
EXC. PTO ZF TRANS RR(BDM) T=7.90 		1-33239-211-0 AR 1 9708-9901 ●
306 RING; SNAP,MAINSHAFT
T=2.50 		1-33239-098-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=2.50 		1-33239-098-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=2.40 		1-33239-099-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=2.40 		1-33239-099-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=2.30 		1-33239-100-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=2.30 		1-33239-100-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=2.20 		1-33239-101-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=2.20 		1-33239-101-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=3.50 		1-33239-189-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=3.50 		1-33239-189-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=3.45 		1-33239-190-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=3.45 		1-33239-190-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=3.40 		1-33239-191-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=3.40 		1-33239-191-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=3.35 		1-33239-192-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=3.35 		1-33239-192-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=3.30 		1-33239-193-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=3.30 		1-33239-193-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=3.25 		1-33239-194-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=3.25 		1-33239-194-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=3.20 		1-33239-195-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=3.20 		1-33239-195-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=3.15 		1-33239-196-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=3.15 		1-33239-196-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=3.10 		1-33239-197-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=3.10 		1-33239-197-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=3.05 		1-33239-198-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=3.05 		1-33239-198-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=3.00 		1-33239-199-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=3.00 		1-33239-199-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=2.95 		1-33239-200-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=2.95 		1-33239-200-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=2.90 		1-33239-201-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=2.90 		1-33239-201-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=2.85 		1-33239-202-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=2.85 		1-33239-202-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=2.80 		1-33239-203-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=2.80 		1-33239-203-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=2.70 		1-33239-204-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=2.70 		1-33239-204-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=2.60 		1-33239-205-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=2.60 		1-33239-205-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=3.55 		1-33239-206-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=3.55 		1-33239-206-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=3.60 		1-33239-207-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=3.60 		1-33239-207-0 AR 1 9910- ● ● ●
306 RING; SNAP,MAINSHAFT
T=3.65 		1-33239-208-0 AR 1 9603-9909 ●
306 RING; SNAP,MAINSHAFT
T=3.65 		1-33239-208-0 AR 1 9910- ● ● ●
311 PIPE; MAINSHAFT 1-33239-209-0 01 1 9603-9909 ●
311 PIPE; MAINSHAFT 1-33239-209-0 01 1 9910- ● ● ●
312 CLUTCH; DOG,1ST GEAR 1-33265-439-0 01 1 9603-9909 ●
312 CLUTCH; DOG,1ST GEAR 1-33265-439-0 01 1 9910- ● ● ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-043-0 01 1 9603- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-039-0 01 1 9910- ●
314 BEARING; NEEDLE,REV GEAR 1-33259-045-0 01 1 9603- ●
314 BEARING; NEEDLE,REV GEAR 1-33259-041-0 01 1 9910- ●
315 CLUTCH; DOG,2ND GEAR 1-33265-439-0 01 1 9603-9909 ●
315 CLUTCH; DOG,2ND GEAR 1-33265-439-0 01 1 9910- ● ● ●
316 CLUTCH; DOG,3RD GEAR 1-33265-436-0 01 1 9603-9909 ●
316 CLUTCH; DOG,3RD GEAR 1-33265-436-0 01 1 9910- ● ● ●
317 CLUTCH; DOG,4TH GEAR 1-33265-436-0 01 1 9603-9909 ●
317 CLUTCH; DOG,4TH GEAR 1-33265-436-0 01 1 9910- ● ● ●
318 COLLAR; DIST,REV GEAR 1-33259-044-0 01 1 9603- ●
318 COLLAR; DIST,REV GEAR 1-33259-040-0 01 1 9910- ●
319 CLUTCH; SLIDING 1-33261-229-0 01 1 9603- ●
319 CLUTCH; SLIDING 1-33261-225-0 01 1 9910- ●
320 HUB; CLU,4TH & 3RD 1-33261-228-0 01 1 9603-9909 ●
320 HUB; CLU,4TH & 3RD 1-33261-228-0 01 1 9910- ● ● ●
321 SLEEVE; SYN,4TH & 3RD 1-33262-185-0 01 1 9603-9707 ●
321 SLEEVE; SYN,4TH & 3RD 1-33262-208-0 01 1 9708-9909 ●
321 SLEEVE; SYN,4TH & 3RD 1-33262-208-0 01 1 9910- ● ● ●
322 SLEEVE; SYN,LOW & 2ND 1-33262-186-0 01 1 9603-9707 ●
322 SLEEVE; SYN,LOW & 2ND
EXC. PTO ZF TRANS RR(BDM) 		1-33262-186-0 01 1 9708-9901 ●
322 SLEEVE; SYN,LOW & 2ND
PTO ZF TRANS RR(BDM) 		1-33269-079-0 01 1 9708-9901 ●
322 SLEEVE; SYN,LOW & 2ND 1-33269-079-0 01 1 9902-9909 ●
322 SLEEVE; SYN,LOW & 2ND 1-33269-079-0 01 1 9910- ● ● ●
323 INSERT
(A) 		1-33263-027-0 09 1 9603-9909 ●
323 INSERT
(A) 		1-33263-027-0 09 1 9910- ● ● ●
323 INSERT
(B) 		1-33263-030-0 09 1 9603-9909 ●
323 INSERT
(B) 		1-33263-030-0 09 1 9910- ● ● ●
357 RING
T=4.00 		1-33239-217-0 AR 1 9603-9707 ●
357 RING
PTO ZF TRANS RR(BDM) T=4.00 		1-33239-217-0 AR 1 9708-9901 ●
357 RING
T=4.00 		1-33239-217-0 AR 1 9902-9909 ●
357 RING
T=4.00 		1-33239-217-0 AR 1 9910- ● ● ●
357 RING
T=3.60 		1-33239-218-0 AR 1 9603-9707 ●
357 RING
PTO ZF TRANS RR(BDM) T=3.60 		1-33239-218-0 AR 1 9708-9901 ●
357 RING
T=3.60 		1-33239-218-0 AR 1 9902-9909 ●
357 RING
T=3.60 		1-33239-218-0 AR 1 9910- ● ● ●
357 RING
EXC. PTO ZF TRANS RR(BDM) T=4.00 		1-33239-217-0 AR 1 9708-9901 ●
357 RING
EXC. PTO ZF TRANS RR(BDM) T=3.60 		1-33239-218-0 AR 1 9708-9901 ●
391 RING; INSIDE,SYN
(A) 		1-33265-440-0 02 1 9603-9909 ●
391 RING; INSIDE,SYN
(A) 		1-33265-440-0 02 1 9910- ● ● ●
391 RING; INSIDE,SYN
(B) 		1-33269-044-0 02 1 9603-9909 ●
391 RING; INSIDE,SYN
(B) 		1-33269-044-0 02 1 9910- ● ● ●
392 RING; OUTSIDE,SYN 1-33269-045-0 02 1 9603-9909 ●
392 RING; OUTSIDE,SYN 1-33269-045-0 02 1 9910- ● ● ●
393 BEARING; MAINSHAFT END 1-33239-222-0 01 1 9603-9701 ●
393 BEARING; MAINSHAFT END 1-33239-304-0 01 1 9702- ●
393 BEARING; MAINSHAFT END 1-33239-307-0 01 1 9910- ●
408 SPRING
(A) 		1-33269-038-0 09 1 9603-9909 ●
408 SPRING
(A) 		1-33269-038-0 09 1 9910- ● ● ●
408 SPRING
(B) 		1-33269-039-0 09 1 9603-9909 ●
408 SPRING
(B) 		1-33269-039-0 09 1 9910- ● ● ●
408 SPRING
(C) 		1-33269-042-0 09 1 9603-9909 ●
408 SPRING
(C) 		1-33269-042-0 09 1 9910- ● ● ●
436 KEY; LOW & 2ND 1-33269-046-0 03 1 9603-9909 ●
436 KEY; LOW & 2ND 1-33269-046-0 03 1 9910- ● ● ●

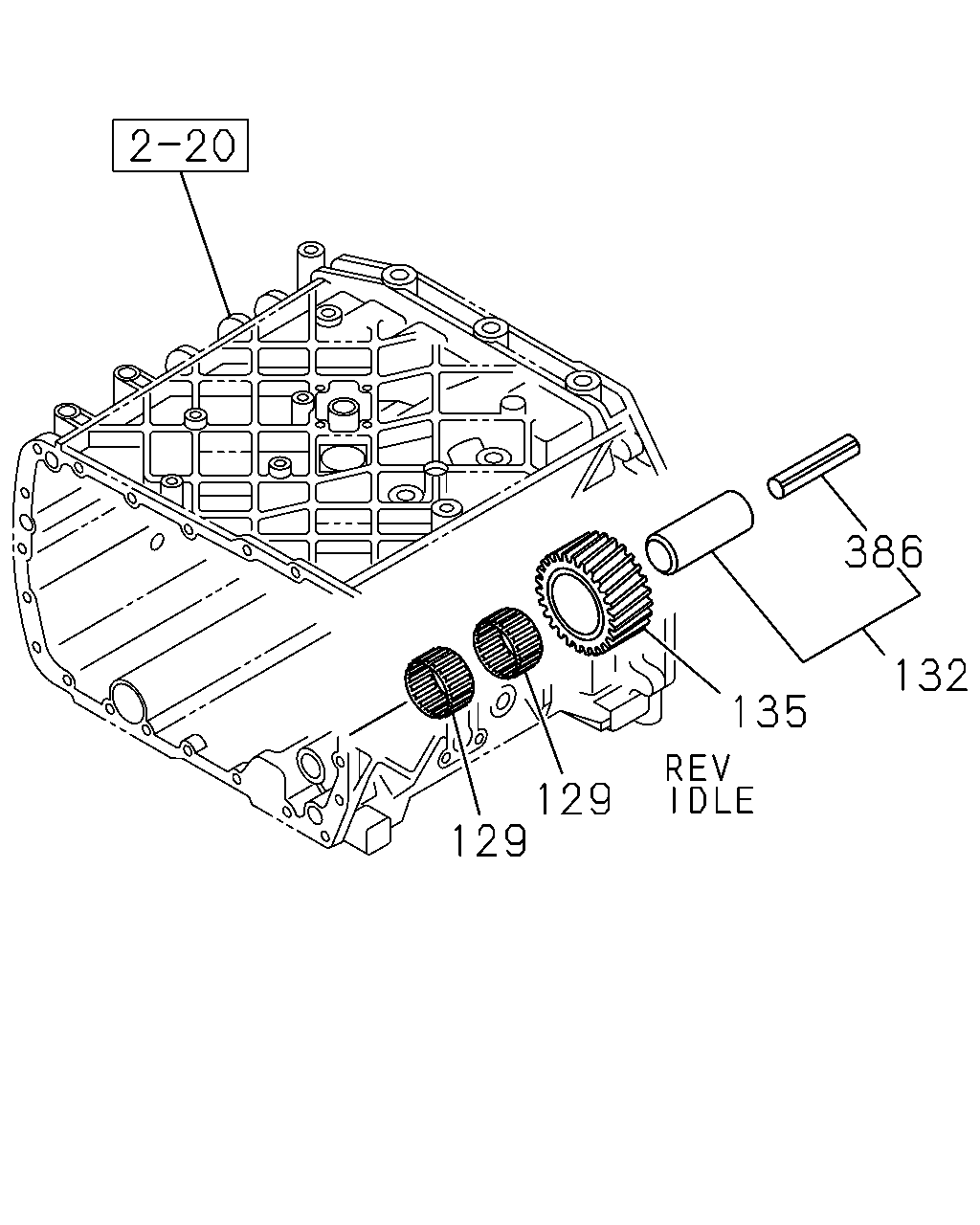

çizim 6098
386 132 135 129 129
BalonParca AdiParca NoAdetTipApplied Date A B C
129 BEARING; NEEDLE,IDLER 1-33369-020-0 02 1 9603- ●
129 BEARING; NEEDLE,IDLER 1-33369-019-0 02 1 9910- ●
132 SHAFT; REV 1-33351-027-0 01 1 9603-9901 ●
132 SHAFT; REV 1-33351-032-0 01 1 9902- ●
132 SHAFT; REV 1-33351-034-0 01 1 9910- ●
135 GEAR; REV IDLER 1-33361-076-0 01 1 9603-9901 ●
135 GEAR; REV IDLER 1-33361-082-0 01 1 9902- ●
135 GEAR; REV IDLER 1-33361-083-0 01 1 9910- ●
386 PIN; REV SHAFT 1-33359-003-0 01 1 9603-9901 ●
386 PIN; REV SHAFT 1-33359-012-0 01 1 9902- ●
386 PIN; REV SHAFT 1-33359-013-0 01 1 9910- ●

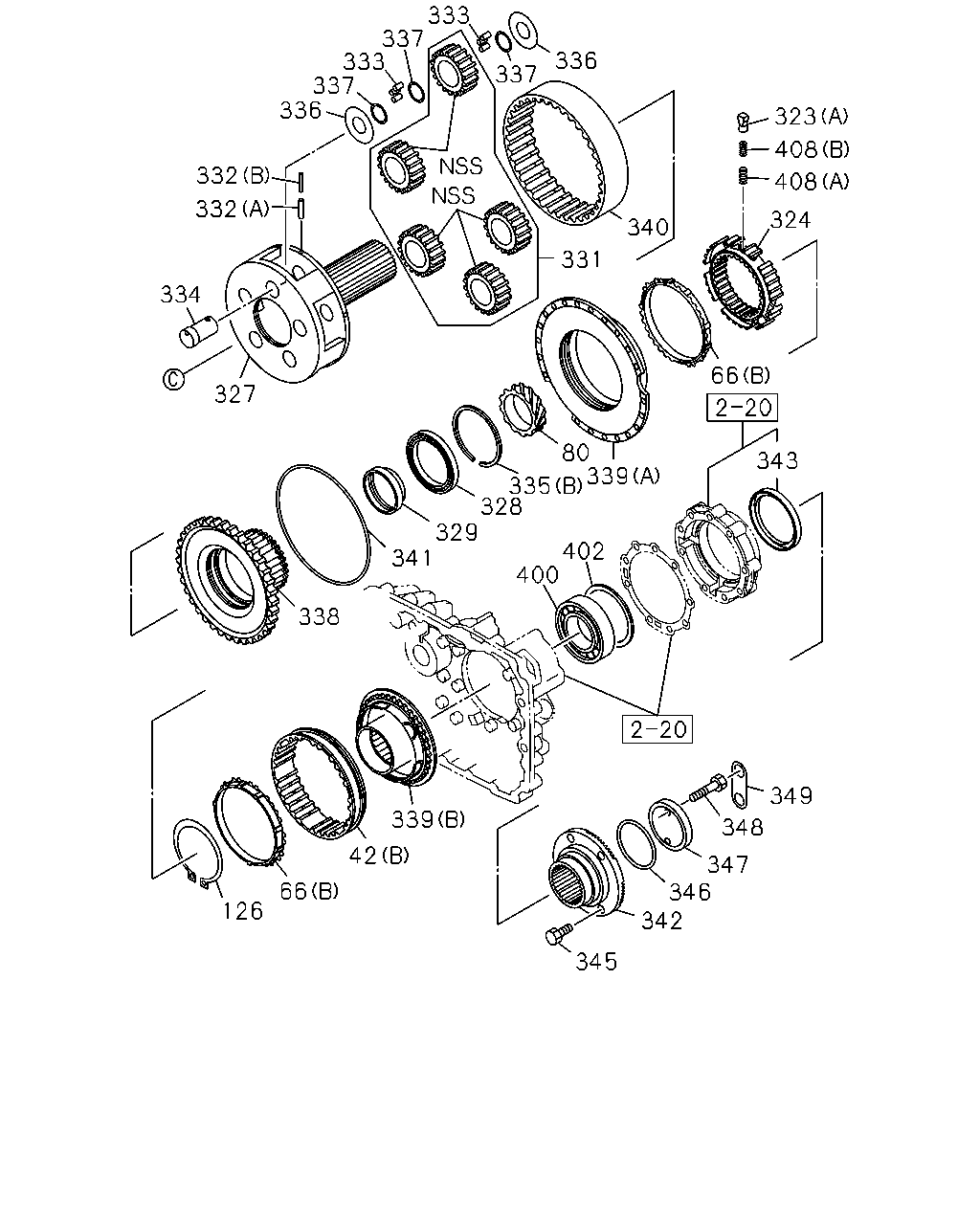

çizim 6102
333 337 333 337 336 336 337 323 408 332 408 332 324 340 331 334 66 327 80 339 335 328 329 341 343 402 400 338 349 339 348 42 347 346 342 66 126 345
BalonParca AdiParca NoAdetTipApplied Date A B C
42 SLEEVE
(A) 		1-33262-185-0 01 1 9603-9707 ●
42 SLEEVE
(A) 		1-33262-208-0 01 1 9708-9909 ●
42 SLEEVE
(A) 		1-33262-208-0 01 1 9910- ● ● ●
42 SLEEVE
(B) 		1-33339-020-0 01 1 9603-9909 ●
42 SLEEVE
(B) 		1-33339-020-0 01 1 9910- ● ● ●
66 RING; BLOCK,SYN
(A) 		1-33265-438-0 02 1 9603-9707 ●
66 RING; BLOCK,SYN
(A) 		1-33339-069-0 02 1 9708-9909 ●
66 RING; BLOCK,SYN
(A) 		1-33339-069-0 02 1 9910- ● ● ●
66 RING; BLOCK,SYN
(B) 		1-33339-019-0 02 1 9603-9707 ●
66 RING; BLOCK,SYN
PTO ZF TRANS RR(BDM) (B) 		1-33219-241-0 02 1 9708-9807 ●
66 RING; BLOCK,SYN
(B) 		1-33219-241-0 02 1 9808-9909 ●
66 RING; BLOCK,SYN
(B) 		1-33219-241-0 02 1 9910- ● ● ●
66 RING; BLOCK,SYN
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33265-438-0 02 1 9708-9807 ●
80 GEAR; SPD DRIVE 1-33371-063-0 01 1 9603- ●
80 GEAR; SPD DRIVE 1-33371-061-0 01 1 9910- ●
126 RING; SNAP,CLU HUB
T=4.0 		1-33269-047-0 AR 1 9603-9707 ●
126 RING; SNAP,CLU HUB
PTO ZF TRANS RR(BDM) T=4.0 		1-33269-047-0 AR 1 9708-9901 ●
126 RING; SNAP,CLU HUB
T=4.0 		1-33269-047-0 AR 1 9902-9909 ●
126 RING; SNAP,CLU HUB
T=4.0 		1-33269-047-0 AR 1 9910- ● ● ●
126 RING; SNAP,CLU HUB
T=3.9 		1-33269-048-0 AR 1 9603-9707 ●
126 RING; SNAP,CLU HUB
PTO ZF TRANS RR(BDM) T=3.9 		1-33269-048-0 AR 1 9708-9901 ●
126 RING; SNAP,CLU HUB
T=3.9 		1-33269-048-0 AR 1 9902-9909 ●
126 RING; SNAP,CLU HUB
T=3.9 		1-33269-048-0 AR 1 9910- ● ● ●
126 RING; SNAP,CLU HUB
T=3.8 		1-33269-049-0 AR 1 9603-9707 ●
126 RING; SNAP,CLU HUB
PTO ZF TRANS RR(BDM) T=3.8 		1-33269-049-0 AR 1 9708-9901 ●
126 RING; SNAP,CLU HUB
T=3.8 		1-33269-049-0 AR 1 9902-9909 ●
126 RING; SNAP,CLU HUB
T=3.8 		1-33269-049-0 AR 1 9910- ● ● ●
126 RING; SNAP,CLU HUB
T=3.7 		1-33269-050-0 AR 1 9603-9707 ●
126 RING; SNAP,CLU HUB
PTO ZF TRANS RR(BDM) T=3.7 		1-33269-050-0 AR 1 9708-9901 ●
126 RING; SNAP,CLU HUB
T=3.7 		1-33269-050-0 AR 1 9902-9909 ●
126 RING; SNAP,CLU HUB
T=3.7 		1-33269-050-0 AR 1 9910- ● ● ●
126 RING; SNAP,CLU HUB
EXC. PTO ZF TRANS RR(BDM) T=4.0 		1-33269-047-0 AR 1 9708-9901 ●
126 RING; SNAP,CLU HUB
EXC. PTO ZF TRANS RR(BDM) T=3.9 		1-33269-048-0 AR 1 9708-9901 ●
126 RING; SNAP,CLU HUB
EXC. PTO ZF TRANS RR(BDM) T=3.8 		1-33269-049-0 AR 1 9708-9901 ●
126 RING; SNAP,CLU HUB
EXC. PTO ZF TRANS RR(BDM) T=3.7 		1-33269-050-0 AR 1 9708-9901 ●
323 INSERT
(A) 		1-33263-027-0 09 1 9603-9909 ●
323 INSERT
(A) 		1-33263-027-0 09 1 9910- ● ● ●
323 INSERT
(B) 		1-33263-030-0 09 1 9603-9909 ●
323 INSERT
(B) 		1-33263-030-0 09 1 9910- ● ● ●
324 HUB; CLU 1-33261-230-0 01 1 9603- ●
324 HUB; CLU 1-33261-227-0 01 1 9910- ●
327 CARRIER; PLANETARY GEAR 1-33231-284-0 01 1 9603- ●
327 CARRIER; PLANETARY GEAR 1-33231-281-0 01 1 9910- ●
328 BEARING; CARRIER 1-33339-025-0 01 1 9603- ●
328 BEARING; CARRIER 1-33339-039-0 01 1 9910- ●
329 COLLAR; BEARING 1-33339-002-0 01 1 9603- ●
331 GEAR SET; PLANETARY 1-33239-224-0 01 1 9603- ●
331 GEAR SET; PLANETARY 1-33239-180-0 01 1 9910- ●
332 PIN; LOCK,SHAFT
(A) 		1-33239-185-0 05 1 9603-9909 ●
332 PIN; LOCK,SHAFT
(A) 		1-33239-185-0 05 1 9910- ● ● ●
332 PIN; LOCK,SHAFT
(B) 		1-33239-186-0 05 1 9603-9909 ●
332 PIN; LOCK,SHAFT
(B) 		1-33239-186-0 05 1 9910- ● ● ●
333 ROLLER; PLANETARY GEAR 1-33239-225-0 AR 1 9603- ●
333 ROLLER; PLANETARY GEAR 1-33239-183-0 AR 1 9910- ●
334 SHAFT; PLANETARY GEAR 1-33239-226-0 05 1 9603- ●
334 SHAFT; PLANETARY GEAR 1-33239-184-0 05 1 9910- ●
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-005-0 AR 1 9603-9901 ●
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-080-0 AR 1 9902- ●
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-006-0 AR 1 9603-9901 ●
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-075-0 AR 1 9902- ●
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-007-0 AR 1 9603-9901 ●
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-076-0 AR 1 9902- ●
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-008-0 AR 1 9603-9901 ●
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-077-0 AR 1 9902- ●
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-009-0 AR 1 9603-9901 ●
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-078-0 AR 1 9902- ●
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-010-0 AR 1 9603-9901 ●
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-079-0 AR 1 9902- ●
335 RING; SNAP,BEARING
PTO ZF TRANS RR(BDM) (A) 		1-33219-246-0 01 1 9708-9901 ●
335 RING; SNAP,BEARING
(A) 		1-33219-246-0 01 1 9902-9909 ●
335 RING; SNAP,BEARING
(A) 		1-33219-246-0 01 1 9910- ● ● ●
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-081-0 01 1 9910- ●
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-082-0 01 1 9910- ●
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-083-0 01 1 9910- ●
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-084-0 01 1 9910- ●
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-085-0 01 1 9910- ●
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-086-0 01 1 9910- ●
336 WASHER; THRUST,PLANETARY GEAR 1-33239-182-0 10 1 9603-9909 ●
336 WASHER; THRUST,PLANETARY GEAR 1-33239-182-0 10 1 9910- ● ● ●
337 WASHER; PLANETARY GEAR,INNER 1-33239-181-0 15 1 9603-9909 ●
337 WASHER; PLANETARY GEAR,INNER 1-33239-181-0 15 1 9910- ● ● ●
338 CARRIER; RING GEAR 1-33331-240-0 01 1 9603- ●
338 CARRIER; RING GEAR 1-33331-237-0 01 1 9910- ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33261-226-0 01 1 9603-9909 ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33261-226-0 01 1 9910- ● ● ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33339-021-0 01 1 9603- ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-441-0 01 1 9910- ●
340 GEAR; RING 1-33339-046-0 01 1 9603- ●
340 GEAR; RING 1-33339-011-0 01 1 9910- ●
341 WIRE; LOCK,CARRIER 1-33339-012-0 01 1 9603-9909 ●
341 WIRE; LOCK,CARRIER 1-33339-012-0 01 1 9910- ● ● ●
342 FLANGE; OUTPUT 1-37243-324-0 01 1 9603- ●
342 FLANGE; OUTPUT 1-37243-294-0 01 1 9910- ●
343 SEAL; FLANGE 1-33139-052-0 01 1 9603-9909 ●
343 SEAL; FLANGE 1-33139-052-0 01 1 9910- ● ● ●
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 9603-9909 ●
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 9910- ● ● ●
346 GASKET; FLANGE 1-37249-079-0 01 1 9603- ●
346 GASKET; FLANGE 1-34155-035-0 01 1 9910- ●
347 WASHER; FLANGE 1-37249-080-0 01 1 9603- ●
347 WASHER; FLANGE 1-37249-149-0 01 1 9910- ●
348 BOLT; SHAFT 1-37249-155-0 02 1 9603- ●
348 BOLT; SHAFT 1-37249-150-0 02 1 9910- ●
349 WASHER; LK,SHAFT 1-37249-081-0 01 1 9603- ●
349 WASHER; LK,SHAFT 1-37249-151-0 01 1 9910- ●
400 BEARING; OUTPUT SHAFT RR 1-33139-014-0 01 1 9603-9909 ●
400 BEARING; OUTPUT SHAFT RR 1-33139-014-0 01 1 9910- ● ● ●
402 SHIM
T=0.60 		1-33139-015-0 AR 1 9603- ●
402 SHIM
T=0.50 		1-33139-016-0 AR 1 9603- ●
402 SHIM
T=0.30 		1-33139-017-0 AR 1 9603- ●
402 SHIM
T=0.40 		1-33139-018-0 AR 1 9603- ●
402 SHIM
T=0.20 		1-33139-019-0 AR 1 9603- ●
402 SHIM
T=0.60 		1-33139-015-0 01 1 9910- ●
402 SHIM
T=0.50 		1-33139-016-0 01 1 9910- ●
402 SHIM
T=0.30 		1-33139-017-0 01 1 9910- ●
402 SHIM
T=0.40 		1-33139-018-0 01 1 9910- ●
402 SHIM
T=0.20 		1-33139-019-0 01 1 9910- ●
408 SPRING
(A) 		1-33269-038-0 09 1 9603-9909 ●
408 SPRING
(A) 		1-33269-038-0 09 1 9910- ● ● ●
408 SPRING
(B) 		1-33269-039-0 09 1 9603-9909 ●
408 SPRING
(B) 		1-33269-039-0 09 1 9910- ● ● ●
408 SPRING
(C) 		1-33269-042-0 09 1 9603-9909 ●
408 SPRING
(C) 		1-33269-042-0 09 1 9910- ● ● ●

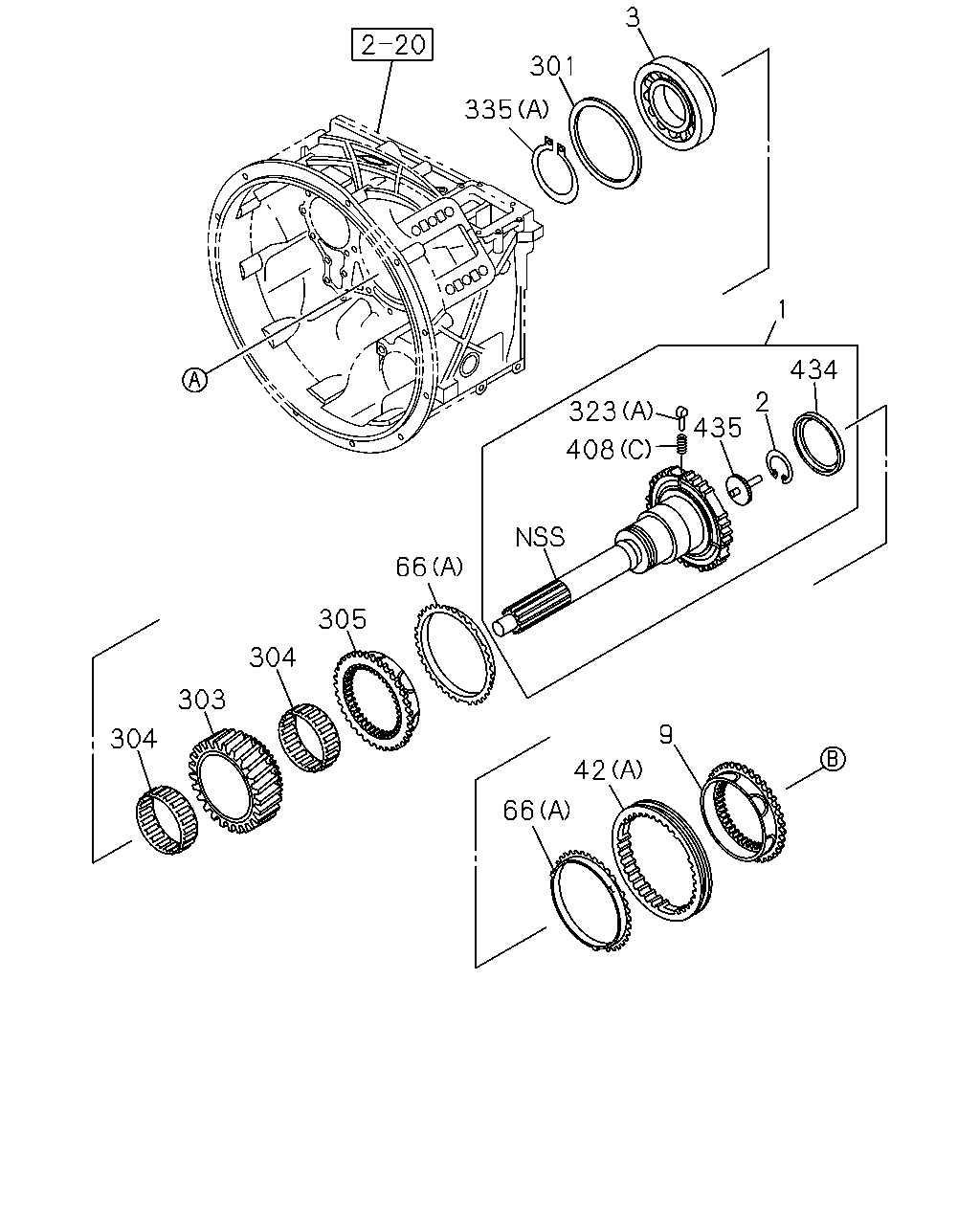

çizim 39066
3 301 335 1 434 2 323 435 408 66 305 304 303 9 304 42 66
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; TOP GEAR,TRANS 1-33211-928-0 01 1 9603-9707 ●
1 SHAFT; TOP GEAR,TRANS
EXC. PTO ZF TRANS RR(BDM) 		1-33211-928-0 01 1 9708-9901 ●
1 SHAFT; TOP GEAR,TRANS
PTO ZF TRANS RR(BDM) 		1-33219-244-0 01 1 9708-9901 ●
1 SHAFT; TOP GEAR,TRANS 1-33219-244-0 01 1 9902- ●
1 SHAFT; TOP GEAR,TRANS 1-33219-239-0 01 1 9910- ●
2 RING; SNAP,TOP GEAR SHAFT 1-33219-115-0 01 1 9603-9909 ●
2 RING; SNAP,TOP GEAR SHAFT 1-33219-115-0 01 1 9910- ● ● ●
3 BEARING; TOP GEAR SHAFT 1-33219-113-0 01 1 9603-9707 ●
3 BEARING; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR(BDM) 		1-33219-113-0 01 1 9708-9901 ●
3 BEARING; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) 		1-33219-242-0 01 1 9708-9901 ●
3 BEARING; TOP GEAR SHAFT 1-33219-242-0 01 1 9902-9909 ●
3 BEARING; TOP GEAR SHAFT 1-33219-242-0 01 1 9910- ● ● ●
9 CLUTCH; DOG,TOP GEAR 1-33265-437-0 01 1 9603-9909 ●
9 CLUTCH; DOG,TOP GEAR 1-33265-437-0 01 1 9910- ● ● ●
42 SLEEVE
(A) 		1-33262-185-0 01 1 9603-9707 ●
42 SLEEVE
(A) 		1-33262-208-0 01 1 9708-9909 ●
42 SLEEVE
(A) 		1-33262-208-0 01 1 9910- ● ● ●
42 SLEEVE
(B) 		1-33339-020-0 01 1 9603-9909 ●
42 SLEEVE
(B) 		1-33339-020-0 01 1 9910- ● ● ●
66 RING; BLOCK,SYN
(A) 		1-33265-438-0 02 1 9603-9707 ●
66 RING; BLOCK,SYN
(A) 		1-33339-069-0 02 1 9708-9909 ●
66 RING; BLOCK,SYN
(A) 		1-33339-069-0 02 1 9910- ● ● ●
66 RING; BLOCK,SYN
(B) 		1-33339-019-0 02 1 9603-9707 ●
66 RING; BLOCK,SYN
PTO ZF TRANS RR(BDM) (B) 		1-33219-241-0 02 1 9708-9807 ●
66 RING; BLOCK,SYN
(B) 		1-33219-241-0 02 1 9808-9909 ●
66 RING; BLOCK,SYN
(B) 		1-33219-241-0 02 1 9910- ● ● ●
66 RING; BLOCK,SYN
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33265-438-0 02 1 9708-9807 ●
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33219-117-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33219-117-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33219-118-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33219-118-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33219-119-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33219-119-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33219-120-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33219-120-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33219-121-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33219-121-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33219-122-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33219-122-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33219-123-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33219-123-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33219-124-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33219-124-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33219-125-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33219-125-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33219-126-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33219-126-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33219-127-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33219-127-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33219-128-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33219-128-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33219-129-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33219-129-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33219-130-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33219-130-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33219-131-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33219-131-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33219-132-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33219-132-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33219-133-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33219-133-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33219-134-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33219-134-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33219-135-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33219-135-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33219-136-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33219-136-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33219-137-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33219-137-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33219-138-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33219-138-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33219-139-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33219-139-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.05 		1-33219-140-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.05 		1-33219-140-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=1.00 		1-33219-141-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=1.00 		1-33219-141-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=0.95 		1-33219-142-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=0.95 		1-33219-142-0 AR 1 9910- ● ● ●
301 SHIM; TOP GEAR SHAFT
T=0.90 		1-33219-143-0 AR 1 9603-9909 ●
301 SHIM; TOP GEAR SHAFT
T=0.90 		1-33219-143-0 AR 1 9910- ● ● ●
303 GEAR; SPLITTER 1-33219-157-0 01 1 9603-9707 ●
303 GEAR; SPLITTER
EXC. PTO ZF TRANS RR(BDM) 		1-33219-157-0 01 1 9708-9901 ●
303 GEAR; SPLITTER
PTO ZF TRANS RR(BDM) 		1-33219-245-0 01 1 9708-9901 ●
303 GEAR; SPLITTER 1-33219-249-0 01 1 9902- ●
303 GEAR; SPLITTER 1-33219-252-0 01 1 9910- ●
304 BEARING; SPLITTER GEAR 1-33219-156-0 02 1 9603-9611 ●
304 BEARING; SPLITTER GEAR 1-33219-238-0 01 1 9612-9707 ●
304 BEARING; SPLITTER GEAR
EXC. PTO ZF TRANS RR(BDM) 		1-33219-238-0 02 1 9708-9901 ●
305 CLUTCH; DOG,SPLITTER GEAR 1-33265-436-0 01 1 9603-9909 ●
305 CLUTCH; DOG,SPLITTER GEAR 1-33265-436-0 01 1 9910- ● ● ●
323 INSERT
(A) 		1-33263-027-0 09 1 9603-9909 ●
323 INSERT
(A) 		1-33263-027-0 09 1 9910- ● ● ●
323 INSERT
(B) 		1-33263-030-0 09 1 9603-9909 ●
323 INSERT
(B) 		1-33263-030-0 09 1 9910- ● ● ●
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-005-0 AR 1 9603-9901 ●
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-080-0 AR 1 9902- ●
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-006-0 AR 1 9603-9901 ●
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-075-0 AR 1 9902- ●
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-007-0 AR 1 9603-9901 ●
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-076-0 AR 1 9902- ●
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-008-0 AR 1 9603-9901 ●
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-077-0 AR 1 9902- ●
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-009-0 AR 1 9603-9901 ●
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-078-0 AR 1 9902- ●
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-010-0 AR 1 9603-9901 ●
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-079-0 AR 1 9902- ●
335 RING; SNAP,BEARING
PTO ZF TRANS RR(BDM) (A) 		1-33219-246-0 01 1 9708-9901 ●
335 RING; SNAP,BEARING
(A) 		1-33219-246-0 01 1 9902-9909 ●
335 RING; SNAP,BEARING
(A) 		1-33219-246-0 01 1 9910- ● ● ●
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-081-0 01 1 9910- ●
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-082-0 01 1 9910- ●
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-083-0 01 1 9910- ●
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-084-0 01 1 9910- ●
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-085-0 01 1 9910- ●
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-086-0 01 1 9910- ●
408 SPRING
(A) 		1-33269-038-0 09 1 9603-9909 ●
408 SPRING
(A) 		1-33269-038-0 09 1 9910- ● ● ●
408 SPRING
(B) 		1-33269-039-0 09 1 9603-9909 ●
408 SPRING
(B) 		1-33269-039-0 09 1 9910- ● ● ●
408 SPRING
(C) 		1-33269-042-0 09 1 9603-9909 ●
408 SPRING
(C) 		1-33269-042-0 09 1 9910- ● ● ●
434 GASKET; INPUTSHAFT 1-33219-116-0 01 1 9603-9909 ●
434 GASKET; INPUTSHAFT 1-33219-116-0 01 1 9910- ● ● ●
435 PIPE; INPUTSHAFT 1-33219-114-0 01 1 9603-9909 ●
435 PIPE; INPUTSHAFT 1-33219-114-0 01 1 9910- ● ● ●

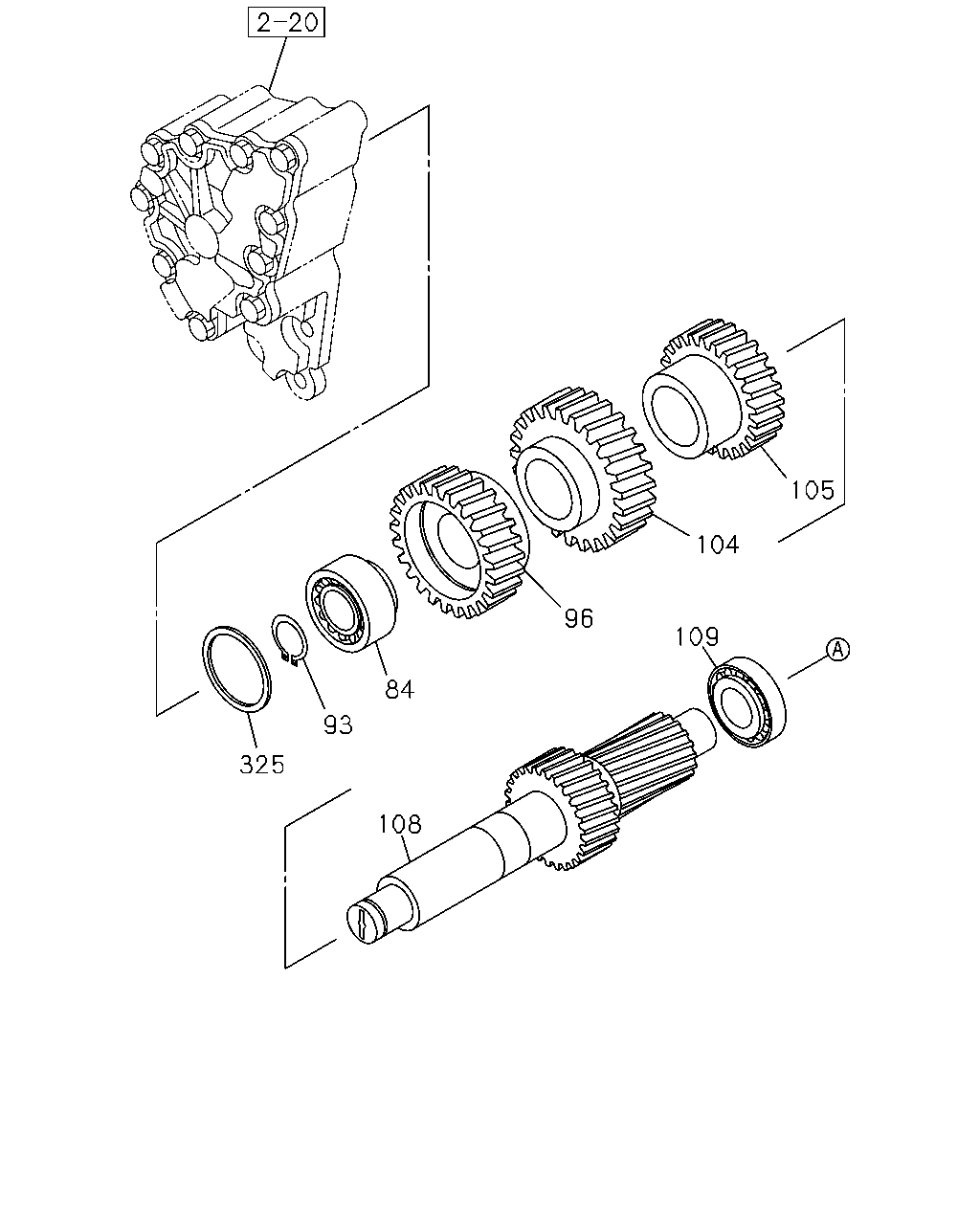

çizim 40478
105 104 96 109 84 93 325 108
BalonParca AdiParca NoAdetTipApplied Date A B C
84 BEARING; COUNTER SHAFT,FRT 1-33319-087-0 01 1 9603-9909 ●
84 BEARING; COUNTER SHAFT,FRT 1-33319-087-0 01 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=3.20 		1-33319-061-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=3.20 		1-33319-061-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=3.15 		1-33319-062-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=3.15 		1-33319-062-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=3.10 		1-33319-063-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=3.10 		1-33319-063-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=3.05 		1-33319-064-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=3.05 		1-33319-064-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=3.00 		1-33319-065-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=3.00 		1-33319-065-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.95 		1-33319-066-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.95 		1-33319-066-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.90 		1-33319-067-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.90 		1-33319-067-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.85 		1-33319-068-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.85 		1-33319-068-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.80 		1-33319-069-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.80 		1-33319-069-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.75 		1-33319-070-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.75 		1-33319-070-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.70 		1-33319-071-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.70 		1-33319-071-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.65 		1-33319-072-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.65 		1-33319-072-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.60 		1-33319-073-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.60 		1-33319-073-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.55 		1-33319-074-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.55 		1-33319-074-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.50 		1-33319-075-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.50 		1-33319-075-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.45 		1-33319-076-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.45 		1-33319-076-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.40 		1-33319-077-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.40 		1-33319-077-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.35 		1-33319-078-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.35 		1-33319-078-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.30 		1-33319-079-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.30 		1-33319-079-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.25 		1-33319-080-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.25 		1-33319-080-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.20 		1-33319-081-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.20 		1-33319-081-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.15 		1-33319-082-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.15 		1-33319-082-0 AR 1 9910- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.10 		1-33319-083-0 AR 1 9603-9909 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.10 		1-33319-083-0 AR 1 9910- ● ● ●
96 GEAR; COUNTER DRIVE 1-33331-238-0 01 1 9603-9704 ●
96 GEAR; COUNTER DRIVE 1-33331-253-0 01 1 9705-9901 ●
96 GEAR; COUNTER DRIVE 1-33331-259-0 01 1 9902- ●
96 GEAR; COUNTER DRIVE 1-33331-260-0 01 1 9910- ●
104 GEAR; 4TH,COUNTER 1-33338-357-0 01 1 9603-9901 ●
104 GEAR; 4TH,COUNTER 1-33338-375-0 01 1 9902- ●
104 GEAR; 4TH,COUNTER 1-33338-376-0 01 1 9910- ●
105 GEAR; 3RD,COUNTER 1-33333-159-0 01 1 9603-9901 ●
105 GEAR; 3RD,COUNTER 1-33333-163-0 01 1 9902- ●
105 GEAR; 3RD,COUNTER 1-33333-164-0 01 1 9910- ●
108 SHAFT; COUNTER 1-33311-293-0 01 1 9603-9901 ●
108 SHAFT; COUNTER 1-33311-310-0 01 1 9902- ●
108 SHAFT; COUNTER 1-33311-314-0 01 1 9910- ●
109 BEARING; COUNTER SHAFT,RR 1-33319-134-0 01 1 9603- ●
109 BEARING; COUNTER SHAFT,RR 1-33319-087-0 01 1 9910- ●
325 SHIM; COUNTER SHAFT BRG
T=3.05 		1-33319-108-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=3.05 		1-33319-108-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=3.00 		1-33319-109-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=3.00 		1-33319-109-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.95 		1-33319-110-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.95 		1-33319-110-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.90 		1-33319-111-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.90 		1-33319-111-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.85 		1-33319-112-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.85 		1-33319-112-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.80 		1-33319-113-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.80 		1-33319-113-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.75 		1-33319-114-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.75 		1-33319-114-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.70 		1-33319-115-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.70 		1-33319-115-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.65 		1-33319-116-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.65 		1-33319-116-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.60 		1-33319-117-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.60 		1-33319-117-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.55 		1-33319-118-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.55 		1-33319-118-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.50 		1-33319-119-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.50 		1-33319-119-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.45 		1-33319-120-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.45 		1-33319-120-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33319-121-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33319-121-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33319-122-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33319-122-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33319-123-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33319-123-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33319-124-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33319-124-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33319-125-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33319-125-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33319-126-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33319-126-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33319-127-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33319-127-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33319-128-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33319-128-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33319-129-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33319-129-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33319-130-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33319-130-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33319-131-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33319-131-0 AR 1 9910- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33319-132-0 AR 1 9603-9909 ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33319-132-0 AR 1 9910- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
