8-50 — AIR CONDITIONING SYSTEM; FRONT (#53438) — 46 parça
çizim 160123
17 25 387 32 47 14 47 46
BalonParca AdiParca NoAdetTipApplied Date A B
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 0908-1011 ●
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 1012- ● ●
17 09.171 NUT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0908-1011 ●
17 09.171 NUT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91180-208-0 01 1 1012- ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98051-011-0 01 1 0908-1006 ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98114-437-0 01 1 1007-1011 ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98114-437-0 01 1 1012- ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0908-1011 ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1012- ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-103-0 01 1 1012- ● ●
46 09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) 09.242 		8-98037-322-0 01 1 0908-1011 ●
46 09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) 09.242 		8-98037-322-0 01 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) (A) M8X45 FLANGE 		0-28050-845-0 01 1 0908-1011 ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) (A) M8X45 FLANGE 		0-28050-845-0 01 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0908-1011 ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ●
387 09.190 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0908-1011 ●
387 09.190 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1012- ● ●

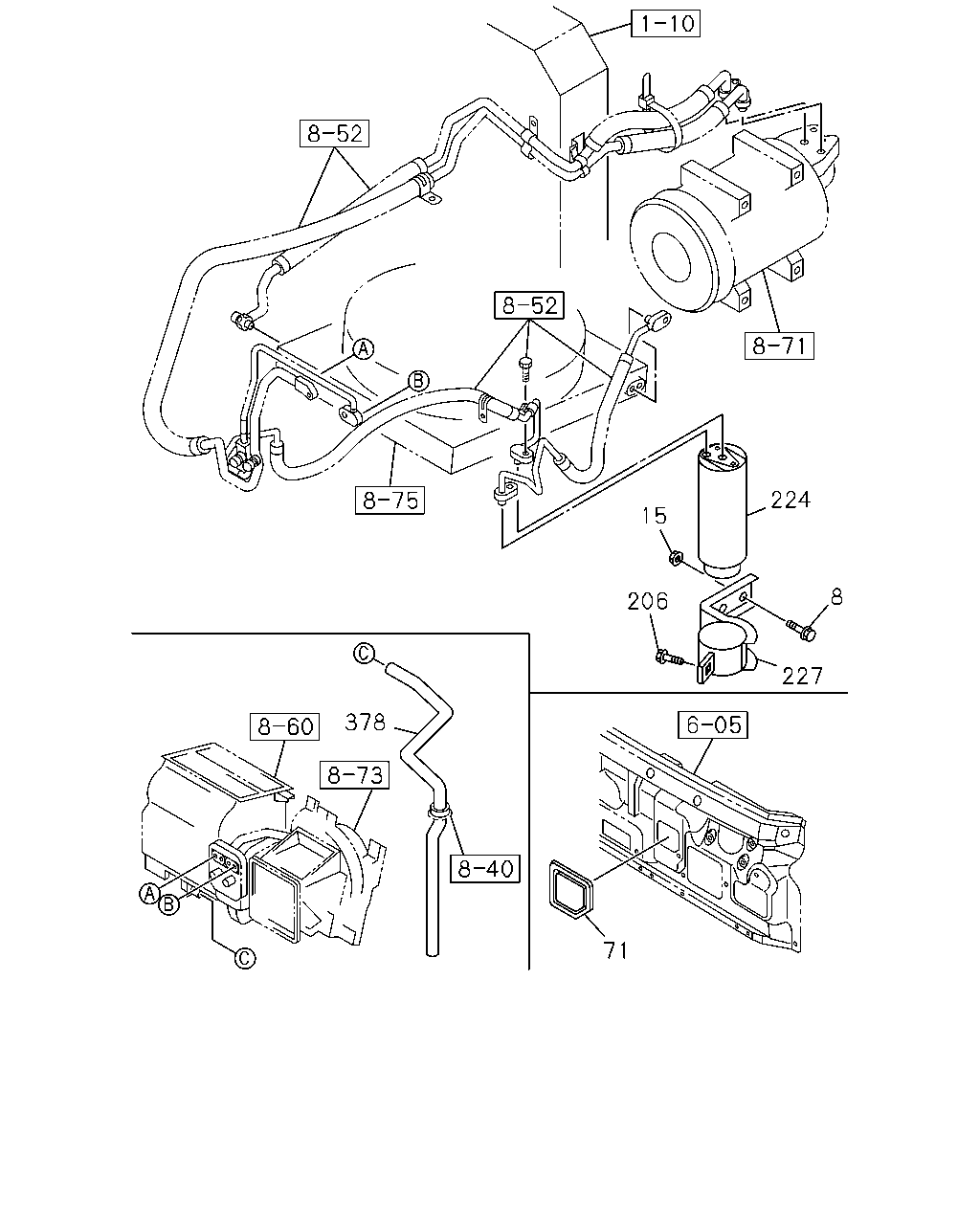

çizim 160126
71 378 227 206 15 224 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0908-1008 ●
8 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1009- ●
15 09.173 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0908-1011 ●
15 09.173 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98017-234-1 01 1 0908-1011 ●
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98017-234-1 01 1 1012- ● ●
206 09.242 BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X16 		8-97096-525-0 01 1 0908-1009 ●
206 09.242 BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5) M6X16 		8-97096-525-0 01 1 1010- ●
224 09.195 TANK ASM; RECEIVER
AIR CONDITIONER MANUAL CONT(C60) 		8-97096-593-0 01 1 0908-1009 ●
224 09.195 TANK ASM; RECEIVER
AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5) 		8-97096-593-0 01 1 1010- ●
227 09.196 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60) 		8-98042-566-0 01 1 0908-1009 ●
227 09.196 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5) 		8-98042-566-0 01 1 1010- ●
378 09.211 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98001-241-2 01 1 0908-1011 ●
378 09.211 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98001-241-2 01 1 1012- ● ●
çizim 160154
70 262 1 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 		8-98146-843-0 01 1 1009-1011 ●
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 		8-98146-843-0 01 1 1012- ●
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98146-843-0 01 1 1012- ●
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1009-1011 ●
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ●
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ●
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1009-1009 ●
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1010-1011 ●
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 		8-98158-870-0 01 1 1009-1009 ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 		8-98174-735-0 01 1 1010-1011 ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 		8-98174-735-0 01 1 1012- ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-98174-735-0 01 1 1012- ●
