Sayfa 8-45 - Isuzu EPC

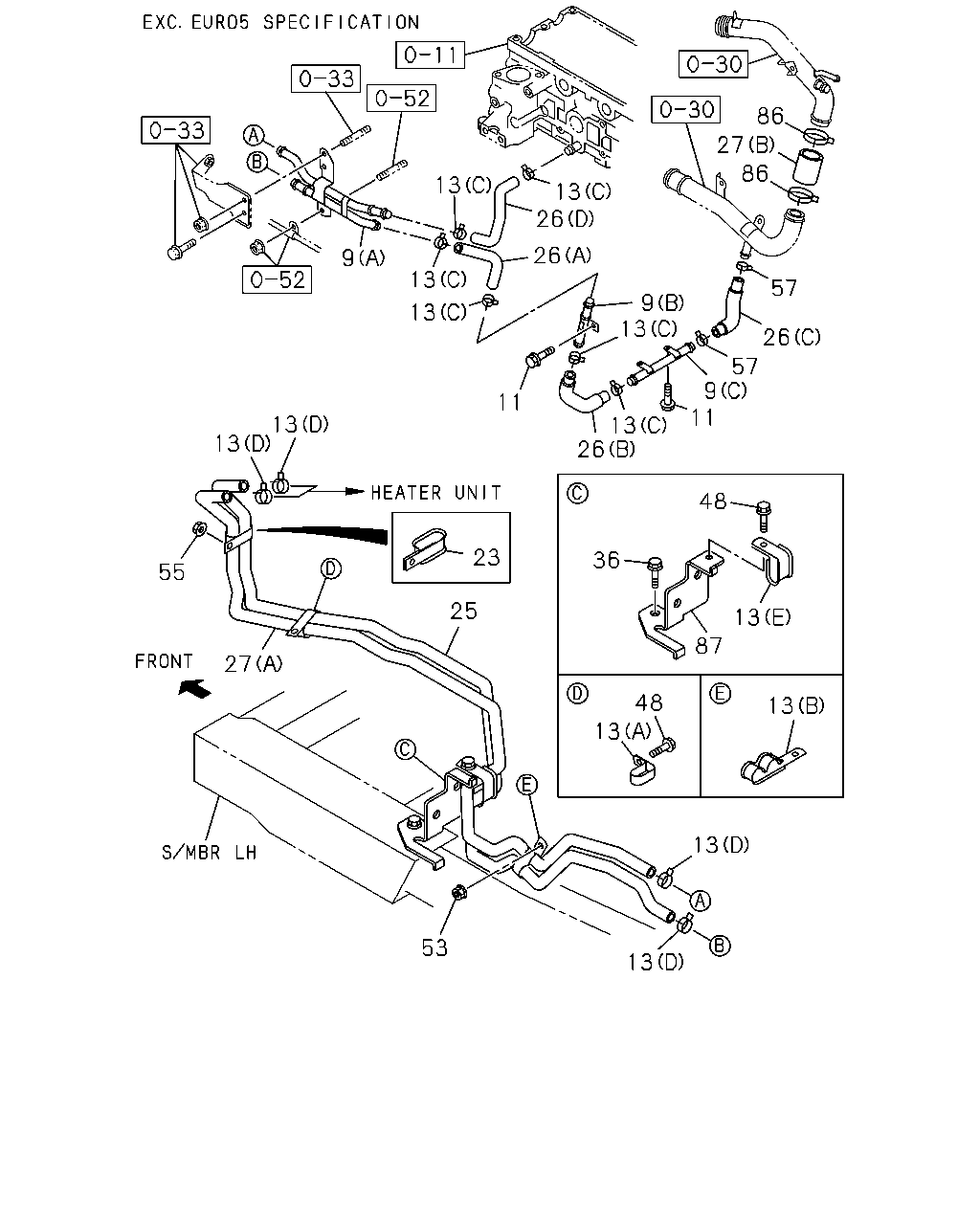

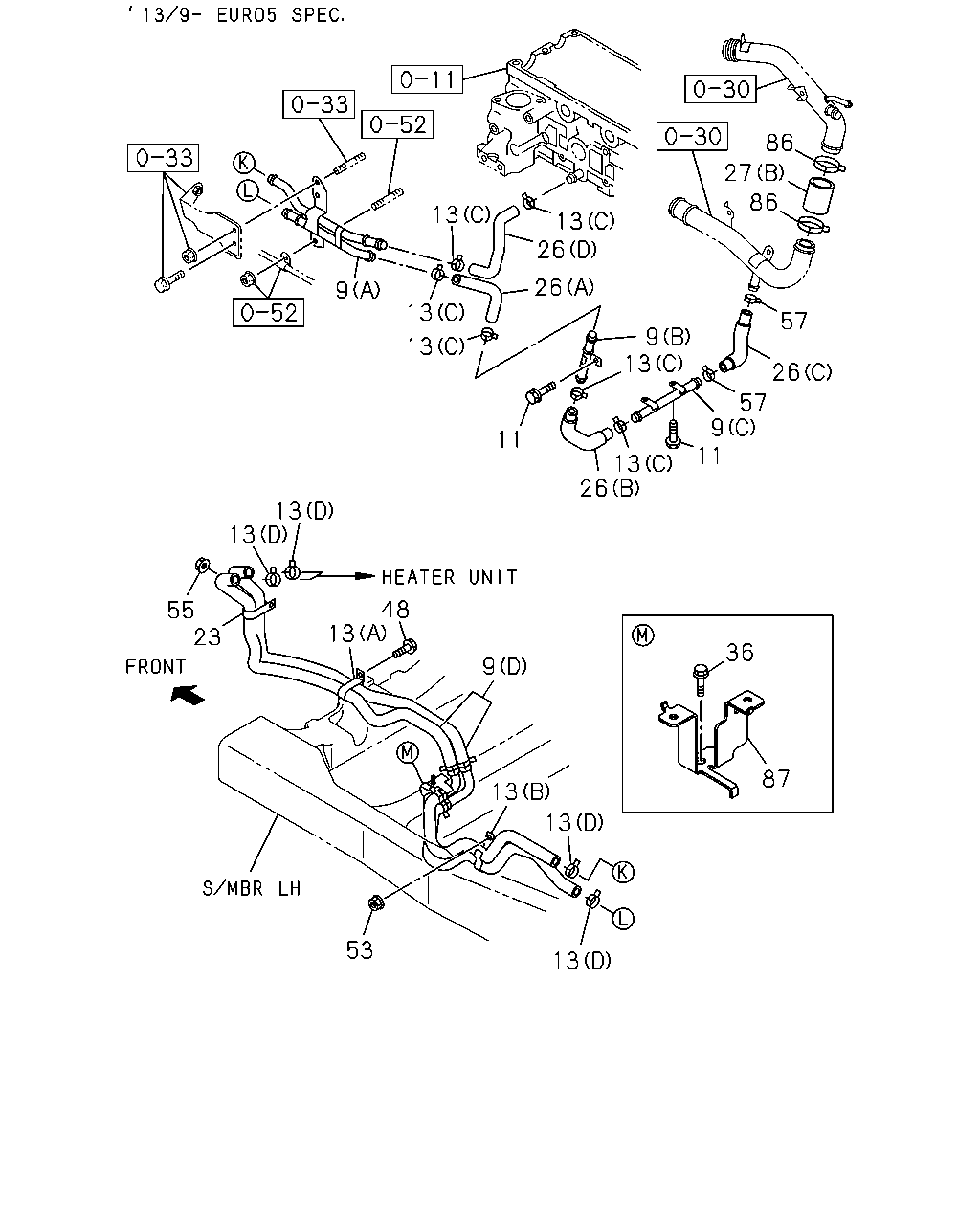

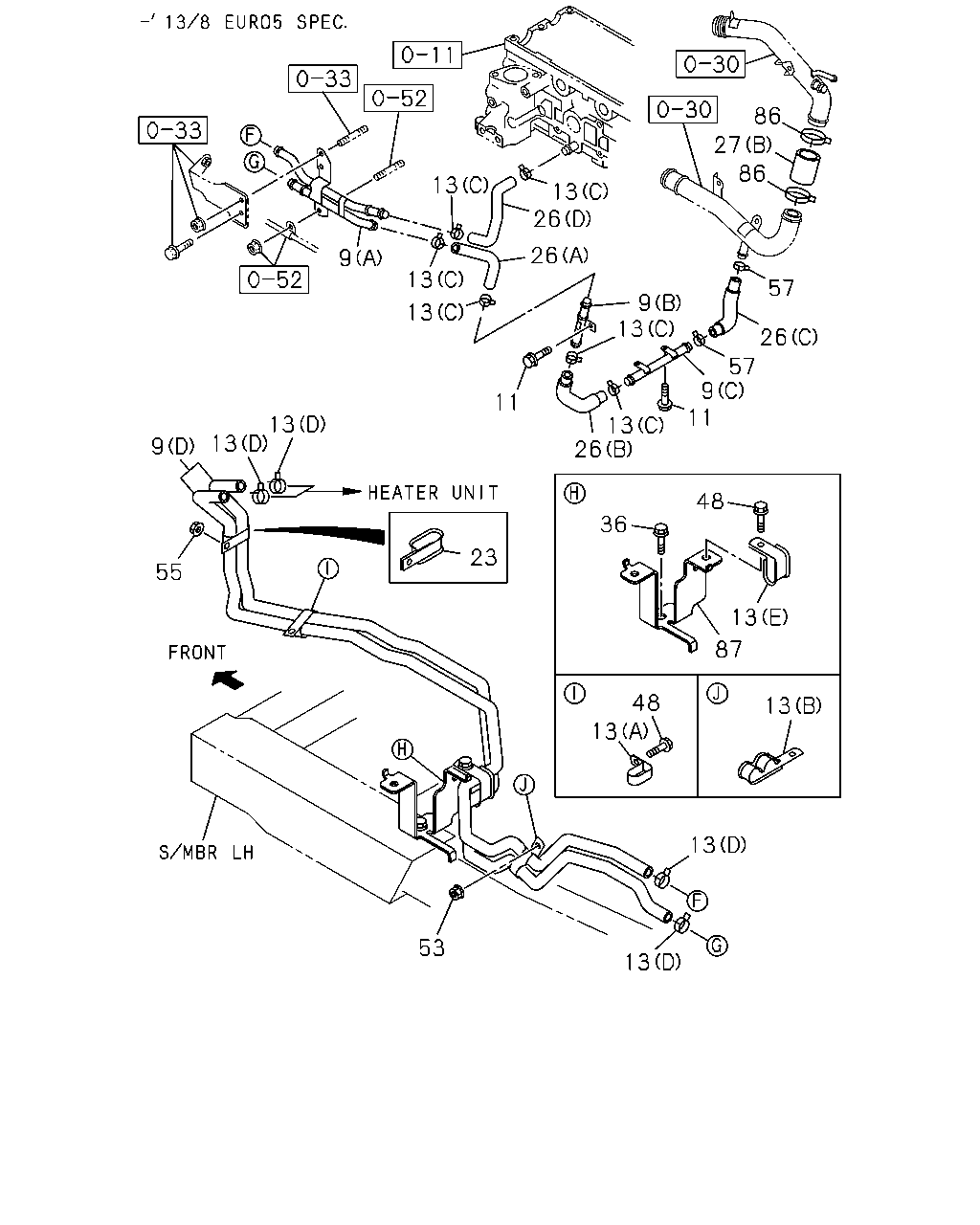

8-45 — HEATER PIPING (#53437) — 371 parça

13 13 53 55 9 13 13 23 36 48 13 87 13 48 13 26 13 11 9 57 26 57 9 13 11 13 13 9 13 13 26 26 86 27 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98174-875-1	01	1	1009-1011	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98174-875-1	01	1	1012-1308	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98174-875-1	01	1	1012-1308		●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98178-800-1	01	1	1309-	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98178-800-1	01	1	1309-		●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	0908-1008	●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	1009-1011	●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	1012-	●	●
9	08.846 PIPE; HTR (B)	8-98009-709-1	01	1	0908-1008	●
9	08.846 PIPE; HTR (B)	8-98009-709-1	01	1	1009-1011	●
9	08.846 PIPE; HTR (B)	8-98009-709-1	01	1	1012-	●	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	0908-1008	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	1009-1011	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	1012-	●	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0908-1008	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1009-1011	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1012-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	0908-1009	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1010-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 03.278 (D) ID=22	8-97359-141-0	04	1	1010-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98029-677-0	01	1	0908-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98029-677-0	01	1	1012-1308	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	0908-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1012-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	0908-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	1012-	●	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	0908-1008	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	1009-1011	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	1012-	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-97359-144-0	01	1	0908-1011	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-97359-144-0	01	1	1012-1205	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (H)	8-98180-272-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98180-272-0	01	1	1309-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (G)	8-98180-273-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (G)	8-98180-273-0	01	1	1309-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98089-116-0	01	1	1010-1011	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98089-116-0	01	1	1012-1308	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98089-116-0	01	1	1012-1308		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98180-268-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98180-268-0	01	1	1309-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98089-117-0	01	1	1010-1011	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98089-117-0	01	1	1012-1308	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98089-117-0	01	1	1012-1308		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98180-269-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98180-269-0	01	1	1309-		●
26	08.846 HOSE; HTR (A)	0-03516-240-0	01	1	0908-0910	●
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	0911-1011	●
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	1012-	●	●
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	0908-1011	●
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	1012-	●	●
26	08.846 HOSE; HTR (B)	8-98009-702-1	01	1	0908-1011	●
26	08.846 HOSE; HTR (B)	8-98009-702-1	01	1	1012-	●	●
26	08.846 HOSE; HTR (C)	8-98009-703-2	01	1	0908-1011	●
26	08.846 HOSE; HTR (C)	8-98009-703-2	01	1	1012-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EURO5 SPECIFICATION(NT5) (B)	8-98106-016-0	01	1	1009-1011	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EURO5 SPECIFICATION(NT5) (B)	8-98106-016-0	01	1	1012-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (B)	8-98106-016-0	01	1	1012-		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98089-117-0	01	1	0908-1008	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5) (A)	8-98089-117-0	01	1	1009-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (B)	8-98009-701-0	01	1	0908-1008	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EURO4 SPECIFICATION(NT4) (B)	8-98009-701-0	01	1	1009-	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0908-1011	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0908-1011	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1012-	●	●
53	08.845 NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0908-1011	●
53	08.845 NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0908-1011	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	0908-1011	●
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	1012-	●	●
86	08.846 CLIP; HTR HOSE EURO5 SPECIFICATION(NT5)	8-98110-004-0	02	1	1009-1011	●
86	08.846 CLIP; HTR HOSE EURO5 SPECIFICATION(NT5)	8-98110-004-0	02	1	1012-	●
86	08.846 CLIP; HTR HOSE	8-98110-004-0	02	1	1012-		●
86	08.846 CLIP; HTR HOSE 01.166 ID=40.5	8-97313-472-0	02	1	0908-1008	●
86	08.846 CLIP; HTR HOSE EURO4 SPECIFICATION(NT4) 01.166 ID=40.5	8-97313-472-0	02	1	1009-	●
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98111-556-0	01	1	1009-1011	●
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98111-556-0	01	1	1012-	●
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98111-556-0	01	1	1012-		●
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98009-465-3	01	1	0908-1008	●
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5)	8-98009-465-3	01	1	1009-	●

13 13 53 25 23 13 13 55 27 13 13 48 36 87 48 13 86 27 86 57 26 57 9 11 13 26 13 9 11 26 26 13 13 13 13 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98174-875-1	01	1	1009-1011	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98174-875-1	01	1	1012-1308	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98174-875-1	01	1	1012-1308		●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98178-800-1	01	1	1309-	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98178-800-1	01	1	1309-		●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	0908-1008	●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	1009-1011	●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	1012-	●	●
9	08.846 PIPE; HTR (B)	8-98009-709-1	01	1	0908-1008	●
9	08.846 PIPE; HTR (B)	8-98009-709-1	01	1	1009-1011	●
9	08.846 PIPE; HTR (B)	8-98009-709-1	01	1	1012-	●	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	0908-1008	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	1009-1011	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	1012-	●	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0908-1008	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1009-1011	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1012-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	0908-1009	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1010-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 03.278 (D) ID=22	8-97359-141-0	04	1	1010-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98029-677-0	01	1	0908-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98029-677-0	01	1	1012-1308	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	0908-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1012-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	0908-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	1012-	●	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	0908-1008	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	1009-1011	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	1012-	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-97359-144-0	01	1	0908-1011	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-97359-144-0	01	1	1012-1205	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98089-116-0	01	1	0908-1008	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5)	8-98089-116-0	01	1	1009-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (H)	8-98180-272-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98180-272-0	01	1	1309-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (G)	8-98180-273-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (G)	8-98180-273-0	01	1	1309-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98089-116-0	01	1	1010-1011	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98089-116-0	01	1	1012-1308	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98089-116-0	01	1	1012-1308		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98180-268-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98180-268-0	01	1	1309-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98089-117-0	01	1	1010-1011	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98089-117-0	01	1	1012-1308	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98089-117-0	01	1	1012-1308		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98180-269-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98180-269-0	01	1	1309-		●
26	08.846 HOSE; HTR (A)	0-03516-240-0	01	1	0908-0910	●
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	0911-1011	●
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	1012-	●	●
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	0908-1011	●
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	1012-	●	●
26	08.846 HOSE; HTR (B)	8-98009-702-1	01	1	0908-1011	●
26	08.846 HOSE; HTR (B)	8-98009-702-1	01	1	1012-	●	●
26	08.846 HOSE; HTR (C)	8-98009-703-2	01	1	0908-1011	●
26	08.846 HOSE; HTR (C)	8-98009-703-2	01	1	1012-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EURO5 SPECIFICATION(NT5) (B)	8-98106-016-0	01	1	1009-1011	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EURO5 SPECIFICATION(NT5) (B)	8-98106-016-0	01	1	1012-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (B)	8-98106-016-0	01	1	1012-		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98089-117-0	01	1	0908-1008	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5) (A)	8-98089-117-0	01	1	1009-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (B)	8-98009-701-0	01	1	0908-1008	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EURO4 SPECIFICATION(NT4) (B)	8-98009-701-0	01	1	1009-	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0908-1011	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0908-1011	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1012-	●	●
53	08.845 NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0908-1011	●
53	08.845 NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0908-1011	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	0908-1011	●
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	1012-	●	●
86	08.846 CLIP; HTR HOSE EURO5 SPECIFICATION(NT5)	8-98110-004-0	02	1	1009-1011	●
86	08.846 CLIP; HTR HOSE EURO5 SPECIFICATION(NT5)	8-98110-004-0	02	1	1012-	●
86	08.846 CLIP; HTR HOSE	8-98110-004-0	02	1	1012-		●
86	08.846 CLIP; HTR HOSE 01.166 ID=40.5	8-97313-472-0	02	1	0908-1008	●
86	08.846 CLIP; HTR HOSE EURO4 SPECIFICATION(NT4) 01.166 ID=40.5	8-97313-472-0	02	1	1009-	●
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98111-556-0	01	1	1009-1011	●
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98111-556-0	01	1	1012-	●
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98111-556-0	01	1	1012-		●
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98009-465-3	01	1	0908-1008	●
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5)	8-98009-465-3	01	1	1009-	●

26 13 103 13 13 103 13 26 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98174-875-1	01	1	1009-1011	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98174-875-1	01	1	1012-1308	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98174-875-1	01	1	1012-1308		●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98178-800-1	01	1	1309-	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98178-800-1	01	1	1309-		●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	0908-1008	●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	1009-1011	●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	1012-	●	●
9	08.846 PIPE; HTR (B)	8-98009-709-1	01	1	0908-1008	●
9	08.846 PIPE; HTR (B)	8-98009-709-1	01	1	1009-1011	●
9	08.846 PIPE; HTR (B)	8-98009-709-1	01	1	1012-	●	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	0908-1008	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	1009-1011	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	1012-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	0908-1009	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1010-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 03.278 (D) ID=22	8-97359-141-0	04	1	1010-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98029-677-0	01	1	0908-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98029-677-0	01	1	1012-1308	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	0908-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1012-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	0908-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	1012-	●	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	0908-1008	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	1009-1011	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	1012-	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (H)	8-98180-272-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98180-272-0	01	1	1309-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (G)	8-98180-273-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (G)	8-98180-273-0	01	1	1309-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98089-116-0	01	1	1010-1011	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98089-116-0	01	1	1012-1308	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98089-116-0	01	1	1012-1308		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98180-268-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98180-268-0	01	1	1309-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98089-117-0	01	1	1010-1011	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98089-117-0	01	1	1012-1308	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98089-117-0	01	1	1012-1308		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98180-269-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98180-269-0	01	1	1309-		●
26	08.846 HOSE; HTR (A)	0-03516-240-0	01	1	0908-0910	●
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	0911-1011	●
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	1012-	●	●
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	0908-1011	●
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	1012-	●	●
26	08.846 HOSE; HTR (B)	8-98009-702-1	01	1	0908-1011	●
26	08.846 HOSE; HTR (B)	8-98009-702-1	01	1	1012-	●	●
26	08.846 HOSE; HTR (C)	8-98009-703-2	01	1	0908-1011	●
26	08.846 HOSE; HTR (C)	8-98009-703-2	01	1	1012-	●	●
103	08.866 CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	9-09703-048-0	02	1	1010-1011	●
103	08.866 CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	9-09703-048-0	02	1	1012-1308	●
103	08.866 CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	9-09703-048-0	02	1	1012-1308		●
103	08.866 CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98180-274-0	01	1	1309-	●
103	08.866 CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98180-274-0	01	1	1309-		●

13 13 13 53 48 13 23 55 36 87 13 13 26 11 13 11 9 57 26 57 9 13 13 13 9 13 13 26 26 27 86 86 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98174-875-1	01	1	1009-1011	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98174-875-1	01	1	1012-1308	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98174-875-1	01	1	1012-1308		●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98178-800-1	01	1	1309-	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98178-800-1	01	1	1309-		●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	0908-1008	●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	1009-1011	●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	1012-	●	●
9	08.846 PIPE; HTR (B)	8-98009-709-1	01	1	0908-1008	●
9	08.846 PIPE; HTR (B)	8-98009-709-1	01	1	1009-1011	●
9	08.846 PIPE; HTR (B)	8-98009-709-1	01	1	1012-	●	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	0908-1008	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	1009-1011	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	1012-	●	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0908-1008	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1009-1011	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1012-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	0908-1009	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1010-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 03.278 (D) ID=22	8-97359-141-0	04	1	1010-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98029-677-0	01	1	0908-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98029-677-0	01	1	1012-1308	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	0908-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1012-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	0908-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	1012-	●	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	0908-1008	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	1009-1011	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	1012-	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-97359-144-0	01	1	0908-1011	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-97359-144-0	01	1	1012-1205	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (H)	8-98180-272-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98180-272-0	01	1	1309-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (G)	8-98180-273-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (G)	8-98180-273-0	01	1	1309-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98089-116-0	01	1	1010-1011	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98089-116-0	01	1	1012-1308	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98089-116-0	01	1	1012-1308		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98180-268-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98180-268-0	01	1	1309-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98089-117-0	01	1	1010-1011	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98089-117-0	01	1	1012-1308	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98089-117-0	01	1	1012-1308		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98180-269-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98180-269-0	01	1	1309-		●
26	08.846 HOSE; HTR (A)	0-03516-240-0	01	1	0908-0910	●
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	0911-1011	●
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	1012-	●	●
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	0908-1011	●
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	1012-	●	●
26	08.846 HOSE; HTR (B)	8-98009-702-1	01	1	0908-1011	●
26	08.846 HOSE; HTR (B)	8-98009-702-1	01	1	1012-	●	●
26	08.846 HOSE; HTR (C)	8-98009-703-2	01	1	0908-1011	●
26	08.846 HOSE; HTR (C)	8-98009-703-2	01	1	1012-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EURO5 SPECIFICATION(NT5) (B)	8-98106-016-0	01	1	1009-1011	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EURO5 SPECIFICATION(NT5) (B)	8-98106-016-0	01	1	1012-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (B)	8-98106-016-0	01	1	1012-		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98089-117-0	01	1	0908-1008	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5) (A)	8-98089-117-0	01	1	1009-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (B)	8-98009-701-0	01	1	0908-1008	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EURO4 SPECIFICATION(NT4) (B)	8-98009-701-0	01	1	1009-	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0908-1011	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0908-1011	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1012-	●	●
53	08.845 NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0908-1011	●
53	08.845 NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0908-1011	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	0908-1011	●
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	1012-	●	●
86	08.846 CLIP; HTR HOSE EURO5 SPECIFICATION(NT5)	8-98110-004-0	02	1	1009-1011	●
86	08.846 CLIP; HTR HOSE EURO5 SPECIFICATION(NT5)	8-98110-004-0	02	1	1012-	●
86	08.846 CLIP; HTR HOSE	8-98110-004-0	02	1	1012-		●
86	08.846 CLIP; HTR HOSE 01.166 ID=40.5	8-97313-472-0	02	1	0908-1008	●
86	08.846 CLIP; HTR HOSE EURO4 SPECIFICATION(NT4) 01.166 ID=40.5	8-97313-472-0	02	1	1009-	●
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98111-556-0	01	1	1009-1011	●
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98111-556-0	01	1	1012-	●
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98111-556-0	01	1	1012-		●
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98009-465-3	01	1	0908-1008	●
87	08.846 BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5)	8-98009-465-3	01	1	1009-	●

9 26 13 103 13 26 26 13 13 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98174-875-1	01	1	1009-1011	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98174-875-1	01	1	1012-1308	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98174-875-1	01	1	1012-1308		●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98178-800-1	01	1	1309-	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98178-800-1	01	1	1309-		●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	0908-1008	●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	1009-1011	●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	1012-	●	●
9	08.846 PIPE; HTR (B)	8-98009-709-1	01	1	0908-1008	●
9	08.846 PIPE; HTR (B)	8-98009-709-1	01	1	1009-1011	●
9	08.846 PIPE; HTR (B)	8-98009-709-1	01	1	1012-	●	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	0908-1008	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	1009-1011	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	1012-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	0908-1009	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1010-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 03.278 (D) ID=22	8-97359-141-0	04	1	1010-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98029-677-0	01	1	0908-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98029-677-0	01	1	1012-1308	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	0908-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1012-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	0908-1011	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	1012-	●	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	0908-1008	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	1009-1011	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	1012-	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (H)	8-98180-272-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98180-272-0	01	1	1309-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (G)	8-98180-273-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (G)	8-98180-273-0	01	1	1309-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98089-116-0	01	1	1010-1011	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98089-116-0	01	1	1012-1308	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98089-116-0	01	1	1012-1308		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98180-268-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98180-268-0	01	1	1309-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98089-117-0	01	1	1010-1011	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98089-117-0	01	1	1012-1308	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98089-117-0	01	1	1012-1308		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98180-269-0	01	1	1309-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98180-269-0	01	1	1309-		●
26	08.846 HOSE; HTR (A)	0-03516-240-0	01	1	0908-0910	●
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	0911-1011	●
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	1012-	●	●
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	0908-1011	●
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	1012-	●	●
26	08.846 HOSE; HTR (B)	8-98009-702-1	01	1	0908-1011	●
26	08.846 HOSE; HTR (B)	8-98009-702-1	01	1	1012-	●	●
26	08.846 HOSE; HTR (C)	8-98009-703-2	01	1	0908-1011	●
26	08.846 HOSE; HTR (C)	8-98009-703-2	01	1	1012-	●	●
103	08.866 CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	9-09703-048-0	02	1	1010-1011	●
103	08.866 CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	9-09703-048-0	02	1	1012-1308	●
103	08.866 CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	9-09703-048-0	02	1	1012-1308		●
103	08.866 CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98180-274-0	01	1	1309-	●
103	08.866 CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98180-274-0	01	1	1309-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
