◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#53435) — 77 parça

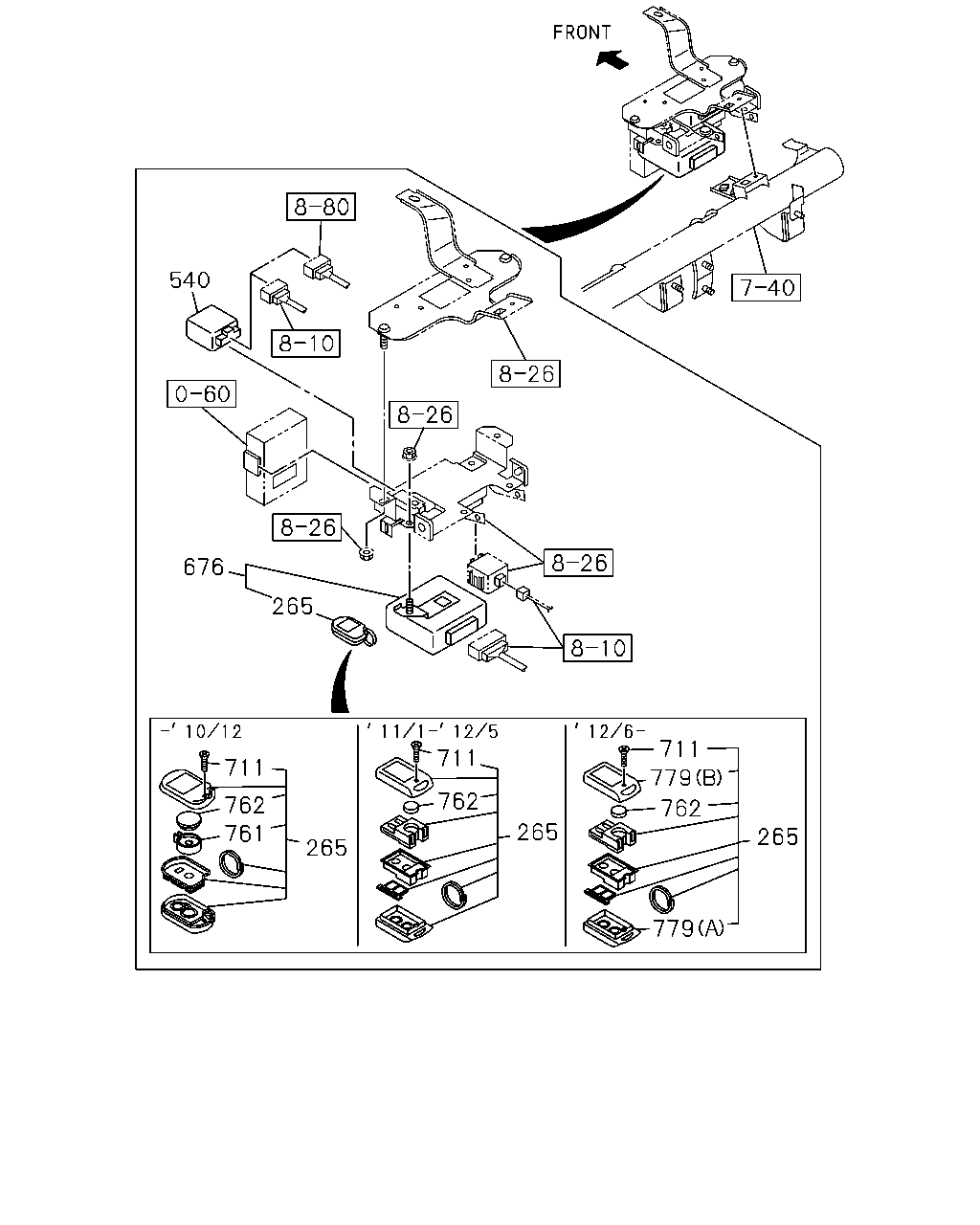

çizim 160106
540 676 265 711 762 761 265 711 762 265 711 779 762 265 779
BalonParca AdiParca NoAdetTipApplied Date A B
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0909-1011 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 1012-1012 ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1101-1205 ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1206- ● ●
540 16.067 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 0908-1011 ●
540 16.067 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 1012-1308 ● ●
540 16.067 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309- ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98044-504-1 01 1 0909-1011 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98044-504-1 01 1 1012-1012 ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98181-810-0 01 1 1101-1205 ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98218-233-0 01 1 1206- ● ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0909-1011 ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 1012-1205 ● ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1206- ● ●
761 04.439 HOLDER; BATTERY 8-98078-063-0 02 1 0909-1011 ●
761 04.439 HOLDER; BATTERY 8-98078-063-0 02 1 1012-1012 ● ●
762 02.559 BATTERY 8-98078-061-0 02 1 0909-1011 ●
762 02.559 BATTERY 8-98078-061-0 02 1 1012- ● ●
779 04.115 COVER; TRANSMITTER
02.510 (A) 		8-98218-240-0 02 1 1206- ● ●
779 04.115 COVER; TRANSMITTER
02.510 (B) 		8-98218-243-0 02 1 1206- ● ●

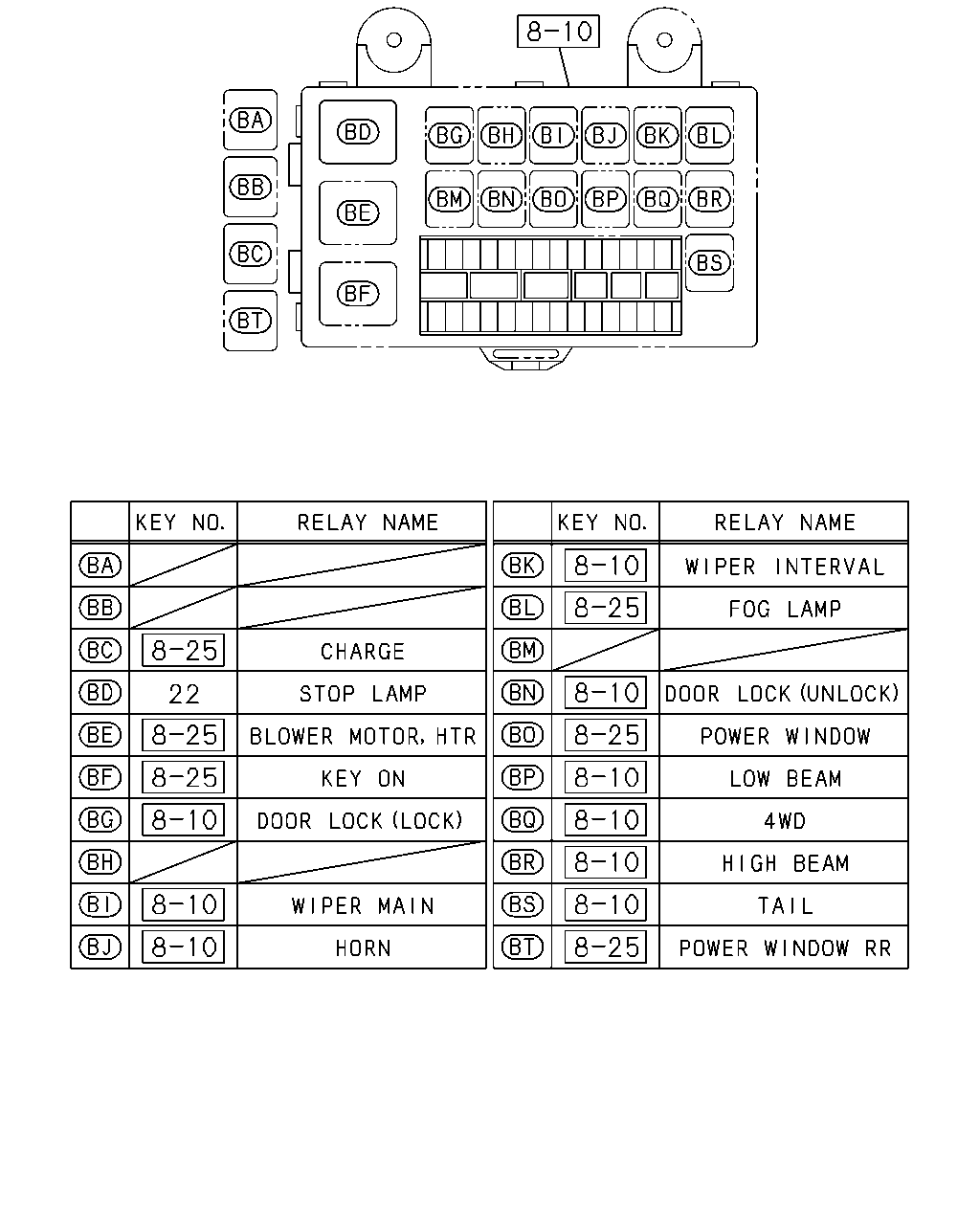

çizim 160108
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0908-1011 ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ● ●
çizim 160116
531 666
BalonParca AdiParca NoAdetTipApplied Date A B
531 02.769 RELAY; MAIN
02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 0908-1011 ●
531 02.769 RELAY; MAIN
02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1012-1402 ● ●
531 02.769 RELAY; MAIN
02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
666 02.173 RELAY; STARTER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0908-1005 ●
666 02.173 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1006-1011 ●
666 02.173 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1012- ● ●

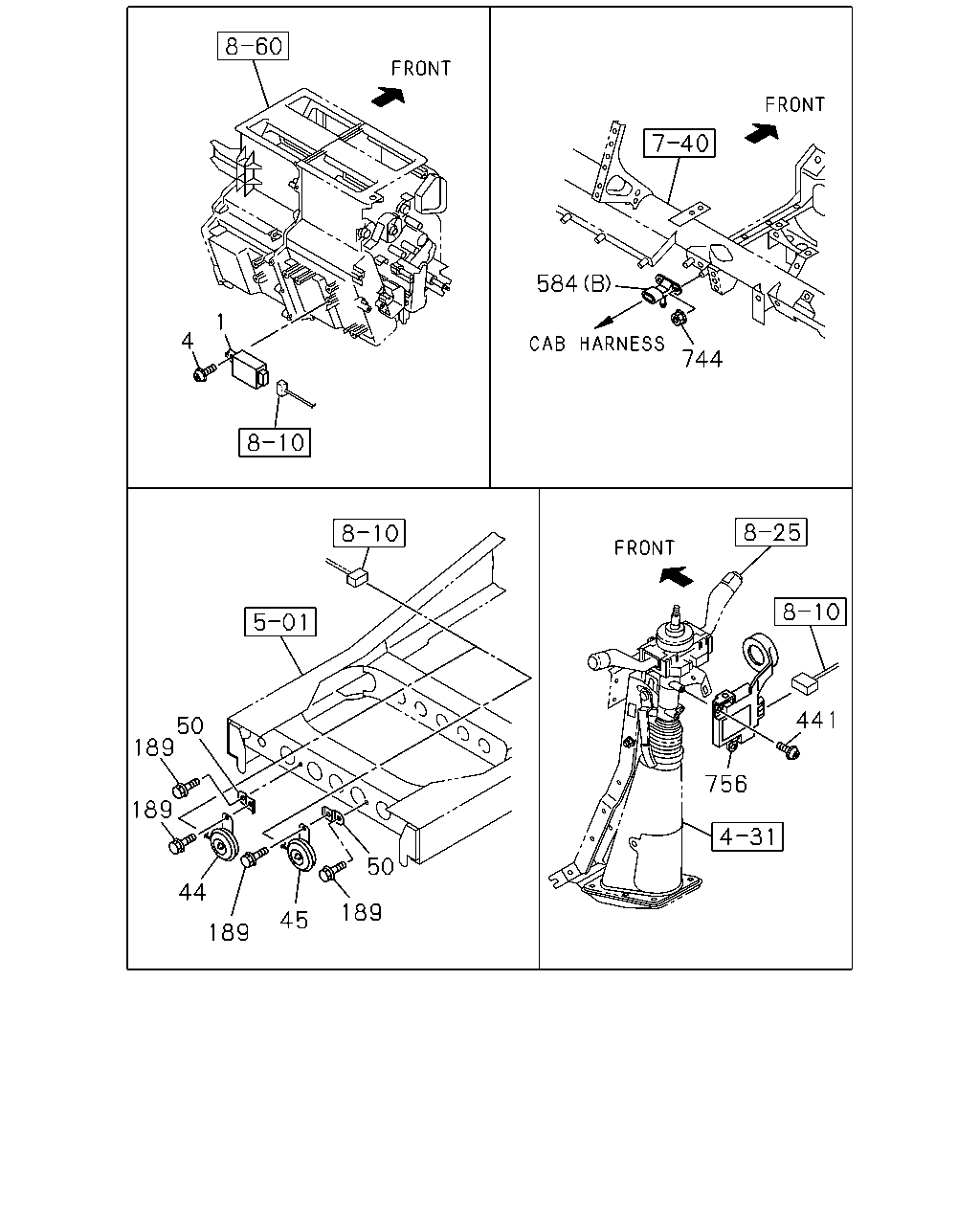

çizim 160131
584 744 441 756 50 189 45 189 44 189 189 50 4 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.575 UNIT; FLASHER 8-98025-533-1 01 1 0908-1011 ●
1 02.575 UNIT; FLASHER 8-98025-533-1 01 1 1012- ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0908-1011 ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1012-1101 ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-98022-022-0 01 1 0908-1011 ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-98022-022-0 01 1 1012- ● ●
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 0908-1011 ●
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 1012- ● ●
50 02.812 BRACKET; HORN 8-98073-408-0 01 1 0908-0908 ●
50 02.812 BRACKET; HORN
DUAL HEAVY DUTY HORN(6KK) 		8-98073-408-0 01 1 0909-1011 ●
50 02.812 BRACKET; HORN
DUAL HEAVY DUTY HORN(6KK) 		8-98073-408-0 01 1 1012- ● ●
50 02.812 BRACKET; HORN 8-98073-409-0 01 1 0908-1011 ●
50 02.812 BRACKET; HORN 8-98073-409-0 01 1 1012- ● ●
189 02.812 BOLT; HORN
02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0908-0908 ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0908-0908 ●
189 02.812 BOLT; HORN
02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0909-1004 ●
189 02.812 BOLT; HORN
02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0909-1004 ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0909-1004 ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0909-1004 ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005-1011 ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005-1011 ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005-1011 ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005-1011 ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1012- ● ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1012- ● ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1012- ● ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1012- ● ●
189 02.812 BOLT; HORN
02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0908-0908 ●
441 02.575 SCREW; CONT UNIT
09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0909-1011 ●
441 02.575 SCREW; CONT UNIT
09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1012- ● ●
584 02.440 SENSOR; PRESSURE
(A) 		8-97387-682-0 01 1 0908-1011 ●
584 02.440 SENSOR; PRESSURE
(A) 		8-97387-682-0 01 1 1012- ● ●
584 02.440 SENSOR; PRESSURE
03.331 (B) 		8-98020-514-0 01 1 0908-1011 ●
584 02.440 SENSOR; PRESSURE
03.331 (B) 		8-98020-514-0 01 1 1012- ● ●
744 09.277 NUT; SENSOR
01.062 M6 FLANGE 		0-91180-106-0 02 1 0908-1011 ●
744 09.277 NUT; SENSOR
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ● ●
756 16.263 CONTROL UNIT; IMMOBILIZER 8-98097-554-0 01 1 0909-1005 ●
756 16.263 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1006-1011 ●
756 16.263 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1012- ● ●

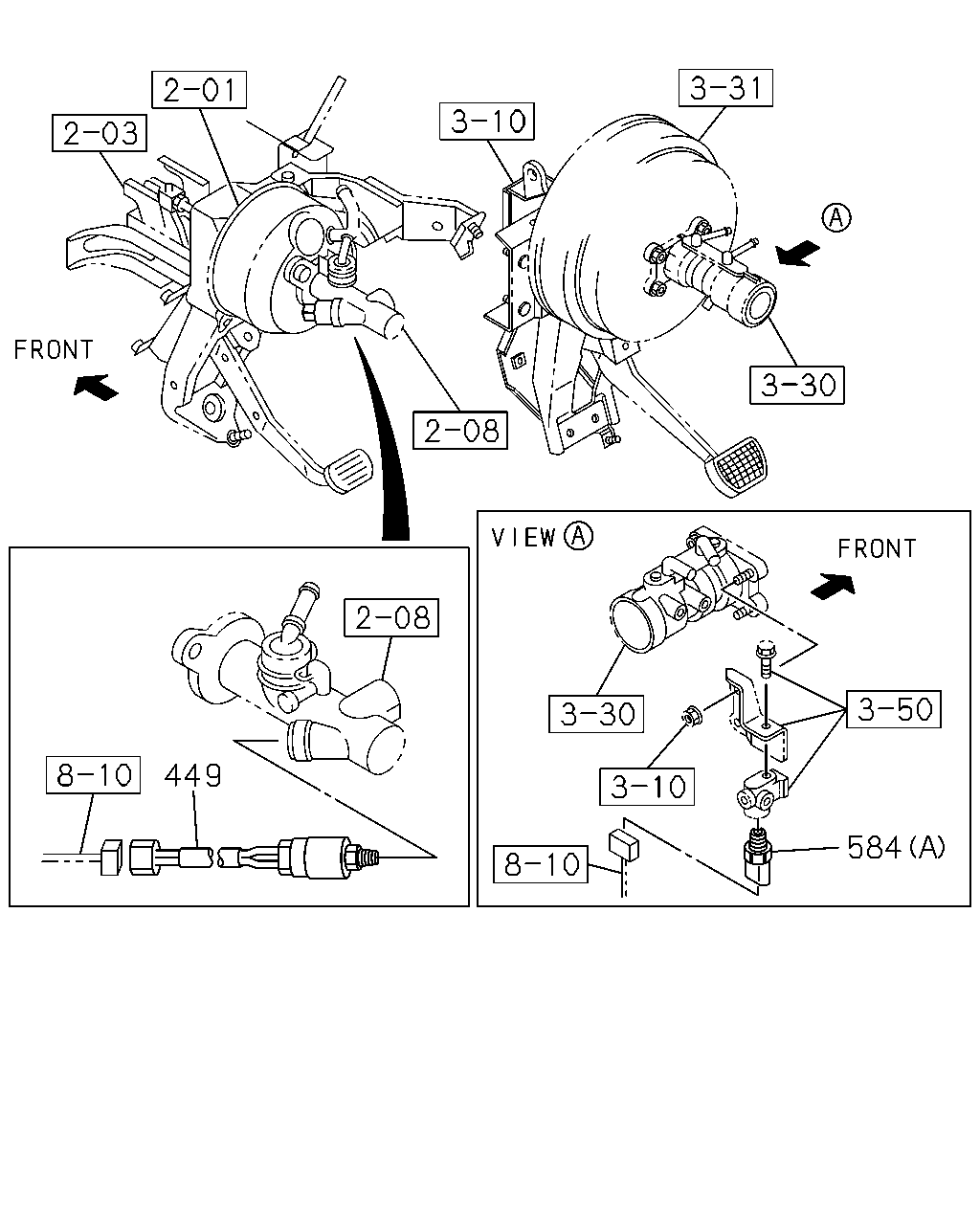

çizim 160136
584 449
BalonParca AdiParca NoAdetTipApplied Date A B
449 08.083 SWITCH; OIL PRESS,CLUTCH 8-98072-042-1 01 1 0908-1011 ●
449 08.083 SWITCH; OIL PRESS,CLUTCH 8-98072-042-1 01 1 1012- ● ●
584 02.440 SENSOR; PRESSURE
(A) 		8-97387-682-0 01 1 0908-1011 ●
584 02.440 SENSOR; PRESSURE
(A) 		8-97387-682-0 01 1 1012- ● ●
584 02.440 SENSOR; PRESSURE
03.331 (B) 		8-98020-514-0 01 1 0908-1011 ●
584 02.440 SENSOR; PRESSURE
03.331 (B) 		8-98020-514-0 01 1 1012- ● ●

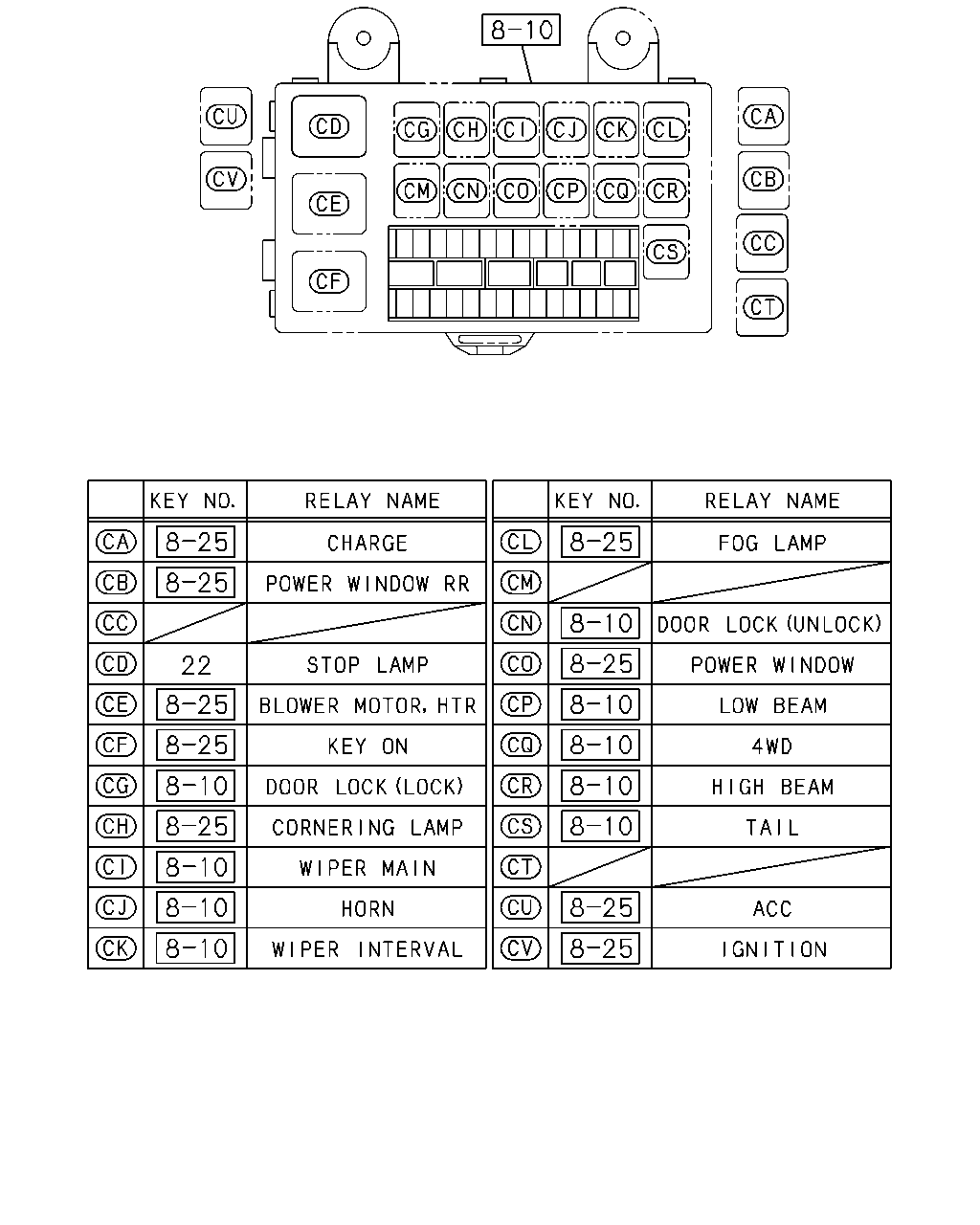

çizim 283496
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0908-1011 ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ● ●
