◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#53433) — 47 parça

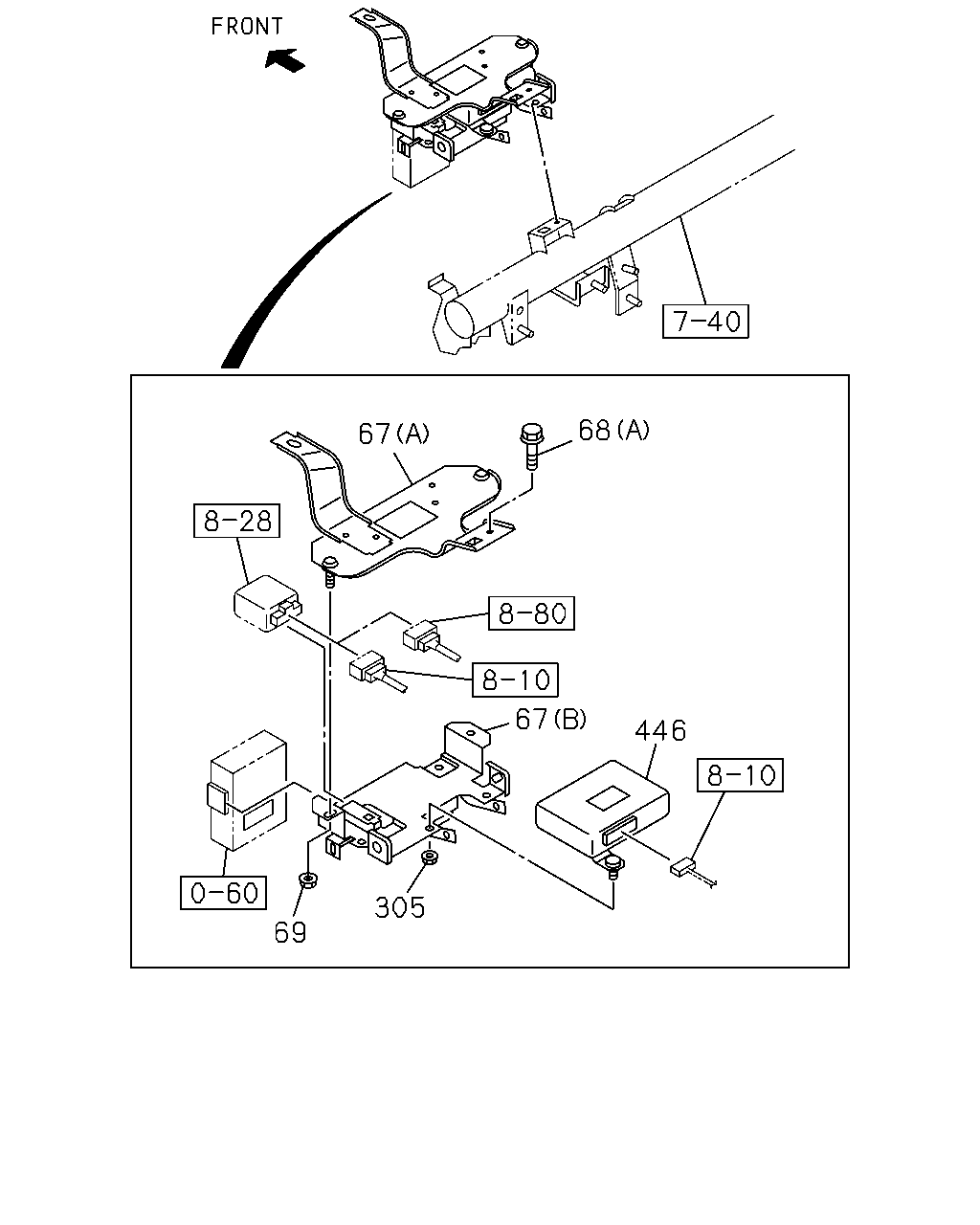

çizim 160101
67 68 446 67 305 69
BalonParca AdiParca NoAdetTipApplied Date A B
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD<8PG> (C) 		8-98203-991-0 01 1 1205-1208 ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD<8PG> (D) 		8-98222-208-0 01 1 1209- ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 0908-1011 ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 1012- ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 0908-1011 ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 1012-1111 ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98217-377-0 01 1 1405- ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD<8PG> 16.100 (B) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1205-1212 ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD<8PG> 09.647 (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 1002-1011 ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 1012- ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0908-1011 ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ● ●
305 08.915 NUT; CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0909-1011 ●
305 08.915 NUT; CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ● ●
305 08.915 NUT; CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0908-1011 ●
305 08.915 NUT; CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ● ●
446 02.510 CONTROL UNIT; HSA 8-98046-563-1 01 1 0908-1011 ●
446 02.510 CONTROL UNIT; HSA 8-98046-563-1 01 1 1012- ● ●

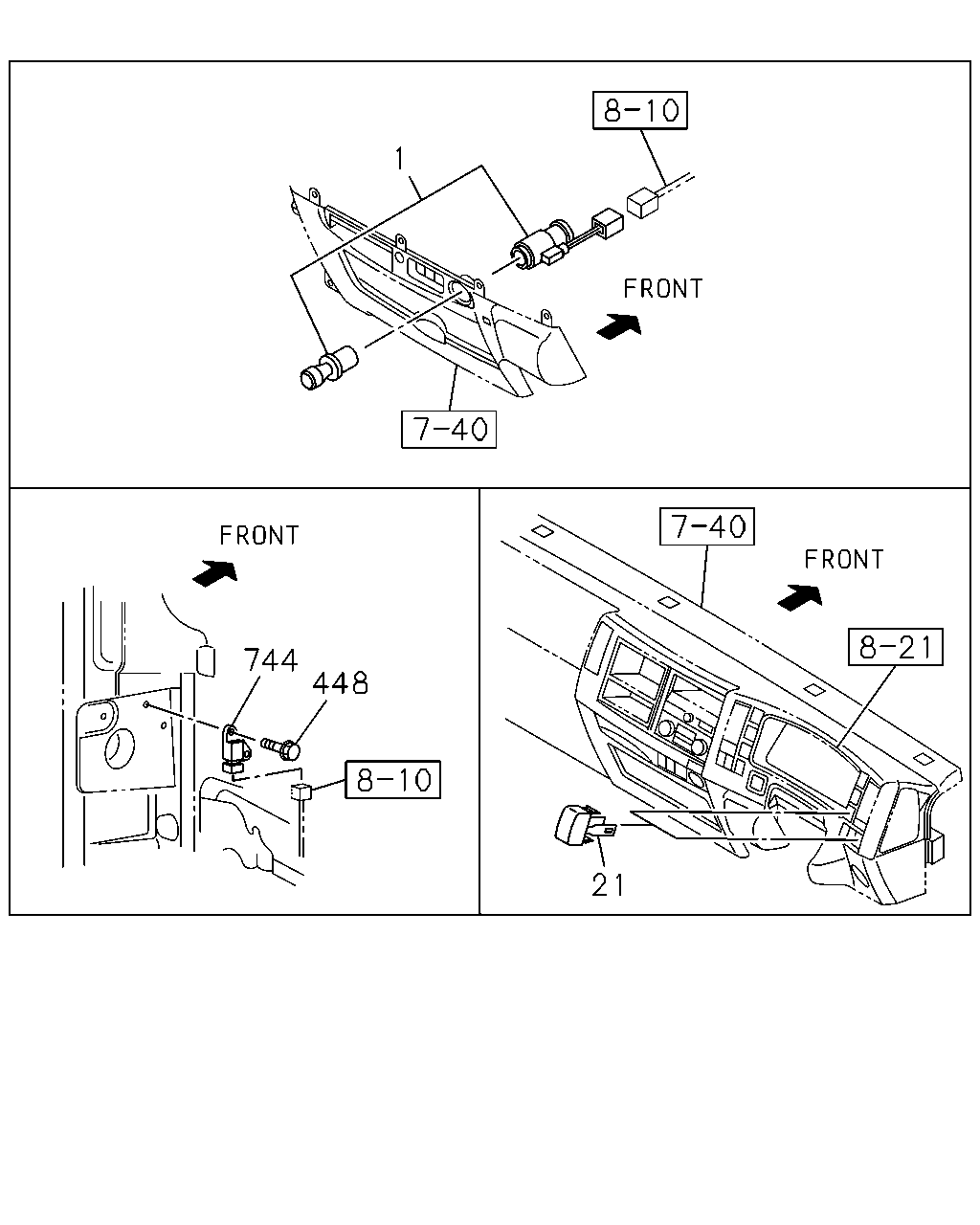

çizim 160121
21 448 744 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 0908-1011 ●
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 1012- ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 0908-1011 ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 1012- ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 0908-1011 ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 1012- ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 M6X18 W/PL WASHER 		8-97105-796-1 02 1 0908-1011 ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 M6X18 W/PL WASHER 		8-97105-796-1 02 1 1012- ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 0908-1011 ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 1012- ● ●

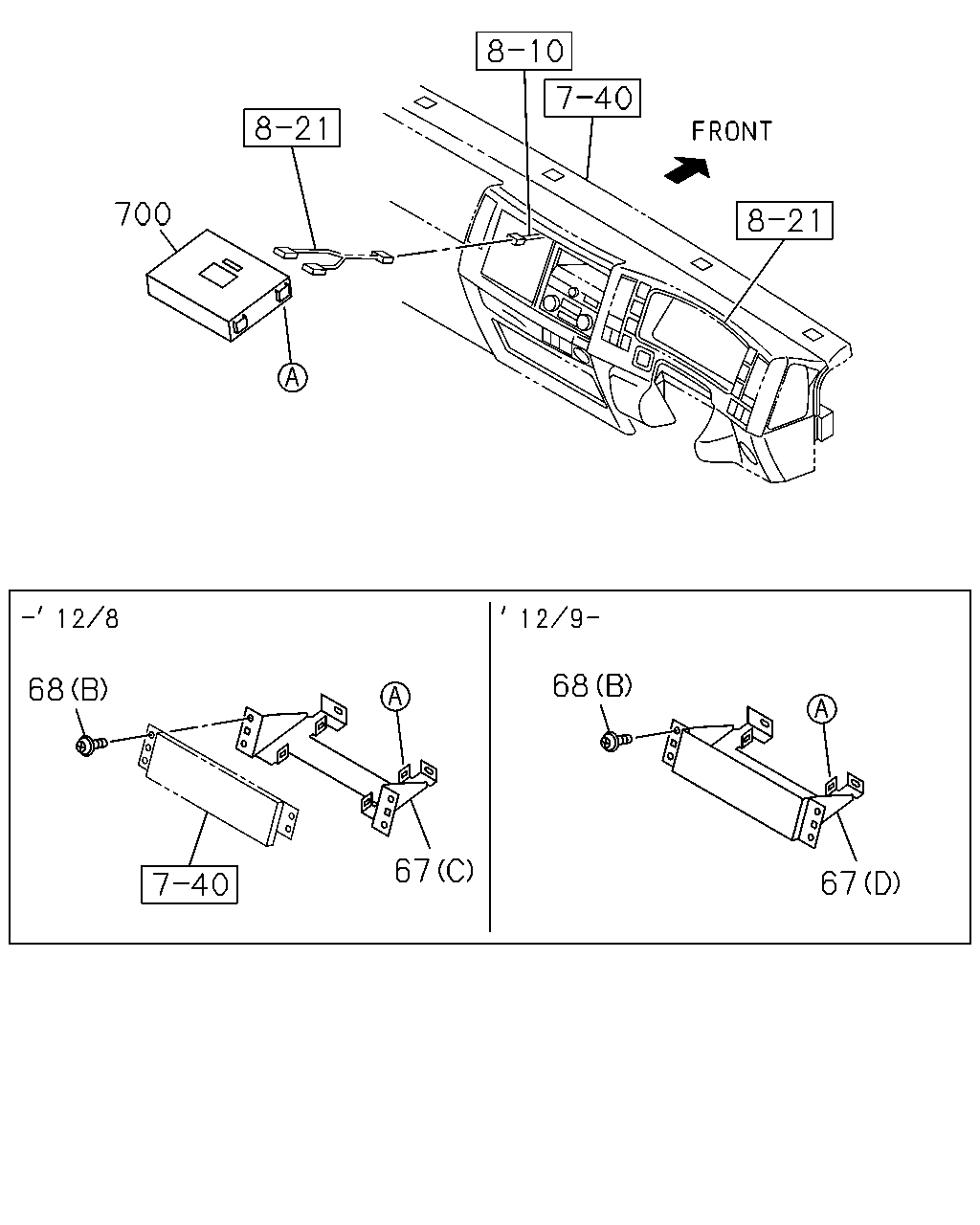

çizim 286478
700 68 67 67 68
BalonParca AdiParca NoAdetTipApplied Date A B
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD<8PG> (C) 		8-98203-991-0 01 1 1205-1208 ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD<8PG> (D) 		8-98222-208-0 01 1 1209- ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 0908-1011 ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 1012- ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 0908-1011 ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 1012-1111 ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98217-377-0 01 1 1405- ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD<8PG> 16.100 (B) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1205-1212 ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD<8PG> 09.647 (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 1002-1011 ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 1012- ● ●
700 02.510 CONTROL UNIT; CAN CONVERTER
CAN INTERFACE FMS STD<8PG> 		8-98219-812-1 01 1 1205- ● ●
