◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#53432) — 132 parça
çizim 160092
21
BalonParca AdiParca NoAdetTipApplied Date A B
21 02.575 SWITCH; CLU
POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.447 		8-94109-863-0 01 1 1301- ● ●
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 0908-1011 ●
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1012-1212 ● ●
21 02.575 SWITCH; CLU
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97358-248-0 01 1 1301- ● ●
çizim 160109
151 154
BalonParca AdiParca NoAdetTipApplied Date A B
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0908-1011 ●
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0908-1011 ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ●

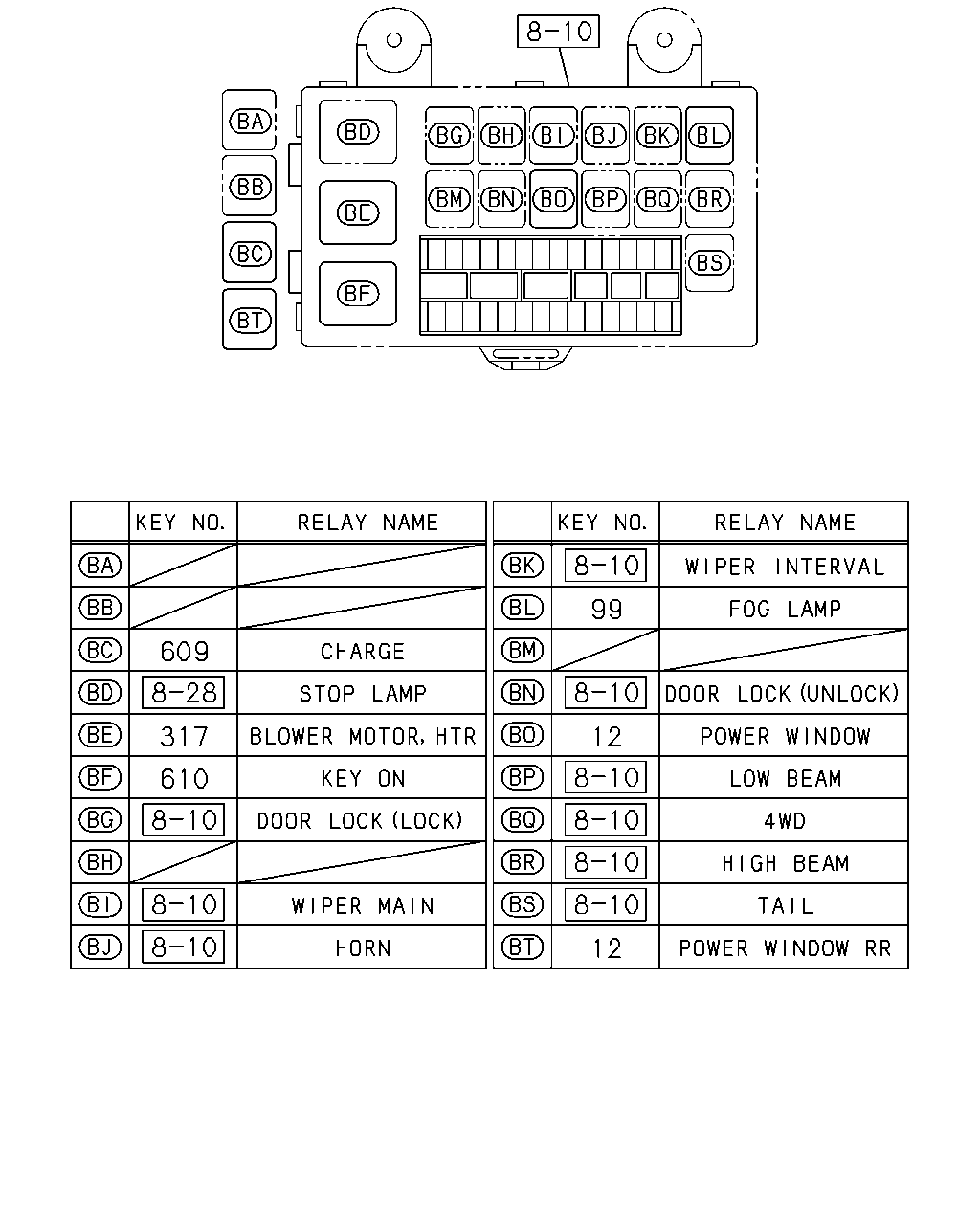

çizim 160111
609 317 610 12 12 99
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0908-1011 ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0908-1011 ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1212 ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1303 ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1304- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0908-1011 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ● ●
609 02.485 RELAY; CHARGE
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0908-1011 ●
609 02.485 RELAY; CHARGE
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0908-1011 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●

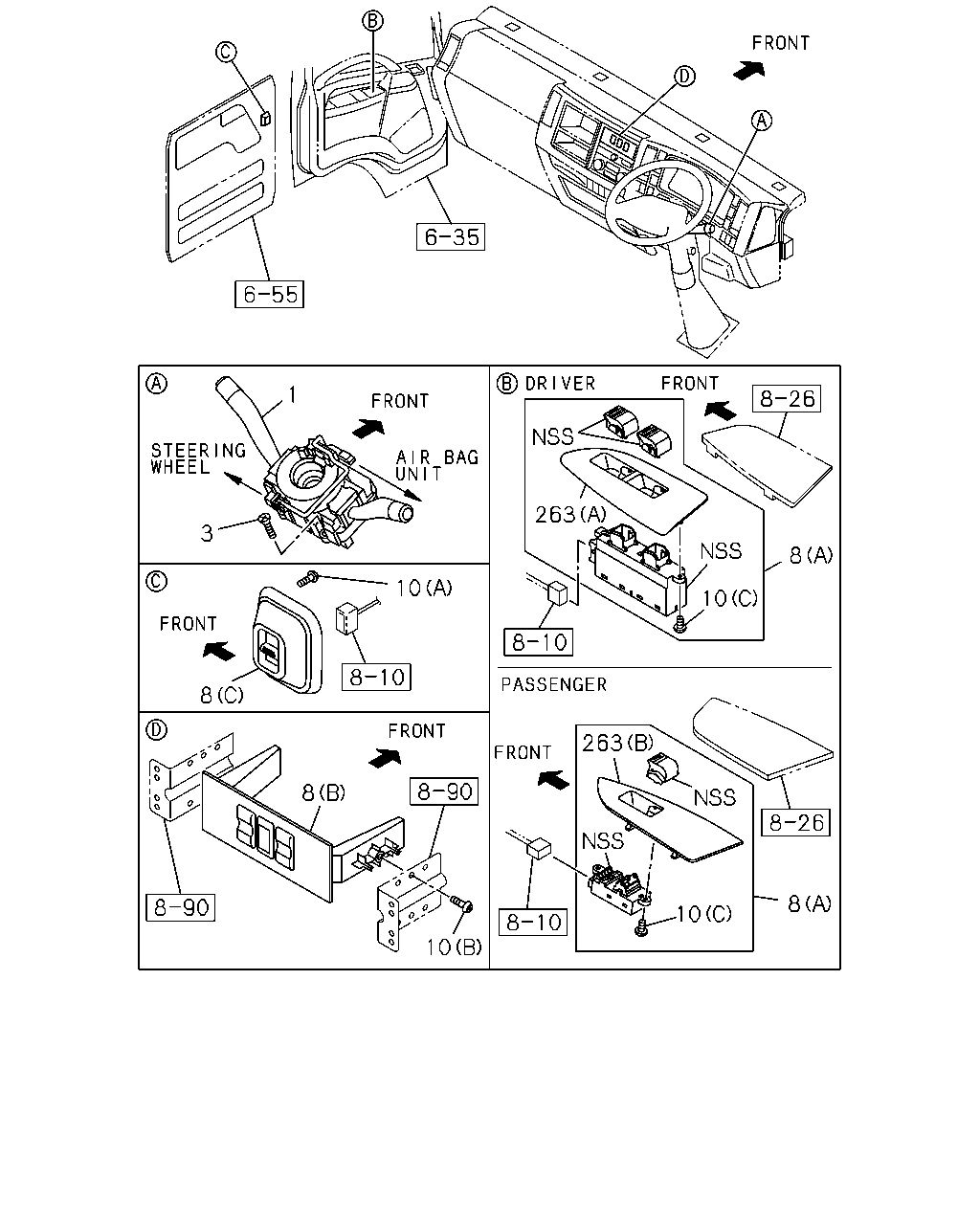

çizim 160117
1 3 263 10 8 263 10 8 10 8 8 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 		8-98114-332-1 01 1 1001-1011 ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 		8-98114-332-1 01 1 1012-1310 ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 		8-98243-736-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98146-635-0 01 1 0908-1011 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98146-635-0 01 1 1012-1210 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98217-808-0 01 1 1211-1310 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98243-725-0 01 1 1311- ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0908-1011 ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1012- ● ●
8 16.263 SWITCH; POWER WINDOW
(B) 		8-97386-987-2 01 1 1012- ●
8 16.263 SWITCH; POWER WINDOW
(C) REAR SIDE 		8-97387-035-0 02 1 1012- ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-97387-034-2 01 1 0908-1011 ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-97387-034-2 01 1 1012-1212 ● ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98227-828-0 01 1 1301- ● ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98129-844-0 01 1 0908-1001 ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98159-543-0 01 1 1002-1011 ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98159-543-0 01 1 1012-1212 ● ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-98227-829-0 01 1 1301- ● ●
10 03.885 SCREW; POWER WINDOW SW
16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 1012- ●
10 03.885 SCREW; POWER WINDOW SW
16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012- ●
10 03.885 SCREW; POWER WINDOW SW
(C) 		8-98153-865-0 03 1 0908-1011 ●
10 03.885 SCREW; POWER WINDOW SW
(C) 		8-98153-865-0 03 1 1012- ● ●
263 16.081 COVER; SW
(A) 		8-98153-836-0 01 1 0908-1011 ●
263 16.081 COVER; SW
(A) 		8-98153-836-0 01 1 1012- ● ●
263 16.081 COVER; SW
(B) 		8-98153-841-0 01 1 0908-1011 ●
263 16.081 COVER; SW
(B) 		8-98153-841-0 01 1 1012- ● ●

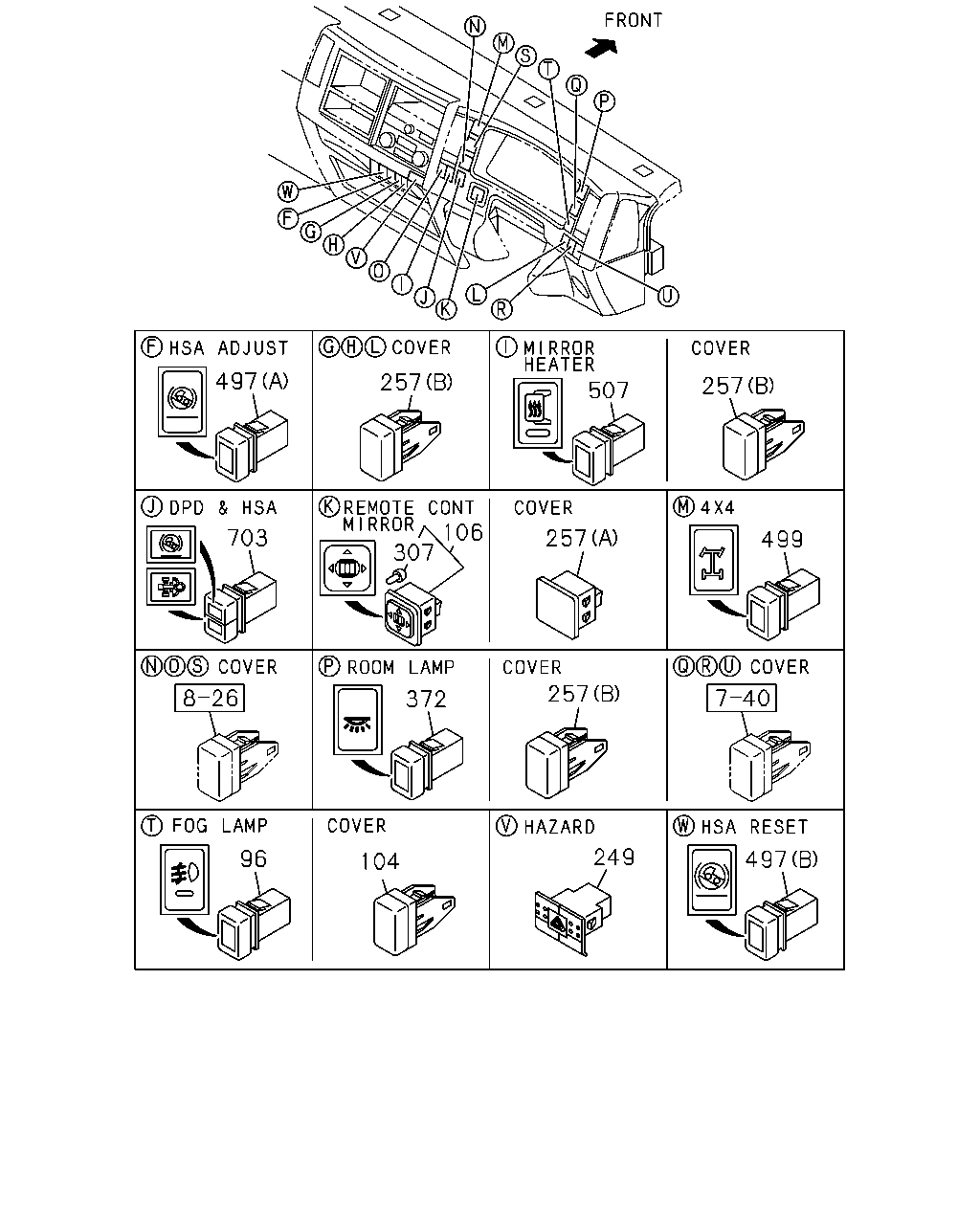

çizim 160122
497 257 507 257 499 257 307 703 372 257 497 249 104 96 106
BalonParca AdiParca NoAdetTipApplied Date A B
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-3 01 1 0908-1011 ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1012-1212 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> 		8-97387-031-4 01 1 1301-1303 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1304- ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 0908-1011 ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1012-1212 ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1301-1303 ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1304- ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 0908-1011 ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1012- ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 0908-1011 ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1012- ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 02 1 0908-0912 ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1001-1008 ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1001-1008 ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1001-1008 ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1001-1008 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98025-954-1 01 1 1001-1008 ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1009-1011 ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1009-1011 ●
257 16.081 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (B) 		8-98025-954-1 01 1 1009-1011 ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1009-1011 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98025-954-1 01 1 1009-1011 ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1012-1212 ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1012-1212 ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1012-1212 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98025-954-1 01 1 1012-1212 ● ●
257 16.081 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (B) 		8-98025-954-1 01 1 1012-1212 ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1012-1212 ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1301- ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1301- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98025-954-1 01 1 1301- ● ●
257 16.081 COVER; HOLE,SW
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. PTO TRANSMISSION SIDE(V66) (B) 		8-98025-954-1 01 1 1301- ● ●
257 16.081 COVER; HOLE,SW
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 		8-98025-954-1 01 1 1301- ● ●
257 16.081 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (B) 		8-98025-954-1 01 1 1301- ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1301- ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98025-954-1 01 1 0908-0908 ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 0908-0908 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98025-954-1 01 1 0908-0912 ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 0908-0912 ●
257 16.081 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 0908-0912 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (A) 		8-98029-914-1 01 1 0908-1011 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (A) 		8-98029-914-1 01 1 1012- ● ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 0908-1011 ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1012- ● ●
372 08.852 SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC> 		8-97386-917-2 01 1 1009- ●
497 04.439 SWITCH; HSA
(B) RESET 		8-98119-946-0 01 1 0908-1011 ●
497 04.439 SWITCH; HSA
(B) RESET 		8-98119-946-0 01 1 1012- ● ●
497 04.439 SWITCH; HSA
(A) ADJUST 		8-98119-947-0 01 1 0908-1011 ●
497 04.439 SWITCH; HSA
(A) ADJUST 		8-98119-947-1 01 1 1012- ● ●
499 09.755 SWITCH; 4X4 8-97386-914-2 01 1 0908-1011 ●
499 09.755 SWITCH; 4X4 8-97386-914-3 01 1 1012- ● ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-97386-924-2 01 1 0908-1011 ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-97386-924-3 01 1 1012- ● ●
703 02.780 SWITCH; DPD & HSA 8-98011-346-1 01 1 0908-1008 ●
703 02.780 SWITCH; DPD & HSA
CATALYSIS CONTROL WITH DPD(8JM) 		8-98011-346-1 01 1 1009-1011 ●
703 02.780 SWITCH; DPD & HSA
CATALYSIS CONTROL WITH DPD(8JM) 		8-98011-346-2 01 1 1012- ●
703 02.780 SWITCH; DPD & HSA 8-98011-346-2 01 1 1012- ●

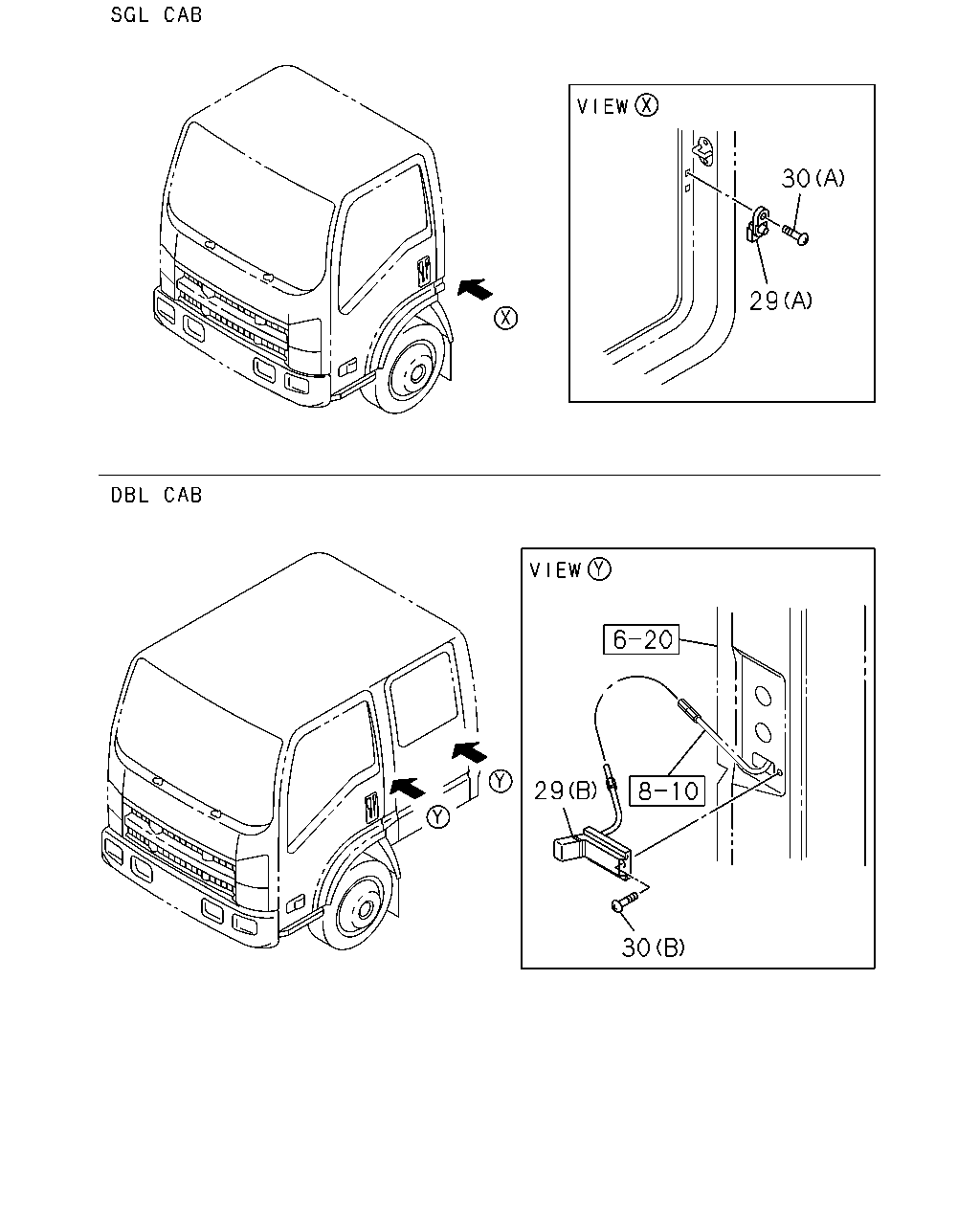

çizim 160128
29 30 30 29
BalonParca AdiParca NoAdetTipApplied Date A B
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1012- ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1012- ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1012- ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1012- ●
29 16.263 SWITCH; DOOR
(A) FRONT BLACK 		8-98022-211-0 01 1 0908- ●
29 16.263 SWITCH; DOOR
(A) FRONT BLACK 		8-98022-211-0 01 1 0908- ●
30 16.263 SCREW; DOOR SW
(B) M5X16 		8-94279-341-0 04 1 1012- ●
30 16.263 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 02 1 0908- ●

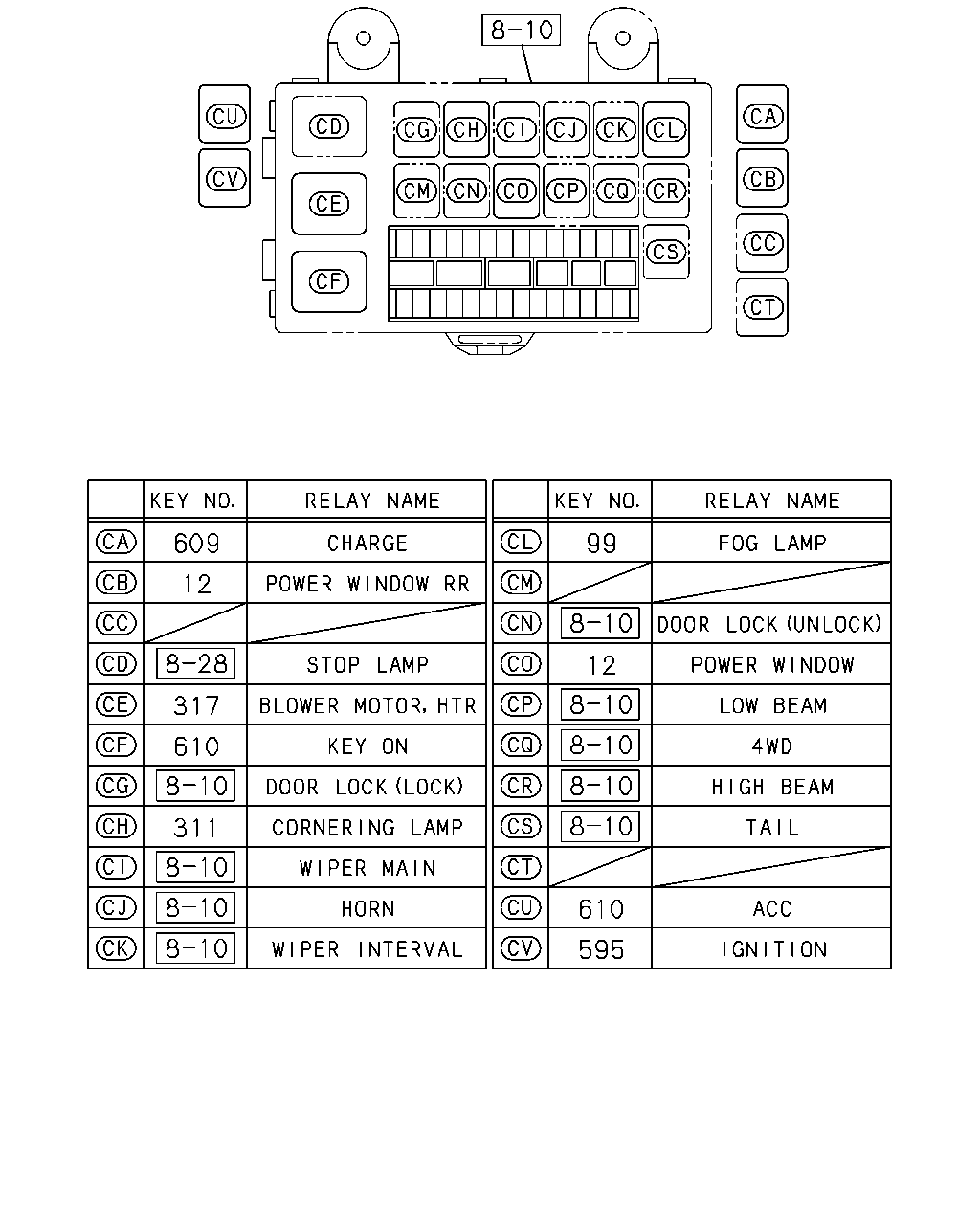

çizim 283391
609 12 317 610 311 595 610 12 99
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0908-1011 ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0908-1011 ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1212 ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1303 ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1304- ● ●
311 02.596 RELAY; CORNERING LAMP
CORNERING LAMP<T87> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1301- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0908-1011 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ● ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
609 02.485 RELAY; CHARGE
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0908-1011 ●
609 02.485 RELAY; CHARGE
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0908-1011 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
