◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#53431) — 33 parça

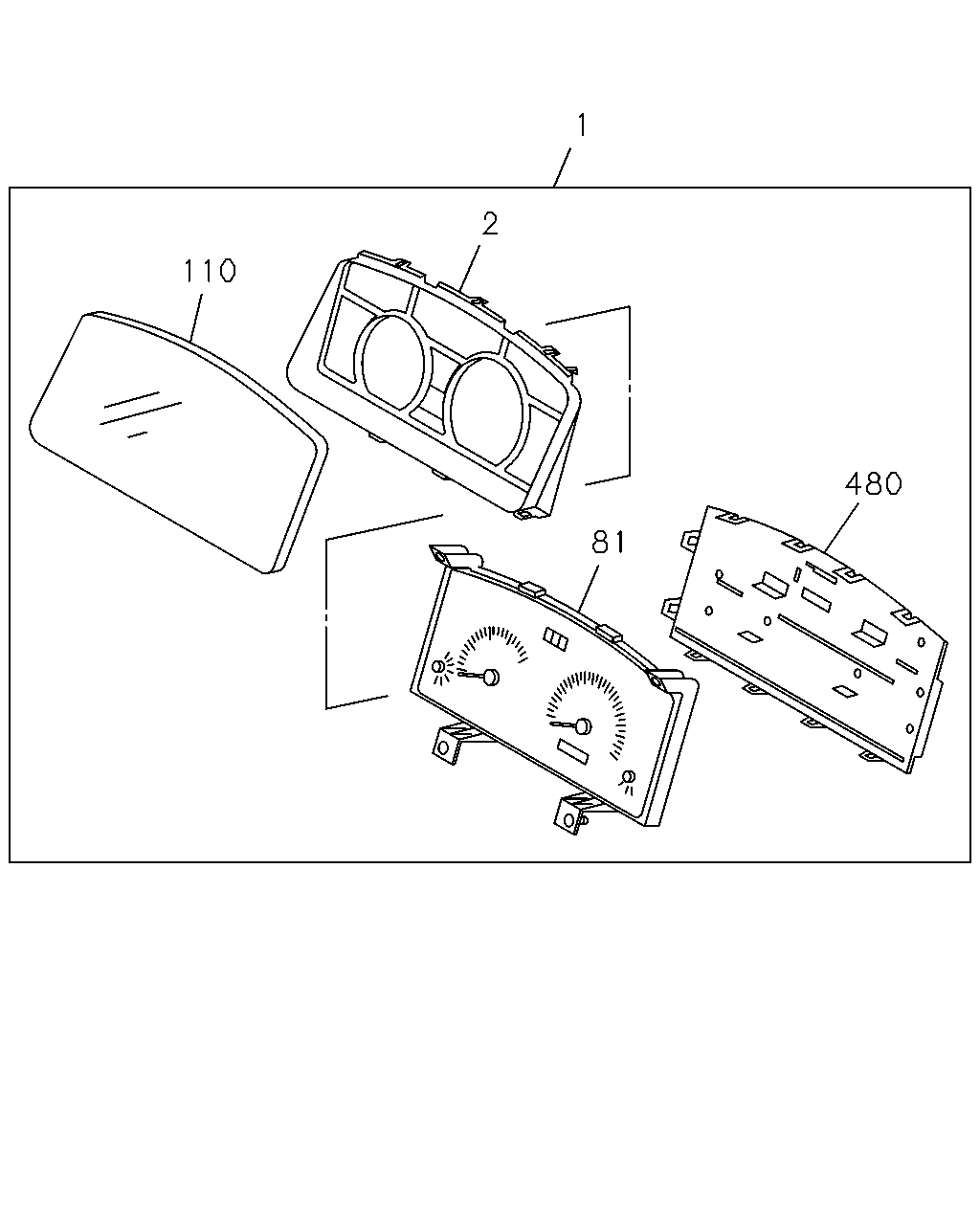

çizim 160093
480 81 1 2 110
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER 8-98096-900-4 01 1 0908-1011 ●
1 09.735 METER COMPL; CLUSTER 8-98096-900-4 01 1 1012-1212 ● ●
1 09.735 METER COMPL; CLUSTER 8-98231-327-0 01 1 1301- ● ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 0908-1011 ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1012-1212 ● ●
2 09.735 PANEL; CLUSTER 8-98054-638-0 01 1 1301- ● ●
81 09.735 METER SUB ASM 8-98096-965-0 01 1 0908-1011 ●
81 09.735 METER SUB ASM 8-98096-965-0 01 1 1012-1212 ● ●
81 09.735 METER SUB ASM 8-98231-341-0 01 1 1301- ● ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 0908-1011 ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1012- ● ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 0908-1011 ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1012- ● ●

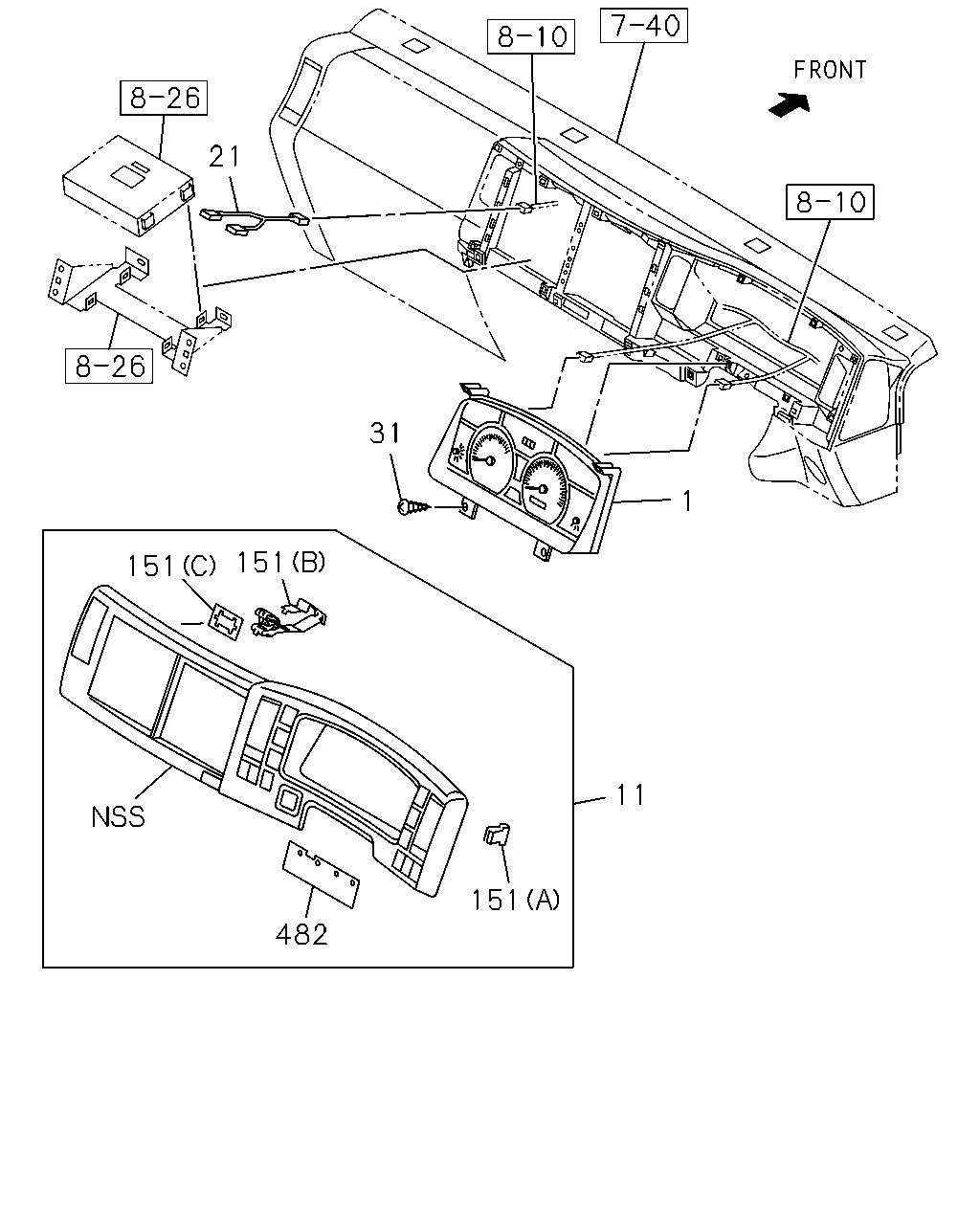

çizim 160148
11 151 482 151 151 31 1 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER 8-98096-900-4 01 1 0908-1011 ●
1 09.735 METER COMPL; CLUSTER 8-98096-900-4 01 1 1012-1212 ● ●
1 09.735 METER COMPL; CLUSTER 8-98231-327-0 01 1 1301- ● ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-5 01 1 0908-1001 ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97418-532-1 01 1 1002-1011 ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97418-532-1 01 1 1012- ● ●
21 09.743 HARNESS; TACHOGRAPH
CAN INTERFACE FMS STD<8PG> 		8-98204-881-1 01 1 1205- ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0908-1011 ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1012-1101 ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (B) 		8-98152-030-0 01 1 1002-1011 ●
151 09.747 CLIP; METER CLUSTER
16.090 (B) 		8-98152-030-0 01 1 1012- ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (C) 		8-98152-031-0 01 1 1002-1011 ●
151 09.747 CLIP; METER CLUSTER
16.090 (C) 		8-98152-031-0 01 1 1012- ● ●
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 13 1 0908-1001 ●
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 12 1 1002-1011 ●
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 12 1 1012- ● ●
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 0908-1011 ●
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 1012- ● ●
