Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#53430) — 299 parça

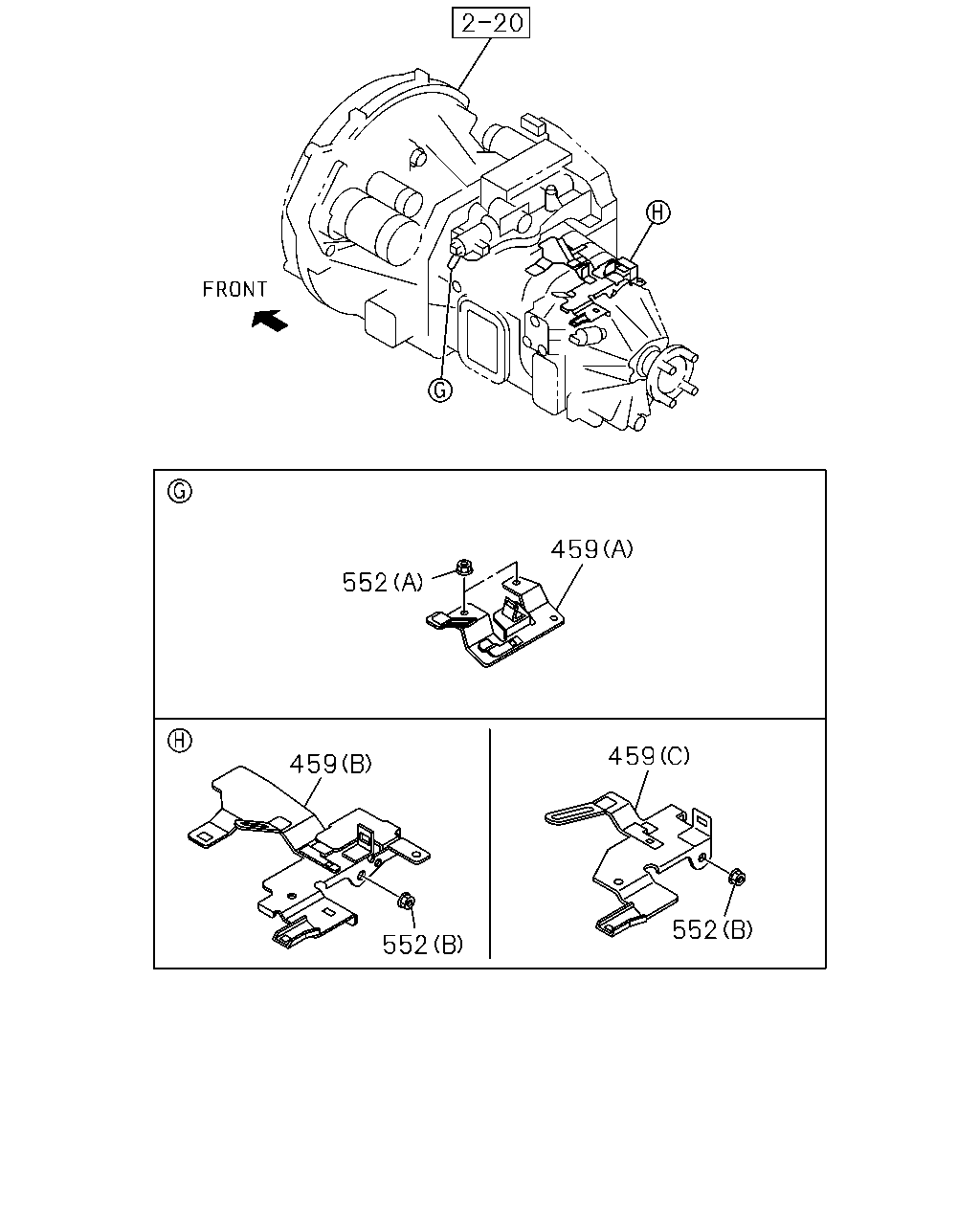

552 459 459 552 459 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	0908-1011	●
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	1012-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98030-990-2	01	1	0908-1011	●
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98030-990-2	01	1	1012-1109	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (C)	8-98196-974-0	01	1	1110-	●	●
460	02.559 BOLT; HARNESS PROTECTOR AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0908-1008	●
460	02.559 BOLT; HARNESS PROTECTOR AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1009-	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0908-1011	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0908-1011	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●

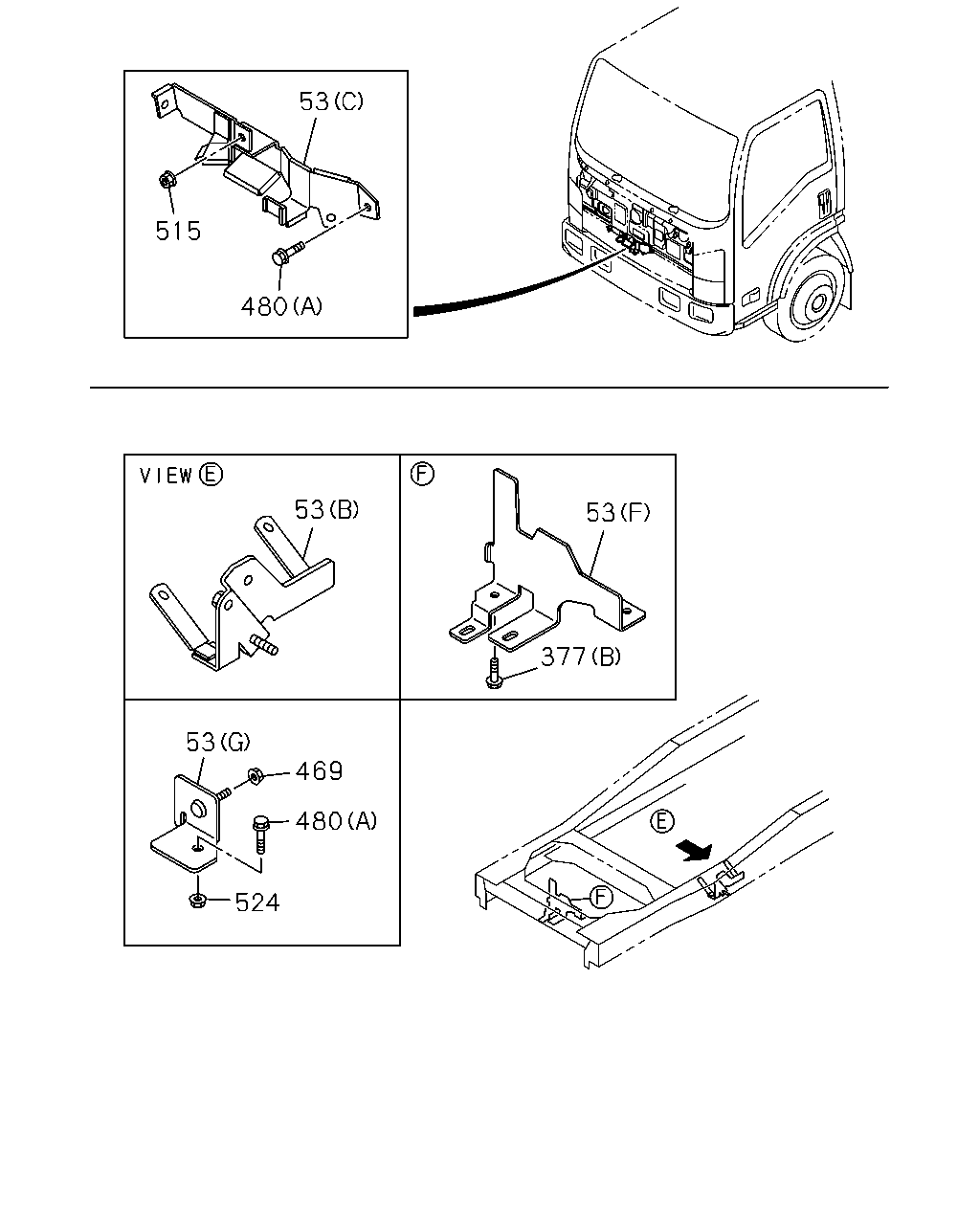

313 160 480 481 38 139 516 139 377 377 377 386 377 386 386 386 480 529 139 24 219 469 515 577 219 294 524 552 519 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	0908-1011	●
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-1409	●	●
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0908-1008	●
38	02.559 BOLT; CLIP,HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1009-1011	●
38	02.559 BOLT; CLIP,HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0908-1011	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0908-1011	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0908-1011	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1101	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
219	02.559 NUT AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0908-1008	●
219	02.559 NUT AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1009-	●
219	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0908-1011	●
219	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-1212	●	●
219	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1301-	●	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	0908-1011	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0908-1011	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0908-1004	●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-1011	●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1012-	●	●
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0908-1004	●
377	02.559 BOLT; CAB EARTH (D) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-1011	●
377	02.559 BOLT; CAB EARTH (D) M6X14 W/PL WASHER	8-98164-836-0	01	1	1012-	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0908-1004	●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-1011	●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1012-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0908-1004	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0908-1004	●
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-1011	●
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-1011	●
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1012-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1012-	●	●
460	02.559 BOLT; HARNESS PROTECTOR AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0908-1008	●
460	02.559 BOLT; HARNESS PROTECTOR AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1009-	●
469	02.559 NUT; PROTECTOR EXC. AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0908-1008	●
469	02.559 NUT; PROTECTOR EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1009-1011	●
469	02.559 NUT; PROTECTOR EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	01	1	1009-1011	●
469	02.559 NUT; PROTECTOR EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●
469	02.559 NUT; PROTECTOR EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●
469	02.559 NUT; PROTECTOR 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-		●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0908-1011	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1012-	●	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0908-1008	●
480	02.483 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0908-1008	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-1011	●
480	02.483 BOLT; BRKT EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-1011	●
480	02.483 BOLT; BRKT EURO5 SPECIFICATION(NT5) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-1011	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
480	02.483 BOLT; BRKT EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
480	02.483 BOLT; BRKT EURO5 SPECIFICATION(NT5) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
481	13.090 BOLT; CABLE HARNESS 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	0908-1011	●
481	13.090 BOLT; CABLE HARNESS 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1012-	●	●
515	02.559 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	0908-1011	●
515	02.559 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●
516	02.559 BOLT; HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0908-1008	●
516	02.559 BOLT; HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1009-1011	●
516	02.559 BOLT; HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
519	02.559 NUT; EARTH CABLE 03.162 M10 FLANGE	0-91180-110-0	01	1	0908-1011	●
519	02.559 NUT; EARTH CABLE 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	0908-1011	●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0908-1011	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1012-	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0908-1011	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0908-1011	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0908-1011	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0908-1011	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●

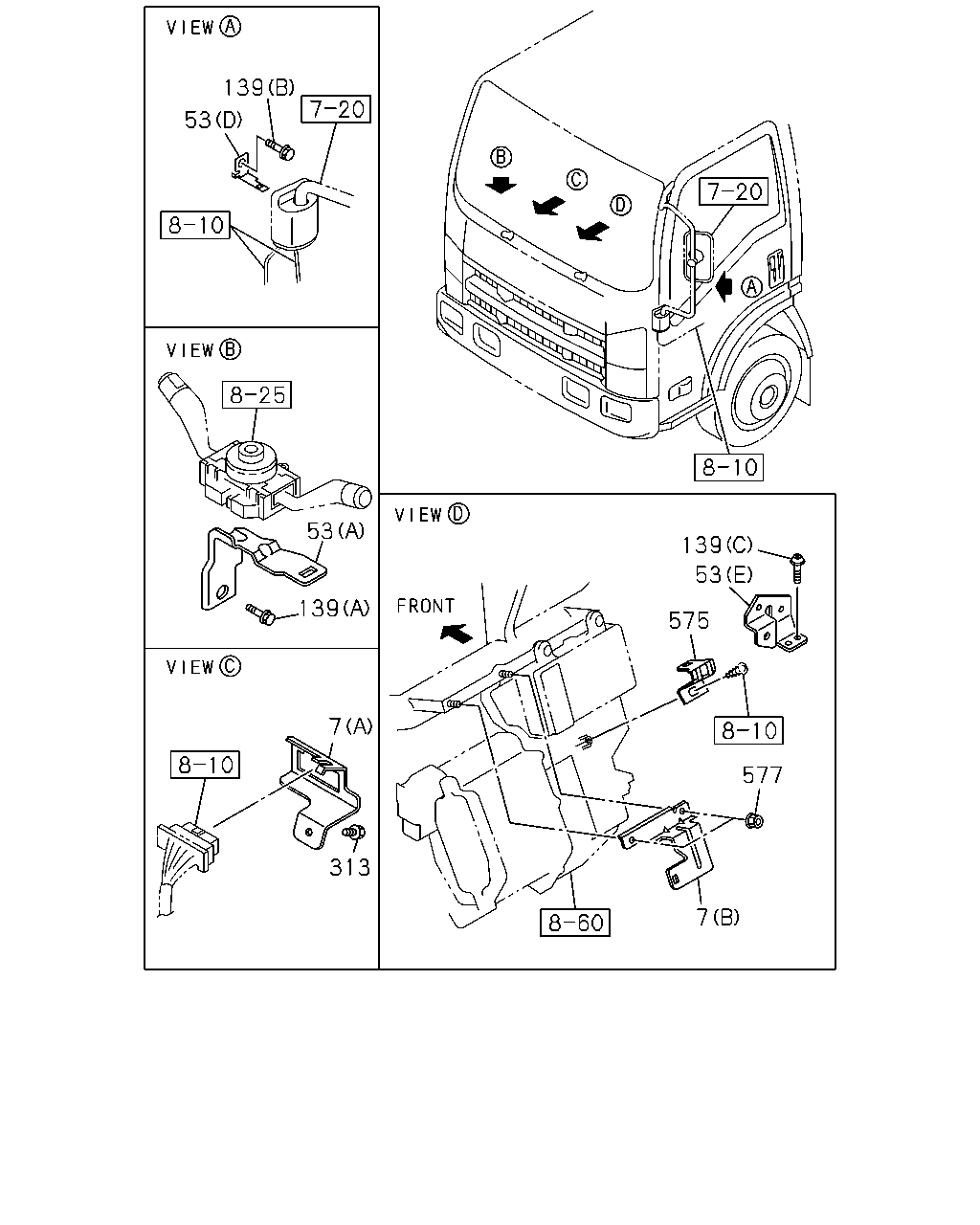

139 53 53 139 7 313 139 53 575 577 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR (B)	8-98029-762-4	01	1	0908-1011	●
7	02.559 BRACKET; CONNECTOR (B)	8-98029-762-4	01	1	1012-	●	●
7	02.559 BRACKET; CONNECTOR (A)	8-98043-070-1	01	1	0908-1011	●
7	02.559 BRACKET; CONNECTOR (A)	8-98043-070-1	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D)	8-98039-277-2	02	1	0908-1011	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D)	8-98039-277-2	02	1	1012-	●	●
53	02.483 BRACKET; HARNESS (F)	8-98033-938-2	01	1	0908-1011	●
53	02.483 BRACKET; HARNESS (F)	8-98033-938-2	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98039-984-2	01	1	0908-1011	●
53	02.483 BRACKET; HARNESS (C)	8-98039-984-2	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0908-1011	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	0908-1011	●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98084-590-0	01	1	0908-1011	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98084-590-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (G)	8-98122-564-0	01	1	0908-1008	●
53	02.483 BRACKET; HARNESS EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) (G)	8-98122-564-0	01	1	1009-1011	●
53	02.483 BRACKET; HARNESS EURO5 SPECIFICATION(NT5) (G)	8-98122-564-0	01	1	1009-1011	●
53	02.483 BRACKET; HARNESS EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) (G)	8-98122-564-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS EURO5 SPECIFICATION(NT5) (G)	8-98122-564-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS (G)	8-98122-564-0	01	1	1012-		●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0908-1011	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0908-1011	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0908-1011	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1101	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0908-1011	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-	●	●
460	02.559 BOLT; HARNESS PROTECTOR AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0908-1008	●
460	02.559 BOLT; HARNESS PROTECTOR AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1009-	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	0908-1011	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	1012-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0908-1011	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0908-1011	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●

513 513 504 16 48 16 16 16 16 16 22 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS MANUAL TILT CAB<RWZ> (J) ID=7-10	8-94472-578-0	01	1	1301-	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1301-	●	●
16	02.559 CLIP; HARNESS (H) L=60	8-94449-165-0	02	1	1012-		●
16	02.559 CLIP; HARNESS (I) L=60	8-97063-335-0	02	1	1012-		●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0908-1011	●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0908-1011	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0908-1011	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1012-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0908-1011	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-	●	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	0908-1011	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	1012-1212	●	●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	1301-	●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	1301-	●	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	1301-		●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0908-1011	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	1012-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0908-1011	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	0908-1011	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	0908-1011	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0908-1008	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1009-1011	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0908-1011	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0908-1011	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	0908-1011	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0908-1008	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0908-1008	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1009-1011	●
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.162 (A) L=140	5-09707-031-1	01	1	1009-1011	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.162 (A) L=140	5-09707-031-1	01	1	1012-	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	09	1	1012-		●
48	02.559 CLIP; FRAME HARNESS (C) T=5.5	8-97371-951-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS 06.525 (D) ID=5-12 L=18	1-09709-287-0	01	1	0908-0908	●
48	02.559 CLIP; FRAME HARNESS (F) T=4.5 & 9	8-97371-947-0	01	1	0909-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	08	1	0908-	●
48	02.559 CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	02	1	0908-1011	●
48	02.559 CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	02	1	1012-1212	●	●
48	02.559 CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	02	1	1301-	●	●
48	02.559 CLIP; FRAME HARNESS (B) ID=20	8-94241-972-0	01	1	0908-1011	●
48	02.559 CLIP; FRAME HARNESS (B) ID=20	8-94241-972-0	01	1	1012-	●	●
48	02.559 CLIP; FRAME HARNESS (B) ID=20	8-94241-972-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS (C) T=5.5	8-97371-951-0	01	1	0908-0908	●
460	02.559 BOLT; HARNESS PROTECTOR AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0908-1008	●
460	02.559 BOLT; HARNESS PROTECTOR AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1009-	●
504	02.559 PROTECTOR; HARNESS	8-98208-886-0	01	1	1201-	●	●
513	02.559 TAPE; SOFT,HARNESS (B) 70X45	8-97304-372-0	01	1	0908-1011	●
513	02.559 TAPE; SOFT,HARNESS (B) 70X45	8-97304-372-0	01	1	1012-1309	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 130X80	8-97304-373-0	01	1	0908-1011	●
513	02.559 TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 130X80	8-97304-373-0	01	1	1012-	●	●

524 480 469 53 53 53 377 480 515 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D)	8-98039-277-2	02	1	0908-1011	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D)	8-98039-277-2	02	1	1012-	●	●
53	02.483 BRACKET; HARNESS (F)	8-98033-938-2	01	1	0908-1011	●
53	02.483 BRACKET; HARNESS (F)	8-98033-938-2	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98039-984-2	01	1	0908-1011	●
53	02.483 BRACKET; HARNESS (C)	8-98039-984-2	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0908-1011	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	0908-1011	●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98084-590-0	01	1	0908-1011	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98084-590-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (G)	8-98122-564-0	01	1	0908-1008	●
53	02.483 BRACKET; HARNESS EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) (G)	8-98122-564-0	01	1	1009-1011	●
53	02.483 BRACKET; HARNESS EURO5 SPECIFICATION(NT5) (G)	8-98122-564-0	01	1	1009-1011	●
53	02.483 BRACKET; HARNESS EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) (G)	8-98122-564-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS EURO5 SPECIFICATION(NT5) (G)	8-98122-564-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS (G)	8-98122-564-0	01	1	1012-		●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0908-1004	●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-1011	●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1012-	●	●
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0908-1004	●
377	02.559 BOLT; CAB EARTH (D) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-1011	●
377	02.559 BOLT; CAB EARTH (D) M6X14 W/PL WASHER	8-98164-836-0	01	1	1012-	●	●
460	02.559 BOLT; HARNESS PROTECTOR AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0908-1008	●
460	02.559 BOLT; HARNESS PROTECTOR AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1009-	●
469	02.559 NUT; PROTECTOR EXC. AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0908-1008	●
469	02.559 NUT; PROTECTOR EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1009-1011	●
469	02.559 NUT; PROTECTOR EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	01	1	1009-1011	●
469	02.559 NUT; PROTECTOR EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●
469	02.559 NUT; PROTECTOR EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●
469	02.559 NUT; PROTECTOR 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-		●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0908-1011	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1012-	●	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0908-1008	●
480	02.483 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0908-1008	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-1011	●
480	02.483 BOLT; BRKT EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-1011	●
480	02.483 BOLT; BRKT EURO5 SPECIFICATION(NT5) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-1011	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
480	02.483 BOLT; BRKT EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
480	02.483 BOLT; BRKT EURO5 SPECIFICATION(NT5) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
515	02.559 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	0908-1011	●
515	02.559 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	0908-1011	●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●

570 16 22 48 16 570 48 16 48 22 22 22 488 48 617 570 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS MANUAL TILT CAB<RWZ> (J) ID=7-10	8-94472-578-0	01	1	1301-	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1301-	●	●
16	02.559 CLIP; HARNESS (H) L=60	8-94449-165-0	02	1	1012-		●
16	02.559 CLIP; HARNESS (I) L=60	8-97063-335-0	02	1	1012-		●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0908-1011	●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0908-1011	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0908-1011	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1012-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0908-1011	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-	●	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	0908-1011	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	1012-1212	●	●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	1301-	●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	1301-	●	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	1301-		●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0908-1011	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	1012-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0908-1011	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	0908-1011	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	0908-1011	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0908-1008	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1009-1011	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0908-1011	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0908-1011	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	0908-1011	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0908-1008	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0908-1008	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1009-1011	●
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.162 (A) L=140	5-09707-031-1	01	1	1009-1011	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.162 (A) L=140	5-09707-031-1	01	1	1012-	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	09	1	1012-		●
48	02.559 CLIP; FRAME HARNESS (C) T=5.5	8-97371-951-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS 06.525 (D) ID=5-12 L=18	1-09709-287-0	01	1	0908-0908	●
48	02.559 CLIP; FRAME HARNESS (F) T=4.5 & 9	8-97371-947-0	01	1	0909-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	08	1	0908-	●
48	02.559 CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	02	1	0908-1011	●
48	02.559 CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	02	1	1012-1212	●	●
48	02.559 CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	02	1	1301-	●	●
48	02.559 CLIP; FRAME HARNESS (B) ID=20	8-94241-972-0	01	1	0908-1011	●
48	02.559 CLIP; FRAME HARNESS (B) ID=20	8-94241-972-0	01	1	1012-	●	●
48	02.559 CLIP; FRAME HARNESS (B) ID=20	8-94241-972-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS (C) T=5.5	8-97371-951-0	01	1	0908-0908	●
460	02.559 BOLT; HARNESS PROTECTOR AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0908-1008	●
460	02.559 BOLT; HARNESS PROTECTOR AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1009-	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0908-1011	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	1012-	●	●
570	02.559 CLIP; HARNESS,PTO EURO4 SPECIFICATION(NT4) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1301-	●
570	02.559 CLIP; HARNESS,PTO EURO4 SPECIFICATION(NT4) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	1301-	●
570	02.559 CLIP; HARNESS,PTO EURO5 SPECIFICATION(NT5) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	01	1	1301-	●
570	02.559 CLIP; HARNESS,PTO EURO5 SPECIFICATION(NT5) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	04	1	1301-	●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1301-	●	●
617	02.559 STRAP; BAND 03.162 L=140	5-09707-031-1	01	1	1012-1106	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
