◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#53429) — 253 parça

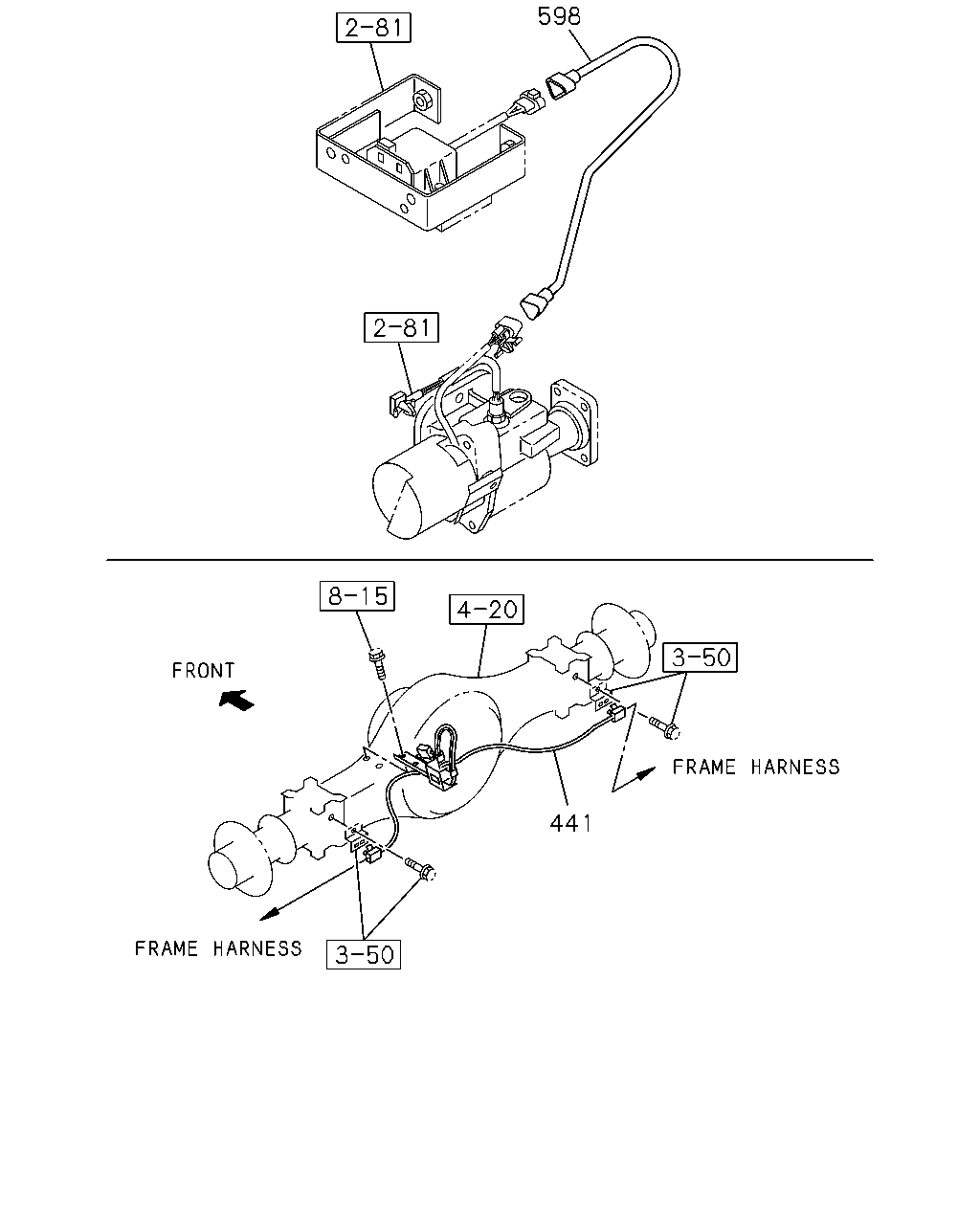

çizim 159882
441 598
BalonParca AdiParca NoAdetTipApplied Date A B
441 02.480 HARNESS; CABLE,SPEED SENSOR 8-97308-220-4 01 1 0908-1011 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR 8-97308-220-4 01 1 1012- ● ●
598 02.480 HARNESS; EXT,PTO
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98123-454-1 01 1 1301- ●

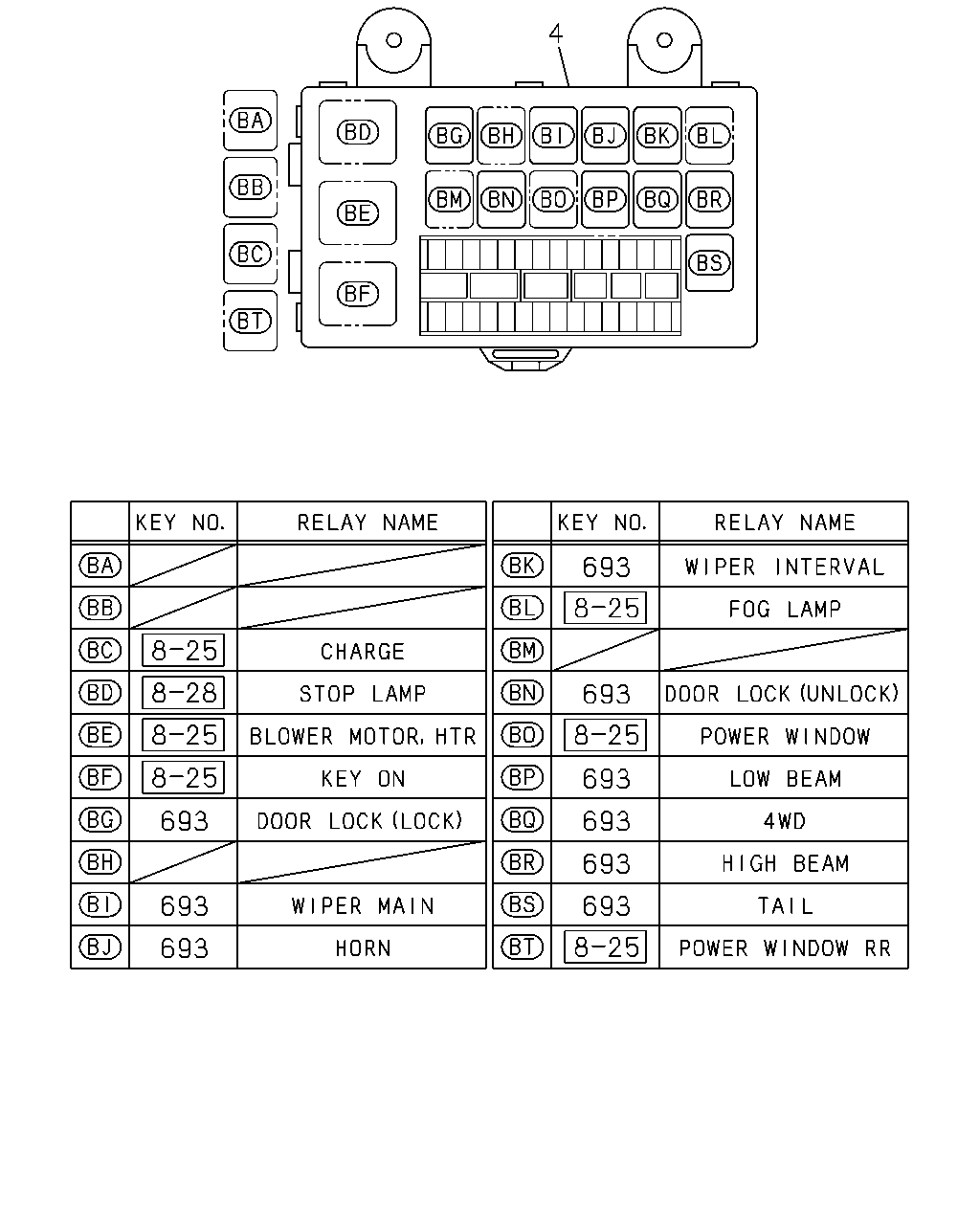

çizim 160074
693 693 693 693 693 693 693 693 693 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0908-1011 ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1012- ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0908-1011 ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1012- ● ●

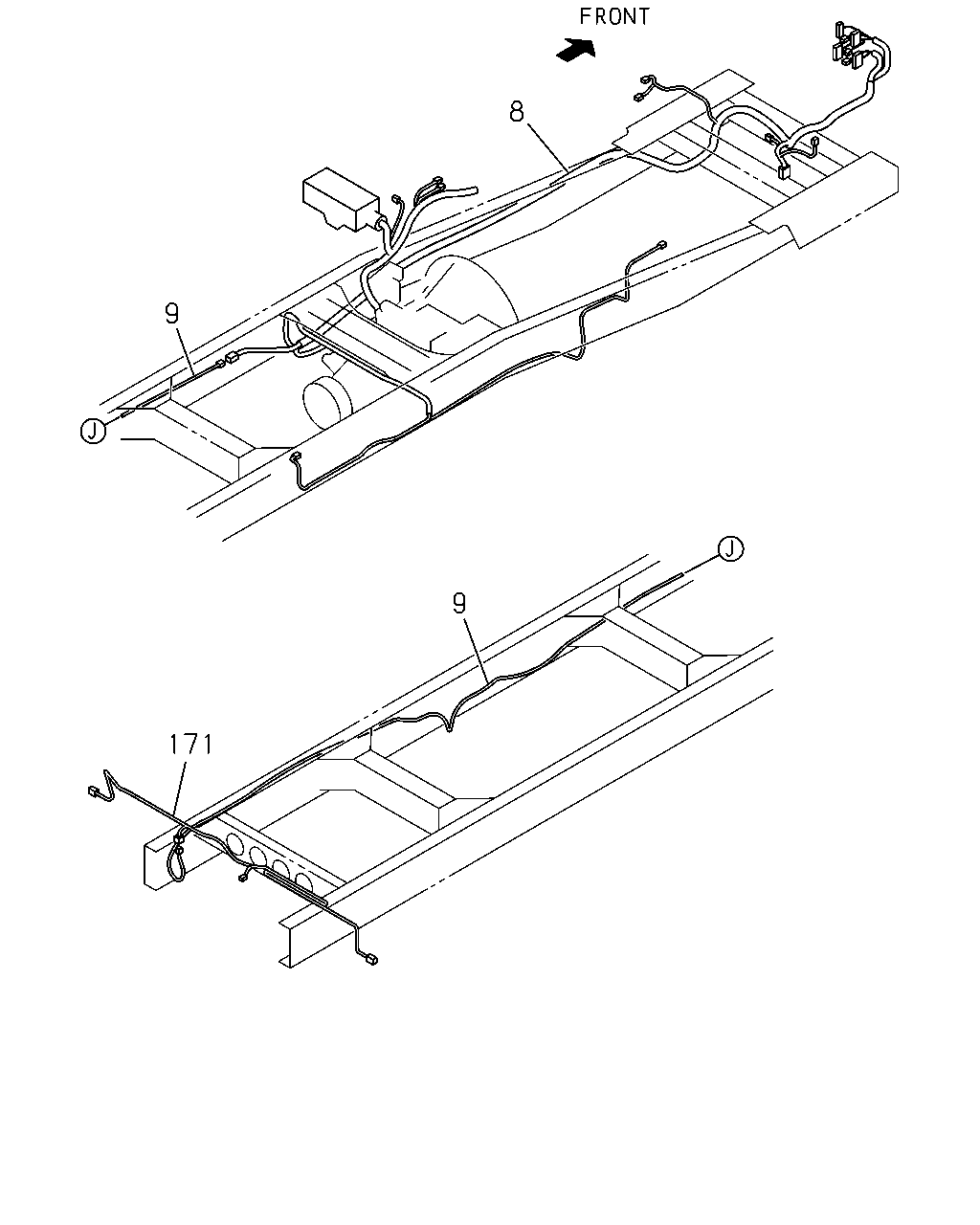

çizim 160095
8 9 9 171
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT 8-98153-187-2 01 1 1012-1212 ●
8 02.480 HARNESS; FRAME,FRT
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98229-706-0 01 1 1301-1301 ●
8 02.480 HARNESS; FRAME,FRT 8-98229-706-0 01 1 1302-1409 ●
8 02.480 HARNESS; FRAME,FRT 8-98294-074-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EURO5 SPECIFICATION(NT5) 		8-98144-148-5 01 1 1009-1212 ●
8 02.480 HARNESS; FRAME,FRT
EURO5 SPECIFICATION(NT5) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CONTROL LEVER<RC4> 		8-98229-532-0 01 1 1301-1301 ●
8 02.480 HARNESS; FRAME,FRT
EURO5 SPECIFICATION(NT5) 		8-98229-532-0 01 1 1302-1409 ●
8 02.480 HARNESS; FRAME,FRT
EURO5 SPECIFICATION(NT5) 		8-98294-071-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT 8-98147-278-3 01 1 0908-1008 ●
8 02.480 HARNESS; FRAME,FRT
EURO4 SPECIFICATION(NT4) 		8-98147-278-3 01 1 1009-1212 ●
8 02.480 HARNESS; FRAME,FRT
EURO4 SPECIFICATION(NT4) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CONTROL LEVER<RC4> 		8-98229-533-0 01 1 1301-1301 ●
8 02.480 HARNESS; FRAME,FRT
EURO4 SPECIFICATION(NT4) 		8-98229-533-0 01 1 1302-1409 ●
8 02.480 HARNESS; FRAME,FRT
EURO4 SPECIFICATION(NT4) 		8-98294-072-0 01 1 1410- ●
9 02.480 HARNESS; FRAME,RR 8-98048-424-1 01 1 1012- ●
9 02.480 HARNESS; FRAME,RR 8-98048-419-1 01 1 0908- ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98070-319-1 01 1 0908-1006 ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-027-0 01 1 1007-1011 ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-027-0 01 1 1012- ● ●

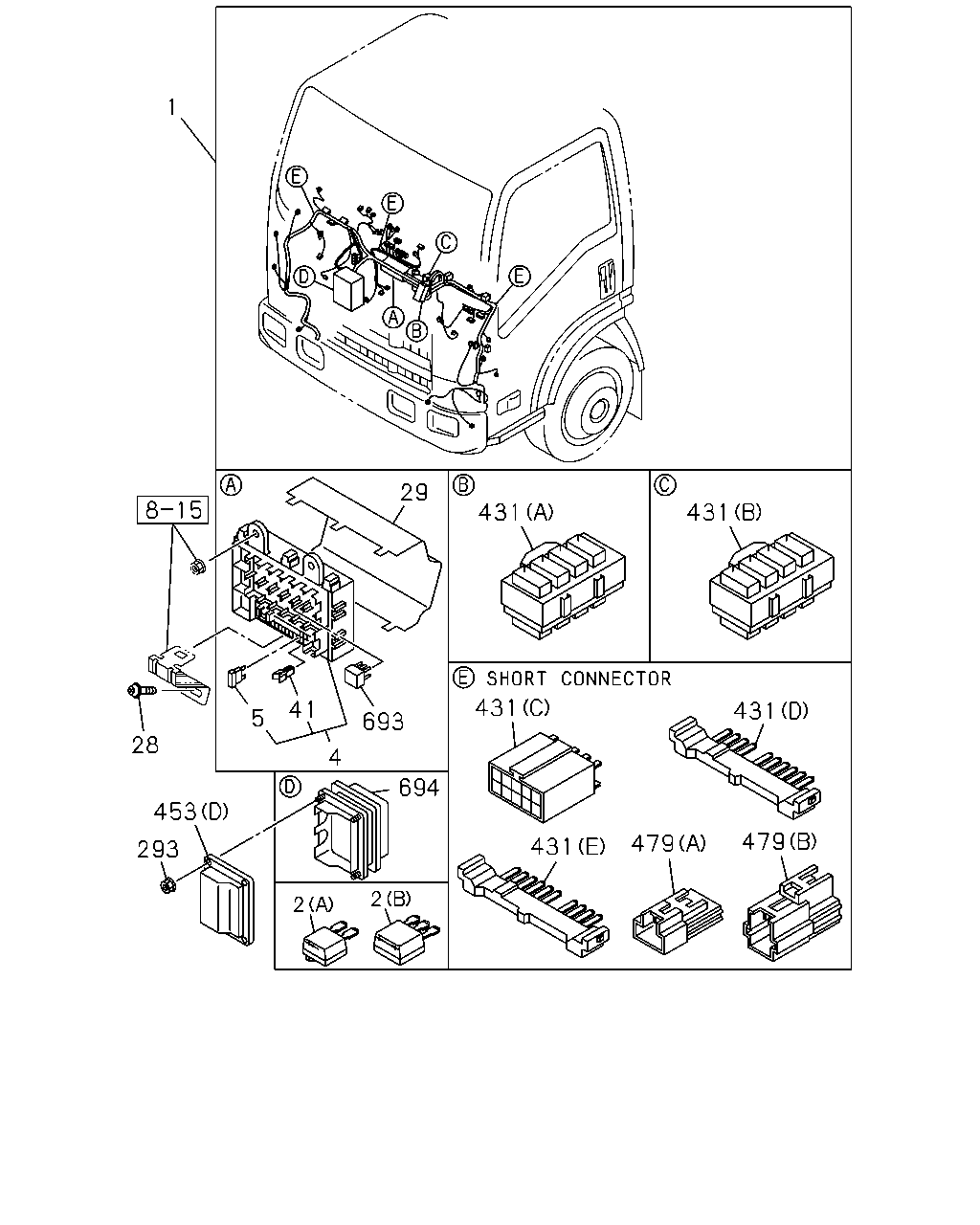

çizim 160096
479 479 431 431 431 431 431 694 693 41 4 5 28 1 29 453 293 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98154-789-0 01 1 1012-1204 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98204-552-0 01 1 1205-1212 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98225-751-1 01 1 1301- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) FLUORESCENT LAMP<6UC> 		8-98154-788-1 01 1 1009-1204 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) FLUORESCENT LAMP<6UC> 		8-98204-551-0 01 1 1205-1212 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) FLUORESCENT LAMP<6UC> 		8-98225-750-1 01 1 1301- ●
1 02.480 HARNESS; CAB 8-98147-701-1 01 1 0908-1008 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FLUORESCENT LAMP<6UC> 		8-98147-701-1 01 1 1009-1212 ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0908-1011 ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1012- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0908-1011 ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1012- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0908-1011 ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0908-1011 ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0908-1011 ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0908-1011 ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1012- ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0908-1011 ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1012-1101 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 0908-1011 ●
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 1012- ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 0908-1011 ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1012- ● ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 0908-1011 ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1012- ● ●
431 02.530 CONNECTOR; JOINT
(D) 10P BLUE 		1-82699-598-0 02 1 0908-1005 ●
431 02.530 CONNECTOR; JOINT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 10P BLUE 		1-82699-598-0 01 1 1006-1011 ●
431 02.530 CONNECTOR; JOINT
(D) 10P BLUE 		1-82699-598-0 01 1 1012-1204 ● ●
431 02.530 CONNECTOR; JOINT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FLUORESCENT LAMP<6UC> (D) 10P BLUE 		1-82699-598-0 01 1 1205-1212 ●
431 02.530 CONNECTOR; JOINT
(E) 10P GREEN 		1-82699-599-0 01 1 0908-1011 ●
431 02.530 CONNECTOR; JOINT
(E) 10P GREEN 		1-82699-599-0 01 1 1012-1204 ● ●
431 02.530 CONNECTOR; JOINT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FLUORESCENT LAMP<6UC> (E) 10P GREEN 		1-82699-599-0 01 1 1205-1212 ●
431 02.530 CONNECTOR; JOINT
(C) 10P 		8-97077-943-0 02 1 0908-1011 ●
431 02.530 CONNECTOR; JOINT
(C) 10P 		8-97077-943-0 02 1 1012-1204 ● ●
431 02.530 CONNECTOR; JOINT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FLUORESCENT LAMP<6UC> (C) 10P 		8-97077-943-0 02 1 1205-1212 ●
431 02.530 CONNECTOR; JOINT
(A) 		8-98046-205-0 01 1 0908-1011 ●
431 02.530 CONNECTOR; JOINT
(A) 		8-98046-205-0 01 1 1012- ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 0908-1011 ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1012- ● ●
453 02.483 PROTECTOR; HARNESS
POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-94417-716-0 01 1 1301-1301 ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 01 1 1302- ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 01 1 0908-1008 ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 01 1 1009-1212 ● ●
453 02.483 PROTECTOR; HARNESS
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CONTROL LEVER<RC4> (A) 		8-94417-716-0 02 1 1301-1301 ●
453 02.483 PROTECTOR; HARNESS
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) 		8-94417-716-0 02 1 1302- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 0908-1008 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 1009- ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 0908-1008 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 1009- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-98034-039-1 01 1 0908-1011 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-98034-039-1 01 1 1012- ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-98036-785-0 01 1 0908-1008 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-98036-785-0 01 1 1009- ● ●
479 02.530 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98108-678-0 01 1 0908-1011 ●
479 02.530 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98108-678-0 01 1 1012- ● ●
479 02.530 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98108-679-0 01 1 0908-1011 ●
479 02.530 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98108-679-0 01 1 1012- ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0908-1011 ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1012- ● ●
694 02.483 BOX ASM; CONNECTOR 8-98057-772-0 01 1 0908-1011 ●
694 02.483 BOX ASM; CONNECTOR 8-98057-772-0 01 1 1012- ● ●

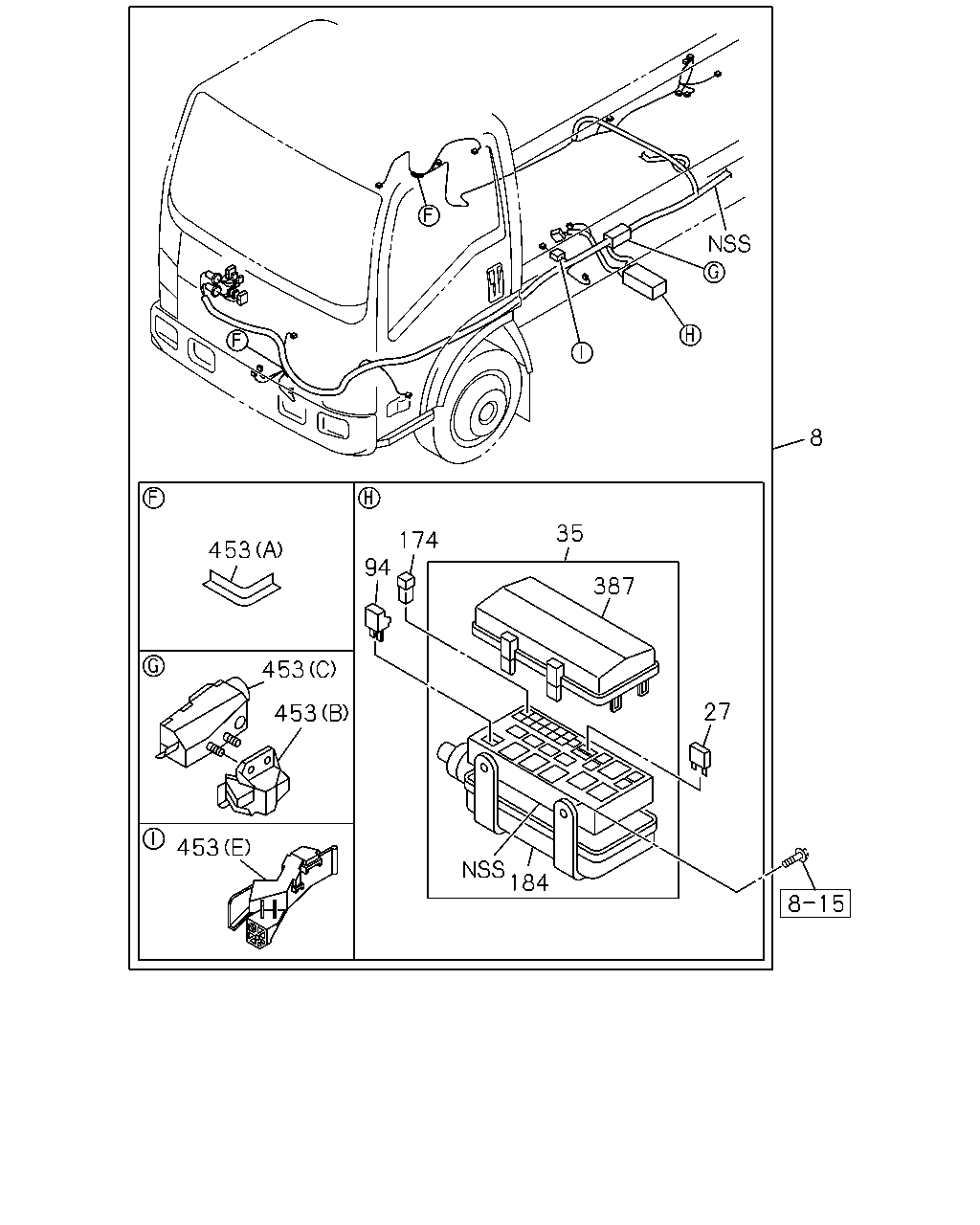

çizim 160097
8 27 387 35 174 94 453 453 453 453 184
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT 8-98153-187-2 01 1 1012-1212 ●
8 02.480 HARNESS; FRAME,FRT
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98229-706-0 01 1 1301-1301 ●
8 02.480 HARNESS; FRAME,FRT 8-98229-706-0 01 1 1302-1409 ●
8 02.480 HARNESS; FRAME,FRT 8-98294-074-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EURO5 SPECIFICATION(NT5) 		8-98144-148-5 01 1 1009-1212 ●
8 02.480 HARNESS; FRAME,FRT
EURO5 SPECIFICATION(NT5) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CONTROL LEVER<RC4> 		8-98229-532-0 01 1 1301-1301 ●
8 02.480 HARNESS; FRAME,FRT
EURO5 SPECIFICATION(NT5) 		8-98229-532-0 01 1 1302-1409 ●
8 02.480 HARNESS; FRAME,FRT
EURO5 SPECIFICATION(NT5) 		8-98294-071-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT 8-98147-278-3 01 1 0908-1008 ●
8 02.480 HARNESS; FRAME,FRT
EURO4 SPECIFICATION(NT4) 		8-98147-278-3 01 1 1009-1212 ●
8 02.480 HARNESS; FRAME,FRT
EURO4 SPECIFICATION(NT4) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CONTROL LEVER<RC4> 		8-98229-533-0 01 1 1301-1301 ●
8 02.480 HARNESS; FRAME,FRT
EURO4 SPECIFICATION(NT4) 		8-98229-533-0 01 1 1302-1409 ●
8 02.480 HARNESS; FRAME,FRT
EURO4 SPECIFICATION(NT4) 		8-98294-072-0 01 1 1410- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 0908-1008 ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1009-1301 ● ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 04 1 1302- ● ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 0908-1008 ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1009- ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 0908-1008 ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1009-1301 ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 1302- ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 0908-1008 ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1009- ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 0908-1008 ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1009- ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 0908-1008 ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1009- ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 0908-1008 ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1009- ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 0908-1008 ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1009- ● ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 0908-1011 ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1012- ● ●
453 02.483 PROTECTOR; HARNESS
POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-94417-716-0 01 1 1301-1301 ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 01 1 1302- ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 01 1 0908-1008 ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 01 1 1009-1212 ● ●
453 02.483 PROTECTOR; HARNESS
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CONTROL LEVER<RC4> (A) 		8-94417-716-0 02 1 1301-1301 ●
453 02.483 PROTECTOR; HARNESS
EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) 		8-94417-716-0 02 1 1302- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 0908-1008 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 1009- ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 0908-1008 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 1009- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-98034-039-1 01 1 0908-1011 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-98034-039-1 01 1 1012- ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-98036-785-0 01 1 0908-1008 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-98036-785-0 01 1 1009- ● ●

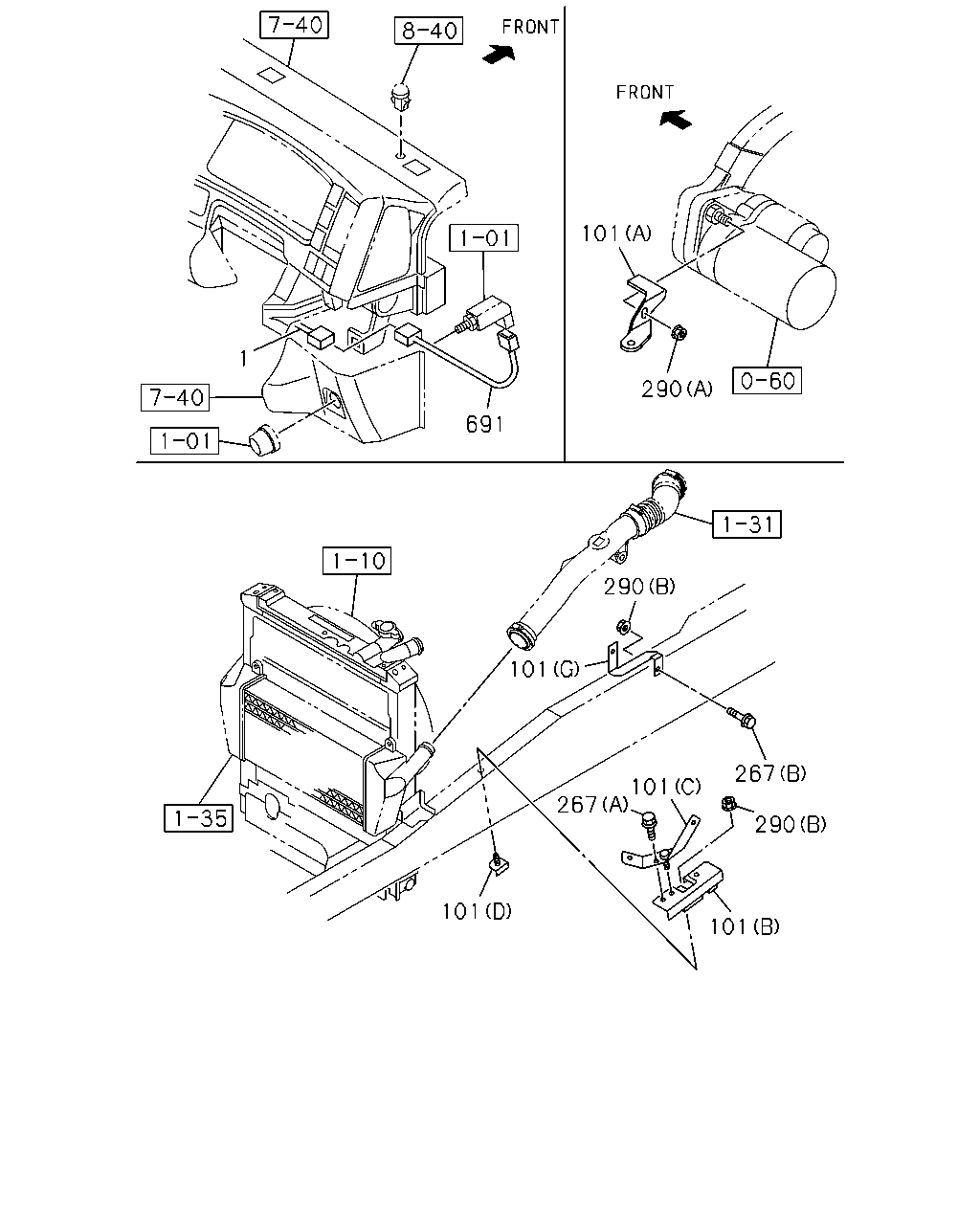

çizim 160098
101 290 691 1 290 101 101 267 290 101 101 267
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98154-789-0 01 1 1012-1204 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98204-552-0 01 1 1205-1212 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98225-751-1 01 1 1301- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) FLUORESCENT LAMP<6UC> 		8-98154-788-1 01 1 1009-1204 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) FLUORESCENT LAMP<6UC> 		8-98204-551-0 01 1 1205-1212 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) FLUORESCENT LAMP<6UC> 		8-98225-750-1 01 1 1301- ●
1 02.480 HARNESS; CAB 8-98147-701-1 01 1 0908-1008 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FLUORESCENT LAMP<6UC> 		8-98147-701-1 01 1 1009-1212 ●
101 02.483 BRACKET; HARNESS CONNECTOR
02.183 (A) 		8-98030-725-1 01 1 0908-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
02.183 (A) 		8-98030-725-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(E) 		8-98039-957-0 01 1 0908-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(E) 		8-98039-957-0 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(F) 		8-98039-960-1 01 1 0908-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(F) 		8-98039-960-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98078-070-1 01 1 0908-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98078-070-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(C) 		8-98078-071-1 01 1 0908-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(C) 		8-98078-071-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98093-465-1 01 1 0908-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98093-465-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(G) 		8-98106-295-0 01 1 0908-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(G) 		8-98106-295-0 01 1 1012- ● ●
267 02.483 BOLT; BRKT
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0908-1011 ●
267 02.483 BOLT; BRKT
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1012- ● ●
267 02.483 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0908-1011 ●
267 02.483 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
267 02.483 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0908-1011 ●
267 02.483 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ●
290 02.483 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0908-1011 ●
290 02.483 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0908-1011 ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0908-1011 ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
691 02.480 HARNESS; IDLE CONT 8-98049-014-2 01 1 0908-1011 ●
691 02.480 HARNESS; IDLE CONT 8-98049-014-2 01 1 1012- ● ●

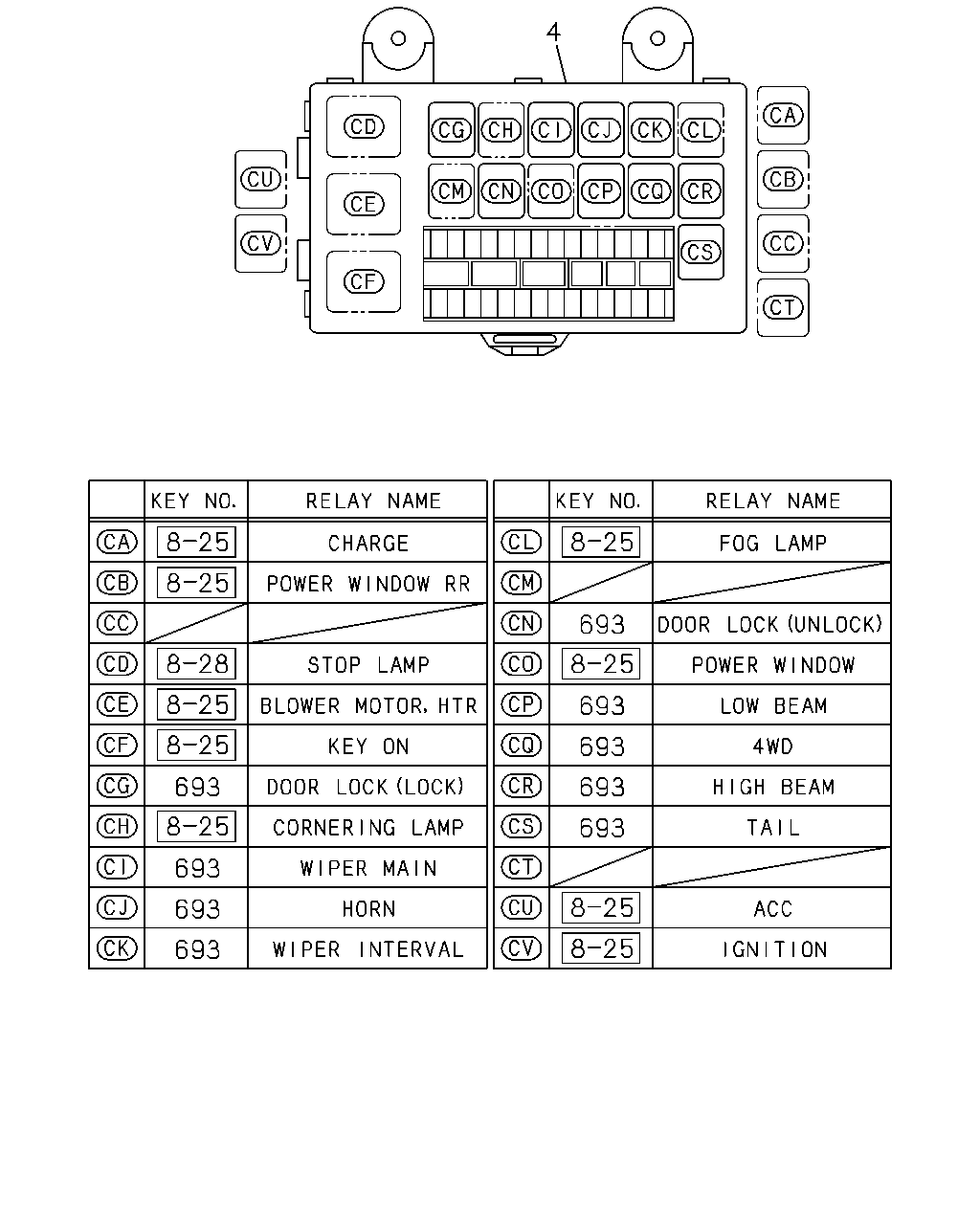

çizim 160102
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0908-1011 ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1012- ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0908-1011 ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1012- ● ●

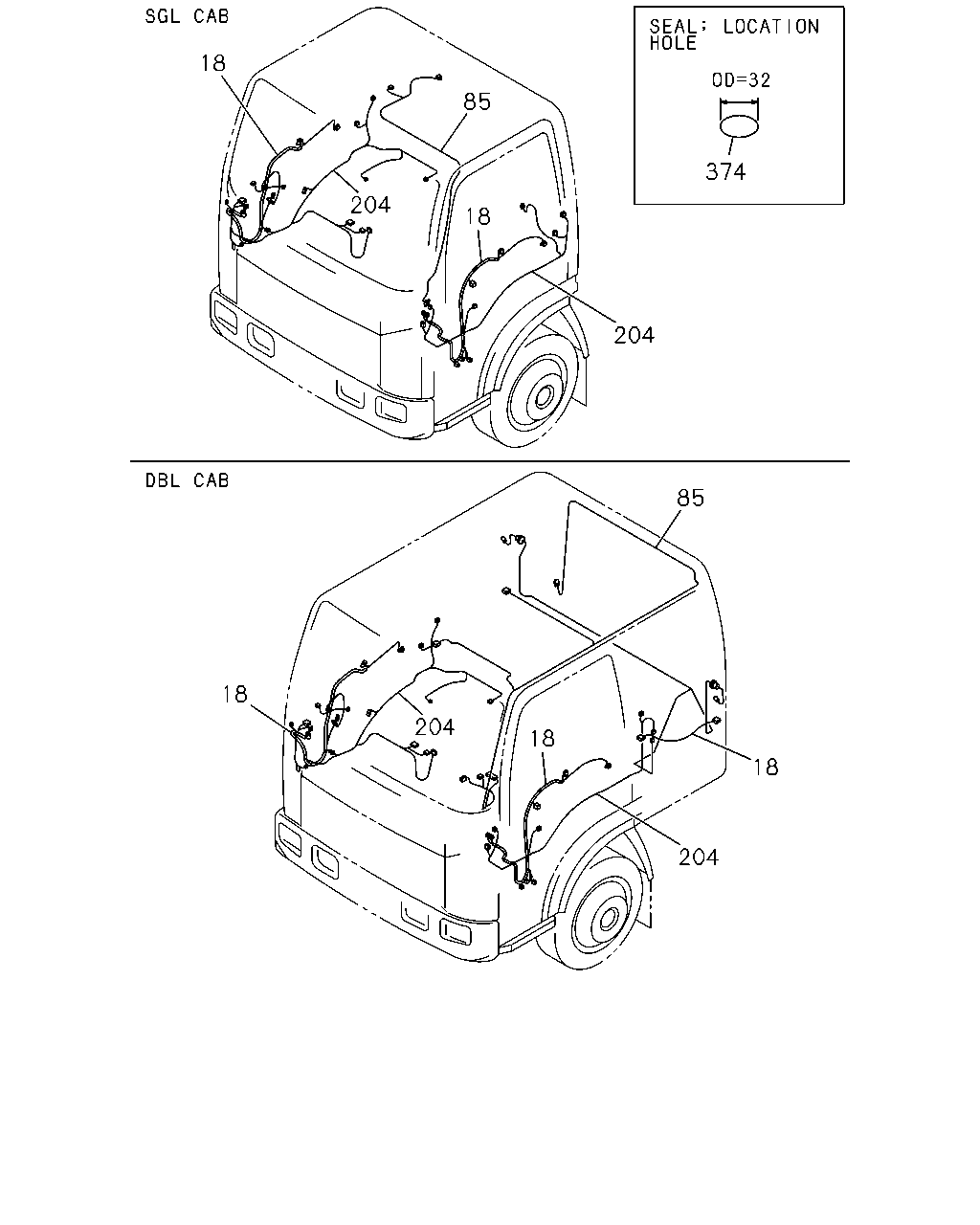

çizim 160107
18 204 85 18 204 18 204 18 85 204 18 374
BalonParca AdiParca NoAdetTipApplied Date A B
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> 		8-98077-590-2 01 1 1301- ● ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> 		8-98077-598-3 01 1 1301- ● ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98046-746-5 01 1 1301- ● ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98077-596-3 01 1 1301- ● ●
18 02.480 HARNESS; DOOR
REAR 		8-98056-047-1 02 1 1012-1203 ●
18 02.480 HARNESS; DOOR
REAR 		8-98202-555-0 02 1 1204- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-078-2 01 1 0908-1011 ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-078-2 01 1 1012-1212 ● ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> FRONT 		8-98071-078-2 01 1 1301- ● ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-086-3 01 1 0908-1011 ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-086-3 01 1 1012-1212 ● ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> FRONT 		8-98071-086-3 01 1 1301- ● ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-076-2 01 1 0908-1011 ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-076-2 01 1 1012-1212 ● ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-076-2 01 1 1301- ● ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-084-3 01 1 0908-1011 ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-084-3 01 1 1012-1212 ● ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-084-3 01 1 1301- ● ●
85 06.495 HARNESS; ROOM LAMP 8-98033-823-4 01 1 1012- ●
85 06.495 HARNESS; ROOM LAMP
FLUORESCENT LAMP<6UC> 		8-98049-964-3 01 1 1009- ●
85 06.495 HARNESS; ROOM LAMP 8-98049-963-2 01 1 0908-1008 ●
85 06.495 HARNESS; ROOM LAMP
EXC. FLUORESCENT LAMP<6UC> 		8-98049-963-3 01 1 1009- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> MANUAL TILT CAB<RWZ> 		8-98226-303-0 01 1 1301- ●
204 02.559 HARNESS; CABLE,FLOOR
MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98047-164-4 01 1 1301- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98029-726-6 01 1 1012- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98074-594-3 01 1 1012- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-810-3 01 1 1012- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98047-157-6 01 1 0908- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98074-592-3 01 1 0908-1212 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> EXC. MANUAL TILT CAB<RWZ> 		8-98074-592-3 01 1 1301- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 		8-98070-787-4 01 1 0908- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-807-3 01 1 0908-1212 ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, MANUAL TILT CAB<RWZ> 		8-98070-807-3 01 1 1301- ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=24.5 T=7.5 		8-97224-683-0 01 1 1012- ●

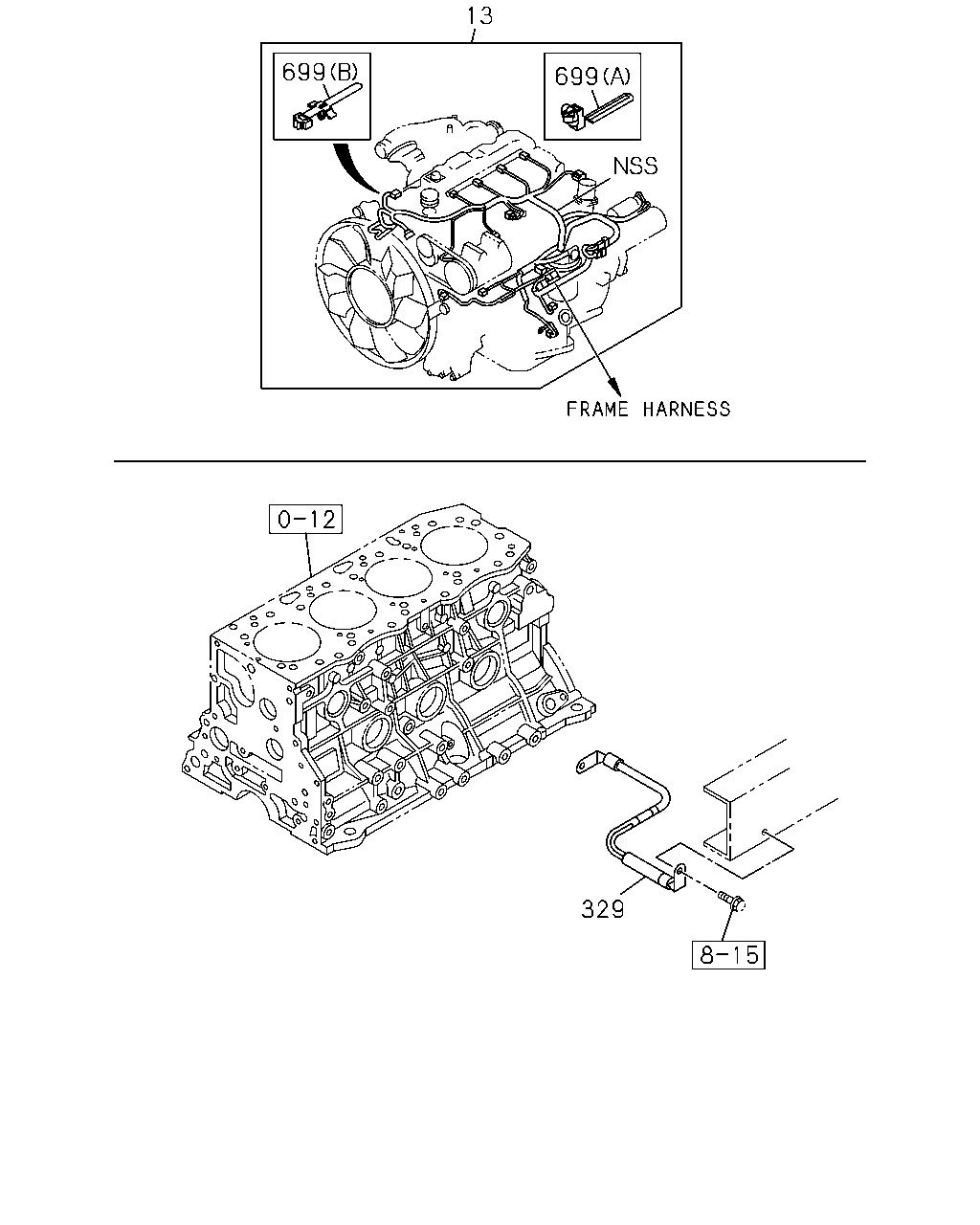

çizim 160110
699 13 699 329
BalonParca AdiParca NoAdetTipApplied Date A B
13 02.525 HARNESS; ENG
EURO5 SPECIFICATION(NT5) 		8-98244-736-0 01 1 1311- ●
13 02.525 HARNESS; ENG 8-98244-736-0 01 1 1311- ●
13 02.525 HARNESS; ENG 8-98082-046-4 01 1 0908-1006 ●
13 02.525 HARNESS; ENG 8-98147-730-1 01 1 1007-1011 ●
13 02.525 HARNESS; ENG 8-98147-730-1 01 1 1012-1310 ● ●
13 02.525 HARNESS; ENG
EURO4 SPECIFICATION(NT4) 		8-98147-730-1 01 1 1311- ●
329 02.480 CABLE; ENG TO FRAME 8-98033-951-1 01 1 0908-1011 ●
329 02.480 CABLE; ENG TO FRAME 8-98033-951-1 01 1 1012- ● ●
699 02.559 CLIP; ENG HARNESS
04.105 (A) L=140 		8-97122-360-0 03 1 1012-1310 ● ●
699 02.559 CLIP; ENG HARNESS
EURO4 SPECIFICATION(NT4) 04.105 (A) L=140 		8-97122-360-0 03 1 1311- ●
699 02.559 CLIP; ENG HARNESS
(B) 		8-98088-438-0 01 1 1012-1310 ● ●
699 02.559 CLIP; ENG HARNESS
EURO4 SPECIFICATION(NT4) (B) 		8-98088-438-0 01 1 1311- ●

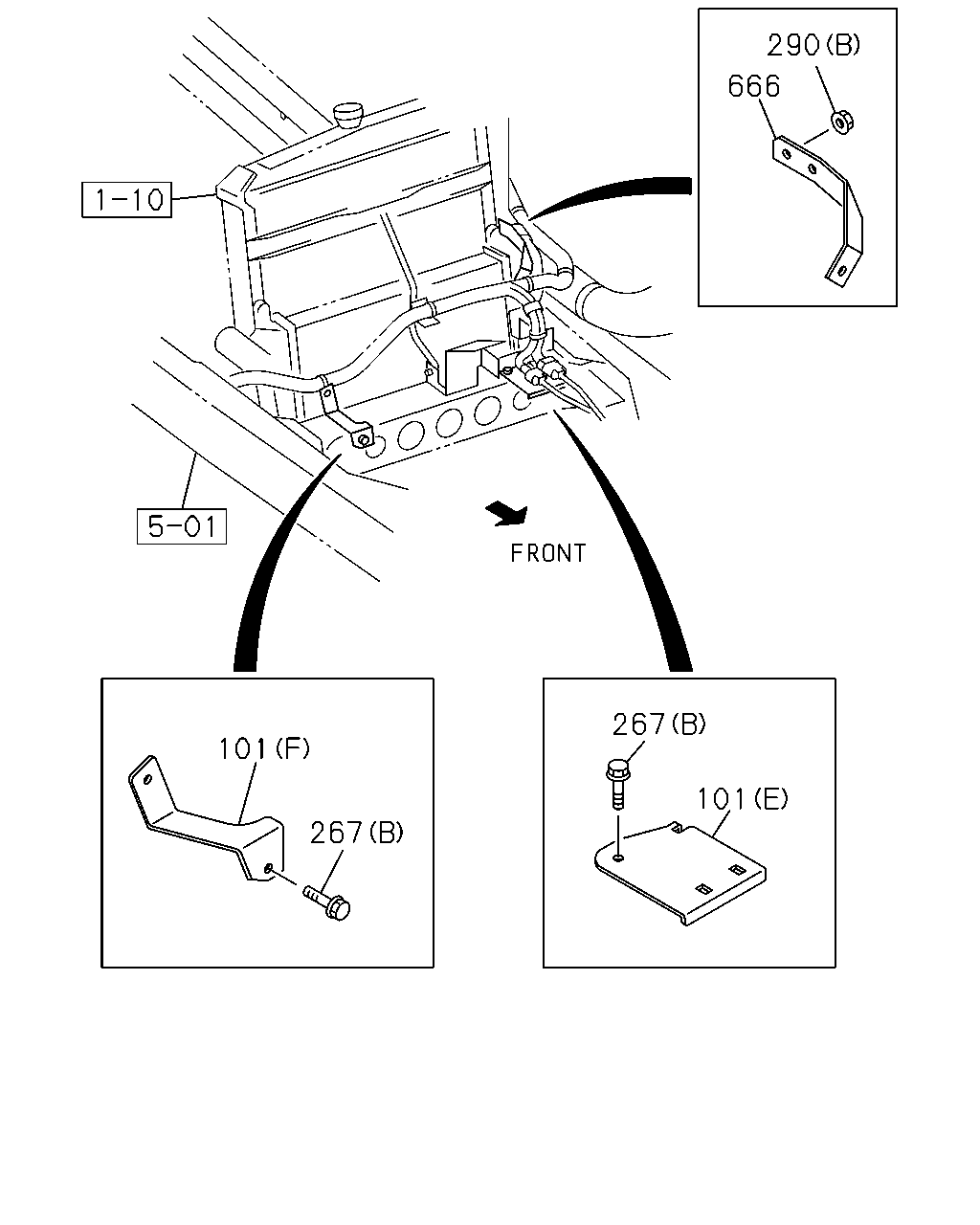

çizim 283368
290 666 101 267 267 101
BalonParca AdiParca NoAdetTipApplied Date A B
101 02.483 BRACKET; HARNESS CONNECTOR
02.183 (A) 		8-98030-725-1 01 1 0908-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
02.183 (A) 		8-98030-725-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(E) 		8-98039-957-0 01 1 0908-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(E) 		8-98039-957-0 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(F) 		8-98039-960-1 01 1 0908-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(F) 		8-98039-960-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98078-070-1 01 1 0908-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98078-070-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(C) 		8-98078-071-1 01 1 0908-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(C) 		8-98078-071-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98093-465-1 01 1 0908-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98093-465-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(G) 		8-98106-295-0 01 1 0908-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(G) 		8-98106-295-0 01 1 1012- ● ●
267 02.483 BOLT; BRKT
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0908-1011 ●
267 02.483 BOLT; BRKT
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1012- ● ●
267 02.483 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0908-1011 ●
267 02.483 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
267 02.483 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0908-1011 ●
267 02.483 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ●
290 02.483 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0908-1011 ●
290 02.483 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0908-1011 ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0908-1011 ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
666 02.483 BRACKET; CLIP 8-98039-551-1 01 1 0908-1011 ●
666 02.483 BRACKET; CLIP 8-98039-551-1 01 1 1012-1210 ● ●
666 02.483 BRACKET; CLIP 8-98179-532-0 01 1 1211- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
