Sayfa 7-60 - Isuzu EPC

7-60 — SEAT BELT (#53425) — 43 parça

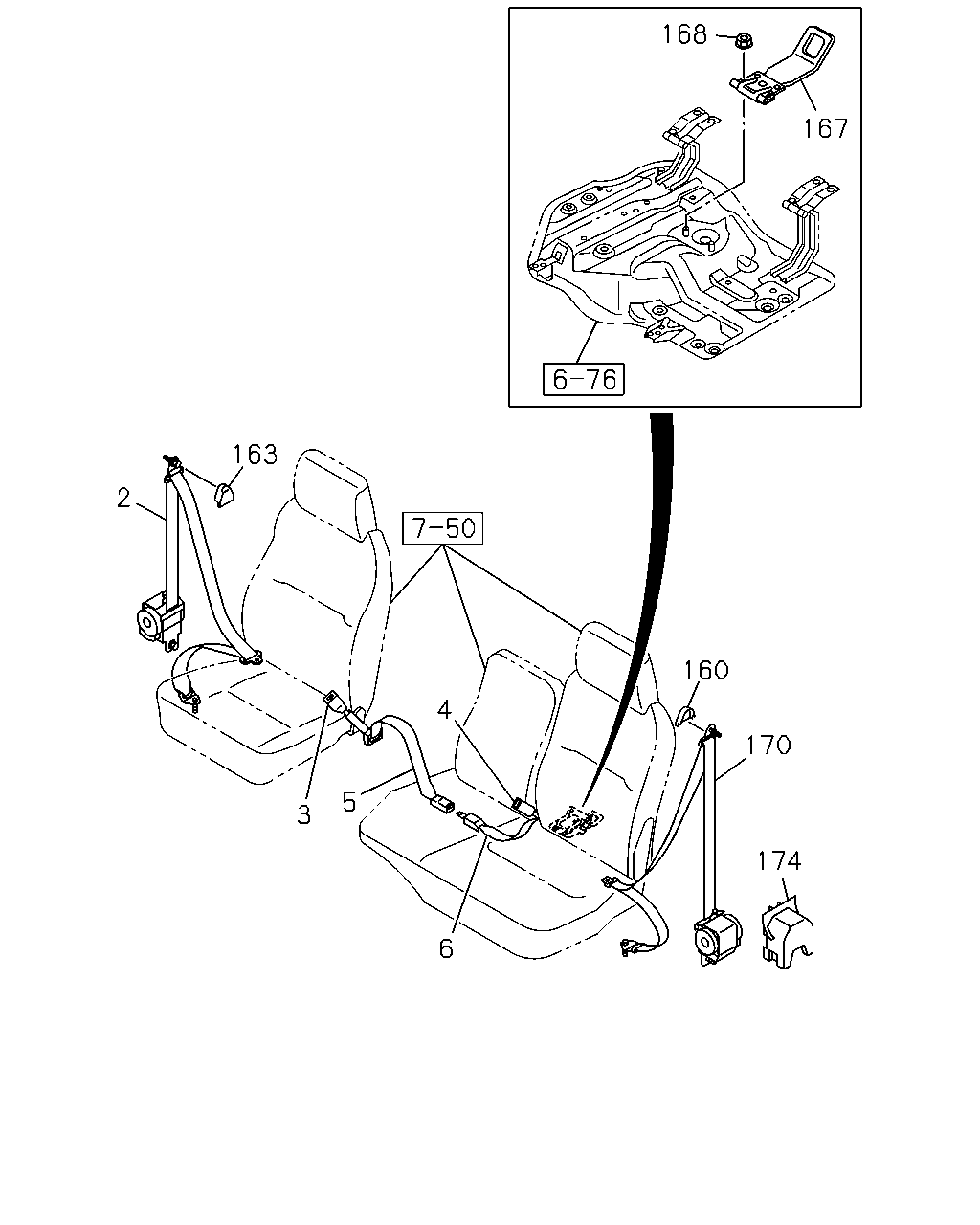

167 168 170 174 160 6 4 5 3 163 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.714 BELT; SEAT,TONGUE SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-179-8	01	1	0908-1011	●
2	16.714 BELT; SEAT,TONGUE SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-179-9	01	1	1012-1406	●	●
2	16.714 BELT; SEAT,TONGUE SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97428-456-0	01	1	1407-	●	●
2	16.714 BELT; SEAT,TONGUE SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> GRAY	8-97405-180-7	01	1	0908-1011	●
2	16.714 BELT; SEAT,TONGUE SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> GRAY	8-97405-180-7	01	1	1012-1406	●	●
2	16.714 BELT; SEAT,TONGUE SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> GRAY	8-97428-457-1	01	1	1407-	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE GRAY	8-97405-175-2	01	1	0908-1011	●
3	16.714 BELT; SEAT,BUCKLE SIDE GRAY	8-97405-175-2	01	1	1012-	●	●
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE GRAY	8-97405-178-0	01	1	0908-1011	●
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE GRAY	8-97405-178-0	01	1	1012-	●	●
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE GRAY	8-97405-182-1	01	1	0908-1011	●
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE GRAY	8-97405-182-1	01	1	1012-	●	●
6	16.714 BELT; CENTER SEAT,TONGUE SIDE GRAY	8-97411-507-2	01	1	0908-1011	●
6	16.714 BELT; CENTER SEAT,TONGUE SIDE GRAY	8-97411-507-2	01	1	1012-	●	●
160	16.714 COVER; THROUGH ANCHOR GRAY	8-97405-991-0	02	1	1012-		●
160	16.714 COVER; THROUGH ANCHOR GRAY	8-97405-991-0	01	1	0908-1011	●
160	16.714 COVER; THROUGH ANCHOR GRAY	8-97405-991-0	01	1	1012-	●	●
163	16.714 COVER; ADJUSTER GRAY	8-97405-991-0	01	1	0908-1011	●
163	16.714 COVER; ADJUSTER GRAY	8-97405-991-0	01	1	1012-	●	●
167	16.714 PLATE; ANCHOR	8-97589-140-0	01	1	0908-1011	●
167	16.714 PLATE; ANCHOR	8-97589-140-0	01	1	1012-	●	●
168	16.714 NUT; ANCHOR PLATE 01.062 M8 FLANGE	0-91180-108-0	02	1	0908-1011	●
168	16.714 NUT; ANCHOR PLATE 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-179-8	01	1	0908-1011	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-179-9	01	1	1012-1406	●	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97428-456-0	01	1	1407-	●	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-180-7	01	1	0908-1011	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-180-7	01	1	1012-1406	●	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97428-457-1	01	1	1407-	●	●
174	16.714 COVER; RETRACTOR,SEAT BELT	8-98039-376-1	01	1	0908-	●

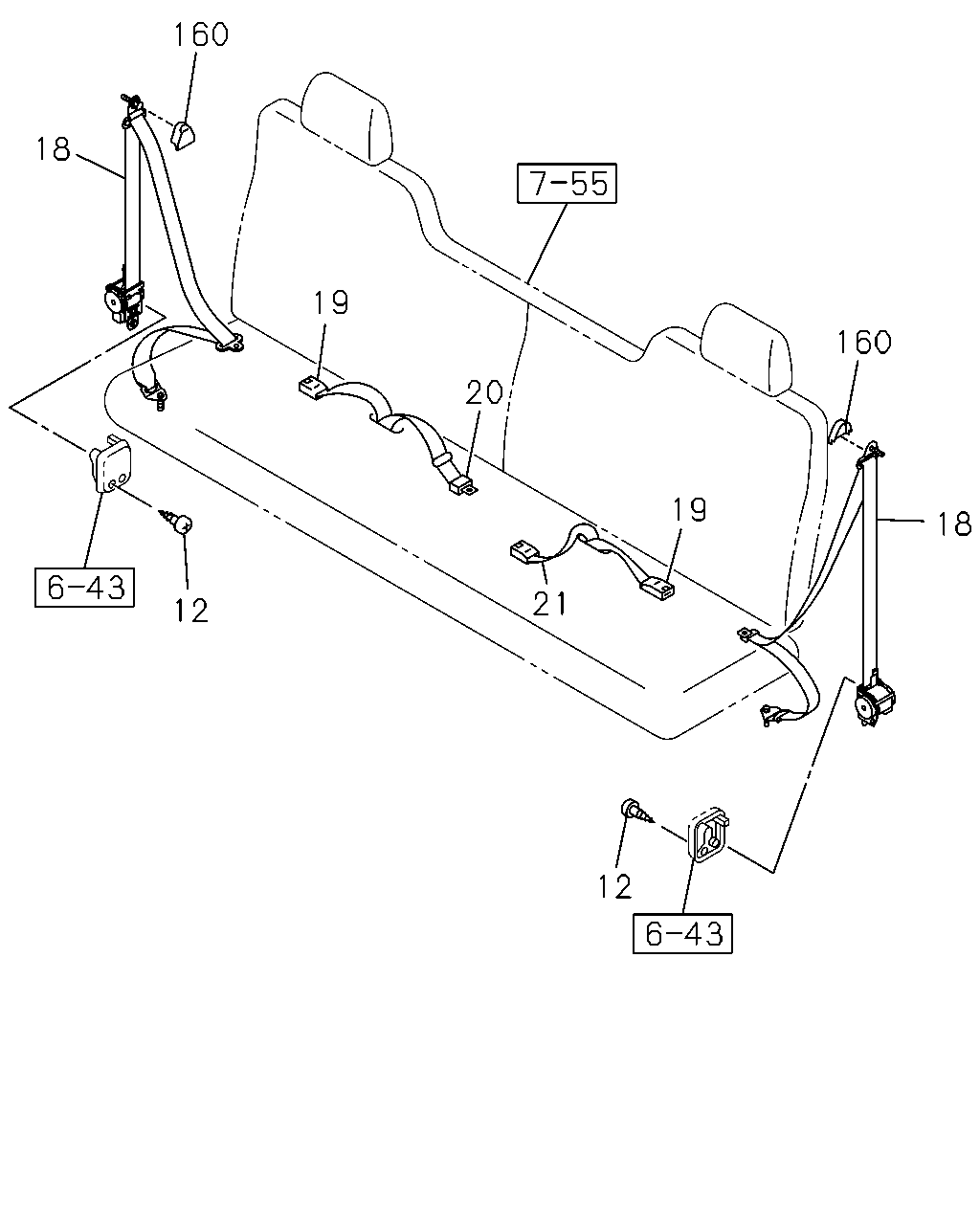

18 160 160 18 19 20 19 12 21 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	16.714 SCREW; RETRACTOR COVER,SEAT BELT M4X14 TAPPING	0-74360-414-0	04	1	1012-		●
18	16.714 BELT; SEAT,RR GRAY	8-97405-185-8	02	1	1012-		●
19	16.714 BELT; RR SEAT,BUCKLE SIDE GRAY	8-97405-184-2	02	1	1012-		●
20	16.714 BELT; RR SEAT CTR,TONGUE SIDE GRAY	8-97411-512-3	01	1	1012-		●
21	16.714 BELT; RR SEAT CTR,BUCKLE SIDE GRAY	8-97405-188-2	01	1	1012-		●
160	16.714 COVER; THROUGH ANCHOR GRAY	8-97405-991-0	02	1	1012-		●
160	16.714 COVER; THROUGH ANCHOR GRAY	8-97405-991-0	01	1	0908-1011	●
160	16.714 COVER; THROUGH ANCHOR GRAY	8-97405-991-0	01	1	1012-	●	●

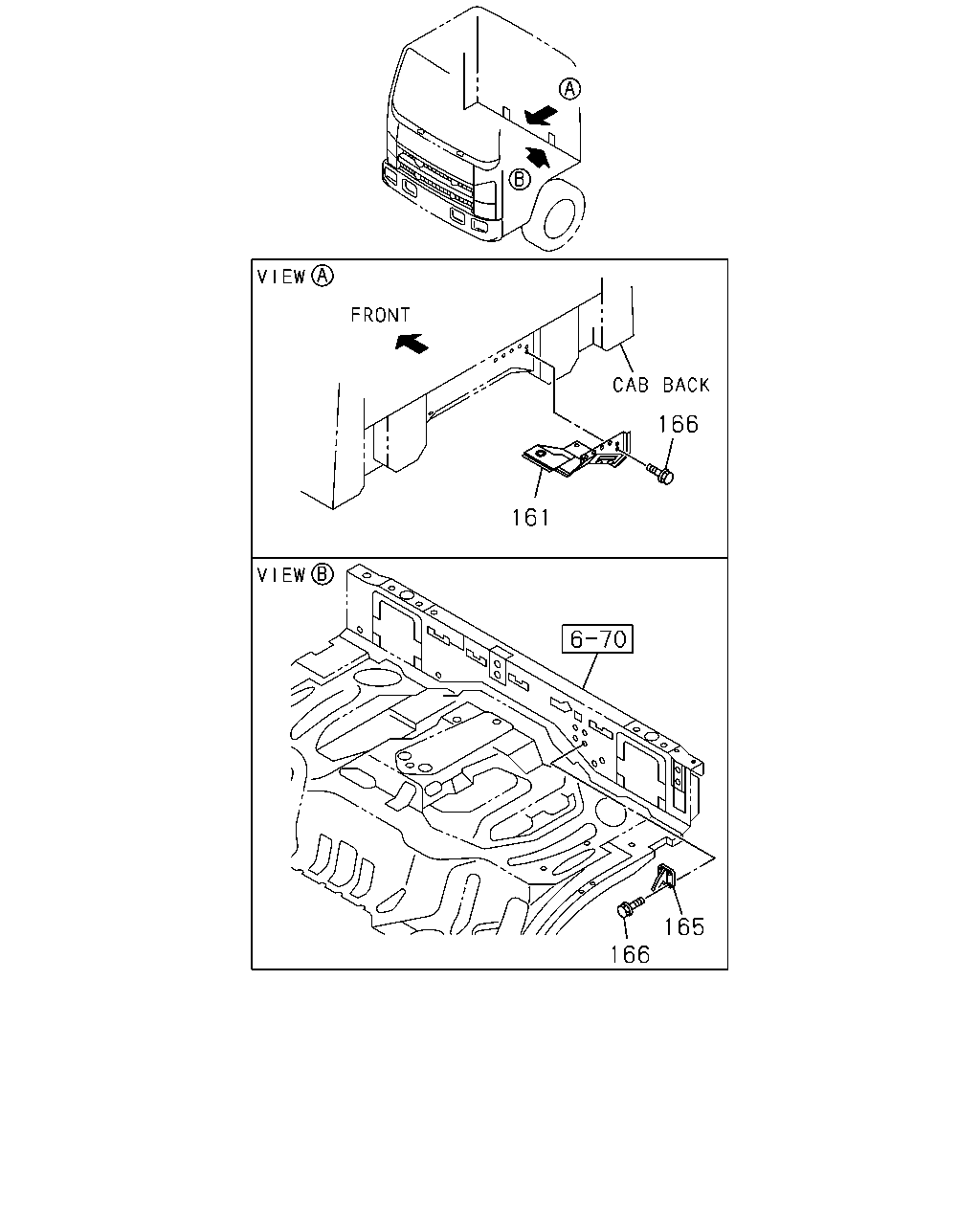

165 166 161 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
161	16.714 REINFORCEMENT; SEAT BELT ANCHOR	8-98015-215-2	01	1	0908-	●
165	16.714 HOOK; SEAT BELT ANCHOR	8-98040-143-0	01	1	0908-1011	●
165	16.714 HOOK; SEAT BELT ANCHOR	8-98040-143-0	01	1	1012-	●	●
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1012-		●
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 M8X25 FLANGE	0-28650-825-0	08	1	0908-	●
