◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#53420) — 263 parça

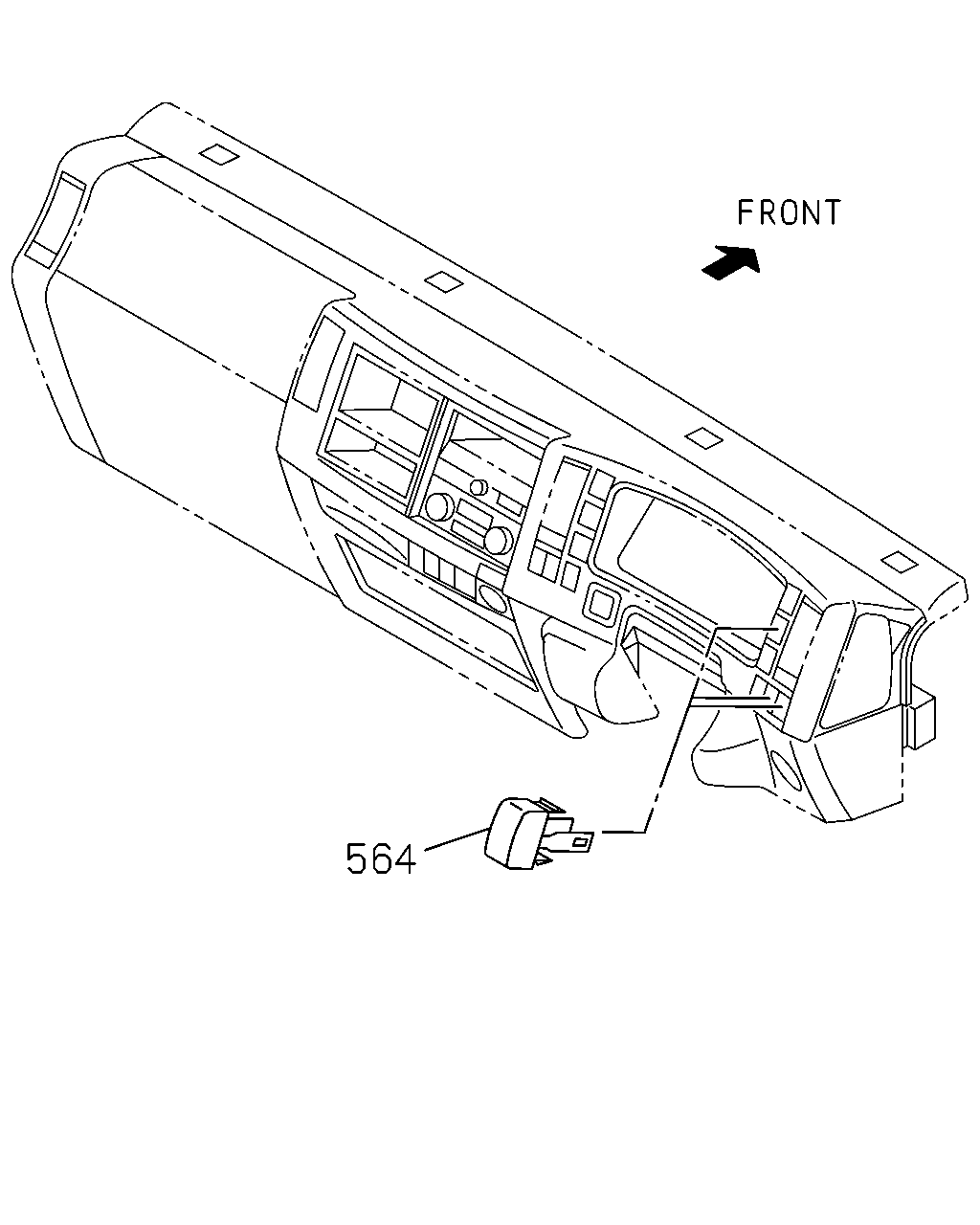

çizim 160082
564
BalonParca AdiParca NoAdetTipApplied Date A B
564 16.081 COVER; SW 8-98025-954-1 03 1 0908-1011 ●
564 16.081 COVER; SW 8-98025-954-1 03 1 1012- ● ●

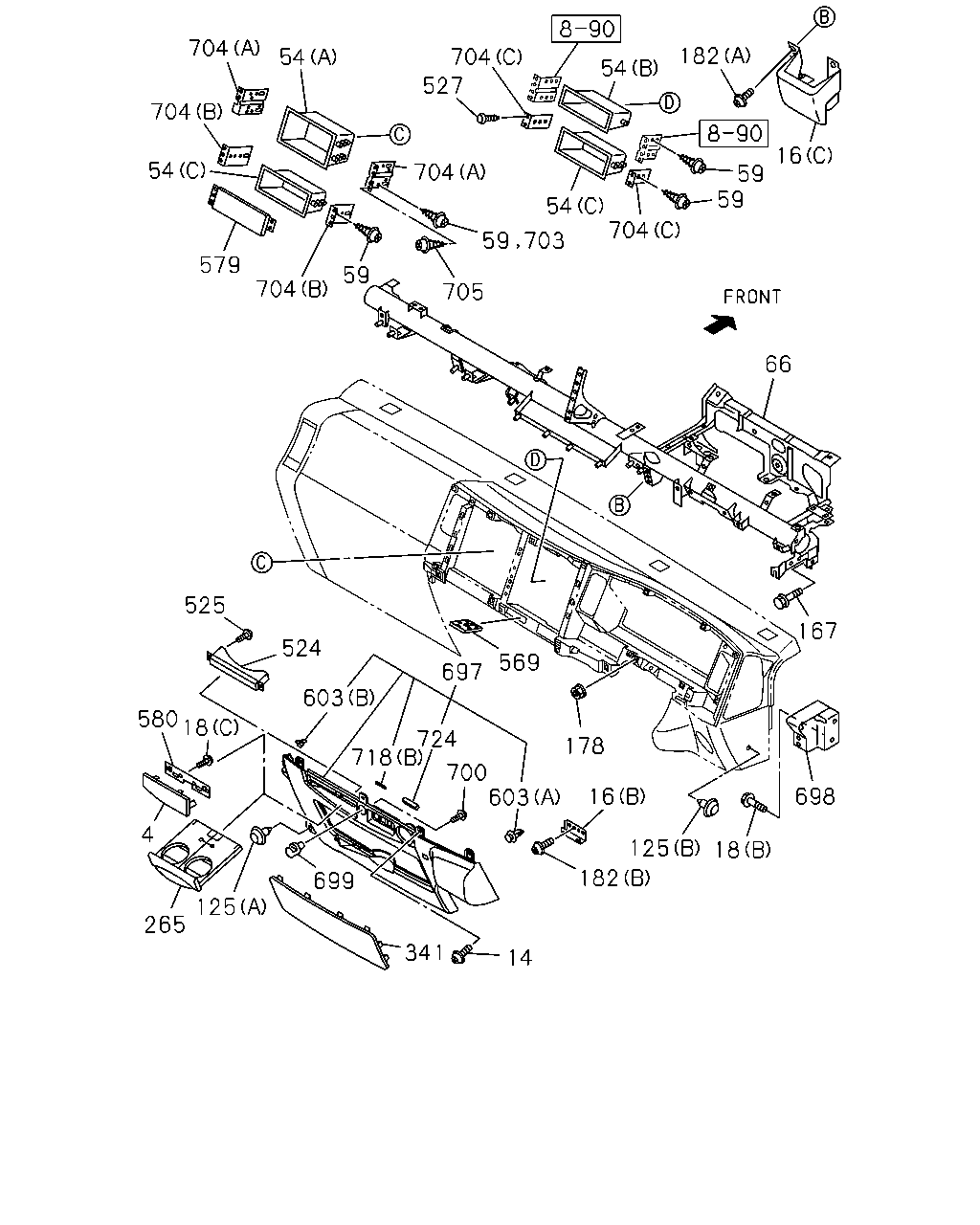

çizim 160086
704 54 704 182 59 16 59 704 54 59 703 704 704 579 54 704 66 167 698 18 125 182 14 341 699 125 265 580 4 18 525 524 603 718 700 603 724 697 569 178 16 59 705 54 527
BalonParca AdiParca NoAdetTipApplied Date A B
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 0908-1011 ●
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1012- ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0908-1011 ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1012-1101 ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0908-1011 ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1012- ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 0908-1011 ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 1012- ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0908-1011 ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1012- ● ●
18 16.085 BOLT; BRKT
16.650 (A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0908-1011 ●
18 16.085 BOLT; BRKT
16.650 (A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1012-1101 ● ●
18 16.085 BOLT; BRKT
16.585 (A) T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ●
18 16.085 BOLT; BRKT
16.650 (A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0908-1011 ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1012- ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0908-1011 ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1012- ● ●
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-2 01 1 0908-1011 ●
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1012- ● ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0908- ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0908-1011 ●
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK 		8-97408-865-2 01 1 0908-1011 ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 1012-1204 ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK 		8-97408-865-2 01 1 1012-1204 ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1205- ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. CAN INTERFACE FMS STD<8PG> (C) H=69.8 BLACK 		8-97408-865-3 01 1 1205- ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0908-1008 ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1009-1011 ●
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1009-1011 ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1009-1011 ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012-1204 ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012-1204 ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012-1204 ●
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1205- ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. CAN INTERFACE FMS STD<8PG> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1205- ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1205- ●
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0908-1008 ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98124-677-3 01 1 0908-1011 ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98124-677-3 01 1 1012-1204 ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98199-357-0 01 1 1205-1211 ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98199-365-1 01 1 1212- ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98105-263-4 01 1 0908-1011 ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98105-263-4 01 1 1012-1204 ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98199-356-0 01 1 1205-1211 ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98199-364-1 01 1 1212- ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1002-1011 ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1012- ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97418-529-0 02 1 0910-0911 ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 04 1 0908-0909 ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0910-0911 ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 04 1 0912-1001 ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1002-1011 ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1012- ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 0908-1003 ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 0908-1003 ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1004-1011 ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1012- ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 0908-1011 ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1012- ● ●
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE 		0-91180-106-0 01 1 0908-1011 ●
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0908-1011 ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1012-1101 ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0908-1011 ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1012-1101 ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97407-897-2 01 1 0908-0909 ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 0910-1011 ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1012- ● ●
341 16.110 LID; FUSE BOX
02.483 GRAY 		8-97406-265-3 01 1 0908-1011 ●
341 16.110 LID; FUSE BOX
02.483 GRAY 		8-97406-265-3 01 1 1012-1205 ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1206- ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 0908-1011 ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1012- ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0908-1011 ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1012-1101 ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ●
527 16.100 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 0908-1011 ●
527 16.100 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1012- ● ●
569 16.100 HOLDER; CARD 8-97410-276-0 01 1 0908-1011 ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1012- ● ●
579 16.080 COVER; INST PNL
CAN INTERFACE FMS STD<8PG> BLACK 		8-97408-909-0 01 1 1205-1208 ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0908-1011 ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1012- ● ●
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 0908-1011 ●
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 1012- ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 0908-1003 ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 02 1 0908-1003 ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1004-1004 ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 02 1 1005-1011 ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 02 1 1012- ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1005-1011 ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1012- ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-256-8 01 1 0908-1011 ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-256-8 01 1 1012-1205 ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1206- ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0908-1011 ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1012- ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0908-1011 ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1012- ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0908-1011 ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1012- ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0908-1011 ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1012-1101 ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0908-1011 ●
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1012- ● ●
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0908-1011 ●
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1012- ● ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0908-1011 ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1012-1204 ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. CAN INTERFACE FMS STD<8PG> (B) 		8-97585-616-2 02 1 1205- ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98107-549-0 02 1 0908-1011 ●
704 16.085 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98107-549-0 02 1 1012- ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0908-1011 ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1012-1101 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 08 1 1102-1204 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1205-1212 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. CAN INTERFACE FMS STD<8PG> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1205-1212 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. CAN INTERFACE FMS STD<8PG> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0908-1011 ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1012-1101 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0908-1011 ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1012- ● ●
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110- ● ●
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110- ● ●
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206- ● ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110- ● ●

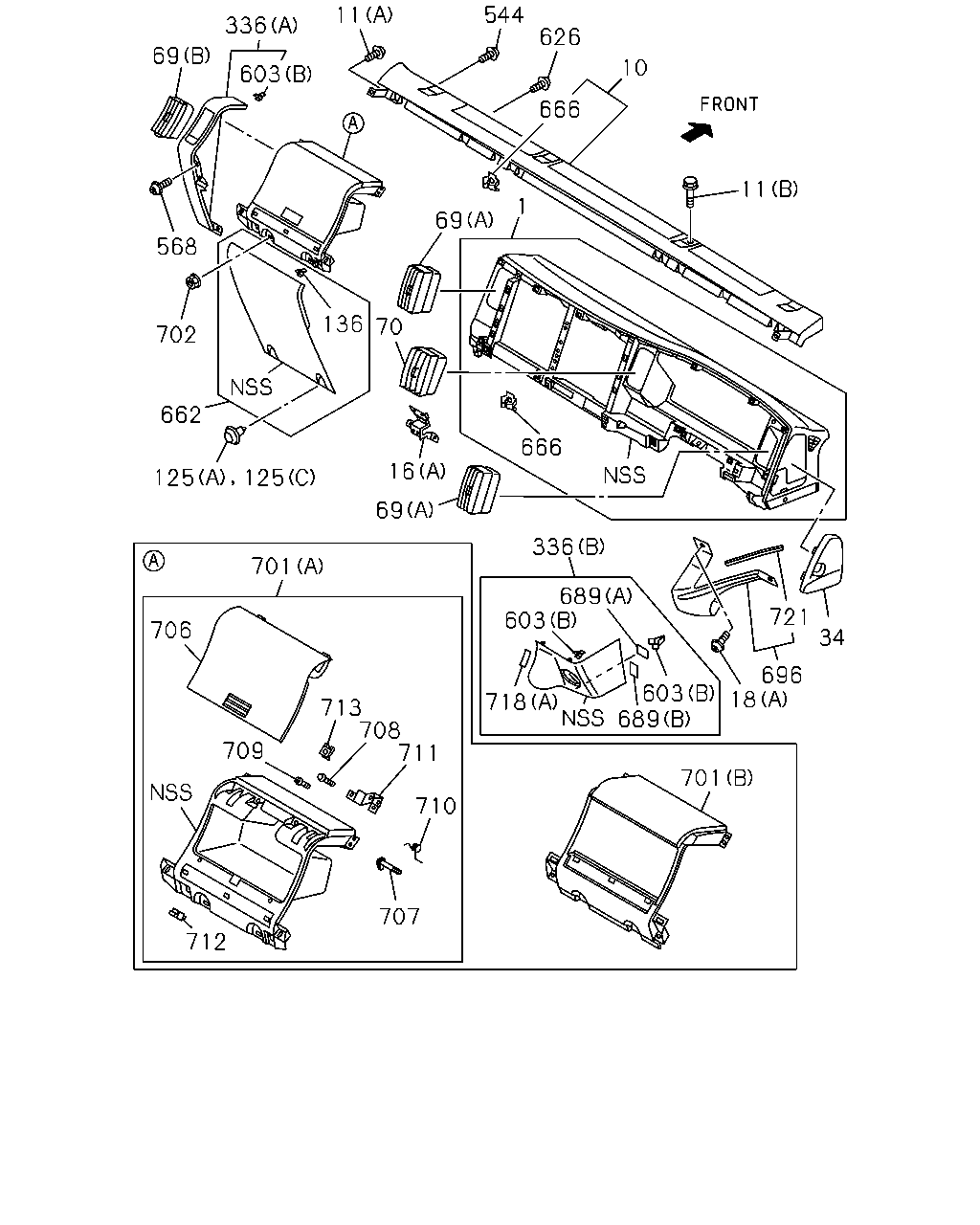

çizim 160104
701 18 721 34 696 603 689 718 603 336 666 689 11 10 626 666 544 11 1 69 70 136 125 16 701 706 709 713 708 711 710 707 712 125 662 702 568 69 336 603 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.080 PANEL; INST
GRAY 		8-97405-253-8 01 1 0908-1011 ●
1 16.080 PANEL; INST
GRAY 		8-97405-253-8 01 1 1012- ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97406-272-4 01 1 0908-1003 ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-684-5 01 1 1004-1011 ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-684-5 01 1 1012- ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0908-1011 ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1012-1101 ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102-1212 ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301- ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0908-1011 ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1012- ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0908-1011 ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1012- ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 0908-1011 ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 1012- ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0908-1011 ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1012- ● ●
18 16.085 BOLT; BRKT
16.650 (A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0908-1011 ●
18 16.085 BOLT; BRKT
16.650 (A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1012-1101 ● ●
18 16.085 BOLT; BRKT
16.585 (A) T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ●
18 16.085 BOLT; BRKT
16.650 (A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0908-1011 ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1012- ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0908-1011 ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1012- ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 0908-1011 ●
34 16.085 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 1012- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0908-1011 ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1012- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0908-1011 ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1012- ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0908-1011 ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1012- ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1002-1011 ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1012- ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97418-529-0 02 1 0910-0911 ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 04 1 0908-0909 ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0910-0911 ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 04 1 0912-1001 ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1002-1011 ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1012- ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 0908-1003 ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 0908-1003 ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1004-1011 ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1012- ● ●
136 16.085 CLIP; INST COVER 8-98021-271-0 05 1 0908-1011 ●
136 16.085 CLIP; INST COVER 8-98021-271-0 05 1 1012- ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 0908-1011 ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 1012- ● ●
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 0908-1011 ●
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 1012- ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0908-1011 ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1012-1101 ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0908-1011 ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1012-1101 ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 0908-1011 ●
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 1012- ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 0908-1003 ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 02 1 0908-1003 ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1004-1004 ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 02 1 1005-1011 ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 02 1 1012- ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1005-1011 ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1012- ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 0908-1011 ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1012- ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97406-260-1 01 1 0908-1011 ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97406-260-1 01 1 1012- ● ●
666 16.085 INSERT; INST PANEL 8-98037-629-0 02 1 0908-1003 ●
666 16.085 INSERT; INST PANEL 8-98037-629-0 15 1 0908-1011 ●
666 16.085 INSERT; INST PANEL 8-98037-629-0 15 1 1012- ● ●
689 09.743 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 0908-1011 ●
689 09.743 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 1012- ● ●
689 09.743 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 0908-1011 ●
689 09.743 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 1012- ● ●
696 16.085 BRACKET; KNEE 8-97589-189-4 01 1 0908-1011 ●
696 16.085 BRACKET; KNEE 8-97589-189-4 01 1 1012-1211 ● ●
696 16.085 BRACKET; KNEE 8-98199-366-0 01 1 1212- ● ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-907-0 01 1 0908-1011 ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-907-0 01 1 1012- ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97406-268-3 01 1 0908-1011 ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97406-268-4 01 1 1012- ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0908-1011 ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97409-510-0 01 1 0908-1011 ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97409-510-0 01 1 1012- ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 0908-1011 ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1012-1311 ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ●
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 0908-1011 ●
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1012- ● ●
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 0908-1011 ●
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1012- ● ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.110 		8-98034-986-0 01 1 0908-1011 ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.110 		8-98034-986-0 01 1 1012-1311 ● ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-398-0 01 1 1312- ● ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.110 		8-98034-987-0 01 1 0908-1011 ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.110 		8-98034-987-0 01 1 1012-1311 ● ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-399-0 01 1 1312- ● ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-98034-928-0 01 1 0908-1011 ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-98034-928-0 01 1 1012-1311 ● ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-97926-396-0 01 1 1312- ● ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-98034-929-0 01 1 0908-1011 ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-98034-929-0 01 1 1012-1311 ● ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-97926-397-0 01 1 1312- ● ●
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 0908-1011 ●
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1012- ● ●
713 16.069 NUT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 08.845 M5 		1-09984-196-0 04 1 0908-1011 ●
713 16.069 NUT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 08.845 M5 		1-09984-196-0 04 1 1012-1311 ● ●
713 16.069 NUT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.085 M5 		8-97926-400-0 04 1 1312- ● ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0908-1011 ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1012- ● ●
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110- ● ●
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110- ● ●
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206- ● ●
721 16.650 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0908-1011 ●
721 16.650 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 1012-1211 ● ●
721 16.650 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1212- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
