2-20B — MANUAL TRANSMISSION ASM AND CASE (#5342) — 1035 parça

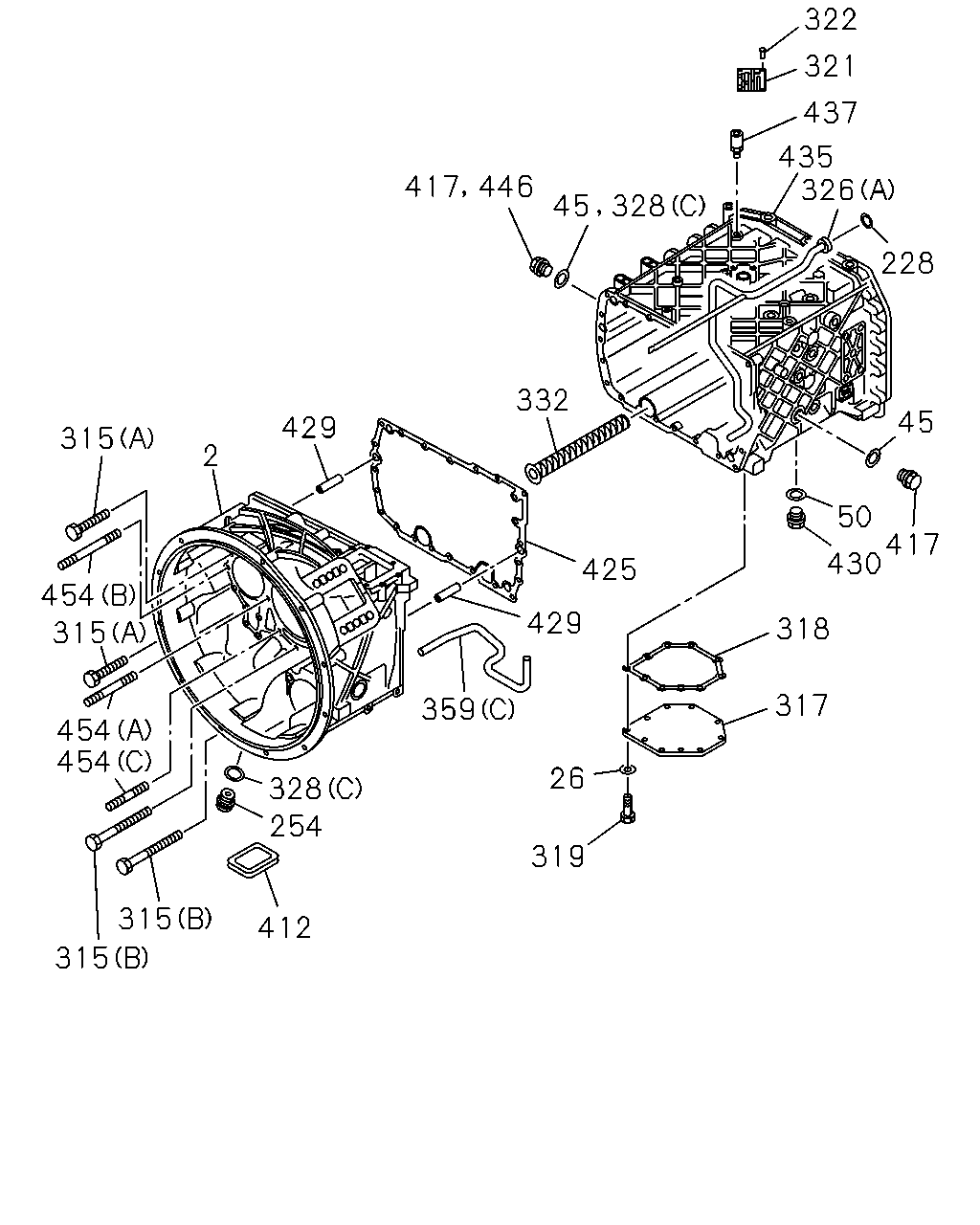

çizim 5879
322 321 437 435 326 228 332 45 429 315 2 50 417 430 425 429 454 318 315 317 359 454 454 26 328 254 319 315 412 315 446 417 45 328
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOUSING; CLU 1-31111-189-0 01 1 9603-9707 ●
2 HOUSING; CLU
EXC. PTO ZF TRANS RR(BDM) 		1-31111-189-0 01 1 9708-9901 ●
2 HOUSING; CLU
PTO ZF TRANS RR(BDM) 		1-31111-194-0 01 1 9708-9901 ●
2 HOUSING; CLU 1-31111-194-0 01 1 9902-9909 ●
2 HOUSING; CLU 1-31111-194-0 01 1 9910- ● ● ●
26 WASHER; PL,COVER 1-09469-010-0 10 1 9603-9909 ●
26 WASHER; PL,COVER 1-09469-010-0 10 1 9910- ● ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) 		1-33119-264-0 01 1 9708-9901 ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 02 1 9902-9909 ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 02 1 9910- ● ● ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 9603-9909 ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 9910- ● ● ●
228 GASKET; NOZZLE 1-33119-273-0 01 1 9603-9707 ●
228 GASKET; NOZZLE
PTO ZF TRANS RR(BDM) 		1-33119-273-0 01 1 9708-9901 ●
228 GASKET; NOZZLE 1-33119-273-0 01 1 9902-9909 ●
228 GASKET; NOZZLE 1-33119-273-0 01 1 9910- ● ● ●
228 GASKET; NOZZLE
EXC. PTO ZF TRANS RR(BDM) 		1-33119-273-0 01 1 9708-9901 ●
254 PLUG; DRAIN,OIL 1-33119-263-0 01 1 9603-9707 ●
254 PLUG; DRAIN,OIL 1-33119-376-0 01 1 9708-9909 ●
254 PLUG; DRAIN,OIL 1-33119-376-0 01 1 9910- ● ● ●
315 BOLT; CASE
(A) 		1-33119-266-0 15 1 9603-9909 ●
315 BOLT; CASE
(A) 		1-33119-266-0 15 1 9910- ● ● ●
315 BOLT; CASE
(B) 		1-33119-267-0 07 1 9603-9909 ●
315 BOLT; CASE
(B) 		1-33119-267-0 07 1 9910- ● ● ●
317 COVER; CASE 1-33119-274-0 01 1 9603-9909 ●
317 COVER; CASE 1-33119-274-0 01 1 9910- ● ● ●
318 GASKET; COVER 1-33119-275-0 01 1 9603-9901 ●
318 GASKET; COVER 1-33119-409-0 01 1 9902-9909 ●
318 GASKET; COVER 1-33119-409-0 01 1 9910- ● ● ●
319 BOLT; COVER 1-33119-276-0 10 1 9603-9909 ●
319 BOLT; COVER 1-33119-276-0 10 1 9910- ● ● ●
321 PLATE; NAME 1-33119-277-0 01 1 9603-9909 ●
321 PLATE; NAME 1-33119-277-0 01 1 9910- ● ● ●
322 RIVET; NAME PLATE 1-36119-006-0 04 1 9603-9707 ●
322 RIVET; NAME PLATE
PTO ZF TRANS RR(BDM) 		1-33119-398-0 04 1 9708-9807 ●
322 RIVET; NAME PLATE 1-33119-398-0 04 1 9808-9909 ●
322 RIVET; NAME PLATE 1-33119-398-0 04 1 9910- ● ● ●
322 RIVET; NAME PLATE
EXC. PTO ZF TRANS RR(BDM) 		1-33449-398-0 04 1 9708-9807 ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 9603-9707 ●
326 NOZZLE; OIL,OUTLET
PTO ZF TRANS RR(BDM) (A) 		1-33119-282-0 01 1 9708-9901 ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 9902- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 9603-9909 ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 9910- ● ● ●
326 NOZZLE; OIL,OUTLET
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33119-282-0 01 1 9708-9901 ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-272-0 01 1 9910- ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 9603-9909 ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 9910- ● ● ●
328 GASKET; PLUG
(C) 		1-33119-264-0 03 1 9603-9707 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 02 1 9708-9901 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 9902-9909 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 9910- ● ● ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 9603-9909 ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 9910- ● ● ●
332 FILTER; OIL 1-33119-157-0 01 1 9603-9707 ●
332 FILTER; OIL
PTO ZF TRANS RR(BDM) 		1-33119-370-0 01 1 9708-9901 ●
332 FILTER; OIL 1-33119-370-0 01 1 9902-9909 ●
332 FILTER; OIL 1-33119-370-0 01 1 9910- ● ● ●
332 FILTER; OIL
EXC. PTO ZF TRANS RR(BDM) 		1-33119-157-0 01 1 9708-9901 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49115-055-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49117-645-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-936-0 01 1 9711-9901 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-463-1 01 1 9902-9904 ●
359 PIPE; AIR,TRANS TO UNION
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) 		1-49119-463-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49115-949-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49117-647-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-938-0 01 1 9711-9901 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-464-1 01 1 9902-9904 ●
359 PIPE; AIR,TRANS TO UNION
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (B) 		1-49119-464-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9708-9909 ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9910- ● ● ●
359 PIPE; AIR,TRANS TO UNION
(A) A/T-UNION 		1-49118-935-0 01 1 9910- ●
359 PIPE; AIR,TRANS TO UNION
(B) UNION-A/M 		1-49118-937-0 01 1 9910- ●
412 CAP; CLU HSG 1-31119-022-0 01 1 9603-9909 ●
412 CAP; CLU HSG 1-31119-022-0 01 1 9910- ● ● ●
417 PLUG; OIL FILLER,TRANS
PTO ZF TRANS RR(BDM) 		1-33119-268-0 01 1 9708-9901 ●
417 PLUG; OIL FILLER,TRANS 1-33119-268-0 02 1 9902-9909 ●
417 PLUG; OIL FILLER,TRANS 1-33119-268-0 02 1 9910- ● ● ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-262-0 01 1 9603-9909 ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-262-0 01 1 9910- ● ● ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 9603-9909 ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 9910- ● ● ●
430 PLUG; OIL DRAIN 1-33119-268-0 01 1 9603-9909 ●
430 PLUG; OIL DRAIN 1-33119-268-0 01 1 9910- ● ● ●
435 CASE; TRANS 1-33111-275-0 01 1 9603-9901 ●
435 CASE; TRANS 1-33111-286-0 01 1 9902- ●
435 CASE; TRANS 1-33111-290-0 01 1 9910- ●
437 BREATHER; TRANS 1-36122-004-0 01 1 9603-9909 ●
437 BREATHER; TRANS 1-36122-004-0 01 1 9910- ● ● ●
446 PLUG; CASE,TRANS 1-33119-268-0 02 1 9603-9707 ●
446 PLUG; CASE,TRANS
PTO ZF TRANS RR(BDM) 		1-33119-268-0 01 1 9708-9901 ●
446 PLUG; CASE,TRANS
EXC. PTO ZF TRANS RR(BDM) 		1-33119-268-0 02 1 9708-9901 ●
454 STUD; CLU HSG
PTO ZF TRANS RR(BDM) (A) M10 L=50 		1-33119-381-0 04 1 9708-9901 ●
454 STUD; CLU HSG
(A) M10 L=50 		1-33119-381-0 04 1 9902-9909 ●
454 STUD; CLU HSG
(A) M10 L=50 		1-33119-381-0 04 1 9910- ● ● ●
454 STUD; CLU HSG
PTO ZF TRANS RR(BDM) (B) M10 L=80 		1-33119-393-0 08 1 9708-9901 ●
454 STUD; CLU HSG
(B) M10 L=80 		1-33119-393-0 08 1 9902-9909 ●
454 STUD; CLU HSG
(B) M10 L=80 		1-33119-393-0 08 1 9910- ● ● ●
454 STUD; CLU HSG
PTO ZF TRANS RR(BDM) (C) M10 L=25 		1-33119-394-0 11 1 9708-9901 ●
454 STUD; CLU HSG
(C) M10 L=25 		1-33119-394-0 11 1 9902-9909 ●
454 STUD; CLU HSG
(C) M10 L=25 		1-33119-394-0 11 1 9910- ● ● ●

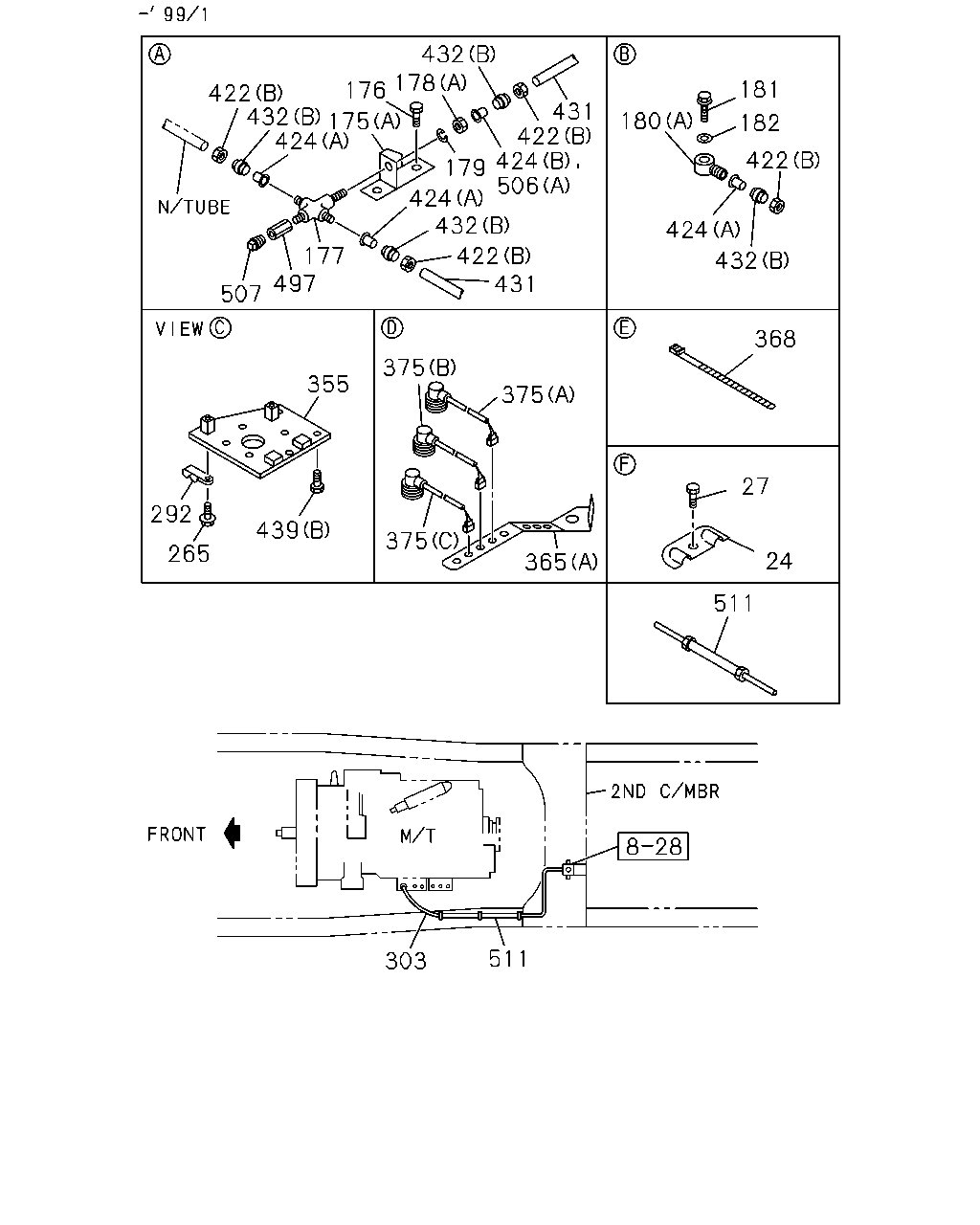

çizim 5998
432 178 181 176 422 432 175 424 431 422 424 506 180 182 422 179 424 432 424 422 431 177 497 432 507 368 375 355 375 292 27 439 375 265 24 365 511 511 303
BalonParca AdiParca NoAdetTipApplied Date A B C
24 COVER; CHECK HOLE,DUST 1-31131-038-0 02 1 9603-9704 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9705-9901 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9902-9909 ● ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9910- ● ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9603-9901 ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9902-9909 ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9910- ● ● ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 9603-9901 ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 9902-9912 ● ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 0001- ● ● ●
175 BRACKET; UNION
(B) 		1-47478-633-0 01 1 9910-9912 ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9603-9901 ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9902-9909 ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9910- ● ● ●
177 UNION; NYLON TUBE 1-09664-070-0 01 1 9603-9901 ●
178 NUT; UNION
(A) M14 		9-99110-414-0 01 1 9603-9901 ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9603-9904 ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9905-9909 ● ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9910- ● ● ●
179 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9603-9901 ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9603-9901 ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9902-9909 ● ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9910- ● ● ●
180 CONNECTOR; NYLON TUBE
(B) 		1-09660-466-0 01 1 9603-9901 ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9603-9901 ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9902-9909 ● ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9910- ● ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9603-9901 ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9902-9909 ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9910- ● ● ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9603-9901 ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9902- ● ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9910- ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9603-9901 ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9902-9909 ● ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9910- ● ● ●
303 TUBE; NYLON
SERVICED BY L=30000 OD=8 		1-09369-578-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0003- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9902-9909 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9910- ● ● ●
355 BRACKET; OIL PIPE 1-47477-465-1 01 1 9603-9901 ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 9902- ● ●
355 BRACKET; OIL PIPE 1-47477-500-1 01 1 9910- ●
365 BRACKET; HARNESS
(A) 		1-82699-490-2 01 1 9603-9901 ●
365 BRACKET; HARNESS
(A) 		1-82699-490-2 01 1 9902-9909 ● ●
365 BRACKET; HARNESS
(A) 		1-82699-490-2 01 1 9910- ● ● ●
365 BRACKET; HARNESS
(B) 		1-47478-012-0 01 1 9910-0008 ●
365 BRACKET; HARNESS
(C) 		1-47479-047-0 01 1 0009- ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-0 02 1 9603-9901 ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 9902-9909 ● ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 9910- ● ● ●
375 CABLE; TRANS
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) RED NEWTRAL L=250 		1-82659-134-1 01 1 9603-9901 ●
375 CABLE; TRANS
(A) RED NEWTRAL L=250 		1-82659-134-1 01 1 9902-9909 ● ●
375 CABLE; TRANS
(A) RED NEWTRAL L=250 		1-82659-134-1 01 1 9910- ● ● ●
375 CABLE; TRANS
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (B) BACK LAMP L=580 		1-82659-135-1 01 1 9603-9901 ●
375 CABLE; TRANS
(B) BACK LAMP L=580 		1-82659-135-1 01 1 9902-9909 ● ●
375 CABLE; TRANS
(B) BACK LAMP L=580 		1-82659-135-1 01 1 9910- ● ● ●
375 CABLE; TRANS
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (C) YELLOW SPRITTER SW L=880 		1-82659-137-1 01 1 9603-9901 ●
375 CABLE; TRANS
(C) YELLOW SPRITTER SW L=880 		1-82659-137-1 01 1 9902-9909 ●
375 CABLE; TRANS
(C) YELLOW SPRITTER SW L=880 		1-82659-137-1 01 1 9910- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 04 1 9603-9901 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9902-9909 ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9910- ● ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9603-9910 ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9911- ● ●
424 RING; INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 02 1 9603-9901 ●
424 RING; INSERT
(B) ID=4.2 OD=5 L=18 		1-09669-089-0 01 1 9603-9901 ●
431 TUBE; NYLON
10PE1S(60L) L=1300 SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9603-9901 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 04 1 9603-9901 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9902-9909 ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9910- ● ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9603-9910 ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9911- ● ●
439 BOLT; BRKT
(A) M10X20 FLANGE 		0-28781-020-0 01 1 9603-9901 ●
439 BOLT; BRKT
(C) M16X35 FLANGE 		0-28881-635-0 04 1 9902- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9603-9901 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9902-9909 ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9910- ● ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9603-9901 ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9910- ●
439 BOLT; BRKT
(A) M16X40 FLANGE 		0-28881-640-0 01 1 9910- ●
497 ADAPTER; PLUG 1-09660-880-0 01 1 9603-9901 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9603-9901 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9902-9909 ● ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9910- ● ● ●
506 INSERT
(B) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9603-9901 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9603-9910 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9911- ● ●
507 PLUG; UNION
PT1/4 		9-99204-513-0 01 1 9603-9901 ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9603-9901 ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9603-9904 ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9905-9909 ● ●
511 TUBE; CORRUGATE
6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1TC-R(93L) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9910-9910 ● ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9910-9910 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9911- ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9902-9909 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9910- ● ● ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 9902-9909 ● ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 9910- ● ● ●

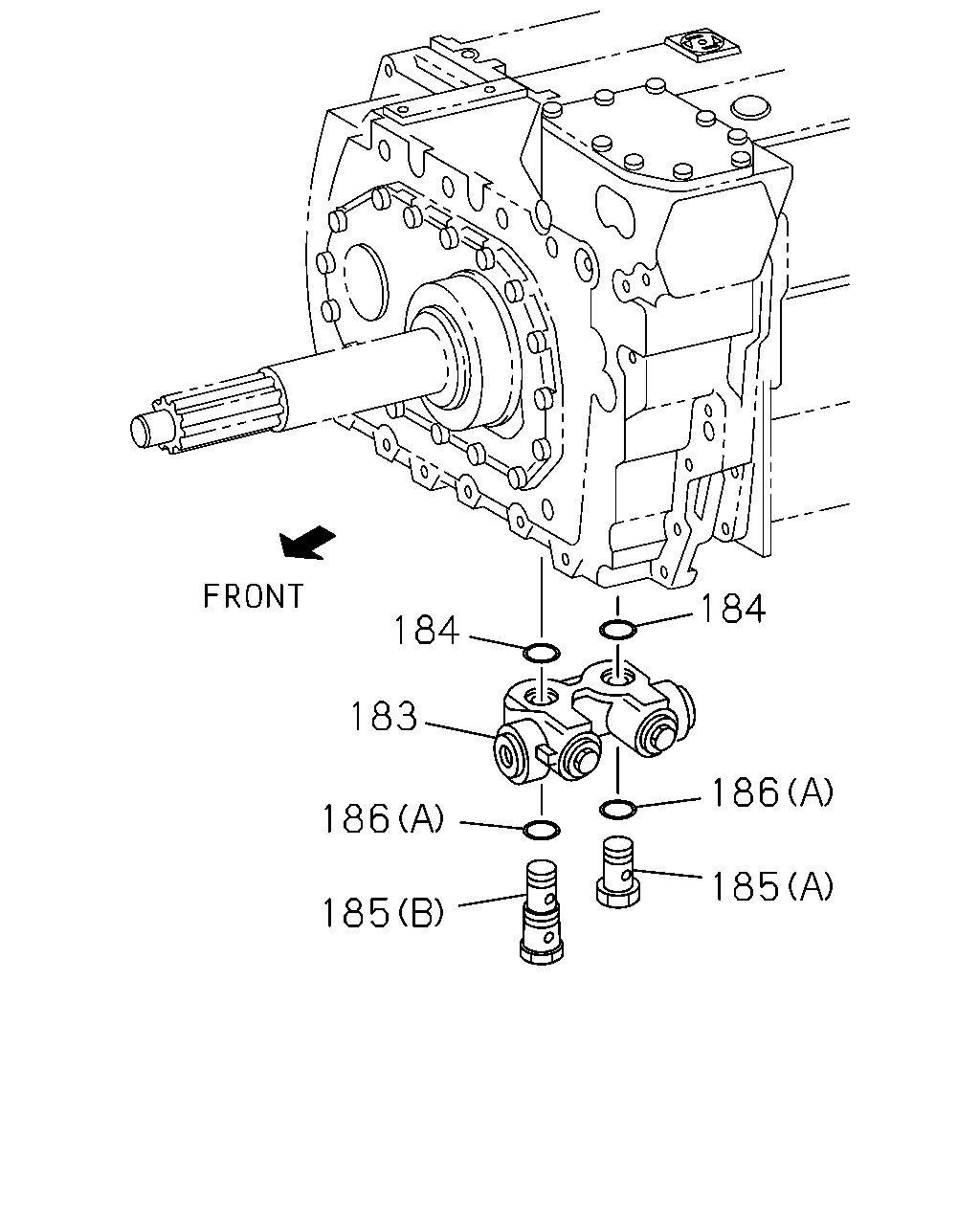

çizim 6053
184 184 183 186 186 185 185
BalonParca AdiParca NoAdetTipApplied Date A B C
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 9603-9901 ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 9902-9909 ● ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 9910- ● ● ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 9603-9901 ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 9902-9909 ● ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 9910- ● ● ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 9603-9901 ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 9902-9909 ● ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 9910- ● ● ●
185 UNION; SCREW,BYPASS VLV
(B) L=67 		1-32567-014-0 01 1 9603-9701 ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 9702-9901 ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 9902-9909 ● ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 9910- ● ● ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9603-9901 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9902-9909 ● ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9910- ● ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9603-9901 ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9902-9909 ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9910- ● ● ●

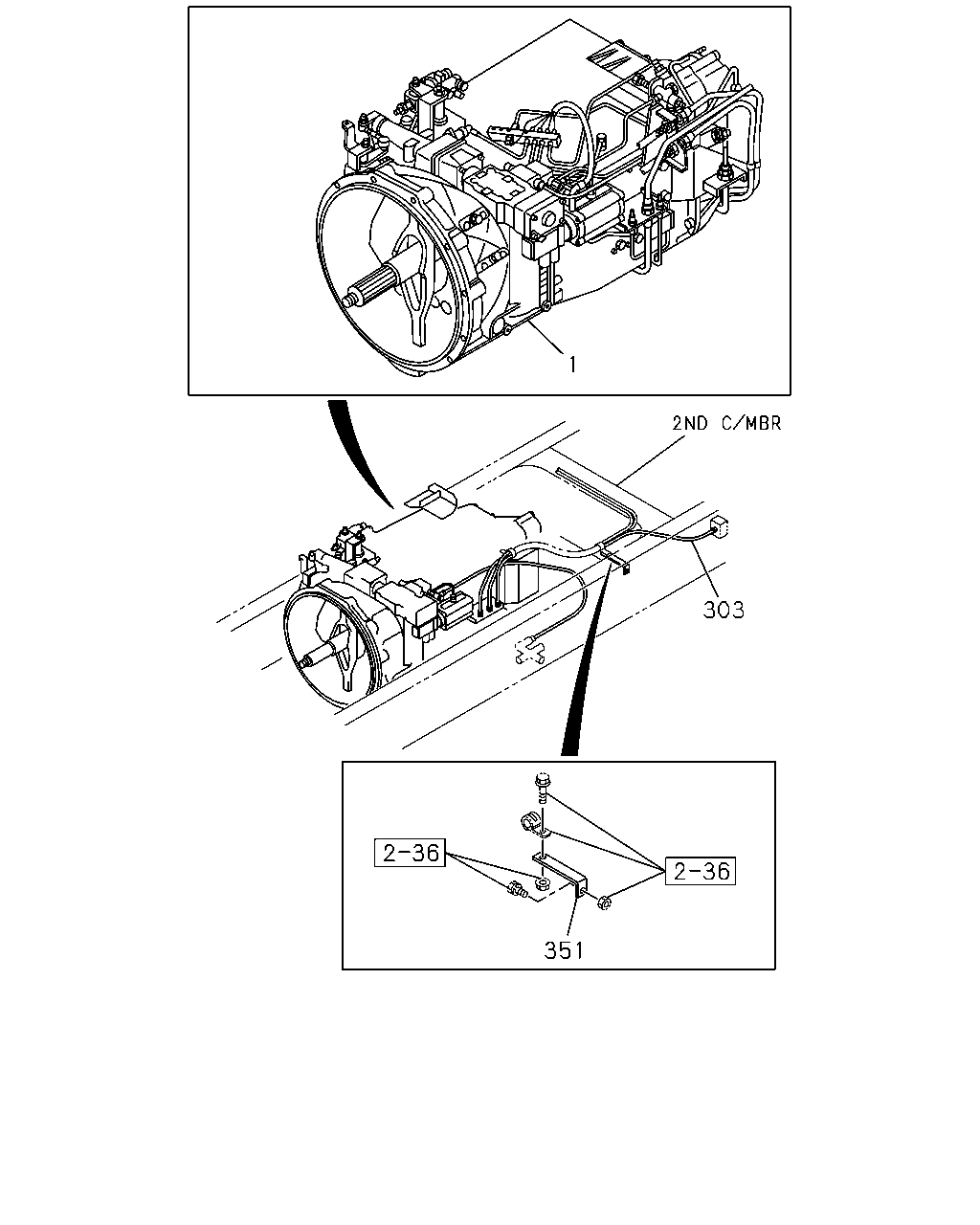

çizim 6996
1 303 351
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TRANSMISSION ASM; MANUAL
6WA1 TC-C(55L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33042-020-0 01 1 9902-9906 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) EXC. PTO ZF TRANS RR(BDM) 		1-33042-020-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) 		1-33042-019-0 01 1 9902-9906 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) 		1-33042-019-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-019-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33040-359-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33041-633-0 01 1 9708-9901 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-C(55L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33040-584-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33041-634-0 01 1 9708-9901 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-C(55L),6WA1 TC-R(93L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-163-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-164-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33043-021-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
6WG1 TC-C(72L) SHIFT CONTROL ASSISTER<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33043-020-0 01 1 9910- ●
303 TUBE; NYLON
SERVICED BY L=30000 OD=8 		1-09369-578-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0003- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9902-9909 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9910- ● ● ●
351 BRACKET; UNION,FLEX HOSE
L=125 		1-47475-897-0 01 1 9905-0001 ●

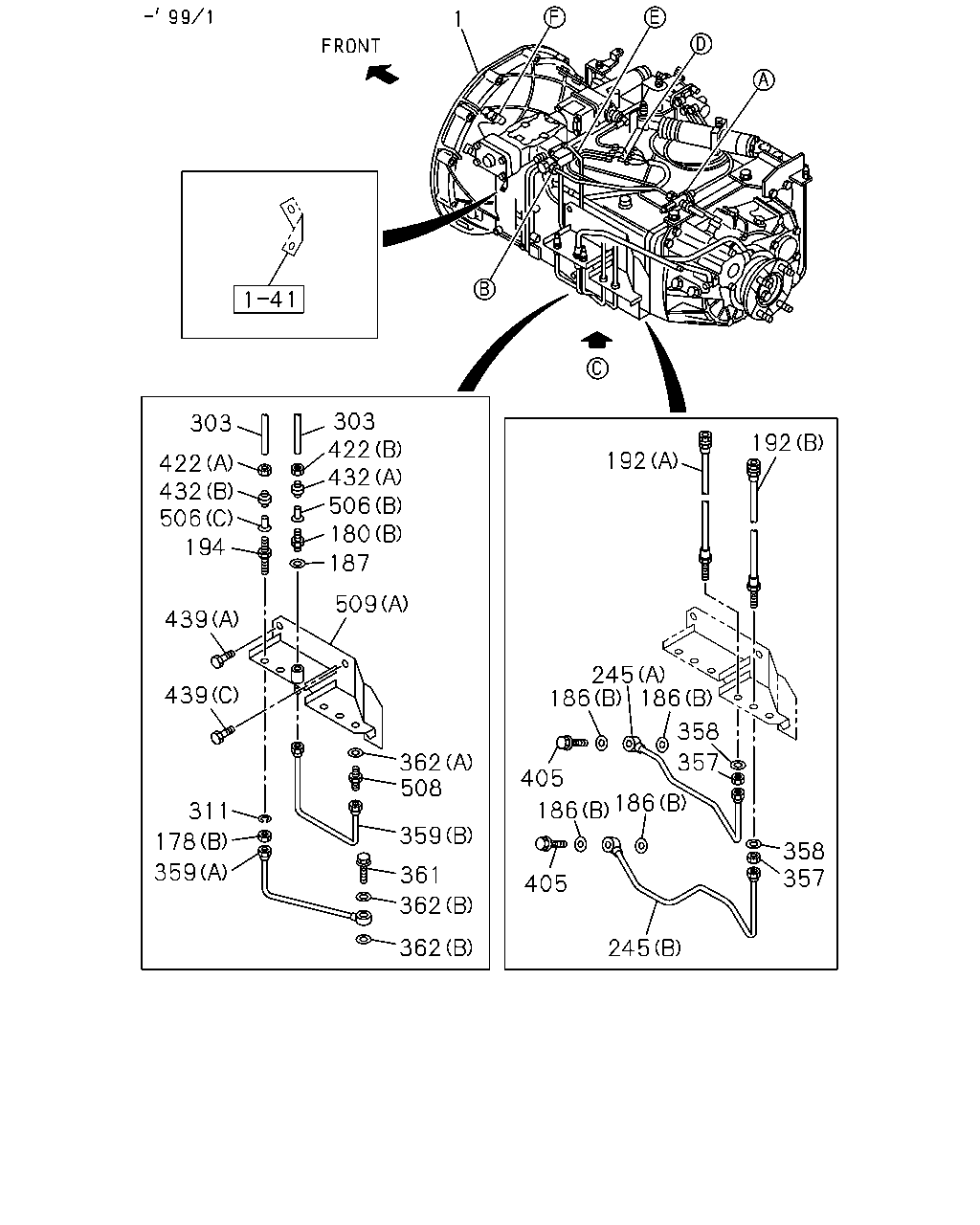

çizim 7000
1 303 422 432 506 180 303 192 192 422 432 506 194 187 509 439 245 186 186 439 358 357 362 508 405 186 186 311 359 178 358 357 359 361 405 362 362 245
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TRANSMISSION ASM; MANUAL
6WA1 TC-C(55L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33042-020-0 01 1 9902-9906 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) EXC. PTO ZF TRANS RR(BDM) 		1-33042-020-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) 		1-33042-019-0 01 1 9902-9906 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) 		1-33042-019-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-019-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33040-359-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33041-633-0 01 1 9708-9901 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-C(55L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33040-584-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33041-634-0 01 1 9708-9901 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-C(55L),6WA1 TC-R(93L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-163-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-164-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33043-021-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
6WG1 TC-C(72L) SHIFT CONTROL ASSISTER<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33043-020-0 01 1 9910- ●
178 NUT; UNION
(A) M14 		9-99110-414-0 01 1 9603-9901 ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9603-9904 ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9905-9909 ● ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9910- ● ● ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9603-9901 ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9902-9909 ● ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9910- ● ● ●
180 CONNECTOR; NYLON TUBE
(B) 		1-09660-466-0 01 1 9603-9901 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9603-9901 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9902-9909 ● ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9910- ● ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9603-9901 ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9902-9909 ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9910- ● ● ●
187 GASKET; CONNECTOR
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9603-9901 ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=400 		1-09364-913-0 01 1 9603-9603 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) (B) OUTLET L=400 		1-09364-913-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=400 		1-09364-913-0 01 1 9610-9701 ●
192 HOSE; FLEX,TRANS
(A) INLET L=500 		1-09364-914-0 01 1 9702-9901 ●
192 HOSE; FLEX,TRANS
(A) INLET L=500 		1-09364-914-0 01 1 9603-9603 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) (A) INLET L=500 		1-09364-914-0 01 1 9604-9701 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) (B) OUTLET L=400 		1-09364-913-0 01 1 9702-9804 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) (B) OUTLET L=311 		1-09364-921-0 01 1 9805-9901 ●
192 HOSE; FLEX,TRANS
(A) INLET L=535 		1-09364-936-0 01 1 9902-9904 ● ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (A) INLET L=535 		1-09364-936-0 01 1 9905- ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L) (B) OUTLET L=410 		1-09364-935-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
10PE1S(60L) (A) INLET L=535 		1-09364-936-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
10PE1S(60L) (B) OUTLET L=406 		1-09364-961-0 01 1 9610-9901 ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=406 		1-09364-961-0 01 1 9902-9904 ● ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) OUTLET L=406 		1-09364-961-0 01 1 9905-9909 ● ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) OUTLET L=406 		1-09364-961-0 01 1 9912-0003 ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) OUTLET L=400 		1-09364-913-0 01 1 9905-9911 ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) OUTLET L=400 		1-09364-913-0 01 1 9912-0003 ● ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=400 		1-09364-913-0 01 1 9912-0003 ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) OUTLET L=400 		1-09364-913-0 01 1 0004- ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) INLET L=500 		1-09364-914-0 01 1 9905-9911 ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) INLET L=500 		1-09364-914-0 01 1 9912-0003 ● ●
192 HOSE; FLEX,TRANS
(A) INLET L=500 		1-09364-914-0 01 1 9912-0003 ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) INLET L=500 		1-09364-914-0 01 1 0004- ● ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=311 		1-09364-921-0 01 1 9910-9911 ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=311 		1-09364-921-0 01 1 0004- ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) OUTLET L=406 		1-09364-961-0 01 1 0004- ● ●
192 HOSE; FLEX,TRANS
(A) INLET L=406 		1-09364-961-0 01 1 0004- ●
192 HOSE; FLEX,TRANS
(A) INLET L=406 		1-09364-961-0 01 1 9910-9911 ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) OUTLET L=406 		1-09364-961-0 01 1 9910-9911 ● ●
194 UNION; NYLON TUBE
UNION M14 		1-09664-230-0 01 1 9603-9909 ●
194 UNION; NYLON TUBE
UNION M14 		1-09664-230-0 01 1 9910- ● ●
245 PIPE; OIL
(A) INLET 		1-47428-569-0 01 1 9603-9608 ●
245 PIPE; OIL
(A) INLET 		1-49161-057-0 01 1 9609-9901 ●
245 PIPE; OIL
(A) INLET 		1-49119-467-1 01 1 9902-9906 ● ●
245 PIPE; OIL
(A) INLET 		1-49122-031-0 01 1 9907- ● ●
245 PIPE; OIL
(B) OUTLET 		1-47428-570-0 01 1 9603-9608 ●
245 PIPE; OIL
(B) OUTLET 		1-49161-058-0 01 1 9609-9901 ●
245 PIPE; OIL
(B) OUTLET 		1-49119-468-1 01 1 9902- ● ●
245 PIPE; OIL
(B) OUTLET 		1-49161-055-0 01 1 9910- ●
245 PIPE; OIL
(A) INLET 		1-49161-061-0 01 1 9910- ●
303 TUBE; NYLON
SERVICED BY L=30000 OD=8 		1-09369-578-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0003- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9902-9909 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9910- ● ● ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9603-9904 ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9905-9909 ● ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9910- ● ● ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9603-9901 ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9902-9909 ● ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9910- ● ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9603-9901 ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9902-9909 ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9910- ● ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49115-055-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49117-645-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-936-0 01 1 9711-9901 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-463-1 01 1 9902-9904 ●
359 PIPE; AIR,TRANS TO UNION
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) 		1-49119-463-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49115-949-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49117-647-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-938-0 01 1 9711-9901 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-464-1 01 1 9902-9904 ●
359 PIPE; AIR,TRANS TO UNION
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (B) 		1-49119-464-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9708-9909 ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9910- ● ● ●
359 PIPE; AIR,TRANS TO UNION
(A) A/T-UNION 		1-49118-935-0 01 1 9910- ●
359 PIPE; AIR,TRANS TO UNION
(B) UNION-A/M 		1-49118-937-0 01 1 9910- ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-082-0 01 1 9603-9611 ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 9612-9909 ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 9910- ● ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9603-9909 ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9910- ● ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 9603-9909 ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 9910- ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9603-9901 ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9902-9909 ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9910- ● ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 04 1 9603-9901 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9902-9909 ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9910- ● ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9603-9910 ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9911- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 04 1 9603-9901 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9902-9909 ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9910- ● ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9603-9910 ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9911- ● ●
439 BOLT; BRKT
(A) M10X20 FLANGE 		0-28781-020-0 01 1 9603-9901 ●
439 BOLT; BRKT
(C) M16X35 FLANGE 		0-28881-635-0 04 1 9902- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9603-9901 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9902-9909 ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9910- ● ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9603-9901 ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9910- ●
439 BOLT; BRKT
(A) M16X40 FLANGE 		0-28881-640-0 01 1 9910- ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9603-9901 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9902-9909 ● ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9910- ● ● ●
506 INSERT
(B) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9603-9901 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9603-9910 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9911- ● ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 9603-9909 ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 9910- ● ●
509 BRACKET; PIPE
(A) 		1-47477-551-0 01 1 9603-9901 ●
509 BRACKET; PIPE
(B) 		1-47478-215-2 01 1 9902- ● ●
509 BRACKET; PIPE
(C) 		1-47477-447-2 01 1 9910- ●

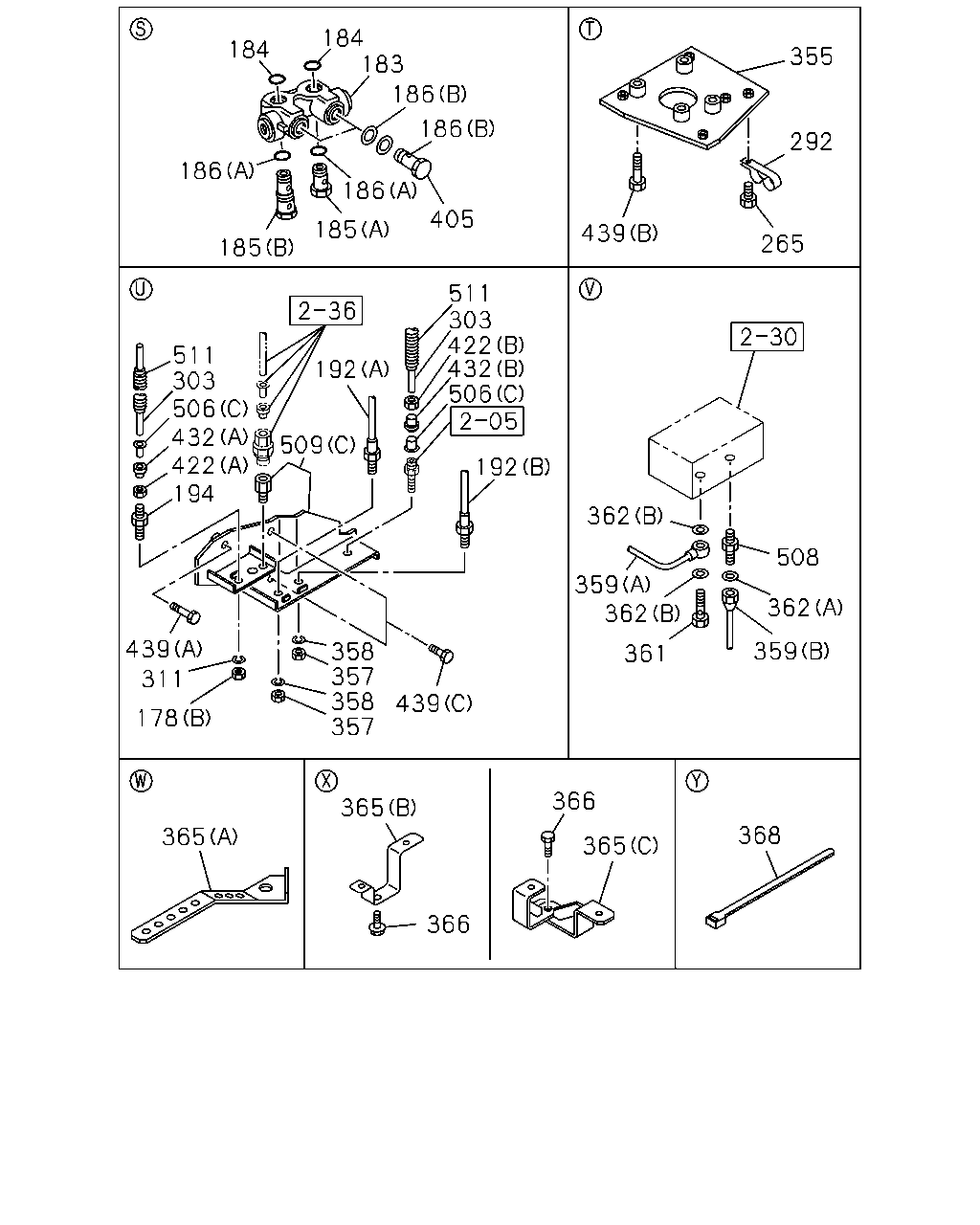

çizim 7006
184 183 184 355 186 186 292 186 186 405 185 439 265 185 511 303 422 432 506 511 303 506 432 422 194 192 509 192 362 508 359 362 362 439 311 359 358 357 358 357 361 439 178 365 366 368 365 365 366
BalonParca AdiParca NoAdetTipApplied Date A B C
178 NUT; UNION
(A) M14 		9-99110-414-0 01 1 9603-9901 ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9603-9904 ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9905-9909 ● ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9910- ● ● ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 9603-9901 ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 9902-9909 ● ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 9910- ● ● ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 9603-9901 ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 9902-9909 ● ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 9910- ● ● ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 9603-9901 ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 9902-9909 ● ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 9910- ● ● ●
185 UNION; SCREW,BYPASS VLV
(B) L=67 		1-32567-014-0 01 1 9603-9701 ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 9702-9901 ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 9902-9909 ● ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 9910- ● ● ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9603-9901 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9902-9909 ● ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9910- ● ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9603-9901 ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9902-9909 ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9910- ● ● ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=400 		1-09364-913-0 01 1 9603-9603 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) (B) OUTLET L=400 		1-09364-913-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=400 		1-09364-913-0 01 1 9610-9701 ●
192 HOSE; FLEX,TRANS
(A) INLET L=500 		1-09364-914-0 01 1 9702-9901 ●
192 HOSE; FLEX,TRANS
(A) INLET L=500 		1-09364-914-0 01 1 9603-9603 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) (A) INLET L=500 		1-09364-914-0 01 1 9604-9701 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) (B) OUTLET L=400 		1-09364-913-0 01 1 9702-9804 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) (B) OUTLET L=311 		1-09364-921-0 01 1 9805-9901 ●
192 HOSE; FLEX,TRANS
(A) INLET L=535 		1-09364-936-0 01 1 9902-9904 ● ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (A) INLET L=535 		1-09364-936-0 01 1 9905- ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L) (B) OUTLET L=410 		1-09364-935-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
10PE1S(60L) (A) INLET L=535 		1-09364-936-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
10PE1S(60L) (B) OUTLET L=406 		1-09364-961-0 01 1 9610-9901 ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=406 		1-09364-961-0 01 1 9902-9904 ● ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) OUTLET L=406 		1-09364-961-0 01 1 9905-9909 ● ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) OUTLET L=406 		1-09364-961-0 01 1 9912-0003 ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) OUTLET L=400 		1-09364-913-0 01 1 9905-9911 ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) OUTLET L=400 		1-09364-913-0 01 1 9912-0003 ● ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=400 		1-09364-913-0 01 1 9912-0003 ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) OUTLET L=400 		1-09364-913-0 01 1 0004- ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) INLET L=500 		1-09364-914-0 01 1 9905-9911 ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) INLET L=500 		1-09364-914-0 01 1 9912-0003 ● ●
192 HOSE; FLEX,TRANS
(A) INLET L=500 		1-09364-914-0 01 1 9912-0003 ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) INLET L=500 		1-09364-914-0 01 1 0004- ● ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=311 		1-09364-921-0 01 1 9910-9911 ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=311 		1-09364-921-0 01 1 0004- ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) OUTLET L=406 		1-09364-961-0 01 1 0004- ● ●
192 HOSE; FLEX,TRANS
(A) INLET L=406 		1-09364-961-0 01 1 0004- ●
192 HOSE; FLEX,TRANS
(A) INLET L=406 		1-09364-961-0 01 1 9910-9911 ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) OUTLET L=406 		1-09364-961-0 01 1 9910-9911 ● ●
194 UNION; NYLON TUBE
UNION M14 		1-09664-230-0 01 1 9603-9909 ●
194 UNION; NYLON TUBE
UNION M14 		1-09664-230-0 01 1 9910- ● ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9603-9901 ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9902- ● ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9910- ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9603-9901 ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9902-9909 ● ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9910- ● ● ●
303 TUBE; NYLON
SERVICED BY L=30000 OD=8 		1-09369-578-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0003- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9902-9909 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9910- ● ● ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9603-9904 ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9905-9909 ● ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9910- ● ● ●
355 BRACKET; OIL PIPE 1-47477-465-1 01 1 9603-9901 ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 9902- ● ●
355 BRACKET; OIL PIPE 1-47477-500-1 01 1 9910- ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9603-9901 ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9902-9909 ● ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9910- ● ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9603-9901 ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9902-9909 ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9910- ● ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49115-055-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49117-645-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-936-0 01 1 9711-9901 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-463-1 01 1 9902-9904 ●
359 PIPE; AIR,TRANS TO UNION
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) 		1-49119-463-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49115-949-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49117-647-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-938-0 01 1 9711-9901 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-464-1 01 1 9902-9904 ●
359 PIPE; AIR,TRANS TO UNION
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (B) 		1-49119-464-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9708-9909 ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9910- ● ● ●
359 PIPE; AIR,TRANS TO UNION
(A) A/T-UNION 		1-49118-935-0 01 1 9910- ●
359 PIPE; AIR,TRANS TO UNION
(B) UNION-A/M 		1-49118-937-0 01 1 9910- ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-082-0 01 1 9603-9611 ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 9612-9909 ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 9910- ● ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9603-9909 ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9910- ● ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 9603-9909 ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 9910- ● ●
365 BRACKET; HARNESS
(A) 		1-82699-490-2 01 1 9603-9901 ●
365 BRACKET; HARNESS
(A) 		1-82699-490-2 01 1 9902-9909 ● ●
365 BRACKET; HARNESS
(A) 		1-82699-490-2 01 1 9910- ● ● ●
365 BRACKET; HARNESS
(B) 		1-47478-012-0 01 1 9910-0008 ●
365 BRACKET; HARNESS
(C) 		1-47479-047-0 01 1 0009- ●
366 BOLT; BRKT,HARNESS
M10X16 FLANGE 		0-28181-016-0 01 1 9910-0008 ●
366 BOLT; BRKT,HARNESS
M12X25 FLANGE 		0-28181-225-0 01 1 0009- ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-0 02 1 9603-9901 ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 9902-9909 ● ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 9910- ● ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9603-9901 ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9902-9909 ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9910- ● ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 04 1 9603-9901 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9902-9909 ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9910- ● ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9603-9910 ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9911- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 04 1 9603-9901 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9902-9909 ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9910- ● ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9603-9910 ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9911- ● ●
439 BOLT; BRKT
(A) M10X20 FLANGE 		0-28781-020-0 01 1 9603-9901 ●
439 BOLT; BRKT
(C) M16X35 FLANGE 		0-28881-635-0 04 1 9902- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9603-9901 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9902-9909 ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9910- ● ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9603-9901 ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9910- ●
439 BOLT; BRKT
(A) M16X40 FLANGE 		0-28881-640-0 01 1 9910- ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9603-9901 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9902-9909 ● ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9910- ● ● ●
506 INSERT
(B) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9603-9901 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9603-9910 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9911- ● ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 9603-9909 ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 9910- ● ●
509 BRACKET; PIPE
(A) 		1-47477-551-0 01 1 9603-9901 ●
509 BRACKET; PIPE
(B) 		1-47478-215-2 01 1 9902- ● ●
509 BRACKET; PIPE
(C) 		1-47477-447-2 01 1 9910- ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9603-9901 ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9603-9904 ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9905-9909 ● ●
511 TUBE; CORRUGATE
6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1TC-R(93L) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9910-9910 ● ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9910-9910 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9911- ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9902-9909 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9910- ● ● ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 9902-9909 ● ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 9910- ● ● ●

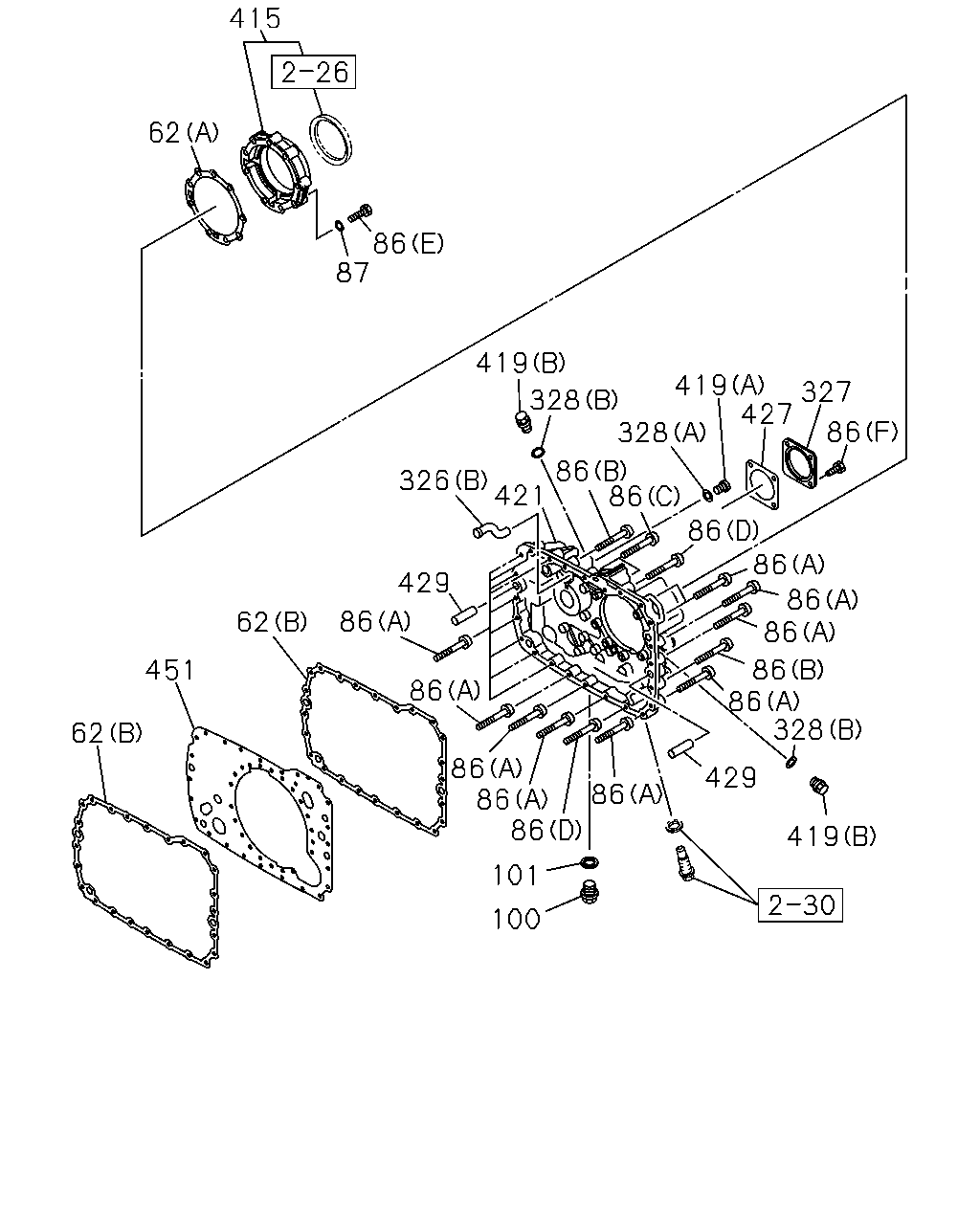

çizim 7007
415 62 86 87 419 419 327 427 328 328 86 86 86 86 86 326 421 429 86 86 86 62 86 86 328 451 86 62 86 86 86 429 86 419 101 100
BalonParca AdiParca NoAdetTipApplied Date A B C
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33132-065-0 02 1 9603-9707 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). EXC. PTO ZF TRANS RR(BDM) (B) 		1-33132-065-0 02 1 9708-9901 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33139-053-0 01 1 9603-9909 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33139-053-0 01 1 9910- ● ● ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) (B) 		1-33119-399-0 02 1 9708-9901 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-399-0 02 1 9902-9909 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-399-0 02 1 9910- ● ● ●
86 BOLT; RR COVER
(A) 		1-33119-266-0 18 1 9603-9909 ●
86 BOLT; RR COVER
(A) 		1-33119-266-0 18 1 9910- ● ● ●
86 BOLT; RR COVER
(E) 		1-33139-054-0 09 1 9603-9909 ●
86 BOLT; RR COVER
(E) 		1-33139-054-0 09 1 9910- ● ● ●
86 BOLT; RR COVER
(B) 		1-33139-056-0 02 1 9603-9909 ●
86 BOLT; RR COVER
(B) 		1-33139-056-0 02 1 9910- ● ● ●
86 BOLT; RR COVER
(C) M10X110 		1-33139-057-0 02 1 9603-9909 ●
86 BOLT; RR COVER
(C) M10X110 		1-33139-057-0 02 1 9910- ● ● ●
86 BOLT; RR COVER
(D) M10X50 		1-33139-058-0 02 1 9603-9909 ●
86 BOLT; RR COVER
(D) M10X50 		1-33139-058-0 02 1 9910- ● ● ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (F) M12X28 		1-33139-051-0 04 1 9603-9707 ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (F) M12X25 		1-33119-400-0 04 1 9708-9909 ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (F) M12X25 		1-33119-400-0 04 1 9910- ●
86 BOLT; RR COVER
(F) M12X25 		1-33119-400-0 04 1 9910- ●
87 WASHER; LK,RR COVER 1-09469-010-0 09 1 9603-9909 ●
87 WASHER; LK,RR COVER 1-09469-010-0 09 1 9910- ● ● ●
100 PLUG; DRAIN RR COVER 1-33119-268-0 01 1 9603-9909 ●
100 PLUG; DRAIN RR COVER 1-33119-268-0 01 1 9910- ● ● ●
101 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 9603-9909 ●
101 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 9910- ● ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 9603-9707 ●
326 NOZZLE; OIL,OUTLET
PTO ZF TRANS RR(BDM) (A) 		1-33119-282-0 01 1 9708-9901 ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 9902- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 9603-9909 ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 9910- ● ● ●
326 NOZZLE; OIL,OUTLET
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33119-282-0 01 1 9708-9901 ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-272-0 01 1 9910- ●
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-165-0 01 1 9603-9909 ●
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-165-0 01 1 9910- ●
327 COVER; RR,COUNTER 1-33131-165-0 01 1 9910- ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 9603-9909 ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 9910- ● ● ●
328 GASKET; PLUG
(C) 		1-33119-264-0 03 1 9603-9707 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 02 1 9708-9901 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 9902-9909 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 9910- ● ● ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 9603-9909 ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 9910- ● ● ●
415 COVER; BRG 1-33159-039-0 01 1 9603-9909 ●
415 COVER; BRG 1-33159-039-0 01 1 9910- ● ● ●
419 PLUG; RR COVER
(B) 		1-33119-171-0 02 1 9603-9909 ●
419 PLUG; RR COVER
(B) 		1-33119-171-0 02 1 9910- ● ● ●
419 PLUG; RR COVER
(A) 		1-34119-008-0 01 1 9603-9909 ●
419 PLUG; RR COVER
(A) 		1-34119-008-0 01 1 9910- ● ● ●
421 COVER; RR,TRANS 1-33131-219-0 01 1 9603-9901 ●
421 COVER; RR,TRANS 1-33131-244-0 01 1 9902-9909 ●
421 COVER; RR,TRANS 1-33131-244-0 01 1 9910- ● ● ●
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 9603-9909 ●
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 9910- ●
427 GASKET; RR COVER 1-33132-054-0 01 1 9910- ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 9603-9909 ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 9910- ● ● ●
451 PLATE; RR COVER 1-33139-055-0 01 1 9603-9909 ●
451 PLATE; RR COVER 1-33139-055-0 01 1 9910- ● ● ●

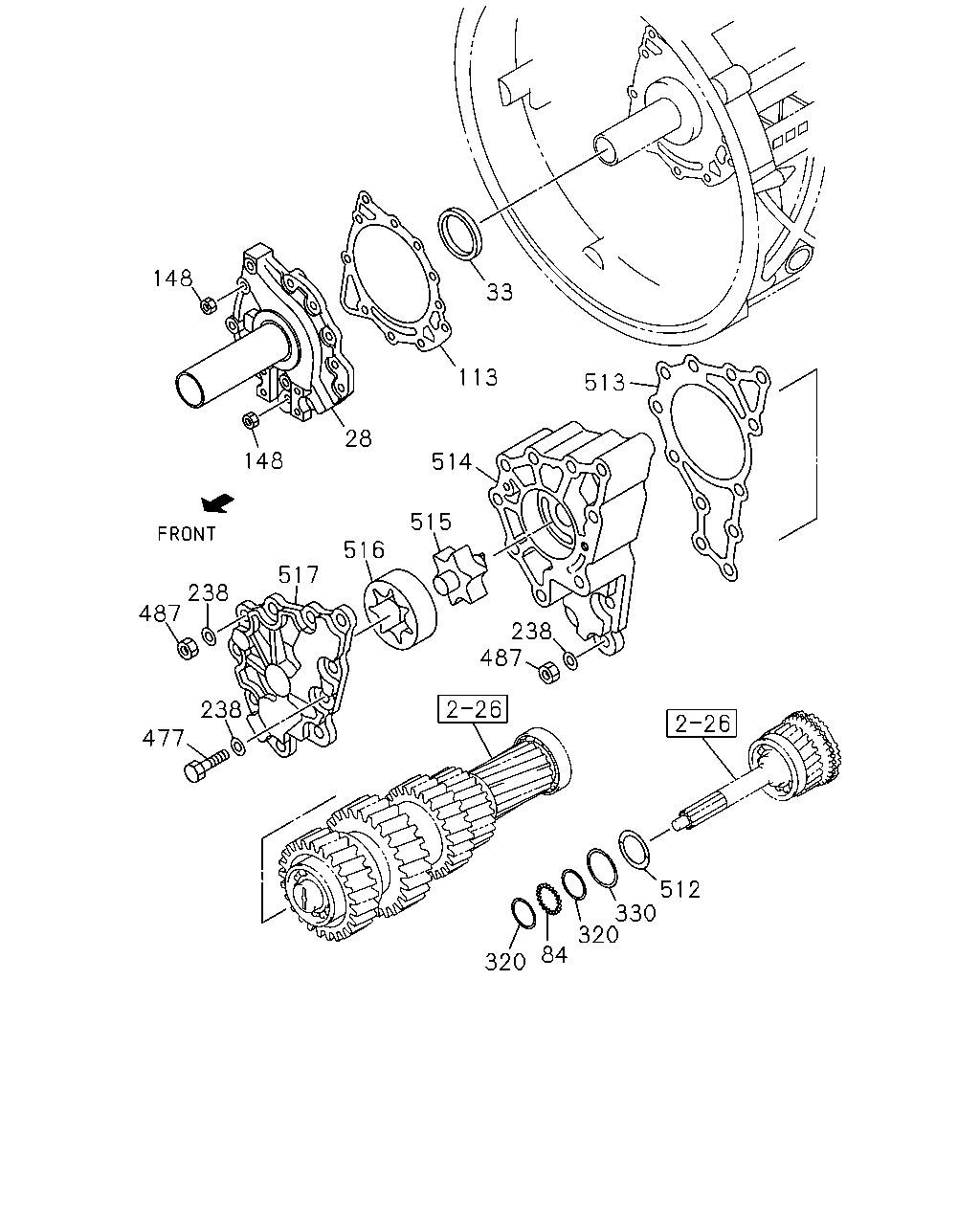

çizim 38723
148 33 113 513 28 148 514 515 516 517 238 487 238 487 238 477 512 330 320 84 320
BalonParca AdiParca NoAdetTipApplied Date A B C
28 COVER; FRT,TRANS CASE 1-33121-149-0 01 1 9603-9707 ●
28 COVER; FRT,TRANS CASE
PTO ZF TRANS RR(BDM) 		1-33121-149-0 01 1 9708-9901 ●
28 COVER; FRT,TRANS CASE 1-33121-149-0 01 1 9902-9909 ●
28 COVER; FRT,TRANS CASE 1-33121-149-0 01 1 9910- ● ● ●
28 COVER; FRT,TRANS CASE
EXC. PTO ZF TRANS RR(BDM) 		1-33121-132-0 01 1 9708-9901 ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-058-0 01 1 9603-9805 ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-248-0 01 1 9806-9909 ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-248-0 01 1 9910- ● ● ●
84 SPACER; COVER,TRANS 1-33129-006-0 01 1 9603-9909 ●
84 SPACER; COVER,TRANS 1-33129-006-0 01 1 9910- ● ● ●
113 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33122-018-0 01 1 9603-9909 ●
113 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33122-018-0 01 1 9910- ● ● ●
148 NUT 1-33529-056-0 11 1 9603-9909 ●
148 NUT 1-33529-056-0 11 1 9910- ● ● ●
238 WASHER; PL 1-09469-010-0 14 1 9603-9909 ●
238 WASHER; PL 1-09469-010-0 14 1 9910- ● ● ●
320 WASHER; COVER 1-33129-007-0 02 1 9603-9909 ●
320 WASHER; COVER 1-33129-007-0 02 1 9910- ● ● ●
330 RING; RET 1-33219-030-0 01 1 9603-9707 ●
330 RING; RET
EXC. PTO ZF TRANS RR(BDM) 		1-33219-030-0 01 1 9708-9901 ●
477 BOLT; OIL PUMP 1-33529-055-0 02 1 9603-9909 ●
477 BOLT; OIL PUMP 1-33529-055-0 02 1 9910- ● ● ●
487 NUT; COVER,OIL PUMP 1-33529-056-0 12 1 9603-9909 ●
487 NUT; COVER,OIL PUMP 1-33529-056-0 12 1 9910- ● ● ●
512 WASHER; THRUST
T=4.20 		1-33219-144-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.20 		1-33219-144-0 AR 1 9708-9901 ●
512 WASHER; THRUST
T=4.15 		1-33219-145-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.15 		1-33219-145-0 AR 1 9708-9901 ●
512 WASHER; THRUST
T=4.10 		1-33219-146-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.10 		1-33219-146-0 AR 1 9708-9901 ●
512 WASHER; THRUST
T=4.05 		1-33219-147-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.05 		1-33219-147-0 AR 1 9708-9901 ●
512 WASHER; THRUST
T=4.00 		1-33219-148-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.00 		1-33219-148-0 AR 1 9708-9901 ●
512 WASHER; THRUST
T=3.95 		1-33219-149-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.95 		1-33219-149-0 AR 1 9708-9901 ●
512 WASHER; THRUST
T=3.90 		1-33219-150-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.90 		1-33219-150-0 AR 1 9708-9901 ●
512 WASHER; THRUST
T=3.85 		1-33219-151-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.85 		1-33219-151-0 AR 1 9708-9901 ●
512 WASHER; THRUST
T=3.80 		1-33219-152-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.80 		1-33219-152-0 AR 1 9708-9901 ●
512 WASHER; THRUST
T=3.75 		1-33219-153-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.75 		1-33219-153-0 AR 1 9708-9901 ●
512 WASHER; THRUST
T=3.70 		1-33219-154-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.70 		1-33219-154-0 AR 1 9708-9901 ●
513 GASKET; HOUSING 1-34159-058-0 01 1 9603-9909 ●
513 GASKET; HOUSING 1-34159-058-0 01 1 9910- ● ● ●
514 HOUSING; OIL PUMP 1-34155-027-0 01 1 9603-9909 ●
514 HOUSING; OIL PUMP 1-34155-027-0 01 1 9910- ● ● ●
515 SHAFT; OIL PUMP 1-34159-070-0 01 1 9603-9909 ●
515 SHAFT; OIL PUMP 1-34159-070-0 01 1 9910- ● ● ●
516 ROTOR; OIL PUMP 1-34159-060-0 01 1 9603-9909 ●
516 ROTOR; OIL PUMP 1-34159-060-0 01 1 9910- ● ● ●
517 COVER; OIL PUMP 1-34159-071-0 01 1 9603-9909 ●
517 COVER; OIL PUMP 1-34159-071-0 01 1 9910- ● ● ●
çizim 40113
181 355 176 182 180 292 431 506 439 432 422 265 175 375 375 27 368 24 375 365 351 303 511
BalonParca AdiParca NoAdetTipApplied Date A B C
24 COVER; CHECK HOLE,DUST 1-31131-038-0 02 1 9603-9704 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9705-9901 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9902-9909 ● ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9910- ● ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9603-9901 ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9902-9909 ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9910- ● ● ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 9603-9901 ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 9902-9912 ● ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 0001- ● ● ●
175 BRACKET; UNION
(B) 		1-47478-633-0 01 1 9910-9912 ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9603-9901 ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9902-9909 ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9910- ● ● ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9603-9901 ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9902-9909 ● ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9910- ● ● ●
180 CONNECTOR; NYLON TUBE
(B) 		1-09660-466-0 01 1 9603-9901 ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9603-9901 ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9902-9909 ● ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9910- ● ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9603-9901 ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9902-9909 ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9910- ● ● ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9603-9901 ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9902- ● ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9910- ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9603-9901 ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9902-9909 ● ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9910- ● ● ●
303 TUBE; NYLON
SERVICED BY L=30000 OD=8 		1-09369-578-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0003- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9902-9909 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9910- ● ● ●
351 BRACKET; UNION,FLEX HOSE
L=125 		1-47475-897-0 01 1 9905-0001 ●
355 BRACKET; OIL PIPE 1-47477-465-1 01 1 9603-9901 ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 9902- ● ●
355 BRACKET; OIL PIPE 1-47477-500-1 01 1 9910- ●
365 BRACKET; HARNESS
(A) 		1-82699-490-2 01 1 9603-9901 ●
365 BRACKET; HARNESS
(A) 		1-82699-490-2 01 1 9902-9909 ● ●
365 BRACKET; HARNESS
(A) 		1-82699-490-2 01 1 9910- ● ● ●
365 BRACKET; HARNESS
(B) 		1-47478-012-0 01 1 9910-0008 ●
365 BRACKET; HARNESS
(C) 		1-47479-047-0 01 1 0009- ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-0 02 1 9603-9901 ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 9902-9909 ● ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 9910- ● ● ●
375 CABLE; TRANS
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) RED NEWTRAL L=250 		1-82659-134-1 01 1 9603-9901 ●
375 CABLE; TRANS
(A) RED NEWTRAL L=250 		1-82659-134-1 01 1 9902-9909 ● ●
375 CABLE; TRANS
(A) RED NEWTRAL L=250 		1-82659-134-1 01 1 9910- ● ● ●
375 CABLE; TRANS
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (B) BACK LAMP L=580 		1-82659-135-1 01 1 9603-9901 ●
375 CABLE; TRANS
(B) BACK LAMP L=580 		1-82659-135-1 01 1 9902-9909 ● ●
375 CABLE; TRANS
(B) BACK LAMP L=580 		1-82659-135-1 01 1 9910- ● ● ●
375 CABLE; TRANS
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (C) YELLOW SPRITTER SW L=880 		1-82659-137-1 01 1 9603-9901 ●
375 CABLE; TRANS
(C) YELLOW SPRITTER SW L=880 		1-82659-137-1 01 1 9902-9909 ●
375 CABLE; TRANS
(C) YELLOW SPRITTER SW L=880 		1-82659-137-1 01 1 9910- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 04 1 9603-9901 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9902-9909 ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9910- ● ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9603-9910 ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9911- ● ●
431 TUBE; NYLON
10PE1S(60L) L=1300 SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9603-9901 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 04 1 9603-9901 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9902-9909 ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9910- ● ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9603-9910 ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9911- ● ●
439 BOLT; BRKT
(A) M10X20 FLANGE 		0-28781-020-0 01 1 9603-9901 ●
439 BOLT; BRKT
(C) M16X35 FLANGE 		0-28881-635-0 04 1 9902- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9603-9901 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9902-9909 ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9910- ● ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9603-9901 ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9910- ●
439 BOLT; BRKT
(A) M16X40 FLANGE 		0-28881-640-0 01 1 9910- ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9603-9901 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9902-9909 ● ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9910- ● ● ●
506 INSERT
(B) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9603-9901 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9603-9910 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9911- ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9603-9901 ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9603-9904 ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9905-9909 ● ●
511 TUBE; CORRUGATE
6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1TC-R(93L) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9910-9910 ● ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9910-9910 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9911- ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9902-9909 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9910- ● ● ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 9902-9909 ● ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 9910- ● ● ●
çizim 40253
375 375 511 511 192 192 359 359 375 245 245 27 24 511 176 506 176 180 303 432 422 175 175 182 181
BalonParca AdiParca NoAdetTipApplied Date A B C
24 COVER; CHECK HOLE,DUST 1-31131-038-0 02 1 9603-9704 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9705-9901 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9902-9909 ● ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9910- ● ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9603-9901 ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9902-9909 ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9910- ● ● ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 9603-9901 ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 9902-9912 ● ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 0001- ● ● ●
175 BRACKET; UNION
(B) 		1-47478-633-0 01 1 9910-9912 ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9603-9901 ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9902-9909 ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9910- ● ● ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9603-9901 ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9902-9909 ● ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9910- ● ● ●
180 CONNECTOR; NYLON TUBE
(B) 		1-09660-466-0 01 1 9603-9901 ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9603-9901 ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9902-9909 ● ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9910- ● ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9603-9901 ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9902-9909 ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9910- ● ● ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=400 		1-09364-913-0 01 1 9603-9603 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) (B) OUTLET L=400 		1-09364-913-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=400 		1-09364-913-0 01 1 9610-9701 ●
192 HOSE; FLEX,TRANS
(A) INLET L=500 		1-09364-914-0 01 1 9702-9901 ●
192 HOSE; FLEX,TRANS
(A) INLET L=500 		1-09364-914-0 01 1 9603-9603 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) (A) INLET L=500 		1-09364-914-0 01 1 9604-9701 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) (B) OUTLET L=400 		1-09364-913-0 01 1 9702-9804 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) (B) OUTLET L=311 		1-09364-921-0 01 1 9805-9901 ●
192 HOSE; FLEX,TRANS
(A) INLET L=535 		1-09364-936-0 01 1 9902-9904 ● ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (A) INLET L=535 		1-09364-936-0 01 1 9905- ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L) (B) OUTLET L=410 		1-09364-935-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
10PE1S(60L) (A) INLET L=535 		1-09364-936-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
10PE1S(60L) (B) OUTLET L=406 		1-09364-961-0 01 1 9610-9901 ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=406 		1-09364-961-0 01 1 9902-9904 ● ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) OUTLET L=406 		1-09364-961-0 01 1 9905-9909 ● ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) OUTLET L=406 		1-09364-961-0 01 1 9912-0003 ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) OUTLET L=400 		1-09364-913-0 01 1 9905-9911 ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) OUTLET L=400 		1-09364-913-0 01 1 9912-0003 ● ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=400 		1-09364-913-0 01 1 9912-0003 ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) OUTLET L=400 		1-09364-913-0 01 1 0004- ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) INLET L=500 		1-09364-914-0 01 1 9905-9911 ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) INLET L=500 		1-09364-914-0 01 1 9912-0003 ● ●
192 HOSE; FLEX,TRANS
(A) INLET L=500 		1-09364-914-0 01 1 9912-0003 ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) INLET L=500 		1-09364-914-0 01 1 0004- ● ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=311 		1-09364-921-0 01 1 9910-9911 ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=311 		1-09364-921-0 01 1 0004- ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) OUTLET L=406 		1-09364-961-0 01 1 0004- ● ●
192 HOSE; FLEX,TRANS
(A) INLET L=406 		1-09364-961-0 01 1 0004- ●
192 HOSE; FLEX,TRANS
(A) INLET L=406 		1-09364-961-0 01 1 9910-9911 ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) OUTLET L=406 		1-09364-961-0 01 1 9910-9911 ● ●
245 PIPE; OIL
(A) INLET 		1-47428-569-0 01 1 9603-9608 ●
245 PIPE; OIL
(A) INLET 		1-49161-057-0 01 1 9609-9901 ●
245 PIPE; OIL
(A) INLET 		1-49119-467-1 01 1 9902-9906 ● ●
245 PIPE; OIL
(A) INLET 		1-49122-031-0 01 1 9907- ● ●
245 PIPE; OIL
(B) OUTLET 		1-47428-570-0 01 1 9603-9608 ●
245 PIPE; OIL
(B) OUTLET 		1-49161-058-0 01 1 9609-9901 ●
245 PIPE; OIL
(B) OUTLET 		1-49119-468-1 01 1 9902- ● ●
245 PIPE; OIL
(B) OUTLET 		1-49161-055-0 01 1 9910- ●
245 PIPE; OIL
(A) INLET 		1-49161-061-0 01 1 9910- ●
303 TUBE; NYLON
SERVICED BY L=30000 OD=8 		1-09369-578-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9603-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0003- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9902-9909 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9910- ● ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49115-055-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49117-645-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-936-0 01 1 9711-9901 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-463-1 01 1 9902-9904 ●
359 PIPE; AIR,TRANS TO UNION
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) 		1-49119-463-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49115-949-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49117-647-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-938-0 01 1 9711-9901 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-464-1 01 1 9902-9904 ●
359 PIPE; AIR,TRANS TO UNION
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (B) 		1-49119-464-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9708-9909 ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9910- ● ● ●
359 PIPE; AIR,TRANS TO UNION
(A) A/T-UNION 		1-49118-935-0 01 1 9910- ●
359 PIPE; AIR,TRANS TO UNION
(B) UNION-A/M 		1-49118-937-0 01 1 9910- ●
375 CABLE; TRANS
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) RED NEWTRAL L=250 		1-82659-134-1 01 1 9603-9901 ●
375 CABLE; TRANS
(A) RED NEWTRAL L=250 		1-82659-134-1 01 1 9902-9909 ● ●
375 CABLE; TRANS
(A) RED NEWTRAL L=250 		1-82659-134-1 01 1 9910- ● ● ●
375 CABLE; TRANS
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (B) BACK LAMP L=580 		1-82659-135-1 01 1 9603-9901 ●
375 CABLE; TRANS
(B) BACK LAMP L=580 		1-82659-135-1 01 1 9902-9909 ● ●
375 CABLE; TRANS
(B) BACK LAMP L=580 		1-82659-135-1 01 1 9910- ● ● ●
375 CABLE; TRANS
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (C) YELLOW SPRITTER SW L=880 		1-82659-137-1 01 1 9603-9901 ●
375 CABLE; TRANS
(C) YELLOW SPRITTER SW L=880 		1-82659-137-1 01 1 9902-9909 ●
375 CABLE; TRANS
(C) YELLOW SPRITTER SW L=880 		1-82659-137-1 01 1 9910- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 04 1 9603-9901 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9902-9909 ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9910- ● ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9603-9910 ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9911- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 04 1 9603-9901 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9902-9909 ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9910- ● ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9603-9910 ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9911- ● ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9603-9901 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9902-9909 ● ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9910- ● ● ●
506 INSERT
(B) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9603-9901 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9603-9910 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9911- ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9603-9901 ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9603-9904 ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9905-9909 ● ●
511 TUBE; CORRUGATE
6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WA1TC-R(93L) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9910-9910 ● ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9910-9910 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9911- ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9902-9909 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9910- ● ● ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 9902-9909 ● ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 9910- ● ● ●
çizim 40445
1 422 432 422 432 192 506 192 194 509 186 186 439 405 245 358 362 357 186 405 311 508 178 359 358 362 186 357 362 359 245 361
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TRANSMISSION ASM; MANUAL
6WA1 TC-C(55L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33042-020-0 01 1 9902-9906 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) EXC. PTO ZF TRANS RR(BDM) 		1-33042-020-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) 		1-33042-019-0 01 1 9902-9906 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) 		1-33042-019-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-019-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33040-359-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33041-633-0 01 1 9708-9901 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-C(55L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33040-584-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33041-634-0 01 1 9708-9901 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-C(55L),6WA1 TC-R(93L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-163-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-164-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33043-021-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
6WG1 TC-C(72L) SHIFT CONTROL ASSISTER<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33043-020-0 01 1 9910- ●
178 NUT; UNION
(A) M14 		9-99110-414-0 01 1 9603-9901 ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9603-9904 ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9905-9909 ● ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9910- ● ● ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9603-9901 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9902-9909 ● ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9910- ● ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9603-9901 ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9902-9909 ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9910- ● ● ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=400 		1-09364-913-0 01 1 9603-9603 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) (B) OUTLET L=400 		1-09364-913-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=400 		1-09364-913-0 01 1 9610-9701 ●
192 HOSE; FLEX,TRANS
(A) INLET L=500 		1-09364-914-0 01 1 9702-9901 ●
192 HOSE; FLEX,TRANS
(A) INLET L=500 		1-09364-914-0 01 1 9603-9603 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) (A) INLET L=500 		1-09364-914-0 01 1 9604-9701 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) (B) OUTLET L=400 		1-09364-913-0 01 1 9702-9804 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) (B) OUTLET L=311 		1-09364-921-0 01 1 9805-9901 ●
192 HOSE; FLEX,TRANS
(A) INLET L=535 		1-09364-936-0 01 1 9902-9904 ● ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (A) INLET L=535 		1-09364-936-0 01 1 9905- ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L) (B) OUTLET L=410 		1-09364-935-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
10PE1S(60L) (A) INLET L=535 		1-09364-936-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
10PE1S(60L) (B) OUTLET L=406 		1-09364-961-0 01 1 9610-9901 ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=406 		1-09364-961-0 01 1 9902-9904 ● ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) OUTLET L=406 		1-09364-961-0 01 1 9905-9909 ● ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) OUTLET L=406 		1-09364-961-0 01 1 9912-0003 ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) OUTLET L=400 		1-09364-913-0 01 1 9905-9911 ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) OUTLET L=400 		1-09364-913-0 01 1 9912-0003 ● ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=400 		1-09364-913-0 01 1 9912-0003 ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) OUTLET L=400 		1-09364-913-0 01 1 0004- ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) INLET L=500 		1-09364-914-0 01 1 9905-9911 ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) INLET L=500 		1-09364-914-0 01 1 9912-0003 ● ●
192 HOSE; FLEX,TRANS
(A) INLET L=500 		1-09364-914-0 01 1 9912-0003 ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) INLET L=500 		1-09364-914-0 01 1 0004- ● ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=311 		1-09364-921-0 01 1 9910-9911 ●
192 HOSE; FLEX,TRANS
(B) OUTLET L=311 		1-09364-921-0 01 1 0004- ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) OUTLET L=406 		1-09364-961-0 01 1 0004- ● ●
192 HOSE; FLEX,TRANS
(A) INLET L=406 		1-09364-961-0 01 1 0004- ●
192 HOSE; FLEX,TRANS
(A) INLET L=406 		1-09364-961-0 01 1 9910-9911 ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) OUTLET L=406 		1-09364-961-0 01 1 9910-9911 ● ●
194 UNION; NYLON TUBE
UNION M14 		1-09664-230-0 01 1 9603-9909 ●
194 UNION; NYLON TUBE
UNION M14 		1-09664-230-0 01 1 9910- ● ●
245 PIPE; OIL
(A) INLET 		1-47428-569-0 01 1 9603-9608 ●
245 PIPE; OIL
(A) INLET 		1-49161-057-0 01 1 9609-9901 ●
245 PIPE; OIL
(A) INLET 		1-49119-467-1 01 1 9902-9906 ● ●
245 PIPE; OIL
(A) INLET 		1-49122-031-0 01 1 9907- ● ●
245 PIPE; OIL
(B) OUTLET 		1-47428-570-0 01 1 9603-9608 ●
245 PIPE; OIL
(B) OUTLET 		1-49161-058-0 01 1 9609-9901 ●
245 PIPE; OIL
(B) OUTLET 		1-49119-468-1 01 1 9902- ● ●
245 PIPE; OIL
(B) OUTLET 		1-49161-055-0 01 1 9910- ●
245 PIPE; OIL
(A) INLET 		1-49161-061-0 01 1 9910- ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9603-9904 ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9905-9909 ● ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9910- ● ● ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9603-9901 ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9902-9909 ● ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9910- ● ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9603-9901 ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9902-9909 ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9910- ● ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49115-055-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49117-645-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-936-0 01 1 9711-9901 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-463-1 01 1 9902-9904 ●
359 PIPE; AIR,TRANS TO UNION
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) 		1-49119-463-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49115-949-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49117-647-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-938-0 01 1 9711-9901 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-464-1 01 1 9902-9904 ●
359 PIPE; AIR,TRANS TO UNION
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (B) 		1-49119-464-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9708-9909 ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9910- ● ● ●
359 PIPE; AIR,TRANS TO UNION
(A) A/T-UNION 		1-49118-935-0 01 1 9910- ●
359 PIPE; AIR,TRANS TO UNION
(B) UNION-A/M 		1-49118-937-0 01 1 9910- ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-082-0 01 1 9603-9611 ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 9612-9909 ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 9910- ● ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9603-9909 ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9910- ● ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 9603-9909 ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 9910- ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9603-9901 ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9902-9909 ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9910- ● ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 04 1 9603-9901 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9902-9909 ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9910- ● ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9603-9910 ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9911- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 04 1 9603-9901 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9902-9909 ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9910- ● ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9603-9910 ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9911- ● ●
439 BOLT; BRKT
(A) M10X20 FLANGE 		0-28781-020-0 01 1 9603-9901 ●
439 BOLT; BRKT
(C) M16X35 FLANGE 		0-28881-635-0 04 1 9902- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9603-9901 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9902-9909 ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9910- ● ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9603-9901 ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9910- ●
439 BOLT; BRKT
(A) M16X40 FLANGE 		0-28881-640-0 01 1 9910- ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9603-9901 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9902-9909 ● ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9910- ● ● ●
506 INSERT
(B) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9603-9901 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9603-9910 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9911- ● ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 9603-9909 ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 9910- ● ●
509 BRACKET; PIPE
(A) 		1-47477-551-0 01 1 9603-9901 ●
509 BRACKET; PIPE
(B) 		1-47478-215-2 01 1 9902- ● ●
509 BRACKET; PIPE
(C) 		1-47477-447-2 01 1 9910- ●
çizim 40476
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TRANSMISSION ASM; MANUAL
6WA1 TC-C(55L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33042-020-0 01 1 9902-9906 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) EXC. PTO ZF TRANS RR(BDM) 		1-33042-020-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) 		1-33042-019-0 01 1 9902-9906 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) 		1-33042-019-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-019-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33040-359-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33041-633-0 01 1 9708-9901 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-C(55L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33040-584-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33041-634-0 01 1 9708-9901 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-C(55L),6WA1 TC-R(93L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-163-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-164-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33043-021-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
6WG1 TC-C(72L) SHIFT CONTROL ASSISTER<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33043-020-0 01 1 9910- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
