◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#53418) — 150 parça

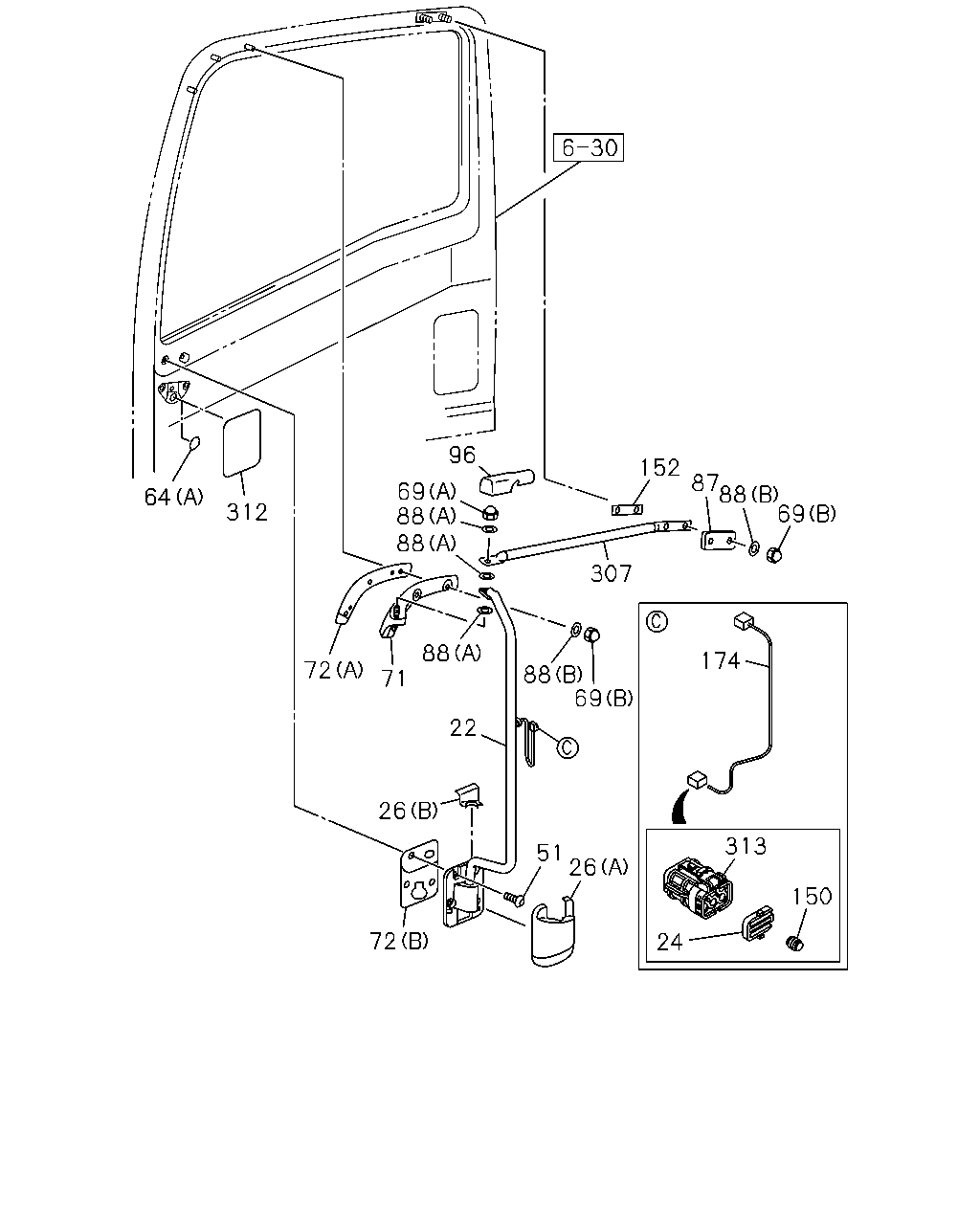

çizim 160066
64 312 96 69 88 88 307 152 87 88 69 88 174 69 88 71 72 22 26 51 26 313 150 24 72
BalonParca AdiParca NoAdetTipApplied Date A B
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> 		8-98075-034-0 01 1 0908-1011 ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> 		8-98075-034-0 01 1 1012-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> 		8-98166-176-0 01 1 1205- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> 		8-98075-035-0 01 1 0908-1011 ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> 		8-98075-035-0 01 1 1012-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> 		8-98166-177-0 01 1 1205- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-041-0 01 1 0908-1011 ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-041-0 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-178-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-042-0 01 1 0908-1011 ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-042-0 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-179-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98075-032-0 01 1 0908-1011 ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98075-032-0 01 1 1012-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98158-846-0 01 1 1205- ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98075-033-0 01 1 0908-1011 ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98075-033-0 01 1 1012-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98158-847-0 01 1 1205- ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98075-039-0 01 1 0908-1011 ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98075-039-0 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98158-848-0 01 1 1203- ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98075-040-0 01 1 0908-1011 ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98075-040-0 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98158-849-0 01 1 1203- ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-94447-536-0 02 1 0908-1011 ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-94447-536-0 02 1 1012- ● ●
26 16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 0908-1011 ●
26 16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 1012-1202 ● ●
26 16.069 COVER; OUTSIDE MIRROR
(A) 		8-98031-802-2 01 1 1203-1204 ● ●
26 16.069 COVER; OUTSIDE MIRROR
(A) 		8-98031-802-2 01 1 1205- ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98031-802-2 01 1 1205- ●
26 16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 0908-1011 ●
26 16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 1012-1202 ● ●
26 16.069 COVER; OUTSIDE MIRROR
(A) 		8-98031-803-2 01 1 1203-1204 ● ●
26 16.069 COVER; OUTSIDE MIRROR
(A) 		8-98031-803-2 01 1 1205- ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98031-803-2 01 1 1205- ●
26 16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 0908-1011 ●
26 16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 1012-1202 ● ●
26 16.069 COVER; OUTSIDE MIRROR
(B) 		8-98031-805-0 01 1 1203-1204 ● ●
26 16.069 COVER; OUTSIDE MIRROR
(B) 		8-98031-805-0 01 1 1205- ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98031-805-0 01 1 1205- ●
26 16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 0908-1011 ●
26 16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 1012-1202 ● ●
26 16.069 COVER; OUTSIDE MIRROR
(B) 		8-98031-806-0 01 1 1203-1204 ● ●
26 16.069 COVER; OUTSIDE MIRROR
(B) 		8-98031-806-0 01 1 1205- ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98031-806-0 01 1 1205- ●
51 16.069 SCREW; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.323 M8X23 		8-97310-216-1 08 1 0908-1011 ●
51 16.069 SCREW; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.323 M8X23 		8-97310-216-1 08 1 1012-1202 ● ●
51 16.069 SCREW; MIRROR
16.323 M8X23 		8-97310-216-1 08 1 1203-1204 ● ●
51 16.069 SCREW; MIRROR
16.323 M8X23 		8-97310-216-1 08 1 1205- ●
51 16.069 SCREW; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 16.323 M8X23 		8-97310-216-1 08 1 1205- ●
64 16.069 SEAL; MIRROR
16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 0908-1011 ●
64 16.069 SEAL; MIRROR
16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 1012- ● ●
64 16.069 SEAL; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 16.332 (A) OD=52 BLACK 		1-76798-041-0 02 1 0908-1011 ●
64 16.069 SEAL; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 16.332 (A) OD=52 BLACK 		1-76798-041-0 02 1 1012-1202 ● ●
64 16.069 SEAL; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 16.332 (A) OD=52 BLACK 		1-76798-041-0 02 1 1203-1204 ●
64 16.069 SEAL; MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 16.332 (A) OD=52 BLACK 		1-76798-041-0 02 1 1203-1204 ●
64 16.069 SEAL; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 16.332 (A) OD=52 BLACK 		1-76798-041-0 02 1 1205- ●
69 16.069 NUT; CAP
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT 		8-98059-913-0 02 1 0908-1011 ●
69 16.069 NUT; CAP
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT 		8-98059-913-0 02 1 1012-1202 ● ●
69 16.069 NUT; CAP
(A) M10 CAP NUT 		8-98059-913-0 02 1 1203-1204 ● ●
69 16.069 NUT; CAP
(A) M10 CAP NUT 		8-98059-913-0 02 1 1205-1404 ●
69 16.069 NUT; CAP
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) M10 CAP NUT 		8-98059-913-0 02 1 1205-1404 ●
69 16.069 NUT; CAP
(A) M10 CAP NUT 		1-09984-134-0 02 1 1405- ●
69 16.069 NUT; CAP
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) M10 CAP NUT 		1-09984-134-0 02 1 1405- ●
69 16.069 NUT; CAP
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8 CAP NUT 		8-98059-914-0 10 1 0908-1011 ●
69 16.069 NUT; CAP
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8 CAP NUT 		8-98059-914-0 10 1 1012-1202 ● ●
69 16.069 NUT; CAP
(B) M8 CAP NUT 		8-98059-914-0 10 1 1203-1204 ● ●
69 16.069 NUT; CAP
(B) M8 CAP NUT 		8-98059-914-0 10 1 1205- ●
69 16.069 NUT; CAP
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) M8 CAP NUT 		8-98059-914-0 10 1 1205- ●
71 16.069 BRACKET; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98031-793-2 01 1 0908-1011 ●
71 16.069 BRACKET; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98031-793-2 01 1 1012-1202 ● ●
71 16.069 BRACKET; OUTSIDE MIRROR 8-98031-793-2 01 1 1203-1204 ● ●
71 16.069 BRACKET; OUTSIDE MIRROR 8-98031-793-2 01 1 1205- ●
71 16.069 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98031-793-2 01 1 1205- ●
71 16.069 BRACKET; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98031-794-2 01 1 0908-1011 ●
71 16.069 BRACKET; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98031-794-2 01 1 1012-1202 ● ●
71 16.069 BRACKET; OUTSIDE MIRROR 8-98031-794-2 01 1 1203-1204 ● ●
71 16.069 BRACKET; OUTSIDE MIRROR 8-98031-794-2 01 1 1205- ●
71 16.069 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98031-794-2 01 1 1205- ●
72 16.069 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-796-0 01 1 0908-1011 ●
72 16.069 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-796-0 01 1 1012-1202 ● ●
72 16.069 SHEET
(A) 		8-98031-796-0 01 1 1203-1204 ● ●
72 16.069 SHEET
(A) 		8-98031-796-0 01 1 1205- ●
72 16.069 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98031-796-0 01 1 1205- ●
72 16.069 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-797-0 01 1 0908-1011 ●
72 16.069 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-797-0 01 1 1012-1202 ● ●
72 16.069 SHEET
(A) 		8-98031-797-0 01 1 1203-1204 ● ●
72 16.069 SHEET
(A) 		8-98031-797-0 01 1 1205- ●
72 16.069 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98031-797-0 01 1 1205- ●
72 16.069 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98080-418-0 02 1 0908-1011 ●
72 16.069 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98080-418-0 02 1 1012-1202 ● ●
72 16.069 SHEET
(B) 		8-98080-418-0 02 1 1203-1204 ● ●
72 16.069 SHEET
(B) 		8-98080-418-0 02 1 1205- ●
72 16.069 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98080-418-0 02 1 1205- ●
87 16.069 SPACER
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-789-0 02 1 0908-1011 ●
87 16.069 SPACER
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-789-0 02 1 1012-1202 ● ●
87 16.069 SPACER 8-98063-789-0 02 1 1203-1204 ● ●
87 16.069 SPACER 8-98063-789-0 02 1 1205- ●
87 16.069 SPACER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98063-789-0 02 1 1205- ●
88 16.069 WASHER; PL,SUPPORT STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0908-1011 ●
88 16.069 WASHER; PL,SUPPORT STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1012-1202 ● ●
88 16.069 WASHER; PL,SUPPORT STAY
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1203-1204 ● ●
88 16.069 WASHER; PL,SUPPORT STAY
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1205- ●
88 16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1205- ●
88 16.069 WASHER; PL,SUPPORT STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0908-1011 ●
88 16.069 WASHER; PL,SUPPORT STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1012-1202 ● ●
88 16.069 WASHER; PL,SUPPORT STAY
(A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1203-1204 ● ●
88 16.069 WASHER; PL,SUPPORT STAY
(A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1205- ●
88 16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1205- ●
96 16.069 CAP; MIRROR STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98080-173-0 02 1 0908-1011 ●
96 16.069 CAP; MIRROR STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98080-173-0 02 1 1012-1202 ● ●
96 16.069 CAP; MIRROR STAY 8-98080-173-0 02 1 1203-1204 ● ●
96 16.069 CAP; MIRROR STAY 8-98080-173-0 02 1 1205- ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98080-173-0 02 1 1205- ●
150 08.155 PLUG; MIRROR HOLE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		1-82691-026-0 02 1 0908-1011 ●
150 08.155 PLUG; MIRROR HOLE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		1-82691-026-0 02 1 1012- ● ●
152 16.069 SHEET; MIRROR STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-786-0 02 1 0908-1011 ●
152 16.069 SHEET; MIRROR STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-786-0 02 1 1012-1202 ● ●
152 16.069 SHEET; MIRROR STAY 8-98063-786-0 02 1 1203-1204 ● ●
152 16.069 SHEET; MIRROR STAY 8-98063-786-0 02 1 1205- ●
152 16.069 SHEET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98063-786-0 02 1 1205- ●
174 16.068 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-208-0 02 1 0908-1011 ●
174 16.068 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-208-0 02 1 1012- ● ●
307 16.069 STAY; MIRROR SUPPORT
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-784-2 01 1 0908-1011 ●
307 16.069 STAY; MIRROR SUPPORT
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-784-2 01 1 1012-1202 ● ●
307 16.069 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1203-1204 ● ●
307 16.069 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1205- ●
307 16.069 STAY; MIRROR SUPPORT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98063-784-2 01 1 1205- ●
307 16.069 STAY; MIRROR SUPPORT
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-785-2 01 1 0908-1011 ●
307 16.069 STAY; MIRROR SUPPORT
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-785-2 01 1 1012-1202 ● ●
307 16.069 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1203-1204 ● ●
307 16.069 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1205- ●
307 16.069 STAY; MIRROR SUPPORT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98063-785-2 01 1 1205- ●
312 16.081 TAPE
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98164-812-0 02 1 1003-1011 ●
312 16.081 TAPE 8-98164-812-0 02 1 1012- ● ●
313 02.195 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-94447-532-0 02 1 0908-1011 ●
313 02.195 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-94447-532-0 02 1 1012- ● ●

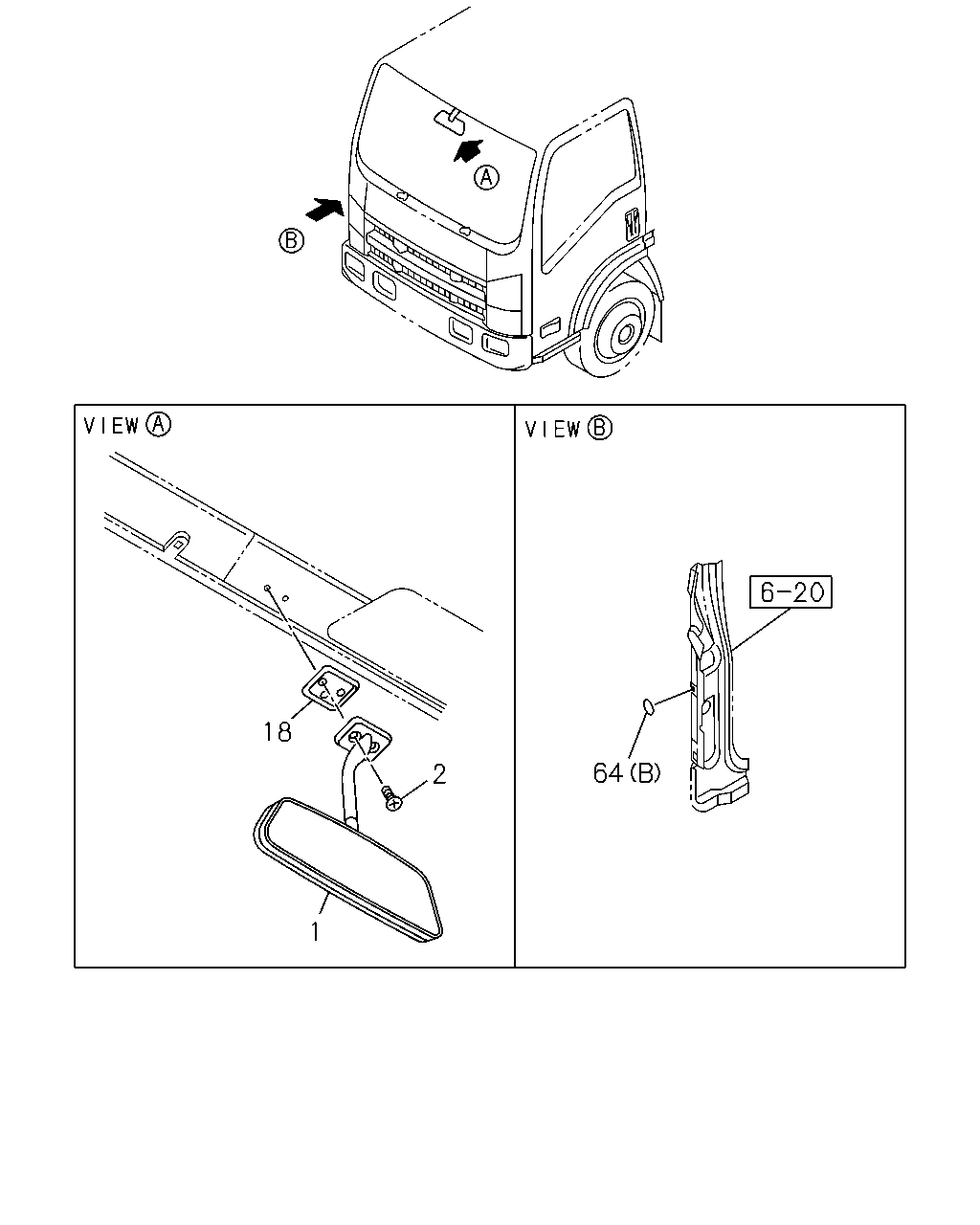

çizim 160083
18 2 1 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.068 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0908-1011 ●
1 16.068 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1012- ● ●
2 16.069 SCREW; MIRROR TO BODY
16.070 M6X26 		8-98033-674-0 02 1 0908-1011 ●
2 16.069 SCREW; MIRROR TO BODY
16.070 M6X26 		8-98033-674-0 02 1 1012- ● ●
18 16.069 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0908- ●
64 16.069 SEAL; MIRROR
16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 0908-1011 ●
64 16.069 SEAL; MIRROR
16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 1012- ● ●
64 16.069 SEAL; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 16.332 (A) OD=52 BLACK 		1-76798-041-0 02 1 0908-1011 ●
64 16.069 SEAL; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 16.332 (A) OD=52 BLACK 		1-76798-041-0 02 1 1012-1202 ● ●
64 16.069 SEAL; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 16.332 (A) OD=52 BLACK 		1-76798-041-0 02 1 1203-1204 ●
64 16.069 SEAL; MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 16.332 (A) OD=52 BLACK 		1-76798-041-0 02 1 1203-1204 ●
64 16.069 SEAL; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 16.332 (A) OD=52 BLACK 		1-76798-041-0 02 1 1205- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
