6-80 — BACK PANEL (#53412) — 38 parça

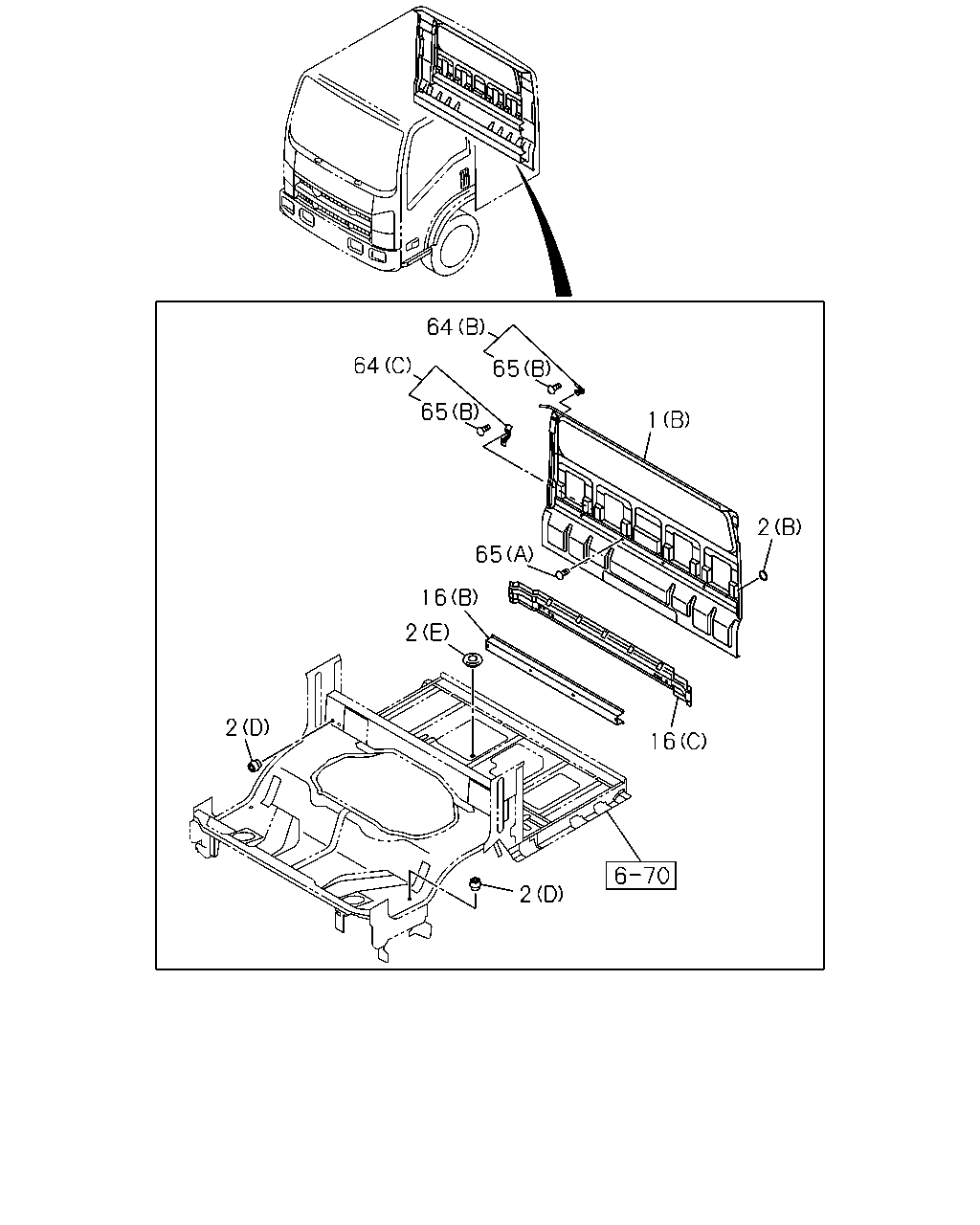

çizim 159884
2 16 2 2 16 65 64 65 64 65 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-731-4 01 1 1012- ●
1 16.587 PANEL; BACK OUTER
(A) 		8-97584-300-3 01 1 0908- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 1012- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 1012- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0908- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 0908-1011 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0908- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 0908- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-97410-667-0 01 1 1012- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-98006-213-0 01 1 1012- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-607-3 01 1 0908- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1012- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1012- ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 0908- ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 0908-1001 ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 03 1 1012- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 1012- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 0908- ●

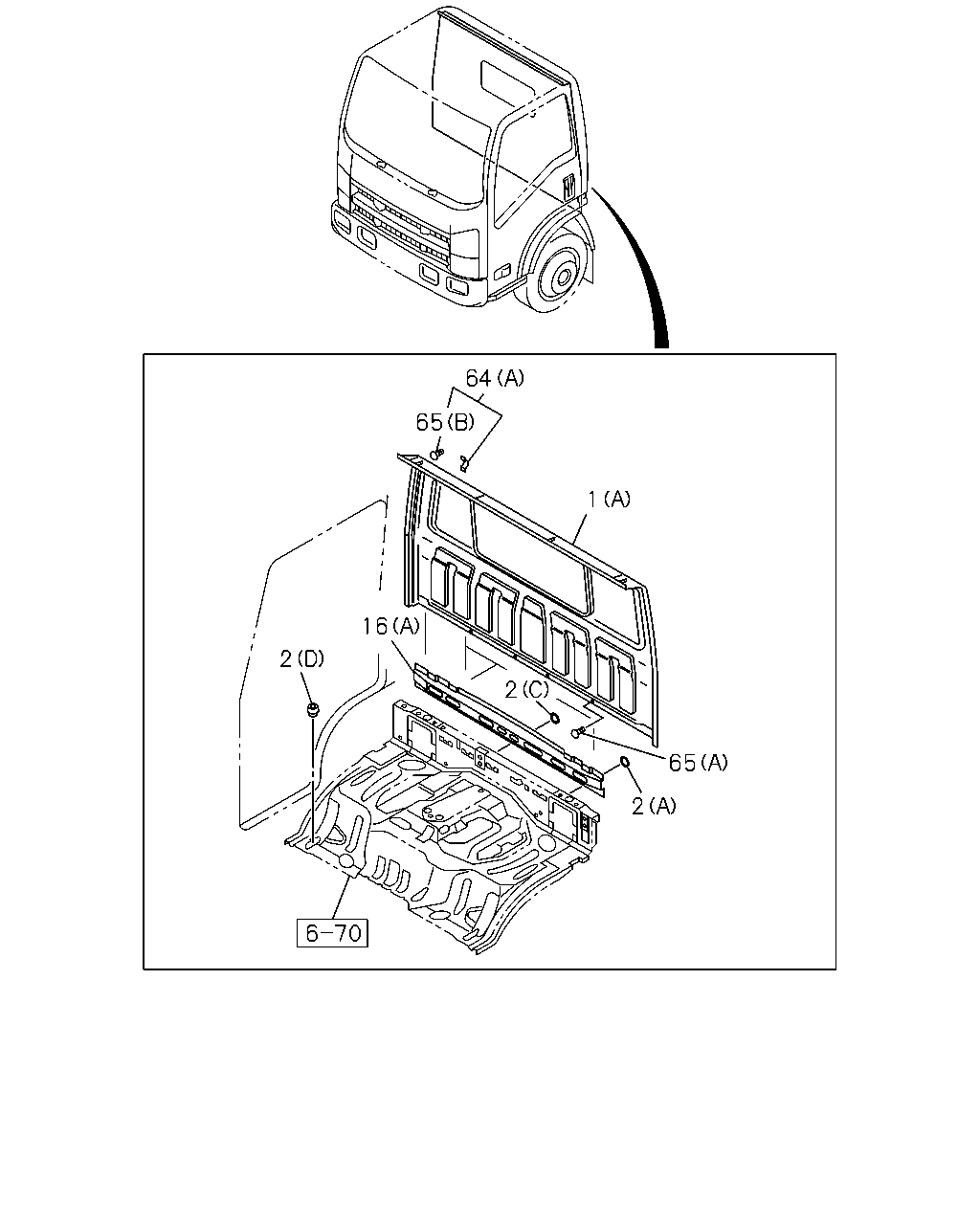

çizim 160054
2 65 2 1 65 64 2 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-731-4 01 1 1012- ●
1 16.587 PANEL; BACK OUTER
(A) 		8-97584-300-3 01 1 0908- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 1012- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 1012- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0908- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 0908-1011 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0908- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 0908- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-97410-667-0 01 1 1012- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-98006-213-0 01 1 1012- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-607-3 01 1 0908- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1012- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1012- ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 0908- ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 0908-1001 ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 03 1 1012- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 1012- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 0908- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
