◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#53409) — 24 parça

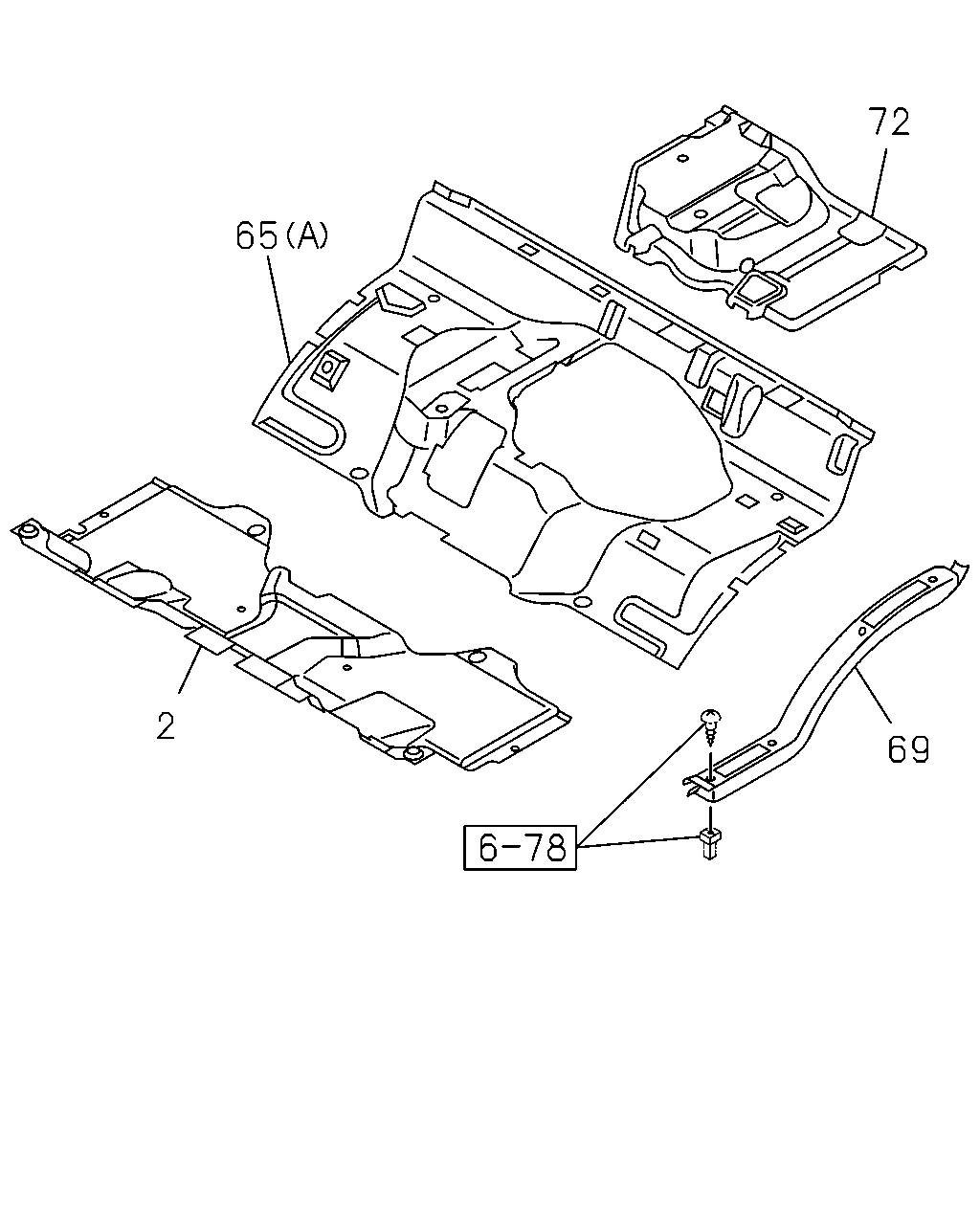

çizim 160067
65 72 69 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.800 MAT; FLOOR
GRAY 		8-97406-154-6 01 1 0908-1011 ●
2 16.800 MAT; FLOOR
GRAY 		8-97406-154-6 01 1 1012- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(B) GRAY 		8-97406-230-9 01 1 1012- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(A) GRAY 		8-97406-229-9 01 1 0908- ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 0908-1011 ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 1012- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 0908-1011 ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 1012- ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 0908-1011 ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 1012- ● ●

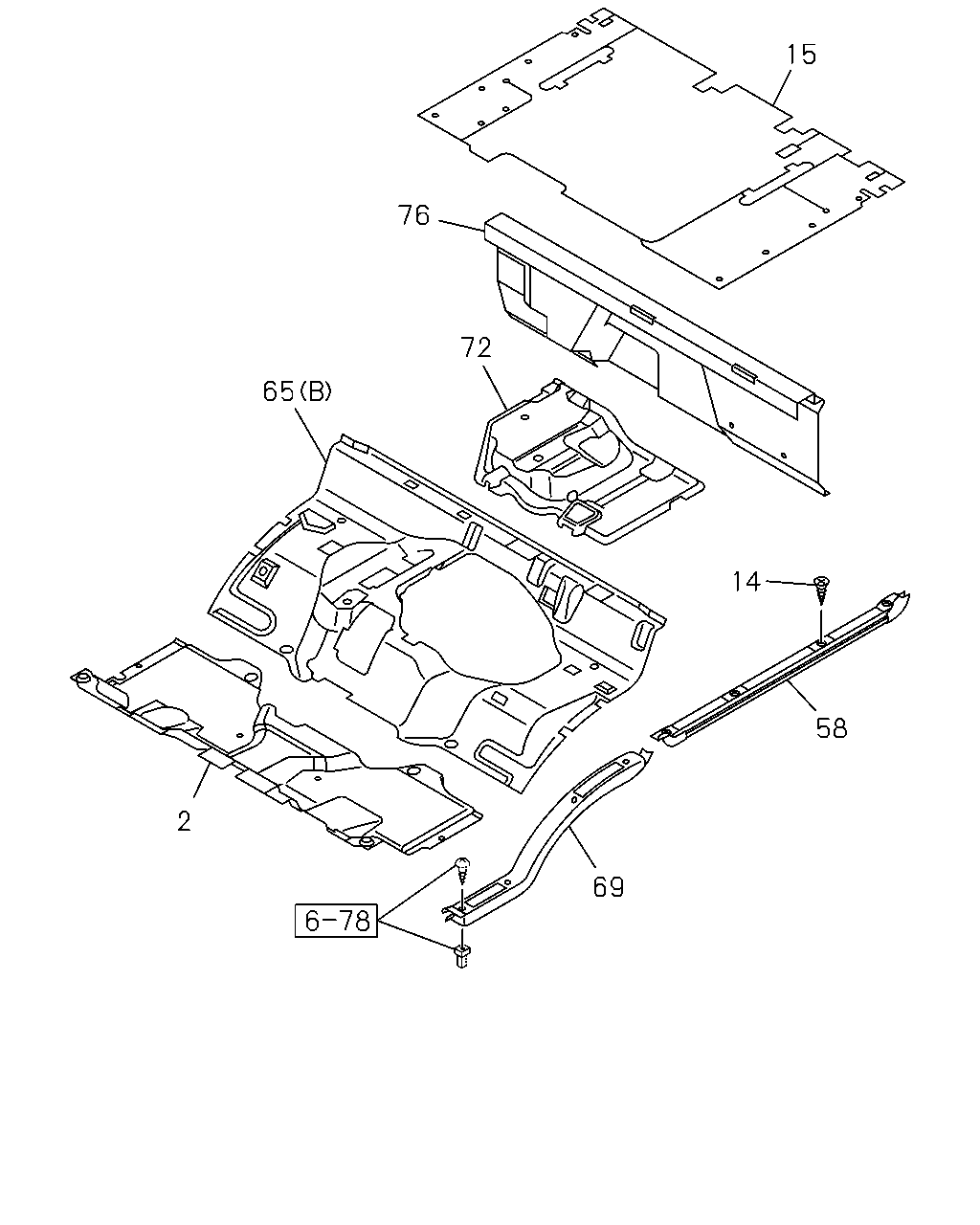

çizim 160196
15 14 58 69 2 65 72 76
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.800 MAT; FLOOR
GRAY 		8-97406-154-6 01 1 0908-1011 ●
2 16.800 MAT; FLOOR
GRAY 		8-97406-154-6 01 1 1012- ● ●
14 16.870 SCREW; PLATE
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 08 1 1012- ●
15 16.800 MAT; FLOOR REAR
GRAY 		8-97412-598-3 01 1 1012- ●
58 08.153 PLATE; GUARD,RR FLOOR MAT
GRAY 		8-97405-981-1 02 1 1012- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(B) GRAY 		8-97406-230-9 01 1 1012- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(A) GRAY 		8-97406-229-9 01 1 0908- ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 0908-1011 ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 1012- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 0908-1011 ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 1012- ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 0908-1011 ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 1012- ● ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
GRAY 		8-97412-596-2 01 1 1012- ●
