◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#53408) — 149 parça

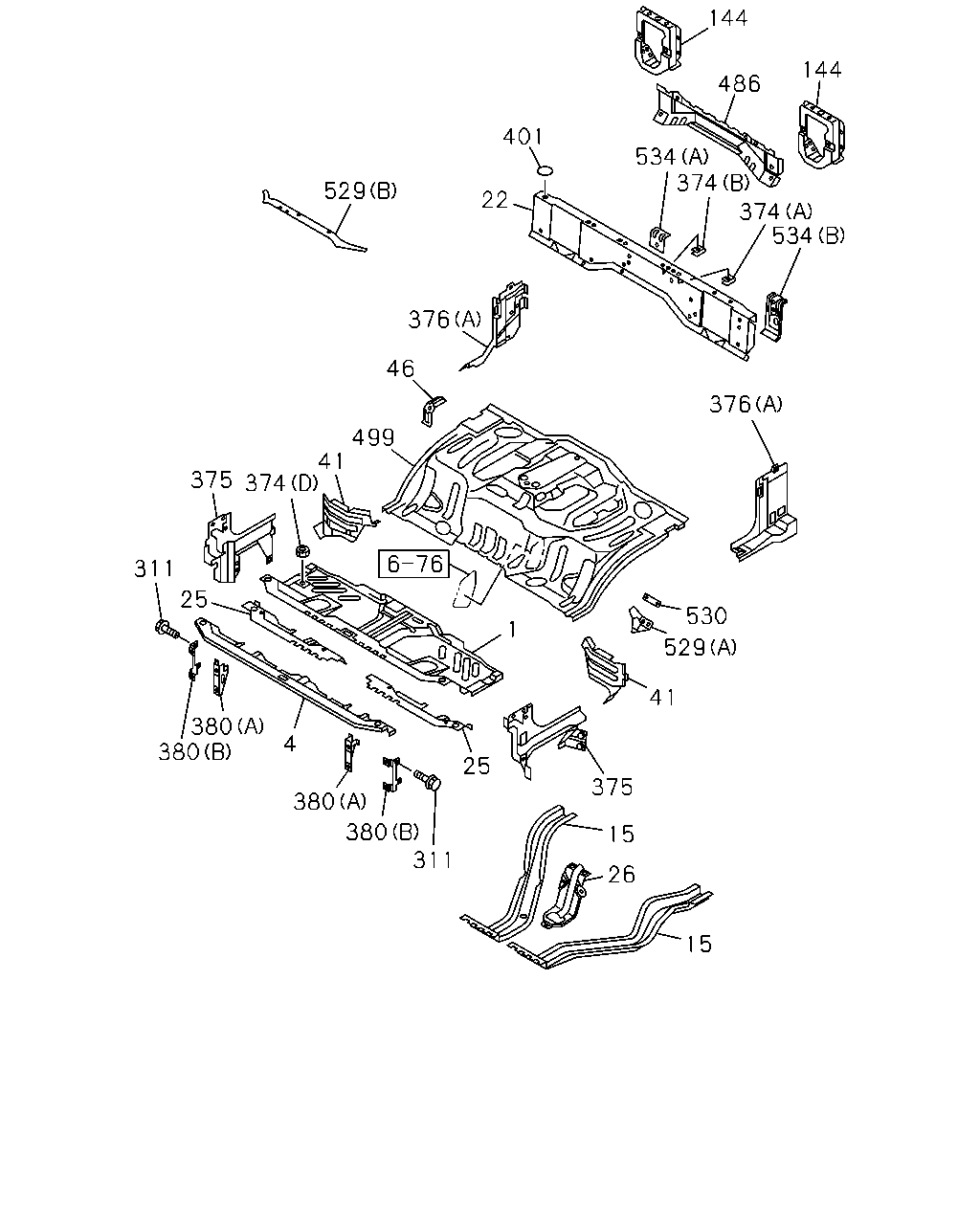

çizim 160060
144 144 486 534 374 374 534 376 530 529 41 375 15 26 15 311 380 380 4 380 380 311 25 375 374 41 499 46 376 529 22 401 25 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.545 PANEL; FLOOR 8-97583-910-5 01 1 0908-1011 ●
1 16.545 PANEL; FLOOR 8-97583-910-5 01 1 1012- ● ●
4 16.545 FRAME; FLOOR,FRT 8-98059-496-0 01 1 0908-1011 ●
4 16.545 FRAME; FLOOR,FRT 8-98059-496-0 01 1 1012- ● ●
15 16.545 FRAME; UNDER 8-98061-277-1 01 1 0908-1011 ●
15 16.545 FRAME; UNDER 8-98061-277-1 01 1 1012- ● ●
15 16.545 FRAME; UNDER 8-98061-278-1 01 1 0908-1011 ●
15 16.545 FRAME; UNDER 8-98061-278-1 01 1 1012- ● ●
22 16.545 FRAME; FLOOR REAR 8-97589-306-4 01 1 0908-1011 ●
22 16.545 FRAME; FLOOR REAR 8-97589-306-4 01 1 1012- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-030-1 01 1 0908-1011 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-030-1 01 1 1012- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-031-1 01 1 0908-1011 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-031-1 01 1 1012- ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-382-1 01 1 0908-1011 ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-382-1 01 1 1012- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-935-2 01 1 0908-1011 ●
41 16.545 SUPPORT; STEP,RR 8-97583-935-2 01 1 1012- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-936-2 01 1 0908-1011 ●
41 16.545 SUPPORT; STEP,RR 8-97583-936-2 01 1 1012- ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 0908-1011 ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1012- ● ●
144 16.545 BRACKET; MTG,RR 8-98112-244-2 02 1 1012- ●
144 16.545 BRACKET; MTG,RR 8-97589-544-3 02 1 0908- ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0908-1011 ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1012- ● ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1012- ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 0908-1011 ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1012- ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 0908-1011 ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1012- ● ●
374 16.545 NUT; FLOOR
(D) M8 		9-09114-068-0 04 1 0908- ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 0908-1011 ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1012- ● ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 0908-1011 ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1012- ● ●
376 16.545 CLOSING; PILLAR,LWR
(B) 		8-98024-544-7 01 1 1012- ●
376 16.545 CLOSING; PILLAR,LWR
(B) 		8-98024-545-6 01 1 1012- ●
376 16.545 CLOSING; PILLAR,LWR
(A) 		8-97583-888-2 01 1 0908- ●
376 16.545 CLOSING; PILLAR,LWR
(A) 		8-97584-618-2 01 1 0908- ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 0908-1011 ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1012- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 0908-1011 ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1012- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 0908-1011 ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1012- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 0908-1011 ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1012- ● ●
401 16.545 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 0908-1011 ●
401 16.545 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 1012- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-611-2 01 1 0908-1011 ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-611-2 01 1 1012- ● ●
499 16.545 PANEL; FLOOR,RR 8-97584-630-1 01 1 0908-1011 ●
499 16.545 PANEL; FLOOR,RR 8-97584-630-1 01 1 1012- ● ●
529 16.545 RETAINER; FLOOR PANEL
(B) 		8-97589-307-1 01 1 0908-1011 ●
529 16.545 RETAINER; FLOOR PANEL
(B) 		8-97589-307-1 01 1 1012- ● ●
529 16.545 RETAINER; FLOOR PANEL
(A) 		8-98030-358-0 01 1 0908-1011 ●
529 16.545 RETAINER; FLOOR PANEL
(A) 		8-98030-358-0 01 1 1012- ● ●
530 16.565 BRACKET; COVER 8-97589-255-0 01 1 0908-1011 ●
530 16.565 BRACKET; COVER 8-97589-255-0 01 1 1012- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-98007-678-2 01 1 0908-1011 ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-98007-678-2 01 1 1012- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 0908-1011 ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1012- ● ●

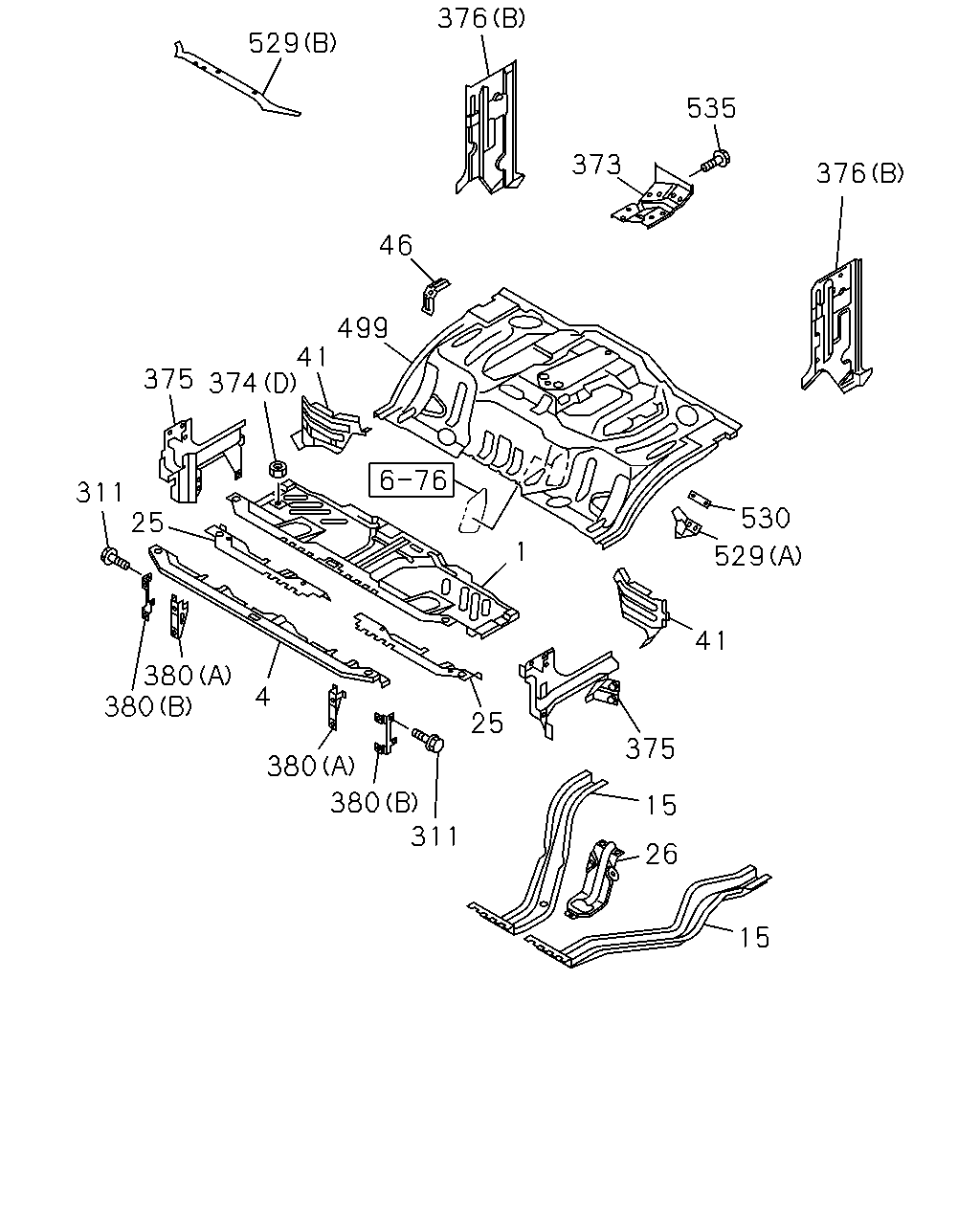

çizim 160062
376 530 529 41 375 15 26 15 311 380 25 1 380 4 380 380 25 311 375 374 41 499 46 376 373 535 529
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.545 PANEL; FLOOR 8-97583-910-5 01 1 0908-1011 ●
1 16.545 PANEL; FLOOR 8-97583-910-5 01 1 1012- ● ●
4 16.545 FRAME; FLOOR,FRT 8-98059-496-0 01 1 0908-1011 ●
4 16.545 FRAME; FLOOR,FRT 8-98059-496-0 01 1 1012- ● ●
15 16.545 FRAME; UNDER 8-98061-277-1 01 1 0908-1011 ●
15 16.545 FRAME; UNDER 8-98061-277-1 01 1 1012- ● ●
15 16.545 FRAME; UNDER 8-98061-278-1 01 1 0908-1011 ●
15 16.545 FRAME; UNDER 8-98061-278-1 01 1 1012- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-030-1 01 1 0908-1011 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-030-1 01 1 1012- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-031-1 01 1 0908-1011 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-031-1 01 1 1012- ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-382-1 01 1 0908-1011 ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-382-1 01 1 1012- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-935-2 01 1 0908-1011 ●
41 16.545 SUPPORT; STEP,RR 8-97583-935-2 01 1 1012- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-936-2 01 1 0908-1011 ●
41 16.545 SUPPORT; STEP,RR 8-97583-936-2 01 1 1012- ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 0908-1011 ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1012- ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0908-1011 ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1012- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
16.714 		8-98015-215-2 01 1 1012- ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1012- ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 0908-1011 ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1012- ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 0908-1011 ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1012- ● ●
374 16.545 NUT; FLOOR
(D) M8 		9-09114-068-0 04 1 0908- ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 0908-1011 ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1012- ● ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 0908-1011 ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1012- ● ●
376 16.545 CLOSING; PILLAR,LWR
(B) 		8-98024-544-7 01 1 1012- ●
376 16.545 CLOSING; PILLAR,LWR
(B) 		8-98024-545-6 01 1 1012- ●
376 16.545 CLOSING; PILLAR,LWR
(A) 		8-97583-888-2 01 1 0908- ●
376 16.545 CLOSING; PILLAR,LWR
(A) 		8-97584-618-2 01 1 0908- ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 0908-1011 ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1012- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 0908-1011 ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1012- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 0908-1011 ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1012- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 0908-1011 ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1012- ● ●
499 16.545 PANEL; FLOOR,RR 8-97584-630-1 01 1 0908-1011 ●
499 16.545 PANEL; FLOOR,RR 8-97584-630-1 01 1 1012- ● ●
529 16.545 RETAINER; FLOOR PANEL
(B) 		8-97589-307-1 01 1 0908-1011 ●
529 16.545 RETAINER; FLOOR PANEL
(B) 		8-97589-307-1 01 1 1012- ● ●
529 16.545 RETAINER; FLOOR PANEL
(A) 		8-98030-358-0 01 1 0908-1011 ●
529 16.545 RETAINER; FLOOR PANEL
(A) 		8-98030-358-0 01 1 1012- ● ●
530 16.565 BRACKET; COVER 8-97589-255-0 01 1 0908-1011 ●
530 16.565 BRACKET; COVER 8-97589-255-0 01 1 1012- ● ●
535 16.549 BOLT; REINFORCEMENT
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1012- ●

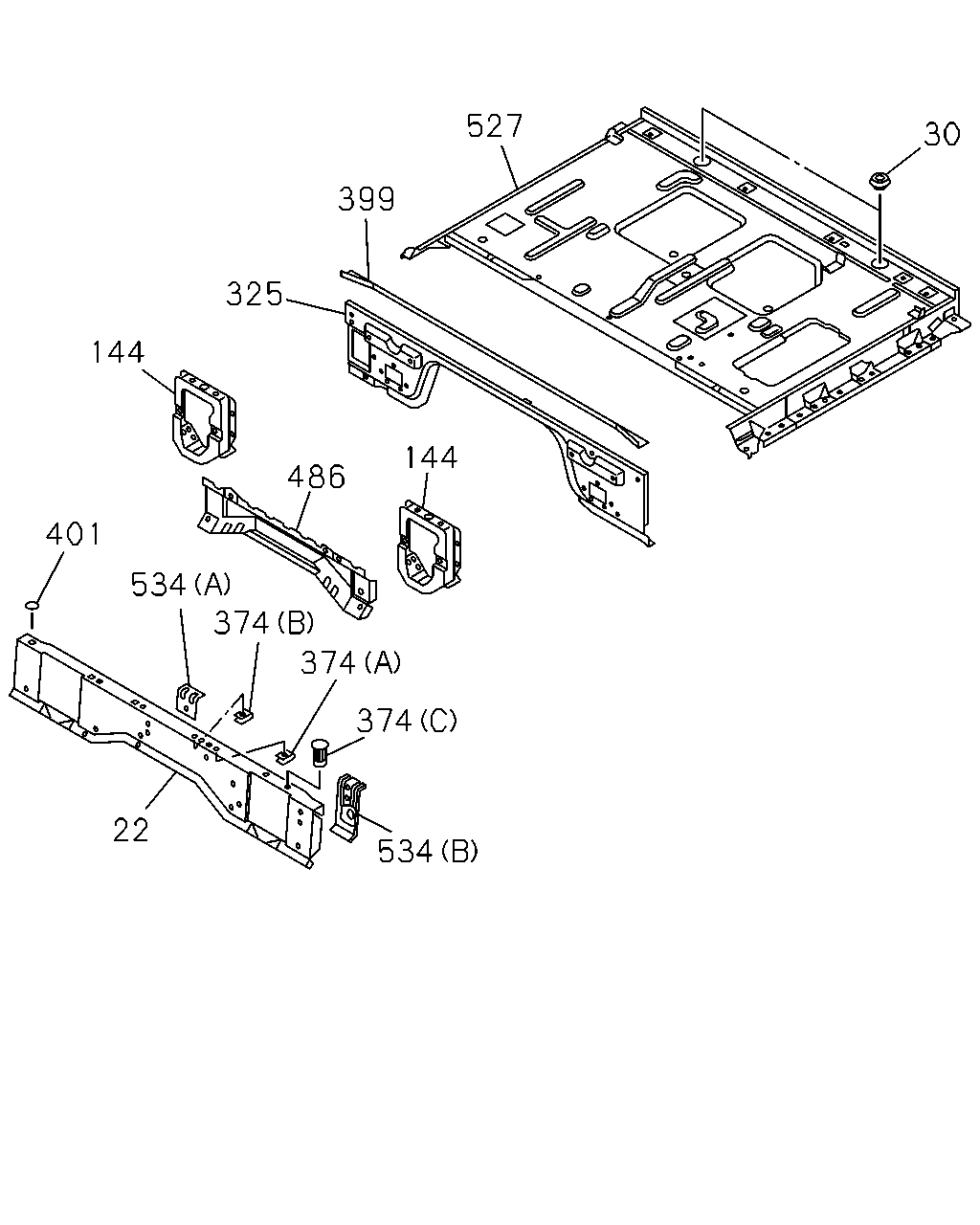

çizim 160193
527 30 144 374 374 534 22 534 374 401 144 325 486 399
BalonParca AdiParca NoAdetTipApplied Date A B
22 16.545 FRAME; FLOOR REAR 8-97589-306-4 01 1 0908-1011 ●
22 16.545 FRAME; FLOOR REAR 8-97589-306-4 01 1 1012- ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 1012- ●
144 16.545 BRACKET; MTG,RR 8-98112-244-2 02 1 1012- ●
144 16.545 BRACKET; MTG,RR 8-97589-544-3 02 1 0908- ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-97588-942-2 01 1 1012- ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1012- ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 0908-1011 ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1012- ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 0908-1011 ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1012- ● ●
374 16.545 NUT; FLOOR
(D) M8 		9-09114-068-0 04 1 0908- ●
399 16.545 PANEL; EXTENSION,RR MTG RAIL 8-97588-952-1 01 1 1012- ●
401 16.545 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 0908-1011 ●
401 16.545 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 1012- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-611-2 01 1 0908-1011 ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-611-2 01 1 1012- ● ●
527 16.545 FLOOR; RR 8-98153-122-0 01 1 1012- ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-98007-678-2 01 1 0908-1011 ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-98007-678-2 01 1 1012- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 0908-1011 ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1012- ● ●

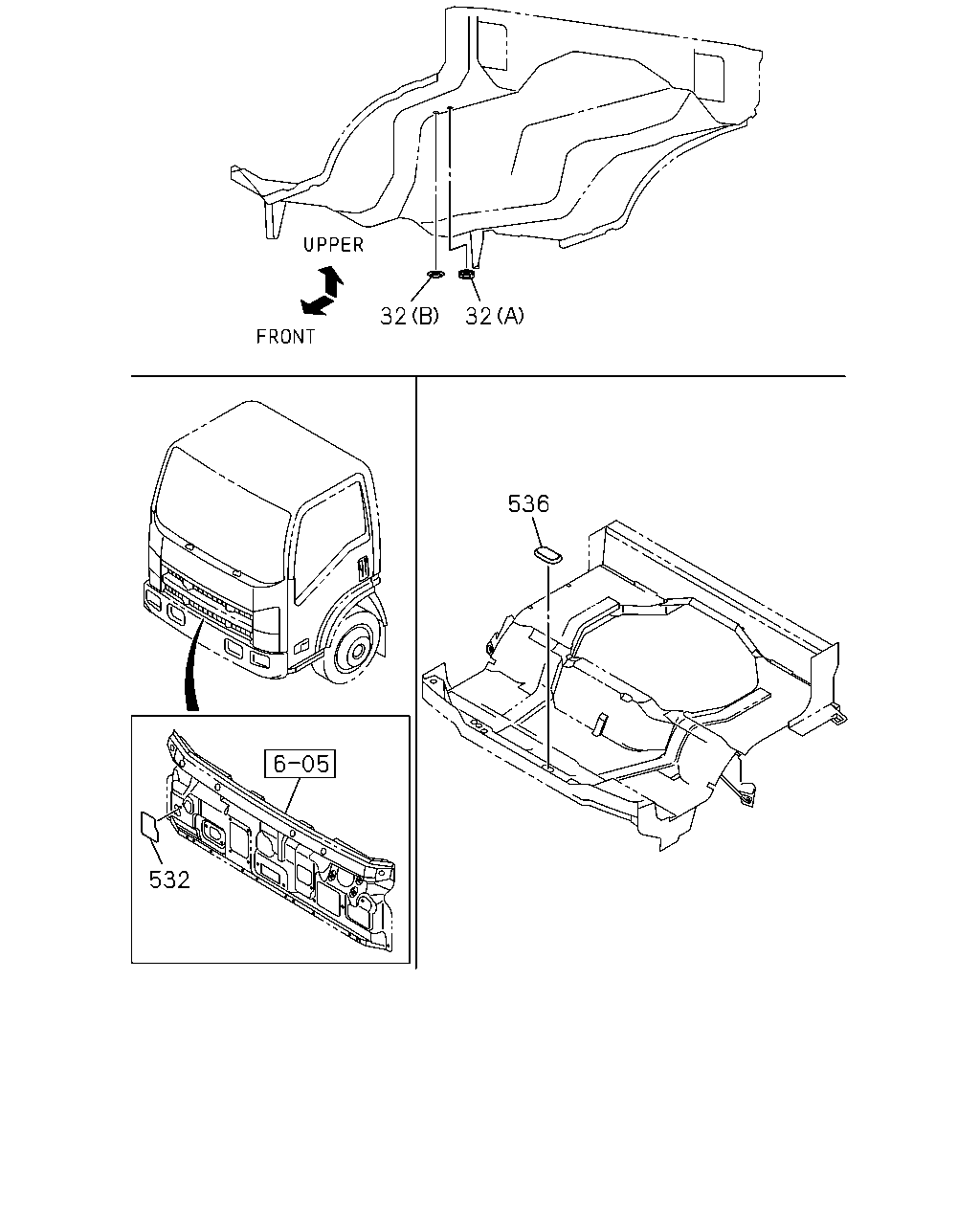

çizim 160197
32 32 536 532
BalonParca AdiParca NoAdetTipApplied Date A B
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 0908-1011 ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 1012- ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
00.785 (A) OD=16.2 		8-94492-493-0 02 1 0908-0908 ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 0909-1011 ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 1012- ● ●
532 16.520 SEAL; CABLE
EXC. PTO MANUAL CONTROL(6WC) 		8-98042-432-1 01 1 1004-1011 ●
532 16.520 SEAL; CABLE
EXC. PTO MANUAL CONTROL(6WC) 		8-98042-432-1 01 1 1012- ● ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 0908-1011 ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 1012- ● ●
