6-66 — HEAD LINING AND TRIM (#53407) — 47 parça

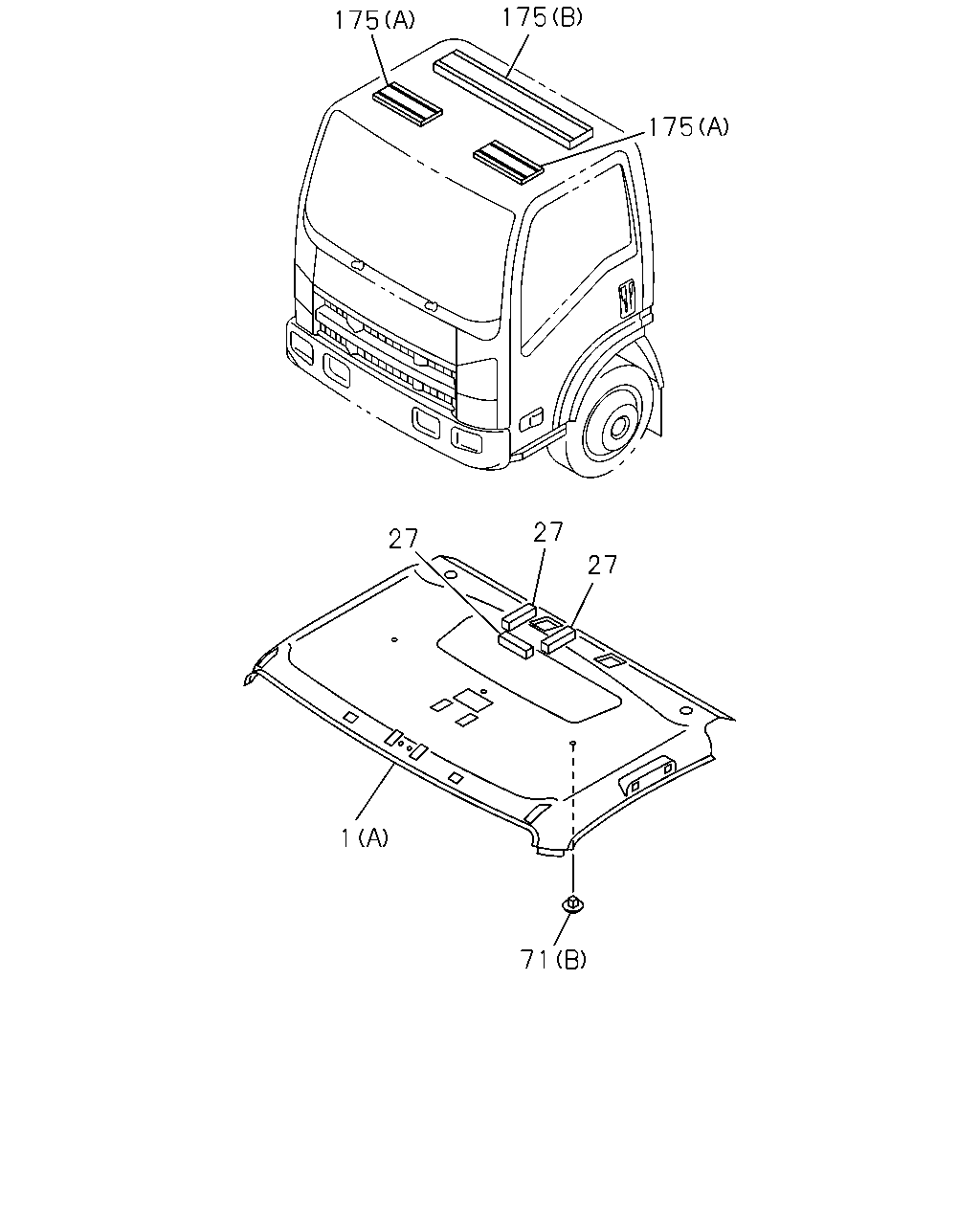

çizim 160049
175 175 175 27 27 27 1 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.742 LINING; HD
FLUORESCENT LAMP<6UC> HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97406-285-4 01 1 1009-1211 ●
1 16.742 LINING; HD
FLUORESCENT LAMP<6UC> HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97425-044-0 01 1 1212- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97406-284-4 01 1 0908-1008 ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. FLUORESCENT LAMP<6UC> (A) DARK GRAY 		8-97406-284-4 01 1 1009-1211 ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. FLUORESCENT LAMP<6UC> (A) DARK GRAY 		8-97425-043-0 01 1 1212- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97406-291-4 01 1 1012- ●
27 16.165 INSULATION; ROOF
FLUORESCENT LAMP<6UC> 		8-98046-638-2 03 1 1009- ●
71 16.742 FASTENER; HD LINING
(B) D=8.7X16.5 DARK GRAY 		8-97405-282-0 34 1 1012- ●
71 16.742 FASTENER; HD LINING
(A) DARK GRAY 		8-97411-797-0 01 1 1012- ●
71 16.742 FASTENER; HD LINING
(B) D=8.7X16.5 DARK GRAY 		8-97405-282-0 02 1 0908- ●
71 16.742 FASTENER; HD LINING
(B) D=11.6X13.6 DARK GRAY 		8-97405-301-2 03 1 0908- ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-98053-866-2 02 1 1012- ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 04 1 1012- ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-98051-799-2 01 1 0908- ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 0908-1011 ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1012- ● ●

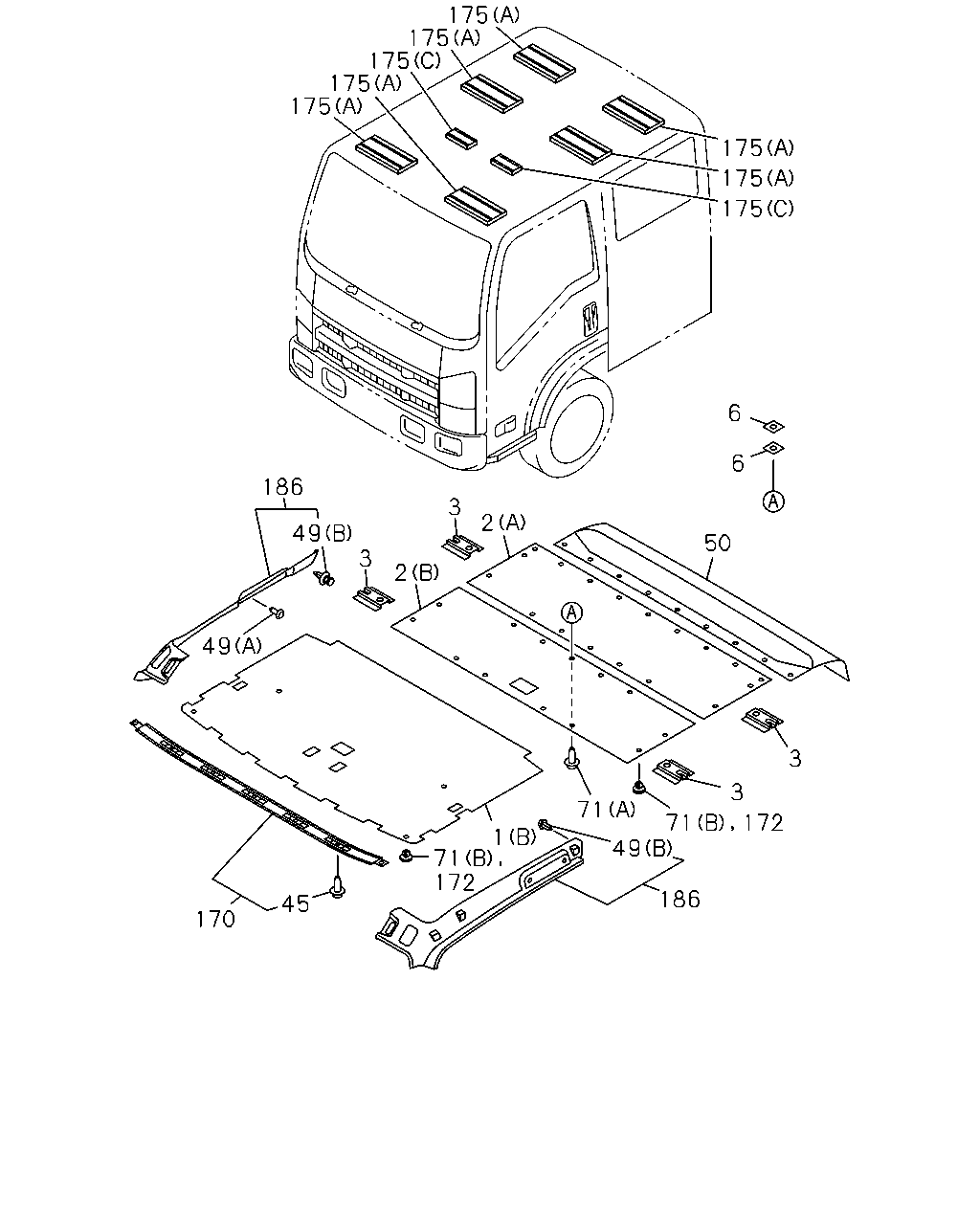

çizim 160198
175 175 175 175 175 175 175 175 6 6 50 3 3 71 71 172 49 186 1 71 172 45 170 49 186 49 3 2 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.742 LINING; HD
FLUORESCENT LAMP<6UC> HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97406-285-4 01 1 1009-1211 ●
1 16.742 LINING; HD
FLUORESCENT LAMP<6UC> HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97425-044-0 01 1 1212- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97406-284-4 01 1 0908-1008 ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. FLUORESCENT LAMP<6UC> (A) DARK GRAY 		8-97406-284-4 01 1 1009-1211 ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. FLUORESCENT LAMP<6UC> (A) DARK GRAY 		8-97425-043-0 01 1 1212- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97406-291-4 01 1 1012- ●
2 16.742 LINING; HD,ROOF RR
(A) DARK GRAY 		8-97406-292-2 01 1 1012- ●
2 16.742 LINING; HD,ROOF RR
(B) DARK GRAY 		8-97407-331-3 01 1 1012- ●
3 16.575 COVER; TRIM,ROOF SIDE
DARK GRAY 		8-97407-365-0 04 1 1012- ●
6 16.742 SPACER; HD LINING
1 SET=20 PIECE 		8-98100-429-0 01 1 1012- ●
45 16.742 CLIP; FINISHER 8-98035-592-1 03 1 1012- ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 02 1 1012- ●
49 16.742 CLIP; TRIM COVER
HEADER TRAY DRIVER & PASSENGER<8LY> 16.578 (B) 		8-98059-610-0 03 1 1012-1410 ●
49 16.742 CLIP; TRIM COVER
HEADER TRAY DRIVER & PASSENGER<8LY> 16.578 (B) 		8-98059-610-0 03 1 1012-1410 ●
49 16.742 CLIP; TRIM COVER
HEADER TRAY DRIVER & PASSENGER<8LY> 16.578 (B) 		8-98059-610-0 02 1 1411- ●
49 16.742 CLIP; TRIM COVER
HEADER TRAY DRIVER & PASSENGER<8LY> 16.578 (B) 		8-98059-610-0 02 1 1411- ●
49 16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 04 1 1012- ●
50 16.742 TRIM; ROOF BACK
DARK GRAY 		8-97406-295-2 01 1 1012- ●
71 16.742 FASTENER; HD LINING
(B) D=8.7X16.5 DARK GRAY 		8-97405-282-0 34 1 1012- ●
71 16.742 FASTENER; HD LINING
(A) DARK GRAY 		8-97411-797-0 01 1 1012- ●
71 16.742 FASTENER; HD LINING
(B) D=8.7X16.5 DARK GRAY 		8-97405-282-0 02 1 0908- ●
71 16.742 FASTENER; HD LINING
(B) D=11.6X13.6 DARK GRAY 		8-97405-301-2 03 1 0908- ●
170 16.742 FINISHER; HEAD LINING
DARK GRAY 		8-97406-296-4 01 1 1012- ●
172 16.742 RETAINER; HEAD LINING
DARK GRAY 		8-97405-282-0 19 1 1012- ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-98053-866-2 02 1 1012- ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 04 1 1012- ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-98051-799-2 01 1 0908- ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 0908-1011 ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1012- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 1012- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 1012- ●
