Isuzu WW
▶
TRUCKS
▶
NLS
▶
51258 - NLS RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

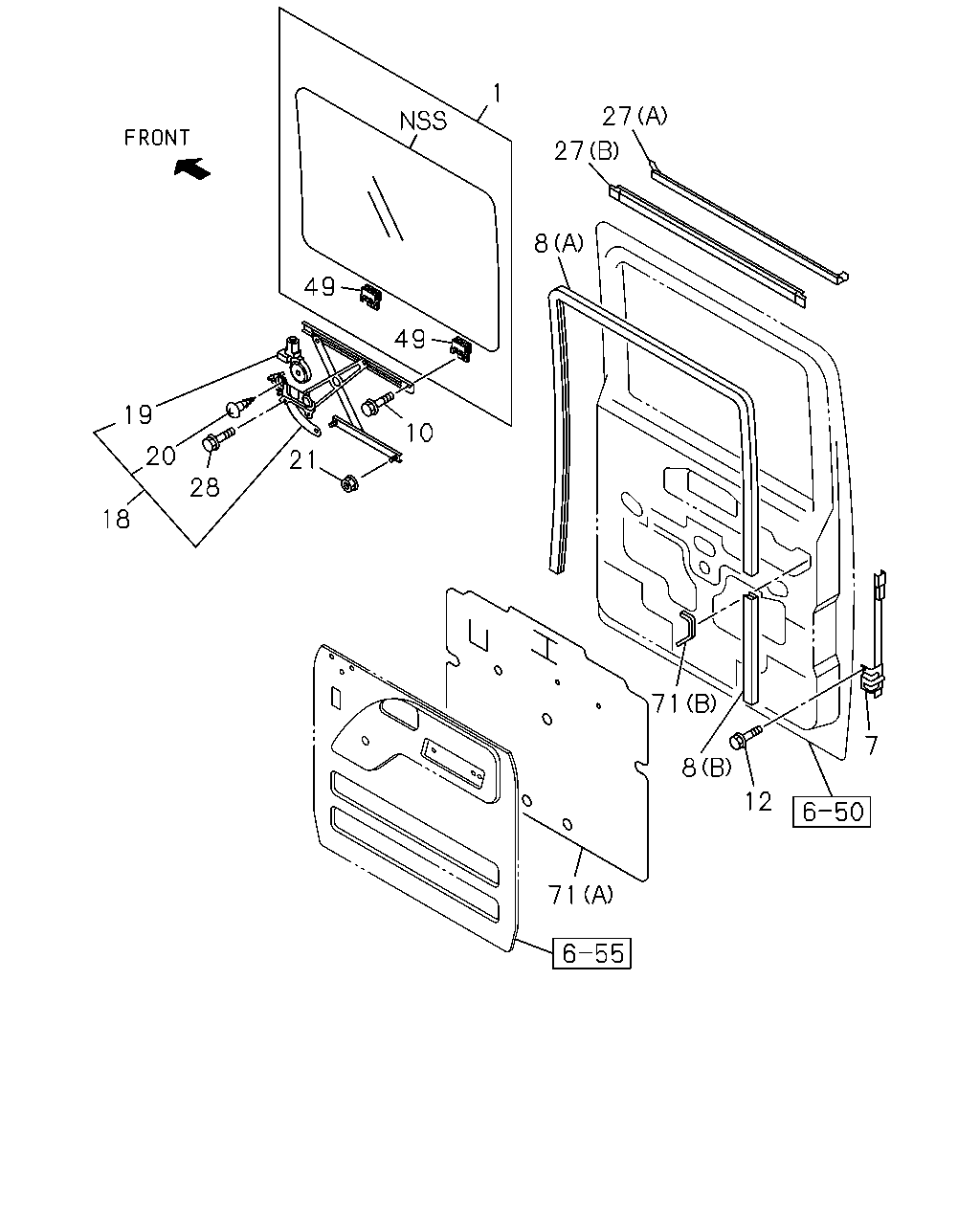

6-51 - REAR DOOR GLASS AND REGULATOR
▶
6-51 — REAR DOOR GLASS AND REGULATOR
(#53403) — 24 parça
1
49
49
10
21
28
20
19
18
27
27
8
71
8
12
7
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.180 GLASS; RR DOOR
8-97587-680-2
01
1
1012-1204
1
16.180 GLASS; RR DOOR
8-98211-769-0
01
1
1205-
1
16.180 GLASS; RR DOOR
8-97587-681-2
01
1
1012-1204
1
16.180 GLASS; RR DOOR
8-98211-770-0
01
1
1205-
7
16.190 CHANNEL; GLASS RUN,RR DOOR
8-98032-137-2
01
1
1012-
7
16.190 CHANNEL; GLASS RUN,RR DOOR
8-98032-138-2
01
1
1012-
8
16.190 RUN; GLASS,RR DOOR
(A)
8-97587-685-1
01
1
1012-
8
16.190 RUN; GLASS,RR DOOR
(A)
8-98002-256-1
01
1
1012-
8
16.190 RUN; GLASS,RR DOOR
(B)
8-98070-147-0
02
1
1012-
10
16.183 SCREW; GLASS
03.671 BOLT M6X10 FLANGE
0-28050-610-0
04
1
1012-
12
16.181 SCREW; CHANNEL,GLASS RUN
03.671 BOLT M6X10 FLANGE
0-28050-610-0
04
1
1012-
18
16.260 REGULATOR; WINDOW,RR DOOR
8-97587-695-3
01
1
1012-
18
16.260 REGULATOR; WINDOW,RR DOOR
8-97587-696-3
01
1
1012-
19
16.263 MOTOR; POWER WINDOW REG,RR DOOR
8-98072-300-0
01
1
1012-
19
16.263 MOTOR; POWER WINDOW REG,RR DOOR
8-98072-301-0
01
1
1012-
20
16.270 SCREW
16.230
8-98058-431-0
06
1
1012-
21
16.270 NUT; FLANGE,WINDOW REG
01.062 M6 FLANGE
0-91180-106-0
04
1
1012-
27
16.183 SEAL; WAIST,RR DOOR
(A)
8-97587-691-1
02
1
1012-
27
16.183 SEAL; WAIST,RR DOOR
(B)
8-97587-692-1
02
1
1012-
28
16.181 BOLT; WINDOW REG
03.671 M6X10 FLANGE
0-28050-610-0
08
1
1012-
49
16.180 HOLDER; DOOR GLASS
16.183
8-98041-907-0
04
1
1012-1204
49
16.180 HOLDER; DOOR GLASS
16.183
8-98211-762-0
04
1
1205-
71
16.183 SEAL; WATER,RR DOOR
(A)
8-97587-700-1
02
1
1012-
71
16.183 SEAL; WATER,RR DOOR
(B)
8-98061-351-0
02
1
1012-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
